Amana PGT130UD (BOM: P1131488N D)

Model: PGT130UD (BOM: P1131488N D)

Save Part Not Listed?
product name

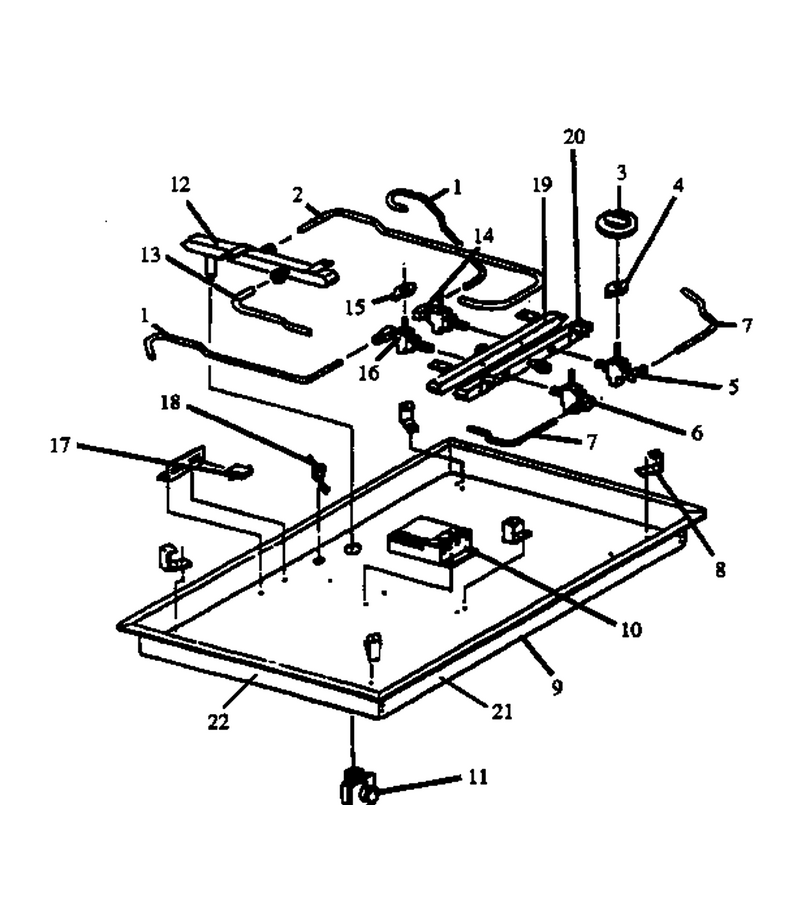

02 - Page 2

...
...
NI
Screw 1/4-20-4`` 590 595 WPL-Y0041836
...
1
Tubing Rear Burners WPL-0305258
...
2
Tubing WPL-Y0305072
...
3
Knob Gas Valve WPL-0304800
...
4
Spark Switch WPL-Y0304121
...
5
Valve Rf WPL-0304939
...
6
Valve Lf WPL-Y0304940
...
7
Tubing, Front Burners WPL-0305260
...
8
Spacer Bracket WPL-0305244
...
9
Burner Box Bottom 30`` WPL-Y0305356
...
10
Spark Module Reignition WPL-Y0302244
...
11
Regulator WPL-Y0304611
...
12
Fitting, 1/8``x 3/8`` WPL-Y0301263
...
13
Tubing, Inlet To Rear Mani. WPL-Y0305063
...
14
Valve Rr WPL-Y0304937
...
15
Spark Switch WPL-Y0302242
...
16
Valve Lr WPL-Y0304938
...
17
Term Hous 1m-5m-10m WPL-0042107
...
18
Cord Set WPL-0303585
...
19
Manifold, Rear Valves WPL-0305372
...
20
Manifold, Front Valves WPL-0305374
...
21
W/a Burner Box Side WPL-Y0305249
...
22
W/assy, Burner Box Side WPL-Y0305248

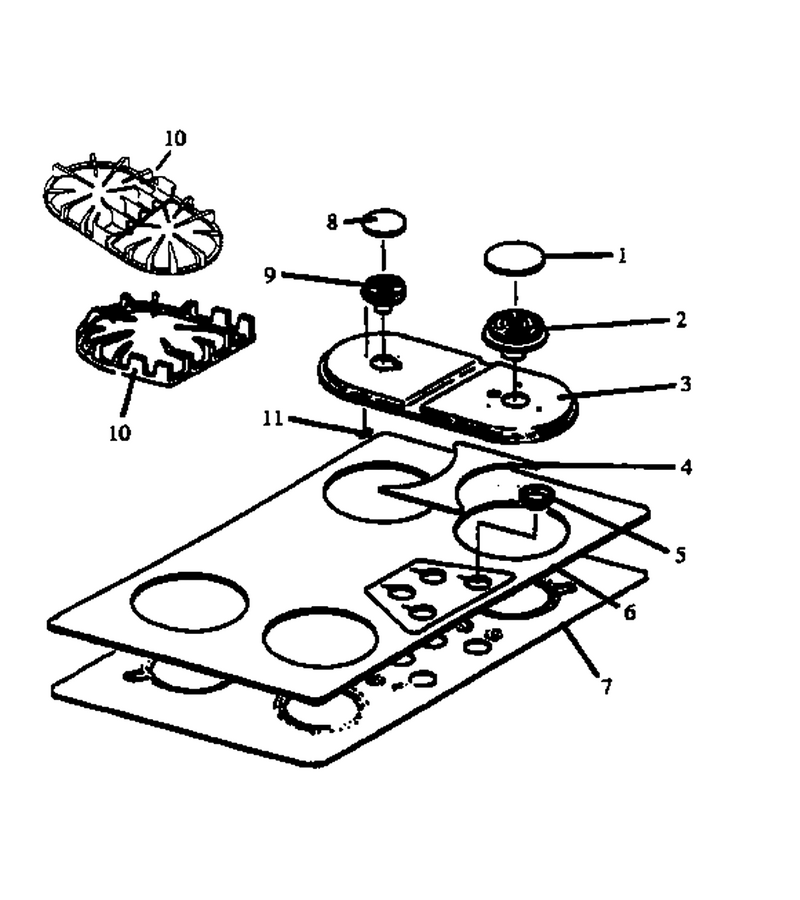

01 - Page 1

...
...
NI
Clip, Electrode WPL-Y07714200
...
1
Cap, Burner (Large) WPL-314638B
...
2
Burner Body, Large WPL-304908
...
3
Burner Plate Black WPL-303525B
...
4
Insulation Glass WPL-0304841
...
5
Nylon Drip Guard Black WPL-0303432
...
6
Glass Top 30`` Black WPL-Y0304849
...
7
Plate Glass Support (30) WPL-0304836
...
8
Cap, Burner (Small) WPL-314637B
...
9
Burner Body Assy Small WPL-0304909
...
10
Grate, Double WPL-306789B
...
11
Spee Nut Mount Brack To Frame WPL-0097909
