Amana PGT130 (BOM: P1131463N D)

Model: PGT130 (BOM: P1131463N D)

Save Part Not Listed?
product name

02 - Page 2

...
...
NI
Screw WPL-WP8281227
...
1
Tubing Valve To Lr Burner WPL-Y0303517
...
2
Tubing Inlet To Front WPL-Y0303520
...
3
Knob, Gas Valve WPL-0058752
...
4
Spark Switch WPL-Y0304121
...
5
Valve Rf WPL-Y0303979
...
6
Valve Lf WPL-0303978
...
7
Tubing Valve To Lf Burner WPL-Y0303519
...
8
Mounting Bracket Support Plate WPL-Y0303834
...
9
Bottom, 30`` Burn. Box WPL-Y0305201
...
10
Spark Module Reignition WPL-Y0302244
...
11
Regulator WPL-Y0304611
...
12
Manifold Inlet WPL-0303555
...
13
Tubing, Inlet To Rear Manifold WPL-0303521
...
14
Valve Rr WPL-Y0303552
...
15
Spark Switch WPL-Y0302242
...
16
Valve Lr WPL-Y0303551
...
17
Term Hous 1m-5m-10m WPL-0042107
...
18
Cord Set WPL-0303585
...
19
Manifold Rear Valves WPL-Y0303556
...
20
Manifold Front Valve WPL-Y0304923
...
21
W/a Burner Box Side WPL-Y0305249
...
22
W/assy, Burner Box Side WPL-Y0305248

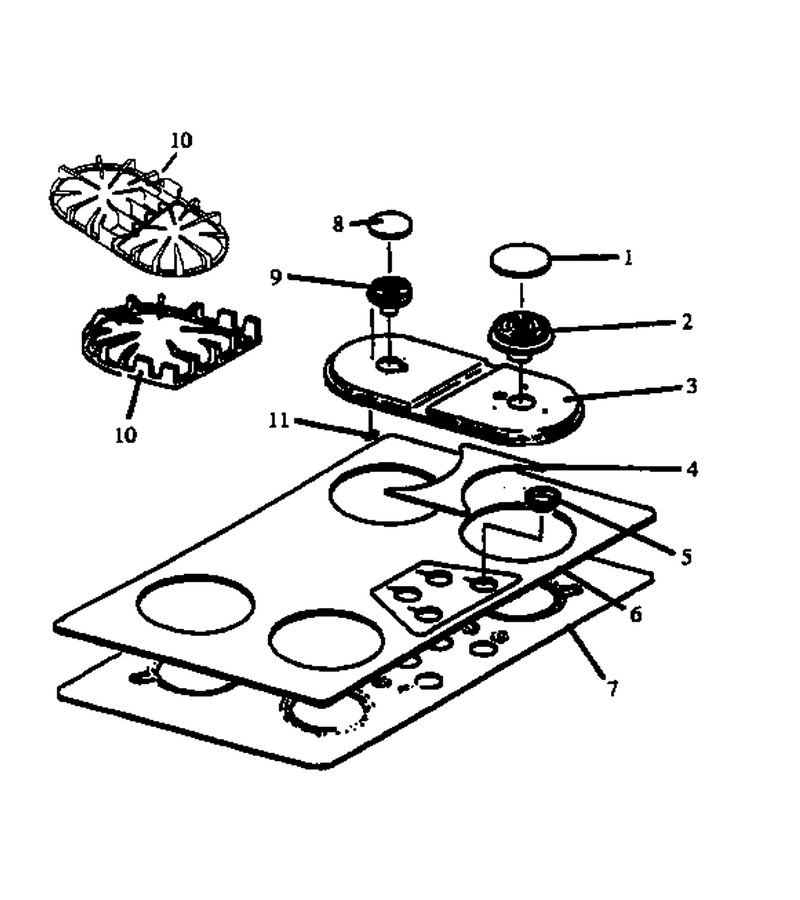

01 - Page 1

...
...
NI
Clip, Electrode WPL-Y07714200
...
1
Cap, Burner (Large) WPL-314638B
...
2
Burner Body, Large WPL-304908
...
3
Burner Plate Black WPL-303525B
...
4
Insulation Glass WPL-0304841
...
5
Nylon Drip Guard Black WPL-0303432
...
6
Glass Top WPL-Y0303182
...
7
Support Plate, 30``, Glass WPL-Y0303509
...
8
Cap, Burner (Small) WPL-314637B
...
9
Burner Body Assy Small WPL-0304909
...
10
Grate, Top Burner WPL-305811B
...
11
Spee Nut Mount Brack To Frame WPL-0097909
