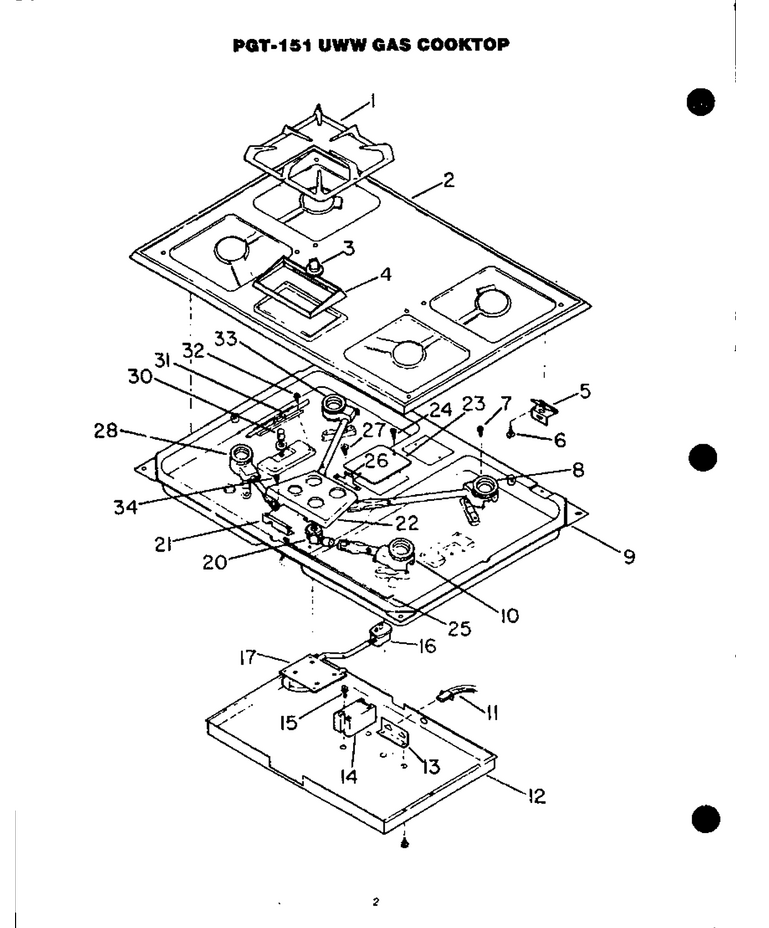

Amana PGT-151UWW (BOM: PGT-151UW W)

Model: PGT-151UWW (BOM: PGT-151UW W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

01 - Page 1

...
...
NI
Screw WPL-W11245710
...
1
Grate, Gas Top - Dk Grey WPL-Y0301170
...
2
Main Top WPL-W10124560
...
3
Knob Top Burner WPL-Y0303396
...
4
Control Tower WPL-Y0303397
...
5
Screw WPL-W11245710
...
6
Screw WPL-0067064
...
7
Metal Screw 10x1/2w/8hex Wa/hd WPL-Y0041803
...
8
Top Burner 1000 Min WPL-0042351
...
9
Burner Box 30`` Cooktop WPL-Y0040479
...
10
Top Burner 1000 Min WPL-0042352
...
11
Term Hous 1m-5m-10m WPL-0042107
...
12
Bottom Shield Bb Gt451 423 WPL-Y0040789
...
13
Disconnect Bkt Littom Combo WPL-Y0040876
...
14
Spark Module WPL-Y0066564
...
15
Screw, No.8-32 X 3/8 Hex Wsh Hd WPL-Y0041825
...
16
Regulator WPL-0042303
...
17
Manifold Pipe Gt-451 423 WPL-0042370
...
20
Valve Top Burner WPL-0303477
...
21
Panel Front Support Gt251 WPL-Y0041014
...
22
Control Panel WPL-0304005
...
23
Access Cover WPL-Y0040632
...
24
Screw WPL-WP90767
...
25
Top Support Rod WPL-0042734
...
26
Decorative Panel Rear Sup WPL-Y0041039
...
27
Screw WPL-WP90767
...
28
Top Burner 1000 Min WPL-0042354
...
30
Assy., Elec. Cap Bracket WPL-0052677
...
31
Flash Tube Assy Gt-451 423 WPL-Y0040813
...
32
Screw WPL-WP90767
...
33
Top Burner 1000 Min WPL-0042353
