Amana PBC112A00A (BOM: P1224907R)

Model: PBC112A00A (BOM: P1224907R)

product name

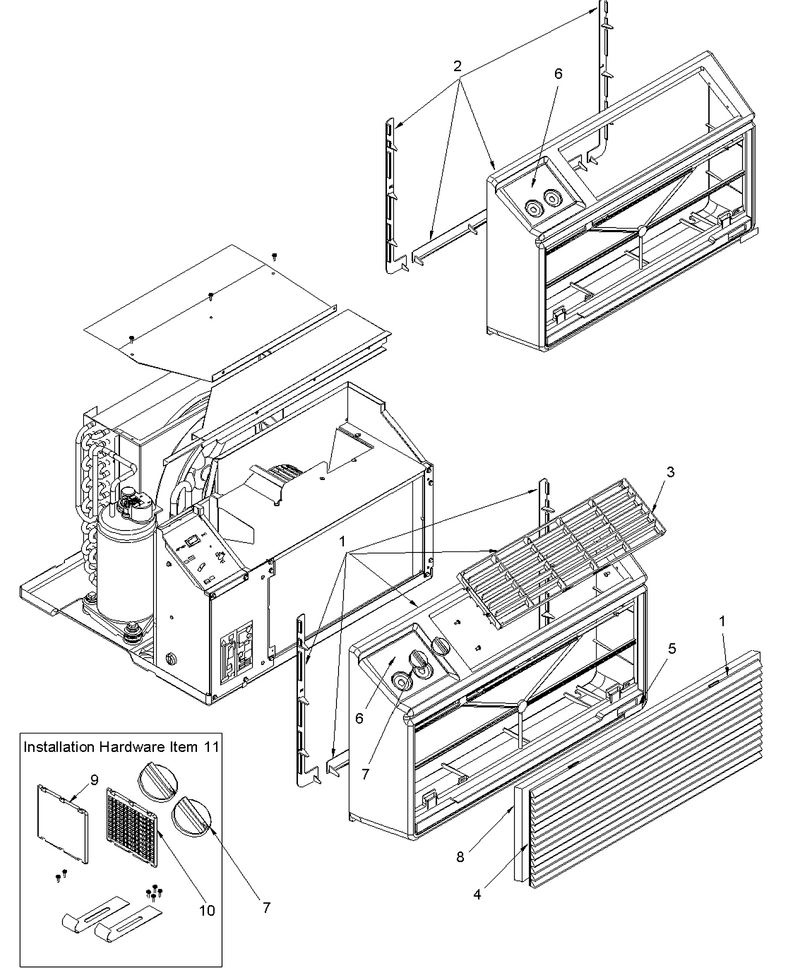

03 - Outer Case Assy

...
...
Note: If Complete Front Is Required, Order Front Assy, Control Label, Logo And Filter. When Ordering Front Frame Only Order Control Label And Logo Also. WPL-NOTE:

...
NI
Rac Install Instruc/owners Man WPL-RACIO23

...
1
Frame, Front WPL-BT3375004

...
2
Frame W/ Trim/strips WPL-BT3375104

...
3
Grill, Ttw WPL-BT3375600

...
4
Grill Return Air WPL-BT3375200

...
5
Logo, Amana (thru-The-Wall) WPL-BT3075919

...
6
Label, Control WPL-BT14933340

...
7

...
8
Air Filter WPL-BT1369603

...
9
Plug, Fresh Air WPL-BT3076001


...
11
Kit, Ttw Instal WPL-Y3352000

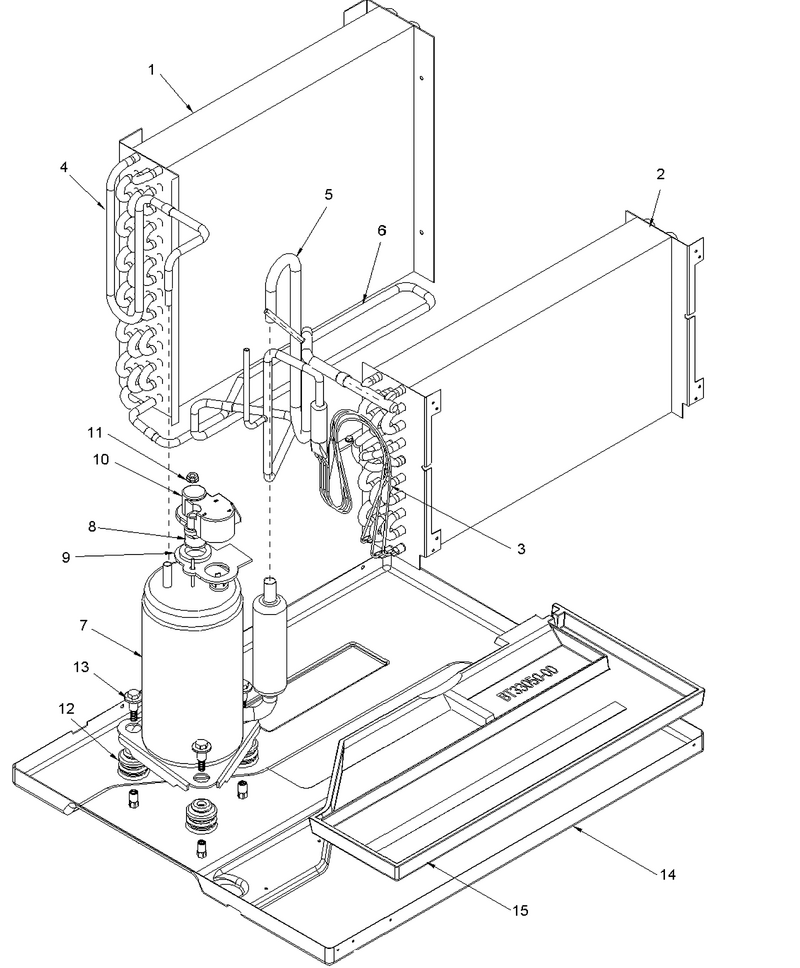

01 - Compressor Assy

...
...
1
Assy, Condenser Coil WPL-Y3396506

...
2
Assy, Tubing Evap Coil 10k WPL-3396001

...
3
Cap Weld - WPL-96001031

...
4
Tubing, Comp. Discharge WPL-Y3393621

...
5
Assy, Suction Line WPL-Y3393707

...
6
Assy, Liquid Line WPL-Y3393800

...
7
Compressor WPL-D9831804

...
8
Switch, Overload (serv) WPL-BT1243703

...
9
Gasket, Compressor (tec) WPL-BT1392604

...
10
Plastic Cover WPL-BT3055505

...
11
Nut, (tecumseh) WPL-BT1393000

...
12
Grommet. Comp WPL-A3448601

...
13
Bolt, Comp. Shoulder 5/16-18 WPL-BT1393704

...
14
Assy,base Pan(ttw) WPL-3350200S

...
15
Pan, Drain (styrofoam) WPL-BT3305000

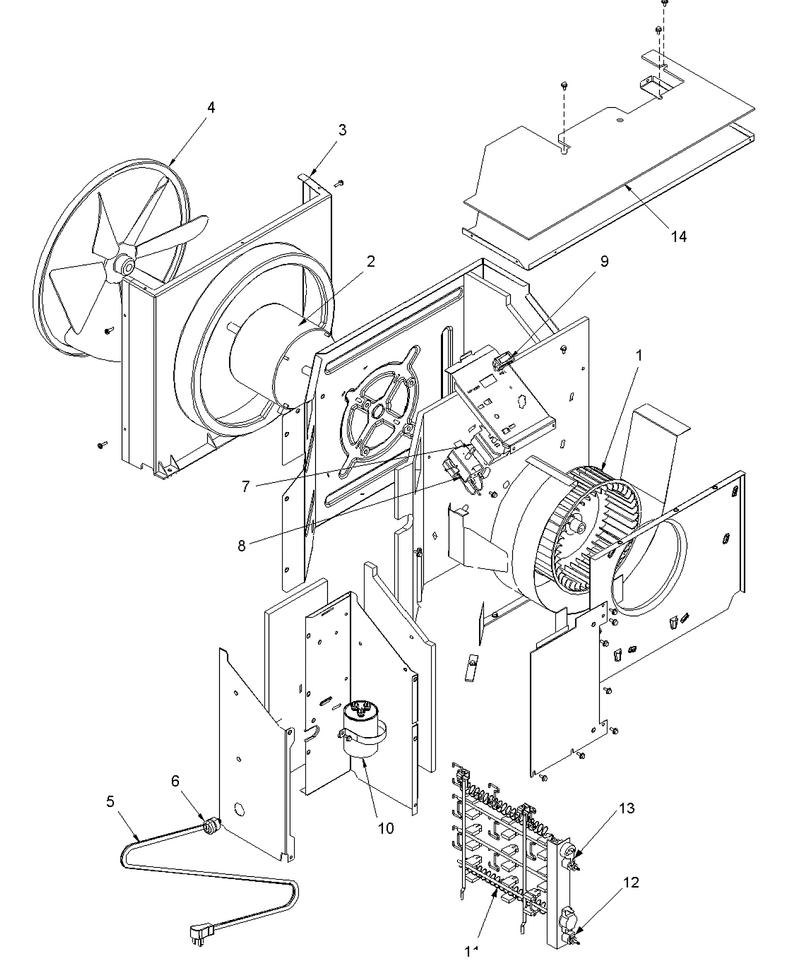

02 - Fan And Control Assy

...
...
1
Wheel, Blower WPL-BT1368005

...
2
Motor- 1 6 WPL-BT1340010S

...
3
Shroud, Fan WPL-BT3311000

...
4
Blade, Fan WPL-BT1086703

...
5
Cord, Power (serv) WPL-BT1210005

...
6
Strain Relief WPL-8536977

...
7
Switch, Power 5 Pos WPL-BT1370814

...
8
Thermostat, Long Shaft (serv) WPL-BT1370805

...
9
Switch, Rocker WPL-BT1370812

...
10
Capacitor WPL-BT9457004

...
14
Insulation,top Cover WPL-BT3393010
