Amana PBC102A00A (BOM: P1224906R)

Model: PBC102A00A (BOM: P1224906R)

product name

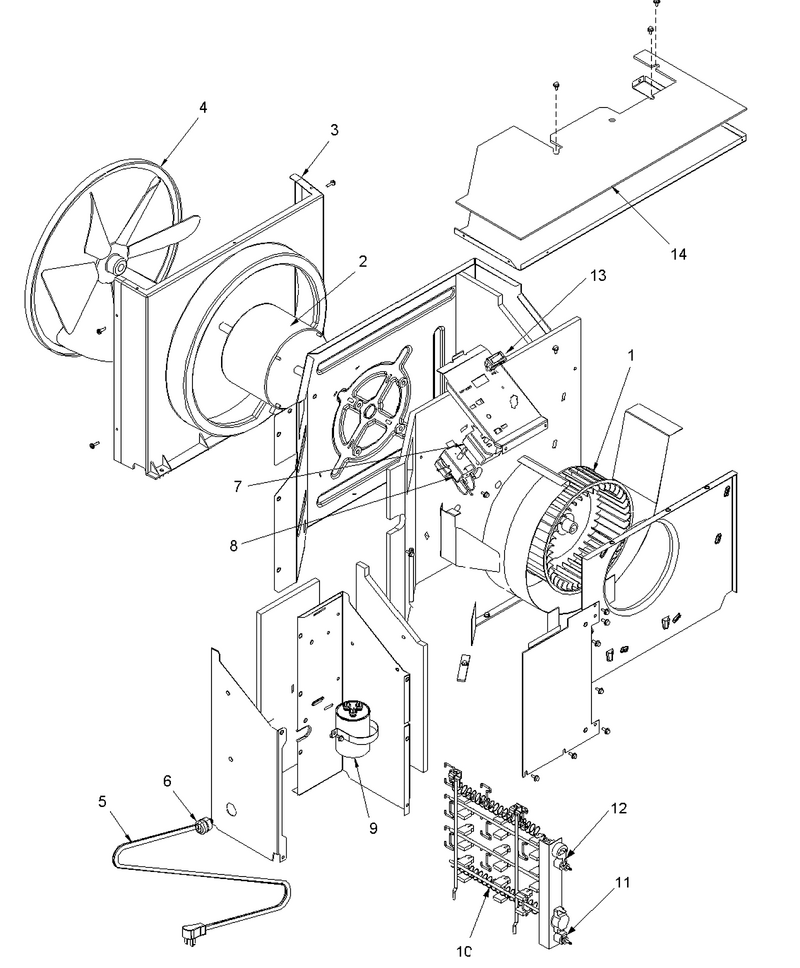

02 - Fan And Control Assy

...
...
1
Wheel, Blower WPL-BT1368005

...
2
Motor- 1 6 WPL-BT1340010S

...
3
Shroud, Fan WPL-BT3311000

...
4
Blade, Fan WPL-BT1086703

...
5
Cord, Power (serv) WPL-BT1210005

...
6
Strain Relief WPL-8536977

...
7
Switch, Power 5 Pos WPL-BT1370814

...
8
Thermostat, Long Shaft (serv) WPL-BT1370805

...
9
Capacitor WPL-876905

...
13
Switch, Rocker WPL-BT1370812

...
14
Insulation,top Cover WPL-BT3393010

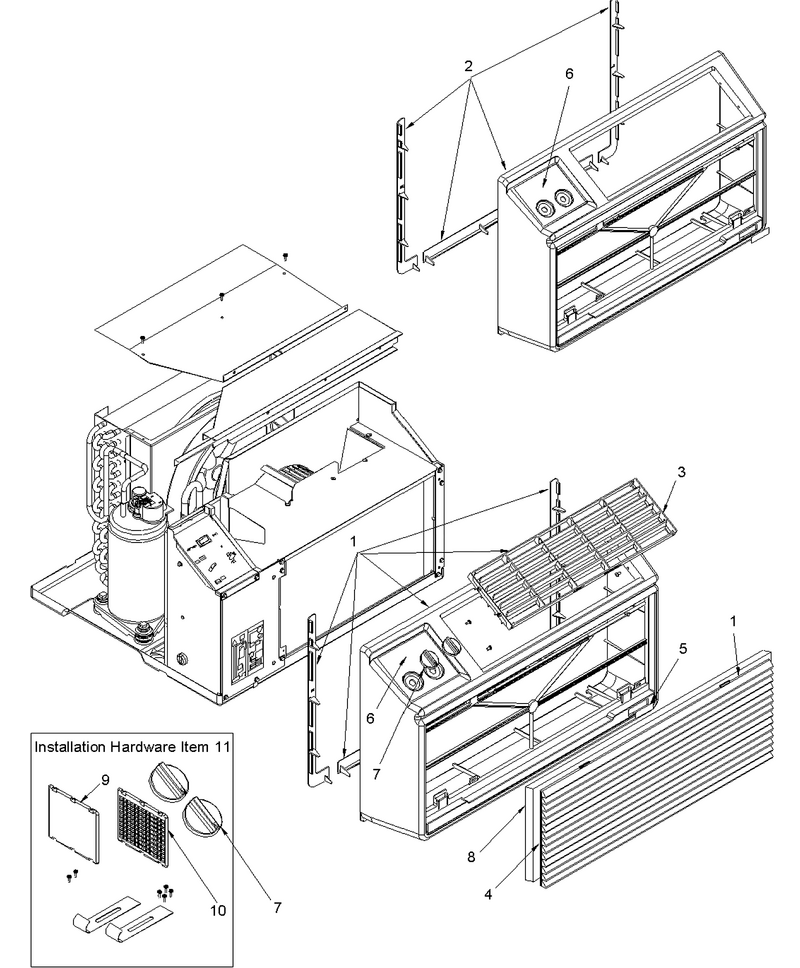

03 - Outer Case Assy

...
...
NI
Foam Gasket-.50 X .50, 4-5 Ft WPL-BT1392607

...
Note: If Complete Front Is Required, Order Front Assy, Control Label, Logo And Filter. When Ordering Front Frame Only Order Control Label And Logo Also. Hardw WPL-NOTE:

...
1
Frame, Front WPL-BT3375004

...
2
Frame W/ Trim/strips WPL-BT3375104

...
3
Grill Return Air WPL-BT3375200

...
4
Grill, Ttw WPL-BT3375600

...
5
Logo, Amana (thru-The-Wall) WPL-BT3075919

...
6
Label, Control WPL-BT14933340

...
7

...
8
Air Filter WPL-BT1369603

...
9
Plug, Fresh Air WPL-BT3076001


...
11
Kit, Ttw Instal WPL-Y3352000

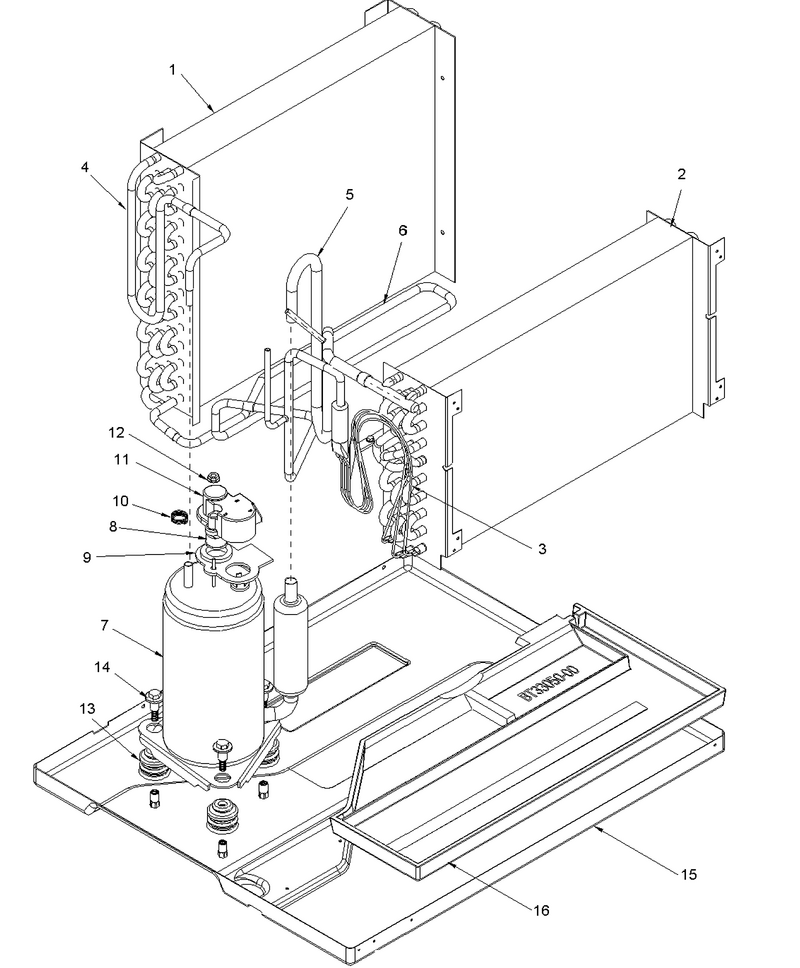

01 - Compressor Assy

...
...
Note: If Replacing Basepan On Older Models It Will Be Necessary To Order New Compressor Bolts. Evap Coil Tubing Assy Includes Cap Tube Assy. For Models With N WPL-NOTE:

...
1
Assy, Condenser Coil WPL-Y3396505

...
2
Assy, Tubing Evap Coil 10k WPL-3396001

...
3
Cap Weld - WPL-96001031

...
4
Tubing, Compressor WPL-3393624

...
5
Assy, Suction Line WPL-Y3393708

...
6
Assy, Liquid Line WPL-Y3393800

...
7
Compressor WPL-BT9266218

...
8
Switch, O.l. WPL-BT1243725

...
9
Gasket Comp Cap WPL-BT1392619

...
10
Spring, Overload WPL-A3436901

...
11
Cover, Compressor WPL-BT3055504


...
13
Grommet. Comp WPL-A3448601

...
14
Bolt, Comp. Shoulder 5/16-18 WPL-BT1393704

...
15
Assy, Basepan WPL-3350200

...
16
Pan, Drain (styrofoam) WPL-BT3305000
Schematic Image Zoomed
