Amana NGD5800HW2 LAUNDRY, RESIDENTIAL, GAS DRYER

Model: NGD5800HW2

Save
 Part Not Listed?Part Not Listed?

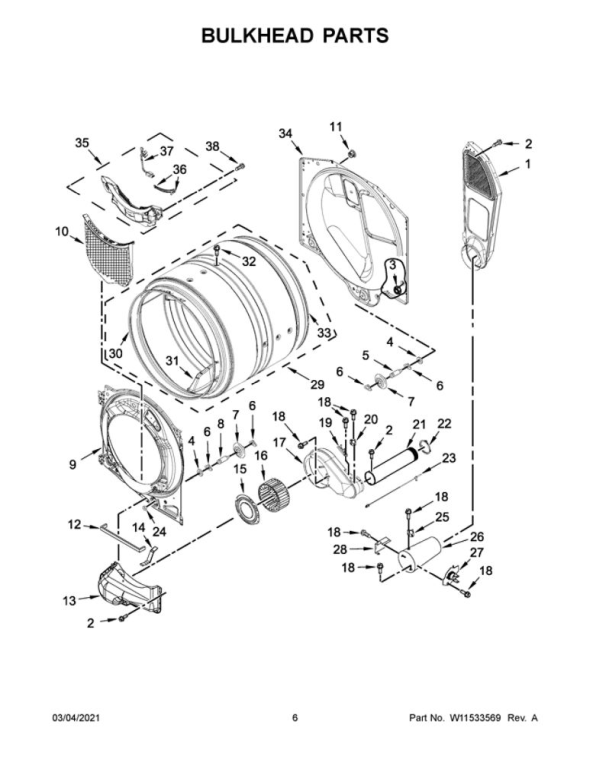

product name

Amana NGD5800HW2

...
...
1
Dryer Heat Duct WPL-WPW10293765
...
2
Appliance Screw WPL-WP488729
...
3
Dryer Nut, 3/8-In WPL-WPW10080190
...
4
Dryer Washer (Replaces Wpw10080960) WPL-W11236646
...
5
Dryer Drum Support Roller Shaft (Replaces W10359272) WPL-WPW10359272
...
6
Dryer Tri-Ring Retainer (Replaces W10512946) WPL-WPW10512946
...
7
Dryer Drum Support Roller (Replaces W10314173) WPL-WPW10314173
...
8
Dryer Drum Support Roller Shaft (Replaces W10359271) WPL-WPW10359271
...
9
Bulkhead WPL-W10673493
...
10
Dryer Lint Screen (Replaces W10516085) WPL-WPW10516085
...
11
Plug WPL-8529007
...
12
Dryer Air Duct Seal WPL-W10211950
...
13
Dryer Lint Duct (Replaces W10211896) WPL-WPW10211896
...
14
Dryer Clip WPL-W10414388
...
15
Collar WPL-W11310026
...
16
Dryer Blower Wheel (Replaces 697772) WPL-WP697772
...
17
Dryer Blower Housing WPL-WPW10211911
...
18
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
19
Dryer Thermal Fuse, 195-Degree F (Replaces W10693363) WPL-W10909685
...
20
Dryer Thermistor (Replaces 8577274) WPL-WP8577274
...
21
Dryer Exhaust Duct WPL-WPW10342188
...
22
Collar WPL-WPW10344699
...
23
Thermistor - (Replaces W10623852) WPL-W11396709
...
24
Dryer Nut WPL-WPW10080210
...
25
Dryer Operating Thermostat (Replaces 3391912) WPL-WP3391912
...
26
Dryer Burner Duct WPL-WP8573824
...
27
Dryer Thermal Cut-Off Fuse, 325-Degree F (Replaces 8573713) WPL-WP8573713
...
28
Dryer Radiant Sensor (Replaces 338906) WPL-WP338906
...
29
Dryer Drum WPL-W10508188
...
30
Dryer Drum Seal, Front (Replaces W10273050, W10521122) WPL-W11193479
...
31
Dryer Drum Baffle WPL-W10416098
...
32
Screw WPL-W10853898
...
33
Dryer Drum Seal Kit (Replaces 697694, W10116343, W10166807, W10521118) WPL-280114
...
34
Dryer Bulkhead WPL-W11299300
...
35
Dryer Moisture Sensor Kit (Replaces W10108170, W10219017, W10672683, Wpw10219012) WPL-W10906551
...
36
Dryer Moisture Sensor (Replaces 3387223) WPL-WP3387223
...
37
Dryer Wire Harness (Replaces W10298258) WPL-WPW10298258
...
38
Dryer Screw (Replaces 3387230) WPL-WP3387230

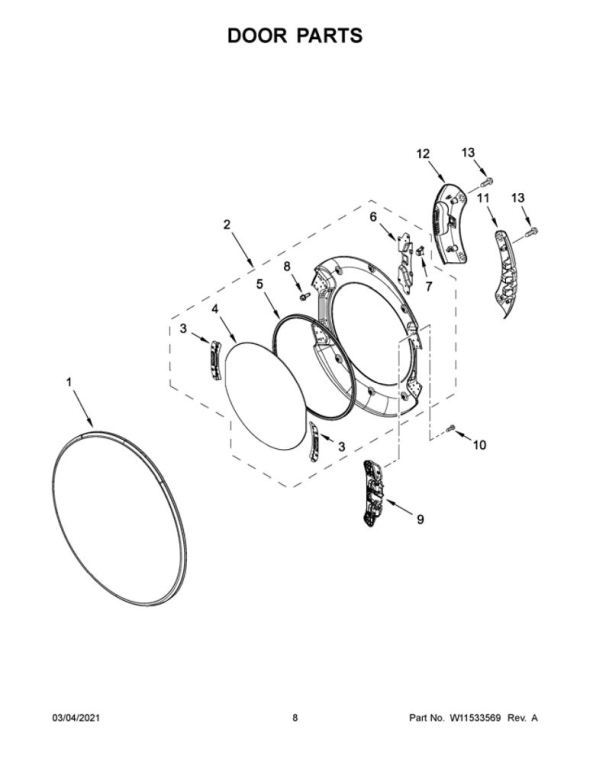

Amana NGD5800HW2

...
...
1
Intermediate WPL-W11449081
...
2
Door WPL-W11321075
...
3
Retainer WPL-W11310037
...
4
Dryer Door Inner Window WPL-W11310036
...
5
Dryer Door Glass Seal WPL-W11310035
...
6
Cover WPL-W11310039
...
7
Catch WPL-W11240283
...
8
Screw WPL-W11661566
...
9
Hinge WPL-W11318815
...
10
Screw WPL-8540479
...
11
Hinge Cover WPL-W11120174
...
12
Handle Cover WPL-W11120683
...
13
Dryer Screw WPL-W10850046

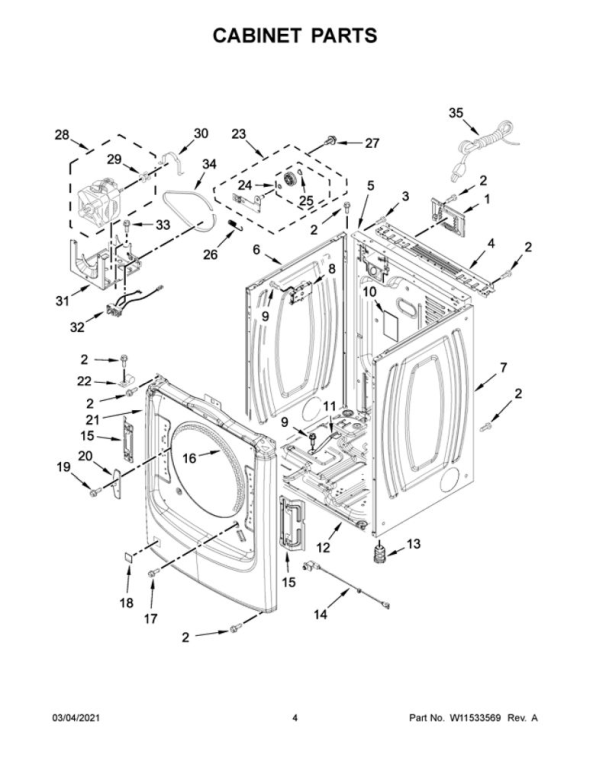

Amana NGD5800HW2

...
...
NI
Dryer 4-Way Vent Kit WPL-W10323246
...
NI
Dryer Leveling Leg (Replaces 279810, 40021) WPL-49621
...
1
Cover WPL-W10819767
...
2
Appliance Screw WPL-WP488729
...
3
Range Screw WPL-W10850756
...
4
Bracket WPL-WPW10208382
...
5
Rear Panel WPL-W10487431
...
6
Dryer Side Panel WPL-W11233548
...
7
Panel WPL-W11310043
...
9
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
10
Dryer Sound Dampening Pad WPL-W11409002
...
11
Bracket WPL-W10181903
...
12
Base WPL-W11215531
...
13
Dryer Leveling Leg (Replaces 279810, 40021) WPL-49621
...
14
Dryer Door Switch WPL-W11307535
...
15
Bracket WPL-W11310030
...
16
Dryer Drum Felt Seal (Replaces 3387242) WPL-WP3387242
...
17
Range Screw (Replaces 308685) WPL-WP308685
...
18
Dryer Burner Sight Plug WPL-W10811916
...
19
Screw WPL-W11661566
...
20
Strike WPL-W11310031
...
21
Panel-Front, WPL-W11490883
...
22
Dryer Gas Supply Pipe Bracket WPL-3978776
...
23
Dryer Idler Pulley (Replaces W10547287, W10547290) WPL-W10837240
...
25
Dryer Tri-Ring Retainer (Replaces W10512946) WPL-WPW10512946
...
26
Dryer Idler Spring (Replaces W10446781) WPL-WPW10446781
...
27
Washer Screw WPL-WP3389420
...
28
Dryer Drive Motor Assembly (Replaces W11086656, W11322192) WPL-W11364931
...
29
Dryer Motor Pulley (Replaces 8066184) WPL-WP8066184
...
30
Dryer Motor Clamp WPL-WPW10121316
...
31
Bracket-Moto WPL-W11481730
...
32
Switch WPL-W10774832
...
33
Appliance Screw, 10-16 X 1/2-In WPL-WP681414
...
34
Dryer Drum Belt (Replaces 661570) WPL-661570V
...
35
Dryer Power Cord (Replaces W11308561) WPL-W11628810

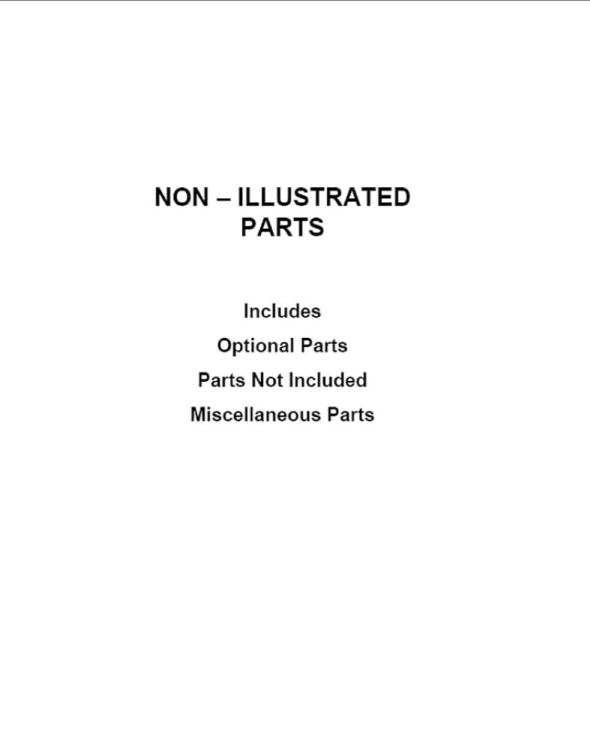

Amana NGD5800HW2

...
...
NI
Washing Machine Washer WPL-WP16123
...
NI
Appliance Touch-Up Paint, 0.6-Oz (Chrome Shadow) WPL-W10446202
...
NI
Dryer Water Inlet Hose, 5-Ft WPL-W10782875
...
NI
Appliance Spray Paint (Gray Primer) (Replaces 10955, 350338) WPL-350938
...
NI
Appliance Porcelain Touch-Up Paint, 1-Qt (White) WPL-799344
...
NI
Dryer Repair Kit (Replaces 2015, 80047) WPL-4392067
...
NI
Dryer Vent Tester (Replaces 8522199, Wpw10106710) WPL-W11224254
...
NI
Dryer Steam Hose Installation Kit WPL-W10044609A
...
NI
Door Kit WPL-W10315283RP
...
NI
Dryer Inlet Hose Y-Connector WPL-WPW10336486
...
NI
Dryer Steam Hose Installation Kit WPL-W10819173
...
NI
Dryer Steam Hose Installation Kit WPL-W10623830
...
NI
Laundry Appliance Long-Vent Dryer Stacking Kit (Replaces W10298318, W10298318Rp) WPL-W10869845
...
NI
Dryer Drying Rack (Replaces W10322470, W10830862, W10886894) WPL-W10322470A

Amana NGD5800HW2

...
...
2
Dryer Top Panel WPL-WPW10208383
...
3
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
4
Channel WPL-W11310027
...
5
Screw, Sm/He WPL-12990702
...
6
Dryer Control Panel Bracket WPL-W10208198
...
7
Harn Ui Whr WPL-W11459337
...
8
Seal WPL-W11318819
...
9
Appliance Speaker (Replaces W10568405) WPL-W11123146
...
11
Harn Main Ga WPL-W11157863

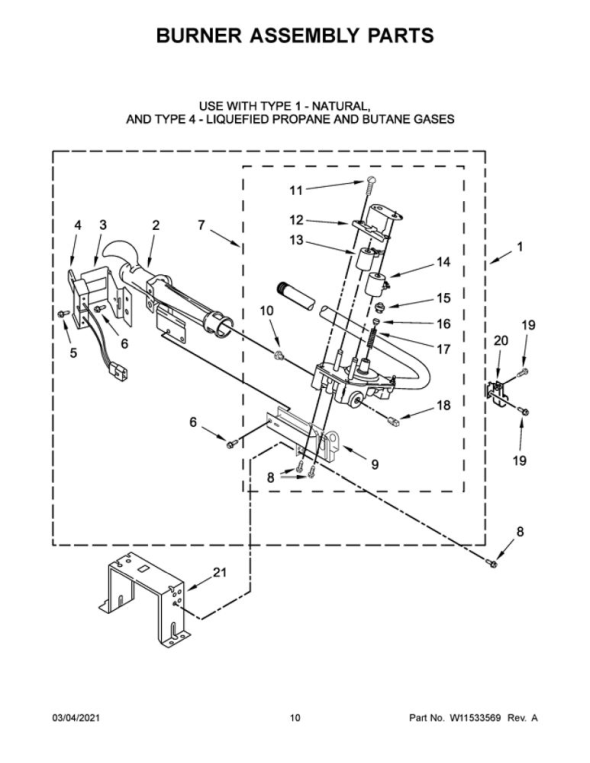

Amana NGD5800HW2

...
...
NI
Dryer Lp Conversion Kit (Replaces 49576, W10307153, W10317689, W10606694) WPL-W10606694A
...
1
Dryer Burner And Gas Valve Assembly (Replaces W10310204) WPL-280119
...
2
Dryer Burner WPL-WP693140
...
3
Dryer Burner Igniter Bracket WPL-WP694298
...
4
Dryer Burner Igniter Kit (Replaces 685211, 8113) WPL-279311
...
5
Dryer Screw WPL-WPW10366705
...
6
Appliance Screw, 10-16 X 1/2-In WPL-WP681414
...
7
Dryer Gas Valve (Replaces W10118347) WPL-WPW10118347
...
8
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
9
Bracket WPL-3389871
...
10
Dryer Burner Orifice (Replaces 15418) WPL-WP15418
...
10A
Dryer Lp Conversion Kit (Replaces 15422, 3392235) WPL-3392235A
...
10B
Dryer Butane Burner Orifice WPL-WP229742
...
11
Screw, 8-32 X 1 WPL-694421
...
12
Dryer Valve Coil Bracket WPL-694538
...
13
Dryer Valve Coil Kit (Replaces 12001349, 279834Bulk, 306106, 694539, 694540) WPL-279834
...
14
Dryer Valve Coil Kit (Replaces 12001349, 279834Bulk, 306106, 694539, 694540) WPL-279834
...
15
Dryer Leak Limiter (Replaces 694424) WPL-WP694424
...
16
Dryer Gas Pressure Regulator (Replaces 694423) WPL-WP694423
...
17
Dryer Gas Pressure Regulator Spring WPL-WP694422
...
19
Appliance Screw WPL-WP488729
...
20
Clamp WPL-3387561
...
21
Bracket Support WPL-3389888
...
...
...
