Amana NGD4655EW4 LAUNDRY, RESIDENTIAL, GAS DRYER

Model: NGD4655EW4

Save
 Part Not Listed?Part Not Listed?
product name

Amana NGD4655EW4

...
...
NI
Dryer Lp Conversion Kit WPL-W11581316
...
1
Burn Asy 29" WPL-W11652257
...
2
Dryer Burner WPL-WP693140
...
3
Dryer Burner Igniter Bracket WPL-WP694298
...
4
Dryer Burner Igniter Kit (Replaces 685211, 8113) WPL-279311
...
5
Dryer Screw WPL-WPW10366705
...
6
Appliance Screw, 10-16 X 1/2-In WPL-WP681414
...
7
Base WPL-693986
...
8
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
9
Dryer Burner Orifice (Replaces 234826) WPL-WP234826
...
10
Gas Val Serv WPL-W11646258
...
11
Plug WPL-W10295523
...
12
Dryer Valve Coil Kit (Replaces W10328463) WPL-WPW10328463
...
13
Screw WPL-326049536

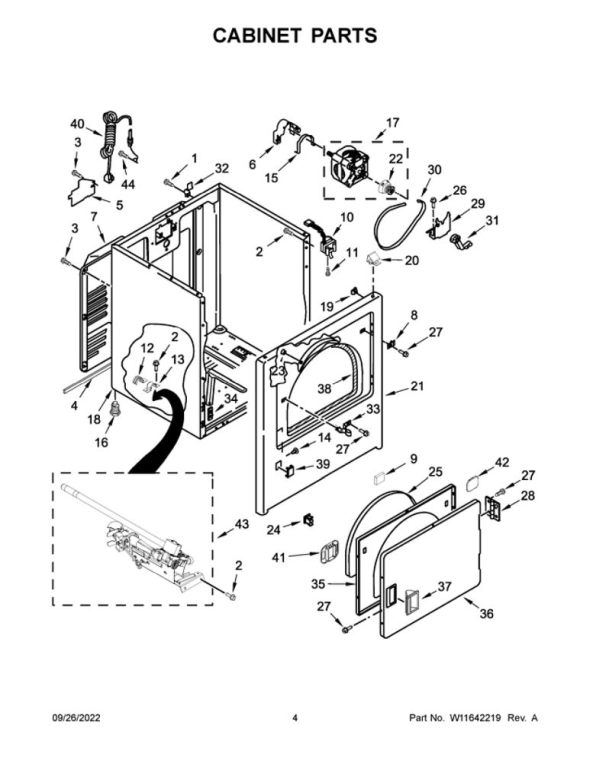

Amana NGD4655EW4

...
...
1
Washer Screw, #10-16 X 3/8-In (Replaces 3390631) WPL-WP3390631
...
2
Appliance Screw, 10-16 X 1/2-In WPL-WP681414
...
3
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
4
Dryer Blower Housing Seal WPL-W10841728
...
5
Dryer Cover WPL-8558833
...
6
Dryer Motor Clamp WPL-WP3404162
...
8
Dryer Cabinet Hole Plug WPL-W10567345
...
9
Spacer Washer WPL-3389682
...
10
Dryer Door Switch (Replaces W10237959) WPL-WPW10237959
...
11
Appliance Screw, 6-20 X 1-In WPL-WP3395530
...
12
Pipe Clamp WPL-W10727507
...
13
Clamp WPL-341029
...
14
Cover - Hing WPL-W11481394
...
15
Dryer Motor Clamp WPL-WPW10121316
...
16
Dryer Leveling Leg (Replaces 279810, 40021) WPL-49621
...
17
Dryer Drive Motor (Replaces 2019, 3388235, 349588, 3980069, 661654, 8066206, 8066207, 8115, 8538262, 8539555, W10194250, W10366770, W10396029, W10396032, W10448892) WPL-279827
...
19
Dryer Cabinet Clip (Replaces 98234) WPL-WP98234
...
20
Dryer Top Panel Clip WPL-WP8066092
...
22
Dryer Motor Pulley (Replaces 8066184) WPL-WP8066184
...
23
Dryer Felt Seal Clip Kit (Replaces 297787, 341474, 685203) WPL-279220
...
24
Dryer Door Catch (Replaces W11224630) WPL-W11429587
...
25
Dryer Door Seal (Replaces W10730752, Wp3405245, Wp3405246) WPL-W10861521
...
26
Dryer Motor Bracket Bolt WPL-3400500
...
27
Refrigerator Screw WPL-WP488627
...
28
Dryer Door Hinge WPL-WPW10362431
...
29
Dryer Motor Bracket WPL-WP348780
...
30
Dryer Drum Belt (Replaces 2008, 31531589, 349533, 53-1512, 8210, W10127457, W10131364) WPL-341241
...
31
Dryer Idler Pulley (Replaces 691366, W10612905) WPL-WP691366
...
32
Dryer Top Hinge WPL-WP8066217
...
33
Dryer Door Strike (Replaces W11224633) WPL-W11429589
...
34
Dryer Front Panel Clip (Replaces 3394083, W10775448) WPL-W10854425
...
35
Dryer Door Inner Panel (Replaces W10463967) WPL-WPW10463967
...
36
Dryer Door Outer Panel WPL-W10861224
...
37
Dryer Door Handle (White) (Replaces W10714516) WPL-W10861225
...
38
Dryer Drum Front Bearing (Replaces W10568603, W10887344, Wpw10663510) WPL-W11035878
...
39
Dryer Burner Sight Plug WPL-W10811916
...
40
Dryer Power Cord (Replaces 8182912, W10869141) WPL-W11222083
...
41
Cover WPL-W11173656
...
42
Dryer Door Catch Bezel (Replaces W10529197) WPL-WPW10529197
...
43
Burn Asy 29" WPL-W11652257
...
44
Range Screw WPL-W10850756

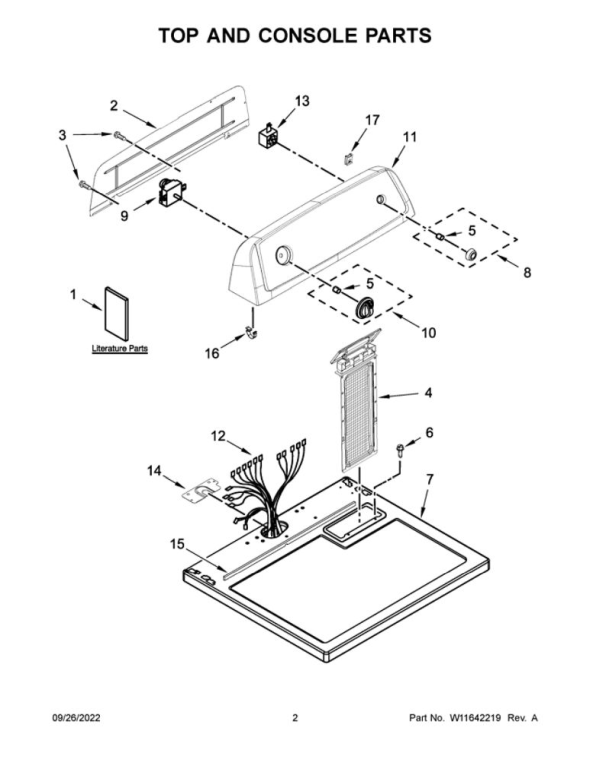

Amana NGD4655EW4

...
...
2
Panel (Replaces W10416486) WPL-WPW10416486
...
3
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
5
Laundry Appliance Control Knob Clip (Replaces 8536939) WPL-WP8536939
...
6
Refrigerator Capacitor Screw WPL-WP487240
...
7
Dryer Top Panel WPL-WP8563663
...
8
Dryer Push-To-Start Knob (White) (Replaces W10453948) WPL-WPW10453948
...
9
Dryer Timer (Replaces W10745654, Wpw10436306) WPL-W10857611
...
10
Dryer Control Knob (Replaces W10711289) WPL-WPW10711289
...
11
Dryer Control Panel WPL-WPW10097039
...
12
Harn Main Ga WPL-W10865760
...
13
Dryer Push-To-Start Switch (Replaces W10420741) WPL-WPW10420741
...
15
Dryer Control Panel Seal WPL-W10316616
...
16
Laundry Appliance End Cap Clip (Replaces 8312709) WPL-WP8312709
...
17
Nut WPL-W11213336

Amana NGD4655EW4

...
...
1
Dryer Lint Chute Assembly WPL-W11117429
...
3
Dryer Washer WPL-WP3388703
...
4
Dryer Lint Chute Seal (Replaces W11414062, Wp347139) WPL-W11415783
...
5
Washer Screw (Replaces 90767, Y313559) WPL-WP90767
...
6
Dryer Radiant Sensor (Replaces 338906) WPL-WP338906
...
7
Dryer Thermal Fuse, 195-Degree F (Replaces 3392519) WPL-WP3392519
...
8
Dryer Drum Support Roller Shaft (Replaces W10359269) WPL-WPW10359269
...
9
Dryer Operating Thermostat (Replaces 3387134) WPL-WP3387134
...
10
Dryer Blower Wheel (Replaces 694089) WPL-WP694089
...
11
Dryer Blower Housing (Replaces 8577230) WPL-WP8577230
...
12
Dryer Clip (Replaces 337272, 3398161) WPL-279771
...
13
Appliance Screw, 10-16 X 1/2-In WPL-WP681414
...
14
Dryer Heater Box (Replaces 3394343, 8530285) WPL-279980
...
15
Dryer Thermal Cut-Off Fuse Kit (Replaces W10480709, W10754607) WPL-W11050897
...
16
Dryer Thermal Cut-Off Fuse Kit (Replaces W10480709, W10754607) WPL-W11050897
...
17
Appliance Screw WPL-WP488729
...
18
Dryer Burner Duct WPL-WP8066049
...
19
Dryer Washer WPL-WP348197
...
20
Nut WPL-W11229607
...
21
Dryer Lint Chute Shield WPL-W11233063
...
22
Dryer Bulkhead WPL-W11178667
...
23
Dryer Drum Support Roller Shaft (Replaces W10359270) WPL-WPW10359270
...
24
Dryer Drum Support Roller Kit (Replaces 26000349241, 3397590, 8170) WPL-349241T
...
25
Dryer Lint Duct Housing Seal (Replaces 339956) WPL-WP339956
...
26
Dryer Drum Baffle (Replaces 3403636) WPL-WP3403636
...
27
Laundry Appliance Push Nut WPL-WP90296
...
28
Dryer Drum Support Roller Bracket WPL-W11032820
...
29
Dryer Drum Baffle (Replaces 692490) WPL-WP692490
...
31
Dryer Drum Seal, Rear (Replaces 279857, W10389561, W10663495, W10725245, W10856781) WPL-W10612022
...
32
Screw WPL-W10853898
...
33
Dryer Drum Front Bearing (Replaces 692526) WPL-279441
...
34
Dryer Tri-Ring Retainer (Replaces W10512946) WPL-WPW10512946

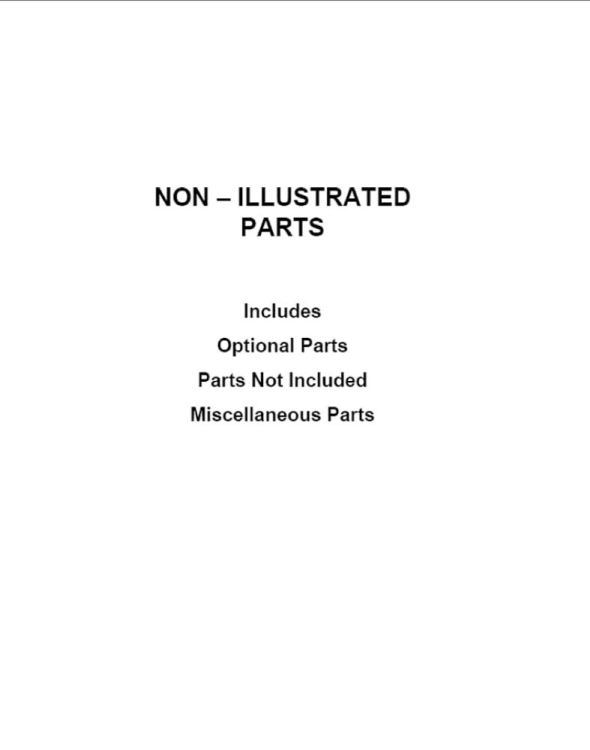

Amana NGD4655EW4

...
...
NI
Appliance Spray Paint (Gray Primer) (Replaces 10955, 350338) WPL-350938
...
NI
Appliance Porcelain Touch-Up Paint, 1-Qt (White) WPL-799344
...
NI
Dryer Repair Kit (Replaces 2014, 279948, 80046, 8238) WPL-4392065
...
NI
Dryer Vent Tester (Replaces 8522199, Wpw10106710) WPL-W11224254
...
NI
Dryer Drying Rack (Replaces 2017, 3404337, 4396514, 4396516, W10833323) WPL-3406839
...
...
...
