Amana NG4519

Model: NG4519

Save Part Not Listed?
product name

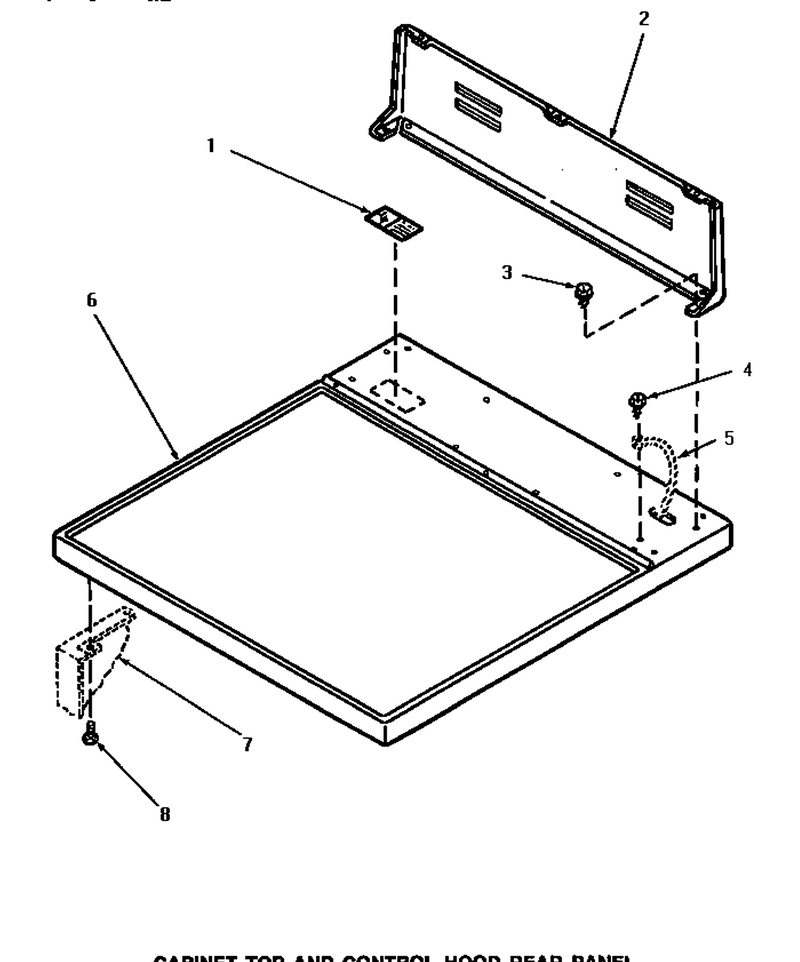

01 - Cabinet Top & Control Hood Rear Panel

...
...
1
Sticker,disconnect Pow WPL-24903
...
2
Panel,back(Home Hood) WPL-40051401P
...
3
Screw WPL-WP90767
...
4
Screw WPL-WP3351614
...
5
See Note Ground Wire, Green WPL-Y00000000
...
6
Assy,top Panel-Domesti WPL-60815H
...
7
See Note Cabinet WPL-Y00000000
...
8
Screw WPL-WP27001200

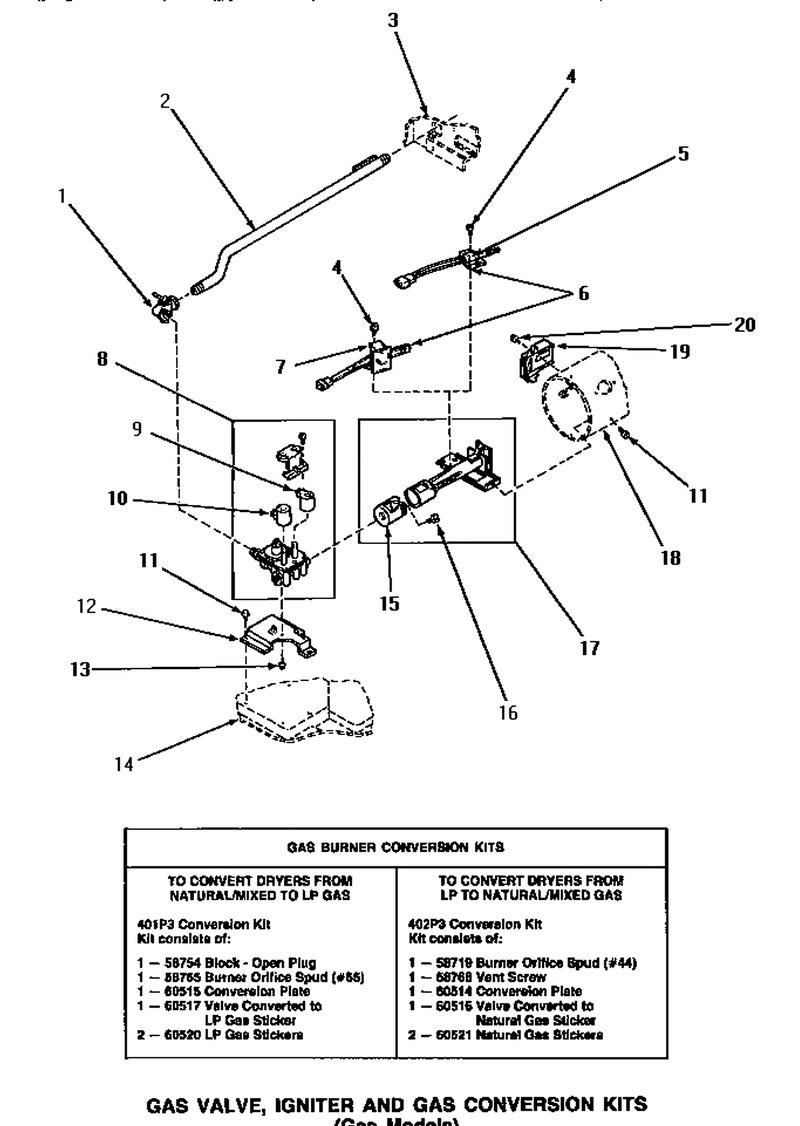

04 - Gas Valve, Igniter & Gas Conversion Kits

...
...
NI
Kit,conversion-Ng WPL-402P3
...
1
Valve,elbow Shut-Off WPL-Y56229
...
2
Assy,lead-In Pipe WPL-58911
...
3
See Note Cabinet WPL-Y00000000
...
4
Screw,no.6-20x.44/.41 In WPL-56693
...
5
See Note Carborundum Igniter And Bracket WPL-Y00000000
...
6
Ignitor WPL-WP37001308
...
7
See Note Norton Igniter And Bracket WPL-Y00000000
...
8
Assy,valve-Gas-Single- WPL-58804
...
9
Coil-Valve WPL-279834
...
10
Coil-Valve WPL-279834
...
11
Screw WPL-WP27001200
...
12
Complete T WPL-WFR500821
...
13
Screw WPL-WP489128
...
14
See Note Base WPL-Y00000000
...
15
Shutter,air WPL-53007
...
16
Screw,6-32 X 5/16 Rd H WPL-51356
...
17
Assembly, Burner WPL-Y56234
...
18
Assembly, Burner WPL-Y56234
...
19
Sensor WPL-WP338906
...
20
Screw WPL-WP3177991

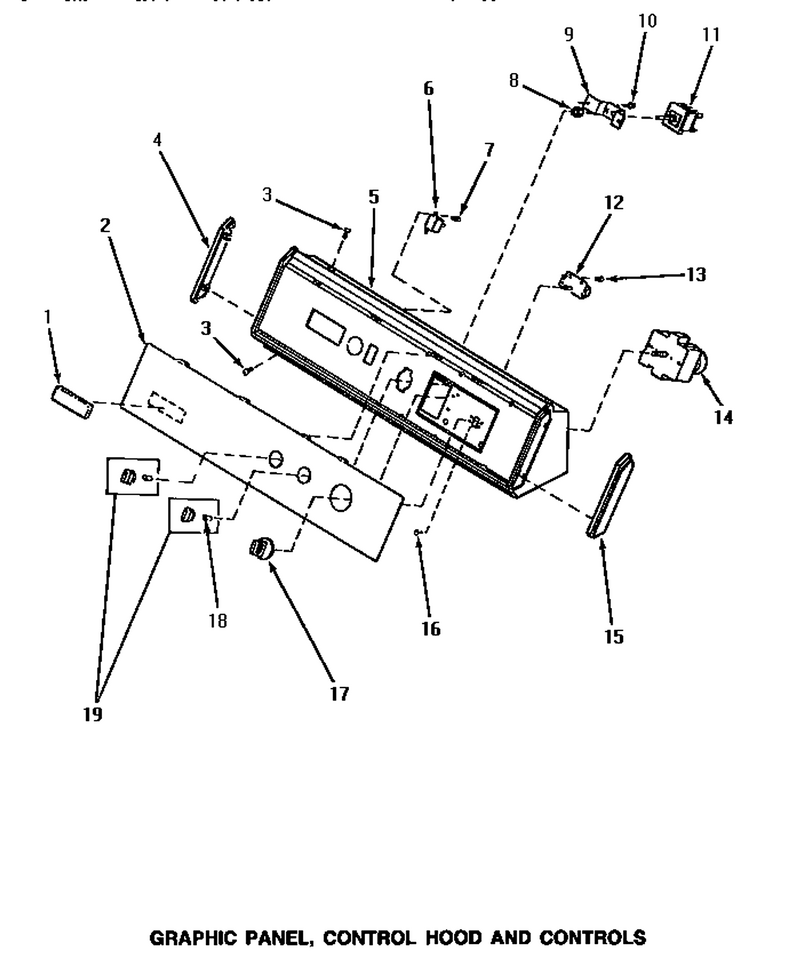

05 - Graphic Panel, Control Hood & Controls

...
...
We Use Different Timer Vendors. Although The Timers Differ In Appearance, Theyare Completely Interchangeable When Identified By The Same Part Number. WPL-NOTE:
...
2
Panel,graphic WPL-60055
...
3
Screw,no.8abx3/4 Pozidri WPL-31752
...
4
Cap,end-L.h.-Chrome WPL-31249
...
5
Assy,hood & Mounting P WPL-59955
...
6
Signal,non-Adjustable WPL-59446
...
7
Screw WPL-WP90767
...
8
Nut WPL-57584
...
9
Bracket,switch Mount WPL-59704
...
10
Screw, No.8 X 3/8 Ind H WPL-31260
...
11
Switch,fabric Selector WPL-Y61511
...
12
Switch,rotate-To-Start WPL-59450
...
13
Screw WPL-WP90767
...
14
Timer,4 Cycle WPL-59497
...
15
Cap,end-R.h.-Chrome WPL-31248
...
16
Screw WPL-WP90767
...
17
Assy,timer Knob & Skir WPL-59791
...
18
Retainer WPL-10519
...
19
Assy,knob-Rotary-Blk/o WPL-31286

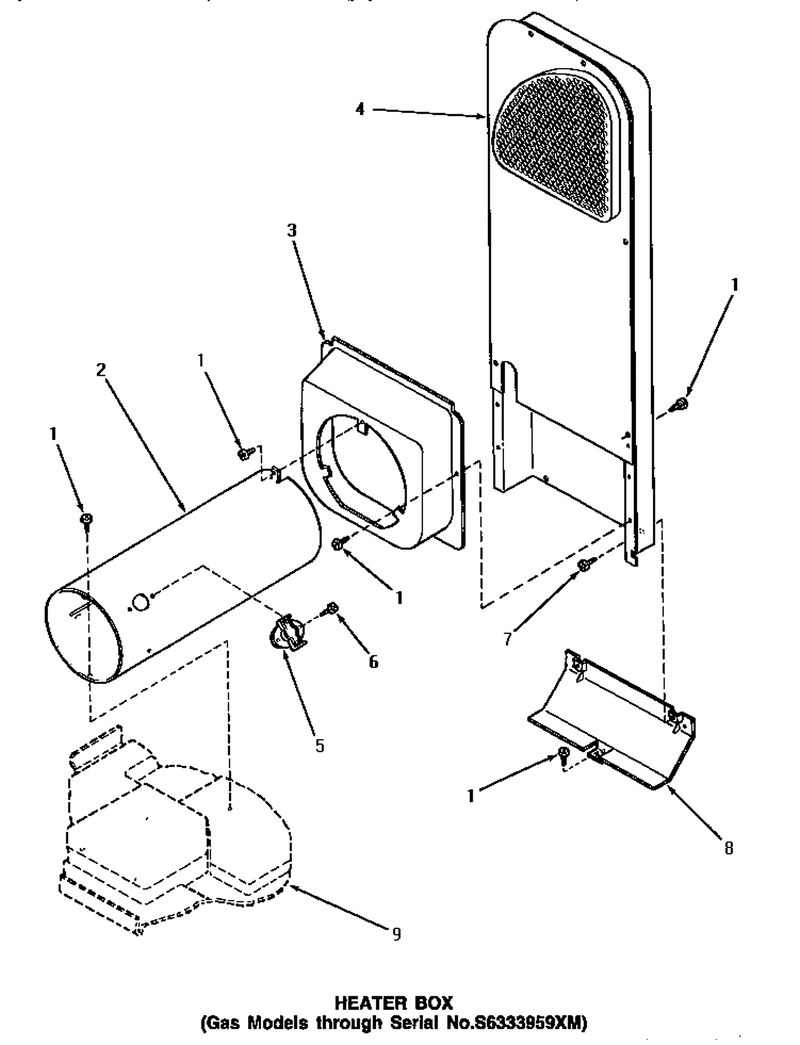

07 - Heater Box (thru Sn S6333959xm)

...
...
1
Screw WPL-WP27001200
...
2
Burner Housing WPL-56240
...
3
Shroud, Heat Duct WPL-500122
...
4
Heater Box WPL-61161P
...
5
Limit Thermostat WPL-58366
...
6
Screw WPL-WP3177991
...
7
Screw WPL-WP3390631
...
8
Cover Plate WPL-61203
...
9
See Note Base WPL-Y00000000

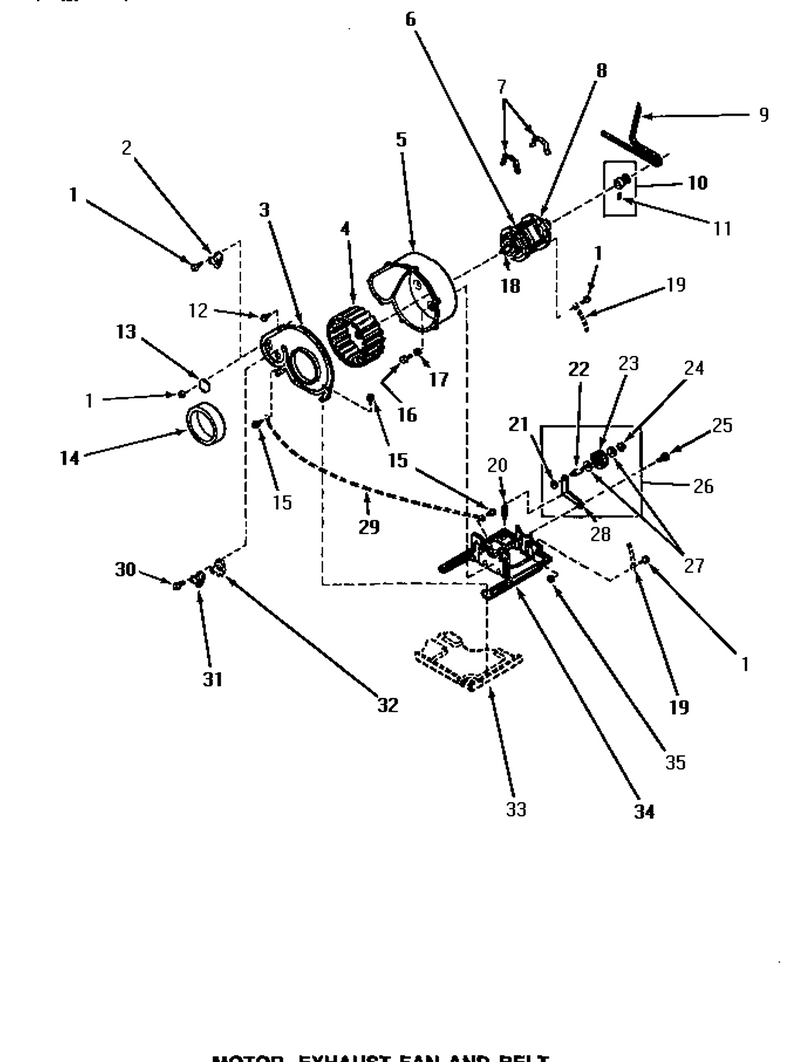

09 - Motor, Exhaust Fan & Belt

...
...
1
Screw WPL-WP3177991
...
2
Thermostat WPL-56410
...
3
Cover,blower Housing WPL-60938P
...
4
Assembly, Blower Fan WPL-56000
...
5
Housing, Blower WPL-56020
...
6
Motor-Drve WPL-WP915P3
...
7
Clamp WPL-WP660658
...
8
Switch WPL-53249
...
9
Belt WPL-WP40111201
...
10
Motor Pulley Assembly WPL-59173
...
11
Setscrew WPL-52906
...
12
Screw WPL-WP90767
...
14
Seal WPL-56065
...
15
Screw WPL-WP3390631
...
16
Screw WPL-WP27001200
...
17
Washer WPL-M0270504
...
18
Never-Seeze 1 Oz Tube WPL-27604P
...
19
See Note Ground Wire, Green WPL-Y00000000
...
20
Spring- Id WPL-WP56076
...
21
Nut, 3/8-16 Serrated WPL-56156
...
22
Shaft WPL-WP56461
...
23
Pulley-Idr WPL-WPY54414
...
24
Ring- Reta WPL-WP23748
...
25
Screw,1/4-20 Hex Hd Sh WPL-56587
...
26
Lever-Idl WPL-WP56170P
...
27
Washer WPL-WP233520
...
28
Lever,idler WPL-56057
...
29
See Note Ground Wire, Green -- (Through Serial No. S6181365xa) WPL-Y00000000
...
30
Screw WPL-WP489464
...
31
Thermostat WPL-56471
...
32
Heatr-Stat WPL-WP61623
...
33
See Note Base WPL-Y00000000
...
34
Mount, Motor WPL-503613
...
35
Nut WPL-WPW10139757

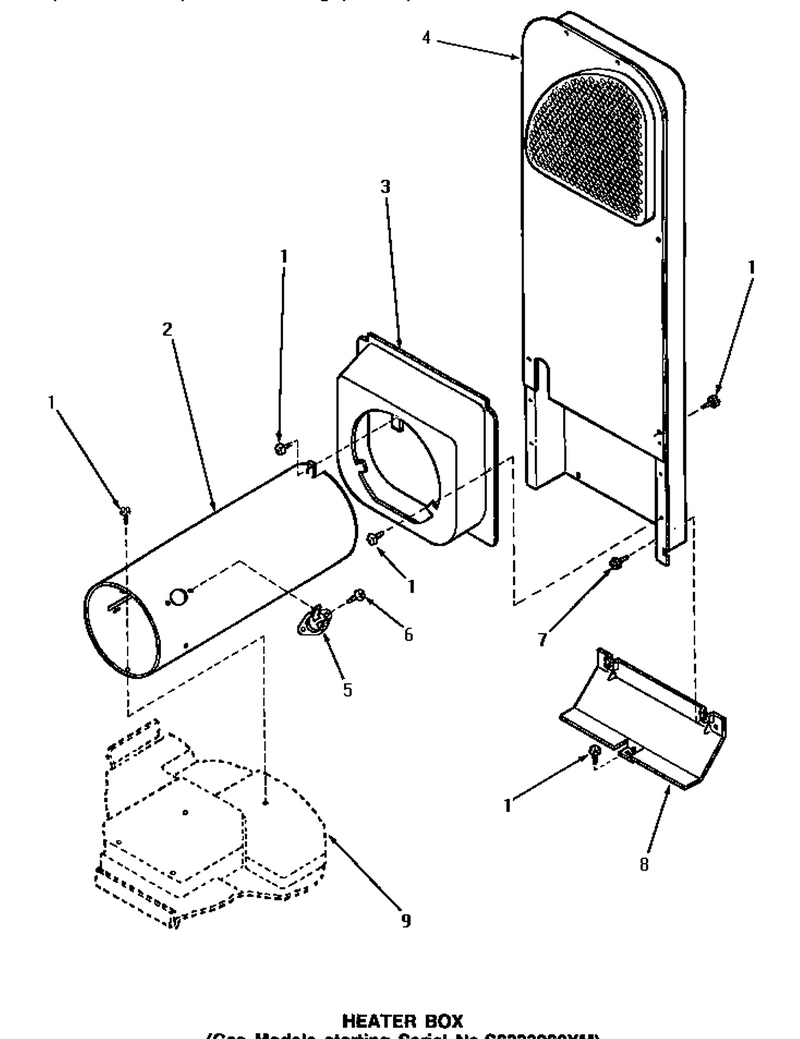

06 - Heater Box (starting Sn S6333960xm)

...
...
1
Screw WPL-WP27001200
...
2
Burner Housing WPL-61974
...
3
Shroud, Heat Duct WPL-500122
...
4
Heater Box WPL-61161P
...
5
Limit Thermostat WPL-489P3
...
6
Screw, 6b-20x5/16 WPL-51782
...
7
Screw WPL-WP3390631
...
8
Cover Plate WPL-61203
...
9
See Note Base WPL-Y00000000

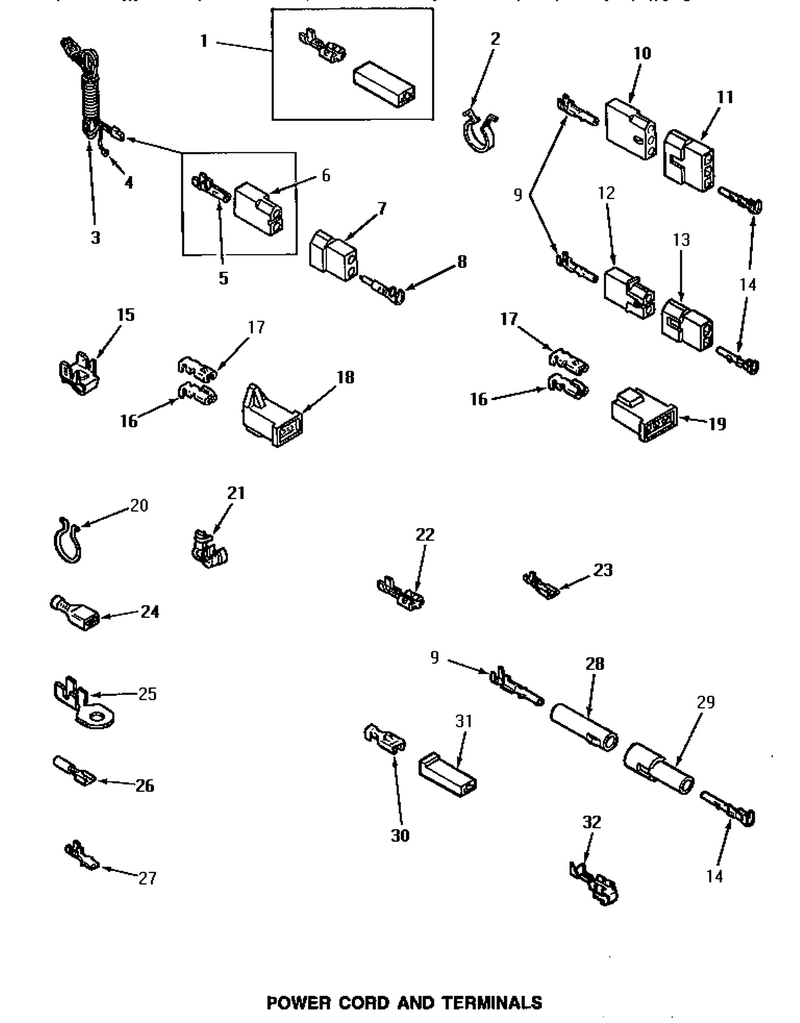

10 - Power Cord & Terminals

...
...
1
Terminal,spade-1/4 Fem WPL-Y00237
...
2
Clip,wire WPL-61510
...
3
Cord- Powe WPL-WP27001142
...
4
See Note Ground Wire, Green WPL-Y00000000
...
5
Terminal,pin-1/8 Femal WPL-00130
...
6
Receptacle,2 Circuit WPL-56265
...
7
Plug WPL-56266
...
8
Terminal,pin-1/8 Male WPL-Y00127
...
9
Female Socket Terminal WPL-Y00117
...
10
Receptacle, (Gas Valve) WPL-697780
...
11
Plug, 3 Circuit WPL-23040
...
12
Receptacle,2 Circuit WPL-56451
...
13
Plug 2 Circuit WPL-56448
...
14
Terminal,pin-Male WPL-Y00116
...
15
Ground Clip WPL-Y00161
...
16
Connector,receptacle WPL-Y00190
...
17
Terminal,spade WPL-Y00189
...
18
Connector,2 Circuit WPL-58799
...
19
Connector,3 Circuit WPL-58800
...
20
Clip,wire WPL-51291
...
21
Grommet, Cord WPL-211881
...
22
Spade Terminal(18 Gauge) WPL-Y00119
...
23
Terminal,spade 3/16 WPL-00156
...
24
Terminal WPL-WP285432
...
25
Terminal,ring-10 Stud WPL-Y00111
...
26
Terminal,1/4 Spade Pre WPL-Y00214
...
27
Terminal,tab 1/4 Male WPL-Y00138
...
28
Receptacle,molex WPL-26301
...
29
Plug,1 Circuit WPL-26302
...
30
Terminal,spade-1/4 Fem WPL-00122
...
31
Connector WPL-90789
...
32
Terminal,spade-1/4 Fem WPL-Y00114

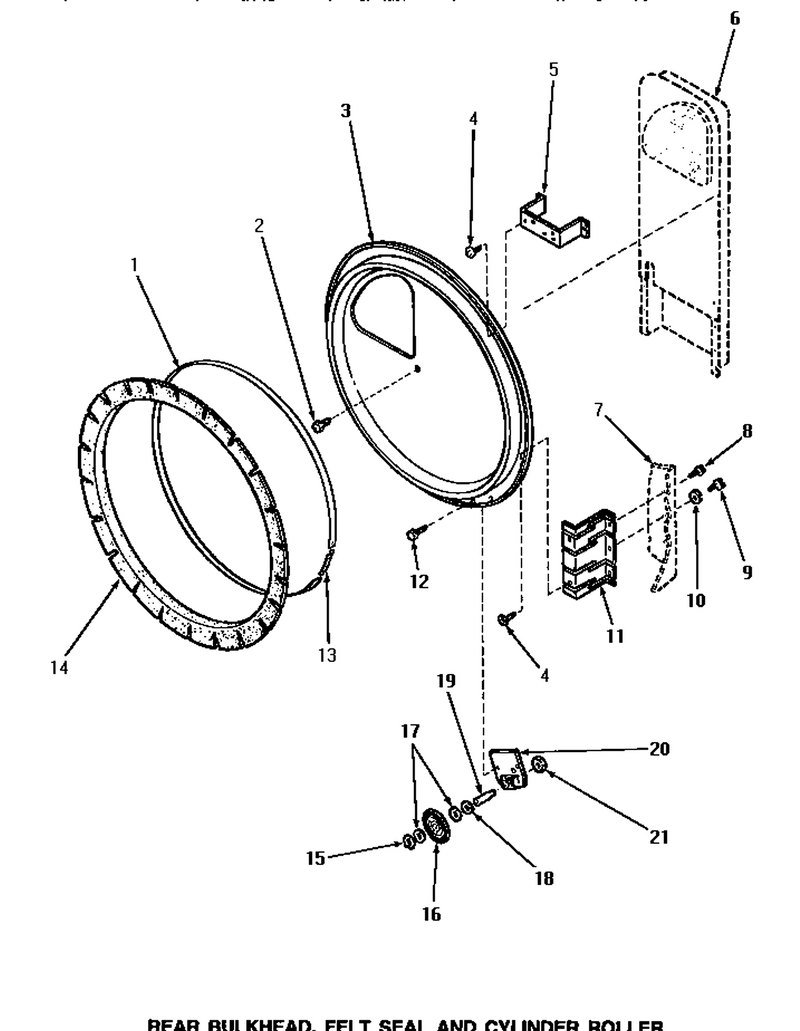

11 - Rear Blkhd, Felt Seal & Cylinder Roller

...
...
1
Strap, Seal WPL-56090P
...
2
Screw WPL-WP489464
...
3
Assy,rear Bulkhead WPL-61135P
...
4
M400664 WPL-56078
...
5
Bracket,terminal Block WPL-60823P
...
6
See Note Heat Duct WPL-Y00000000
...
7
See Note Cabinet WPL-Y00000000
...
8
Screw WPL-WP27001200
...
9
Screw,10b-16 X 1/2 Hex WPL-52909
...
10
Washer,13/64idx1/2odx. WPL-51474
...
11
Bracket,bulkhead-Rear WPL-56055
...
12
Screw WPL-WP3390631
...
13
Spring WPL-52310
...
14
Seal Asm WPL-WP56088
...
15
Ring- Reta WPL-WP23748
...
16
Cylinder Roller WPL-56457
...
17
Washer WPL-WP233520
...
18
Washer,.578idx1.25odx1 WPL-23886
...
19
Shaft WPL-WP56461
...
20
Bracket,cylinder Roller WPL-56042
...
21
Nut, 3/8-16 Serrated WPL-56156

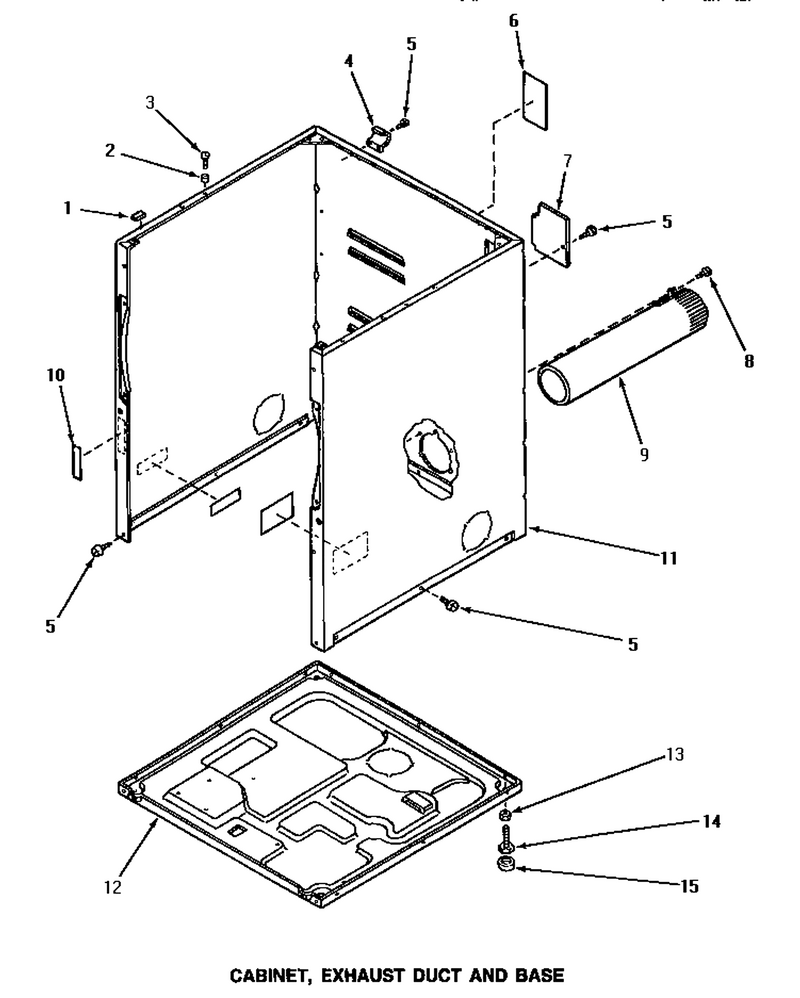

02 - Cabinet, Exhaust Duct & Base

...
...
1
Pad, Bumper WPL-Y56128
...
2
Locator, Panel WPL-505187
...
3
Screw WPL-WPY014874
...
4
Hinge, Top WPL-60826
...
5
Screw WPL-WP27001200
...
6
Sticker WPL-56427
...
7
Acess Cover WPL-60821
...
8
Screw WPL-WP489464
...
9
Assy, Exhaust Duct WPL-56118
...
10
Sticker,disconnect Pow WPL-24903
...
11
Cabinet, Almond WPL-60813PL
...
12
Assy,base-Complete WPL-60811
...
13
Nut WPL-WP62739
...
14
Feet-Lvlng WPL-W10176519
...
15
Foot- Rubb WPL-WPY314137

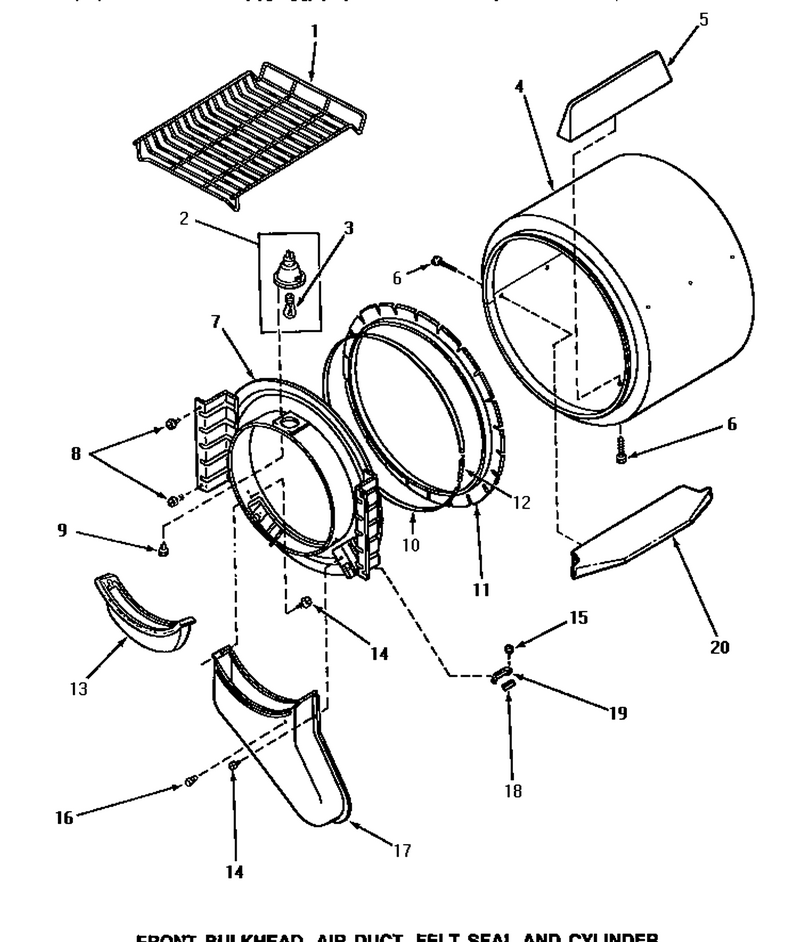

03 - Fr Blkhd, Air Duct, Felt Seal & Cylinder

...
...
1
Rack,drying WPL-58846
...
4
Assy,cylinder Pack WPL-60645P
...
5
Baffle,cylinder-Short- WPL-Y61399
...
6
Screw,10bt X 1 Tapping WPL-56131
...
7
Assy Bulk Head WPL-60774P
...
8
Screw WPL-WP27001200
...
9
Screw, No.8 X 3/8 Ind H WPL-31260
...
10
Strap, Seal WPL-56090P
...
11
Seal Asm WPL-WP56088
...
12
Spring WPL-52310
...
13
Screen WPL-61376
...
14
Screw WPL-WP489464
...
15
Screw WPL-WP90767
...
16
Bumper WPL-56938
...
17
Assy,air Duct-Front WPL-60786
...
18
Pad,thin WPL-58049
...
19
Bracket WPL-WP57005
...
20
Baffle,cylinder-Extend WPL-Y61027

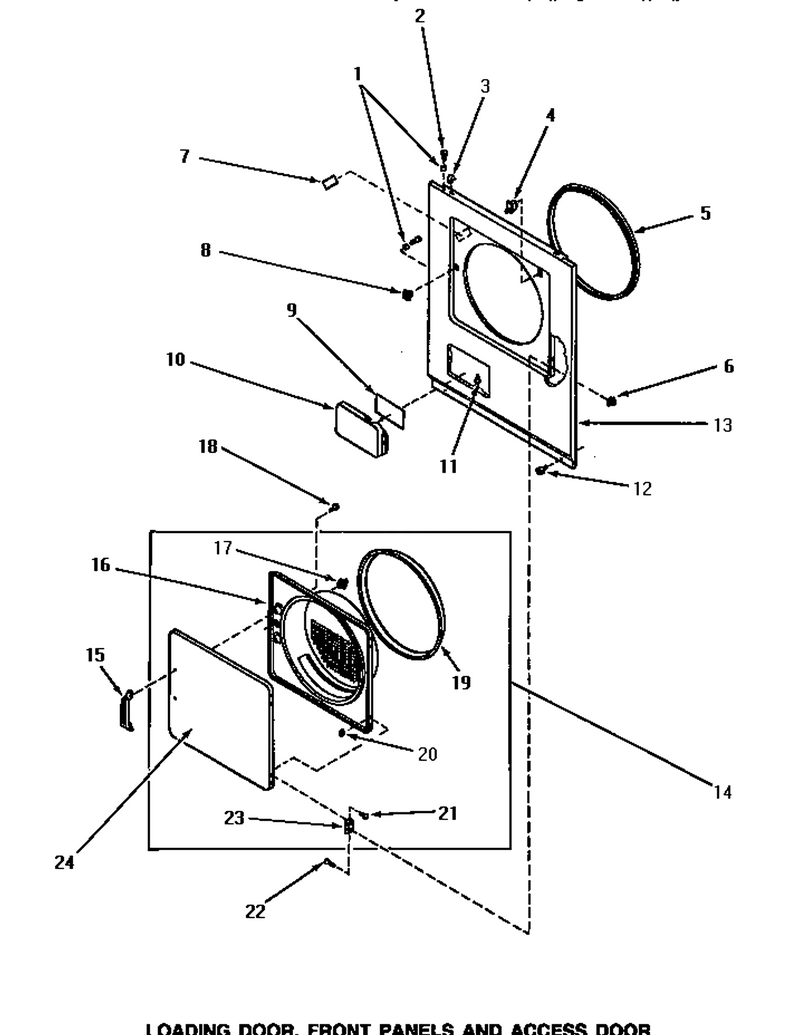

08 - Loading Door, Front Panels & Access Door

...
...
1
Locator, Panel WPL-505187
...
2
Screw WPL-WPY014874
...
3
Fastener- WPL-WP22001650
...
4
Switch-Dor WPL-W10169313
...
5
Seal,front Panel WPL-Y61380
...
6
Nut WPL-WP488130
...
7
Repl By 500281 WPL-58854
...
8
Door Catch La-1003 WPL-LA-1003
...
9
Sticker WPL-56427
...
10
Door,access WPL-60795W
...
11
Barrel,support WPL-56534
...
12
Screw WPL-WP27001200
...
13
Panel, Front WPL-62421L
...
14
Assy,door WPL-62151L
...
15
Pull,door WPL-54068P
...
16
Liner,door WPL-62152W
...
17
Door Catch La-1003 WPL-LA-1003
...
18
Screw WPL-WP489464
...
19
Door Seal WPL-61379
...
20
Nut,speed-8a Tinn C15 WPL-23407
...
21
Screw, 8b-16x5/8 Tap WPL-500226
...
22
Screw,8-32 X 13/32 Fl WPL-22649
...
23
Hinge (Dryer) WPL-56045
...
24
Door (Gold) WPL-62153H
