Amana NB160A (BOM: P1140901M)

Model: NB160A (BOM: P1140901M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

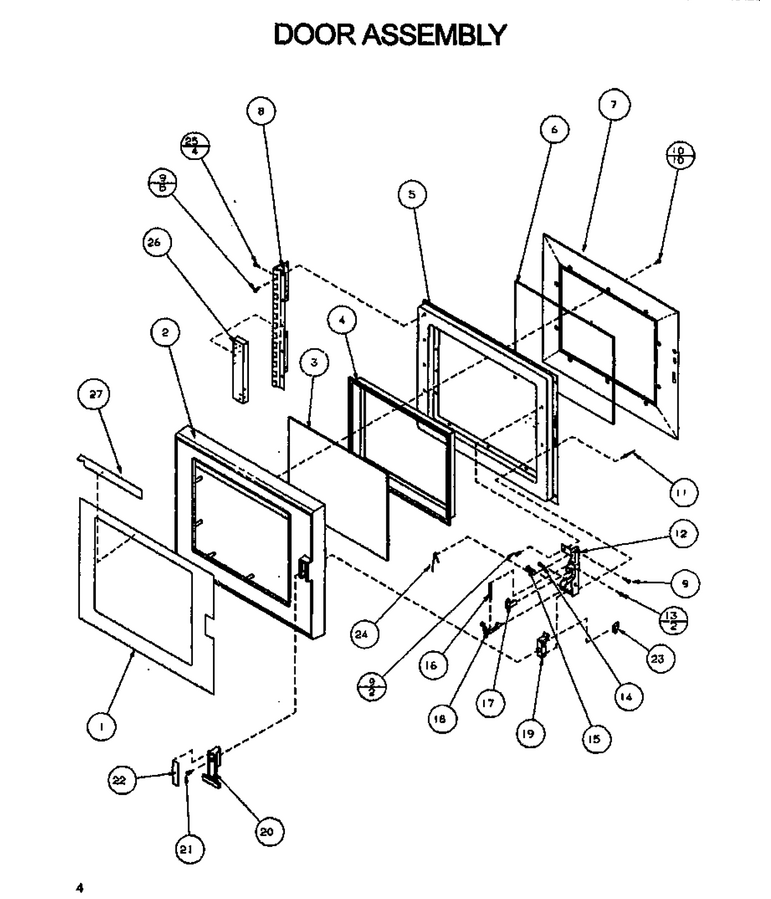

02 - Door Assy

...
...
1
Insert-Door WPL-D7738602
...
2
Door,outer WPL-D7730006
...
3
Window, Outer WPL-C8960401
...
4
Retainer, Lens WPL-D7731103
...
5
Kit-Door R WPL-R0131710
...
6
Window, Inner WPL-C8960501
...
7
Kit, Inner Door/window Assy WPL-12002103
...
8
Hinge-Door WPL-C8961811
...
9
Screw WPL-WP59002061
...
10
Screw WPL-489392
...
11
Rivet-Pop WPL-59002054
...
12
Latch Assy Includes Pin-Latch, Spring-Doo WPL-R0150122
...
13
Rivet A K WPL-M0010214
...
14
Pin, Latch WPL-B8379201
...
15
Latch Assy WPL-YM1205111
...
16
Spring, Door Latch WPL-C8893502
...
17
Guide, Door K WPL-B8370401
...
18
Latch, Door WPL-C8959901
...
19
Latch Assy Includes Pin-Latch, Spring-Doo WPL-R0150122
...
20
Handle Front WPL-D7741501
...
21
Screw WPL-M0234030
...
22
Insert Hdl Cfc113 WPL-B8378902
...
23
Pad-Latch Assy WPL-C8991301
...
24
Spring, Handle WPL-B8379601
...
25
Screw WPL-WP59002061
...
26
Gasket WPL-A3263904
...
27
Thinplate Dr Cfc 113 WPL-C8962411

04 - Electrical Parts Andcomponents

...
...
NI
Bit For Torx 15h Drive Screws WPL-R0193551
...
1
Strain Relief WPL-8536977
...
2
Gasket WPL-A3030302
...
3
Power Cord WPL-10098901
...
4
Screw WPL-M0251002
...
5
Bracket S.w. Mtg WPL-B8370602
...
6
Blower Wheel WPL-C8793501
...
7
Switch, Interlock WPL-C8935801
...
8
Brkt Scroll WPL-C8942501
...
9
Motor, Blower WPL-D7670301
...
10
Scroll, Blower WPL-D7684601
...
11
Blower Partition,black E Ct WPL-D7685413
...
12
Washer WPL-M0270536
...
13
Nut WPL-WP3195558
...
14
Clip WPL-M0288213
...
15
Nut K WPL-M0281405
...
16
Screw WPL-WP3388228
...
17
Screw WPL-M0254712
...
18
Screw-Sm/hex WPL-12990523
...
19
Magnetron WPL-10794402
...
20
Thermal Cutout WPL-B5795306
...
21
Screw WPL-M0251818
...
22
Temp Probe Jack K WPL-B8355401

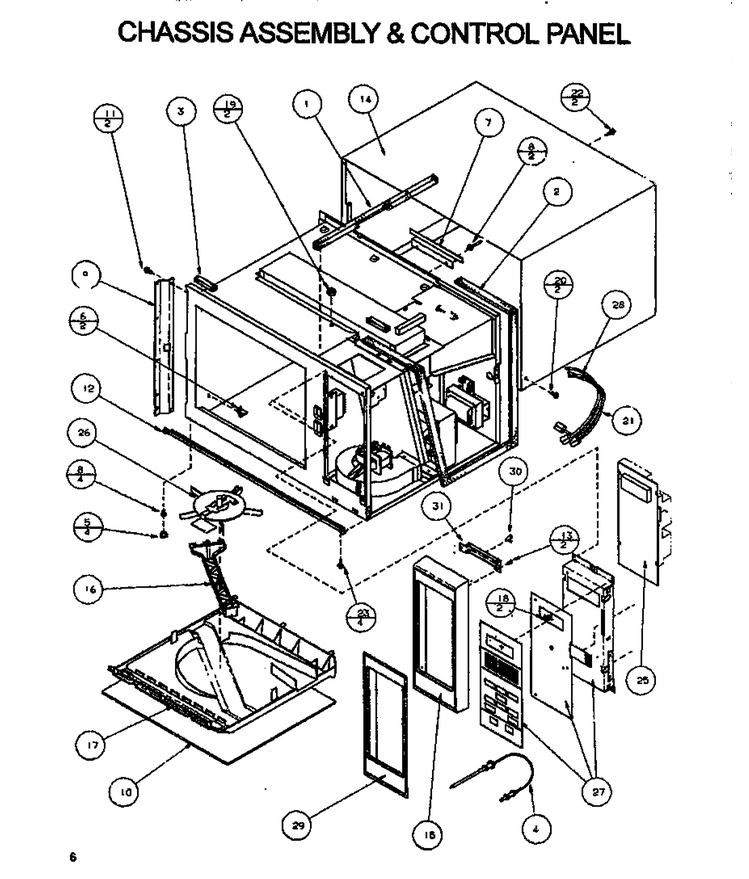

01 - Chassis Assy & Control Panel

...
...
1
Gasket, Oven Top WPL-B8369901
...
2
Gasket (Per Foot) WPL-10839706
...
3
Gasket (Inch) WPL-A3030301
...
4
Temp Probe WPL-C8821504
...
5
Foot O.c. Wrapper WPL-B5732506
...
6
Support, Shelf WPL-B8374901
...
7
Retainer, Cord WPL-C8962101
...
8
Pop Rivet WPL-A4539625
...
9
Brkt,hinge Support WPL-C8935903
...
10
Tray-Glass Floor WPL-C8936903
...
11
Screw WPL-M0251002
...
12
Trim WPL-C8943602
...
13
Screw WPL-M0234403
...
14
Wrapper O.c. (Black) WPL-D7684909
...
15
Escutcheon Control WPL-D7730101
...
16
Cradle, Antenna WPL-D7685505
...
17
Grease Shield WPL-D7692501
...
18
Screw WPL-M0218115
...
19
Nut WPL-M0288808
...
20
Screw, Tf WPL-M0231817
...
21
Wire Tie WPL-M0321204
...
22
Screw, Tf WPL-M0231704
...
23
Screw WPL-12992301
...
25
Pc Board Assy WPL-R163150A
...
26
Assy, Antenna WPL-C8943002Q
...
27
Keyboard Assy WPL-R0163179
...
28
Harness, Wire WPL-10872402
...
29
Insert Esc. Cfc 113 WPL-C8960702
...
30
Clip WPL-B8379401
...
31
Bracket WPL-C8960301

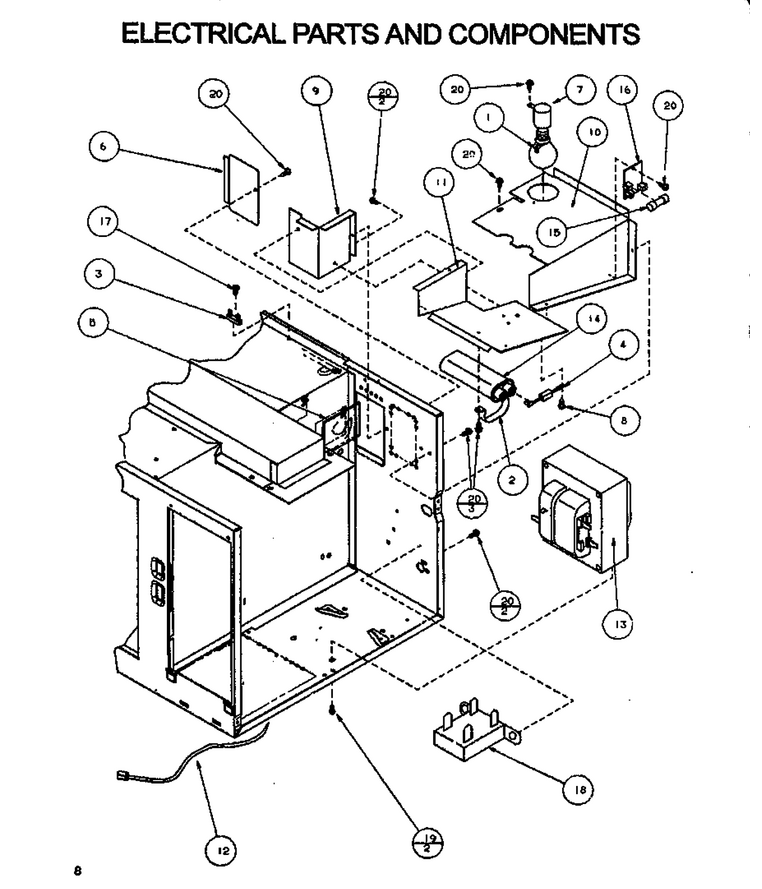

03 - Electrical Parts And Components

...
...
1
Light Bulb WPL-8009
...
2
Strap, Capacitor WPL-A4055405
...
3
Fuse, Thermal WPL-B5795305
...
4
Rectifier WPL-B8383101
...
5
Window, Oven Light WPL-B8367701
...
6
Cover, Light WPL-B8370702
...
7
Receptacle, Lamp WPL-B8371401
...
8
Screw WPL-WP489349
...
9
Shield, Light WPL-D7772101
...
10
Duct, Top Air WPL-D7772007
...
11
Air Duct. Bottom WPL-D7772202
...
12
Jumper Wire WPL-D7718009
...
13
Transformer WPL-D7686903
...
14
Capacitor- WPL-WP59001168
...
15
Fuse 20 A WPL-WPM0805101
...
16
Board-Term WPL-C8988701
...
17
Screw WPL-WP488234
...
18
Transformer, Filament WPL-C8807814
...
19
Screw WPL-WP3390631
...
20
Screw WPL-M0251002
