Amana NA8831

Model: NA8831

Save Part Not Listed?
product name

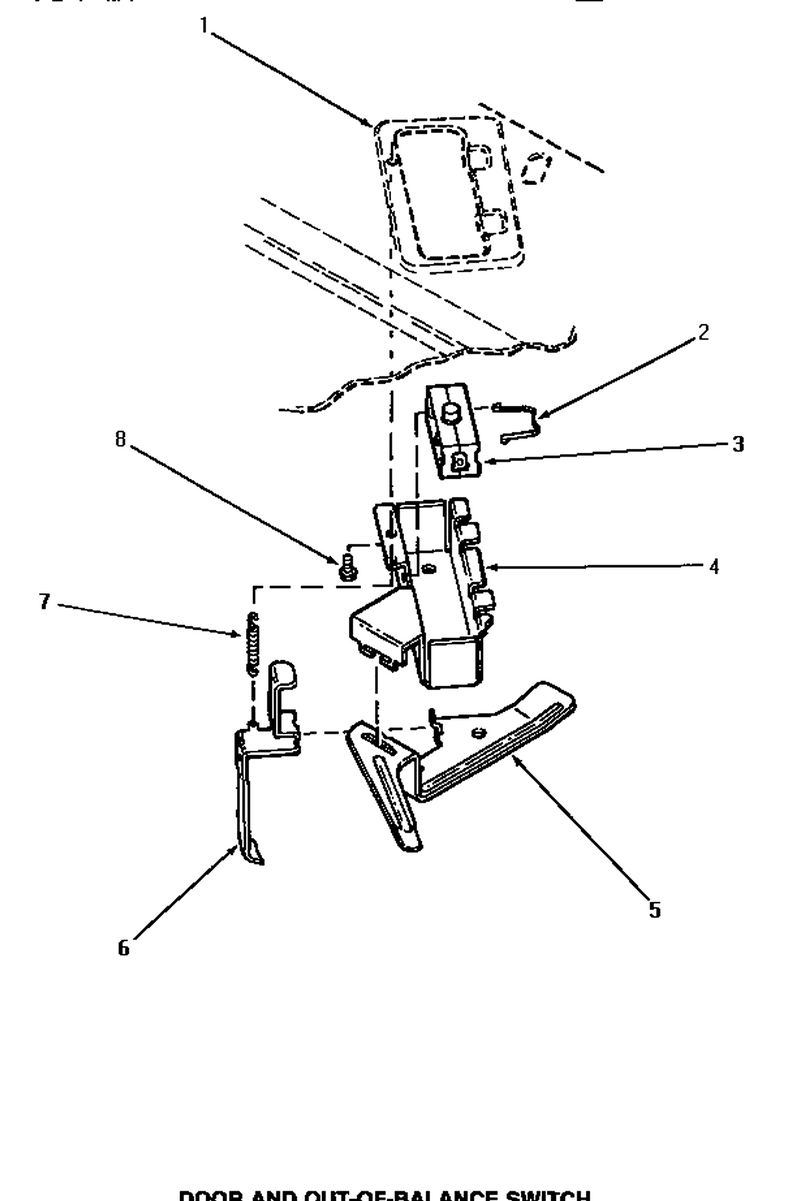

07 - Door & Out-Of-Balance Switch

...
...
1
See Note Cabinet Top WPL-Y00000000
...
2
Clip,holder-Switch WPL-33433
...
3
Switch-Plg WPL-WP27001095
...
4
Kit, Switch Holder WPL-36497P
...
5
Arm,actuator WPL-33441
...
6
Lever,unbalanced Load WPL-33442
...
7
Spring WPL-33443
...
8
Screw WPL-WP90767

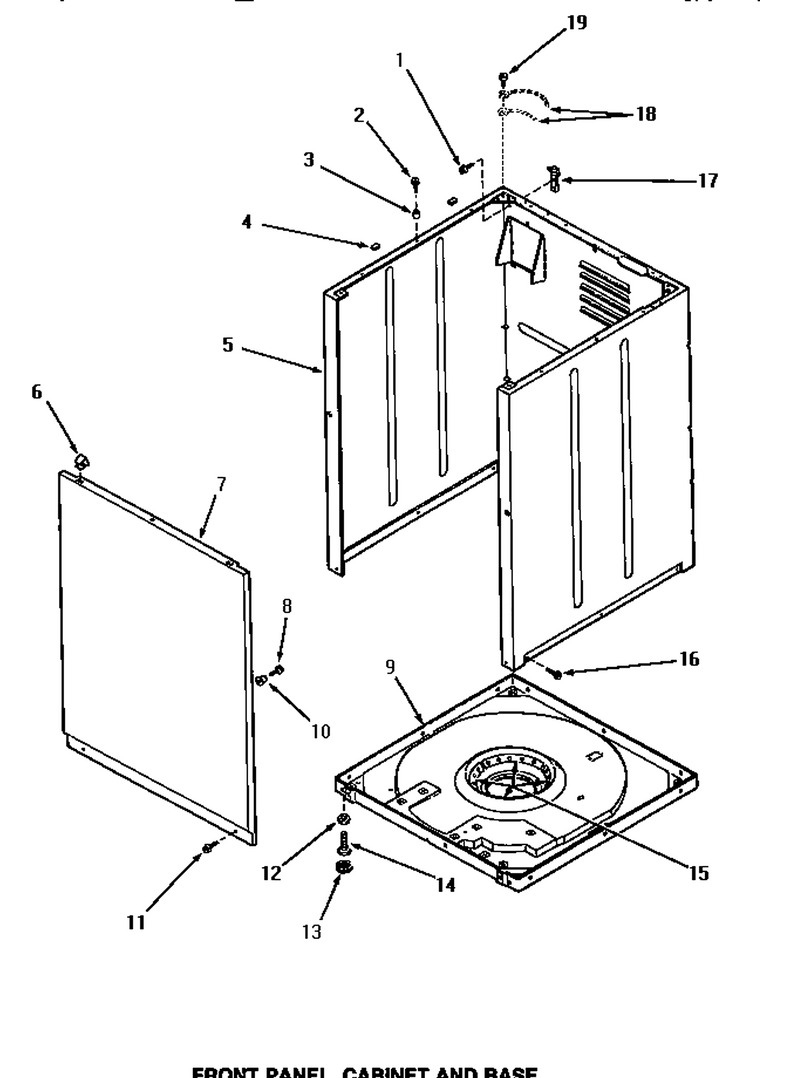

09 - Front Panel, Cabinet & Base

...
...
NI
Grease WPL-WP26594P
...
1
Screw WPL-WP3390631
...
2
Screw WPL-WPY014874
...
3
Locator, Panel WPL-505187
...
4
Pad, Bumper WPL-Y56128
...
5
Cabinet, Harvest Gold WPL-31669PH
...
6
Fastener- WPL-WP22001650
...
7
Panel,front WPL-32708H
...
8
Screw WPL-WPY014874
...
9
Assy,base-Complete-G90 WPL-31653P
...
10
Locator,panel WPL-28102
...
11
Screw WPL-WP27001200
...
12
Nut- Lock WPL-WP210385
...
13
Rubber Pad WPL-21749
...
14
Leg, Adjustable (W/nut) WPL-22003428
...
15
Kit,snubber Pad WPL-434P3
...
16
Screw WPL-WP27001200
...
17
Hinge,hold-Down Lug WPL-Y27103
...
18
See Note Ground Wires -- (Green) WPL-Y00000000
...
19
Screw,8-18 X 3/8 Tappi WPL-56392

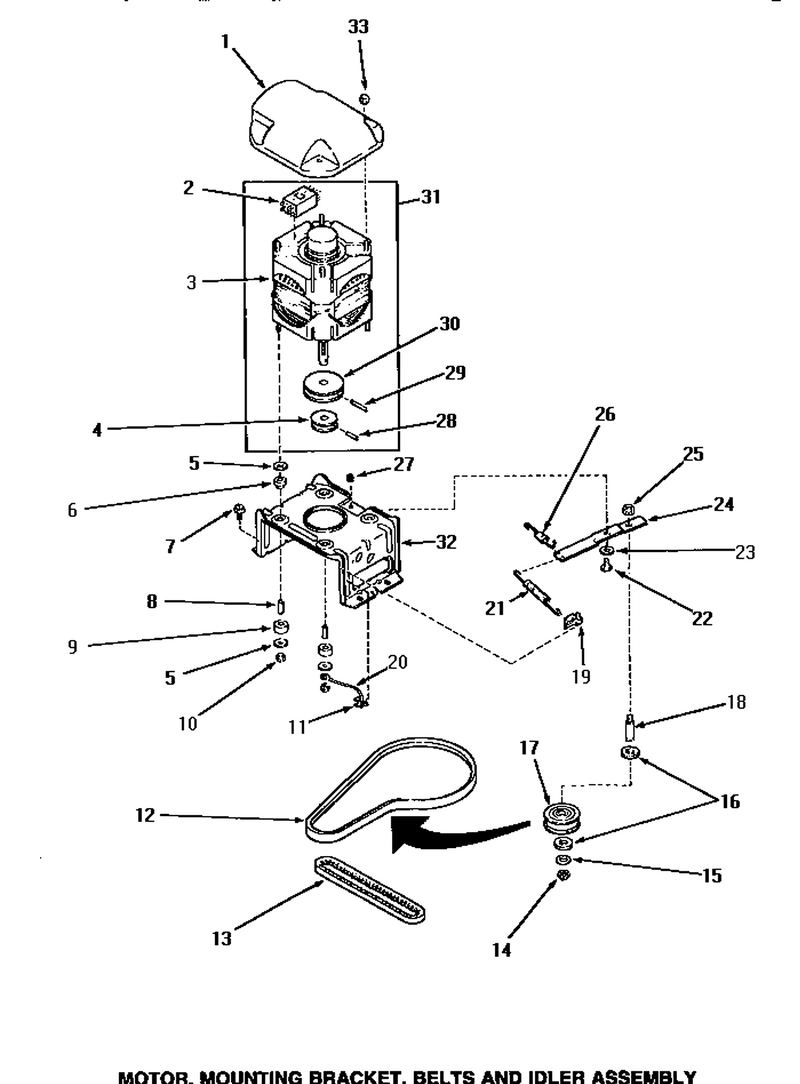

14 - Motor, Mtg Bracket, Belts & Idler Assy

...
...
NI
Lube,hi Temperature-56 WPL-20605
...
1
Shield,motor WPL-27136
...
2
Switch,motor WPL-24139
...
3
Instructions WPL-30897
...
4
Pulley,motor WPL-Y27104
...
5
Washer WPL-03888
...
6
Mounting,rubber WPL-01952A
...
7
Screw WPL-WP27001200
...
8
Spacer,motor WPL-27181
...
9
Washer,lower Motor Mou WPL-01953
...
10
Nut,hex 10-32 Lock WPL-23604
...
11
Ground Clip WPL-Y00161
...
12
Belt-Agita WPL-WP28808
...
13
Belt-Pump WPL-WP27155
...
14
Ring- Reta WPL-WP23748
...
15
Washer WPL-WP233520
...
16
Washer,felt WPL-Y29443
...
17
Wheel,idler WPL-28800
...
18
Shaft,idler WPL-28802
...
19
Clip-Sprin WPL-WP28849
...
20
See Note Ground Wire, Green WPL-Y00000000
...
21
Spring- Id WPL-WP37366
...
22
Screw, 1/4-20 WPL-40038901
...
23
Washer WPL-81392
...
24
Lever,idler WPL-40041002
...
25
Clamp WPL-W10833902
...
26
Spring,idler Lever Hel WPL-30620
...
27
Nut WPL-WPW10139757
...
28
Pin,roll WPL-10416
...
29
Pin,roll WPL-23750
...
30
Pulley,motor WPL-27171
...
31
Motor Assembly, One Speed WPL-27658
...
32
Bracket,motor Mount WPL-28791
...
33
Locknut WPL-27201

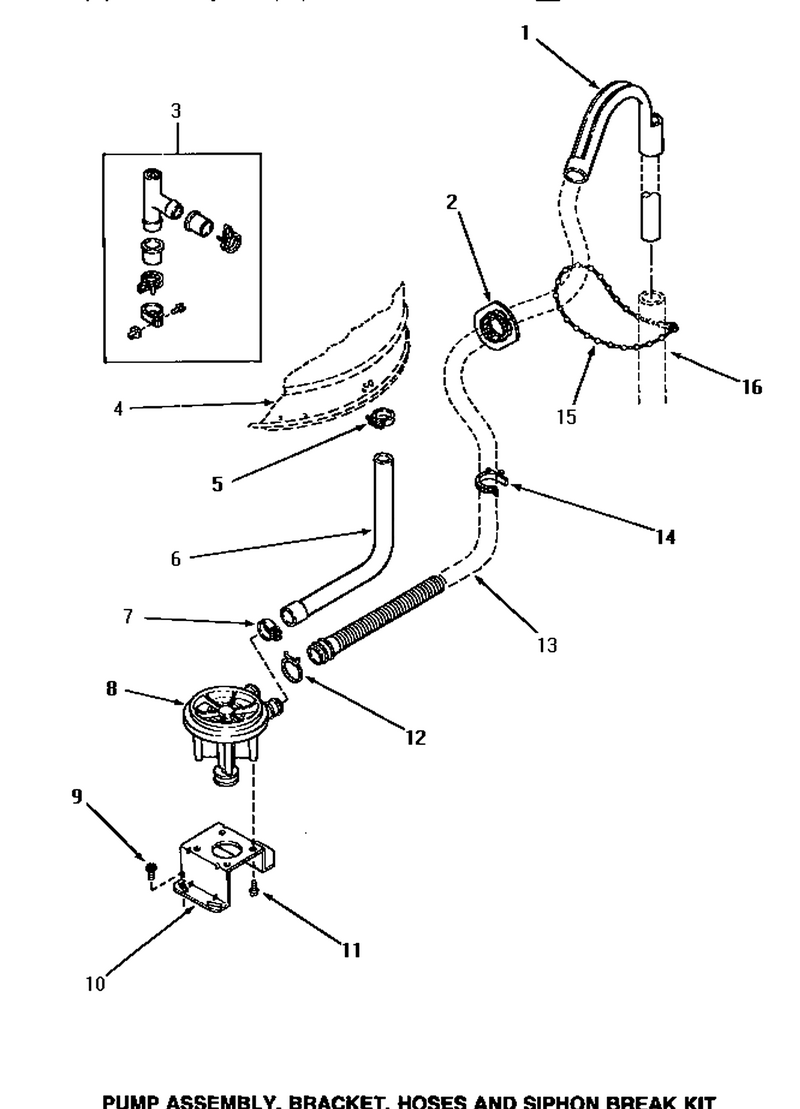

16 - Pump Assy/brkt/hoses & Siphon Break Kit

...
...
NI
Drain Hose Extension Kit WPL-406P3
...
1
Sleeve, Drain Hose WPL-33615
...
2
Relief, Strain WPL-32219
...
3
Break-Sphn WPL-76660
...
4
See Note Outer Tub WPL-Y00000000
...
5
(Clamp Hose) WPL-32616
...
6
Hose,tub To Pump-Drain WPL-27160
...
7
Clamp WPL-WP285655
...
8
Assy, Pump Na WPL-31969
...
9
Screw WPL-WP27001200
...
10
Bracket,pump Mounting WPL-27105
...
11
Screw,10-10 5/8 Unslot WPL-31098
...
12
Clamp WPL-WP285655
...
13
Drain Hose WPL-33613
...
14
Clamp,hose-Plastic WPL-34321
...
15
Strap, Standpipe Bead WPL-33489
...
16
See Note Standpipe WPL-Y00000000

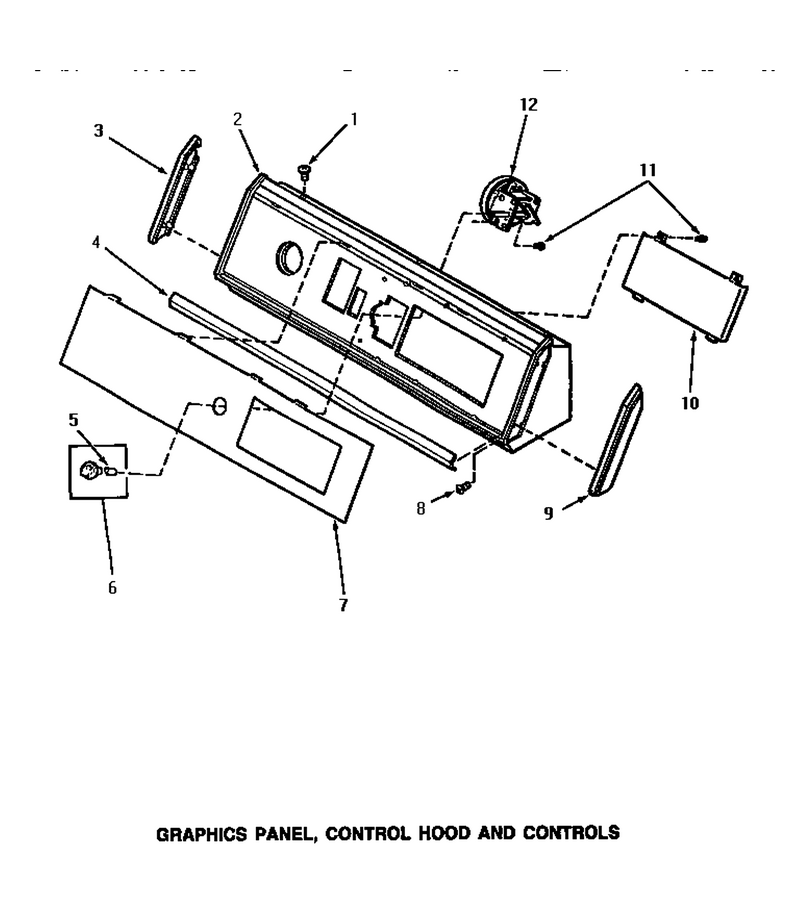

10 - Graphics Panel, Control Hood & Controls

...
...
Use For The Removal And Installation Of Drive Bell To Transmission Shaft. WPL-NOTE:
...
1
Screw,no.8abx3/4 Pozidri WPL-31752
...
2
Hood,control-Black WPL-31224
...
3
Cap,end-L.h.-Chrome WPL-31249
...
5
Retainer WPL-10519
...
6
Assy,knob-Rotary-Blk/o WPL-31286
...
7
Panel,graphic WPL-32665
...
8
Screw,no.8abx3/4 Pozidri WPL-31752
...
9
Cap,end-R.h.-Chrome WPL-31248
...
10
Electronic Control WPL-31304
...
11
Screw, No.8 X 3/8 Ind H WPL-31260
...
12
Switch,pressure-Rotary WPL-31266

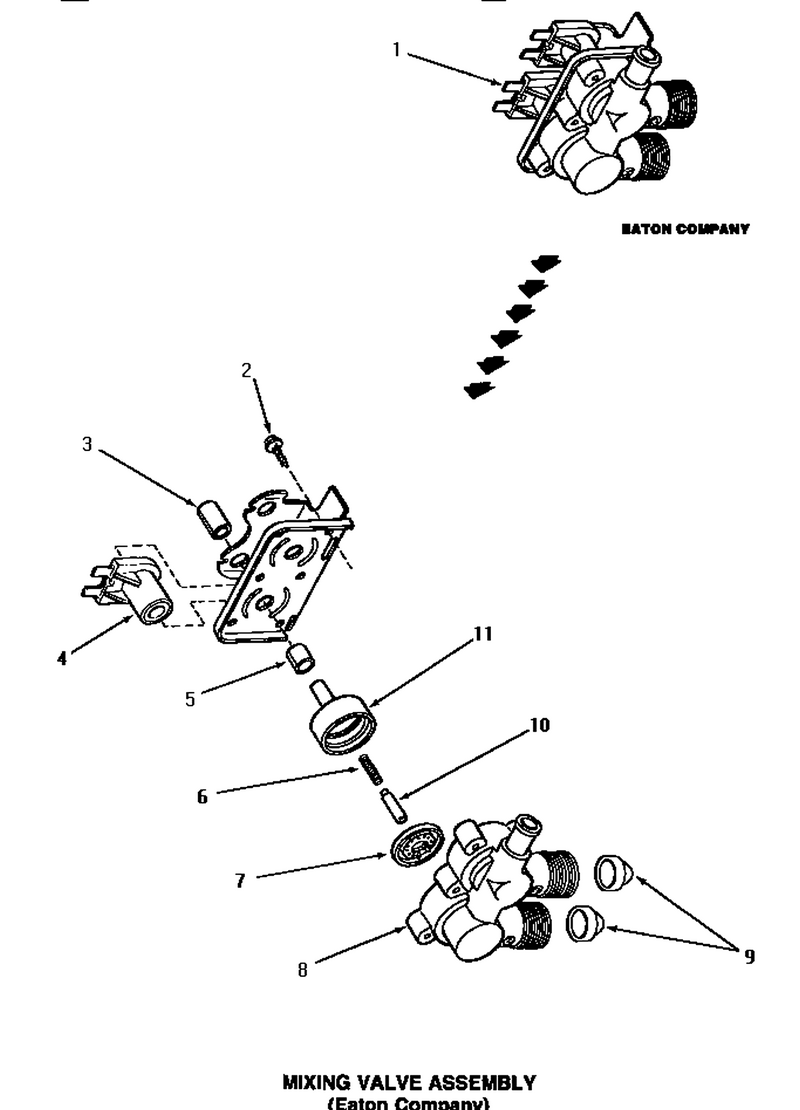

13 - Mixing Valve Assy (eaton Company)

...
...
1
Valve,mixing WPL-33930
...
2
Screw WPL-25817C
...
3
Sleeve,long WPL-24128
...
4
Solenoid,mixing Valve WPL-33930A
...
5
Sleeve,short WPL-24129
...
6
Spring WPL-24131
...
7
Diaphragm WPL-24134
...
8
Valve,mixing WPL-33930
...
9
Strainer- WPL-WP22002960
...
10
Armature WPL-24132
...
11
Guide,armature WPL-24130

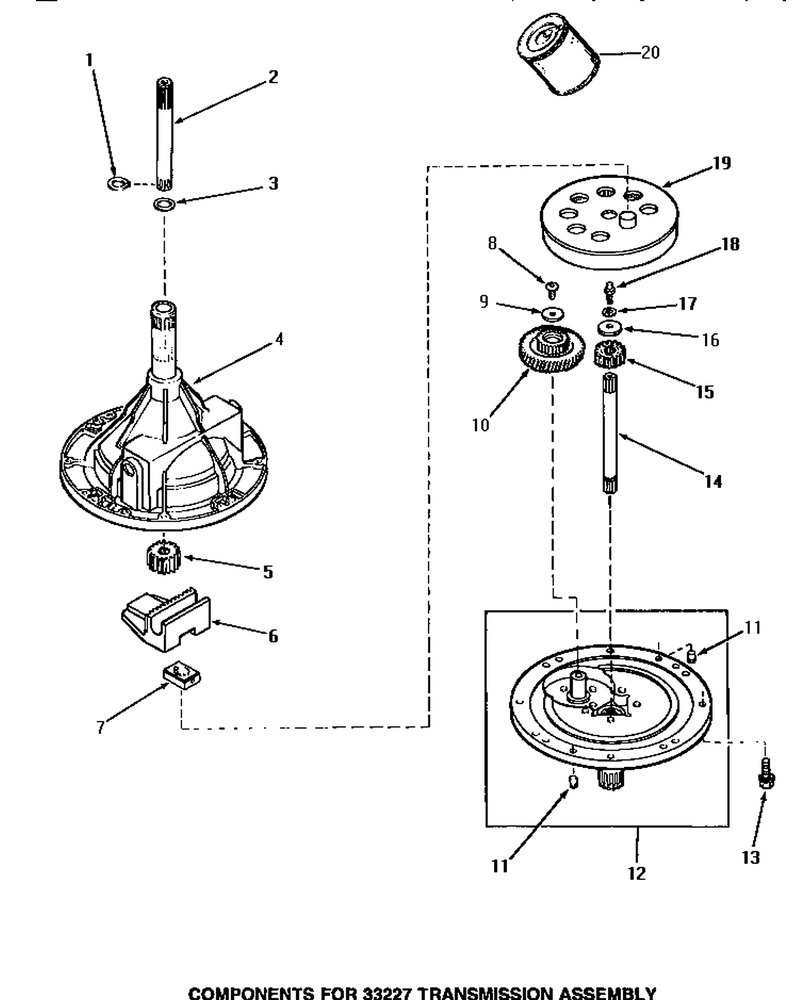

01 - 33227 Transmission Assy Components

...
...
NI
Sealant WPL-37577P
...
1
Ring,retaining WPL-27197
...
2
Shaft, Output WPL-Y36570
...
3
Washer,3628id X 1.00 X .056 WPL-35092
...
4
Assy,transmission Case WPL-33223
...
5
Pinion,agitator WPL-27003
...
6
Rack WPL-Y31526
...
7
Slide WPL-26493
...
8
Screw,1/4-20 X 3/8 WPL-29273
...
9
Washer WPL-29260
...
10
Gear,reduction WPL-29161
...
11
Pin,dowel WPL-27172
...
12
Transmission Cover Assembly WPL-38287P
...
13
Screw,1/4-20x7/8 Serra WPL-32814
...
14
Shaft,input WPL-27081
...
15
Pinion,drive WPL-Y29160
...
16
Washer WPL-WP40041501
...
17
Lockwasher,1/4 Intshkp WPL-21456
...
18
Screw,1/4-20 Special WPL-27030
...
19
Assy,gear & Stud WPL-26577
...
20
Oil,cw Transmission F- WPL-27243P

08 - Drive Bell (change)

...
...
1
Shoulder Screw WPL-34288
...
2
O-Ring WPL-34289
...
3
Drive Bell WPL-34504

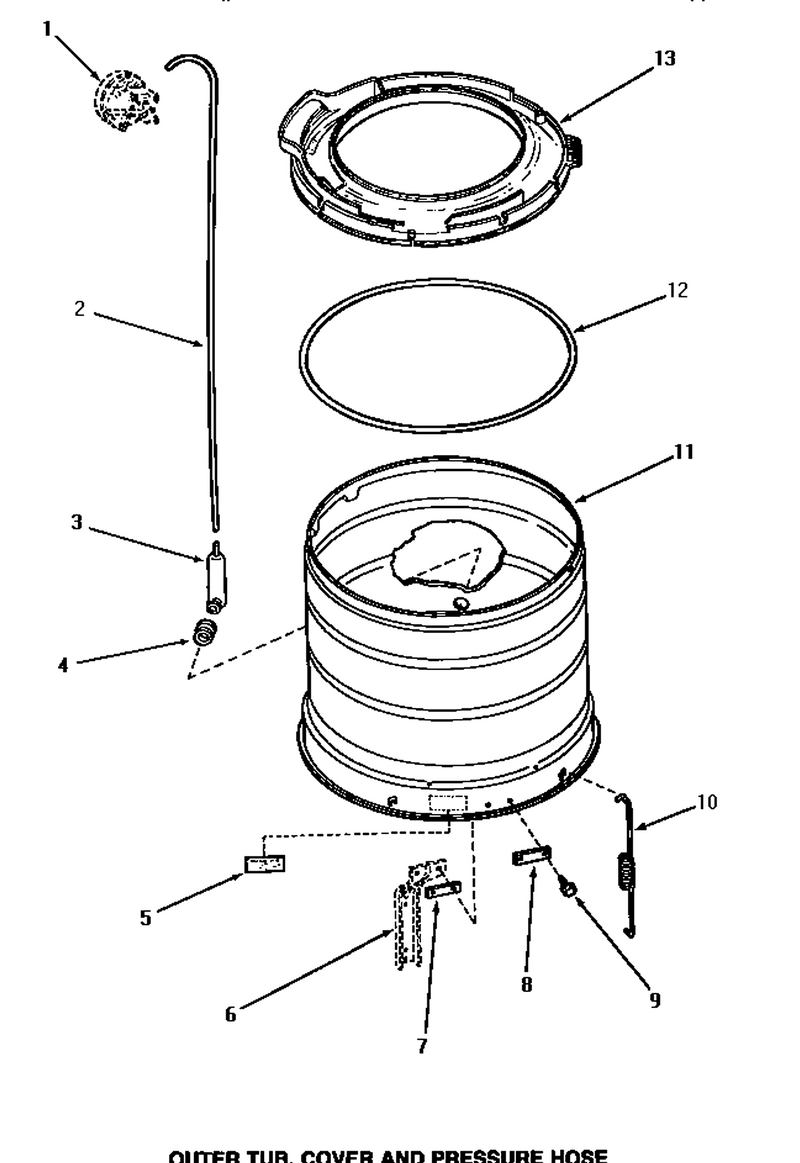

15 - Outer Tub, Cover & Pressure Hose

...
...
1
See Note Pressure Switch WPL-Y00000000
...
2
Tubing WPL-39125
...
3
Assembly, Pressure Bulb WPL-40008501
...
4
Grommet WPL-40037801
...
5
Sticker WPL-Y27195
...
6
See Note Support Leg WPL-Y00000000
...
7
Plate,leg .032 WPL-27927
...
8
Plate,leg .063 WPL-27926
...
9
Screw WPL-W10856106
...
10
Spring,leg WPL-27239
...
11
Assy- Oute WPL-33178P
...
12
Gasket,tub Cover Small WPL-32857
...
13
Cover,outer Tub WPL-33184P

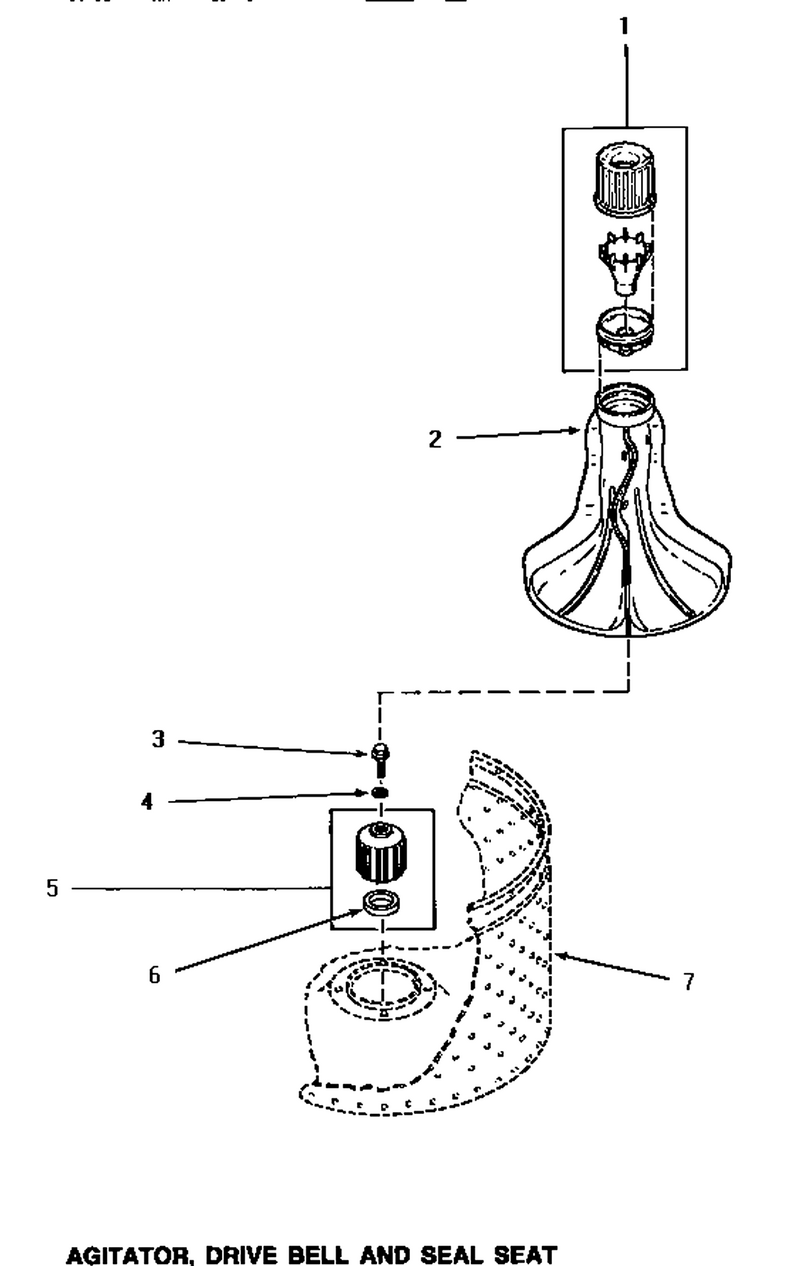

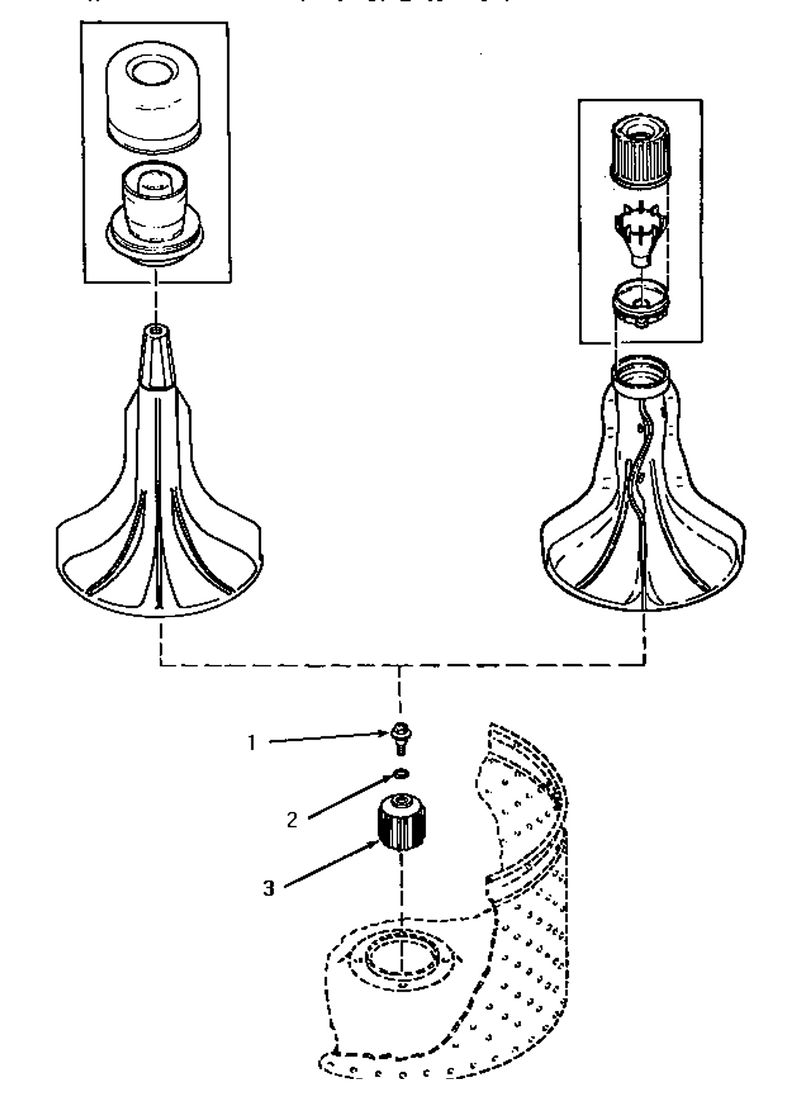

02 - Agitator, Drive Bell & Seal Seat

...
...
NI
Drive Bell Seal Kit WPL-442P3
...
1
Fabric Softener Dispenser WPL-34155
...
2
Agitator WPL-33174
...
3
Screw,no.8-1/4 X 20 X 3/ WPL-30852
...
4
Seal WPL-30853
...
5
Drive Bell And Seal Assembly WPL-30071P
...
6
See Note Seal Seat -- (See Pages 8 & 10) WPL-Y00000000
...
7
See Note Washtub WPL-Y00000000

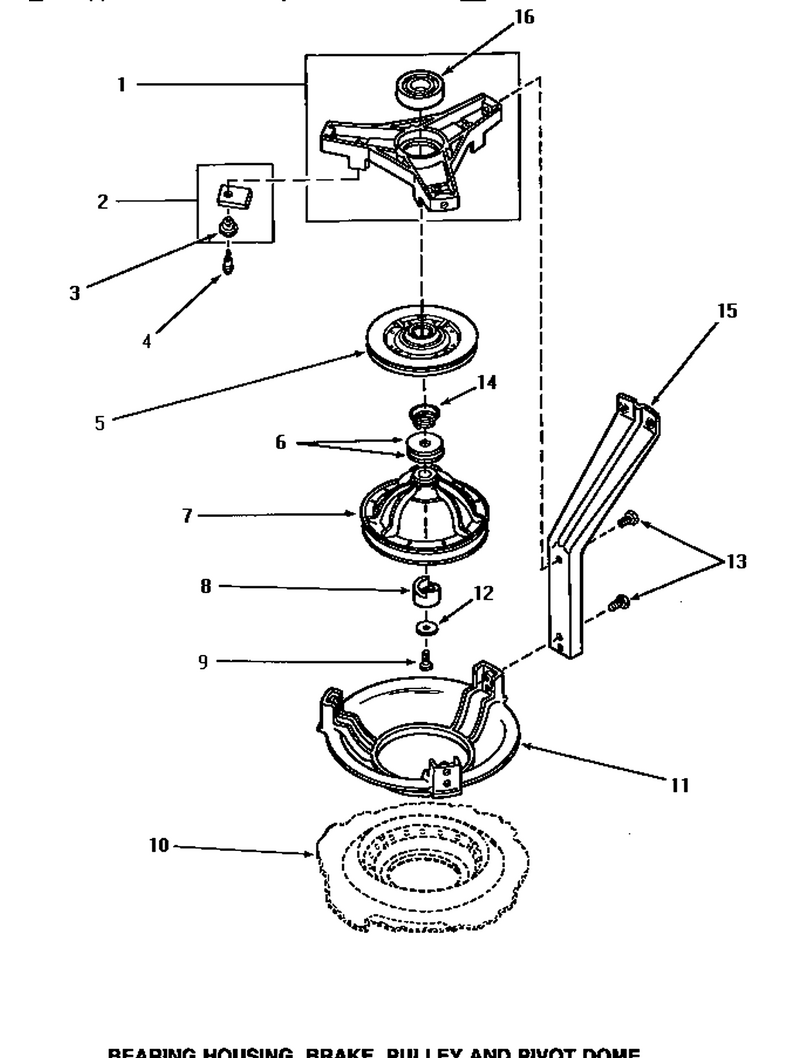

04 - Brg Hsg/brake/pulley & Pivot Dome

...
...
1
Assy,bearing Housing-L WPL-35746
...
2
Pad-Brake WPL-R9900543
...
3
Sleeve,anti-Rotation WPL-29993
...
4
Screw,10-24 Shoulder WPL-26547
...
5
Brake Assembly WPL-R9900474
...
6
Washer WPL-32651
...
7
Kit-Pulley WPL-34232P
...
8
Helix WPL-27018
...
9
Screw WPL-WP40063401
...
10
See Note Base Assembly WPL-Y00000000
...
11
Dome,pivot WPL-27124
...
12
Washer WPL-WP40041501
...
13
Screw WPL-W10856106
...
14
Spring,conical WPL-33435
...
15
Leg,support WPL-27090
...
16
Bearing- M WPL-WP40004001

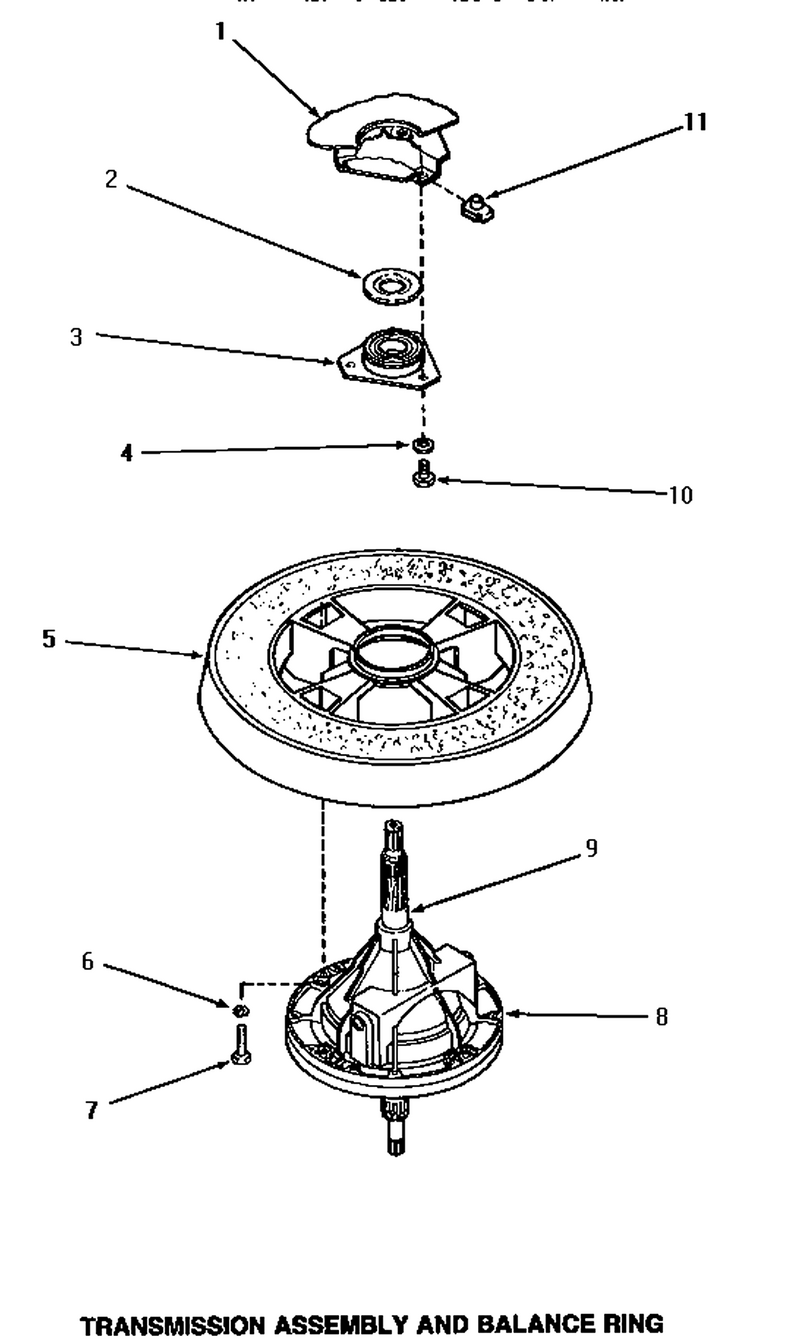

19 - Transmission Assy & Balance Ring

...
...
1
See Note Outer Tub WPL-Y00000000
...
2
Flinger WPL-27187
...
3
Main Beari WPL-WP40004201P
...
4
Lockwasher,5/16intshkp WPL-04366
...
5
Assy,balance Ring-Compl WPL-34731
...
6
Lockwasher,1/4 Ext Shk WPL-02431
...
7
Cap Screw WPL-27200
...
8
Transmission Assembly WPL-33227
...
9
Never-Seeze 1 Oz Tube WPL-27604P
...
10
Screw WPL-01355
...
11
Nut,retainer 5/16-18 WPL-27222

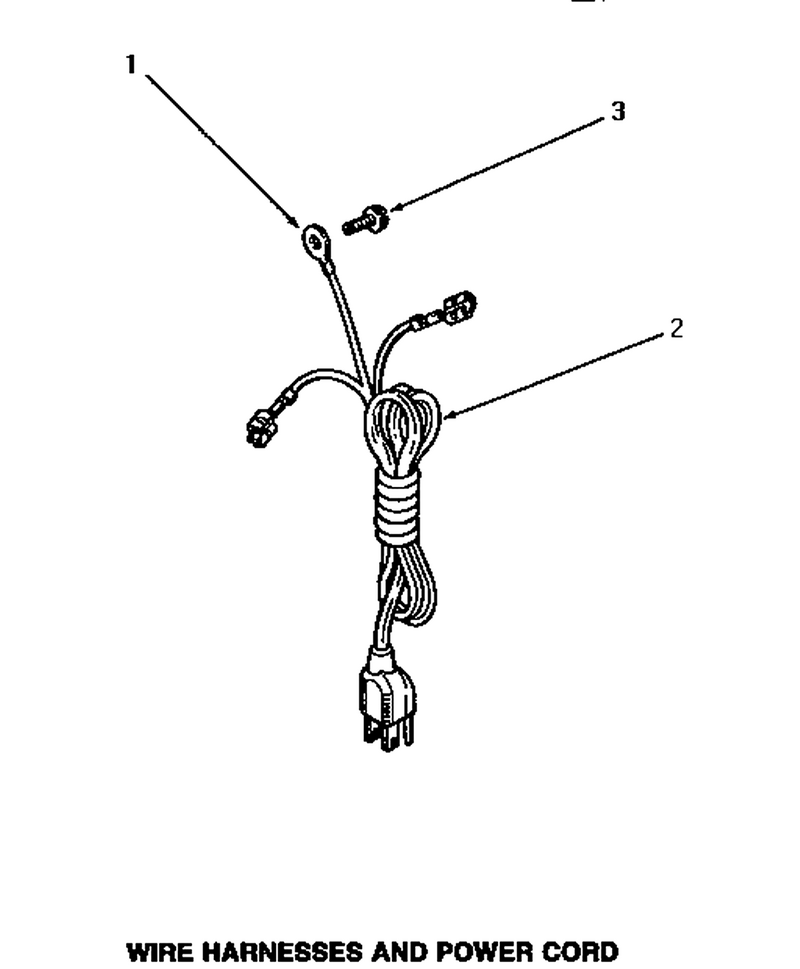

21 - Wire Harnesses & Power Cord

...
...
NI
Assy,wire Harness WPL-33627
...
1
See Note Ground Wire WPL-Y00000000
...
2
Power Cord And Plug WPL-40095301
...
3
Screw,10b-16 X 1/2 Hex WPL-52909

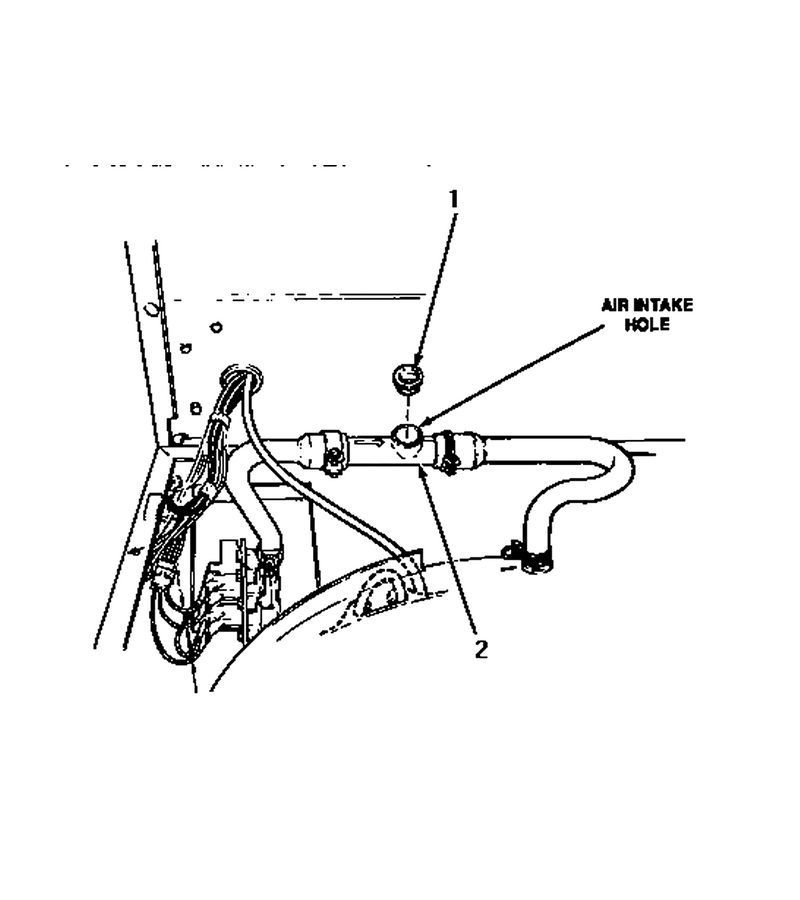

03 - Back Flow Preventer (change)

...
...
1
Plug,backflow Prevente WPL-34340
...
2
Back Flow Preventer WPL-27118

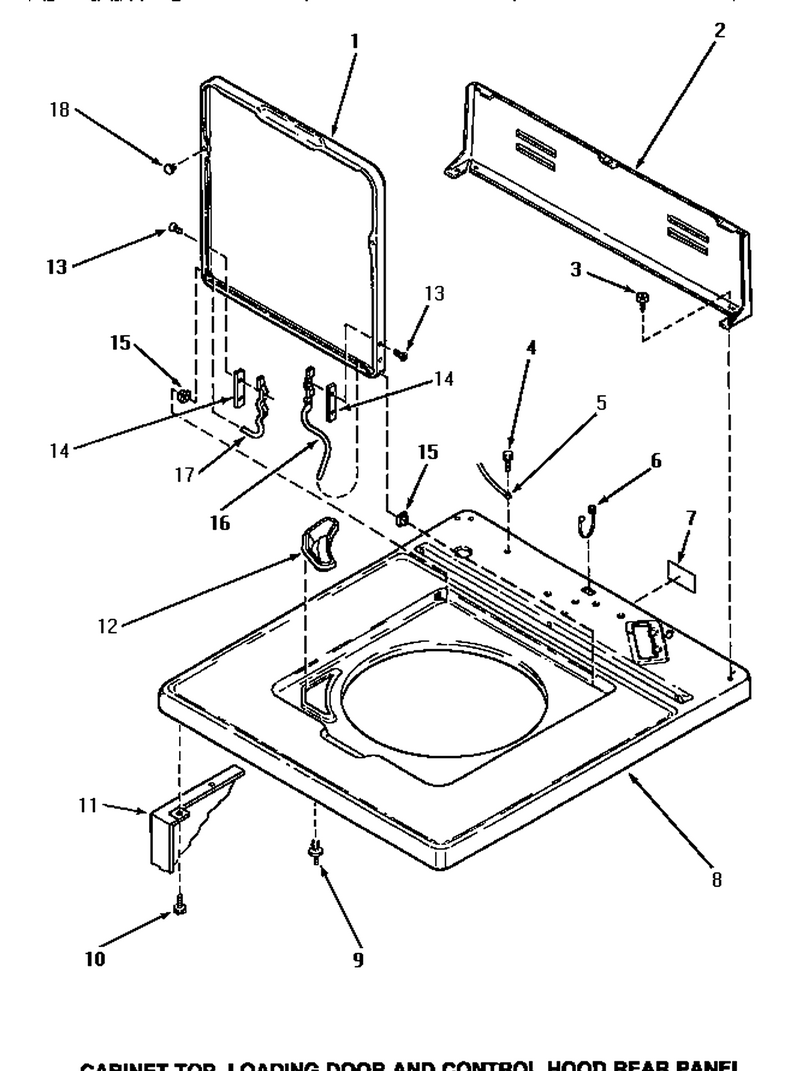

05 - Cab Top/loading Dr & Ctrl Hood Rear Pan

...
...
1
Loading Door, Harvest Gold WPL-33541H
...
2
Control Hood Rear Panel WPL-33619
...
3
Screw WPL-WP90767
...
4
Screw,10b-16 X 1/2 Hex WPL-52909
...
5
See Note Ground Wire, Green WPL-Y00000000
...
6
Grommet, Cord WPL-211881
...
7
Sticker,disconnect Pow WPL-24903
...
8
Cabinet Top, White WPL-33451W
...
9
Barrel,support WPL-56534
...
10
Screw WPL-WP27001200
...
11
See Note Cabinet WPL-Y00000000
...
12
Dispenser,bleach WPL-34776
...
13
Screw WPL-WPW10119828
...
14
Gasket,hinge WPL-34338
...
15
Bushing WPL-33446
...
16
Hinge, Lid R WPL-36437
...
17
Hinge, Lid Left WPL-36438
...
18
Bumper WPL-21685

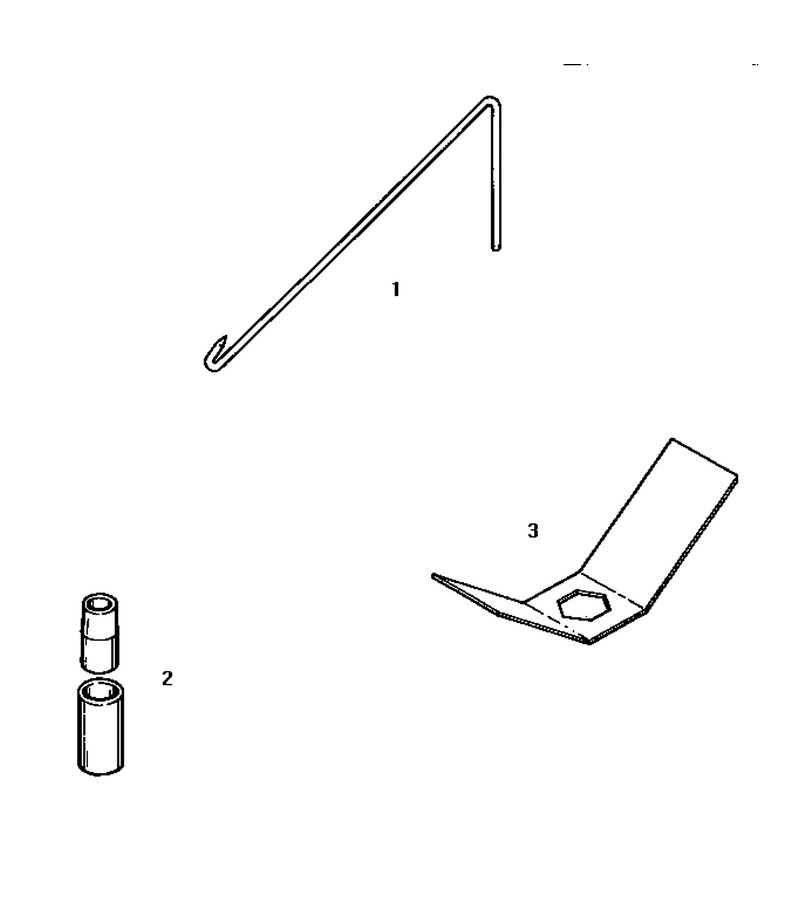

18 - Special Tools

...
...
1
Bell Tool WPL-253P4
...
2
Tool,seal Installing WPL-255P4
...
3
Assy,agitator Puller Xreplace WPL-256P4P
...
4
Agitator Hooks WPL-254P4P

20 - Transmission Tube Seal (change)

...
...
1
Hub And Transmission Tube Seal WPL-34184

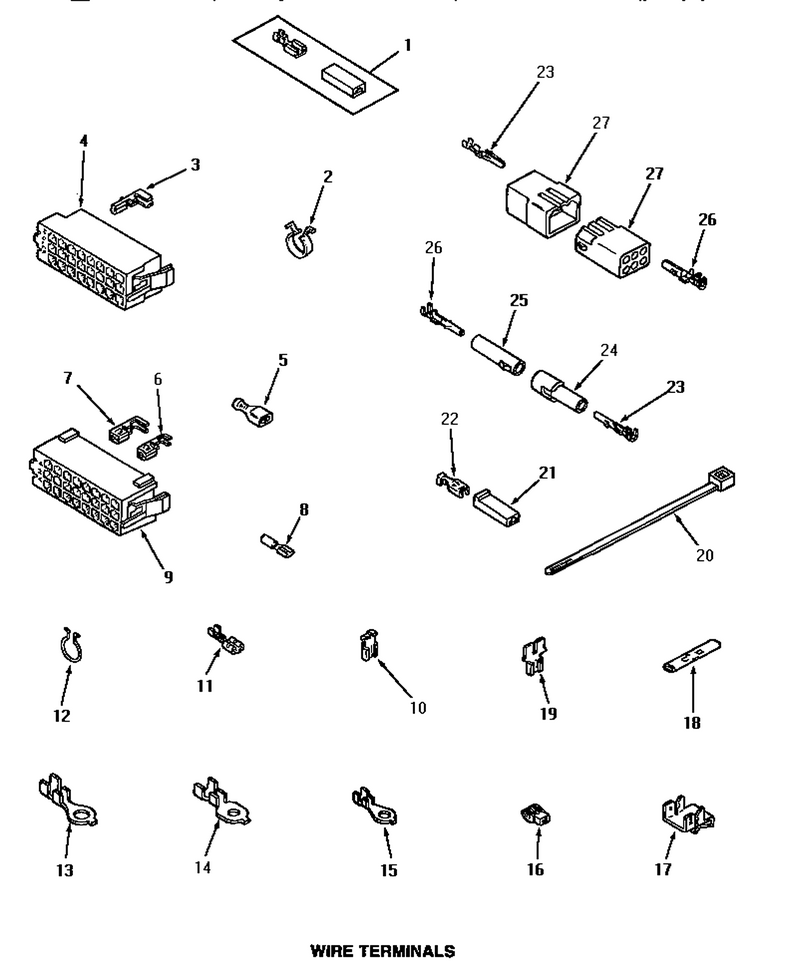

22 - Wire Terminals

...
...
1
Terminal,insulated WPL-00234
...
2
Clip,wire WPL-61510
...
3
Terminal,female-Molex- WPL-Y00188
...
4
Housing,lh -24 Position WPL-34123
...
5
Connector WPL-WP7405P034-60
...
6
Terminal,female WPL-00180
...
7
Terminal,female 2-Wire WPL-00183
...
8
Terminal,1/4 Spade Pre WPL-Y00214
...
9
Housing,24 Position WPL-28856
...
10
Terminal,flag-1/4 Fema WPL-Y00120
...
11
Spade Terminal(18 Gauge) WPL-Y00119
...
12
Clip,wire WPL-51291
...
13
Terminal,ring-1/4 Stud WPL-Y00113
...
14
Terminal,ring-10 Stud WPL-Y00111
...
15
Terminal,ring-10 Stud WPL-00110
...
16
Insulator, Pod K WPL-M0325501
...
17
Ground Clip WPL-Y00161
...
18
Connector WPL-WP75614
...
19
Double Connector WPL-29673
...
20
Wire Tie WPL-55881
...
21
Connector WPL-90789
...
22
Terminal,spade-1/4 Fem WPL-Y00115
...
23
Terminal,pin-Male WPL-Y00116
...
24
Plug,1 Circuit WPL-26302
...
25
Receptacle,molex WPL-26301
...
26
Female Socket Terminal WPL-Y00117
...
27
Receptacle,6 Circuit WPL-26708
...
28
Plug,6 Circuit WPL-23041

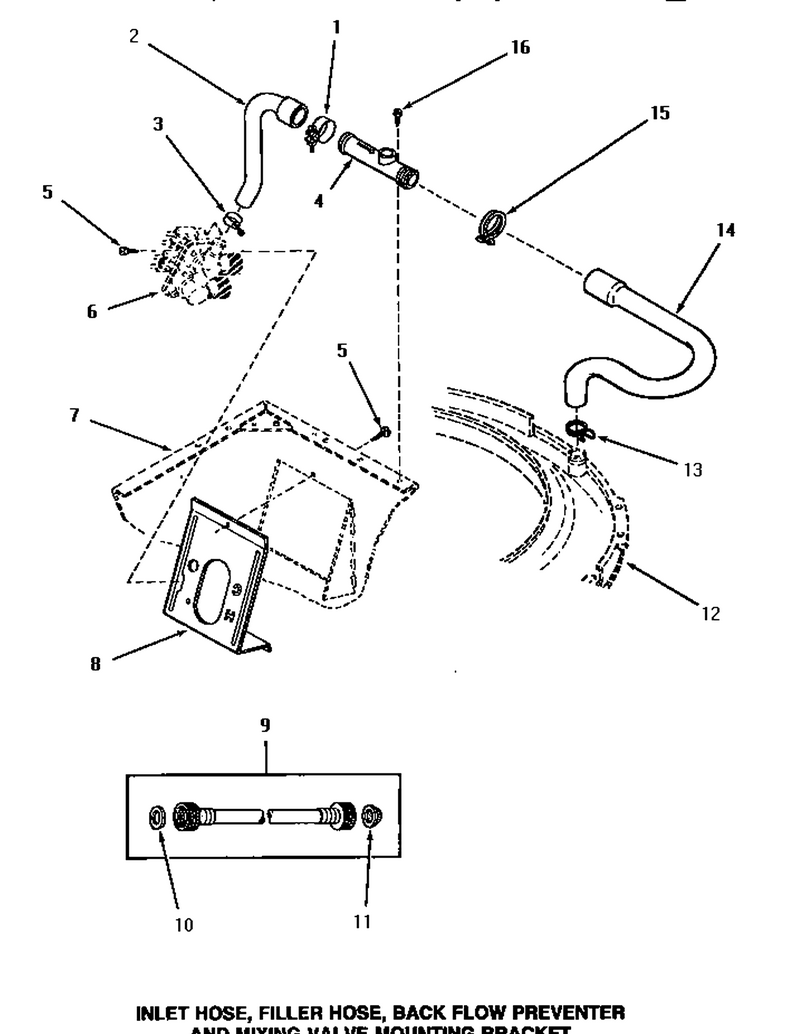

11 - Inlet/fill Hose/back Fl Preventer & Brkt

...
...
1
Clamp Hose WPL-27152
...
2
Hose,mixing Valve WPL-27183
...
3
Clamp WPL-WP596669
...
4
Back Flow Preventer WPL-27118
...
5
Screw,8-18 X 3/8 Tappi WPL-56392
...
6
See Note Mixing Valve WPL-Y00000000
...
7
See Note Cabinet WPL-Y00000000
...
8
Bracket, Valve WPL-39407
...
9
Inlet Hose Assy. WPL-202860
...
10
Gasket- In WPL-WPY013783
...
11
Strainer- WPL-WP22002960
...
12
See Note Outer Tub Cover WPL-Y00000000
...
13
Hose Clamp WPL-29210
...
14
Hose,water Inlet WPL-33186
...
15
Hose Clamp, Green WPL-21976
...
16
Screw WPL-WP90767

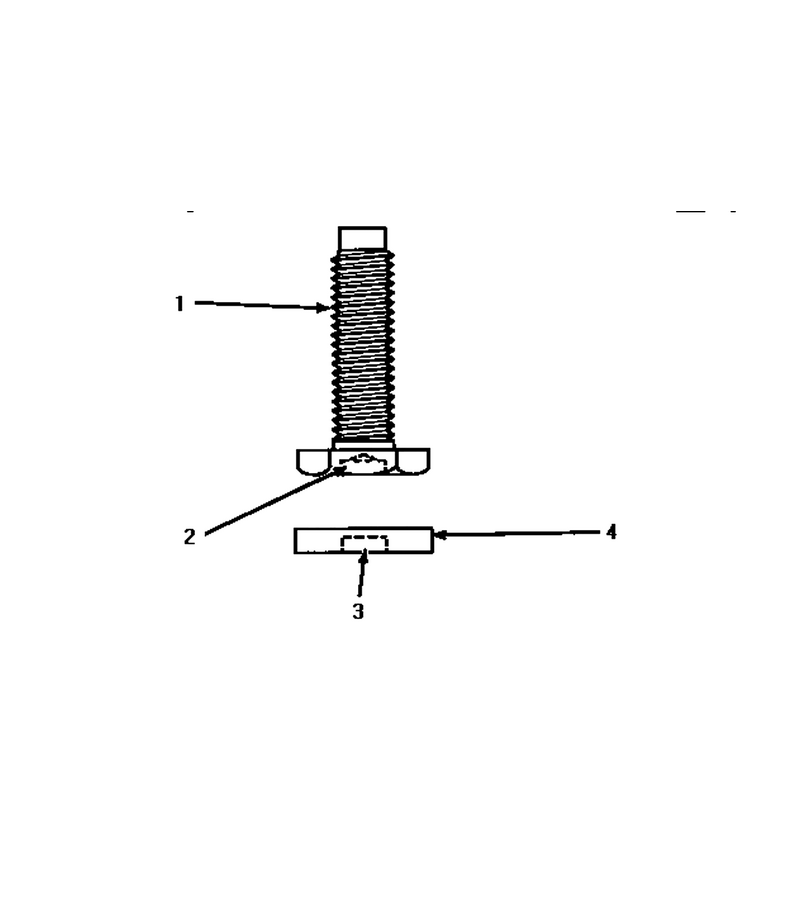

12 - Leveling Leg (change)

...
...
1
Leg, Adjustable (W/nut) WPL-22003428
...
2
See Note Hole WPL-Y00000000
...
3
See Note Rubber Dimple WPL-Y00000000
...
4
Rubber Foot WPL-34318

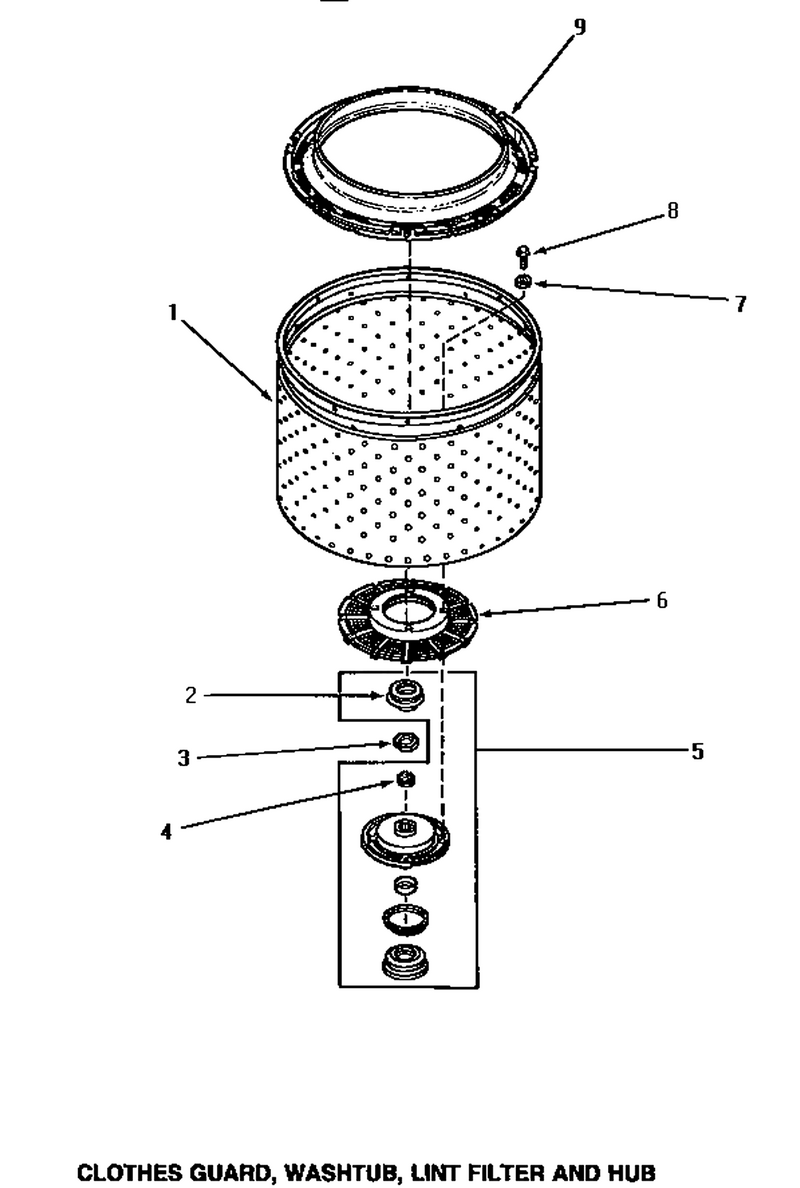

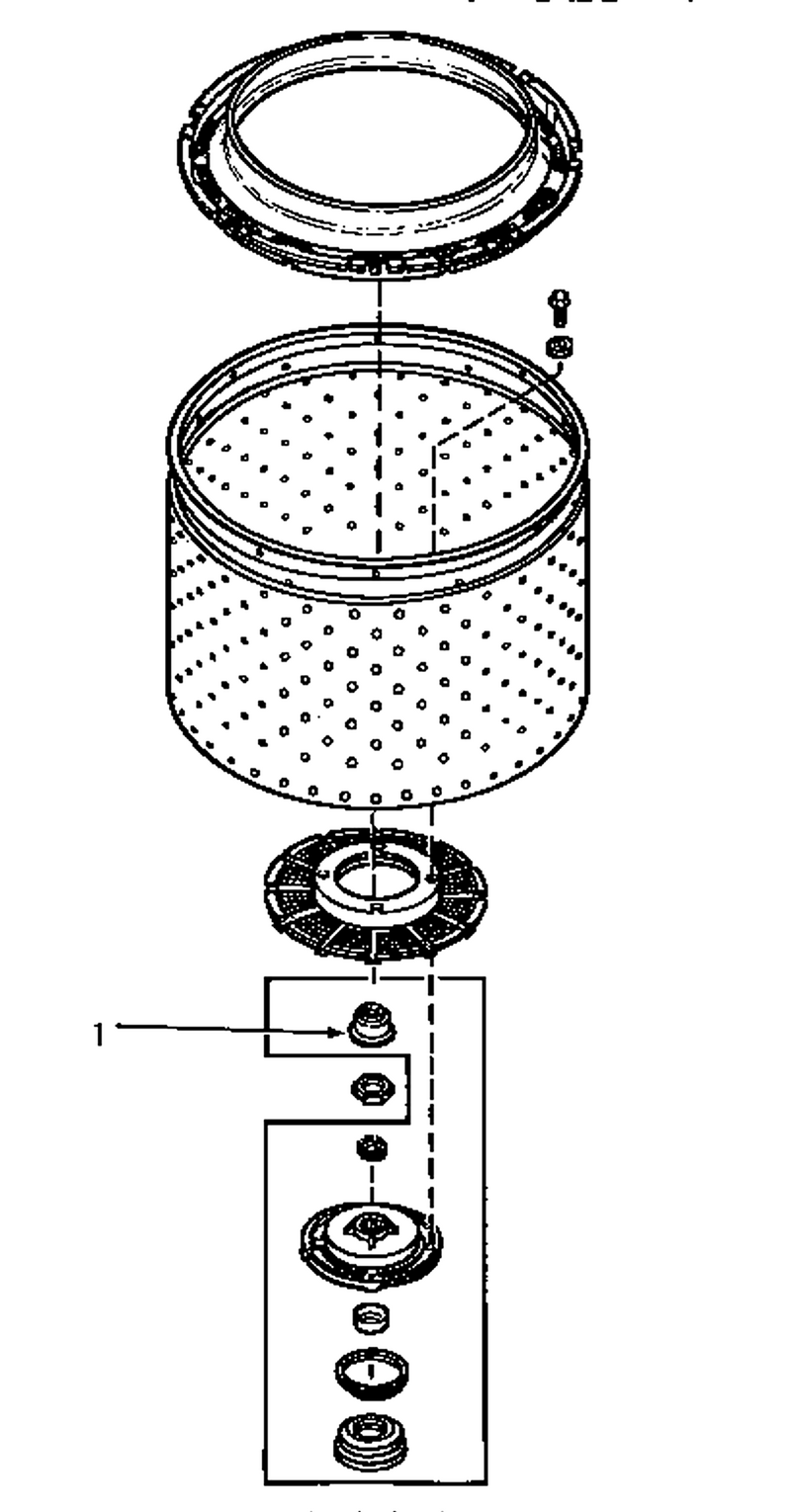

06 - Clothes Guard/washtub/lint Filter & Hub

...
...
1
Wash Tub WPL-39252P
...
2
See Note Seal Head WPL-Y00000000
...
3
Locknut WPL-Y29220
...
4
Insert WPL-WP40008301
...
5
Hub & Seal Kit WPL-495P3
...
6
Filter Lin WPL-39371
...
7
Gasket WPL-WP28094
...
8
Screw WPL-WPW10116787
...
9
Guard, Clothes WPL-35035

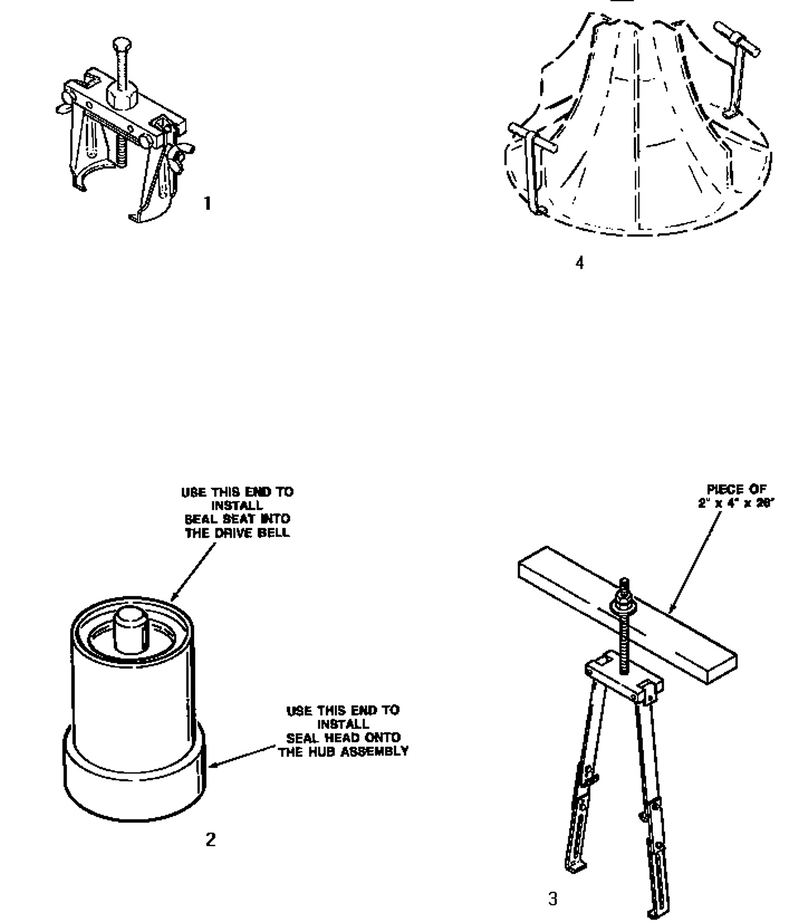

17 - Special Tools

...
...
1
Hook Spring WPL-229P4
...
2
Installer,spring WPL-242P4
...
3
Hex Wrench WPL-237P4
