Amana MWT4451D01 (BOM: P1173506M)

Model: MWT4451D01 (BOM: P1173506M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

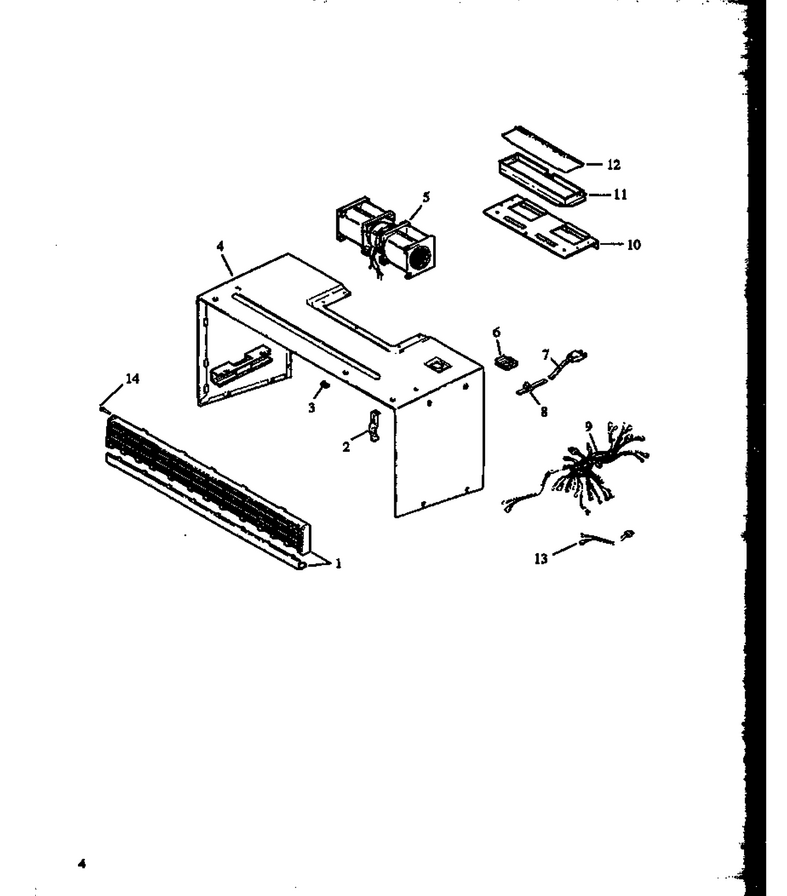

01 - Page 1

...
...
1
Assy, Grille White WPL-R0710274
...
2
Guide Mtg Shaft WPL-R0705890
...
3
Nut, Speed WPL-M0286708
...
4
Outer Case WPL-R0703233
...
5
Motor-Ventilation WPL-R0707010
...
6
Brkt, Power Cord WPL-R0705953
...
7
Cord, Power WPL-Y05200148
...
8
Cable Clamp WPL-R0701555
...
9
Wire Harness WPL-R0705024
...
10
Motor Bracket WPL-R0705883
...
11
Damper Door WPL-R0705885
...
12
Frame, Damper WPL-Y05200066
...
14
Screw-Grille Mtg WPL-R0713520

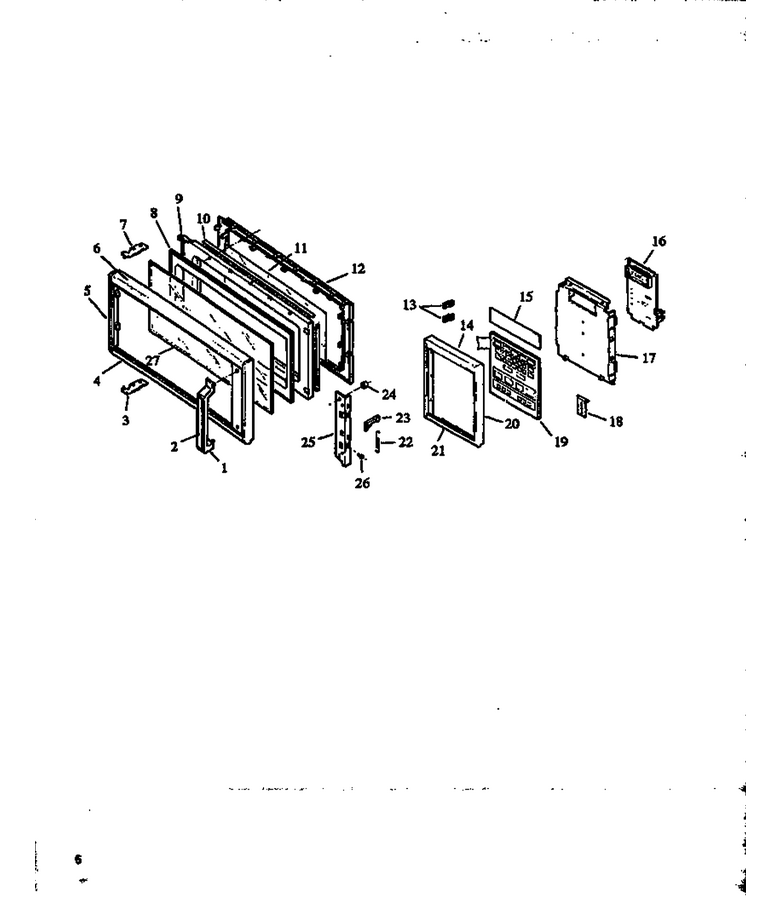

02 - Page 2

...
...
1
Handle (blk) WPL-Y05200194
...
2
Handle (blk) WPL-Y05200194
...
3
Hinge, Lower WPL-Y05200150
...
4
Trim, Door Lower WPL-R0705995
...
5
Outer, Door Frame WPL-R0705991
...
6
Trim, Door Upper WPL-R0705993
...
7
Hinge, Upper WPL-Y05200208
...
8
Frame, Door (blk) WPL-Y05200200
...
9
Liner, Door (blk) WPL-Y05200196
...
10
Seal, Door WPL-Y05200203
...
11
Film Door WPL-R0710188
...
12
Inner Door Frame WPL-R0705981
...
13
Brkt Control Box WPL-R0705948
...
14
Trim, Control Pnl, Upper WPL-R0705974
...
15
Crystal WPL-R0707565
...
16
Board, Pc WPL-R0702019
...
17
Bracket, Control Panel WPL-R0705976
...
18
Hinge, Control Box WPL-R0705951
...
19
Ass`y Key Panel WPL-R0702011
...
20
Control Panel WPL-R0705949
...
21
Trim, Control Pnl, Lower WPL-R0705972
...
22
Spring, Latch Door WPL-R0705989
...
23
Latch, Door WPL-Y05200204
...
24
Support, Ring WPL-R0701563
...
25
Bracket, Key Door WPL-R0708243
...
26
Pan, Latch Door WPL-R0701564
...
27
Glass, Outer Door WPL-R0707562

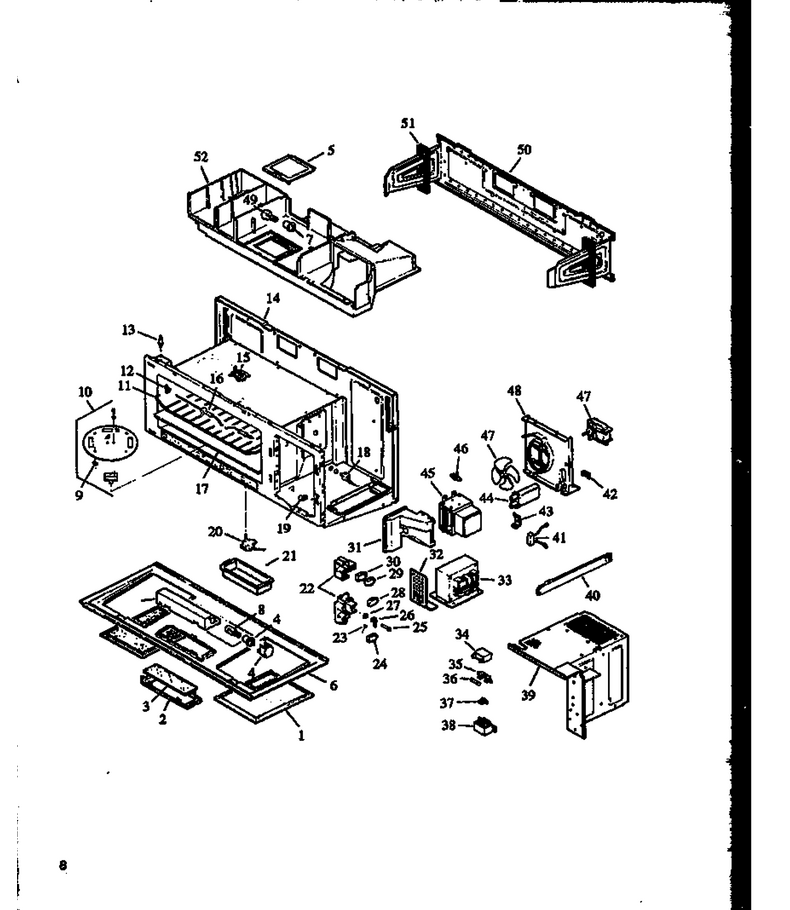

03 - Page 3

...
...
1
Air Filter WPL-R0710162
...
2
Brkt, Cooktop Glass WPL-R0705960
...
3
Lens, Bulb WPL-Y05200153
...
4
Socket-Lamp WPL-R0712513
...
5
Cover, Lamp WPL-R0705997
...
6
Bottom Plate WPL-R0705961
...
7
Socket-Lamp WPL-R0712517
...
8
Bulb-Light WPL-8206232A
...
9
Space, Stirrer WPL-R0701565
...
10
Stirrer Assy. WPL-Y05200159
...
13
Bolt, Flange M5x12 WPL-R0713576
...
14
Back Cover WPL-R0703235
...
15
Sensor, Flame WPL-Y05200144
...
17
Bottom, Tray Assy WPL-Y05200170
...
19
Cable Clamp WPL-R0701555
...
20
Motor, Stirrer WPL-56001337
...
21
Stirrer Cover WPL-R0708211
...
22
Latch Body Upper WPL-R0705882
...
23
Spring Hook WPL-R0705889
...
24
Switch, Micro-Monitor WPL-56001100
...
25
Screw WPL-R0700053
...
26
Lever Hook WPL-R0705887
...
27
Cam WPL-R0705888
...
28
Switch, Secondary WPL-R0702549
...
29
Switch, Door WPL-R0702547
...
30
Switch- Pr WPL-WP56001036
...
31
Air Guide WPL-R0705967
...
32
Barrier Hv Trans WPL-R0705895
...
33
H V Transformer WPL-R0710502
...
34
Capacitor, Hv (10uf/250v) WPL-58001069
...
35
Block-Fuse WPL-W10206728
...
36
Fuse WPL-WPM0805102
...
37
Thermostat, Switch WPL-Y05200164
...
38
Transformer, Low Voltage WPL-Y05200187
...
39
Cover, Side Duct WPL-R0703272
...
40
Bracket Bridge Right WPL-R0705898
...
41
Diode WPL-R0709606
...
42
Bracket, Fan Motor WPL-R0705965
...
43
Bracket Hv Capacitor WPL-R0705966
...
44
Capacitor-.69 WPL-59001160
...
45
Magnetron WPL-WPW10126794
...
46
Thermostat, Switch WPL-R0711018
...
47
Fan Motor/ Blade Assembly WPL-Y05200160
...
48
Fan Motor/ Blade Assembly WPL-Y05200160
...
49
Bulb-Light WPL-8206232A
...
50
Mounting Plate WPL-R0705952
...
51
Cushion, Mounting Plate WPL-Y05200143
...
52
Duct Assembly Upper WPL-R0703273
