Amana MWT344/1001

Model: MWT344/1001

Save Part Not Listed?
product name

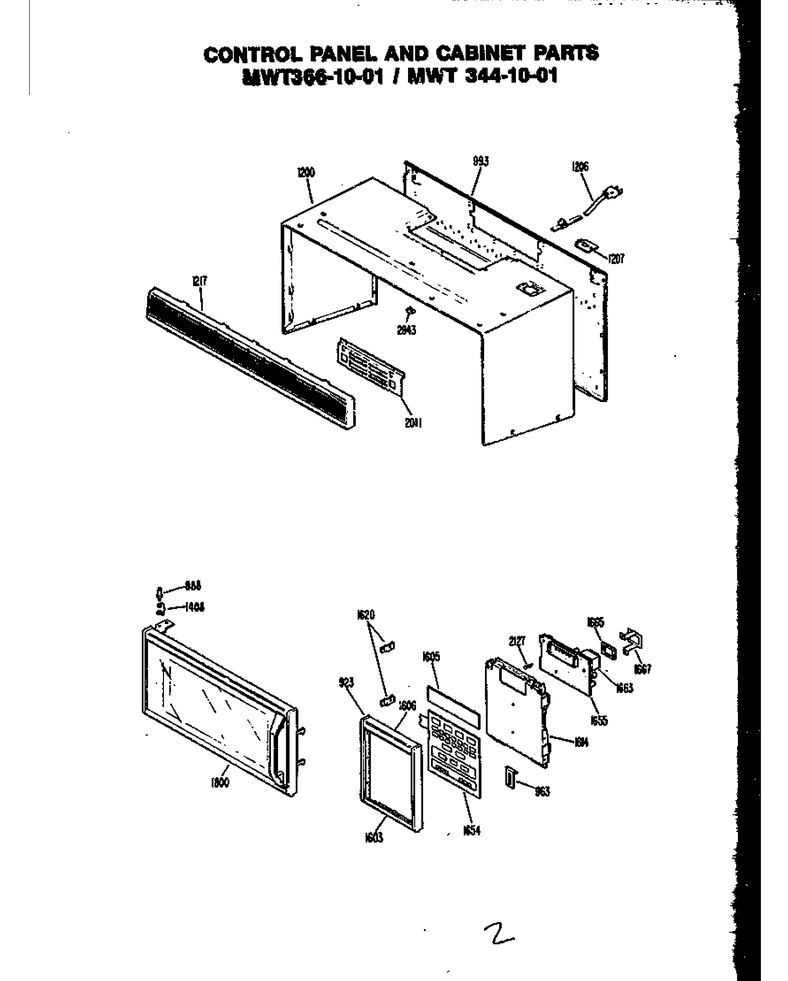

01 - Control Panel And Cabinet Parts

...
...
NI
Wall Mtg. Template WPL-0301979
...
923
Control Pnl Esc WPL-0311978
...
963
Use R0705878 WPL-0053458
...
988
Use R0701554 WPL-0310770
...
993
Plate, Mounting WPL-0310796
...
1200
Use R0703208 WPL-0310794
...
1206
Use R0705022 WPL-0311984
...
1207
Use R0701555 WPL-0310756
...
1217
Grille Assembly WPL-Y0312170
...
1408
Use R0700516 WPL-0053400
...
1603
Trim, Control Panel Lower WPL-Y0312172
...
1605
Crystal, Display WPL-0311996
...
1606
Trim, Control Panel Upper WPL-Y0312171
...
1614
Bracket, Control Panel WPL-0312167
...
1620
Use R0705907 WPL-0311957
...
1654
Key Panel Assembly WPL-0312175
...
1655
Net-Smart Board WPL-0312177
...
1663
Transformer, Low Voltage WPL-0311989
...
1665
Cover, Low Voltage Transformer WPL-311974
...
1667
Bracket L.v. Transformer WPL-R0705909
...
1800
Door Assembly WPL-312178
...
2011
Use R0705910 WPL-0311968
...
2127
Use R0705911 WPL-0311975
...
2943
Nut, Speed WPL-M0286708
