Amana MWD36610 (BOM: MN03)

Model: MWD36610 (BOM: MN03)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

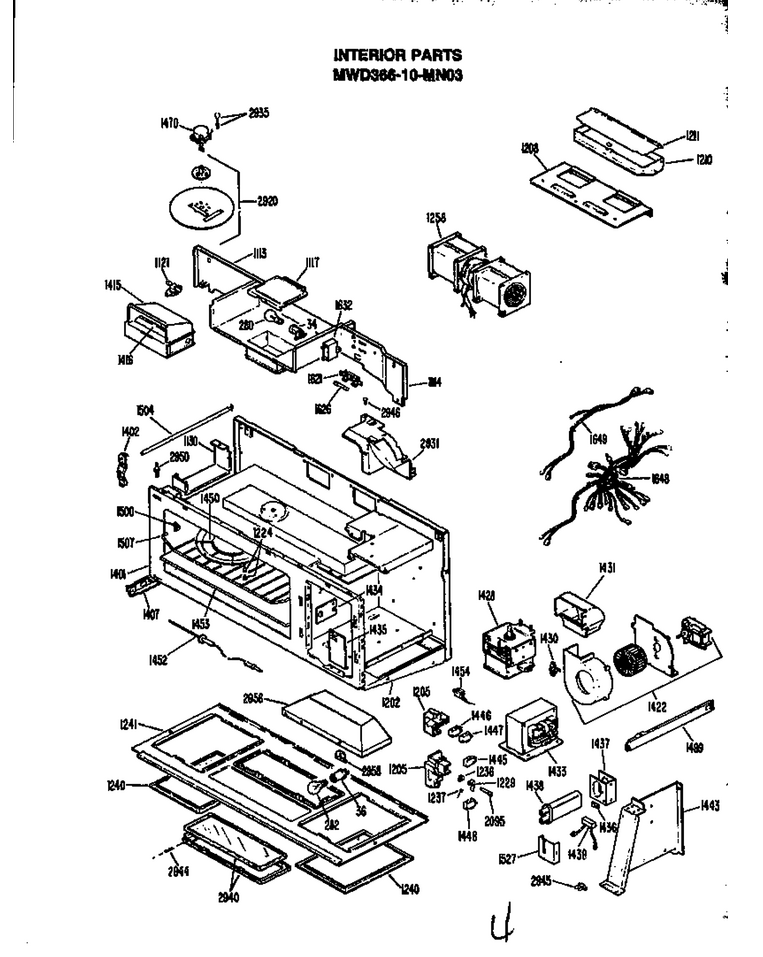

01 - Interior Parts

...
...
34
Use R0712517 WPL-0311980
...
36
Use R0712513 WPL-0311981
...
280
Bulb-Light WPL-8206232A
...
282
Bulb-Light WPL-8206232A
...
1113
Duct Assy Upper WPL-0311959
...
1114
Duct Assy Upper WPL-R0703211
...
1117
Cover, Lamp WPL-0311738
...
1121
Use R0710161 WPL-0311985
...
1130
Duct, Side, Left WPL-R0705880
...
1202
Base Plate WPL-Y0311999
...
1205
Latch, Bracket (lower) WPL-0310752
...
1208
Motor Bracket WPL-R0705883
...
1210
Frame, Damper WPL-Y05200066
...
1211
Door, Damper WPL-Y0053417
...
1224
Push Rivet WPL-0053404
...
1229
Lever, Hook WPL-Y0053444
...
1236
Use R0705888 WPL-0053443
...
1237
Use R0705889 WPL-0053457
...
1240
Air Filter WPL-R0710162
...
1241
Bottom Plate Assy WPL-0311737
...
1258
Use R0707007 WPL-Y0310784
...
1401
See Note Cavity And Frame Assembly -- (not Available) WPL-Y00000000
...
1402
Guide, Mtg Shaft WPL-Y0053424
...
1407
Base, Bridge Left WPL-R0705891
...
1415
Use R0703216 WPL-0311961
...
1416
Use R0705892 WPL-0311962
...
1422
Use R0707009 WPL-Y0053470
...
1428
Magnetron WPL-54001073
...
1430
Thermostat, Switch WPL-0310780
...
1431
Air Guide, Side WPL-0311969
...
1433
Transformer H V WPL-0311992
...
1434
Use R0705894 WPL-0310765
...
1435
Use R0705895 WPL-0053433
...
1436
Fastener Hvc WPL-R0701557
...
1437
Use R0705896 WPL-0311965
...
1438
Capacitor-Doubler WPL-D8547912
...
1439
Rectifier WPL-WP13091701
...
1443
Duct Side WPL-R0703214
...
1445
Timer WPL-53466
...
1446
Switch WPL-0311986
...
1447
Use R0702548 WPL-Y0310782
...
1448
Use R0702549 WPL-0310781
...
1450
Cover - Stirrer WPL-0311967
...
1452
Probe, Temperature WPL-54001083
...
1453
Ceramic Plate WPL-4158731
...
1454
Use R0712515 WPL-0310775
...
1470
Motor, Stirrer WPL-0311987
...
1499
Use R0705898 WPL-0053440
...
1500
Support, Rack WPL-Y05200084
...
1504
Shaft, Mounting WPL-0311958
...
1507
Rack, Wire WPL-Y05200176
...
1527
Barrier, Hi-Volt Capacitor WPL-53492
...
1621
Use R0812507 WPL-0310751
...
1626
Fuse WPL-Y53471
...
1632
Capacitor, Hv (10uf/250v) WPL-58001069
...
1648
Wire Harness, Main WPL-Y0311982
...
1649
Wire Harness WPL-0311983
...
2095
Use R0700053 WPL-0053407
...
2920
Stirrer Blade WPL-YR0710169
...
2931
Duct WPL-R0703215
...
2935
Push Rivet WPL-0053404
...
2940
Glass, Lamp WPL-Y0311997
...
2944
Manifold Panel, 30`` WPL-Y0310679
...
2945
Use R0711019 WPL-Y0053463
...
2946
Use R0701559 WPL-0310753
...
2950
Use R0701554 WPL-0310770
...
2956
Cover Lamp WPL-0311970
...
2958
Bracket, Socket WPL-R0705912
