Amana MVH210E (BOM: P1184202M)

Model: MVH210E (BOM: P1184202M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

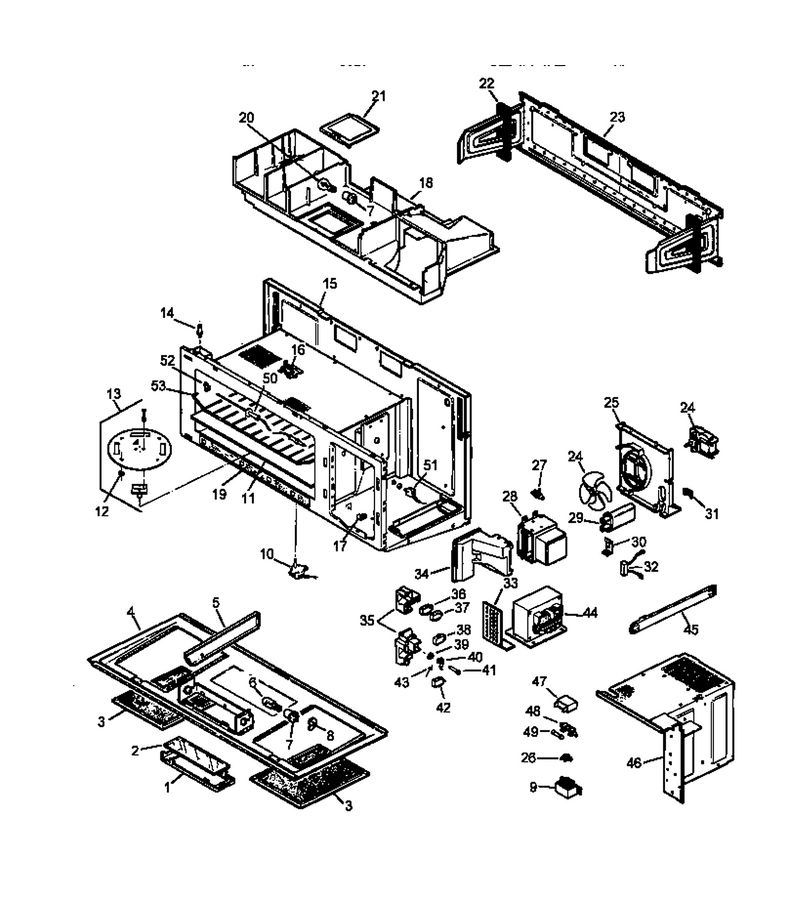

01 - Chassis Assy & Electrical Components

...
...
1
Brkt, Cooktop Glass WPL-R0705960
...
2
Lens, Bulb WPL-Y05200153
...
3
Air Filter WPL-R0710162
...
4
Bottom Plate WPL-R0705961
...
5
Bottom, Enclosure WPL-R0708246
...
6
Bulb-Light WPL-8206232A
...
7
Socket-Lamp WPL-R0712517
...
8
Bracket, Socket WPL-R0708247
...
9
Transformer, L.v. WPL-R0710504
...
10
Motor, Stirrer WPL-56001337
...
11
Bottom, Tray Assy WPL-Y05200170
...
12
Space, Stirrer WPL-R0701565
...
13
Stirrer Assembly WPL-R0710810
...
14
Bolt, Flange M5x12 WPL-R0713576
...
18
Duct Assembly Upper WPL-R0703273
...
20
Bulb-Light WPL-8206232A
...
21
Cover, Top Lamp WPL-R0708245
...
22
Cushion, Mounting Plate WPL-Y05200143
...
23
Mounting Plate WPL-R0705952
...
24
Fan Motor/ Blade Assembly WPL-Y05200160
...
25
Fan Motor/ Blade Assembly WPL-Y05200160
...
26
Thermostat, Switch WPL-Y05200164
...
27
Thermostat, Switch WPL-R0711018
...
28
Magnetron WPL-WPW10126794
...
29
Capacitor-.69 WPL-59001160
...
30
Trim, Door Lower WPL-R0705996
...
31
Bracket, Fan Motor WPL-R0705965
...
32
Rectifier WPL-WP13091701
...
33
Barrier Hv Trans WPL-R0705895
...
34
Air Guide WPL-R0705967
...
35
Latch Body Lower WPL-R0705881
...
36
Switch- Pr WPL-WP56001036
...
37
Switch, Door WPL-R0702547
...
38
Switch, Secondary WPL-R0702549
...
39
Cam WPL-R0705888
...
40
Lever Hook WPL-R0705887
...
41
Screw WPL-R0700053
...
42
Switch, Micro-Monitor WPL-56001100
...
43
Spring Hook WPL-R0705889
...
44
H V Transformer WPL-R0710502
...
45
Bracket Bridge Right WPL-R0705898
...
46
Cover, Side Duct WPL-R0703272
...
47
Capacitor, Hv (10uf/250v) WPL-58001069
...
48
Block-Fuse WPL-W10206728
...
49
Fuse WPL-WPM0805102
...
50
Probe, Temperature WPL-54001083
...
51
Ass`y, Probe Socket WPL-R0710293
...
52
Support, Rack WPL-Y05200084
...
53
Rack, Wire WPL-Y05200176
...
54
Label, Menu Code WPL-R0713020

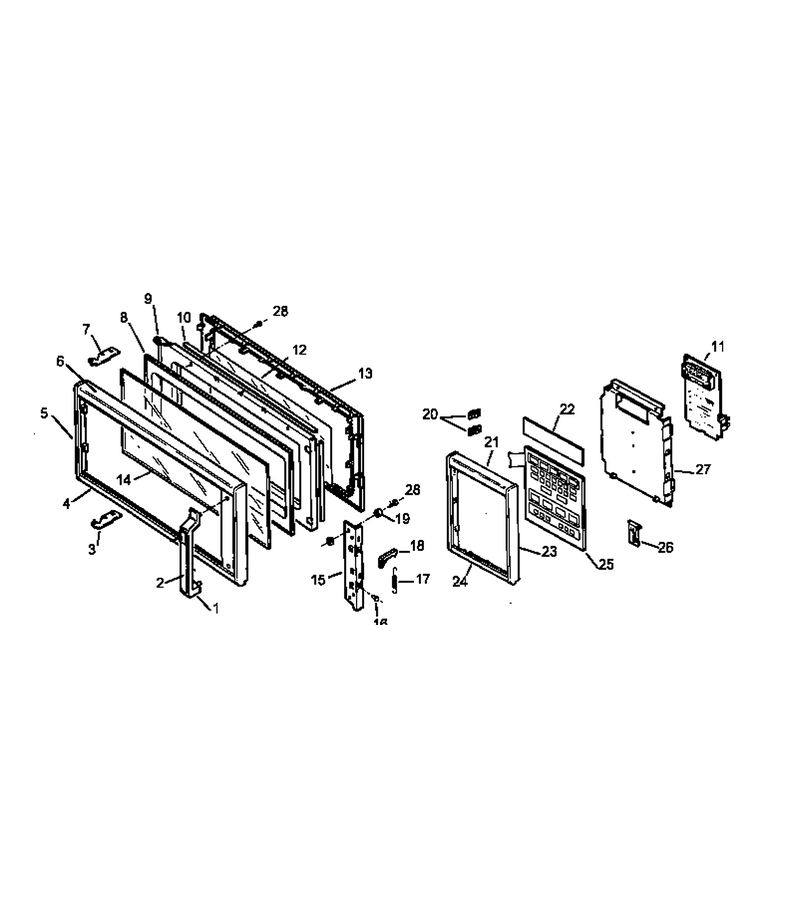

02 - Door/control Panel Assy

...
...
1
Handle (Blk) WPL-Y05200194
...
2
Handle (Blk) WPL-Y05200194
...
3
Hinge, Lower WPL-Y05200150
...
4
Trim, Door Lower WPL-R0705995
...
5
Outer, Door Frame WPL-R0705991
...
6
Trim, Door Upper WPL-R0705993
...
7
Hinge, Upper WPL-Y05200208
...
8
Frame, Door (Blk) WPL-Y05200200
...
9
Liner, Door (Blk) WPL-Y05200196
...
10
Seal, Door WPL-Y05200203
...
11
Board, Pc WPL-R0702019
...
12
Film Door WPL-R0710188
...
13
Inner Door Frame WPL-R0705981
...
14
Outer Glass, Door WPL-R0707552
...
15
Bracket, Key Door WPL-R0708243
...
16
Pan, Latch Door WPL-R0701564
...
17
Spring, Latch Door WPL-R0705989
...
18
Latch, Door WPL-Y05200204
...
19
Support, Ring WPL-R0701563
...
20
Brkt Control Box WPL-R0705948
...
21
Trim, Control Pnl, Upper WPL-R0705974
...
22
Crystal WPL-R0707550
...
23
Control Panel WPL-R0705949
...
24
Trim, Control Pnl, Lower WPL-R0705972
...
25
Panel, Control WPL-R0702007
...
26
Hinge, Control Box WPL-R0705951
...
27
Bracket, Control Panel WPL-R0705976
...
28
Screw Special WPL-R0700081

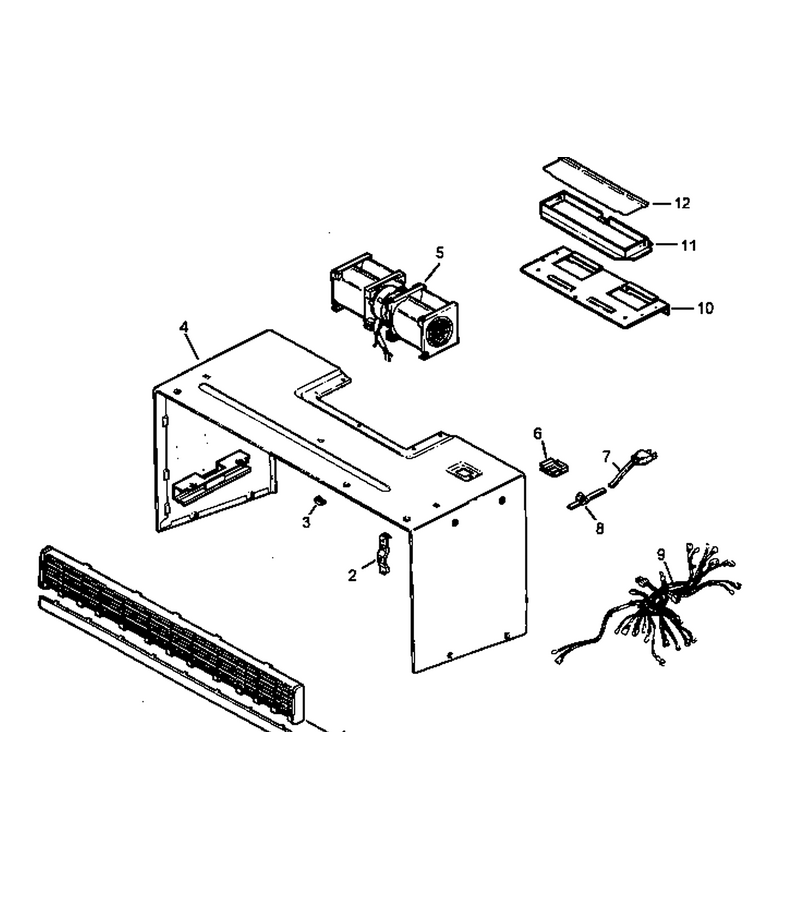

03 - Outercase Assy

...
...
1
Grille Insert WPL-R0705957
...
2
Guide Mtg Shaft WPL-R0705890
...
3
Nut, Speed WPL-M0286708
...
4
Outer Case WPL-R0703233
...
5
Motor-Ventilation WPL-R0707010
...
6
Brkt, Power Cord WPL-R0705953
...
7
Cord, Power WPL-Y05200148
...
8
Cable Clamp WPL-R0701555
...
9
Wire Harness WPL-R0705024
...
10
Motor Bracket WPL-R0705883
...
11
Frame, Damper WPL-Y05200066
...
12
Damper Door WPL-R0705885
...
15
Back Cover WPL-R0703235
...
16
Sensor, Flame WPL-Y05200144
