Amana MVH-9T (BOM: P7540905M)

Model: MVH-9T (BOM: P7540905M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

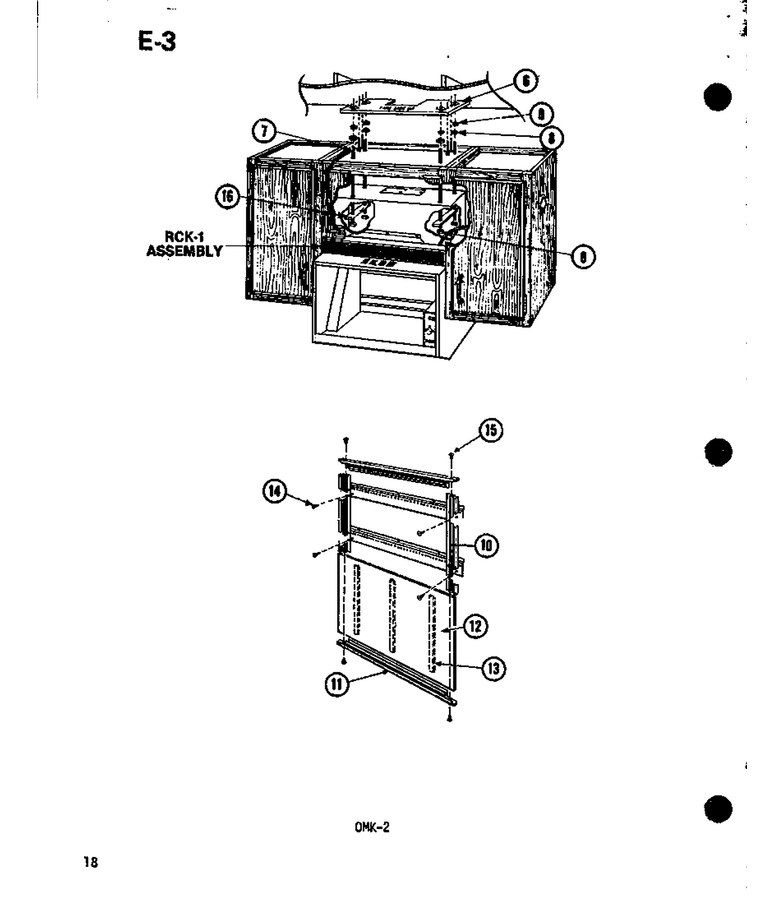

08 - Page 8

...
...
6
Support, Overhd Q WPL-C8885503
...
7
Rod. Threaded WPL-M0266306
...
8
Nut WPL-M0282017
...
9
Washer WPL-M0270510
...
10
Trim Side WPL-C8897102
...
11
Trim Top-Bottom WPL-C8897001
...
12
Decor Pnl Weld Pntd WPL-C8896004
...
13
Gasket (Per Foot) WPL-A3030303
...
14
Screw WPL-M0213815
...
15
Screw-Tc/flat WPL-13047402
...
16
Strap Support WPL-B8341901

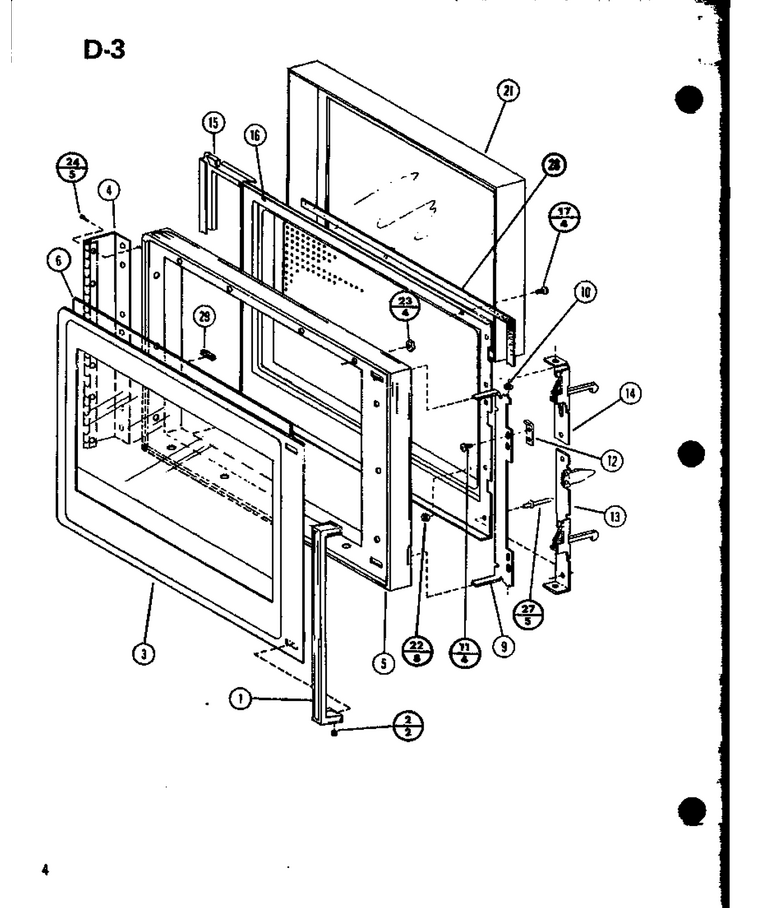

01 - Page 1

...
...
1
Handle WPL-C8830803
...
2
Screw WPL-WP8533976
...
3
Retainer WPL-D7469101
...
4
Hinge, Door WPL-C8903601
...
5
Door Outer WPL-D7441601
...
6
Glass, Door WPL-C8861101
...
9
Actuator-Latch WPL-C8841001
...
10
Bushing WPL-B8306202
...
11
Screw A WPL-M0202515
...
12
Adjustor WPL-B8314502
...
13
Lwr Door Latch Assy WPL-R0183067
...
14
Upper Door Latch Assy WPL-R0183068
...
15
Gasket WPL-D7320006
...
16
Inner Door Assy WPL-C8755402
...
17
Screw WPL-M0259218
...
21
Inner Door Mold Assy WPL-D7564601
...
22
Nut WPL-717488
...
23
Nut WPL-M0288806
...
24
Screw WPL-214597
...
27
Rivet-Pop WPL-59002054
...
28
Tape Per Roll WPL-M0275163
...
29
Gasket-Per Ft WPL-A30303-35

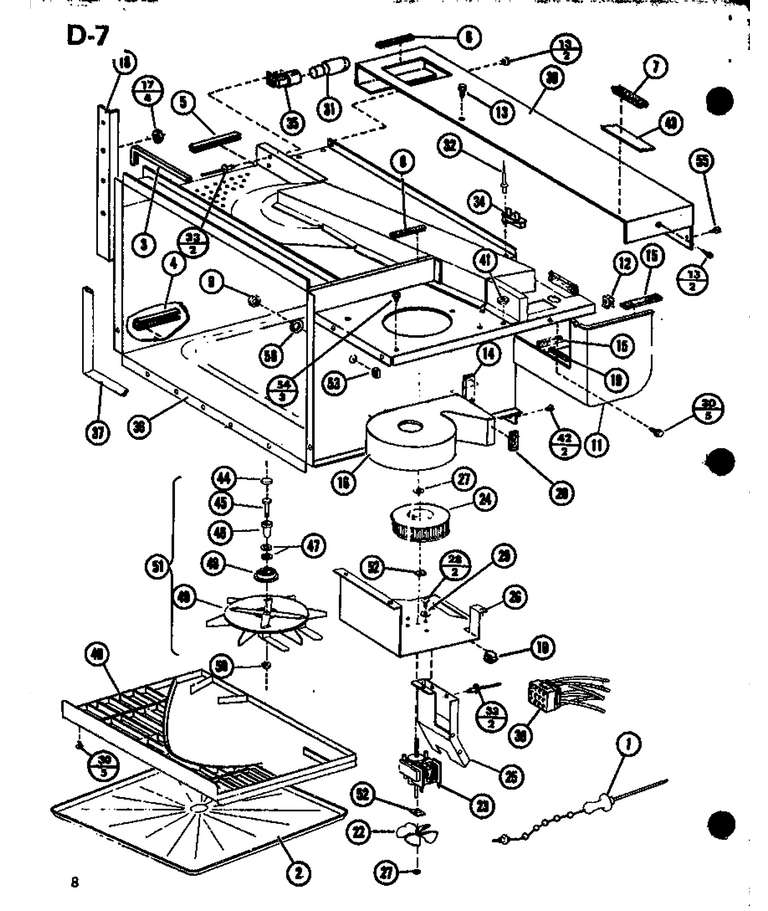

03 - Page 3

...
...
1
Temp Probe WPL-C8821504
...
2
Oven Tray WPL-R0156726
...
3
Cover Edge WPL-C8887601
...
4
Cover Edge WPL-C8887602
...
5
Cover Edge WPL-C8887603
...
6
Gasket Per Ft WPL-A1032104
...
7
Gasket (Ft.) WPL-10839803
...
8
Seal, Lower Cover WPL-61003837
...
9
Nut K WPL-M0281405
...
10
Clip-Cable WPL-M0110505
...
11
Magnetron Cover WPL-D7349002
...
12
Clip WPL-M0288213
...
13
Screw WPL-M0213815
...
14
Gasket-Cavity Top WPL-10839709
...
15
Gasket (Per Foot) WPL-10839706
...
16
Blower, Scroll WPL-C8849201
...
17
Nut WPL-M0282009
...
18
Plate Back Up WPL-C8853401
...
19
Gasket-Per Ft WPL-A3030331
...
20
Gasket, Condenser Cover, 2`` X WPL-A3030334
...
22
Fan Blade WPL-B5706701
...
23
Motor WPL-C8793203
...
24
Blower Wheel WPL-C8847001
...
25
Air Chute Assy WPL-C8848601
...
26
Bracket-Blower WPL-C8910001
...
27
Nut WPL-WP3195558
...
28
Screw WPL-M0202842
...
29
Washer WPL-M0272605
...
30
Screw WPL-M0216516
...
31
Bulb-Light WPL-WPA3167501
...
32
Rivet WPL-WP210720
...
33
Rivet-Pop WPL-59002054
...
34
Fuse, Thermal WPL-B5795301
...
35
Lampholder Oven WPL-B8338201
...
36
Oven Weld WPL-D7350516
...
37
Gasket Oven Cavity WPL-D7442201
...
38
Harness Chassis WPL-D7585301
...
39
Duct Weld-Pnt. WPL-D7529505
...
40
Grease Shield WPL-D7544002
...
41
Lock-Nut---K WPL-M0282801
...
42
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
43
Tape, Foil 1.25 X 12`` WPL-74003472
...
44
Bearing Cap WPL-B5792601
...
45
Stub-Antenna A WPL-B5783101
...
46
Bearing-Antenna A WPL-B5783001
...
47
Washer WPL-M0274044
...
48
Bushing A WPL-C8838501
...
49
Assy, Antenna WPL-C8806701
...
50
Nut A WPL-M0281203
...
51
Assy, Antenna WPL-C8806701
...
52
Washer Retainer WPL-A1034901
...
53
Temp Probe Jack K WPL-B8355401
...
54
Screw WPL-M0253504
...
55
Screw WPL-M0216519
...
56
Washer WPL-M0270536

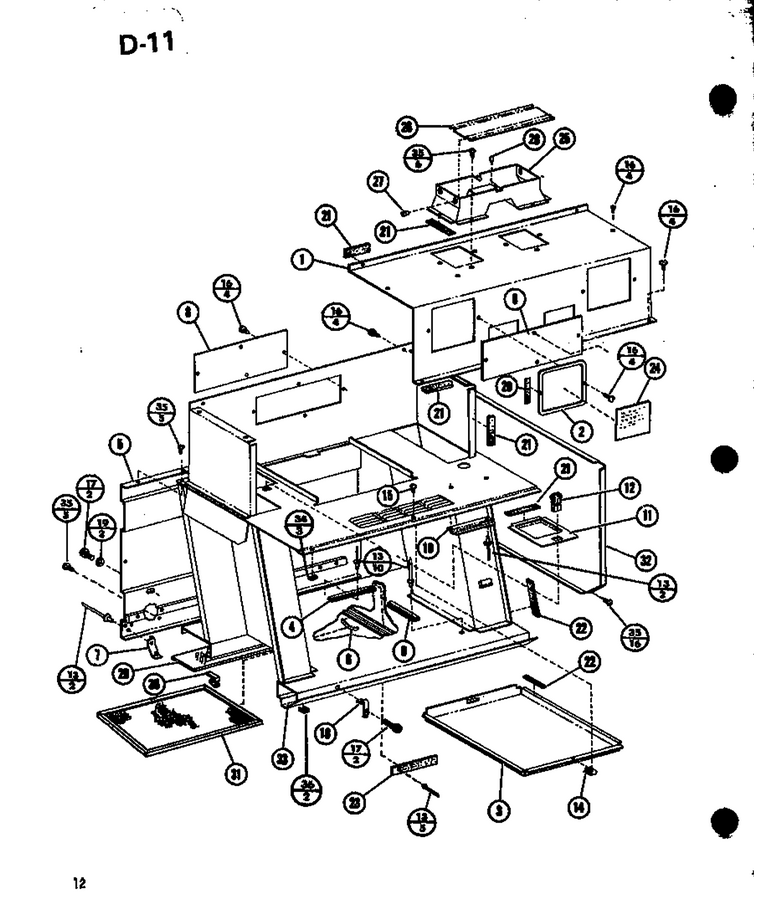

05 - Page 5

...
...
1
Frt Blower Box WPL-D7588902
...
2
Access Door Pnt. WPL-C8884602
...
3
Cover Duct WPL-D7531403
...
4
Guide Wire WPL-C8887701
...
5
Back Pntd WPL-D7517903
...
6
See Note Spring -- (Filter) WPL-Y00000000
...
7
Spring Glass WPL-B8336002
...
8
Cover Outlet WPL-B8337002
...
9
Guide, Wire WPL-C8887703
...
10
Guide Wire Top WPL-C8877601
...
11
Cover Light Pntd WPL-C8887203
...
12
Release Squeeze WPL-B8340201
...
13
Rivet-Pop WPL-59002054
...
14
Speed Nut WPL-M0288102
...
15
Screw WPL-M0215116
...
16
Screw WPL-M0213815
...
17
Screw K WPL-M0253543
...
18
Bracket Tie Down WPL-B8338301
...
19
Washer WPL-M0270519
...
20
Gasket-Per Ft WPL-A30303-35
...
21
Gasket Per Inch WPL-A1032101
...
22
Gasket (Ft.) WPL-10839803
...
23
Inst. Filter Cleaning WPL-B8343401
...
24
Insulation WPL-B8343301
...
25
Adaptor Weld WPL-D7529701
...
26
Door Damper WPL-C8884701
...
27
Bushing WPL-M0590501
...
28
Rubber Tube Cap WPL-M0325604
...
29
Lens WPL-B8334901
...
30
Clip Glass WPL-B8336101
...
31
Filter WPL-B8333701
...
32
Cabinet Side Pntd Lh WPL-D7511906
...
33
Cabinet Assy Pntd WPL-D7527309
...
34
Clip WPL-M0119102
...
35
Screw WPL-M0210317
...
36
Clip WPL-M0119701

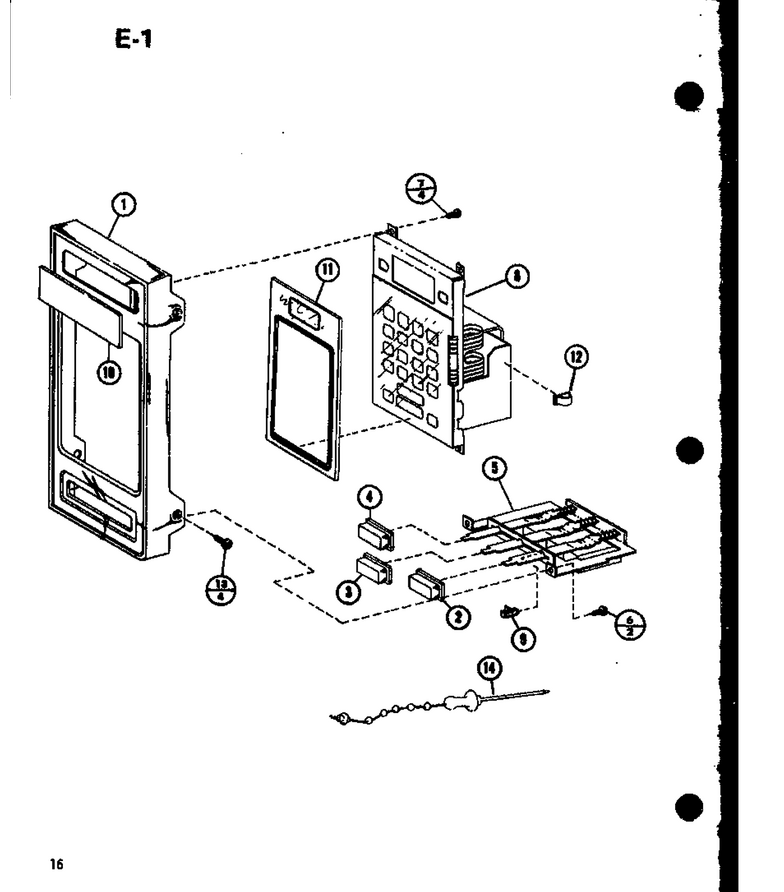

07 - Page 7

...
...
1
Escutch, Control WPL-D7569501
...
2
Light Button WPL-C8869301
...
3
Stop Button WPL-C8869401
...
4
Start Button WPL-C8869501
...
5
Switch Ssl K WPL-D7546302
...
6
Screw WPL-W11084238
...
7
Screw WPL-WP59002061
...
8
Sub 54678, Touchmatic Timer WPL-R163079A
...
9
Spring WPL-A1039301
...
10
Nameplate WPL-A1038701
...
11
Escutcheon Lens WPL-C8872702
...
12
Clip, Cord WPL-M0104102
...
13
Screw WPL-WP8281236
...
14
Temp Probe WPL-C8821504

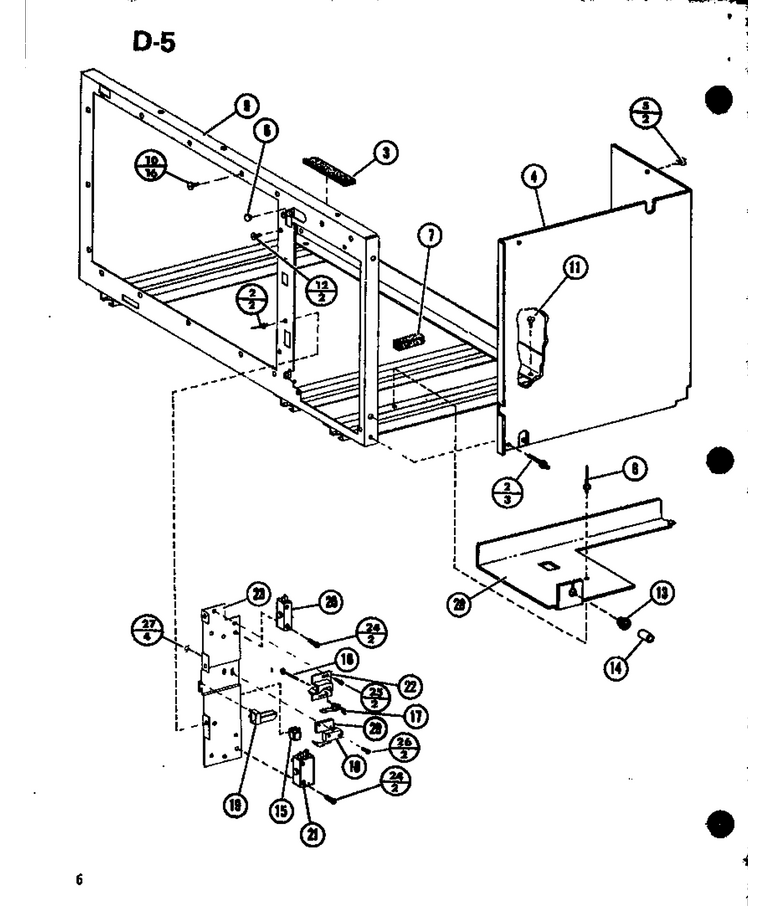

02 - Page 2

...
...
2
Rivet-Pop WPL-59002054
...
3
Gasket 1/2 By 3/8 WPL-10839716
...
4
Control Cover WPL-D7515102
...
5
Screw WPL-M0213815
...
6
Bumper WPL-A1511502
...
7
Gasket-Per Ft WPL-A3030340
...
8
Rivet-Pop WPL-A4539638
...
9
Yoke Weld-Pntd WPL-D7353122
...
10
Screw WPL-WP489349
...
11
Screw WPL-M0220114
...
12
Screw WPL-WP488234
...
13
Strain Relief WPL-M0370006
...
14
Sleeve WPL-M0321007
...
15
Clip-Cable WPL-M0110505
...
16
Pin Bell-Crank WPL-A3182601
...
17
Lever WPL-B8305701
...
18
Limit Switch WPL-B8306602
...
19
Door Guide,sleeve WPL-C8840402
...
20
Switch, Limit WPL-C8842003
...
21
Switch Limit WPL-C8842004
...
22
Door Catch WPL-C8889701
...
23
Bracket WPL-D7545101
...
24
Screw WPL-M0227520
...
25
Screw A K WPL-M0211516
...
26
Screw K WPL-M0229005
...
27
Nut K WPL-M0282005
...
28
Cont Cover Weld WPL-D7589202
...
29
Insulation Intlk Brk WPL-A1032302

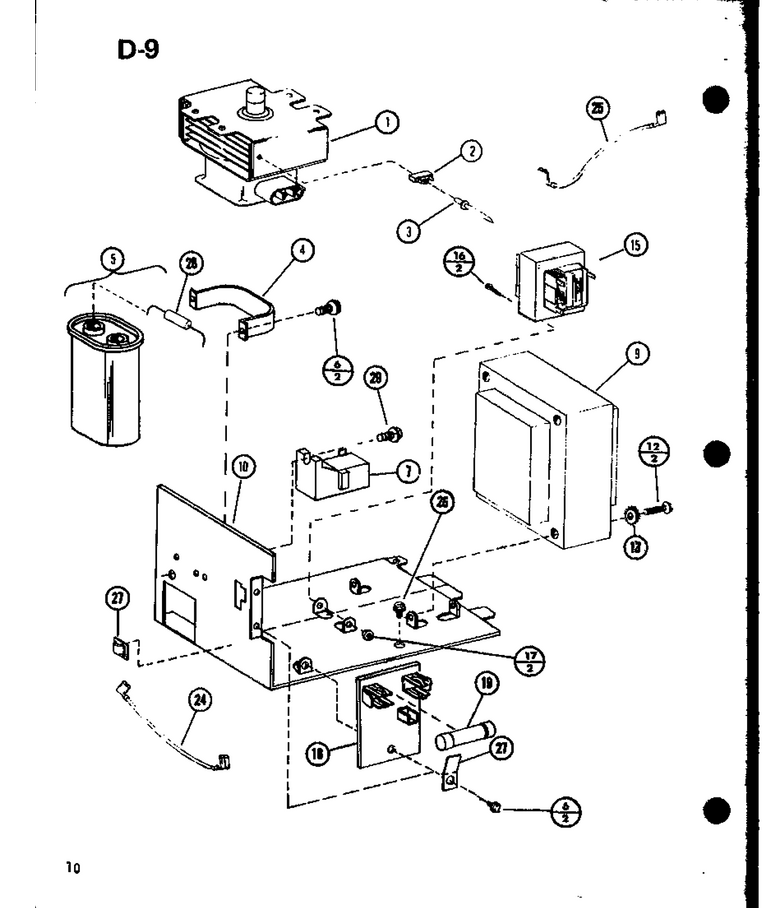

04 - Page 4

...
...
1
Magnetron WPL-10794402
...
2
Thermal Cut Out WPL-B5795302
...
3
Rivet WPL-WP210720
...
4
Strap-Capacitor WPL-A3257002
...
5
Capacitor-.85 WPL-59001651
...
6
Screw WPL-WP489349
...
7
Kit, Diode WPL-M3D71
...
9
Transformer WPL-D7369203
...
10
Xfmr Mtg Plate WPL-D7442104
...
12
Screw WPL-M0254452
...
13
Lock Washer WPL-M0272805
...
15
Transformer-Filament WPL-C8807806
...
16
Screw WPL-M0253509
...
17
Nut K WPL-M0282005
...
18
Board-Term WPL-C8988701
...
19
Fuse WPL-WPM0805102
...
24
Jumper Wire WPL-D7292676
...
25
Jumper Wire WPL-D7292672
...
26
Sems Fastener WPL-YM0258229
...
27
Terminal WPL-M0320901
...
28
Resistor A WPL-M0305202
...
29
Screw WPL-WP3388228

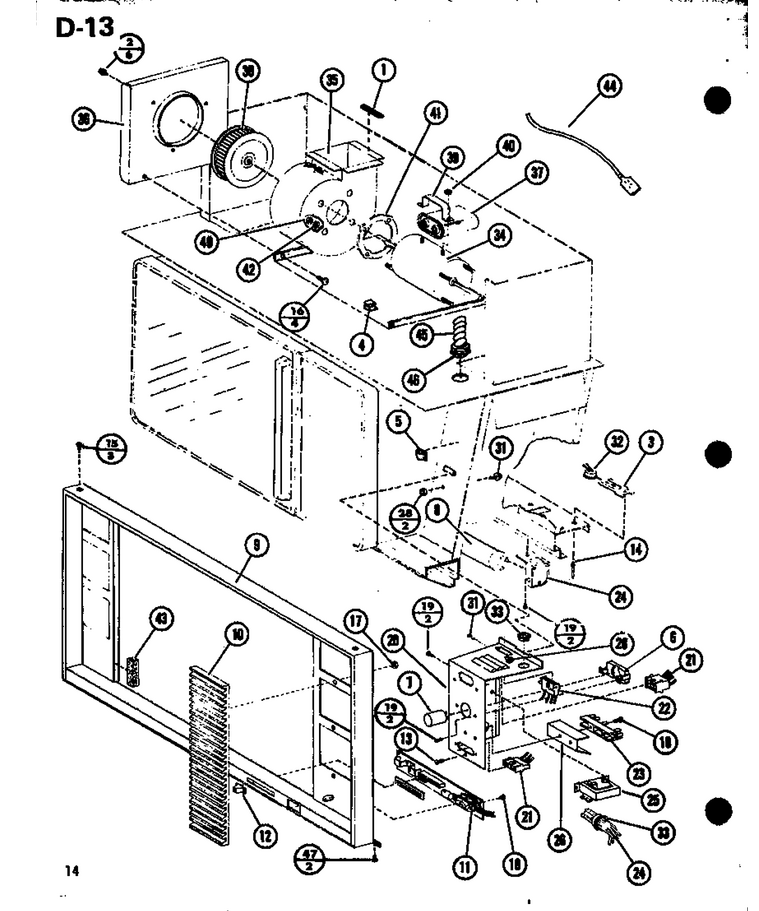

06 - Page 6

...
...
1
Gasket WPL-A3030302
...
2
Screw WPL-WP3388228
...
3
Clip WPL-B5725102
...
4
Clip-Cable WPL-M0110505
...
5
Clip, Cord WPL-M0104102
...
6
Pad Starter WPL-B8351601
...
7
Starter, Flourescent WPL-A1028001
...
8
Lamp-Fluor WPL-WP95292
...
9
Frame Control WPL-D7586403
...
10
Grille WPL-D7514701
...
11
P.c. Board WPL-C8875503
...
12
Knob Control WPL-B5742502
...
13
Screw WPL-M0213815
...
14
Rivet-Pop WPL-59002054
...
15
Screw WPL-M0210317
...
16
Screw WPL-WP489349
...
17
Nut WPL-717488
...
18
Screw T.c WPL-M0229916
...
19
Screw WPL-WP59002061
...
20
Transformer Cover WPL-D7523108
...
21
Wiring Harness Contr WPL-C8882201
...
22
Wiring Harness WPL-C8882501
...
23
Terminal Block WPL-B5677210
...
24
Wiring Harness Light WPL-D7526901
...
25
Ballast WPL-74003033
...
26
Baffle Term Block WPL-B8334301
...
28
Nut K WPL-M0282005
...
29
Screw WPL-M0213815
...
31
Screw, No.6x18x1/4 (3) WPL-487010
...
32
Thermal Cut Out WPL-B5665823
...
33
Snap Bushing WPL-M0571001
...
34
Motor WPL-D7526601
...
35
Scroll Blower WPL-D7523302
...
36
Baffle, Blower WPL-D7589002
...
37
Capacitor, 7.5 Mfd, 370 V WPL-D6711807
...
38
Blower Wheel WPL-D7530701
...
39
Strap, Capacitor WPL-A4055405
...
40
Nut WPL-WP488130
...
41
Grommet, Motor WPL-C8881001
...
42
Washer WPL-M0270519
...
43
Gasket 1/2 By 3/8 WPL-10839716
...
44
Jumper Wire WPL-D7384627
...
45
Conduct WPL-A9023504
...
46
Connector WPL-M0326401
...
47
Screw WPL-M0217514
