Amana MVH-720 (BOM: P7664701M)

Model: MVH-720 (BOM: P7664701M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

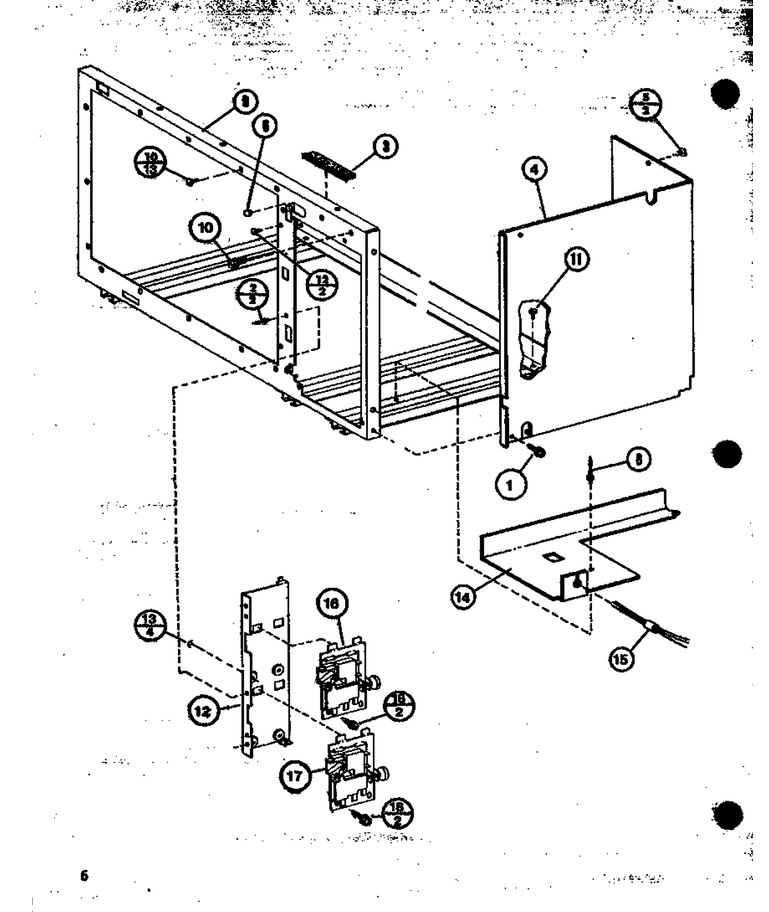

02 - Page 2

...
...
1
Screw WPL-M0259218
...
3
Gasket 1/2 By 3/8 WPL-10839716
...
4
Control Cover WPL-D7515102
...
5
Screw WPL-M0213815
...
6
Bumper WPL-A1511502
...
8
Rivet-Pop WPL-A4539638
...
9
Yoke Weld WPL-D7353126
...
10
Screw WPL-WP489349
...
11
Screw WPL-M0220114
...
12
Bracket, Switch WPL-D7667301
...
13
Nut K WPL-M0282005
...
14
Cover, Cntrl Bottom WPL-D7589204
...
15
Harness Power WPL-C8936501
...
16
Interlock Switch WPL-C8889906
...
17
Interlock Switch WPL-C8889909
...
18
Stud Self Clinching WPL-M0293501

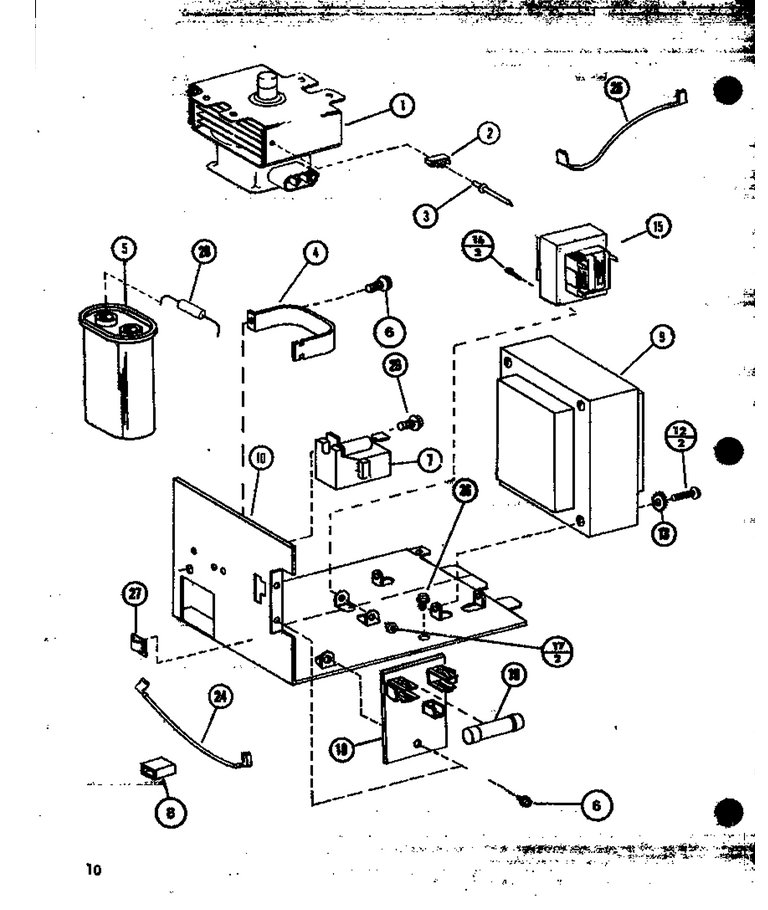

04 - Page 4

...
...
1
Magnetron WPL-10794402
...
2
Fuse- Ther WPL-59001951
...
3
Rivet WPL-WP210720
...
4
Strap-Capacitor WPL-A3257002
...
5
Capacitor-.85 WPL-59001651
...
6
Screw WPL-WP489349
...
7
Kit, Diode WPL-M3D71
...
8
Insulator, Term. K WPL-M0325301
...
9
Transformer K WPL-D7391405
...
10
Xfmr Mtg Plate WPL-D7442104
...
12
Screw WPL-M0254452
...
13
Lock Washer WPL-M0272805
...
18
Board-Term WPL-C8988701
...
19
Fuse 20 A WPL-WPM0805101
...
24
Jumper Wire WPL-D7292676
...
25
Jumper Wire WPL-D7292672
...
26
Sems Fastener WPL-YM0258229
...
29
Screw WPL-WP3388228

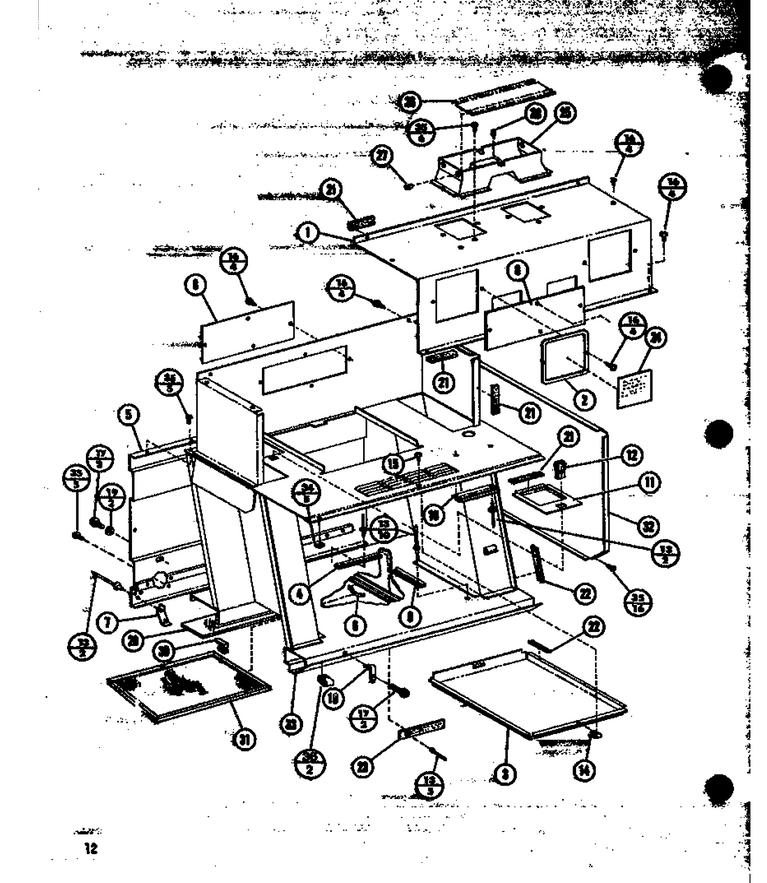

05 - Page 5

...
...
1
Frt Blower Box WPL-D7588902
...
2
Access Door Pnt. WPL-C8884602
...
3
Motor Duct Pnt WPL-D7531405
...
4
Guide Wire WPL-C8887701
...
5
Back Pntd WPL-D7517903
...
6
Spring Filter WPL-B8335201
...
7
Spring Glass WPL-B8336001
...
8
Cover Outlet WPL-B8337002
...
9
Guide, Wire WPL-C8887703
...
10
Guide Wire Top WPL-C8877601
...
11
Cover Light Pntd WPL-C8887203
...
12
Release Squeeze WPL-B8340201
...
13
Rivet-Pop WPL-59002054
...
14
Speed Nut WPL-M0288102
...
15
Screw WPL-M0254518
...
16
Screw WPL-M0213815
...
17
Screw K WPL-M0253543
...
18
Bracket Tie Down WPL-B8338301
...
19
Washer WPL-M0270519
...
21
Gasket Per Inch WPL-A1032101
...
22
Gasket (Ft.) WPL-10839803
...
23
Inst. Filter Cleaning WPL-B8343401
...
24
Insert Oven Lite WPL-B8343302
...
25
Adaptor Weld WPL-D7529701
...
26
Door Damper WPL-C8884701
...
27
Bushing WPL-M0590501
...
28
Rubber Tube Cap WPL-M0325604
...
29
Lens WPL-B8334901
...
30
Clip, Glass WPL-B8836101
...
31
Filter WPL-B8333701
...
32
Cabinet Pntd D.r.h. WPL-D7511905
...
33
Cabinet Assy Pntd WPL-D7527309
...
34
Clip WPL-M0119102
...
35
Screw, S.m. WPL-M0210318

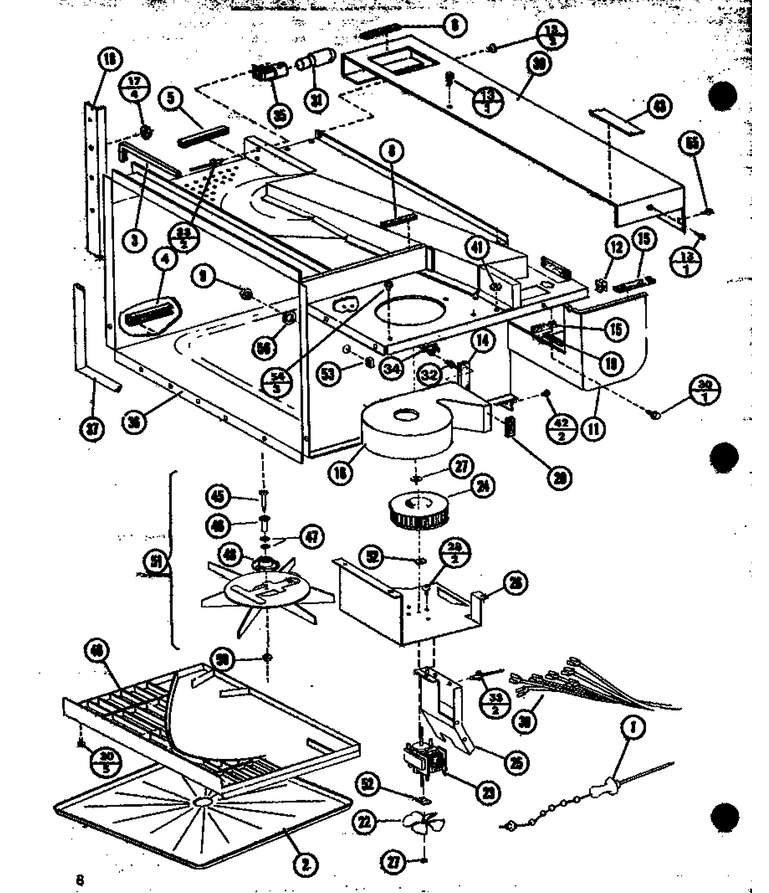

03 - Page 3

...
...
1
Temp Probe WPL-C8821504
...
2
Oven Tray WPL-R0156726
...
3
Cover Edge WPL-C8887601
...
4
Cover Edge WPL-C8887602
...
5
Cover Edge WPL-C8887603
...
6
Gasket Per Ft WPL-A1032104
...
8
Seal, Lower Cover WPL-61003837
...
9
Nut K WPL-M0281405
...
11
Magnetron Cover WPL-D7349003
...
12
Clip WPL-M0288213
...
13
Screw WPL-WP59002061
...
14
Gasket-Cavity Top WPL-10839709
...
15
Gasket (Per Foot) WPL-10839706
...
16
Blower, Scroll WPL-C8849201
...
17
Nut WPL-M0282009
...
18
Plate, Back Up WPL-C8853402
...
19
Gasket-Per Ft WPL-A3030331
...
20
Gasket-Per Ft WPL-A3030314
...
22
Fan Blade WPL-B5706701
...
23
Motor WPL-C8793203
...
24
Blower Wheel WPL-C8847001
...
25
Air Chute Weld WPL-C8925201
...
26
Bracket-Blower WPL-C8910001
...
27
Nut WPL-WP3195558
...
28
Screw WPL-WP3400094
...
30
Screw WPL-WP489349
...
31
Bulb-Light WPL-WPA3167501
...
32
Rivet WPL-WP210720
...
33
Rivet-Pop WPL-59002054
...
34
Fuse, Thermal WPL-B5795301
...
35
Lampholder Oven WPL-B8338201
...
36
Oven Weld WPL-D7350526
...
37
Gasket, Oven Cavity WPL-D7667401
...
38
Harness, Chassis WPL-D7667601
...
39
Duct Weld-Pnt. WPL-D7529505
...
40
Grease Shield WPL-D7544002
...
41
Lock-Nut---K WPL-M0282801
...
42
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
43
Tape, Foil 1.25 X 12`` WPL-74003472
...
45
Stub-Antenna A WPL-B5783101
...
46
Bearing Antenna A WPL-B5783002
...
47
Washer WPL-M0274044
...
48
Bushing Antenna A WPL-D7606301
...
50
Nut A WPL-M0281203
...
51
Antenna Assembly WPL-C8934801
...
52
Washer Retainer WPL-A1034901
...
53
Temp Probe Jack K WPL-B8355401
...
54
Screw WPL-M0253504
...
55
Screw WPL-WP3388228
...
56
Washer WPL-M0270536

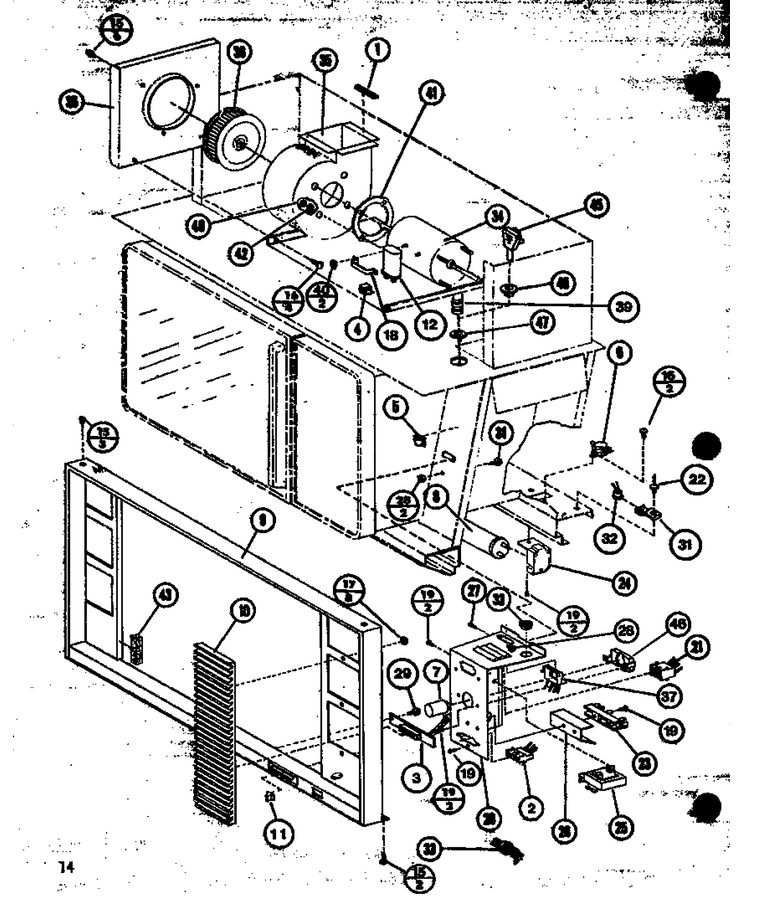

06 - Page 6

...
...
1
Gasket WPL-A3030302
...
4
Clip WPL-M0110508
...
5
Clip, Cord WPL-M0104102
...
6
Thermal Cutout WPL-B8351901
...
7
Starter, Flourescent WPL-A1028003
...
8
Lamp-Fluor WPL-WP95292
...
9
Frame, Control WPL-D7593402
...
10
Grille WPL-D7514701
...
15
Screw, S.m. WPL-M0210318
...
16
Screw WPL-WP489349
...
17
Nut WPL-717488
...
19
Screw WPL-WP59002061
...
20
Box Electrical WPL-D7589602
...
21
Harness Control WPL-D7589801
...
23
Terminal Block WPL-B5677210
...
24
Harness, Light WPL-D7589901
...
25
Ballast WPL-74003033
...
26
Baffle Term Block WPL-B8334301
...
27
Screw A WPL-M0202515
...
28
Nut K WPL-M0282005
...
33
Snap Bushing WPL-M0571001
...
34
Motor Blower WPL-D7589401
...
35
Scroll Blower WPL-D7523302
...
36
Baffle, Blower WPL-D7589001
...
38
Blower Wheel WPL-D7530701
...
40
Nut WPL-WP488130
...
41
Grommet, Motor WPL-C8881001
...
42
Washer WPL-M0270519
...
43
Gasket 1/2 By 3/8 WPL-10839716
...
45
Cord, Power WPL-1731300208
...
46
Pad Starter WPL-B8351601
...
47
Adapter WPL-M0342201
...
48
Strain Relief WPL-M0370001

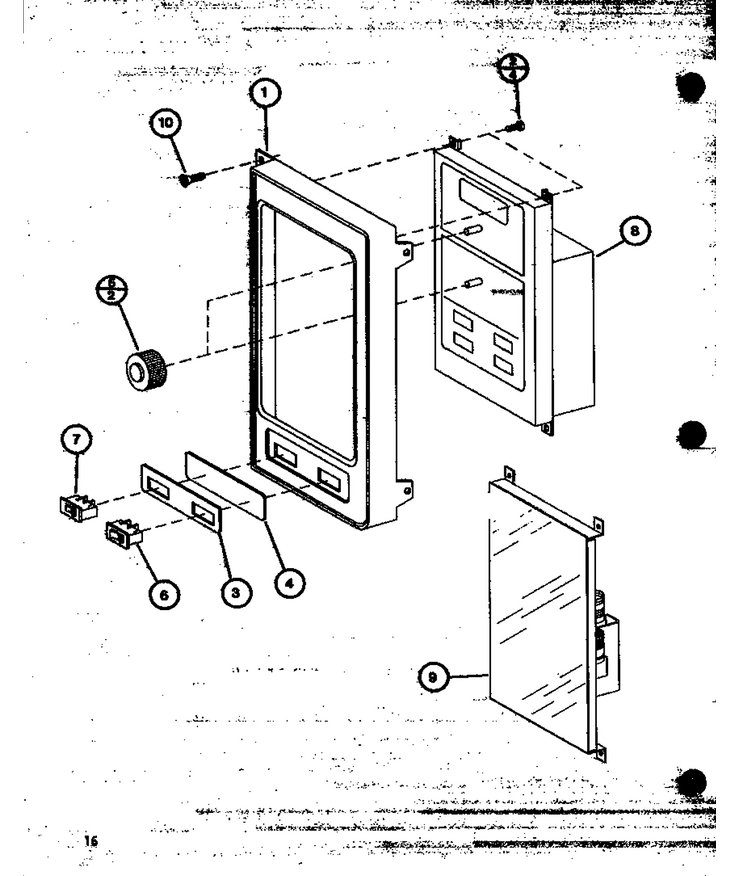

07 - Page 7

...
...
1
Escutcheon Cont. WPL-D7662401
...
2
Screw WPL-WP59002061
...
3
Plate, Switch WPL-B5033202
...
5
Knob Control K WPL-C8906901
...
6
Switch, Light WPL-C2736701
...
7
Swtch-Rckr WPL-WP3147265
...
8
Timer- Ele WPL-R0163219
...
10
Screw, Tf WPL-M0231817

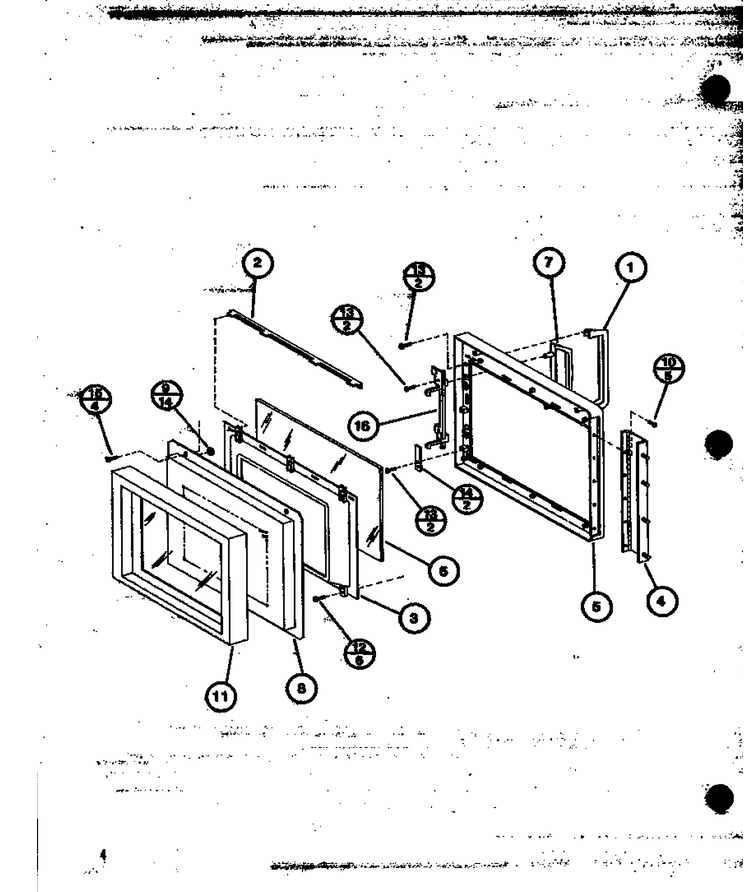

01 - Page 1

...
...
1
Handle Door WPL-D7680601
...
2
Cap Lens Retainer WPL-D7533502
...
3
Lens Retainer WPL-D7663001
...
4
Hinge, Door WPL-C8903601
...
5
Door Outer WPL-D7677301
...
6
Outer Window WPL-D7534003
...
7
Handle Actuator WPL-D7680702
...
8
Inner Dr. Weld Pnt WPL-D7662904
...
9
Nut WPL-717488
...
10
Screw WPL-214597
...
11
Inner Door Mld Assy WPL-R0157489
...
12
Screw A K WPL-M0253704
...
13
Screw WPL-WP59002061
...
14
Spring Latch WPL-A1008501
...
15
Screw WPL-M0259218
...
16
Latch Assy WPL-C8938401Q
