Amana MRR1000W (BOM: P8551404S)

Model: MRR1000W (BOM: P8551404S)

Save Part Not Listed?
product name

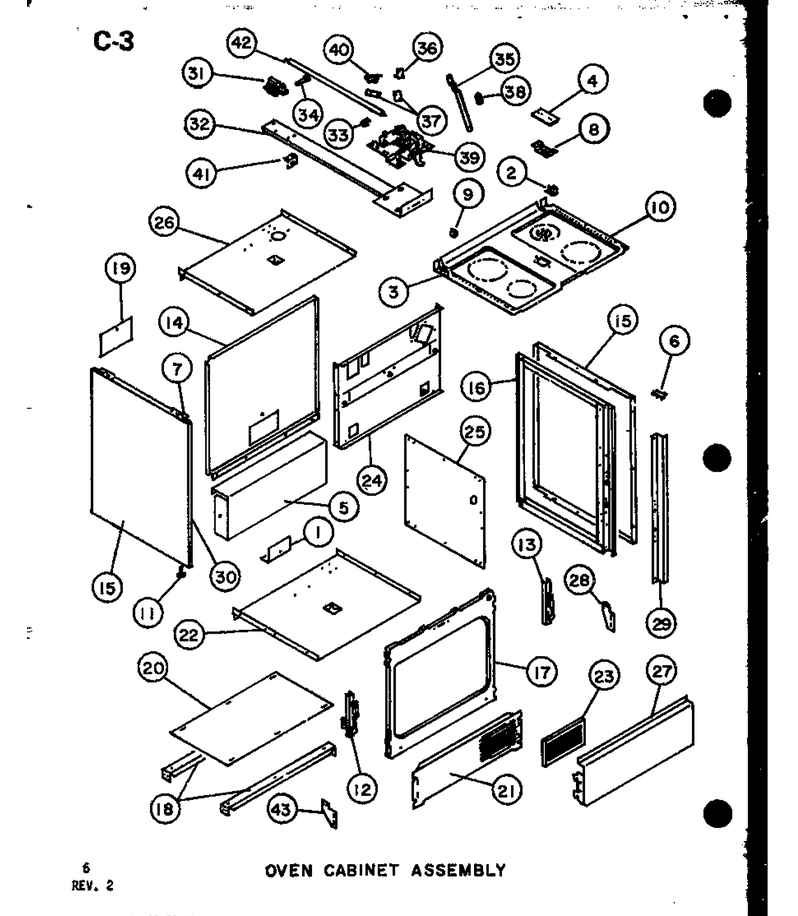

02 - Page 2

...
...
1
Angle, Terminal Block WPL-Y0091539
...
2
Bracket WPL-Y0091519
...
3
Bracket WPL-Y0091520
...
4
Cover Plate, Oven Lamp WPL-R0183058
...
5
Panel, Lower Rear WPL-R0194021
...
6
Trim, Cap, R.h. WPL-R0178751
...
7
Trim, Cap, L.h. WPL-R0178752
...
8
Housing, Oven Light WPL-R0183059
...
9
Clip, Wire Cable WPL-R0191041
...
10
Drip Baffle, Avocado WPL-R0194015
...
11
Leg, Leveling WPL-Y0062362
...
12
Oven Hinge, L.h. WPL-R0179053
...
13
Hinge-Door WPL-R0706011
...
14
Oven Back Panel WPL-R0178758
...
15
Panel, Side Rt (Wht) WPL-R0194008
...
16
Frame, Main End Panel WPL-R0194024
...
18
Bracket, Support, Power Supply WPL-R0194025
...
19
Plate, Access WPL-31800001
...
20
Guide, Power Supply WPL-R0194026
...
21
Shield-Ps WPL-R0194027
...
22
Insulation Retainer - Bottom WPL-R0194028
...
23
Filter, Power Supply WPL-Y0067939
...
24
Insulation Retainer, Back WPL-R0178767
...
25
Shield Slide WPL-R0178768
...
26
Insulation Retainer, Top WPL-R0178986
...
27
Access Panel, Almond WPL-R0194019
...
28
Bracket, Interlock Mounting WPL-R0178997
...
29
Trim, Front, R.h. WPL-R0178989
...
30
Trim, Front, L.h. WPL-R0178990
...
31
Solenoid, Latch WPL-Y0091393
...
32
Channel Assembly, Latch Mounti WPL-R0194029
...
33
Retainer Ring WPL-Y0091671
...
34
Cotter Pin WPL-R0191046
...
35
Latch Arm Black WPL-Y065779B
...
36
Switch, Latch Solenoid WPL-R0163032
...
37
Insulation, Esm WPL-Y0091523
...
38
Knob, Latch - Black WPL-Y0067844
...
39
Latch Assy WPL-R0179021
...
40
Switch-Clean/primary Interlock WPL-Y0067919
...
41
Supt-Latch Channel WPL-R0179022
...
42
Rod-Latch Release WPL-R0179023
...
43
Bracket, Interlock Mounting, L WPL-R0194036

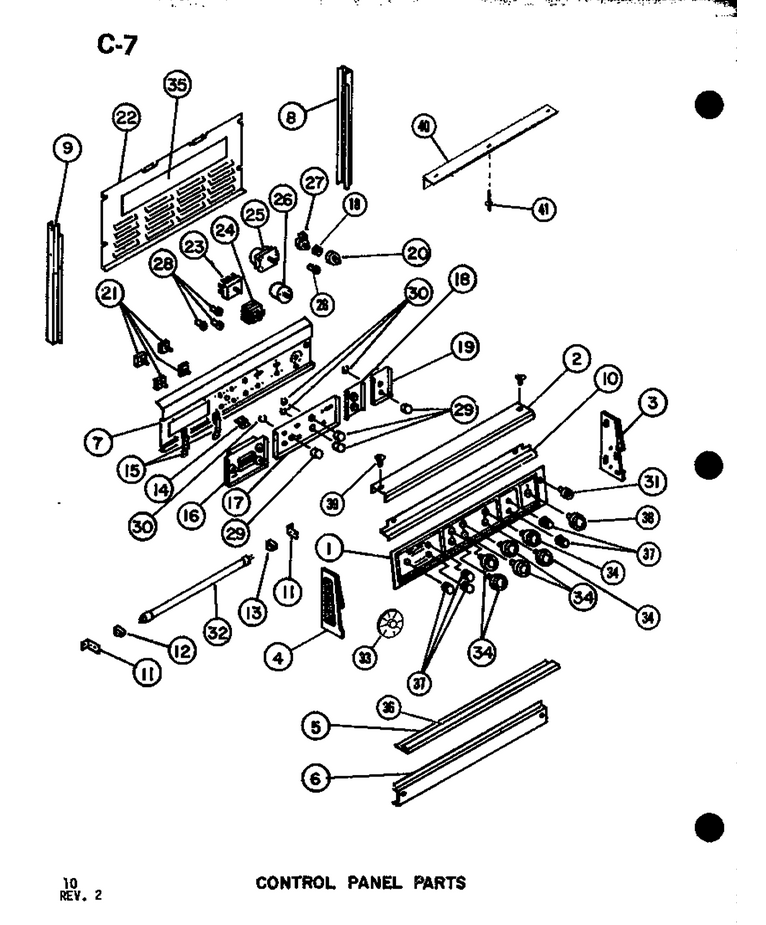

04 - Page 4

...
...
1
Glass-Control Pnl WPL-R0183065
...
2
Trim, Top WPL-R0176013
...
3
End Cap, R.h. WPL-Y0068023
...
4
End Cap, L.h. WPL-R0178993
...
5
Center Trim WPL-R0176014
...
6
Panel-Lower WPL-R0176015
...
7
Usse 0066234 WPL-R0176016
...
8
Support WPL-Y0091554
...
9
Support Channel, L.h. WPL-R0194031
...
10
Seal, Backguard WPL-R0182057
...
11
Support, Lamp Socket WPL-R0194032
...
12
Socket, Flourescent Lamp WPL-R0167106
...
13
Socket, Flourescent Lamp WPL-R0167106
...
14
Bracket, Trim Support WPL-Y0067916
...
15
Plate, Clock Mounting WPL-Y0067925
...
16
Clock, Digital WPL-R0168010
...
17
Panel-Control WPL-R0194035
...
18
Nut WPL-R0189026
...
19
Panel-Timer WPL-R0178994
...
20
Switch, Fluorescent Light WPL-R0163034
...
21
Switch, Infinite WPL-R0163018
...
22
Plate-Rear Cover WPL-R0178995
...
23
Thermostat, Oven WPL-R0161011
...
24
Selector Switch WPL-R0199233
...
25
Timer, Microwave WPL-R0168011
...
26
Timer, Delay, 30 Min. WPL-R0168012
...
27
Switch, Variable Power Selecto WPL-R0163036
...
28
Light, Indicator WPL-R0165011
...
29
Lens, Red WPL-R0181086
...
30
Control Box WPL-R0191060
...
31
Bezel-Light Switch WPL-R0181087
...
32
Lamp- Flou WPL-WPY0067945
...
33
Disc-Delay Timer WPL-R0181095
...
34
Knob-Control WPL-R0181088
...
35
Insulation, Backguard WPL-R0196035
...
36
Gasket (Per Foot) WPL-R0195012
...
37
Knob, Dual Timer WPL-R0181089
...
38
Knob-Power Select WPL-R0181090
...
39
Screw No.23, No.6x5/16 Ph Fl. Hd. WPL-Y0074807
...
40
Air Baffle WPL-R0199237
...
41
Pop Rivet WPL-Y0096343

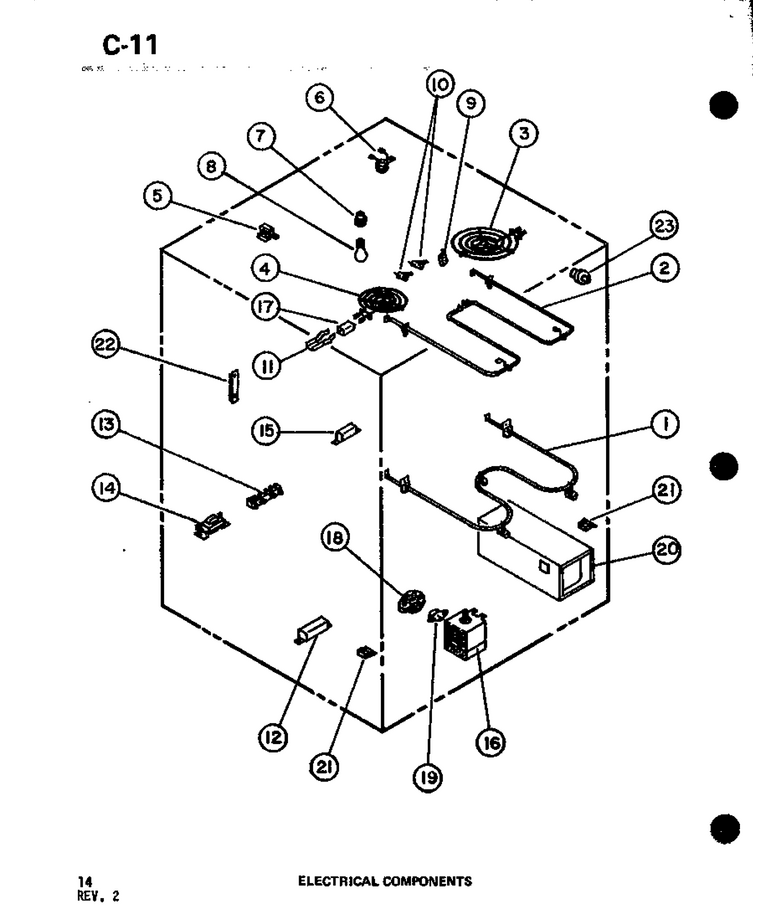

06 - Page 6

...
...
1
Bake Eleme WPL-Y0068039
...
2
Broil Element WPL-Y0068038
...
3
Elmnt-Surf WPL-WPW10259868
...
4
Elmnt-Surf WPL-WP3191454
...
5
Solenoid, Latch WPL-Y0091393
...
6
Element WPL-Y0091667
...
7
Housing, Oven Light WPL-Y0089299
...
8
Light Bulb WPL-8009
...
9
Switch, Latch Solenoid WPL-R0163032
...
10
Switch-Clean/primary Interlock WPL-Y0067919
...
11
Bracket WPL-W10116809
...
12
Relay, Oven WPL-Y0091669
...
13
Block-Term WPL-WP8203546
...
14
Ballast WPL-74003033
...
15
Relay, Lock WPL-Y0067779
...
16
Magnetron WPL-10794402
...
17
Receptacle WPL-330031
...
18
Motor, Stirrer 30rpm WPL-R0156025
...
19
Overload, Thermal WPL-R0163038
...
21
Switch,dr. Interlock WPL-Y0052161
...
22
Terminal Block, Neutral WPL-R0167118
...
23
Switch, Oven Light WPL-866294

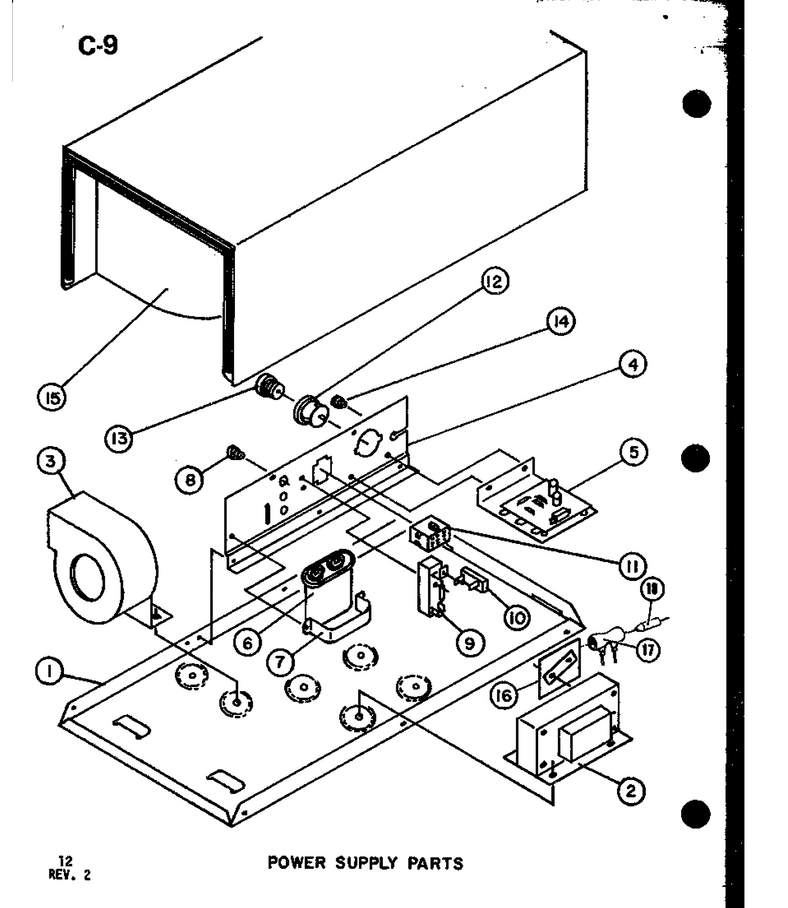

05 - Page 5

...
...
1
Base-Power Supply WPL-R0178982
...
2
Transformer, High Volt WPL-R0167107
...
3
Motor, Blower WPL-Y0066621
...
4
Panel, Power Supply WPL-R0178983
...
5
Control, Variable Power WPL-R0167108
...
6
Capacitor WPL-Y0067848
...
7
Brkt-Capcitor WPL-R0178985
...
8
Bushing, Terminal WPL-R0181097
...
9
Terminal Block - Power Supply WPL-R0167109
...
10
Kit, Diode WPL-M3D71
...
11
Connector, 9 Pin WPL-R0181098
...
12
Fuse Holder WPL-R0167111
...
13
Fuse, 15 Amp WPL-R0167112
...
14
Bushing WPL-A3293502
...
15
Panel-Timer WPL-R0178994
...
16
Terminal Board WPL-R0167113
...
17
Resistor A WPL-M0305009
...
18
Fuse WPL-M0308110

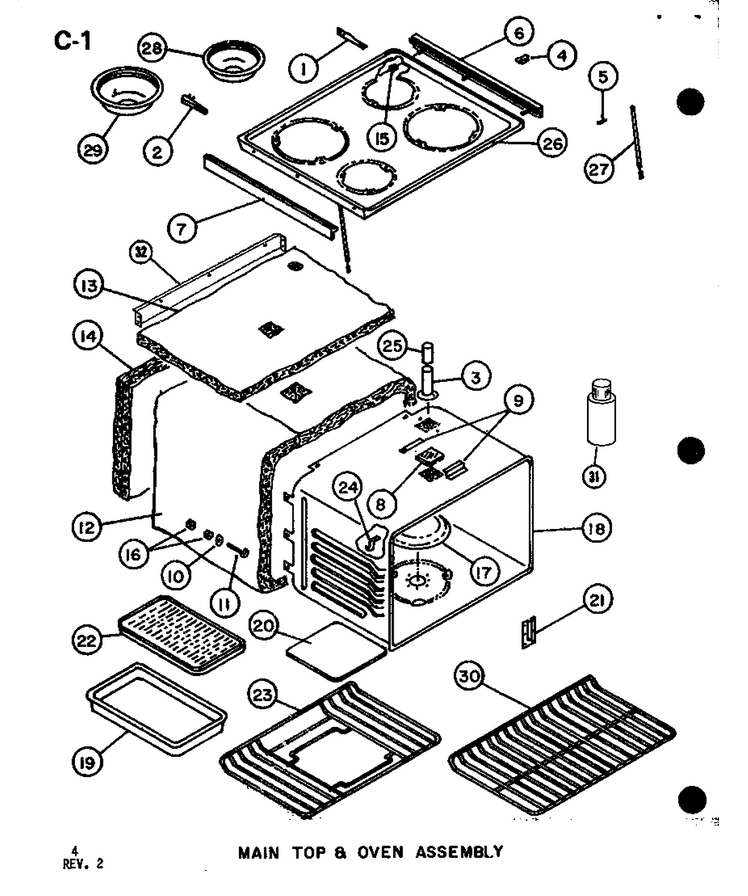

01 - Page 1

...
...
1
Bracket Assembly WPL-R0179010
...
2
Bracket Assembly WPL-R0179011
...
3
Tube, Oven Vent WPL-R0174046
...
4
Wire Clamp WPL-R0191039
...
5
Pin, Support Rod WPL-R0191063
...
6
Trim, Main Top, R.h. WPL-R0178987
...
7
Trim-Main Top Lh WPL-R0178988
...
8
Lens, Oven Light WPL-R0183055
...
9
Clip, Lens WPL-R0191064
...
10
Washer WPL-Y0071876
...
11
Hook Bolt WPL-Y0091536
...
12
Screw WPL-R0196033
...
13
Insulation, Tank Top WPL-R0196034
...
14
Insulation,wrapper WPL-R0196020
...
15
Nut WPL-R0189025
...
16
Hex Nut No.10-32 Nickel WPL-R0189012
...
17
Stirrer Cover WPL-R0183056
...
18
Oven Cavity, Gray WPL-R0199235
...
19
Procelain Broiler (Pan And Grid) WPL-4396923
...
20
Ceramic Cooking Plate WPL-R0183057
...
21
Choke, Heat Control Capillary WPL-Y0067825
...
22
Procelain Broiler (Pan And Grid) WPL-4396923
...
23
Oven Rack, Microwave WPL-R0180039
...
24
Bracket, Thermostat Bulb WPL-R0179012
...
25
Shield-Vent Tube WPL-R0174045
...
26
Main Top, Snow White WPL-R0194003
...
27
Support, Maintop WPL-Y0315430
...
28
Bowl-Drip WPL-WPW10196406
...
29
Bowl-Drip WPL-WPW10196405
...
30
Rack-Oven WPL-WP314763J
...
31
Touch Up Kit, Oven Liner Repai WPL-R0157287
...
32
Mounting Channel WPL-R0199234

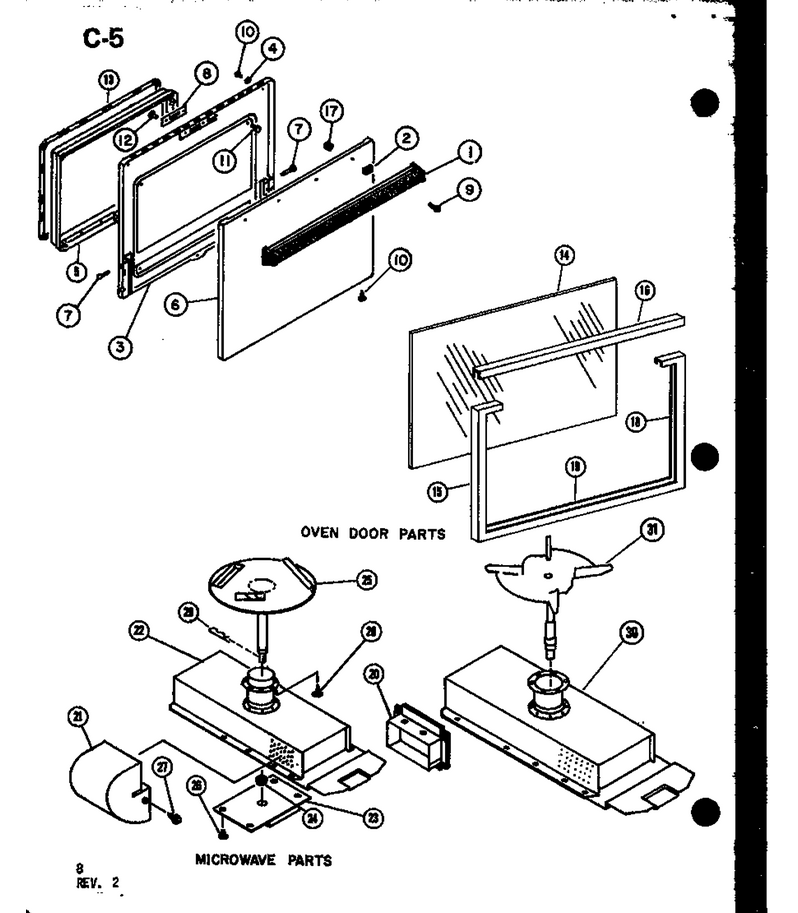

03 - Page 3

...
...
1
Handle, Oven Door WPL-R0179055
...
2
Spacer Door Handle WPL-Y0079978
...
3
Oven Door Backer, Gray WPL-R0194022
...
4
Washer WPL-R0190023
...
5
Sub Backer, Oven Door WPL-R0194023
...
6
Oven Door Pnl., Black Glass WPL-R0178838
...
7
Rivet WPL-R0191052
...
8
Plate, Door Latch WPL-R0178835
...
9
Screw, No.8-32x1`` WPL-R0188022
...
10
Screw, Motor Mount WPL-R0187008
...
11
Screw, Sub-Backer WPL-R0187009
...
12
Pop Rivet WPL-Y0096343
...
13
Gasket, Oven Door WPL-R0183061
...
14
Panel-Glass WPL-R0183062
...
15
Trim, Frame WPL-R0178991
...
16
Trim, Handle WPL-Y0070591
...
17
Nut WPL-WP488130
...
18
Bumper, Glass Cushion, Left An WPL-R0183063
...
19
Bunper, Glass Cushion, Bottom WPL-R0183064
...
20
Air Inlet Duct Assembly WPL-R0176010
...
21
Air Duct WPL-R0176011
...
23
Motor Mount WPL-R0178998
...
24
Bearing, Drive Shaft WPL-R0178999
...
26
Screw, Motor Mount WPL-R0187008
...
27
Screw-Air Duct WPL-R0186016
...
28
Screw WPL-WPW10068250
...
29
Retainer Clip, Stirrer WPL-R0191062
...
30
Wave Guide WPL-R0199210
...
31
Stirrer WPL-R0199209
