Amana MR-3 (BOM: P7231801M)

Model: MR-3 (BOM: P7231801M)

Save Part Not Listed?
product name

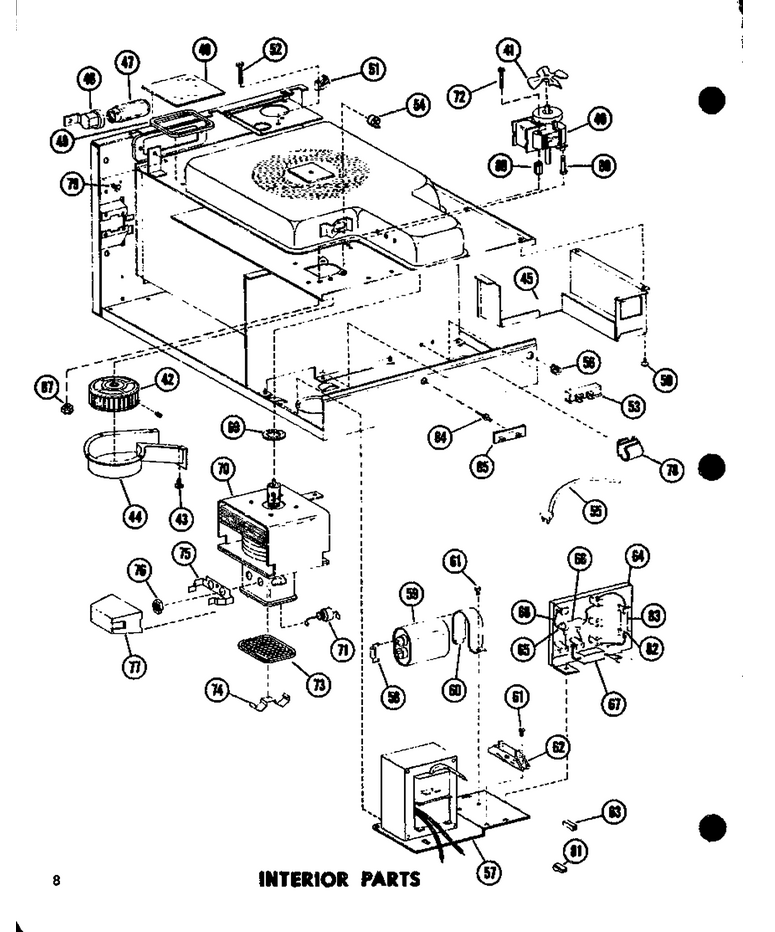

02 - Interior Parts

...
...
NI
Tape Alum WPL-M0275166
...
40
Motor WPL-C8738501
...
41
Fan Blade WPL-B5706701
...
42
Blower Wheel WPL-B5602203
...
43
Screw WPL-M0230015
...
44
Blower Housing WPL-C8700101
...
45
Duct-Outlet WPL-D7191801
...
46
Socket-Oven Lamp WPL-B5691202
...
47
Bulb-Light WPL-WPA3167501
...
48
Window-Oven Light WPL-A3213701
...
49
Sealer, Gum (4 Feet) WPL-212643
...
50
Clip K WPL-M0130101
...
51
Switch-Preform WPL-A3214201
...
52
Screw A-K WPL-M0227525
...
53
Terminal Block WPL-B5677202
...
54
Thermal Cutout WPL-B5665804
...
55
Power Cord WPL-B5703502
...
56
Strain Relief WPL-M0370001
...
57
Transformer WPL-D7192001
...
58
Resistor A WPL-M0305202
...
59
Capacitor WPL-D8547924
...
60
Strap-Capacitor WPL-A3197102
...
61
Screw-Sm/hex WPL-12990523
...
62
Diode WPL-B5685802
...
63
Insulator, Term. K WPL-M0325301
...
64
Terminal Board WPL-B5730901
...
65
Sleeve WPL-M0321701
...
66
Resistor A WPL-M0305009
...
67
Resistor WPL-M0305204
...
68
Fuse WPL-M0308110
...
69
Gasket, Magnetron WPL-A3185102
...
70
Assembly, Magnetron WPL-D7192401
...
71
Capacitor K WPL-A3148801
...
72
Screw WPL-M0201524
...
73
Cover Cap Box K WPL-B5647901
...
74
Bale Strap K WPL-A3145401
...
75
Clip K WPL-B5655902
...
76
Hex Nut WPL-M0281901
...
77
Shield Hv K WPL-B5656001
...
78
Clip WPL-M0118801
...
80
Washer WPL-M0272605
...
81
Insulator, Pod K WPL-M0325501
...
82
Fuse WPL-M0308101
...
83
Resistor Fuse Kit WPL-R0157332
...
84
Screw WPL-M0216617
...
85
Seal, Access Panel WPL-A3097501
...
86
Nut WPL-WP487939
...
87
Nut K WPL-M0282005
...
88
Spacer WPL-A4065511

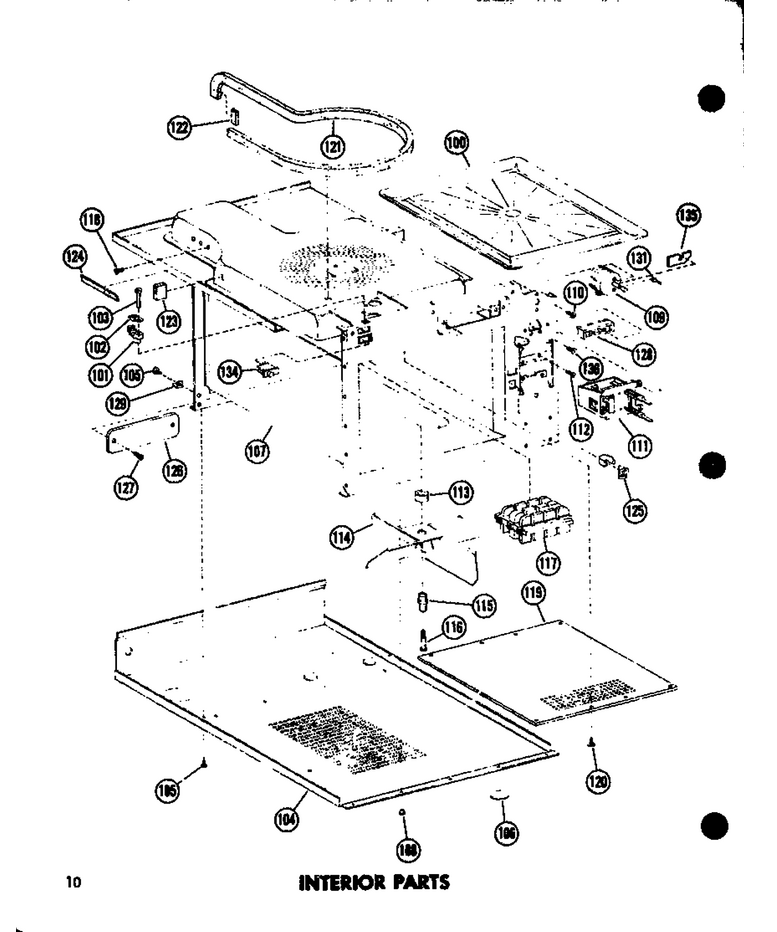

03 - Interior Parts

...
...
100
Oven Tray WPL-D7191101
...
101
Bushing WPL-C3696903
...
102
Bushing WPL-C3696902
...
103
Pin-Door Stop WPL-A3211102
...
104
Base Pan Wld WPL-C3694403
...
105
Screw WPL-M0230015
...
106
Foot WPL-A3213001
...
107
Oven Weld K WPL-D7259803
...
108
Pop Rivet WPL-M0550701
...
109
Timer WPL-C8705301
...
110
Screw WPL-W11084238
...
111
Xswitch-Start,stop WPL-C3695501
...
112
Screw WPL-M0241205
...
113
Bushing WPL-B5704202
...
114
Fan Blade-Stirrer WPL-C8720802
...
115
Bearing WPL-A3214801
...
116
Shoulder Screw WPL-A3214902
...
117
Filter-Wave Guide WPL-C3694501
...
118
Screw WPL-M0253504
...
119
Grease Shield K WPL-D7206602
...
120
Screw WPL-M0230015
...
121
Gasket-Cavity Top WPL-10839709
...
122
Gasket-Cavity Top WPL-10839709
...
123
Gasket-Cavity Top WPL-10839709
...
124
Gasket WPL-A3030302
...
125
Catch, Door Strike WPL-M0100702
...
126
Access Panel WPL-B5700201
...
127
Screw WPL-M0230814
...
128
Terminal Block WPL-B5677203
...
129
Terminal WPL-M0320901
...
131
Spring Clip WPL-R0191014
...
134
Switch-Sensing WPL-B5674702
...
135
Insulation-Timer WPL-A3236701
...
136
Screw, No.6x18x1/4 (3) WPL-487010
...
137
Screw-Sm/hex WPL-12990523

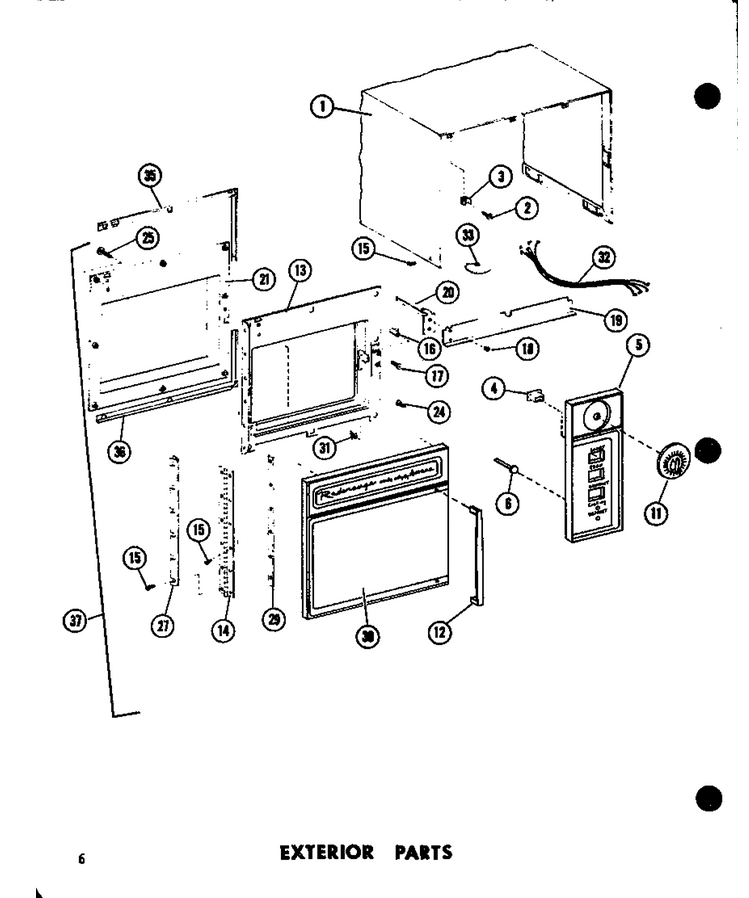

01 - Exterior Parts

...
...
1
Wrapper-Oc WPL-D7189404
...
2
Screw K WPL-M0213517
...
3
Spacer, Speed Nut WPL-A3211801
...
4
Push Button WPL-C8725902
...
5
Escutcheon WPL-D7231701
...
6
Light Pilot WPL-A3245301
...
10
Screw T.c WPL-M0229916
...
11
Knob WPL-C8704908
...
12
Handle WPL-C8725601
...
13
Door Ring Wld WPL-D7188304
...
14
Hinge WPL-B5700001
...
15
Screw WPL-M0230015
...
16
Latch-Door WPL-B5705501
...
17
Screw WPL-WP59002061
...
18
Pop Rivet WPL-A4539602
...
19
Bracket-Door A WPL-C8707401
...
20
Door Arm Assembly WPL-R0157117
...
21
Inner Door WPL-D7210802
...
24
Screw WPL-M0253721
...
25
Screw WPL-M0253717
...
27
Support-Hinge WPL-C3695201
...
29
Tap Strip-Door WPL-A3223301
...
30
Outer Door WPL-D7380301
...
31
Strike,door Catch WPL-M0100801
...
32
Wiring Harness WPL-D7233601
...
33
Tie-Wire WPL-WPW10339879
...
35
Trim WPL-C8707901
...
36
Trim WPL-C8708001
...
37
Door Assembly WPL-D7232101

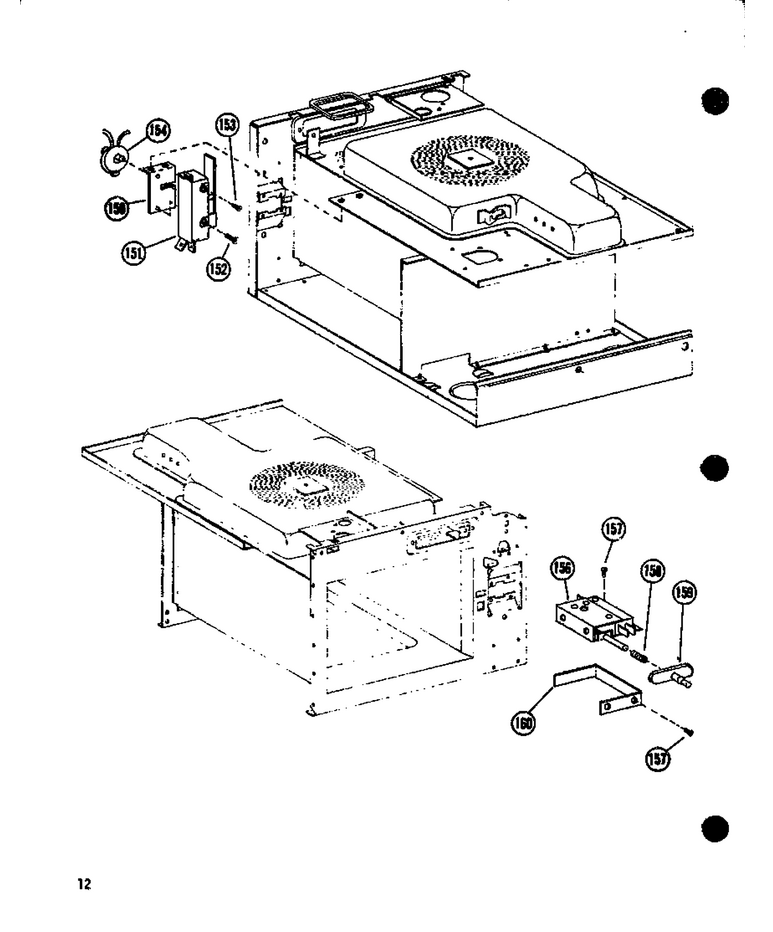

04 - Page 4

...
...
150
Bracket WPL-B5699601
...
151
Switch, Cut-Off WPL-A3220701
...
152
Screw WPL-M0227520
...
153
Screw WPL-M0218116
...
154
Timer WPL-B5699801
...
155
Nut K WPL-M0282005
...
156
Defrost Switch WPL-B5718801
...
157
Screw WPL-WP59002061
...
158
Spring-Compression WPL-A3245202
...
159
Sleeve, Defrost WPL-B5732202
...
160
Bracket WPL-B5732101
...
161
Screw WPL-WP90767
...
162
Jumper Wire WPL-C3655836
