Amana MR-2 (BOM: P7189204M)

Model: MR-2 (BOM: P7189204M)

Save Part Not Listed?
product name

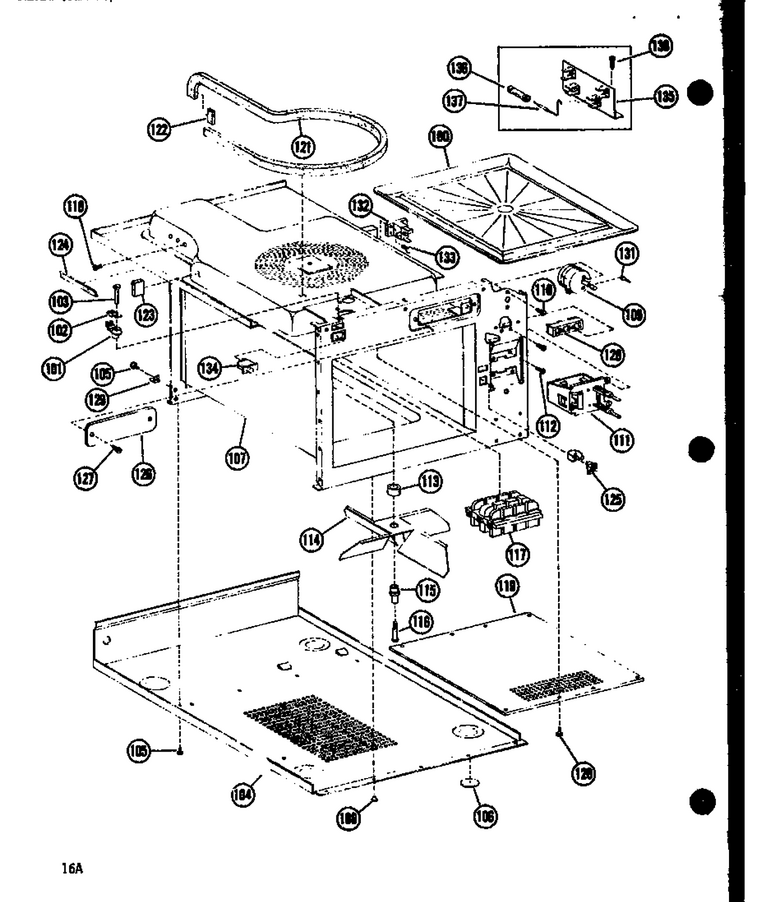

03 - Page 3

...
...
100
Oven Tray WPL-D7191101
...
101
Bushing WPL-C3696903
...
102
Bushing WPL-C3696902
...
103
Pin-Door Stop WPL-A3211102
...
104
Weldment, Base Pan, Bottom WPL-C3694401
...
105
Screw WPL-M0230015
...
106
Foot WPL-A3213001
...
107
Weldment, Oven Cavity WPL-D7187403
...
108
Rivet-Pop WPL-59002054
...
109
Timer WPL-C8705301
...
110
Screw WPL-W11084238
...
111
Xswitch-Start,stop WPL-C3695501
...
112
Screw WPL-M0241205
...
113
Bushing WPL-B5704202
...
114
Fan Blade, Stirrer WPL-C3609102
...
115
Bearing WPL-A3214801
...
116
Shoulder Screw WPL-A3214902
...
117
Filter-Wave Guide WPL-C3694501
...
118
Screw WPL-M0253504
...
119
Grease Shield WPL-D7206601
...
120
Clip K WPL-M0130101
...
121
Gasket-Cavity Top WPL-10839709
...
122
Gasket-Cavity Top WPL-10839709
...
123
Gasket-Cavity Top WPL-10839709
...
124
Gasket WPL-A3030302
...
125
Catch, Door Strike WPL-M0100702
...
126
Access Panel WPL-B5700201
...
127
Screw WPL-M0230814
...
128
Terminal Block WPL-B5677203
...
129
Terminal WPL-M0320901
...
131
Spring Clip WPL-R0191014
...
132
Relay, Time Delay WPL-B5688701
...
133
Screw, No.6x18x1/4 (3) WPL-487010
...
134
Switch-Sensing WPL-B5674702
...
135
Terminal Board A WPL-B5722001
...
136
Resistor Fuse Kit WPL-R0157332
...
137
Fuse WPL-M0308101
...
138
Screw WPL-M0230015

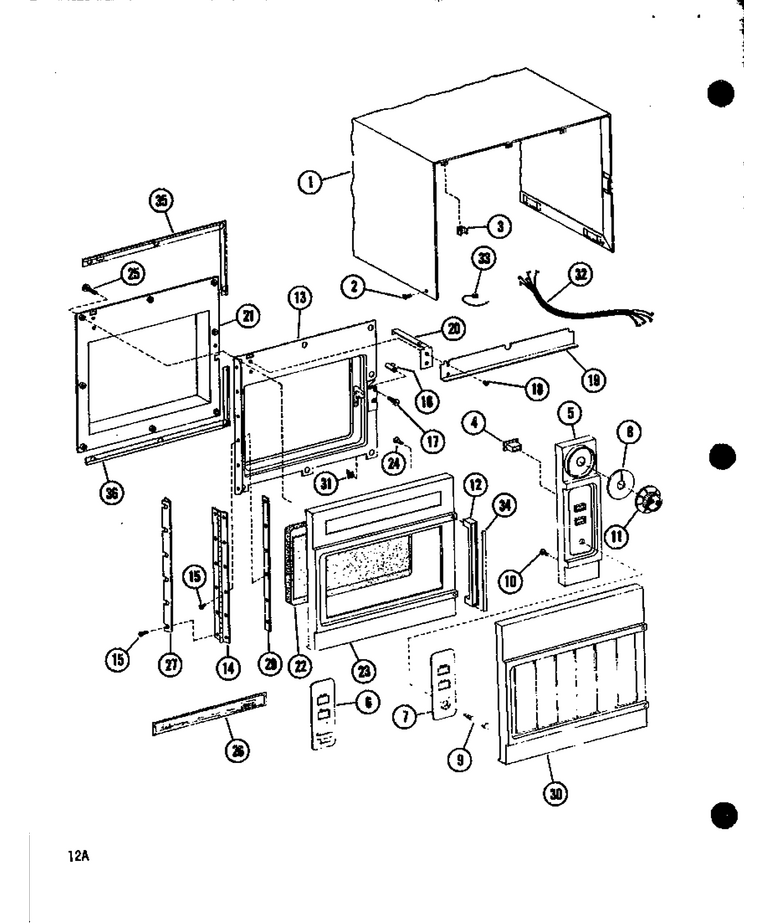

01 - Page 1

...
...
NI
Door Assembly WPL-D7191705
...
1
Wrapper-Oc WPL-D7188401
...
2
Screw K WPL-M0213517
...
3
Spacer, Speed Nut WPL-A3211801
...
4
Button-Stop WPL-C3695902
...
5
Escutcheon WPL-D7187305
...
7
Insert WPL-C3697903
...
8
Insert K WPL-B5702801
...
9
Light-Indicator/ W Clip WPL-M0360204
...
10
Screw T.c WPL-M0229916
...
11
Knob, Control Timer WPL-C8704904
...
12
Handle, Door WPL-C3695701
...
13
Weldment, Inner Door Ring WPL-D7188302
...
14
Hinge WPL-B5700001
...
15
Screw WPL-M0230015
...
16
Latch-Door WPL-B5705501
...
17
Screw WPL-WP59002061
...
18
Pop Rivet WPL-A4539602
...
19
Bracket-Door A WPL-C8707401
...
20
Door Arm Assembly WPL-R0157117
...
21
Inner Door WPL-D7188101
...
22
Window-Oven WPL-C3695101
...
23
Door, Outer WPL-D7187803
...
24
Screw-Handle WPL-M0253719
...
25
Screw WPL-M0253717
...
26
Nameplate WPL-B5702901
...
27
Support-Hinge WPL-C3695201
...
29
Tap Strip-Door WPL-A3223301
...
31
Strike,door Catch WPL-M0100801
...
32
Wiring Harness WPL-D7207301
...
33
Tie-Wire WPL-WPW10339879
...
34
Insert, Handle WPL-B5700801
...
35
Trim WPL-C8707901
...
36
Trim WPL-C8708001

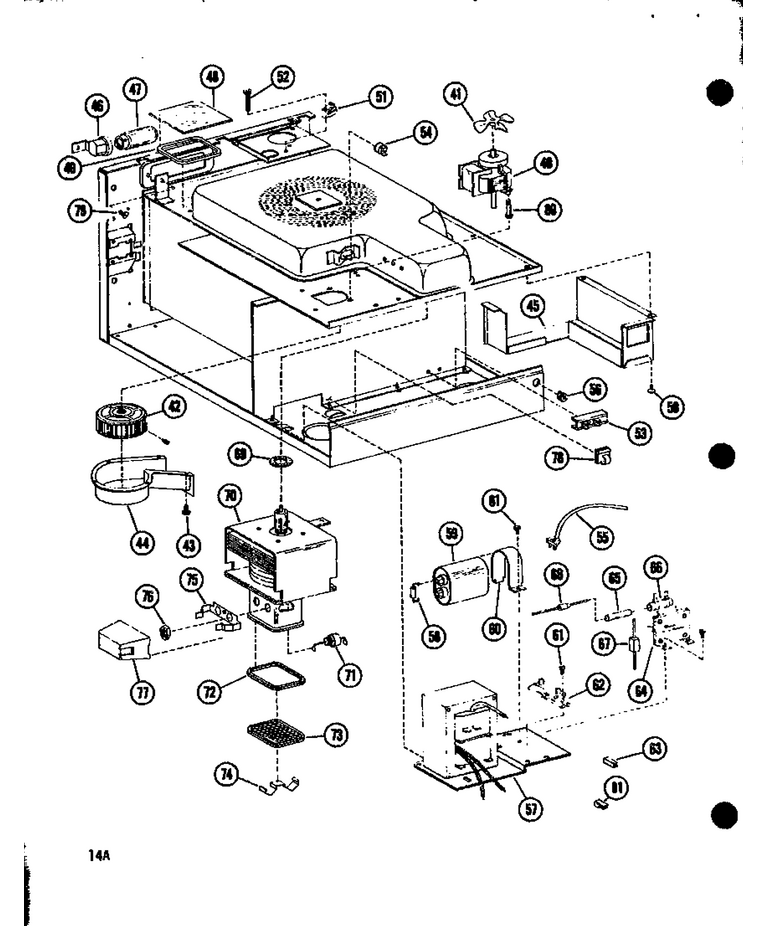

02 - Page 2

...
...
40
Motor, Blower WPL-C3698701
...
41
Fan Blade WPL-B5706701
...
42
Blower Wheel WPL-B5602201
...
43
Screw WPL-M0230015
...
44
Blower Housing WPL-C8700101
...
45
Duct-Outlet WPL-D7191801
...
46
Socket-Oven Lamp WPL-B5691202
...
47
Bulb-Light WPL-WPA3167501
...
48
Window-Oven Light WPL-A3213701
...
49
Sealer, Gum (4 Feet) WPL-212643
...
50
Clip K WPL-M0130101
...
51
Switch-Preform WPL-A3214201
...
52
Screw A-K WPL-M0227525
...
53
Terminal Block WPL-B5677202
...
54
Thermal Cutout WPL-B5665804
...
55
Power Cord WPL-B5703502
...
56
Strain Relief WPL-M0370001
...
57
Transformer WPL-D7192001
...
58
Resistor A WPL-M0305202
...
59
Capacitor WPL-D8547924
...
60
Strap-Capacitor WPL-A3197102
...
61
Screw-Sm/hex WPL-12990523
...
62
Diode WPL-B5685802
...
63
Insulator, Term. K WPL-M0325301
...
64
Terminal Board WPL-B5687402
...
65
Sleeve WPL-M0321701
...
66
Resistor A WPL-M0305009
...
67
Resistor WPL-M0305204
...
68
Fuse WPL-M0308110
...
69
Gasket, Magnetron WPL-A3185102
...
70
Assembly, Magnetron WPL-D7192401
...
71
Capacitor K WPL-A3148801
...
72
Gasket WPL-A3148701
...
73
Cover Cap Box K WPL-B5647901
...
74
Bale Strap K WPL-A3145401
...
75
Clip K WPL-B5655902
...
76
Hex Nut WPL-M0281901
...
77
Shield Hv K WPL-B5656001
...
78
Clip WPL-WPM0104106
...
79
Screw WPL-WP90767
...
80
Screw WPL-M0202642
...
81
Insulator, Pod K WPL-M0325501
