Amana MPS229-10 (BOM: P1104401M)

Model: MPS229-10 (BOM: P1104401M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

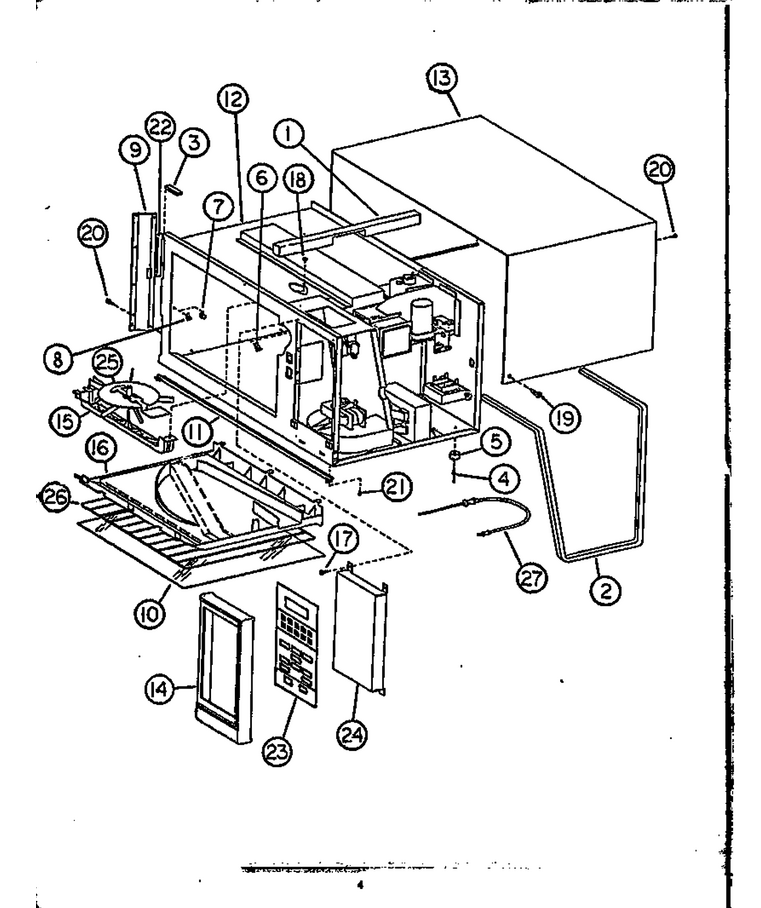

02 - Page 2

...
...
NI
Torx Bit Tx 15h WPL-0089878
...
1
Gasket, Oven Top WPL-B8369901
...
2
Gasket (per Foot) WPL-Y0089862
...
3
Screw,vent WPL-53952
...
4
Sub 90369, Pop Rivet WPL-Y0053956
...
5
Foot O.c. Wrapper WPL-B5732506
...
6
Support, Shelf WPL-B8374901
...
7
Hole Plug WPL-0054120
...
8
Support Rack WPL-B8371001
...
9
Manual, Operating WPL-53977
...
10
Oven Tray WPL-0053981
...
11
Trim WPL-C8943602
...
12
See Note Oven Cavity WPL-Y00000000
...
13
Wrapper, Outer Case WPL-Y0053995
...
14
Escutcheon, Control WPL-0054139
...
15
Cradle, Antenna WPL-D7685505
...
16
Grease Shield WPL-D7692501
...
17
Screw WPL-Y0089861
...
18
Nut WPL-0054118
...
19
Screw, Tf WPL-M0231817
...
20
Screw WPL-WP12990527
...
21
Screw, Tory WPL-0053939
...
22
Gasket WPL-Y0053953
...
23
Manual, Operating WPL-53937
...
24
Pc Board Assy WPL-Y0053938
...
25
Assy, Antenna WPL-Y0053985
...
26
Oven Rack WPL-D7780102
...
27
Temp Probe WPL-C8821504

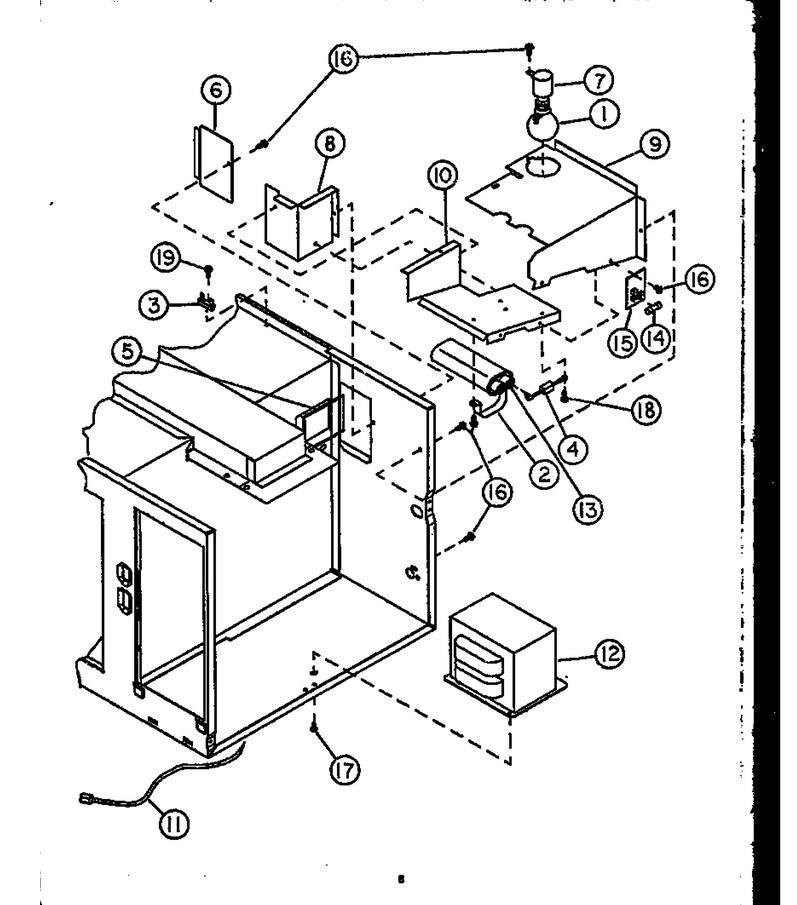

04 - Page 4

...
...
1
Strap,ground WPL-53950
...
2
Strap, Capacitor WPL-A4055405
...
3
Fuse, Thermal WPL-Y0053958
...
4
Rectifier WPL-B8383101
...
5
Window, Oven Light WPL-Y0053960
...
6
Cover, Light WPL-Y0053965
...
7
Receptacle, Lamp WPL-Y0053969
...
8
Shield, Light WPL-D7772101
...
9
Duct, Top Air WPL-D7772007
...
10
Air Duct. Bottom WPL-D7772202
...
11
Wire, H.v. Jumper, Mag ``f`` To WPL-Y0054101
...
12
Transformer - High Voltage WPL-54107
...
13
Capacitor- WPL-WP59001168
...
14
Fuse 20 A WPL-WPM0805101
...
15
Terminal Board WPL-Y0054136
...
16
Screw WPL-WP12990527
...
17
Screw WPL-Y0054112
...
18
Screw WPL-Y0089861
...
19
Screw WPL-WP488234

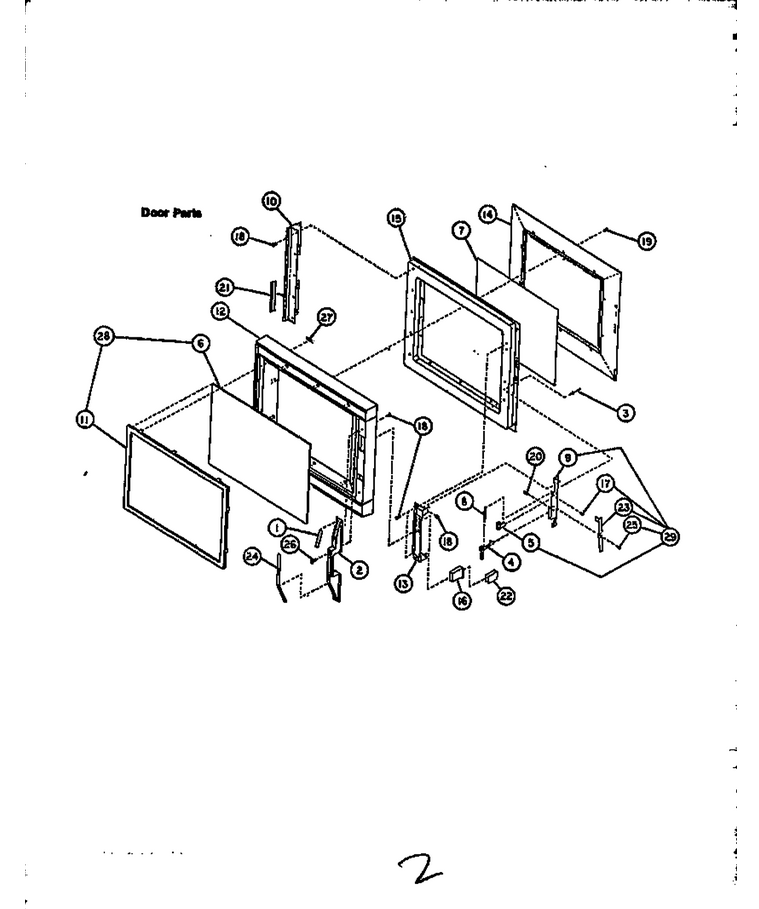

01 - Door Parts

...
...
NI
Tool, Avsafe Screw WPL-Y0054143
...
1
Insert, Handle Top WPL-0054129
...
2
Handle - Ball WPL-54130
...
3
Pop Rivet K WPL-0089901
...
4
Latch Door WPL-0054134
...
5
See Note Guide, Door -- (part Of Item 29) WPL-Y00000000
...
6
See Note Window, Outer -- (part Of Item 28) WPL-Y00000000
...
7
Window, Inner WPL-Y0053968
...
8
Spring, Door Latch WPL-C8893502
...
9
See Note Bracket, Door Latch -- (part If Item 29) WPL-Y00000000
...
10
Hinge-Door WPL-C8961811
...
11
See Note Retainer, Lens -- (part Of Item 28) WPL-Y00000000
...
12
Outer Door WPL-Y0054144
...
13
Base, Handle WPL-Y0054131
...
14
Door, Inner WPL-D7683508
...
15
Kit-Door R WPL-R0131710
...
16
Push Button A WPL-Y0054132
...
17
See Note Rivet, Semi Tubular -- (part Of Item 29) WPL-Y00000000
...
18
Screw WPL-WP59002061
...
19
Screw WPL-489392
...
20
Pin Roll K WPL-M1200107
...
21
Gasket WPL-Y0053953
...
22
Pad, Button A WPL-Y0054133
...
23
See Note Pivot, Arm Latch -- (part Of Item 29) WPL-Y00000000
...
24
Insert, Handle Bottom WPL-0054135
...
25
See Note Rivet, Shoulder -- (part Of Item 29) WPL-Y00000000
...
26
Screw WPL-90363
...
27
Clip, Speed WPL-0053941
...
28
Door Glass Assy. - Window & Re WPL-0054126
...
29
Latch Dr K WPL-B8370301

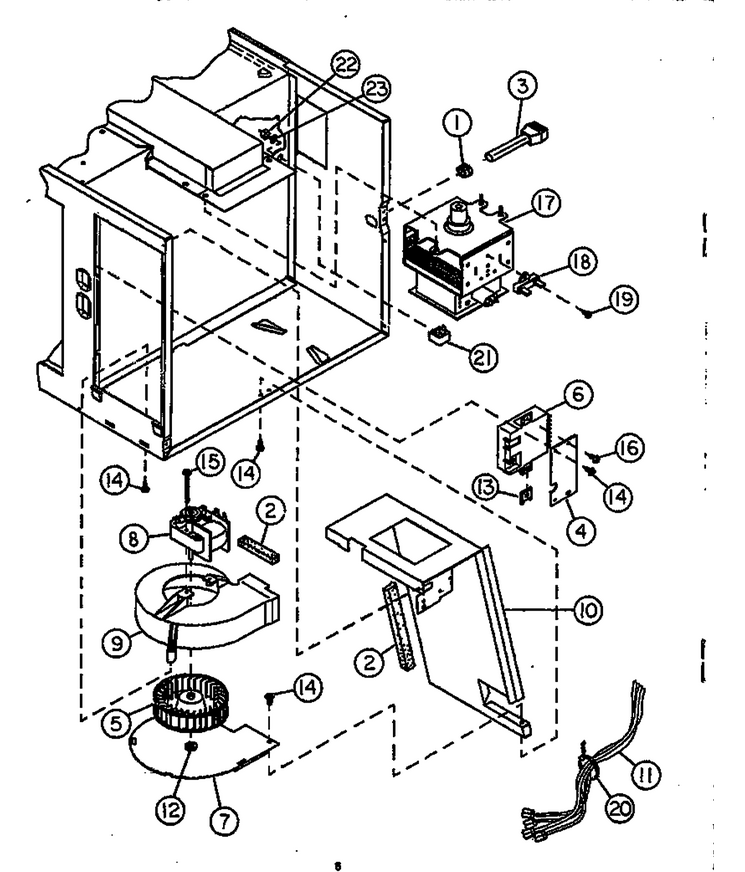

03 - Page 3

...
...
1
Strain Relief WPL-Y90549
...
2
Gasket WPL-Y90566
...
3
Cord, Power WPL-B8310509
...
4
Bracket, Switch Mtg. WPL-Y0053964
...
5
Ass`y, Blower Wheel WPL-Y0089875
...
6
Switch, Interlock WPL-C8935801
...
7
Brkt Scroll WPL-C8942501
...
8
Motor, Blower WPL-Y0053989
...
9
Weldnut,3/8-16 Gripco WPL-53992
...
10
Partition, Blower WPL-0053999
...
11
Harness, Wire WPL-10872402
...
12
Clip, Push WPL-Y8992
...
13
Clip WPL-0088496
...
14
Screw WPL-WP12990527
...
15
Screw WPL-0054115
...
16
Screw---K WPL-Y0090278
...
17
Tube, Magnetron WPL-0053971
...
18
Fuse, Thermal WPL-Y0053958
...
19
Screw WPL-WP488234
...
20
Tie-Elect. WPL-Y0054122
...
21
Temp Probe Jack K WPL-B8355401
...
22
Nut K WPL-Y0054117
...
23
Washer K WPL-Y0054116
