Amana MPS22510 (BOM: MN03)

Model: MPS22510 (BOM: MN03)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

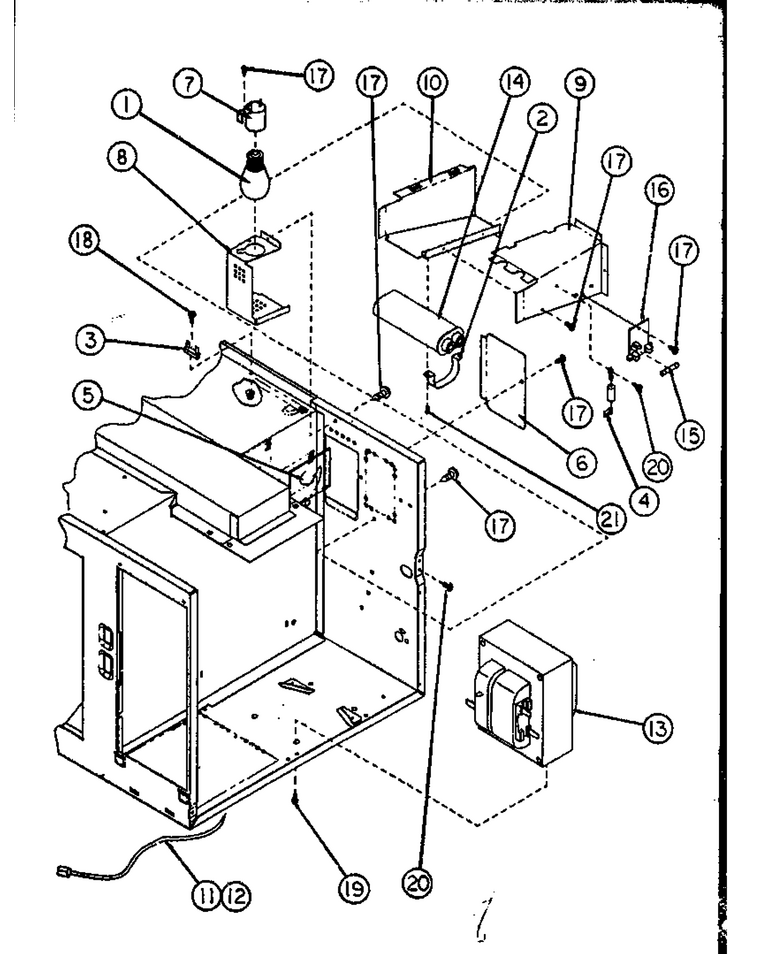

04 - Page 4

...
...
1
Light Bulb WPL-8009
...
2
Strap, Capacitor WPL-A4055405
...
3
Fuse, Thermal WPL-Y0053958
...
4
Rectifier WPL-B8383101
...
5
Window, Oven Light WPL-Y0053960
...
6
Cover, Light WPL-Y0053965
...
7
Receptacle, Lamp WPL-Y0053969
...
8
Shield, Light WPL-Y0312307
...
9
Air Duct, Top WPL-10115101
...
10
Air Duct, Bottom WPL-Y0312306
...
11
Jumper Wire WPL-Y0311710
...
12
Wire, H.v. Jumper, Mag ``f`` To WPL-Y0054101
...
13
Transformer WPL-Y0312304
...
14
Capacitor- WPL-WP59001168
...
15
Fuse 20 A WPL-WPM0805101
...
16
Sub 53974, Terminal Board WPL-Y0311708
...
17
Screw WPL-WP12990527
...
18
Screw WPL-WP488234
...
19
Screw WPL-Y0054112
...
20
Screw WPL-Y0089861
...
21
Sub 90278, Screw WPL-Y0312302

02 - Page 2

...
...
NI
Torx Bit Tx 15h WPL-0311723
...
1
Gasket, Oven Top WPL-B8369901
...
2
Gasket - Each WPL-Y0311701
...
3
Gasket (ft) WPL-Y0053952
...
4
Sub 90369, Pop Rivet WPL-Y0053956
...
5
Foot O.c. Wrapper WPL-B5732506
...
6
Support, Shelf WPL-B8374901
...
7
Hole Plug WPL-0311717
...
9
Brkt,hinge Support WPL-Y0053977
...
10
Tray, Oven WPL-Y0311705
...
11
Trim WPL-C8943602
...
12
See Note Oven Cavity -- (not Replaceable) WPL-Y00000000
...
13
Wrapper, Outer Case WPL-Y0053995
...
14
Escutcheon, Control WPL-0054139
...
15
Cradle, Antenna WPL-D7685505
...
16
Grease Shield WPL-D7692501
...
17
Screw WPL-Y0089861
...
18
Nut WPL-0054118
...
19
Screw, Tf WPL-M0231817
...
20
Screw WPL-Y0311711
...
21
Screw, Tory WPL-0053939
...
23
Timer WPL-0054148
...
24
Sub 54149, Pc Board WPL-Y0311721
...
25
Assy, Antenna WPL-Y0053985

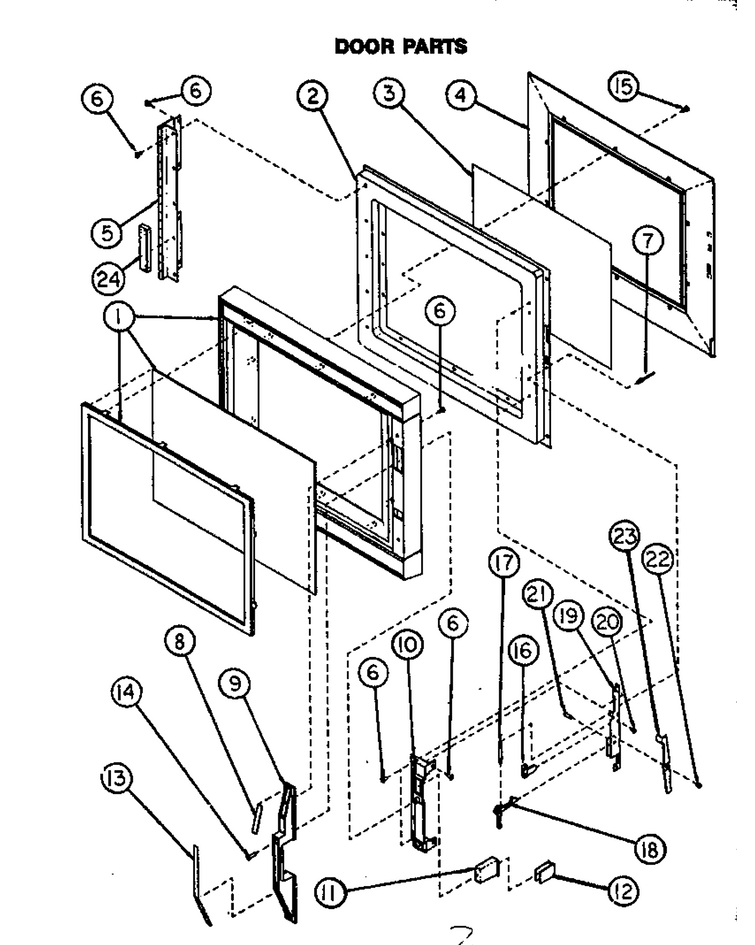

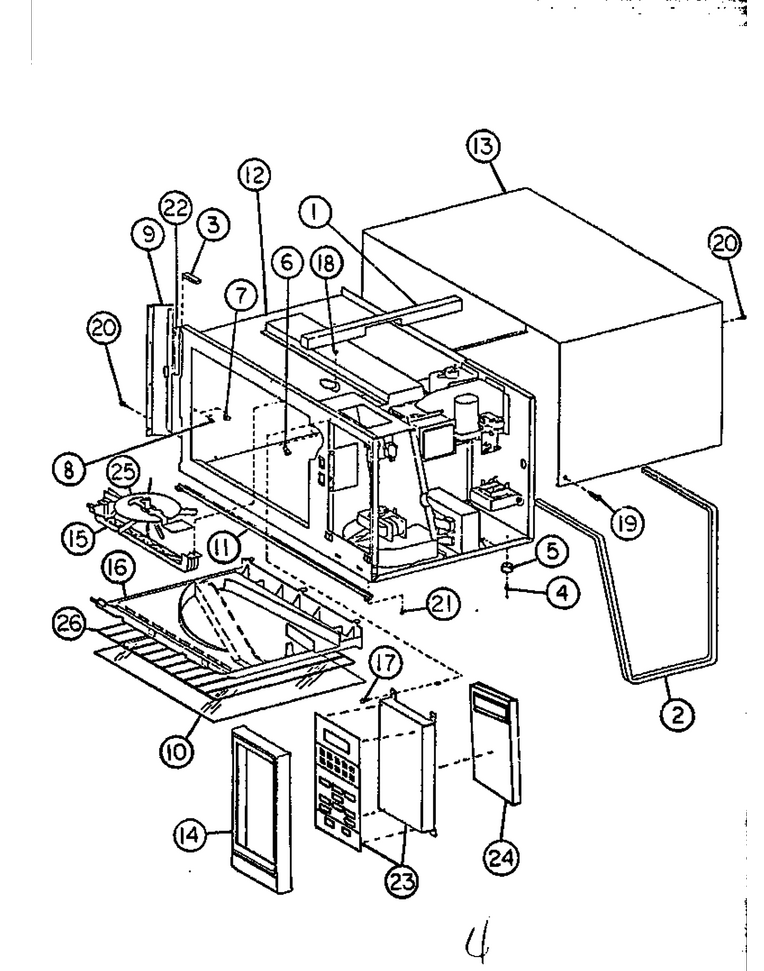

01 - Door Parts

...
...
NI
Tool, Avsafe Screw WPL-Y0054143
...
1
Outer Door Assy WPL-Y0311722
...
2
Dr Ring & Latch Assy - WPL-0311720
...
3
Window, Inner WPL-Y0053968
...
4
Door, Inner WPL-D7683508
...
5
Hinge-Door WPL-C8961811
...
6
Screw WPL-WP59002061
...
7
Sub 91858, Pop Rivet WPL-Y0312301
...
8
Insert, Handle Top WPL-0054129
...
9
Handle, Bail WPL-0054130
...
10
Base, Handle WPL-Y0054131
...
11
Push Button A WPL-Y0054132
...
12
Pad, Button A WPL-Y0054133
...
13
Insert, Handle Bottom WPL-0054135
...
14
Screw WPL-W10124557
...
15
Screw WPL-489392
...
16
Guide, Door K WPL-B8370401
...
17
Spring, Door Latch WPL-C8893502
...
18
Latch Door WPL-0054134
...
19
Bracket, Door Latch WPL-0311707
...
20
Rivet A K WPL-M0010214
...
21
Pin Roll K WPL-M1200107
...
22
Rivet, Shoulder WPL-0311719
...
23
Pivot, Arm, Latch WPL-0311706
...
24
Gasket WPL-Y0053953

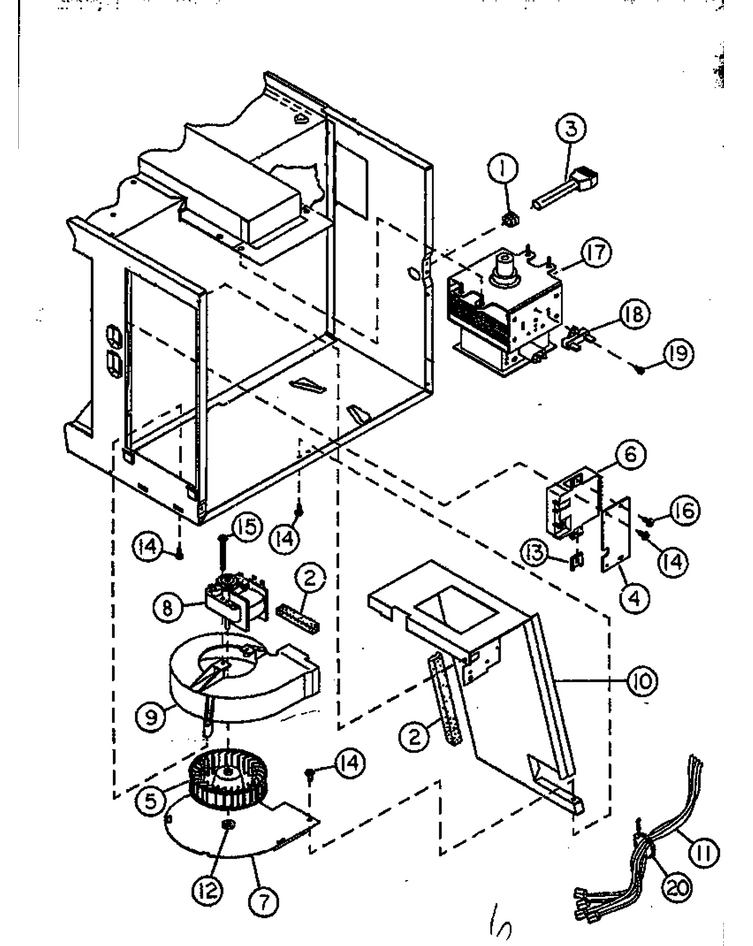

03 - Page 3

...
...
1
Strain Relief WPL-W10124558
...
2
Gasket WPL-W10124559
...
3
Cord, Power WPL-B8310509
...
4
Bracket, Switch Mtg. WPL-Y0053964
...
5
Ass`y, Blower Wheel WPL-Y0089875
...
6
Switch, Interlock WPL-C8935801
...
7
Brkt Scroll WPL-C8942501
...
8
Motor, Blower WPL-Y0053989
...
9
Scroll, Blower WPL-Y0053992
...
10
Blower Partition,black E Ct WPL-Y0311709
...
11
Wire Harness WPL-Y0054109
...
12
Nut WPL-WP3195558
...
13
Clip WPL-0088496
...
14
Screw WPL-WP12990527
...
15
Screw WPL-0311716
...
16
Screw---K WPL-Y0090278
...
17
Magnetron WPL-D7831004
...
18
Fuse, Thermal WPL-Y0053958
...
19
Screw WPL-0311714
...
20
Screw WPL-M0254706
...
21
Screw WPL-Y0054112
...
22
Screw WPL-0312311
...
23
Tie-Elect. WPL-Y0054122
...
24
Sub 56321, Plug Button WPL-0312312
