Amana MPR215

Model: MPR215

Save Part Not Listed?
product name

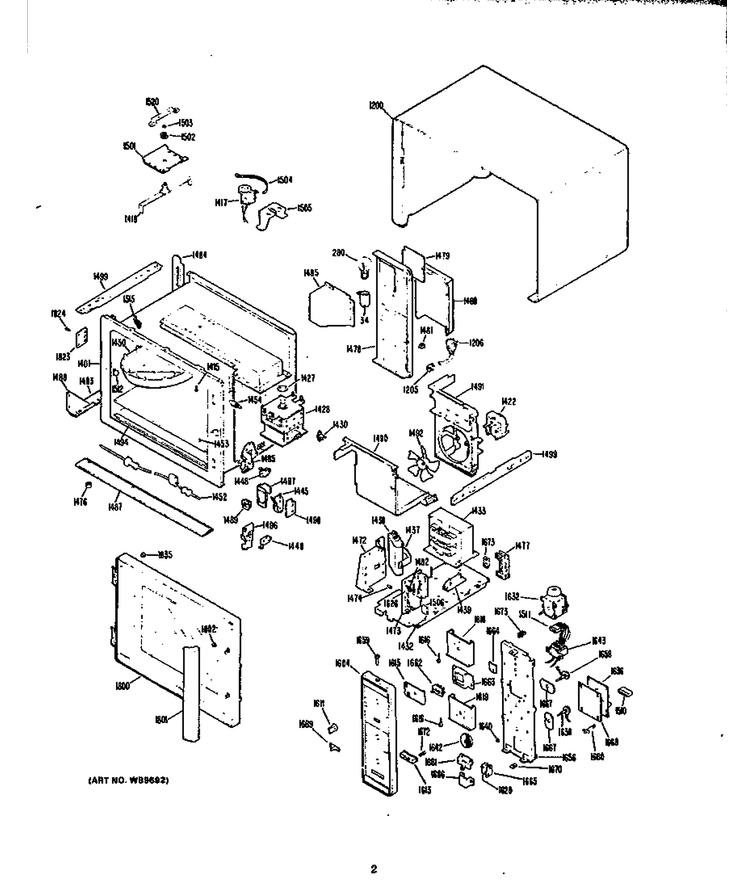

01 - Page 1

...
...
NI
Torx Driver, T-20 (M95d23) WPL-0087512
...
34
Socket Lamp WPL-Y0087126
...
280
Light Bulb WPL-8009
...
1200
Outer Case WPL-Y0087077
...
1205
Bush, Strain Relf (10) WPL-0087127
...
1206
Power Cord WPL-Y0087128
...
1263
Term, Block Asm. WPL-Y87129
...
1401
See Note Oven Asm. 1.5 Weld WPL-Y00000000
...
1417
Mtr Ant Drive X Start W/sn 512 WPL-87058
...
1419
Antenna Assy. WPL-Y0087375
...
1422
Max Blower Motor Wb26x5063 WPL-0087057
...
1427
Rf Gasket WPL-Y0087279
...
1428
Use 0047079 WPL-0087061
...
1430
Thermostat Max WPL-0087059
...
1432
Component Plate Asm Weld WPL-Y0087132
...
1433
Barrier WPL-Y0087133
...
1437
Pulley WPL-0087134
...
1438
Capacitor-Doubler WPL-D8547912
...
1439
Kit, Diode WPL-M3D71
...
1445
Monitor Switch WPL-0087068
...
1448
Interlock Switch WPL-Y0087069
...
1450
Cover, Stirrer WPL-0087062
...
1451
Rivet-Plastcx WPL-42192P01
...
1452
Probe WPL-0087053
...
1453
Shelf, Oven WPL-0087073
...
1454
Receptacle Probe WPL-Y0087072
...
1467
Antenna Assy WPL-Y0087078
...
1468
Antenna Assy. WPL-Y0087375
...
1469
Antenna Assy. WPL-Y0087375
...
1470
Lockwasher WPL-Y87138
...
1471
Screw No.8-32 Torx WPL-Y0087139
...
1472
Bracket Capacitor WPL-Y0087140
...
1473
Sub 86427, Power Ctrl. Module WPL-Y0087051
...
1474
Spacer WPL-Y0087141
...
1475
Clip Wire WPL-Y0087142
...
1476
Foot WPL-0087144
...
1477
Shield WPL-0087145
...
1478
Extension Back WPL-Y0087146
...
1479
Cover WPL-Y0087147
...
1480
Cover Intake WPL-Y0087148
...
1481
Clip Wire WPL-Y0087149
...
1482
Varistor WPL-0087055
...
1483
Rail WPL-Y0087150
...
1484
Panel Filler WPL-0087151
...
1485
Shield WPL-Y0087153
...
1486
Support Bottom Trim WPL-Y0087154
...
1487
Trim Case, Bottom WPL-Y0087074
...
1488
Gusset WPL-Y0087155
...
1489
Receptacle Prong WPL-Y0087156
...
1490
Plenum Air WPL-Y0087157
...
1491
Housing Fan WPL-Y0087158
...
1492
Blade, Fan WPL-0087076
...
1493
Clip Fastener WPL-Y0087159
...
1494
Support Shelf Rear WPL-Y0087162
...
1495
Support Switch Top WPL-0087164
...
1496
Support Switch Bottom WPL-Y0087165
...
1497
Support Switch WPL-Y0087166
...
1498
Barrier WPL-Y87167
...
1499
Brace Extension WPL-Y0087168
...
1500
Support Rack WPL-0087169
...
1501
Support Stirrer WPL-Y87170
...
1502
Pulley WPL-Y0087171
...
1503
Retainer O Ring WPL-Y0087172
...
1504
Belt Stirrer WPL-87070
...
1505
Bracket Motor WPL-Y0087173
...
1506
Housing Socket Pkg 5 Pin WPL-Y0087175
...
1507
Rack WPL-87176
...
1510
Con. Block Smart Bd 9 Pin WPL-Y0087177
...
1511
Housing Socket Pkg 6 Pin WPL-Y0087178
...
1515
Sub 87066 Fuse, Thermal WPL-0087179
...
1604
Control Trim WPL-Y0087180
...
1611
Knob WPL-Y0087181
...
1613
Button, Start WPL-Y0087182
...
1615
Slide Color WPL-Y0087183
...
1616
Pointer Time & Temp WPL-Y0087184
...
1618
Dial, Timer WPL-Y0087185
...
1619
Dial, Temp. WPL-Y0087186
...
1626
Fuse WPL-WPM0805102
...
1629
Switch, Start WPL-0087187
...
1632
Timer WPL-Y0087188
...
1636
Touch Panel WPL-Y0087189
...
1639
Potentiometer Var. Power WPL-Y0087190
...
1640
Nut Mt. Pot. WPL-Y0087191
...
1642
Dial Variable Power WPL-Y0087192
...
1643
Transformer WPL-Y0087193
...
1656
Extension Frame WPL-Y0087194
...
1658
Potentiometer Temp WPL-Y0087195
...
1659
Screw Mtg. Trim WPL-Y0087196
...
1661
Bracket Switch WPL-Y0087197
...
1662
Switch Slide WPL-Y0087198
...
1663
Bracket Switch WPL-Y0087199
...
1664
Barrier WPL-Y0087200
...
1665
Barrier Switch WPL-Y0087201
...
1666
Switch, Rocker (Blk) WPL-74008718
...
1667
Barrier Potentiometer WPL-Y0087203
...
1668
Barrier Circuit Board WPL-Y0087204
...
1669
Knob Switch Slide WPL-Y0087205
...
1670
Speednut WPL-Y0087207
...
1672
Spring Switch Button WPL-Y0087206
...
1673
Clip Wire WPL-Y0087142
...
1680
Standoff Circuit Board WPL-Y0087210
...
1800
Sub 86432, Door Assy.,mic WPL-0087056
...
1801
Door Handle WPL-0087071
...
1802
Screw Mtg. Handle WPL-0087213
...
1823
Support Hinge WPL-Y0087216
...
1824
Screw Torx WPL-Y0087214
...
1835
Screw Mtg. Hinge WPL-87215
