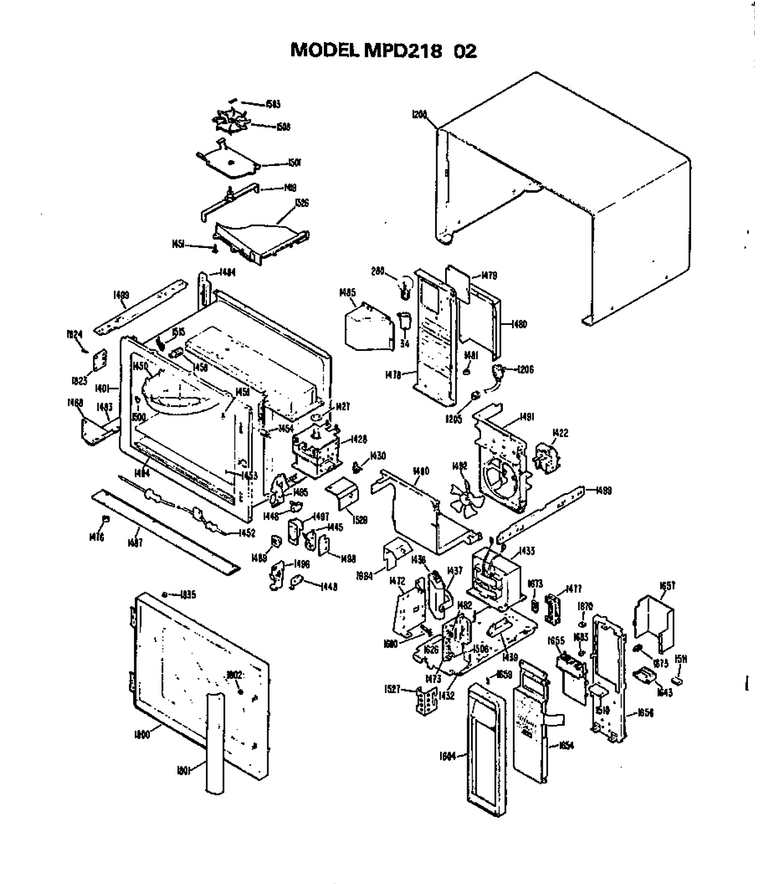

Amana MPD218-02 (BOM: MPD21802)

Model: MPD218-02 (BOM: MPD21802)

Save Part Not Listed?
product name

01 - Page 1

...
...
NI
Metal Rack W/spacers WPL-0086412
...
34
Socket Lamp WPL-Y0087126
...
280
Light Bulb WPL-8009
...
951
Speednut WPL-87217
...
1200
Screw, Outer Case, Torx WPL-Y0087301
...
1205
Bush, Strain Relf (10) WPL-0087127
...
1206
Power Cord WPL-Y0087128
...
1401
See Note Oven Asm. 1.5 Weld WPL-Y00000000
...
1419
Antenna Assy. WPL-Y0087375
...
1422
Max Blower Motor Wb26x5063 WPL-0087057
...
1428
Use 0047079 WPL-0087061
...
1430
Thermostat Max WPL-0087059
...
1432
Component Plate Asm. WPL-Y87218
...
1433
Barrier WPL-Y0086403
...
1437
Pulley WPL-0087134
...
1438
Capacitor-.85 WPL-59001651
...
1439
Kit, Diode WPL-M3D71
...
1445
Monitor Switch WPL-0087068
...
1448
Switch, Interlock WPL-0087317
...
1450
Cover, Stirrer WPL-0087062
...
1452
Probe WPL-0087053
...
1453
Shelf, Oven WPL-0087073
...
1454
Receptacle Probe WPL-Y0087072
...
1458
Terminal Block Assy. WPL-0086404
...
1472
Bracket Capacitor WPL-Y0087140
...
1473
Sub 86427, Power Ctrl. Module WPL-Y0087051
...
1476
Foot WPL-0087144
...
1477
Shield WPL-0087145
...
1478
Extension Back WPL-Y0087146
...
1479
Cover WPL-Y0087147
...
1480
Cover Intake WPL-Y0087148
...
1481
Clip Wire WPL-Y0087149
...
1482
Varistor WPL-0087055
...
1483
Rail WPL-Y0087150
...
1484
Panel Filler WPL-0087151
...
1485
Shield Lamp WPL-Y0087152
...
1487
Trim Case, Bottom WPL-Y0087074
...
1488
Gusset WPL-Y0087155
...
1489
Receptacle Prong WPL-Y0087156
...
1490
Plenum Air WPL-Y0087157
...
1491
Housing Fan WPL-Y0087158
...
1492
Blade, Fan WPL-0087076
...
1494
Support Shelf Rear WPL-Y0087162
...
1495
Support Switch Top WPL-0087164
...
1496
Support Switch Bottom WPL-Y0087165
...
1497
Support Switch WPL-Y0087166
...
1498
Barrier WPL-Y87167
...
1499
Brace Extension WPL-Y0087168
...
1500
Support, Rack WPL-Y0055260
...
1501
Support Stirrer WPL-Y87170
...
1503
Retainer O Ring WPL-Y0087172
...
1506
Housing Socket Pkg 5 Pin WPL-Y0087175
...
1508
Wheel, Air WPL-Y0087376
...
1510
Terminal Block, 9 Pin WPL-0086405
...
1511
Housing Socket Pkg 6 Pin WPL-Y0087178
...
1515
Sub 87066 Fuse, Thermal WPL-0087179
...
1526
Deflector, Air WPL-Y0087377
...
1527
Barrier WPL-Y87381
...
1529
Barrier WPL-0087379
...
1604
Control Trim WPL-Y0087075
...
1626
Fuse WPL-WPM0805102
...
1643
Transformer WPL-0086406
...
1654
Key Panel Assy. WPL-Y0086409
...
1655
Smart Board & Display WPL-0086415
...
1656
Frame Control WPL-87230
...
1657
Cover Board WPL-Y87221
...
1659
Screw Mtg. Trim WPL-Y0087196
...
1800
Sub 86432, Door Assy., Mic. WPL-0086413
...
1801
Door Handle WPL-0087071
...
1802
Screw Mtg. Handle WPL-0087213
...
1823
Support Hinge WPL-Y0087216
...
1824
Screw Torx WPL-Y0087214
...
1835
Screw Mtg. Hinge WPL-87215
