Amana MLD510 (BOM: P1331009M)

Model: MLD510 (BOM: P1331009M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

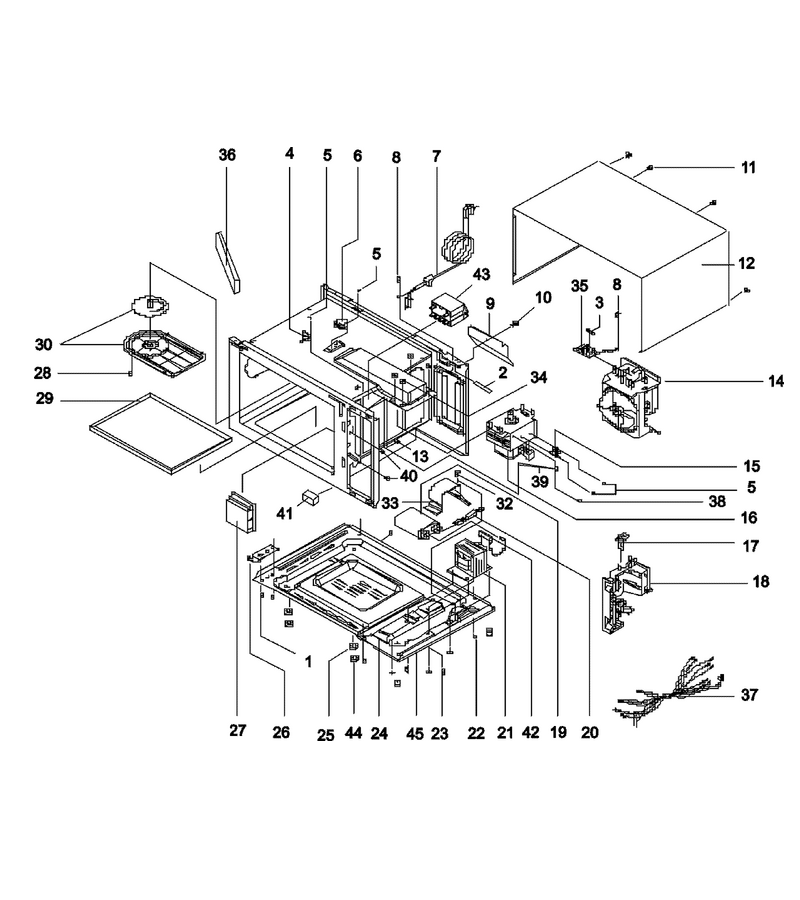

03 - Electrical Components

...
...
1
Screw WPL-56001470
...
2
Foam WPL-56001451
...
3
Fuse, 12 Amp WPL-M0805105
...
4
Thermal Cut-Out, Cavity WPL-56001426
...
5
Screw WPL-W10491985
...
6
Motor, Stirrer WPL-56001460
...
7
Powercord (Eu) WPL-56001476
...
8
Screw WPL-56001461
...
9
Air Deflector- Rear WPL-56001428
...
10
Screw WPL-8169475
...
11
Screw WPL-WP56001173
...
12
Wrapper WPL-56001429
...
13
Screw WPL-8169475
...
14
Blower Motor Assy WPL-56001459
...
15
Thermal Cut-Out, Mag WPL-56001432
...
16
Magnetron WPL-56001462
...
17
Bulb/ Socket Assy WPL-56001463
...
18
Interlock Switch Assembly WPL-56001413
...
19
Capacitor Hv WPL-56001464
...
20
Diode Hv WPL-56001436
...
21
Transformer Hv WPL-56001465
...
22
Screw WPL-WP56001173
...
23
Screw WPL-56001222
...
24
Base WPL-56001466
...
25
Foot, Base WPL-56001224
...
26
Hinge, Lower WPL-56001439
...
27
Air Guide WPL-56001440
...
28
Rivet Assy WPL-56001450
...
29
Tray Assy WPL-56001441
...
30
Cover/stirrer Blade-Kit/rivets WPL-12002625
...
31
Foam WPL-56001449
...
32
Screw WPL-56001153
...
33
Holder, Capacitor WPL-56001218
...
34
Nut, Hinge WPL-56001051
...
35
Fuse Block / Filter Assy WPL-56001468
...
36
Foam WPL-56001449
...
37
Harness Main WPL-56001478
...
38
Screw WPL-WP56001173
...
39
Supporter Wire WPL-56001447
...
40
Screw WPL-56001470
...
41
Foam WPL-56001473
...
42
Fuse Hv WPL-56001474
...
43
Relay Assembly WPL-56001480
...
44
Foot Cover WPL-56001482
...
45
Foam WPL-56001483

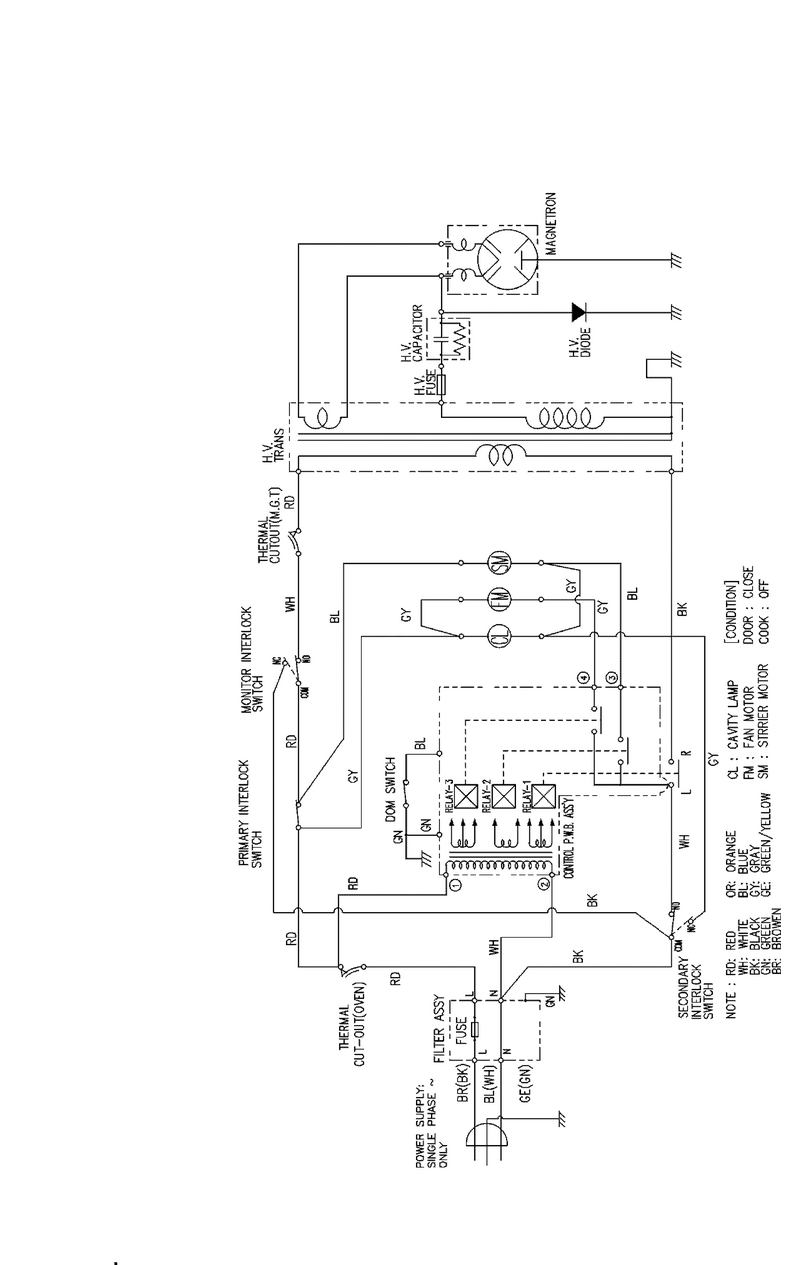

05 - Wiring Information

...
...
NI
Wiring Information WPL-15003934

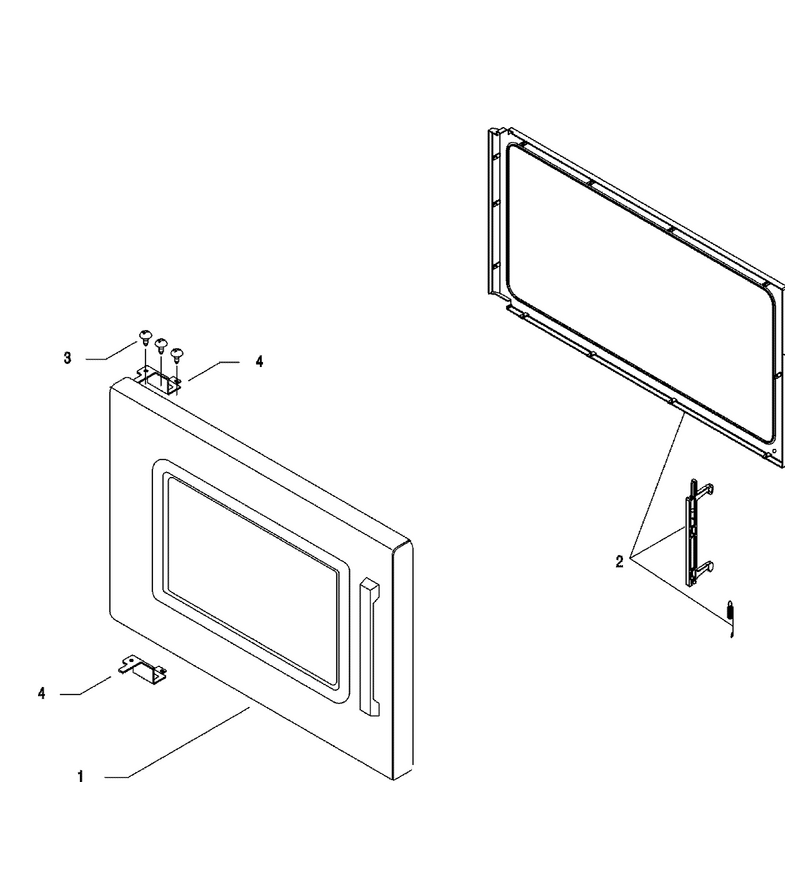

02 - Door

...
...
1
Door Assy (Menumaster) WPL-56001481
...
2
Spring/latch/choke Cover Kit WPL-12002624
...
3
Screw WPL-56001217

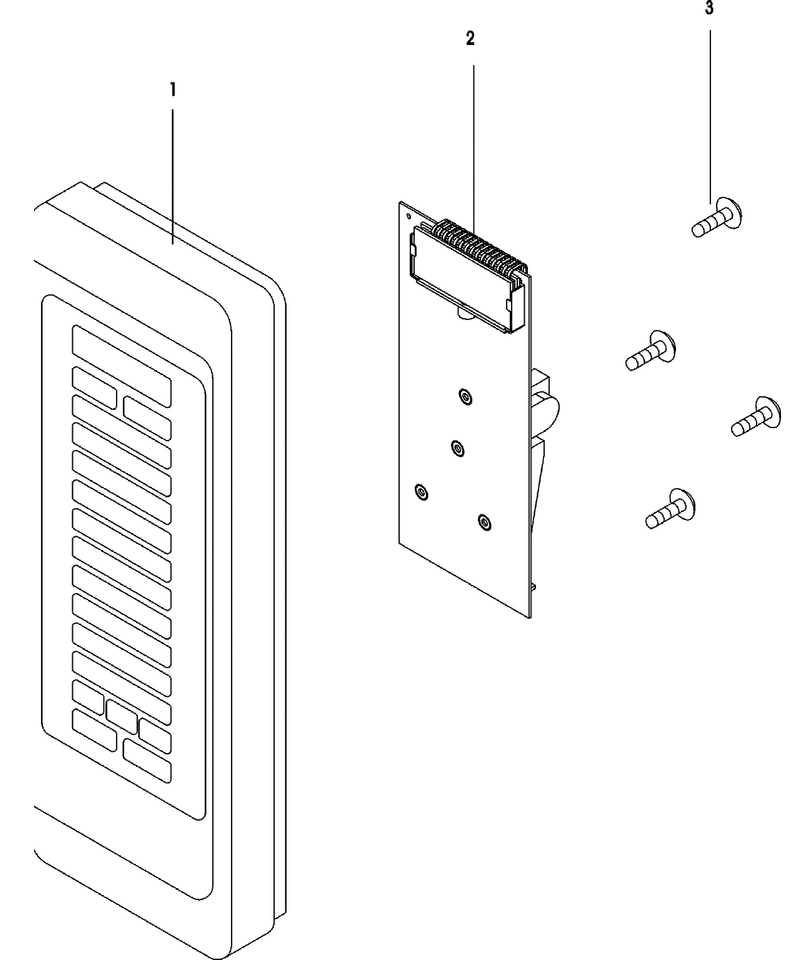

01 - Control Panel

...
...
1
Touch Panel Assembly WPL-56001471
...
2
Hv/lv Board WPL-56001472
...
3
Screw WPL-8169475

...
...
1
Svc Man, Intl Comm Micro WPL-16026969
...
2
Tech Cht, Intl Comm Micro Elec WPL-16026971
