Amana ML-1 (BOM: P7290901M)

Model: ML-1 (BOM: P7290901M)

Save Part Not Listed?
product name

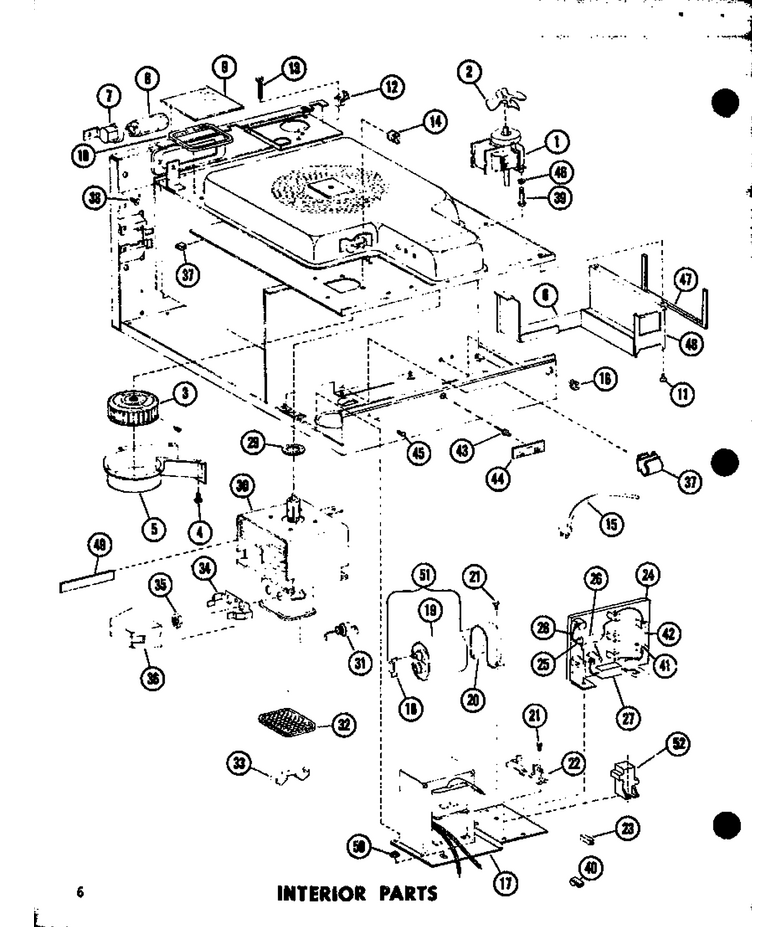

02 - Interior Parts

...
...
NI
Jumper Wire WPL-C3655836
...
1
Motor WPL-C8738501
...
2
Fan Blade WPL-B5706701
...
3
Blower Wheel WPL-B5602203
...
4
Screw WPL-M0218116
...
5
Blower Housing WPL-C8700101
...
6
Duct-Outlet WPL-D7191801
...
11
Clip K WPL-M0130101
...
12
Switch-Preform WPL-A3214201
...
13
Screw A-K WPL-M0227525
...
14
Thermal Cutout WPL-B5665804
...
15
Power Cord WPL-B5703502
...
16
Strain Relief WPL-M0370001
...
17
Transformer WPL-D7192001
...
18
Resistor A WPL-M0305202
...
19
Capacitor Assy WPL-R0160021
...
20
Strap-Capacitor A WPL-A3197101
...
21
Screw-Sm/hex WPL-12990523
...
22
Diode WPL-B5685802
...
23
Insulator, Term. K WPL-M0325301
...
24
Terminal Board WPL-B5730901
...
25
Sleeve WPL-M0321701
...
26
Resistor A WPL-M0305009
...
27
Resistor WPL-M0305204
...
28
Fuse WPL-M0308110
...
29
Gasket, Magnetron WPL-A3185102
...
30
Assembly, Magnetron WPL-D7192401
...
31
Capacitor K WPL-A3148801
...
32
Cover Cap Box K WPL-B5647901
...
33
Bale Strap K WPL-A3145401
...
34
Clip K WPL-B5655902
...
35
Hex Nut WPL-M0281901
...
36
Shield Hv K WPL-B5656001
...
37
Clip WPL-M0118801
...
38
Screw WPL-WP90767
...
39
Screw WPL-M0202642
...
40
Insulator, Pod K WPL-M0325501
...
41
Fuse WPL-M0308101
...
42
Resistor Fuse Kit WPL-R0157332
...
43
Rivet-Pop WPL-59002054
...
44
Seal K WPL-B5738501
...
45
Screw WPL-WP59002061
...
46
Washer WPL-M0272605
...
47
Gasket (per Foot) WPL-A3030303
...
48
Cap-Duct Outlet WPL-B5748001
...
49
Tape Alum WPL-M0275166
...
50
Nut WPL-WP487939
...
51
Capacitor Assy WPL-R0160021

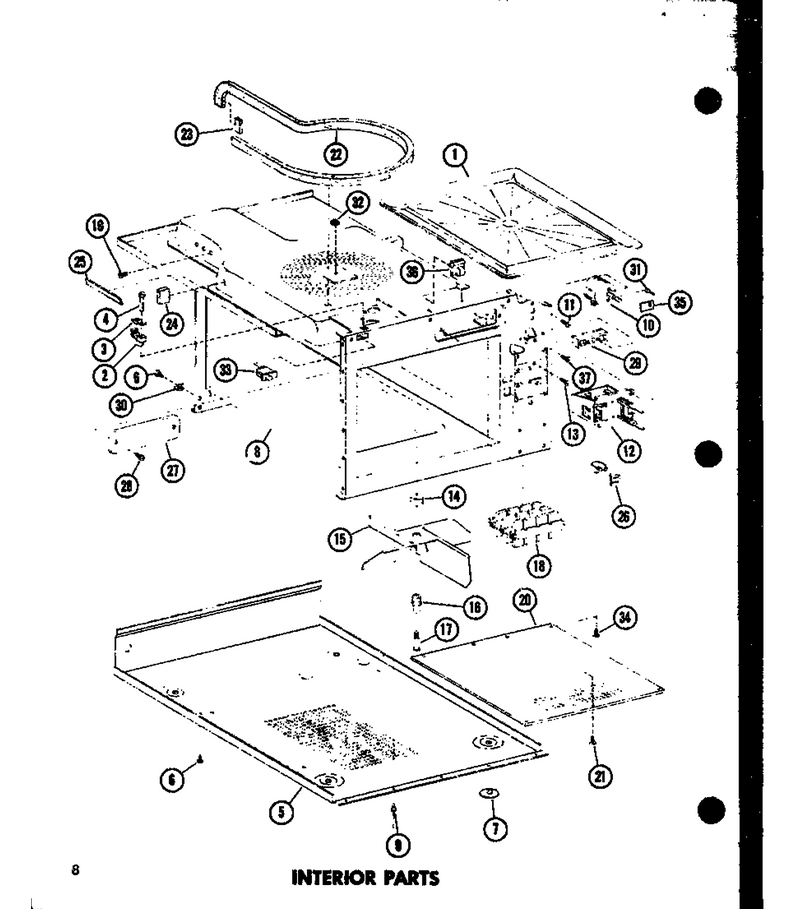

03 - Interior Parts

...
...
1
Oven Tray WPL-D7191101
...
2
Bushing WPL-C3696903
...
3
Bushing WPL-C3696902
...
4
Pin-Door Stop WPL-A3211102
...
5
Base Pan Wld WPL-C3694403
...
6
Screw WPL-M0230015
...
7
Plug WPL-M0310601
...
8
Oven Cavity WPL-D7277707
...
9
Pop Rivet WPL-M0550701
...
10
Timer WPL-C8705201
...
11
Screw WPL-W11084238
...
12
Switch-Start,stop WPL-C3695502
...
13
Screw WPL-M0241205
...
14
Bushing WPL-B5704202
...
15
Fan Blade-Stirrer WPL-C8720802
...
16
Bearing WPL-A3214801
...
17
Shoulder Screw WPL-A3214903
...
18
Filter-Wave Guide WPL-C3694501
...
19
Screw WPL-M0253504
...
20
Grease Shield K WPL-D7206602
...
21
Screw WPL-M0230015
...
22
Gasket-Cavity Top WPL-10839709
...
23
Gasket-Cavity Top WPL-10839709
...
24
Gasket-Cavity Top WPL-10839709
...
25
Gasket WPL-A3030302
...
26
Catch, Door Strike WPL-M0100702
...
30
Terminal WPL-M0320901
...
31
Spring Clip WPL-R0191014
...
32
Nut A WPL-M0258301
...
33
Switch-Sensing WPL-B5674702
...
34
Clip K WPL-M0130101
...
35
Insulation-Timer WPL-A3236701

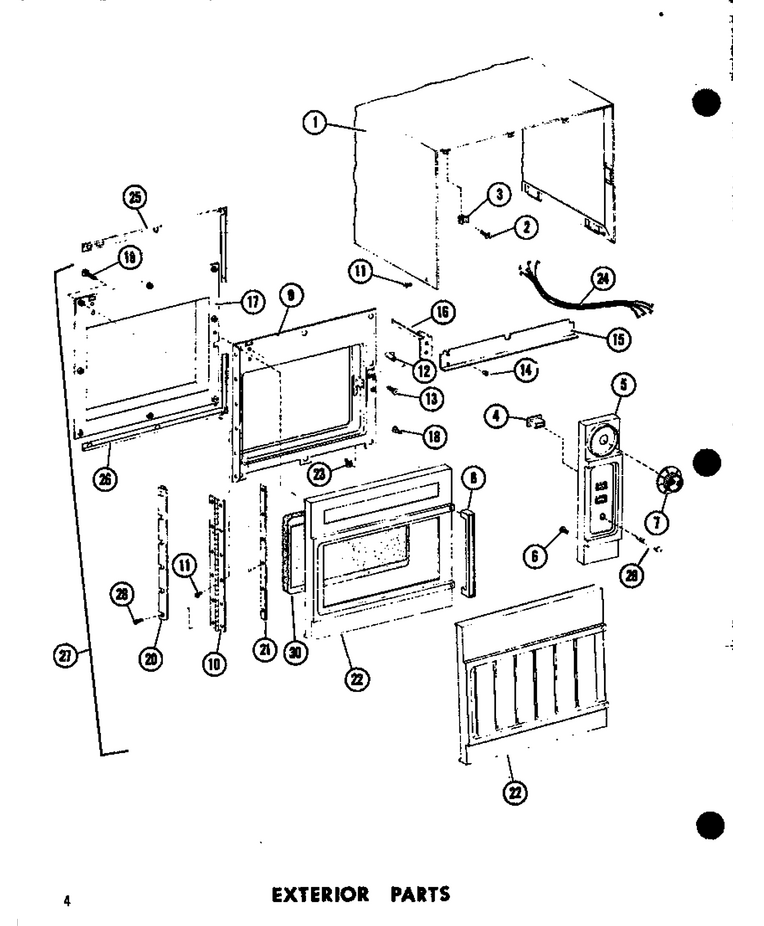

01 - Exterior Parts

...
...
1
Wrapper-Oc WPL-D7189404
...
2
Screw K WPL-M0213517
...
3
Spacer, Speed Nut WPL-A3211801
...
4
Button-Start WPL-C3695901
...
5
Escutcheon-Control WPL-D7290301
...
6
Screw T.c WPL-M0229916
...
7
Knob WPL-C8765701
...
8
Handle, Door WPL-C3695701
...
9
Door Assy WPL-D7224803
...
10
Door Hinge WPL-B5742301
...
11
Screw WPL-M0230015
...
12
Latch-Door WPL-B5705501
...
13
Screw WPL-WP59002061
...
14
Pop Rivet WPL-A4539602
...
15
Bracket-Door A WPL-C8707401
...
16
Door Arm Assembly WPL-R0157117
...
17
Inner Door WPL-D7210801
...
18
Screw-Handle WPL-M0253719
...
19
Screw WPL-M0253717
...
20
Support-Hinge WPL-C3695201
...
21
Tap Strip-Door WPL-A3223301
...
22
Door-Outer WPL-D7187804
...
23
Strike,door Catch WPL-M0100801
...
24
Wiring Harness WPL-D7293901
...
25
Trim WPL-C8707901
...
26
Trim WPL-C8708001
...
27
Door Assy WPL-D7224801
...
28
Screw WPL-M0218116
