Amana MDU500CWW (BOM: P1188301W)

Model: MDU500CWW (BOM: P1188301W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

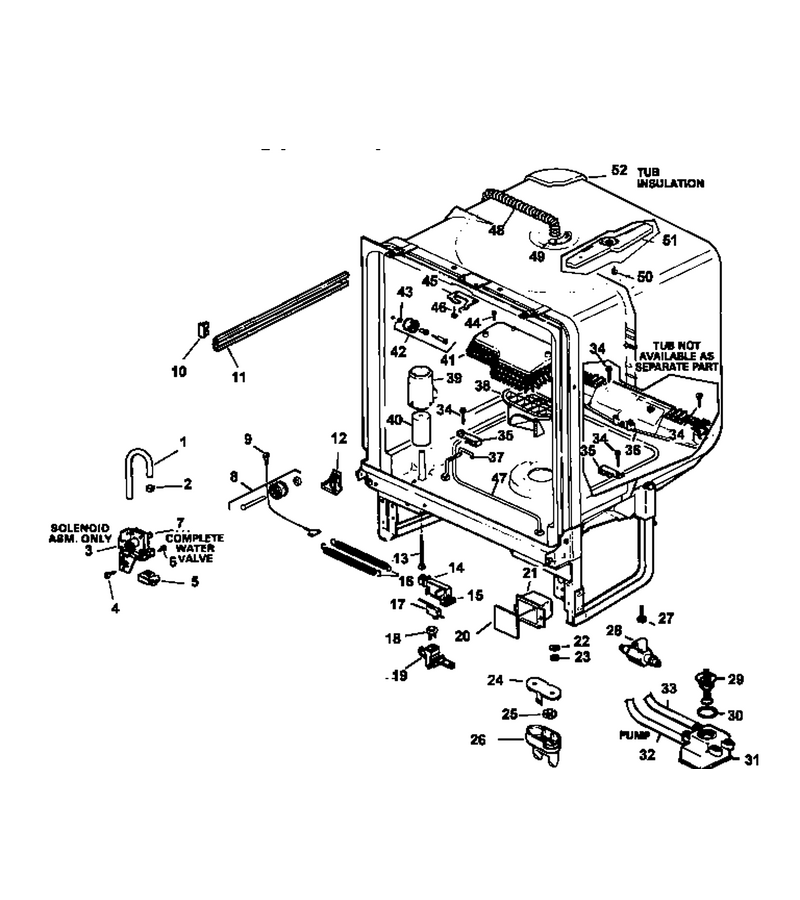

03 - Tub Assy

...
...
1
Hose, Water Inlet WPL-R0903514
...
2
Clamp WPL-R0901510
...
3
Solenoid Assembly, Water Valve WPL-R0909002
...
4
Scr 10-24x3/8 Tt Hex WPL-R0900012
...
6
Screw WPL-R0900011
...
7
Valve, Water Inlet (W/solenoid WPL-R0910033
...
8
Roller & Stud Kit WPL-R0910013
...
9
Cable And Eyelet WPL-R0910012
...
10
Endcap WPL-WPW10326683
...
11
Rack Slide WPL-R0905567
...
12
Baffle Tub Corner Lh WPL-R0905597
...
13
Float Stem WPL-R0905512
...
14
Brkt, Flood Switch WPL-R0905513
...
15
Cover Switch Brkt WPL-R0905514
...
16
Door Spring Blue WPL-R0905503
...
17
Switch Flood WPL-R0902501
...
18
Thermostat, Water WPL-R0911002
...
19
Receptacle WPL-R0910021
...
20
Cover, Junc Box WPL-R0903032
...
21
Box, Junction WPL-R0903587
...
22
Washer WPL-R0900501
...
23
Grommet WPL-R0906502
...
24
Base Barrier WPL-R0903580
...
25
Nut WPL-R0901001
...
26
Barrier, Htg Element WPL-R0903581
...
27
Element Heating Assembly WPL-R0911007
...
28
Check Valve WPL-R0910053
...
29
Piston & Nut Assy WPL-Y03000222
...
30
Gasket WPL-R0904503
...
31
Coll. Chamber WPL-Y03000055
...
32
Hose, Chamber WPL-R0906506
...
33
Hose WPL-Y03000084
...
34
Screw WPL-WPW10348409
...
35
Support Heater Rear WPL-R0905633
...
36
Assy, Filter Frame WPL-R0910122
...
37
Support, Heater WPL-R0911008
...
38
Cap, Sump WPL-Y03000213
...
39
Float, Dome WPL-R0913227
...
40
Flood Float WPL-R0903501
...
41
Cover Inlet Sump WPL-R0905527
...
42
Tub Roller & Stud Kit WPL-R0910004
...
43
No.8 Type A Set Sst Washer WPL-R0900503
...
44
Screw WPL-R0900008
...
45
Latch Keeper WPL-R0905505
...
46
Screw WPL-R0900025
...
47
Heater WPL-R0911009
...
48
Hose, Shower Assy WPL-R0903527
...
49
Nut WPL-R0901003
...
50
Screw WPL-R0900013
...
51
Assy, Pwr Shower WPL-R0905554
...
52
Insulation, Tub WPL-R0904534

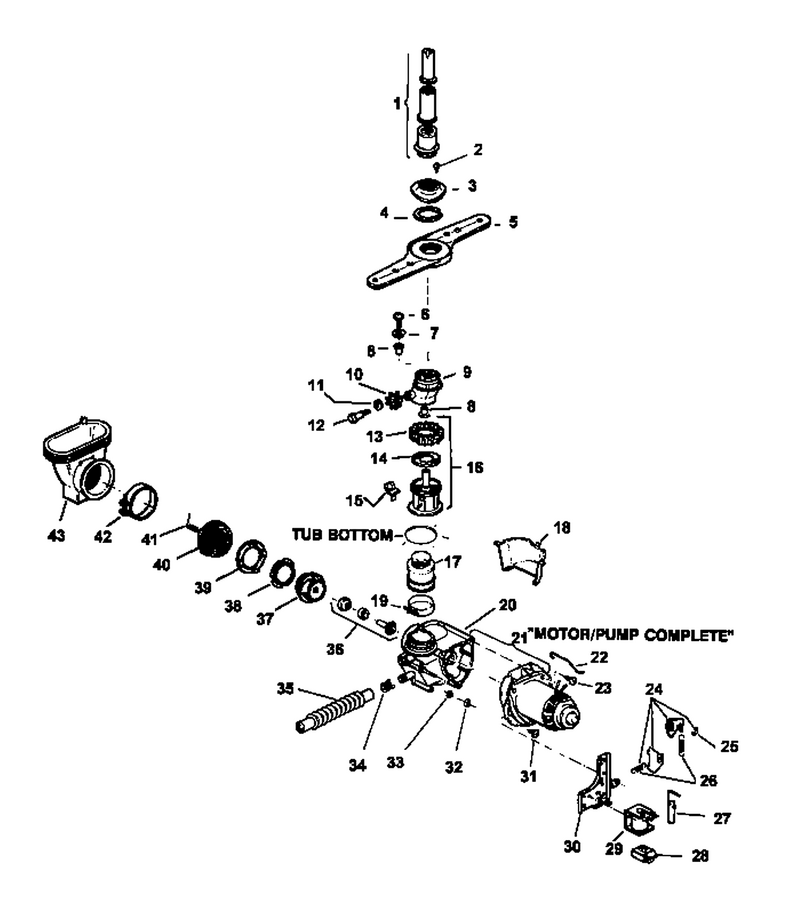

05 - Water Distribution Components

...
...
1
Center Spray Assy WPL-R0910017
...
2
Screw WPL-WPW10348409
...
3
Adapter Pwr Twr WPL-R0905558
...
4
Seal, Split Ring WPL-R0905557
...
5
Spray Arm WPL-Y03000113
...
6
Screw, Hub WPL-R0900045
...
7
Washer WPL-R0900502
...
8
Bearing WPL-R0905556
...
9
Hub/pinion Assy WPL-R0905555
...
10
Pinion Gear WPL-R0910016
...
11
Washer WPL-R0900504
...
12
Screw WPL-R0900015
...
13
Nut WPL-R0901004
...
14
Seal Lower WPL-R0910029
...
15
Check Valve WPL-R0910037
...
16
Supt & Nut Arm WPL-R0901009
...
17
Connector, Pump WPL-R0903520
...
18
Guard WPL-R0905522
...
19
Clamp WPL-WP696392
...
20
Motor/pump Assy Dishwa WPL-R0910001
...
21
Motor-Pump WPL-WPY03000182
...
22
Hanger Mechanism WPL-R0905712
...
23
Screw WPL-R0900007
...
24
Gate Valve Arm Kit WPL-Y03000032
...
25
Retainer WPL-R0901503
...
26
Spring, Gate Arm WPL-R0905529
...
27
Armature & Link Assy WPL-R0905517
...
28
Insul, Hsg Terminal WPL-R0903582
...
29
Solenoid WPL-Y03000185
...
30
Bracket-Solenoid WPL-R0905639
...
31
Screw WPL-W10856125
...
32
Nut WPL-R0906510
...
33
Seal, Shaft WPL-R0906504
...
34
Clamp WPL-R0901510
...
35
Tube Assy, Drain WPL-Y03000184
...
36
Seal,pump WPL-R0910148
...
37
Pump Impeller WPL-R0905519
...
38
Wear Ring WPL-R0905520
...
39
Wear Ring Base WPL-R0905518
...
40
Nut WPL-R0905563
...
41
Spring, Cutter WPL-R0905521
...
42
Clamp WPL-WP696392
...
43
Inlet, Sump WPL-Y03000224

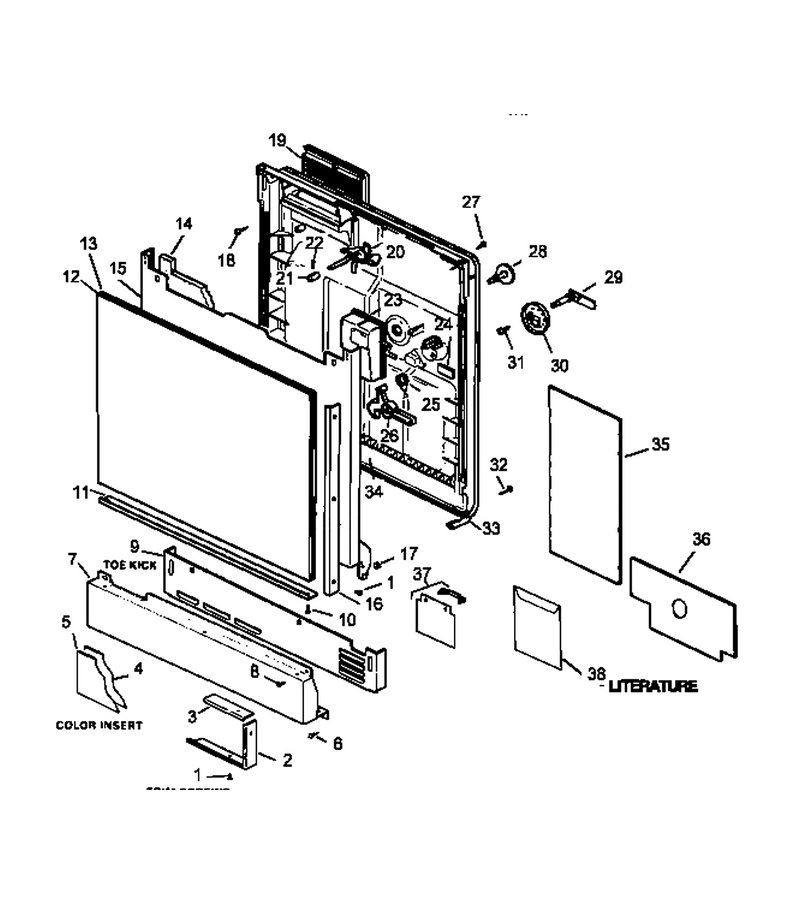

02 - Door And Door Trim

...
...
1
Screw, 8-18 WPL-R0900053
...
2
Trim Access Wide {whi WPL-R0905760
...
3
Trim,access Top Wide {wh WPL-R0905769
...
4
Insulator, Insert Panel WPL-R0910036
...
5
Insert, Svc Panel WPL-R0905602
...
6
Kit, Screw WPL-R9800670
...
7
Panel,access And Screw Bk WPL-R0903036
...
8
Screw WPL-R0900017
...
9
Toe Kick Assy WPL-R0903022
...
11
Trim Door Bottom Wide {whi WPL-R0905766
...
12
Door Panel Insert WPL-R0905559
...
13
Insulator WPL-R0906002
...
14
Insulation WPL-R0904524
...
15
Door & Hinge Assy, Outer WPL-R0905637
...
16
Trim Door Side Wide {whi WPL-R0905763
...
17
Hinge Arm Bearing WPL-R0905537
...
18
Therminal Pin & Socket WPL-R0906007
...
19
Door Vent WPL-R0905536
...
20
Latch, Assembly WPL-Y03000191
...
21
Knob,latch WPL-R0903595
...
22
Screw WPL-WP74004005
...
23
Injector, Rinse WPL-Y03000002
...
24
Deflecter WPL-R0905523
...
25
Guard WPL-R0905522
...
26
Latch Detergent Cup WPL-R0905539
...
27
Screw WPL-WP3351614
...
28
Assy Rinse Aid Disp. WPL-R0910155
...
29
Shaft Hand D Cup WPL-R0905615
...
30
Detergent Cup Cover WPL-R0910010
...
31
Screw WPL-R0900007
...
32
Screw WPL-R0900006
...
33
Door Gasket WPL-R0904507
...
34
Door, Inner WPL-R0903021
...
35
Damper, Sound WPL-R0904531
...
36
Damper, Sound WPL-R0904532
...
37
Drip Shield WPL-R0910011
...
38
Owners Manual (Am Dishwasher) WPL-R0913060

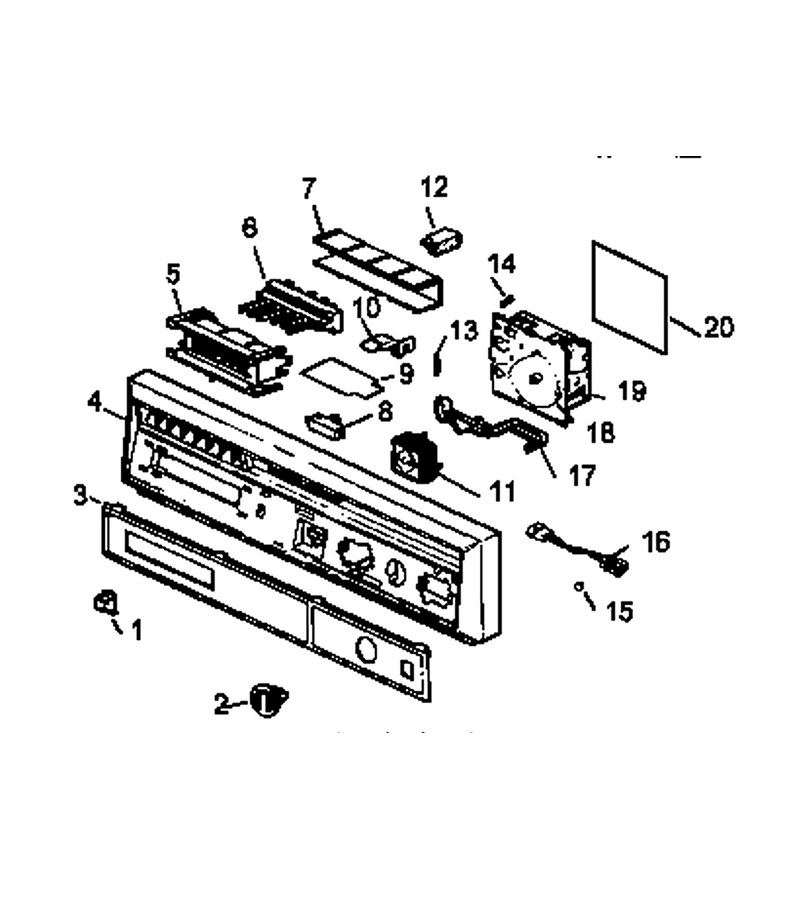

01 - Control Panel

...
...
NI
Washer WPL-R0900507
...
1
Push Button WPL-R0903593
...
2
Assy, Timer Knob WPL-R0903594
...
3
Insert, Escutcheon WPL-R0905735
...
4
Escutcheon/white WPL-R0905742
...
5
Retainer, P.b. Switch WPL-R0902528
...
6
Switch Push Button WPL-R0902526
...
7
Cover, P.b Switch WPL-R0902535
...
8
Switch, Interlock WPL-R0902506
...
9
Shield, Switch WPL-R0905534
...
10
Switch Leaf WPL-R0905533
...
11
Switch, Cycle WPL-R0902507
...
12
Terminal WPL-Y03000076
...
13
Spring, Timer Lever WPL-R0905541
...
14
Screw WPL-R0900009
...
15
Lens WPL-R0910061
...
16
Ass`y Pilot Light WPL-R0910159
...
17
Lever, Timer WPL-R0905545
...
18
Cam, Timer WPL-R0904015
...
19
Timer WPL-R0904017
...
20
Shield, Timer WPL-R0904016

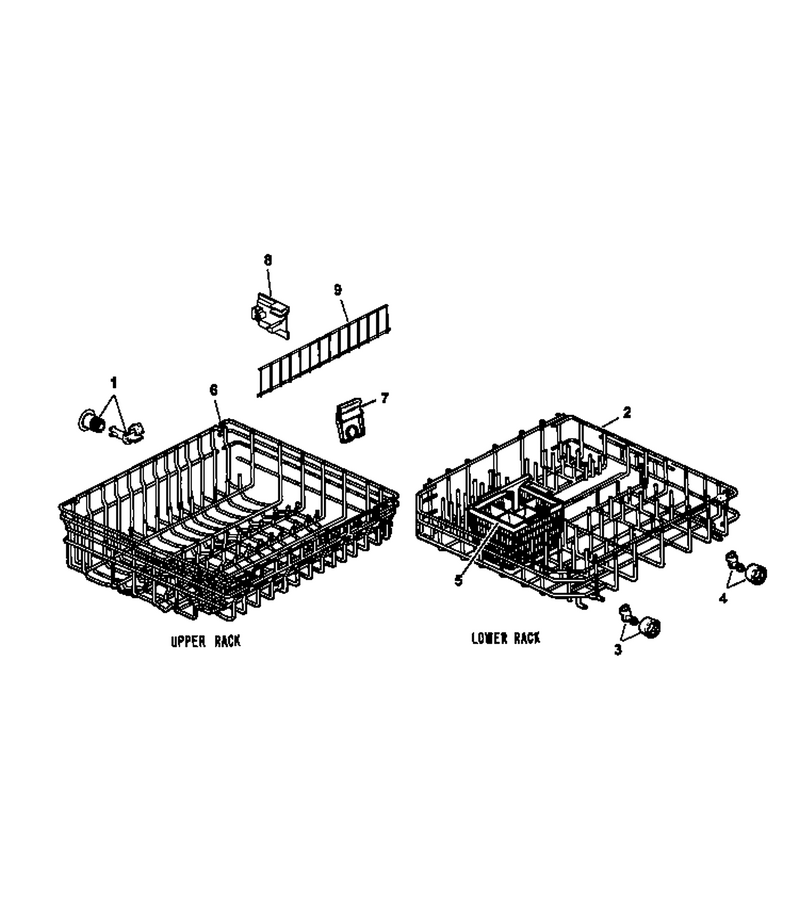

04 - Upper/lower Racks

...
...
1
Wheel WPL-W10542232
...
2
Lower Rack & Roller Tm WPL-R0910152
...
3
Lower Roller Assy WPL-R0910149
...
4
Roller WPL-W10882367
...
5
Basket,silverware WPL-R0910113
...
6
Rack Upper WPL-R0904528
...
8
Support, Shelf {whi WPL-R0910153
...
9
Shelf Tm WPL-R0910154
