Amana MCHDC521 (BOM: P1331246M)

Model: MCHDC521 (BOM: P1331246M)

Save Part Not Listed?
product name

...
...
1
Mnl,svc-Int`l Comm`l Micro WPL-RS5320013
...
2
Manual-Owners WPL-59001618
...
3
Manual-Prod Safety WPL-13062001
...
4
Instr-Quick Start WPL-59002059
...
5
Bit For Torx 15h Drive Screws WPL-R0193551
...
6
Harness-Oven WPL-13018101
...
7
Harness, Hi Volt WPL-59002065
...
8
Harness, Lw Antenna WPL-59002066
...
9
Tech Sht, Comm Micro WPL-16027613

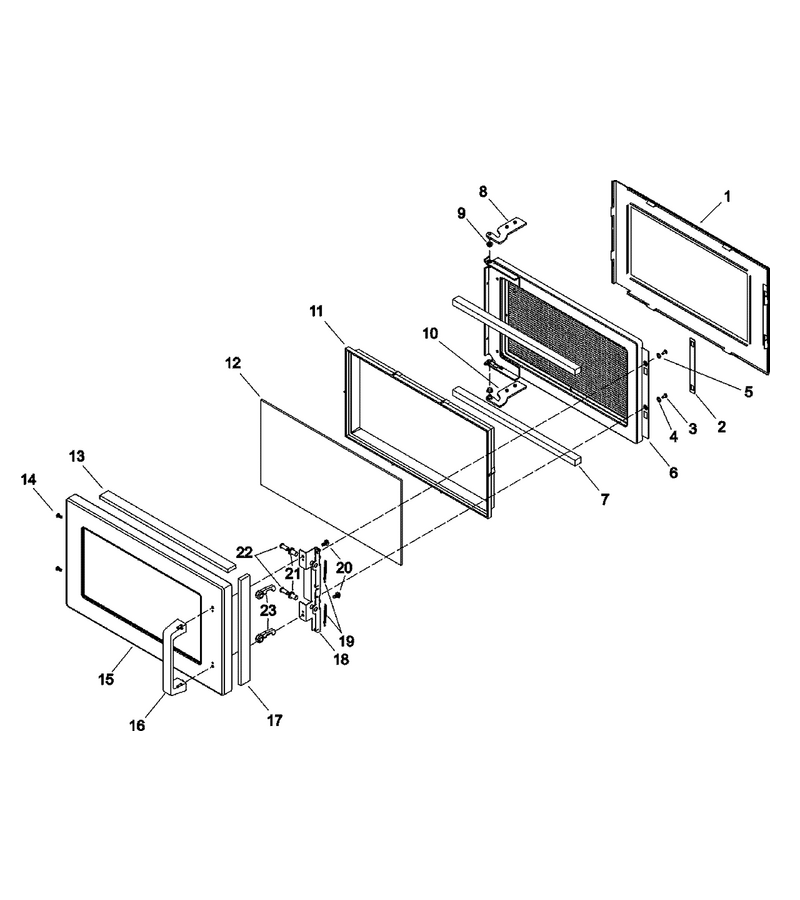

01 - Door

...
...
1
Assy, Inner Door WPL-13067001
...
2
Linkage, Dr Latch WPL-12526201
...
3
Screw-Tc/flat WPL-13047402
...
4
Washer, Nylon WPL-M0274066
...
5
Washer WPL-M0272503
...
6
Door Ring Weld, E Ct WPL-12472202
...
7
Gasket, Neoprene WPL-10966601
...
8
Plate, Hinge (Upper) WPL-12126805
...
9
Bushing, Nylon WPL-5210001001
...
10
Plate, Hinge (Lower) WPL-12126806
...
11
Retainer, Lens WPL-R0150147
...
12
Window-Outer WPL-59001236
...
13
Energy, Strip WPL-12210804
...
14
Screw WPL-W11233072
...
15
Door, Outer WPL-R9900567
...
16
Handle-Door WPL-12133901
...
17
Energy, Strip WPL-12210803
...
18
Brkt-Door Latch WPL-12114401
...
19
Spring, Door Latch WPL-C8893502
...
20
Screw WPL-WP489128
...
21
Spacer WPL-M0800501
...
22
Pin-Latch WPL-59002069
...
23
Latch-Door WPL-12126901

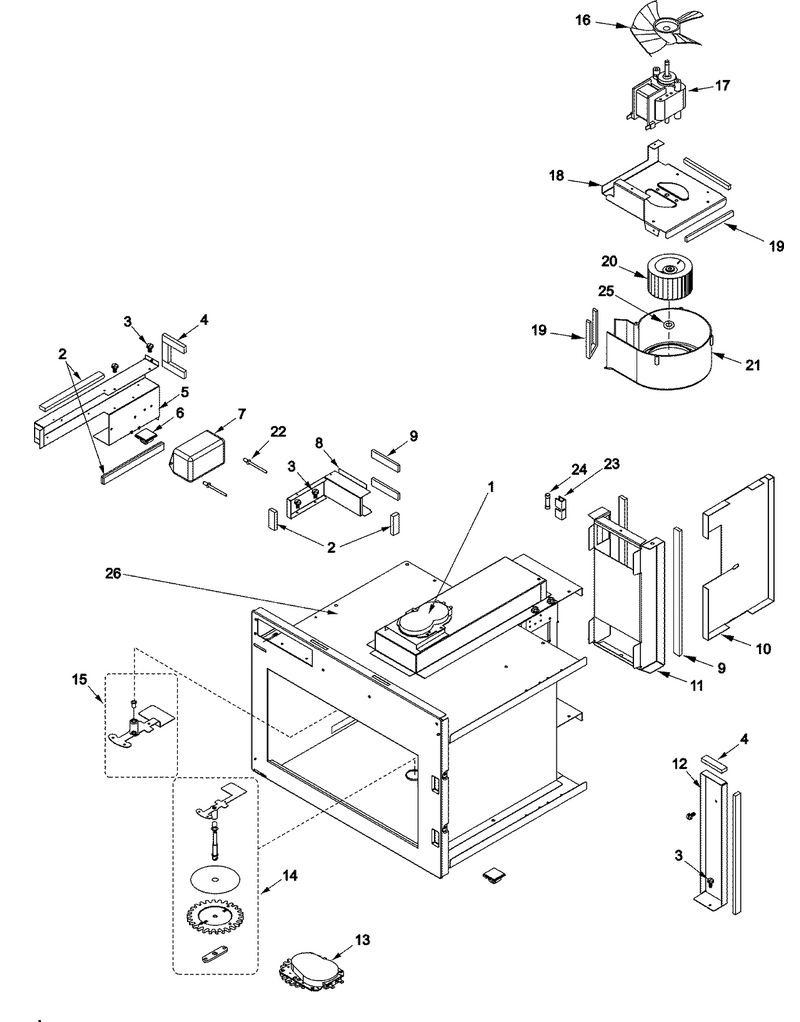

03 - Fuses, Antennas, Blower, Ducts

...
...
1
Assy, Antenna/retainer WPL-R0150149
...
2
Gasket,per Ft WPL-A30303-30
...
3
Screw-Sm/hex WPL-12990522
...
4
Gasket,per Ft WPL-A30303-30
...
5
Duct,cav Exh-E Ct WPL-12135604
...
6
Clip WPL-WPM0104106
...
7
Line Filter WPL-59001893
...
8
Assy, Exhaust Duct Kit WPL-12135704
...
9
Gasket (Per Foot) WPL-10839706
...
10
Flow Divider WPL-59002000
...
11
Duct-Mag Outlet WPL-59002075
...
12
Barrier, Air WPL-12525701
...
13
Kit,antenna Motor(230v) WPL-R9900668
...
14
Kit,antenna(Bottom) WPL-R9900585
...
15
Assy, Antenna/retainer WPL-R0150149
...
16
Fan Blade WPL-B5706704
...
17
Blower Motor WPL-12138105
...
18
Brkt, Blower Mtg WPL-12271103
...
19
Gasket,per Ft WPL-A30303-30
...
20
Wheel-Blower WPL-12138201
...
21
Scroll-Blower WPL-12138302
...
22
Rivet-Pop WPL-A4539638
...
23
Fuse,20 Amp WPL-M0805203
...
24
Fuse Holder WPL-10091101
...
25
Clip WPL-M0118901

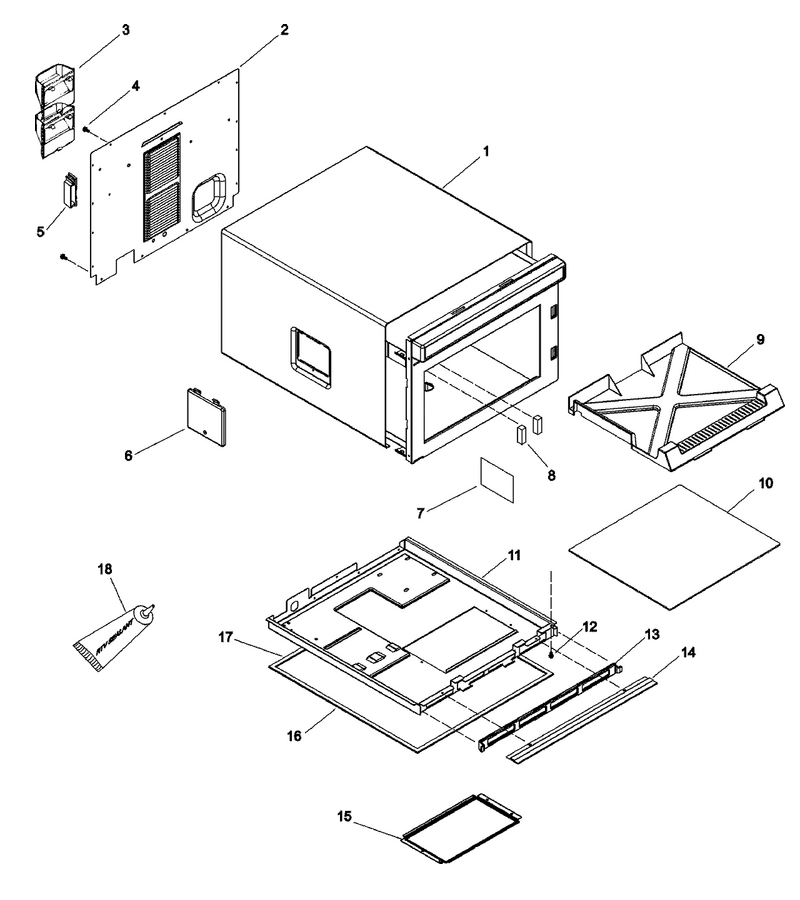

05 - Tray, Grease Shield, Cabinet

...
...
1
Wrapper, Outer Case WPL-59002063
...
2
Pan, Access-E Ct WPL-59002067
...
3
Duct, Air WPL-12296601
...
4
Screw WPL-WP3388228
...
5
Clip, Guide WPL-M0118705
...
6
Spacer, Rubber WPL-M0274072
...
7
Assy, Window Kit (Light Lens) WPL-R9900114
...
8
Support, Shelf WPL-12496801
...
9
Shield-Grease WPL-12126601
...
10
Tray-Ceramic Floor W/sealer WPL-R0150144
...
11
Asy, Base Pan 50 Hz WPL-59002074
...
12
Screw WPL-WP90767
...
13
Screen Filter WPL-59001659
...
14
Trim-Oc WPL-59002068
...
15
Screw-Sm/hex WPL-12990522
...
16
Gasket,basepan - Cut WPL-59001643
...
17
Gasket,basepan - Cut WPL-59001642
...
18
Adhesive WPL-W10841140

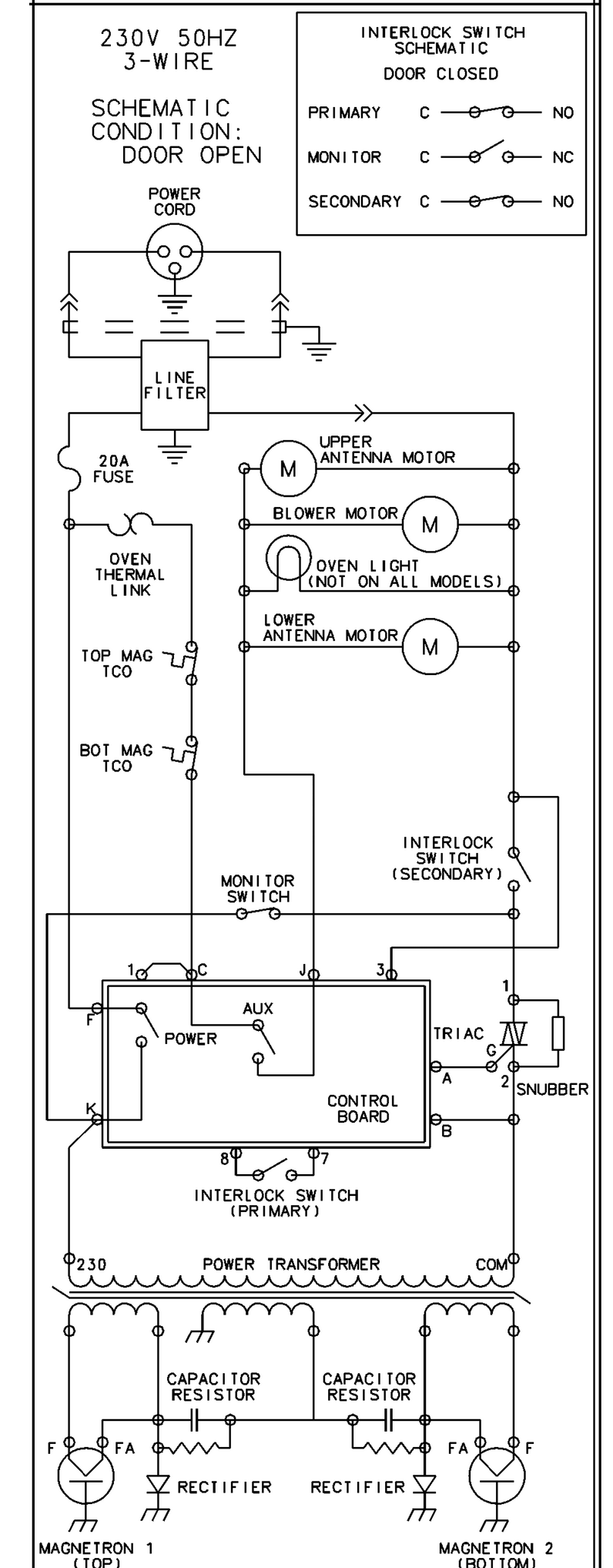

06 - Wiring Information

...
...
NI
Wiring Information WPL-15003511

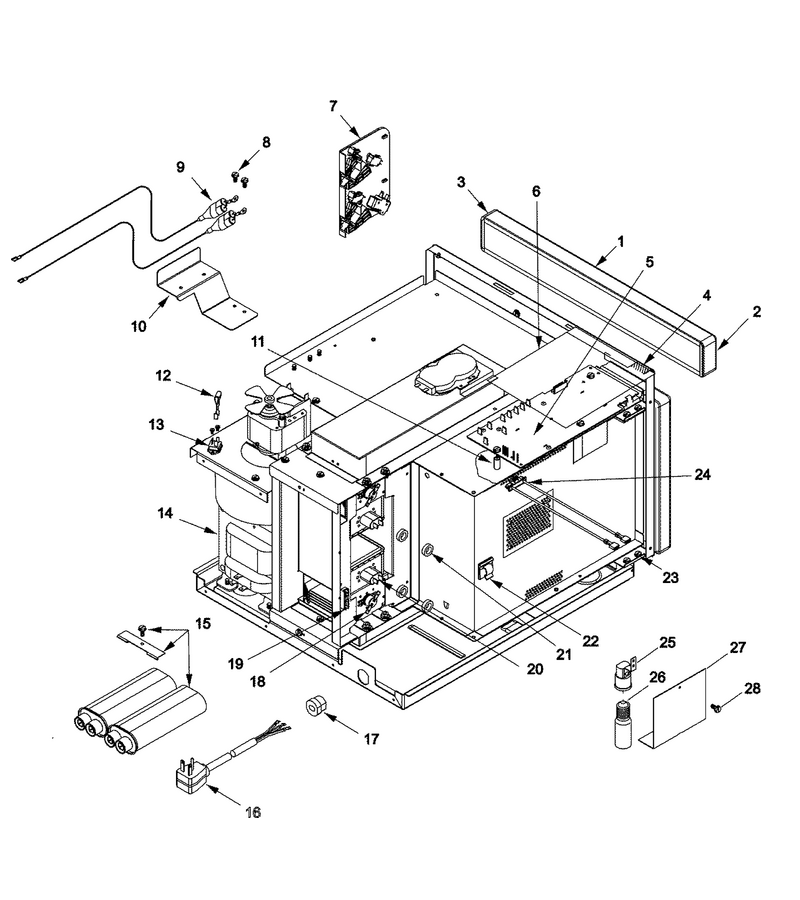

02 - Electrical Components

...
...
1
Assy, Touch Panel WPL-R9900111
...
2
Endcap-Esc (Right) WPL-12131001
...
3
Endcap-Esc (Left) WPL-12131002
...
4
Tape Per Roll WPL-M0275163
...
5
Screw-Tc/hex WPL-12991607
...
6
Shield, Spill WPL-12160602
...
7
Screw-Hi Lo/pan WPL-12993002
...
8
Screw-Sm/hex WPL-12990522
...
9
Kit, Diode WPL-R9800022
...
10
Bracket, Diode WPL-12529501
...
11
Cap, Protective-Threaded (Red) WPL-M0308801
...
12
Snubber Assembly WPL-59002017
...
13
Screw-Sm/hex WPL-12990523
...
14
Transformer WPL-59001993
...
15
Capacitor-.69 WPL-59001160
...
17
Relief- Strain WPL-M0370009
...
18
Plate, Thermal Cutout WPL-B8380601
...
19
Terminal Block WPL-B5677203
...
20
Magnetron WPL-59001997
...
21
Toroid (Arc Suppressor) WPL-44780P01
...
22
Clip WPL-WPM0104106
...
23
Screw-Tf/hex WPL-13048901
...
24
Screw-Tc/pan WPL-13041801
...
25
Receptacle-Export WPL-12163802
...
26
Light Bulb WPL-59002071
...
27
Barrier,lamp WPL-12544201
...
28
Screw WPL-WP489128
