Amana MC52200 (BOM: P1199502M)

Model: MC52200 (BOM: P1199502M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

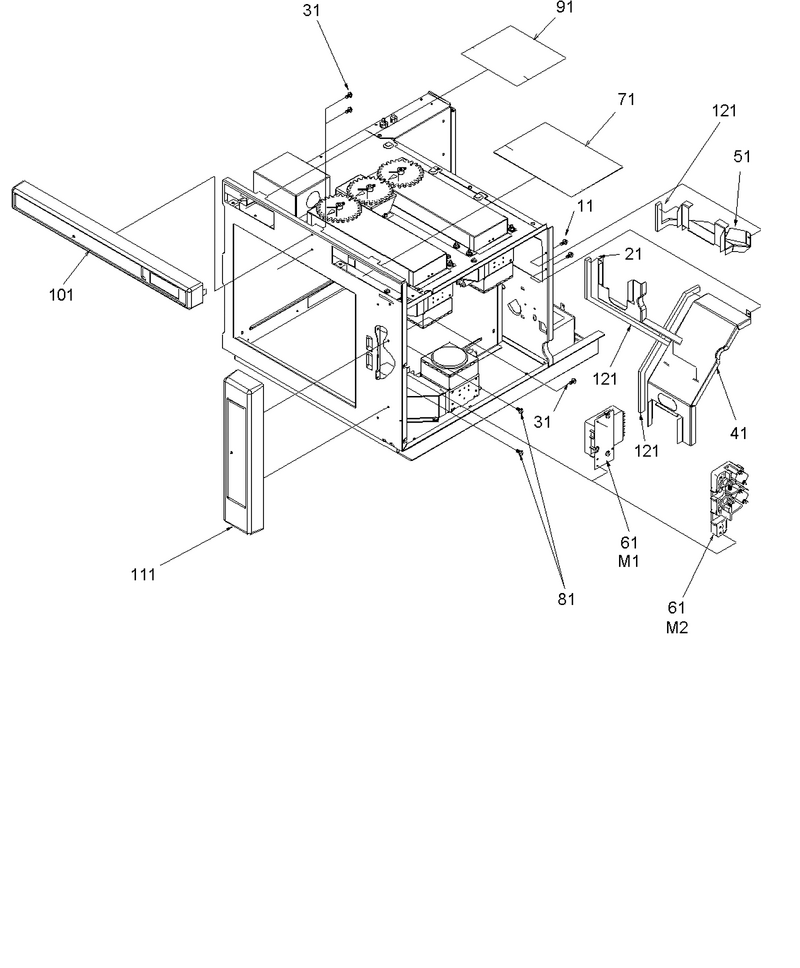

02 - Chassis Assembly Parts

...
...
11
Screw WPL-WP489349
...
21
Divider-Top Flow WPL-10782302
...
31
Screw WPL-M0218118
...
41
Divider-Bot Flow WPL-10782002
...
51
Assy, Rear Divider WPL-R0156935
...
61
Switch, Interlock Kit WPL-12002647
...
71
Shield-Spill WPL-12160601
...
81
Screw-Sm/hex WPL-12990523
...
91
Shield, Spill WPL-12160602
...
101
Assy, Touch Pnl- Top WPL-R0156971
...
111
Assy, Touch Pnl- Side WPL-R0156974
...
121
Gasket,per Ft WPL-A30303-30

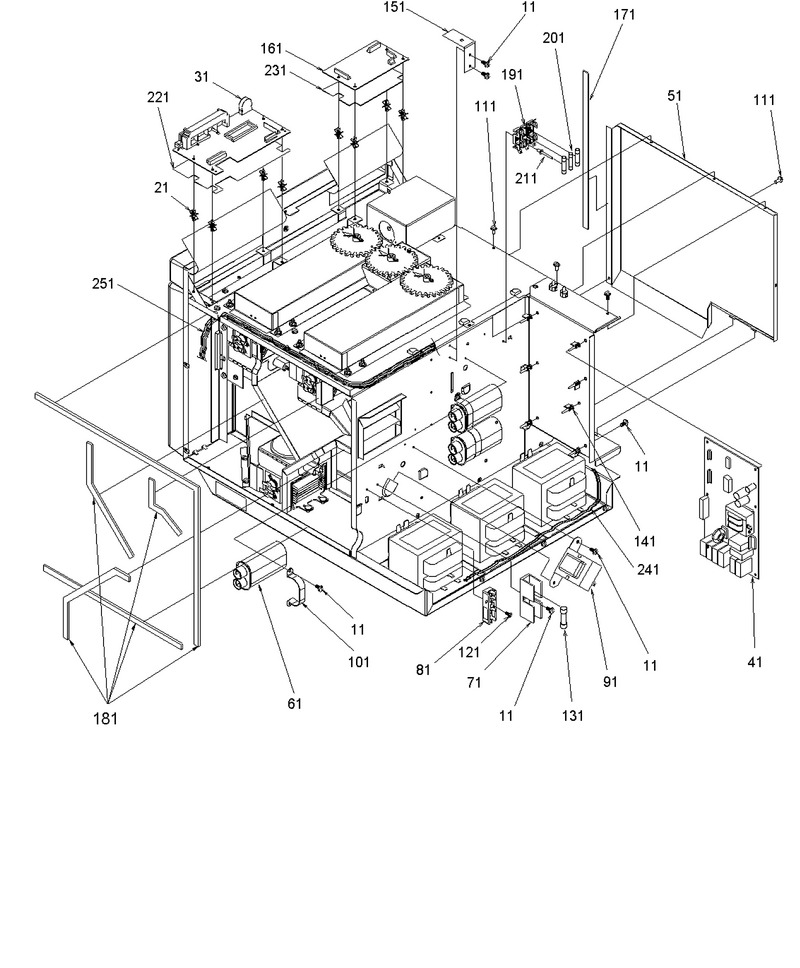

03 - Chassis Assembly Parts

...
...
11
Screw WPL-WP489349
...
21
Support WPL-M0585505
...
31
Lv Board WPL-12261706
...
41
Board, Hv WPL-10763208
...
51
Duct, Exhaust WPL-10781901
...
61
Capacitor-.69 WPL-59001160
...
71
Fuse Holder WPL-10091101
...
81
Terminal Block WPL-B5677203
...
91
Transformer, Auto WPL-C8901508
...
101
Strap, Capacitor WPL-A4055406
...
111
Screw WPL-12992301
...
121
Screw, No.6x18x1/4 (3) WPL-487010
...
131
Fuse, 25 Amp WPL-M0805201
...
141
Support P-C Bd A WPL-M0590602
...
151
Brkt, Wire Support WPL-10853001
...
161
Ext Memory Board WPL-R0163319
...
171
Gasket (Inch) WPL-A3030301
...
181
Gasket,per Ft WPL-A30303-30
...
191
Block-3 Pole Fuse WPL-59001682
...
201
Fuse 20 A WPL-WPM0805101
...
211
Rivet-Pop WPL-59002054
...
221
Barrier-Lv Board WPL-12160801
...
231
Barrier, Ext Mem Bd WPL-12160701
...
241
Harness - Xfmr WPL-12495301
...
251
Harness Oven WPL-12495401

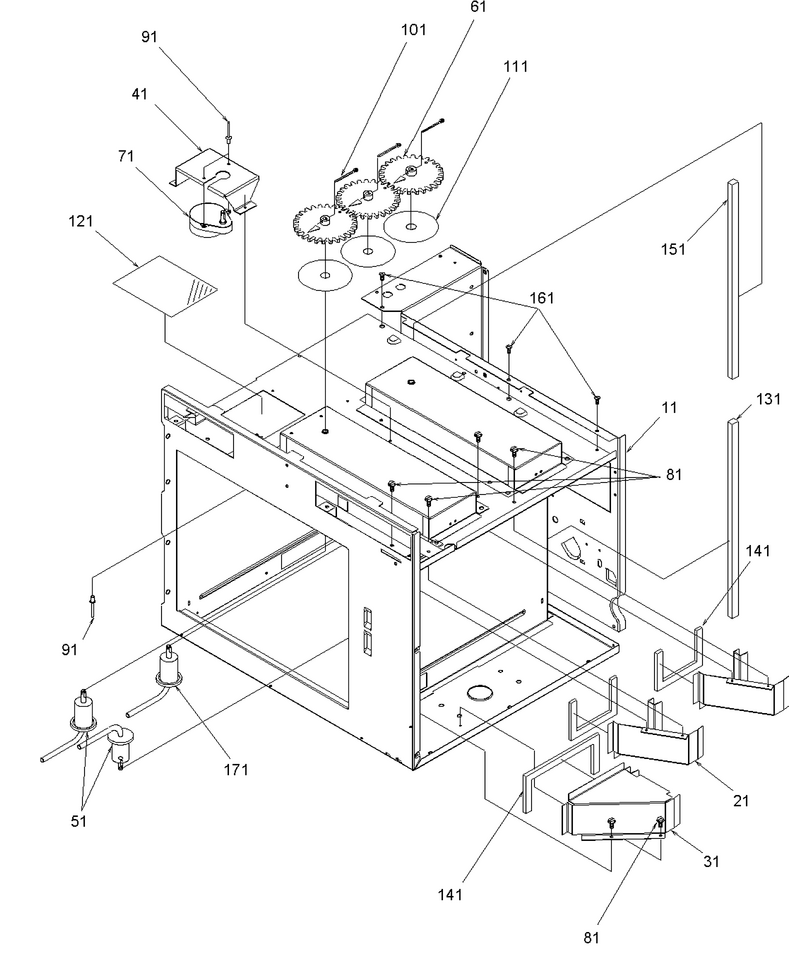

06 - Chassis Assembly Parts

...
...
11
Panel-Partition WPL-10768304
...
21
Duct-Top Exhaust WPL-10781702
...
31
Duct, Bottom Exh WPL-10781801
...
41
Brkt-Motor Mtg WPL-10782202
...
51
Assy, Antenna (Plain Tip) WPL-10787601
...
61
Kit, Gear WPL-R0156917
...
71
Motor-Antenna WPL-R0150102
...
81
Screw WPL-WP3388228
...
91
Rivet WPL-WP210720
...
101
Pin, Cotter WPL-M1200005
...
111
Washer, Spur Gear WPL-10903002
...
121
Window, Oven Light WPL-B8367701
...
131
Gasket-Per Inch WPL-A3030311
...
141
Gasket,per Ft WPL-A30303-30
...
151
Gasket, Neoprene WPL-10966601
...
161
Screw WPL-WP488234
...
171
Assy, Antenna (Blue Tip) WPL-10787602

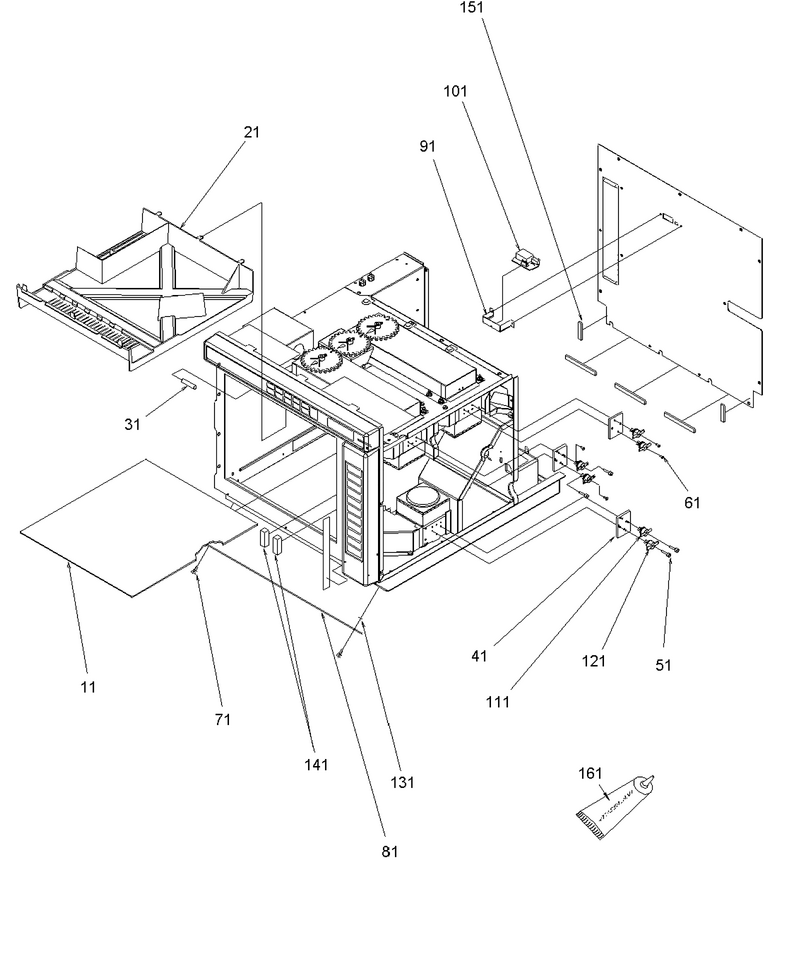

01 - Chassis Assembly Parts

...
...
11
Tray-Ceramic Floor W/sealer WPL-R0156942
...
21
Shield, Grease WPL-10766601
...
31
Cap, Protective-Threaded (Red) WPL-M0308801
...
41
Plate, Thermal Cutout WPL-B8380601
...
51
Screw T.c WPL-M0229916
...
61
Screw WPL-M0232012
...
71
Screw-Thumb WPL-13042901
...
81
Grille, Air Inlet WPL-10853102
...
91
Brkt-Junction Pcb WPL-10863402
...
101
Board, Junction P.c. WPL-10893601
...
111
Thermal Protector WPL-B5684106
...
121
Cutout, Thermal WPL-B5684118
...
131
Washer, Nylon WPL-M0274066
...
141
Support-Tray WPL-3010003001
...
151
Gasket (Inch) WPL-A3030301
...
161
Sealer WPL-M0275501

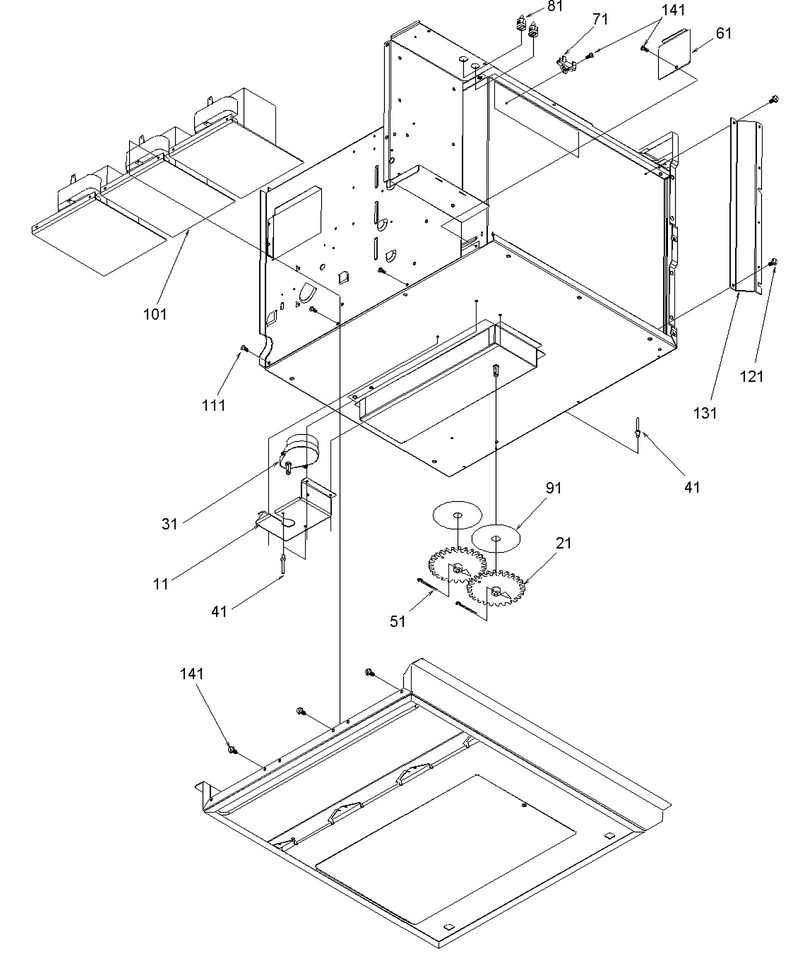

04 - Chassis Assembly Parts

...
...
11
Brkt-Motor Mtg WPL-10782202
...
21
Kit, Gear WPL-R0156917
...
31
Motor-Antenna WPL-R0150102
...
41
Rivet WPL-WP210720
...
51
Pin, Cotter WPL-M1200005
...
61
Plate, Partition WPL-10847601
...
71
Thermal Cutout WPL-B5795306
...
81
Bushing,terminal WPL-M0325401
...
91
Washer, Spur Gear WPL-10903002
...
101
Transformer-Hv 230v 50 Hz WPL-10788620
...
111
Screw WPL-WP90767
...
121
Screw, Tf WPL-M0231704
...
131
Bracket,hinge Support WPL-12189003
...
141
Screw WPL-WP488234

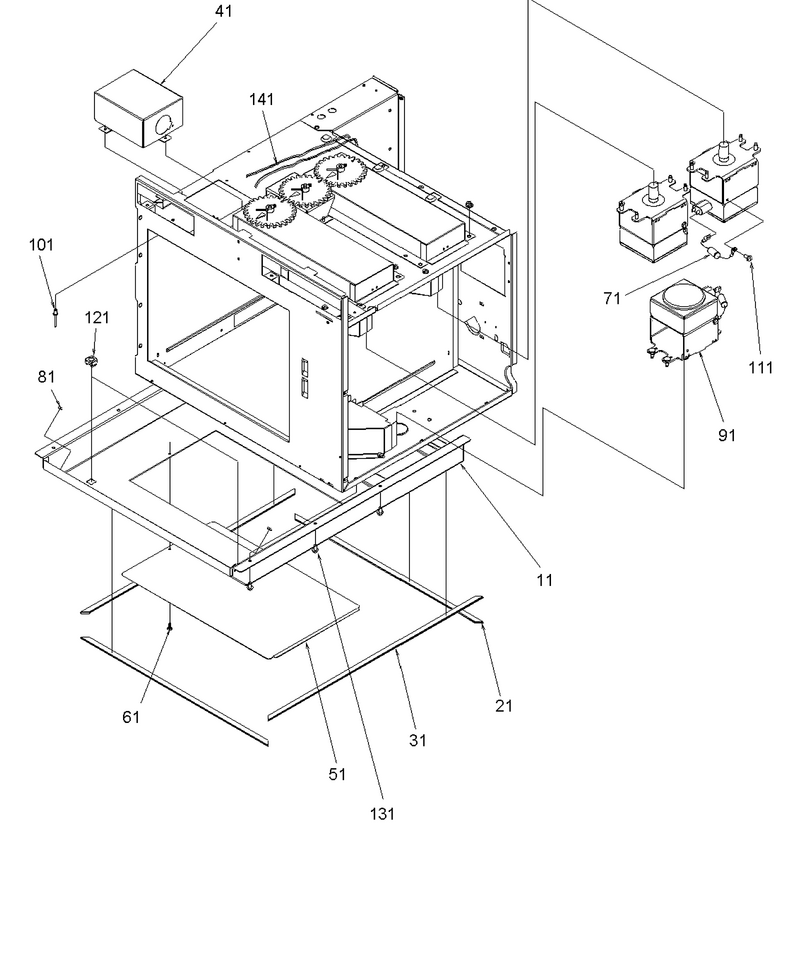

05 - Chassis Assembly Parts

...
...
11
Base Assy-Gaskets, Access Pnl WPL-10790304Q
...
21
Gasket, Basepan (Cut) WPL-10732512Q
...
31
Gasket, Basepan WPL-10732507
...
41
Brkt, Lamp WPL-10782501
...
51
Bottom Access Panel WPL-10782402
...
61
Screw WPL-M0213815
...
71
Rectifier WPL-WP13091701
...
81
Nut, Self Clinch WPL-M0294701
...
91
Magnetron-T WPL-D7831006
...
101
Rivet WPL-WP210720
...
111
Screw WPL-WP90767
...
121
Speed Grip WPL-M0286602
...
131
Screw WPL-WP90767
...
141
Harness, Oven Lamp WPL-10979301

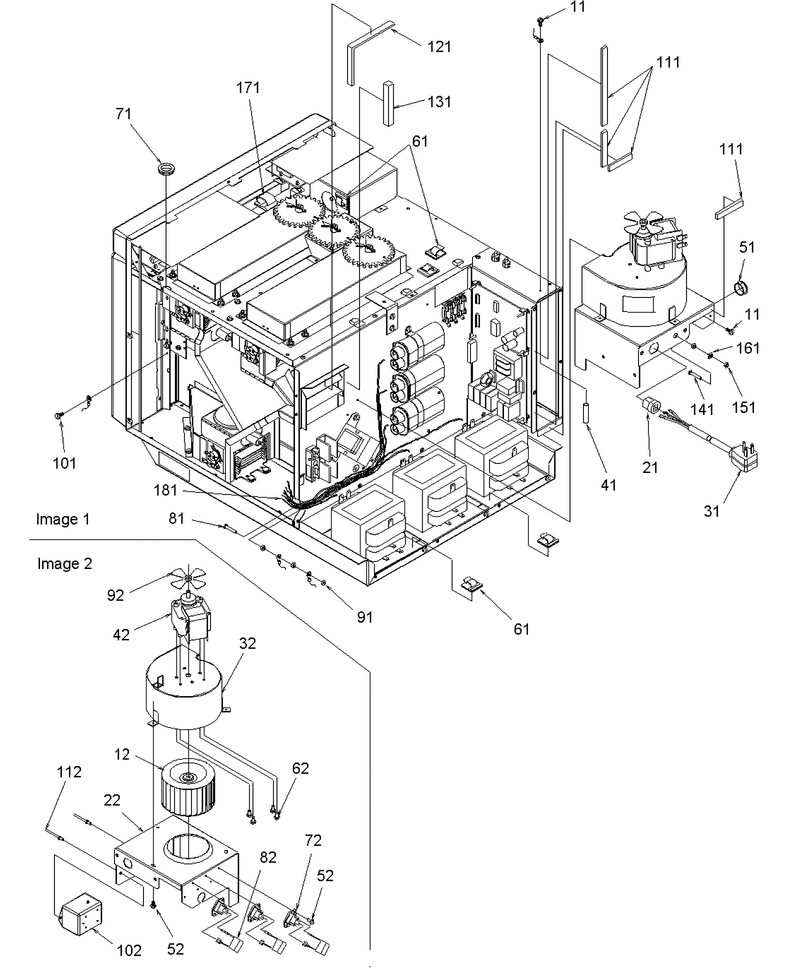

07 - Chassis Assy Parts & Blower-Triac Assy

...
...
11
Screw WPL-WP489349
...
12
Wheel, Blower WPL-C3670809
...
21
Strain Relief WPL-M0370007
...
22
Bracket, Blower Scroll WPL-10984007
...
31
Cord, Power WPL-10649602
...
32
Weld, Scroll WPL-10797202
...
41
Cap, Protective-Threaded (Red) WPL-M0308801
...
42
Kit, Blower Motor WPL-12002065
...
51
Snap Bushing WPL-A3293503
...
52
Screw WPL-WP489349
...
61
Clip WPL-WPM0104106
...
62
Screw WPL-M0253916
...
71
Grommet-Rubber WPL-59002007
...
72
Triac WPL-D7681501
...
81
Stud-Self Clinch WPL-M0293502
...
82
Snubber Assembly WPL-59002017
...
91
Nut K WPL-M0282005
...
92
Fan Blade WPL-B5706704
...
101
Screw, Tf WPL-M0231704
...
102
Filter, Line WPL-10976702
...
111
Gasket (Inch) WPL-A3030301
...
112
Rivet-Pop WPL-A4539638
...
121
Gasket WPL-A3030302
...
131
Gasket-Per Inch WPL-A3030311
...
141
Stud- Sc WPL-M0293507
...
151
Nut-Keps WPL-M0282021
...
161
Washer-U Type WPL-12152201
...
171
Clip, Cord WPL-M0104102
...
181
Harness, Hi-Volt WPL-12086001

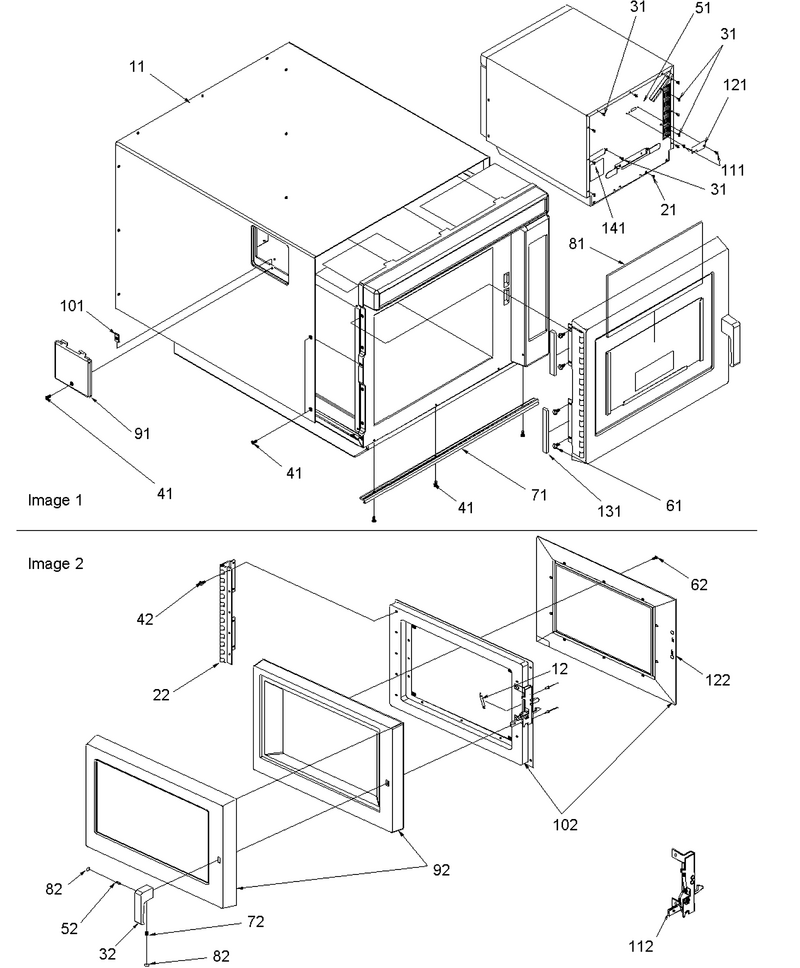

08 - Outercase Assembly & Door Assembly

...
...
11
Wrapper-Oc (Ss) WPL-10908901Q
...
12
Spring, Door Latch WPL-C8893502
...
21
Screw WPL-WP90767
...
22
Hinge, Door WPL-12003804
...
31
Screw WPL-WP3388228
...
32
Handle, Door WPL-12490901
...
41
Screw, T F WPL-M0249619
...
42
Screw WPL-WP3388228
...
51
Assy, Access Panel (Rear) WPL-R0156970
...
52
Screw WPL-WP8533976
...
61
Screw WPL-WP489464
...
62
Screw WPL-489392
...
71
Trim-Oc (Brushed) WPL-10909001
...
72
Screw WPL-WP8533976
...
81
Menu Panel WPL-10432501
...
82
Cover-Hole WPL-12285602
...
91
Cover Light (Ss) WPL-10785608
...
92
Outer Door/lens Retainer Assy WPL-R0156920
...
101
Clip WPL-M0288213
...
102
Inner Door & Glass Assy WPL-R0156921
...
111
Screw, Shldr WPL-M0221702
...
112
Latch Kit WPL-R0000282
...
121
Junction Cov- E Ct WPL-10954302
...
122
Inner Door/glass Assy WPL-D7784901
...
131
Gasket WPL-A3263904
...
141
Screw WPL-489392
