Amana MC24MPT (BOM: P1329117M)

Model: MC24MPT (BOM: P1329117M)

Save Part Not Listed?
product name

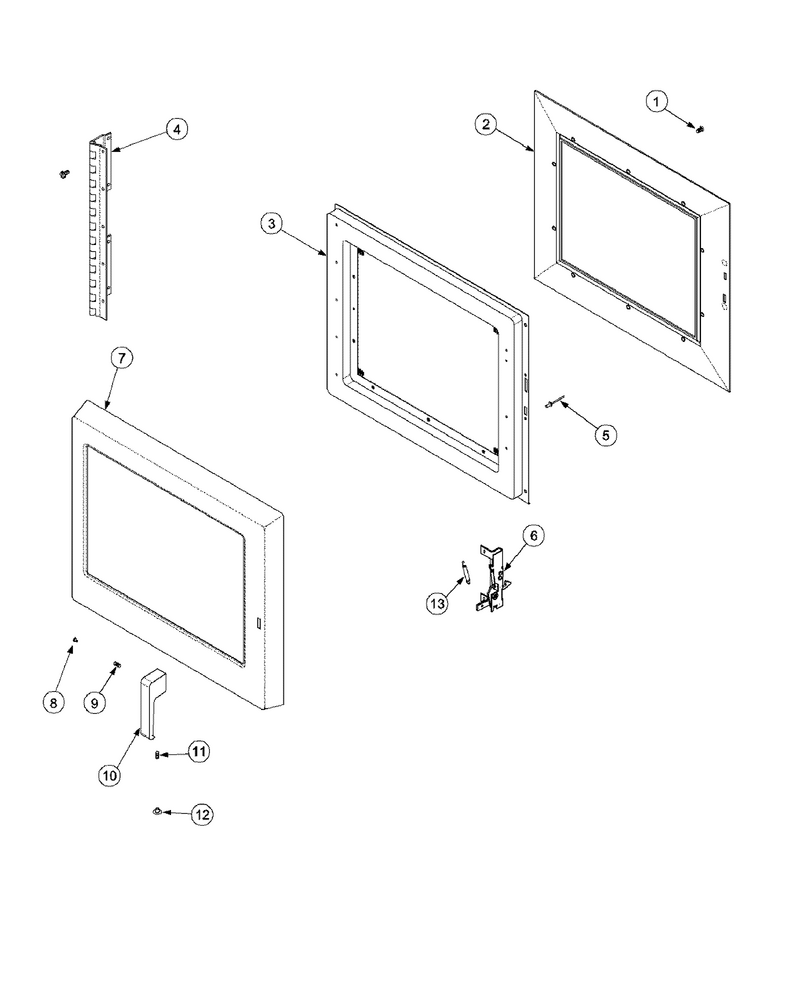

05 - Door

...
...
1
Screw-Hi Lo Y-Drive Head WPL-67003392
...
2
Inner Door/glass Assy WPL-D7784901
...
3
Door Ring Weld WPL-59002013
...
4
Screw WPL-WP3388228
...
5
Rivet-Pop WPL-59002054
...
6
Latch Kit WPL-R0000282
...
7
Menu Panel WPL-10432501
...
8
Plug, Button (Wht) WPL-M0310305
...
9
Screw WPL-WP8533976
...
10
Handle, Door WPL-12490901
...
11
Screw WPL-WP8533976
...
12
Plug, Button (Blk) WPL-12360703
...
13
Spring, Door Latch WPL-C8893502

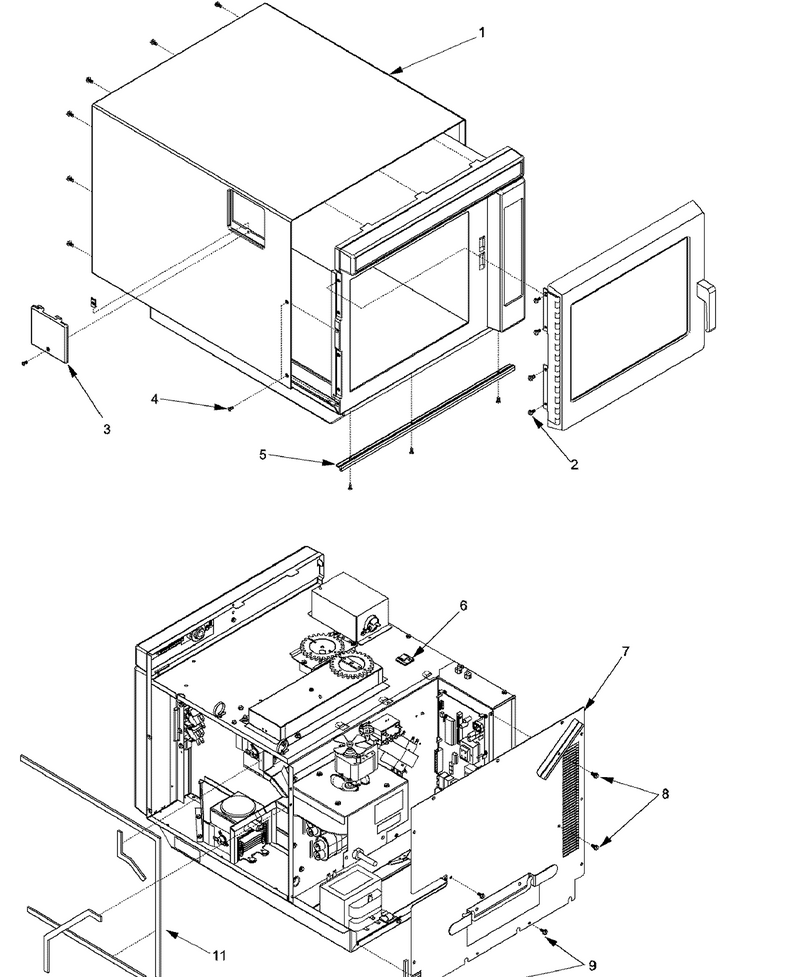

07 - Outercase

...
...
1
Wrapper-Oc (Ss) WPL-10908901Q
...
2
Gasket WPL-A3263904
...
3
Cover Light (Ss) WPL-10785608
...
4
Screw-Tf/oval WPL-13042002
...
5
Screw-Tf/oval WPL-13042002
...
6
Clip WPL-WPM0104106
...
7
Assy, Access Panel (Rear) WPL-R0156970
...
8
Screw WPL-WP3388228
...
9
Screw WPL-WP90767
...
10
Gasket (Inch) WPL-A3030301
...
11
Gasket,per Ft WPL-A30303-30

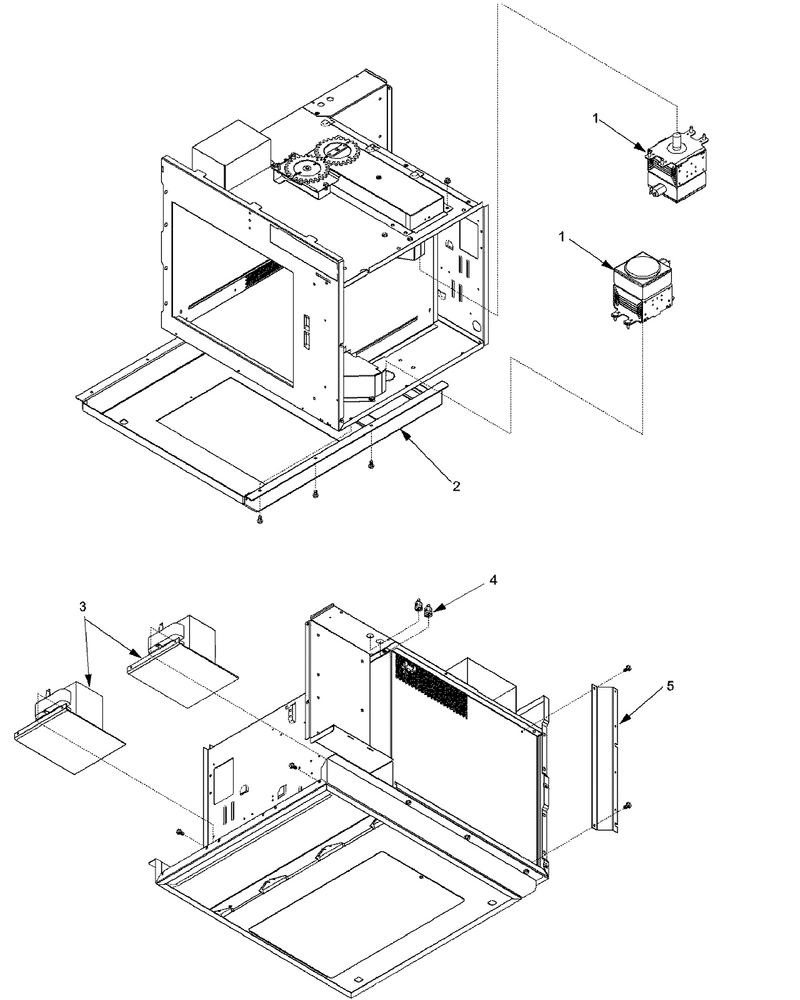

03 - Cavity

...
...
1
Magnetron-T WPL-10489402
...
2
Screw WPL-WP489128
...
3
Transformer-Hv WPL-59001626
...
4
Bushing,terminal WPL-M0325401
...
5
Screw, Tf WPL-M0231704

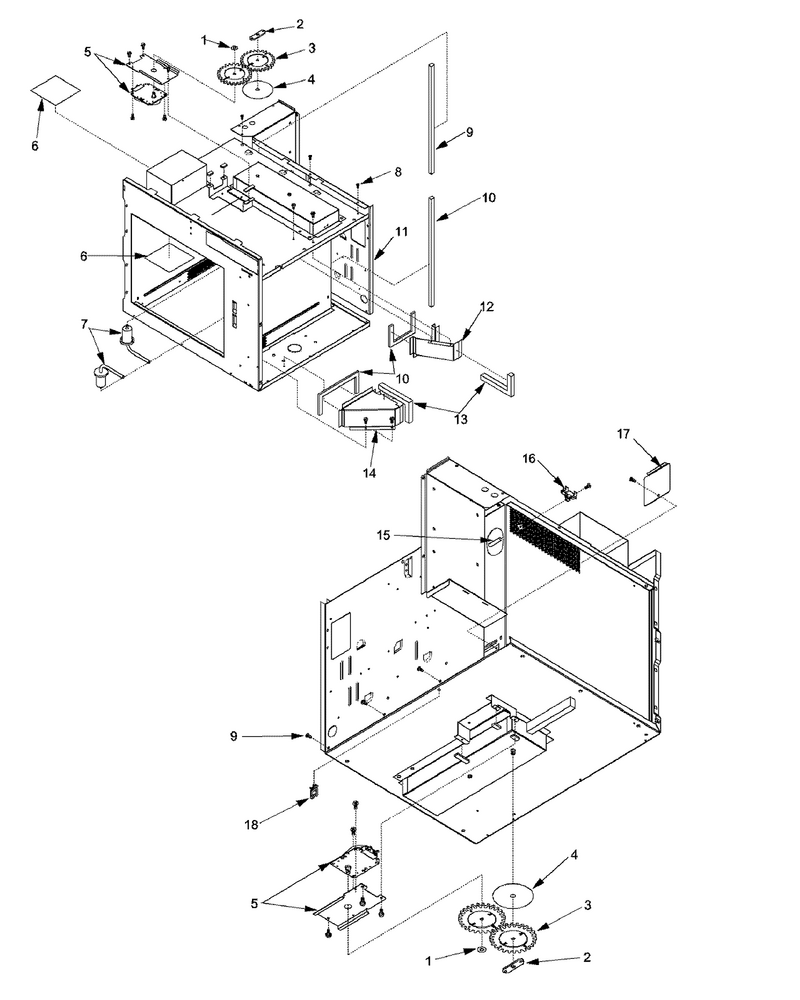

02 - Cavity

...
...
1
Ring,retainer WPL-M0274702
...
2
Retainer,gear Shaft WPL-12570201
...
3
Gear,spur WPL-12570101
...
4
Washer, Spur Gear WPL-10903002
...
5
Motor-Antenna Stirrer (230v) WPL-R0130263
...
6
Window, Oven Light WPL-B8367701
...
7
Antenna (Stirrer) WPL-R0130262
...
8
Screw WPL-WPW10001160
...
9
Gasket, Neoprene WPL-10966601
...
10
Gasket,per Ft WPL-A30303-30
...
11
Panel, Partition WPL-59001129
...
12
Duct-Top Exhaust WPL-10989201
...
13
Gasket (Per Foot) WPL-A3030303
...
14
Bottom Exhaust Duct-W/gasket WPL-10989301
...
15
Cap, Protective-Threaded (Red) WPL-M0308801
...
16
Thermal Cutout WPL-B5795306
...
17
Screw WPL-WPW10001160
...
18
Wire Clip WPL-B5667304

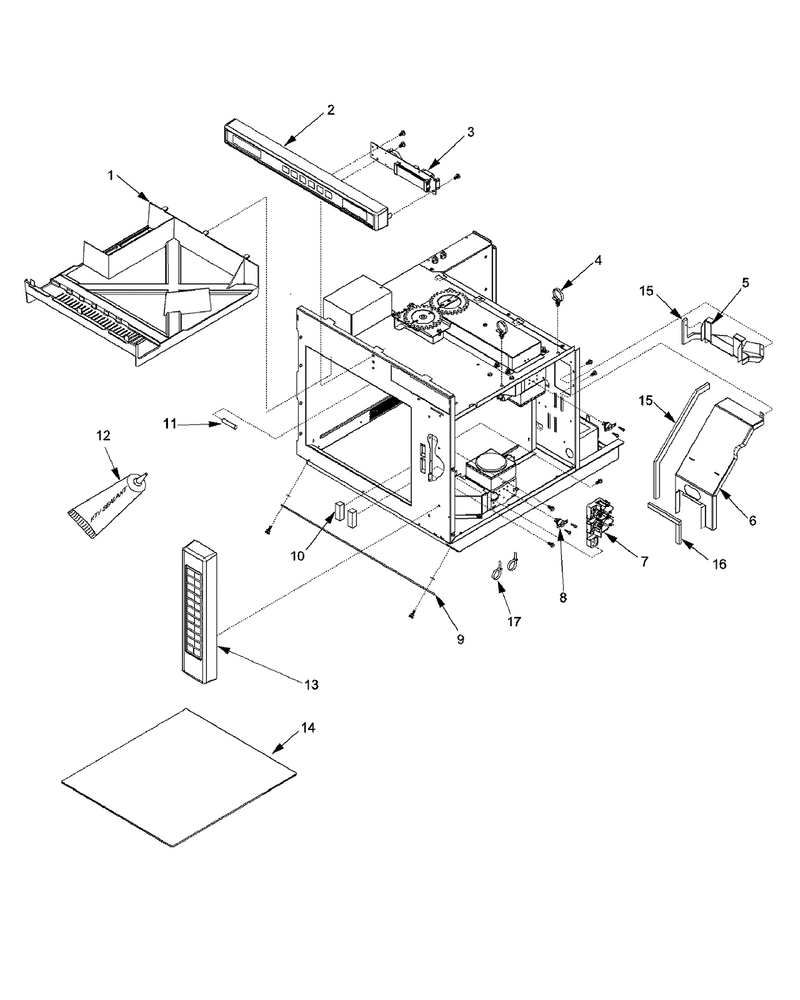

04 - Control

...
...
1
Shield, Grease WPL-10766601
...
2
Touch Panel(Top) WPL-R0130110
...
3
Board,display WPL-12502404
...
4
Tie Wire WPL-WPM0322202
...
5
Rear Divider Duct-W/gasket WPL-R0156986
...
6
Divider-Bot Flow WPL-10989401
...
7
Switch, Interlock Kit WPL-12002636
...
8
Cutout-Thermal Magnetron WPL-B5684130
...
9
Washer, Nylon WPL-M0274066
...
10
Support-Tray WPL-3010003001
...
11
Cap, Protective-Threaded (Red) WPL-M0308801
...
12
Adhesive WPL-W10841140
...
13
Touch Panel(Side) WPL-R0130109
...
14
Tray-Ceramic Floor W/sealer WPL-R0156942
...
15
Gasket,per Ft WPL-A30303-30
...
16
Gasket (Per Foot) WPL-A3030303
...
17
Tie-Wire WPL-WPW10339879

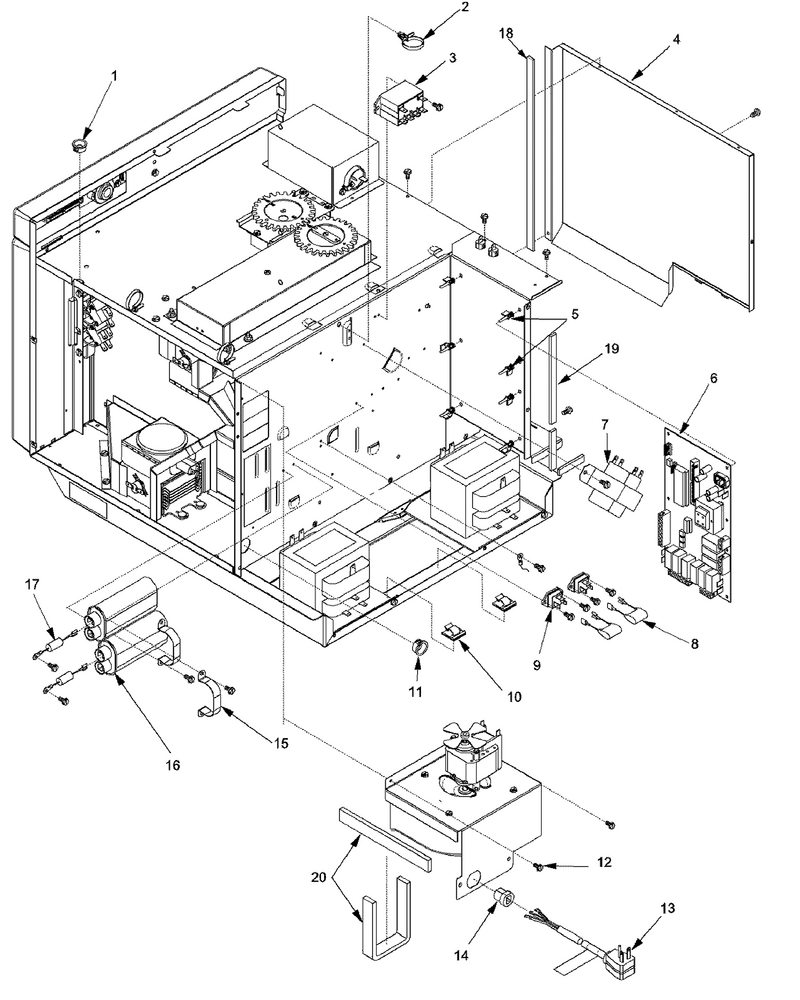

06 - Electrical Components

...
...
1
Bushing-Snap WPL-A3293505
...
2
Tie Wire WPL-WPM0322202
...
3
Relay WPL-12492202
...
4
Duct, Exhaust WPL-10781901
...
5
Support P-C Bd A WPL-M0590602
...
6
Net-Board,hv Amana Prog-Mc23 WPL-59001122
...
7
Screw WPL-WP489349
...
8
Snubber Assembly WPL-59002017
...
9
Screw WPL-WP489349
...
10
Clip WPL-WPM0104106
...
11
Bushing, Snap WPL-59001128
...
12
Screw WPL-WP489349
...
13
Cord Kit (Mpt) WPL-R0000165
...
14
Strain Relief WPL-M0370007
...
15
Screw WPL-WP489349
...
16
Capacitor-.74 WPL-D8547928
...
17
Screw WPL-WP489349
...
18
Gasket (Inch) WPL-A3030301
...
19
Gasket (Inch) WPL-A3030301
...
20
Gasket (Per Foot) WPL-A3030303

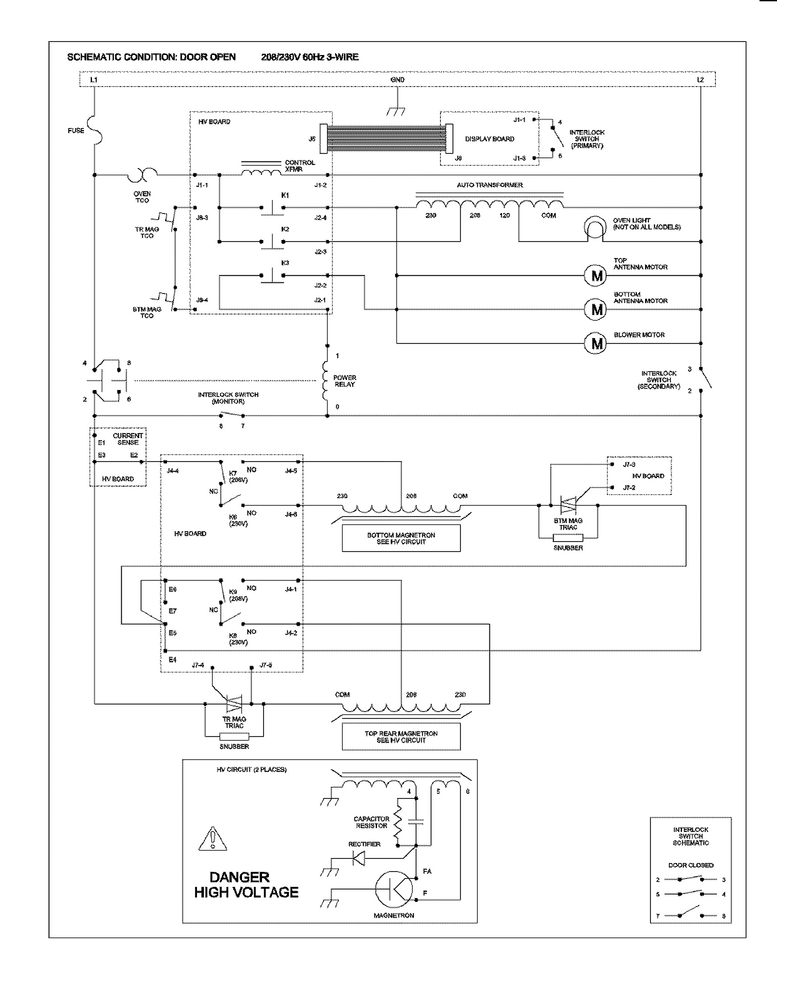

09 - Wiring Information

...
...
NI
Wiring Information WPL-15003004

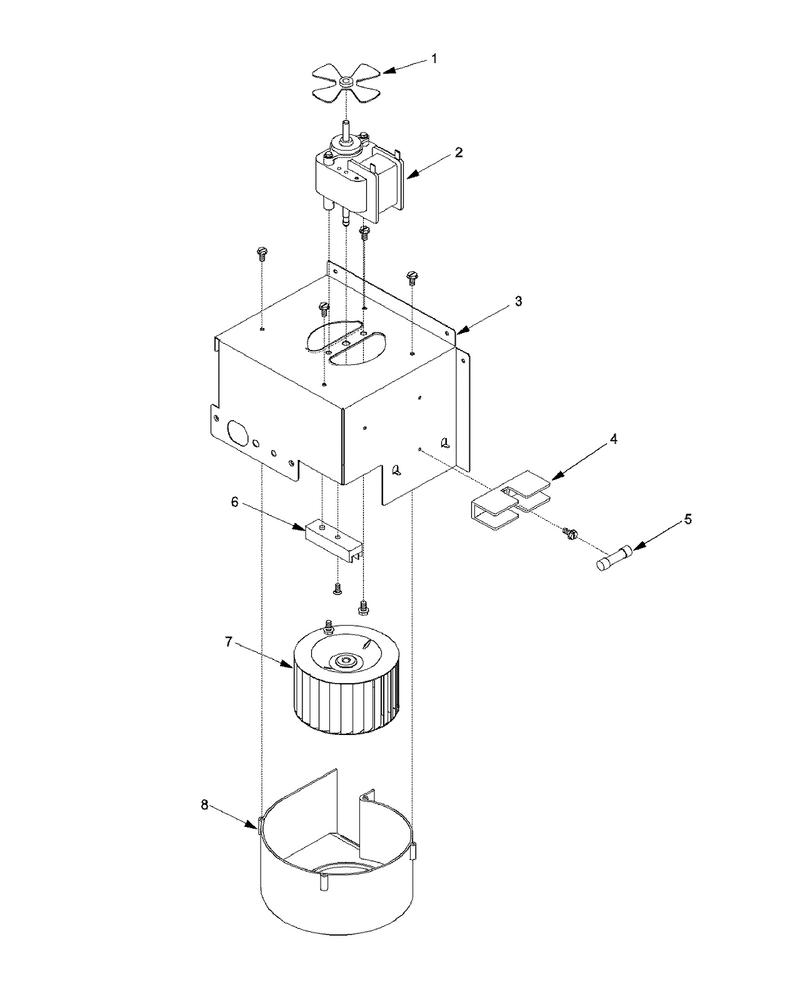

01 - Blower

...
...
1
Fan Blade WPL-B5706704
...
2
Motor,blower WPL-12138106
...
3
Bracket,blower WPL-12567702
...
4
Fuse Holder WPL-10091101
...
5
Fuse- 30a WPL-M0805205
...
6
Screw, No.6x18x1/4 (3) WPL-487010
...
7
Wheel, Blower WPL-C3670809
...
8
Screw-Sm/hex WPL-12990523

...
...
1
Mnl,svc-Comm`l Micro WPL-RS2240003
...
2
Harness, Hv Board To Display WPL-R0130265
...
3
Harness-Interlock WPL-13018201
...
4
Harness, Lower Antenna Motor WPL-12598201
...
5
Harness, Hi Volt WPL-59001020
...
6
Harness, Oven WPL-59001133
...
7
Magnetic Y-Drive Bit WPL-R0193574
