Amana MC24MP (BOM P1329116M)

Model: MC24MP (BOM P1329116M)

Save Part Not Listed?
product name

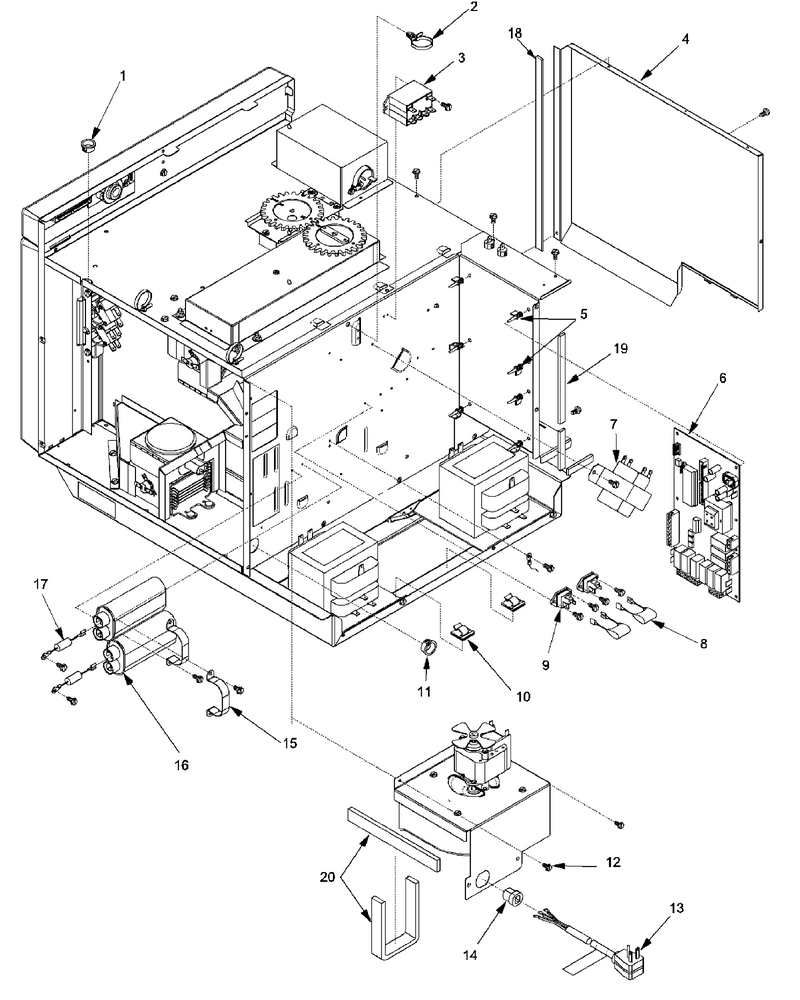

05 - Electrical Components

...
...
001
Bushing-Snap WPL-A3293505
...
002
Tie Wire WPL-WPM0322202
...
003
Relay WPL-12492202
...
004
Screw,tf WPL-M0231617
...
005
Support P-C Bd A WPL-M0590602
...
006
Net-Board,hv Amana Prog-Mc23 WPL-59001122
...
007
Transformer-Auto WPL-C8901509
...
008
Snubber Assembly WPL-59002017
...
009
Triac WPL-D7681501
...
010
Clip WPL-WPM0104106
...
011
Bushing, Snap WPL-59001128
...
012
Screw WPL-WP489349
...
013
Cord Kit (Mp) WPL-R0000164
...
014
Strain Relief WPL-M0370007
...
015
Strap, Capacitor WPL-A4055405
...
016
Capacitor-.74 WPL-D8547928
...
017
Screw WPL-WP489349
...
018
Gasket (Inch) WPL-A3030301
...
019
Gasket (Inch) WPL-A3030301
...
020
Gasket (Per Foot) WPL-A3030303

...
...
001
Magnetic Y-Drive Bit WPL-NLA

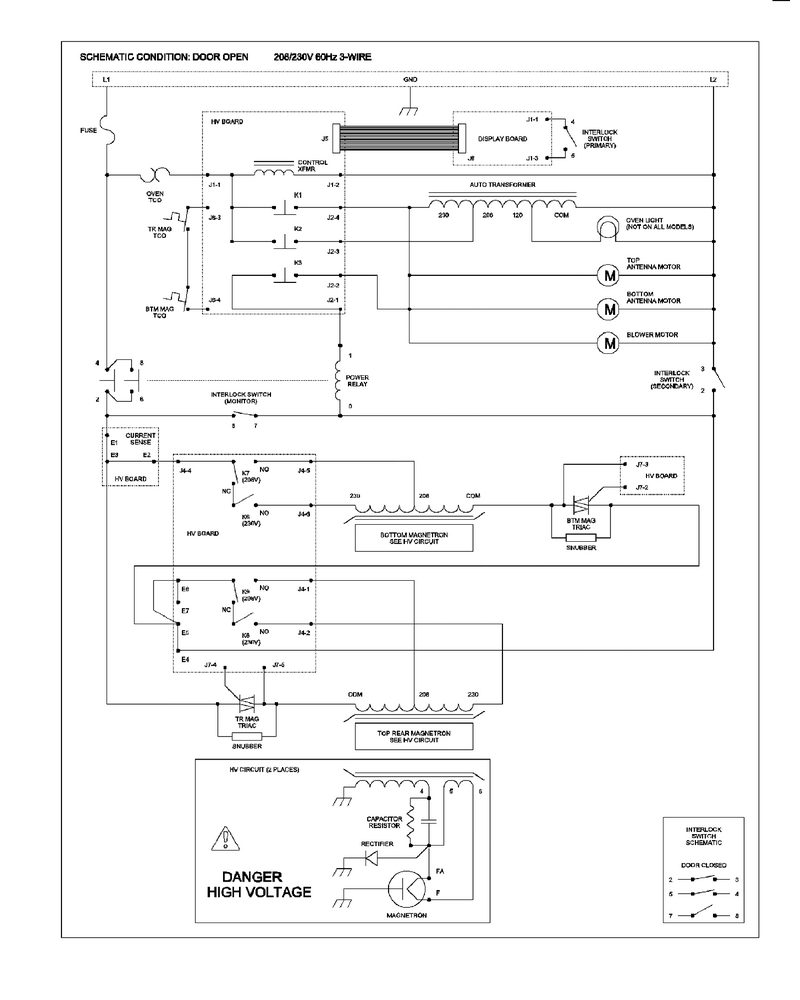

09 - Wiring Information

...
...
001
Wiring Information WPL-NLA

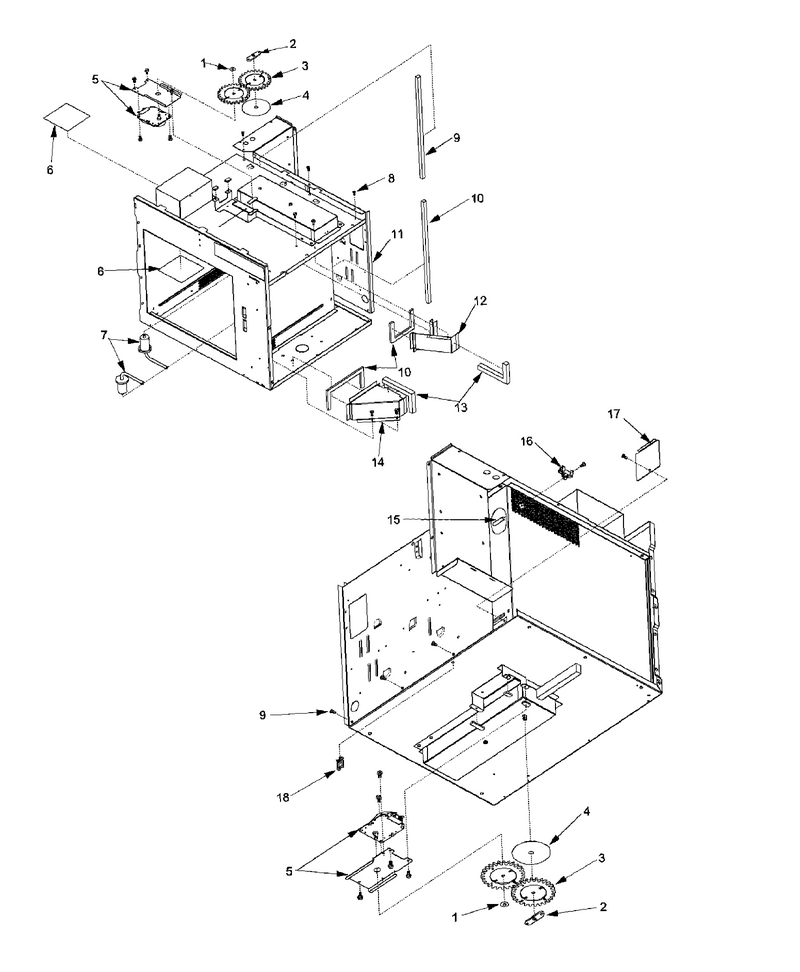

06 - Cavity

...
...
001
Ring,retainer WPL-M0274702
...
002
Retainer,gear Shaft WPL-12570201
...
003
Gear,spur--++xxx WPL-12570101
...
004
Washer, Spur Gear WPL-10903002
...
005
Motor-Antenna Stirrer (230v) Includes Gear, Retainer, Plate WPL-R0130263
...
006
Window, Oven Light WPL-B8367701
...
007
Antenna (Stirrer) WPL-R0130262
...
008
Screw WPL-WPW10001160
...
009
Gasket, Neoprene WPL-10966601
...
010
Gasket,per Ft WPL-A30303-30
...
011
Panel, Partition WPL-59001129
...
012
Screw WPL-WP3388228
...
013
Gasket (Per Foot) WPL-A3030303
...
014
Screw WPL-WP3388228
...
015
Cap, Protective-Threaded (Red) WPL-M0308801
...
016
Thermal Cutout WPL-B5795306
...
017
Plate, Partition WPL-10847601
...
018
Wire Clip WPL-B5667304

07 - Cavity

...
...
001
Magnetron-T WPL-10489402
...
002
Screw WPL-WP489128
...
003
Transformer-Hv WPL-59001626
...
004
Bushing,terminal WPL-M0325401
...
005
Bracket,hinge Support WPL-12189003

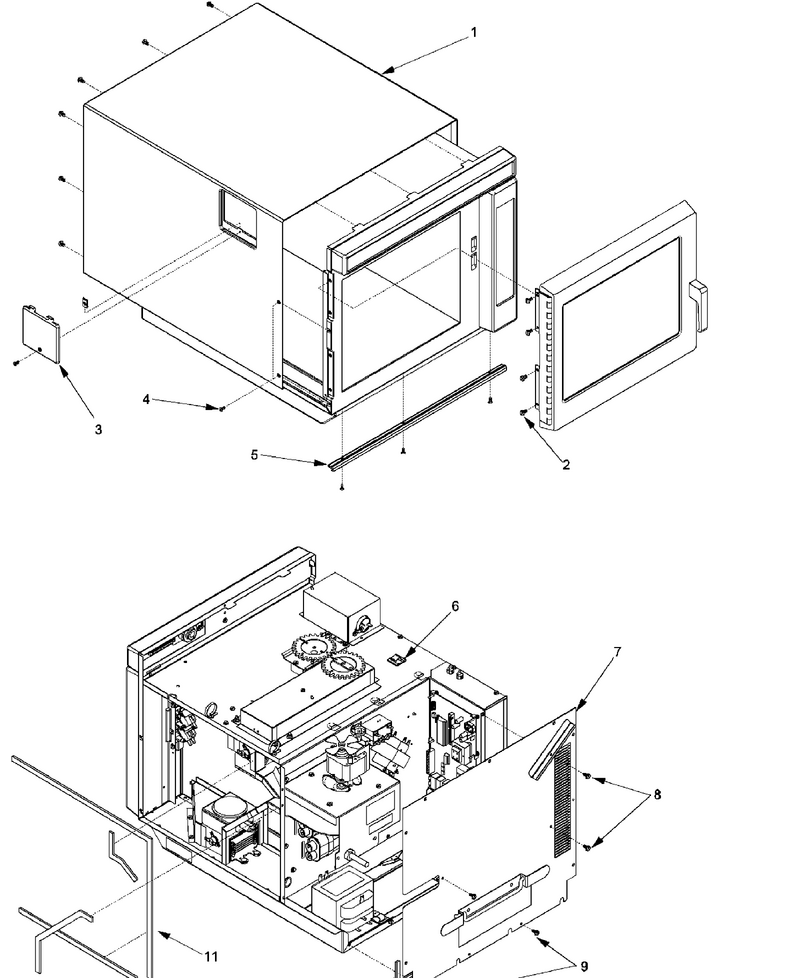

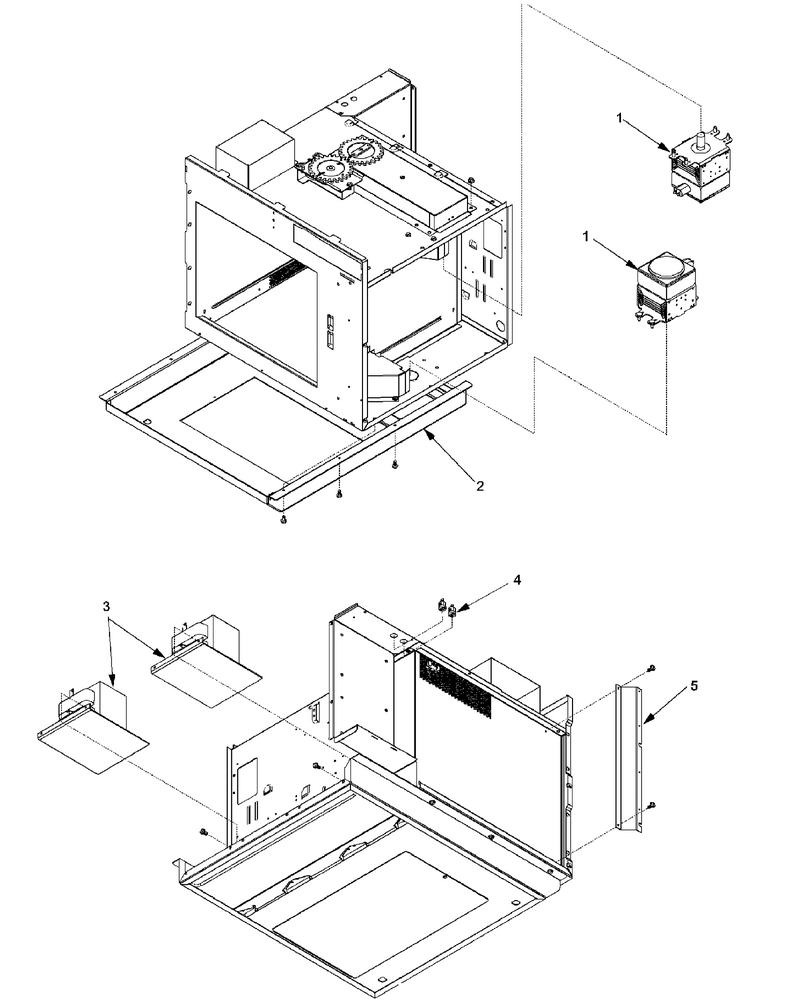

01 - Outercase

...
...
001
Screw WPL-WP3388228
...
002
Gasket WPL-A3263904
...
003
Cover Light (Ss) WPL-10785608
...
004
Screw-Tf/oval WPL-13042002
...
005
Screw-Tf/oval WPL-13042002
...
006
Clip WPL-WPM0104106
...
007
Assy, Access Panel (Rear) WPL-R0156970
...
008
Screw WPL-WP3388228
...
009
Screw WPL-WP90767
...
010
Gasket (Inch) WPL-A3030301
...
011
Gasket,per Ft WPL-A30303-30

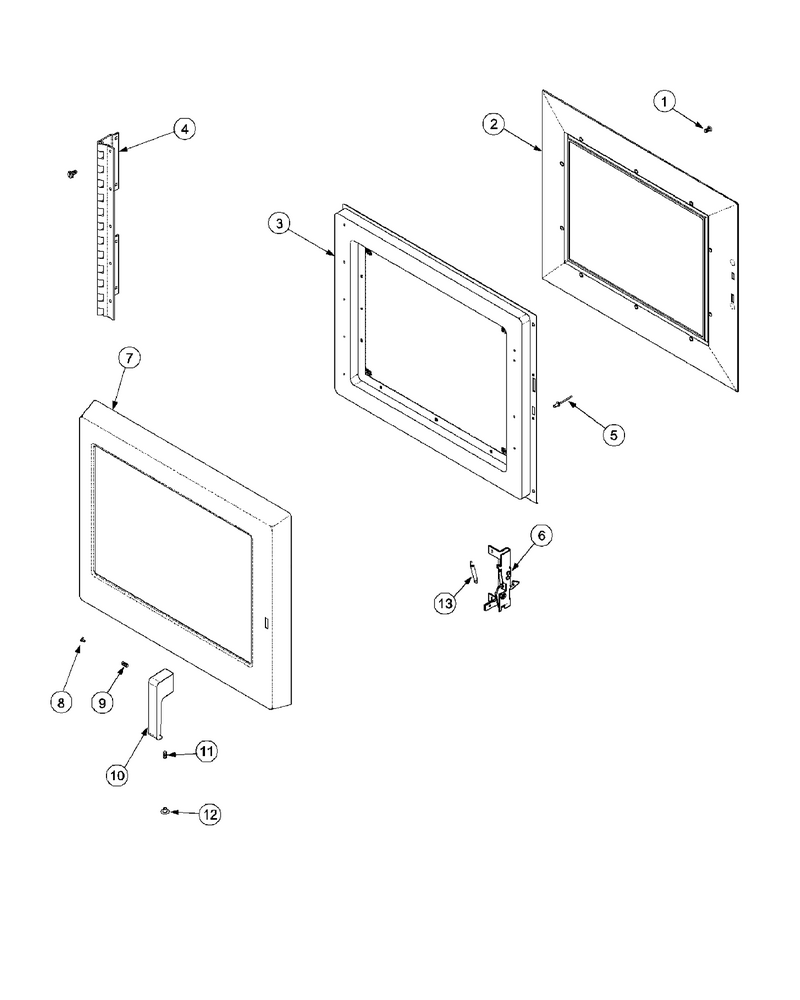

02 - Door

...
...
001
Magnetic Y-Drive Bit WPL-NLA
...
002
Inner Door/glass Assy WPL-D7784901
...
003
Door Ring Weld WPL-59002013
...
004
Screw WPL-WP3388228
...
005
Rivet-Pop WPL-59002054
...
006
Latch Kit WPL-R0000282
...
007
Outer Door/lens Retainer Assy WPL-R0156920
...
008
Plug, Button (Wht) WPL-M0310305
...
009
Screw WPL-WP8533976
...
010
Handle, Door WPL-12490901
...
011
Screw WPL-WP8533976
...
012
Plug, Button (Blk) WPL-12360703
...
013
Spring, Door Latch WPL-C8893502

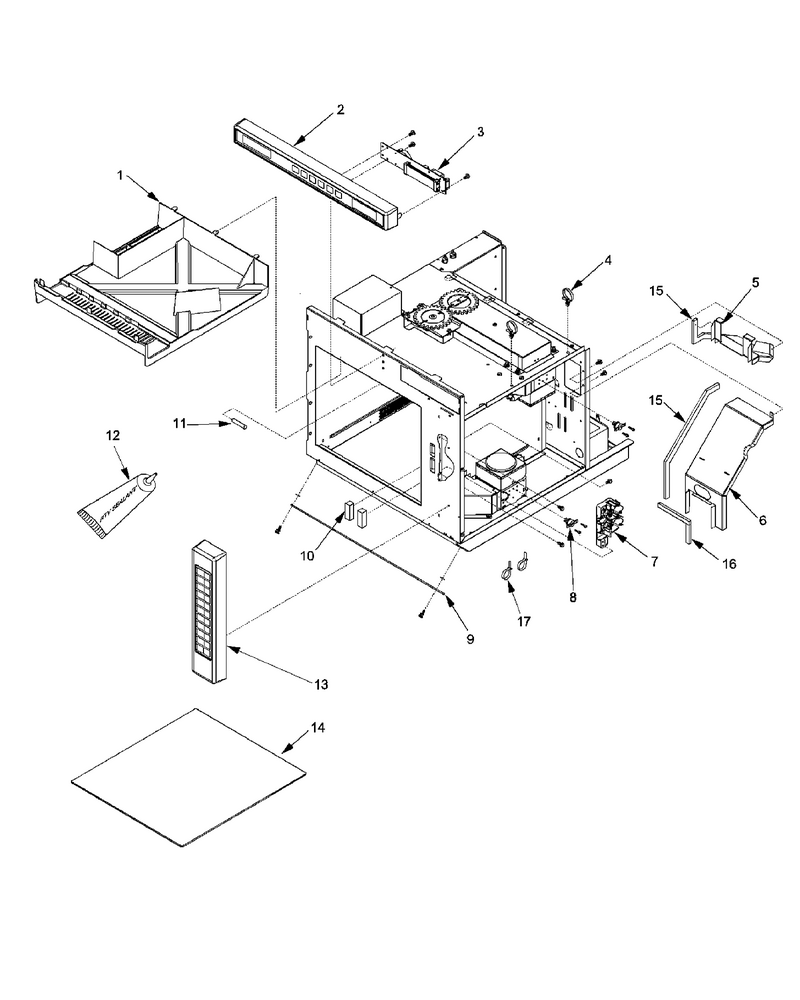

04 - Control

...
...
001
Shield, Grease WPL-10766601
...
002
Touch Panel(Top) WPL-R0130110
...
003
Board,display WPL-12502404
...
004
Tie Wire WPL-WPM0322202
...
005
Rear Divider Duct-W/gasket WPL-R0156986
...
006
Divider-Bot Flow WPL-10989401
...
007
Switch, Interlock Kit WPL-12002636
...
008
Cutout-Thermal Magnetron WPL-B5684130
...
009
Screw-Thumb WPL-13042901
...
010
Support-Tray WPL-3010003001
...
011
Cap, Protective-Threaded (Red) WPL-M0308801
...
012
Adhesive WPL-W10841140
...
013
Touch Panel(Side) WPL-R0130109
...
014
Tray-Ceramic Floor W/sealer Includes Items 12 & 10 WPL-R0156942
...
015
Gasket,per Ft WPL-A30303-30
...
016
Gasket (Per Foot) WPL-A3030303
...
017
Tie-Wire WPL-WPW10339879

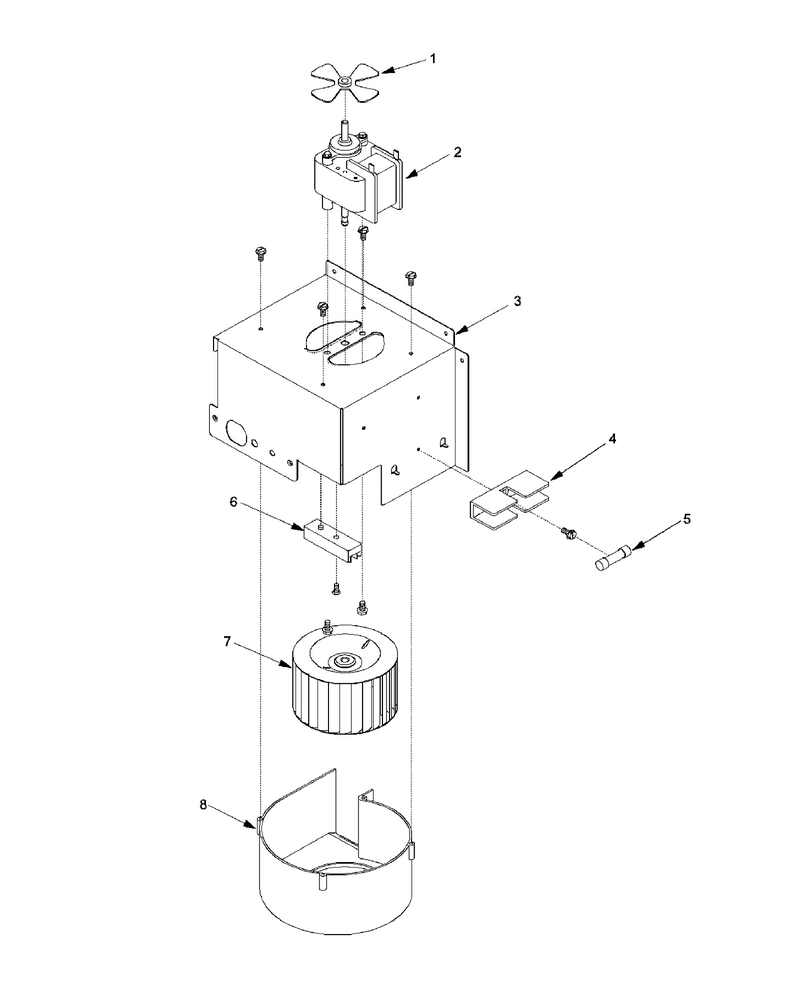

03 - Blower

...
...
001
Fan Blade WPL-B5706704
...
002
Motor,blower WPL-12138106
...
003
Bracket,blower WPL-12567702
...
004
Fuse Holder WPL-10091101
...
005
Fuse- 30a WPL-M0805205
...
006
Screw, No.6x18x1/4 (3) WPL-487010
...
007
Wheel, Blower WPL-C3670809
...
008
Screw-Sm/hex WPL-12990523
