Amana MC22MP (BOM: P1198706M)

Model: MC22MP (BOM: P1198706M)

Save Part Not Listed?
product name

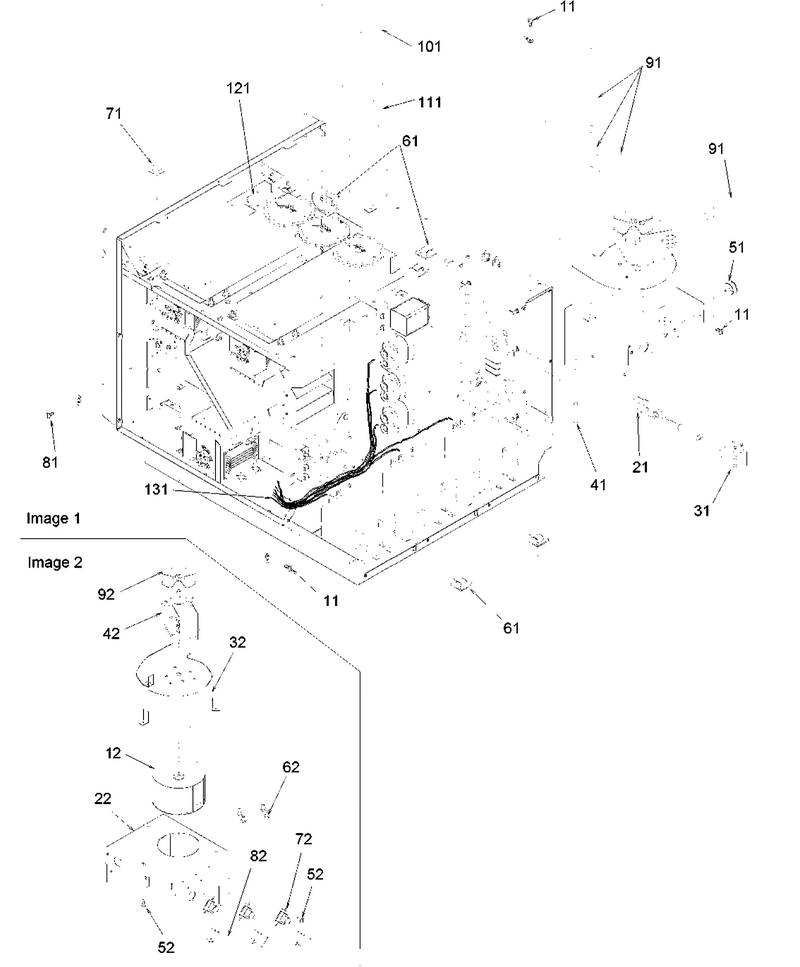

01 - Chassis & Blower-Triac Assembly Parts

...
...
11
Screw WPL-WP489349
...
12
Wheel, Blower WPL-C3670809
...
21
Strain Relief WPL-M0370007
...
22
Bracket, Blower Scroll WPL-10984002
...
31
Power Cord-Mcdonald`s Q-Ing WPL-12535401
...
32
Weld, Scroll WPL-10797202
...
41
Cap, Protective-Threaded (Red) WPL-M0308801
...
42
Kit, Blower Motor WPL-12002065
...
51
Snap Bushing WPL-A3293503
...
52
Screw WPL-WP489349
...
61
Clip WPL-WPM0104106
...
62
Screw WPL-M0253916
...
71
Grommet-Rubber WPL-59002007
...
72
Triac WPL-D7681501
...
81
Screw, Tf WPL-M0231704
...
82
Snubber Assembly WPL-59002017
...
91
Gasket (Inch) WPL-A3030301
...
92
Fan Blade WPL-B5706704
...
101
Gasket WPL-A3030302
...
111
Gasket-Per Inch WPL-A3030311
...
121
Clip WPL-WPM0104106
...
131
Harness, Hi Voltage WPL-59001036

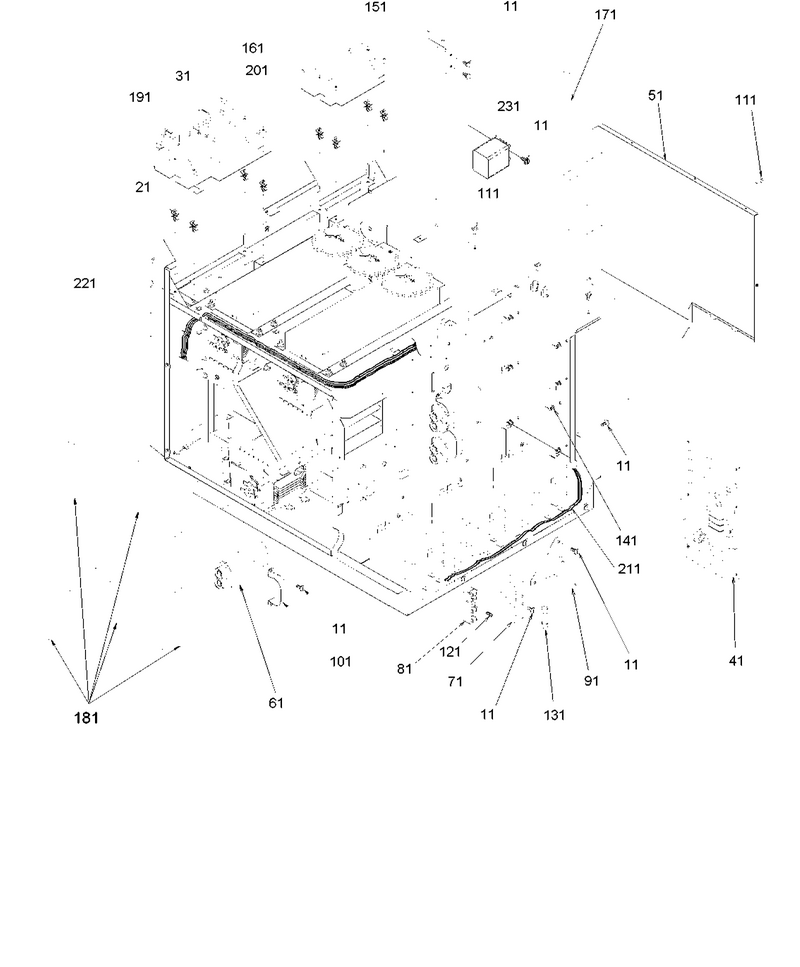

07 - Chassis Assembly Parts

...
...
11
Panel-Partition WPL-10768304
...
21
Assy, Top Exh Duct WPL-R0156940
...
31
Assy, Bot Exh Duct WPL-R0156939
...
41
Brkt-Motor Mtg WPL-10782202
...
51
Assy, Antenna (Plain Tip) WPL-10787601
...
61
Kit, Gear WPL-R0156917
...
71
Motor-Antenna WPL-R0150102
...
81
Screw WPL-WP3388228
...
91
Rivet WPL-WP210720
...
101
Pin, Cotter WPL-M1200005
...
111
Washer, Spur Gear WPL-10903002
...
121
Window, Oven Light WPL-B8367701
...
131
Gasket-Per Inch WPL-A3030311
...
141
Gasket,per Ft WPL-A30303-30
...
151
Gasket, Neoprene WPL-10966601
...
161
Screw WPL-WP488234
...
171
Assy, Antenna (Blue Tip) WPL-10787602

...
...
1
Man-Pts Micro WPL-RP2200001
...
2
Mnl-Svc Com Rr WPL-RS2220001
...
3
Magnetic Y-Drive Bit WPL-R0193574
...
4
Mnl, Mcdonalds Equip. WPL-10492912
...
5
Kit, Cavity-3 Tube WPL-R0000106
...
6
Kit, Fuse (15 Amp) WPL-12001916

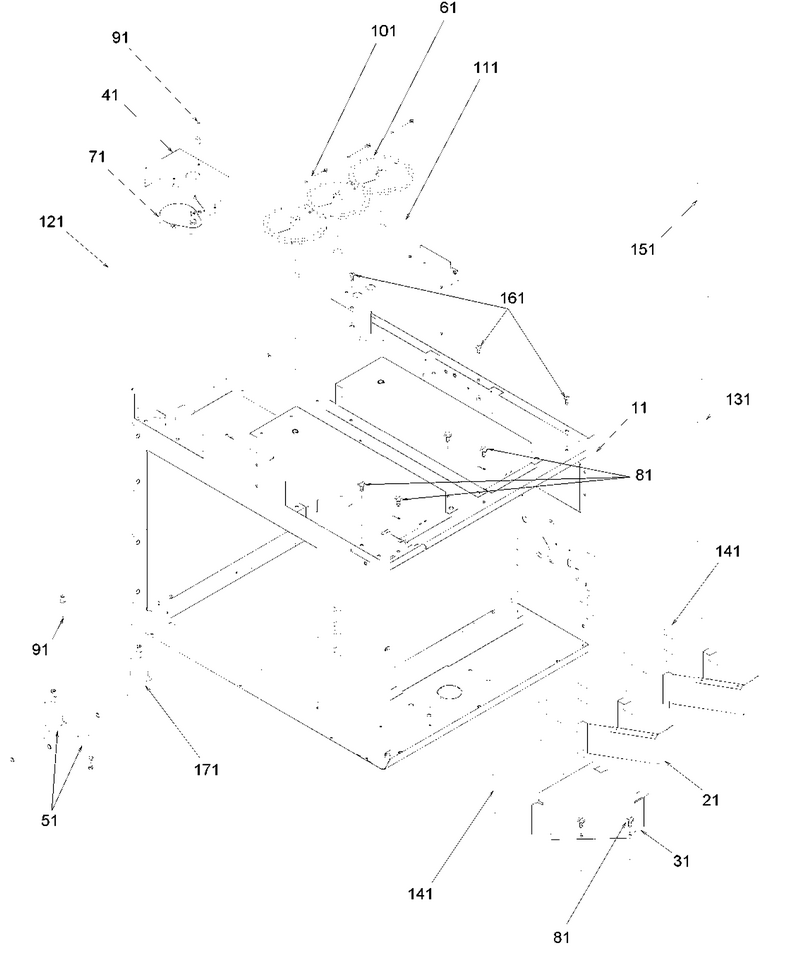

04 - Chassis Assembly Parts

...
...
11
Screw WPL-WP489349
...
21
Support WPL-M0585505
...
31
Kit, Board - Lv WPL-R0163317
...
41
Board, H.v. WPL-10763207
...
51
Assy, Exh Duct WPL-R0156941
...
61
Capacitor-.65 WPL-59001159
...
71
Fuse Holder WPL-10091101
...
81
Terminal Block WPL-B5677203
...
91
Transformer, Auto WPL-C8901507
...
101
Strap, Capacitor WPL-A4055406
...
111
Screw WPL-12992301
...
121
Screw, No.6x18x1/4 (3) WPL-487010
...
131
Fuse- 30a WPL-M0805205
...
141
Support P-C Bd A WPL-M0590602
...
151
Brkt, Wire Support WPL-10853001
...
161
Ext.memory Board-Mcdonalds WPL-R0163319
...
171
Gasket (Inch) WPL-A3030301
...
181
Gasket,per Ft WPL-A30303-30
...
191
Barrier-Lv Board WPL-12160801
...
201
Barrier, Ext Mem Bd WPL-12160701
...
211
Harness, Transformer WPL-12424801
...
221
Harness, Oven WPL-12495801
...
231
Relay, Control WPL-C8873928
...
241
Harness, Lvb/exm WPL-10859701

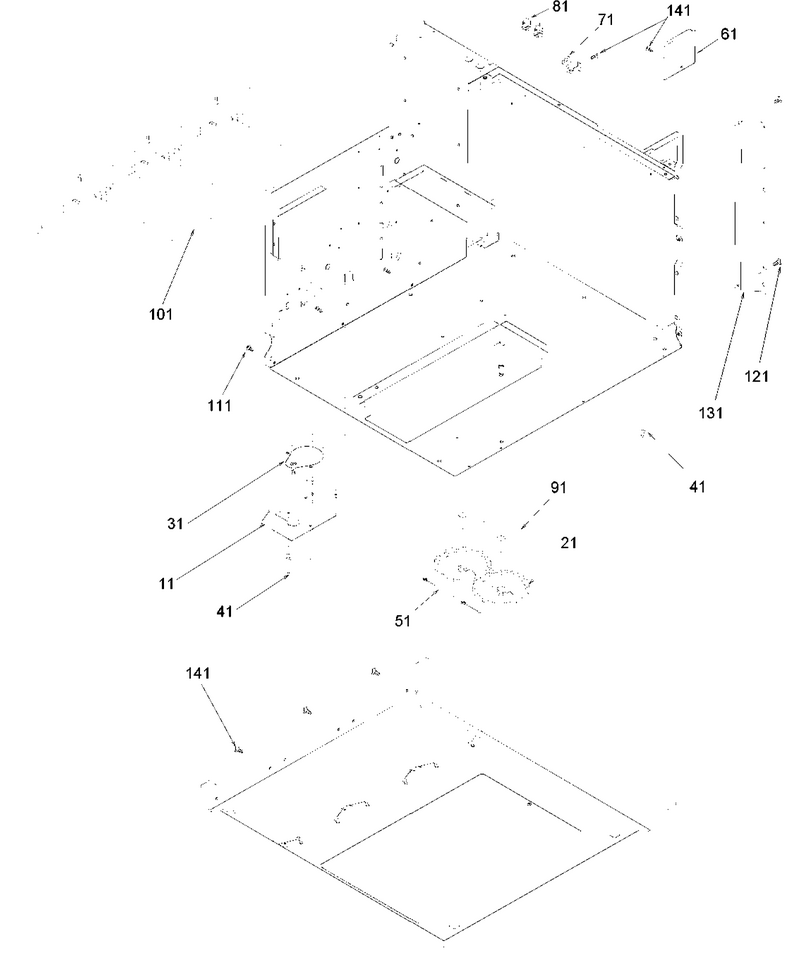

06 - Chassis Assembly Parts

...
...
11
Base Assy-Gaskets, Access Pnl WPL-10790304Q
...
21
Gasket, Basepan (Cut) WPL-10732512
...
31
Gasket, Basepan WPL-10732513
...
41
Brkt, Lamp WPL-10782501
...
51
Bottom Access Panel WPL-10782402
...
61
Screw WPL-M0213815
...
71
Rectifier WPL-WP13091701
...
81
Nut, Self Clinch WPL-M0294701
...
91
Magnetron-T WPL-D7831006
...
101
Rivet WPL-WP210720
...
111
Screw WPL-WP90767
...
121
Gasket (Inch) WPL-A3030301
...
131
Screw WPL-WP489128
...
141
Kit, Cavity-3 Tube WPL-R0000106

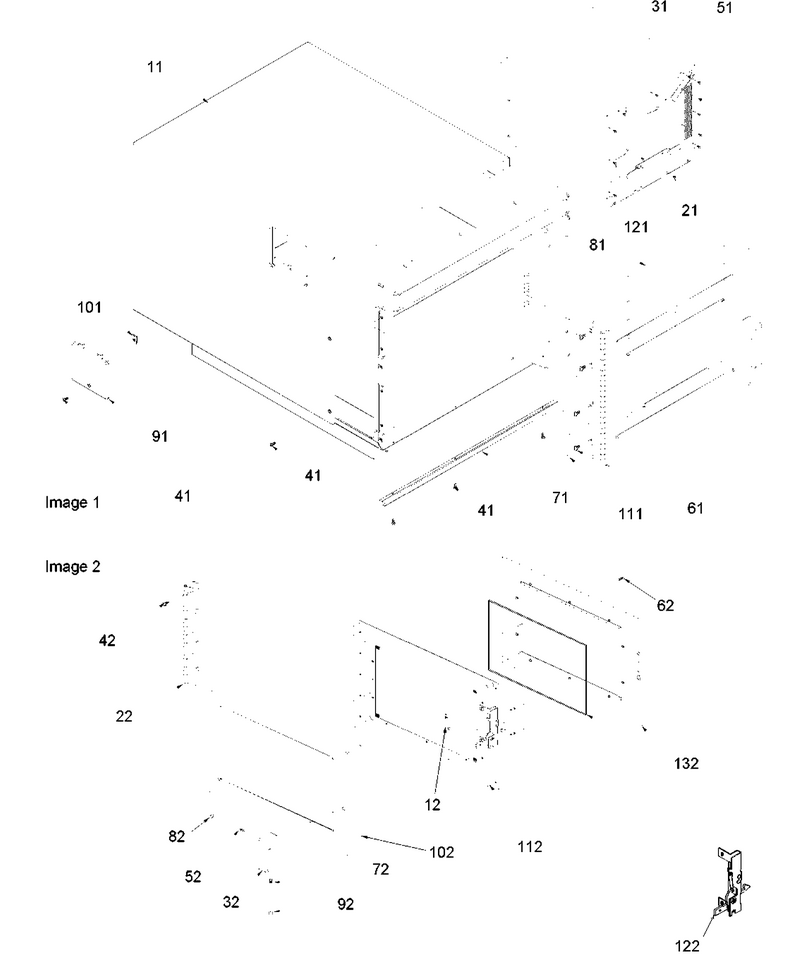

09 - Outercase & Door Assembly

...
...
11
Wrapper-Oc (Ss) WPL-10908901Q
...
12
Spring, Door Latch WPL-C8893502
...
21
Screw WPL-WP90767
...
22
Hinge, Door WPL-12003804
...
31
Screw WPL-WP3388228
...
32
Handle, Door WPL-12490901
...
41
Screw, T F WPL-M0249619
...
42
Screw WPL-WP3388228
...
51
Assy, Access Panel (Rear) WPL-R0156970
...
52
Screw WPL-WP8533976
...
61
Screw WPL-WP489464
...
62
Screw WPL-489392
...
71
Trim-Oc (Brushed) WPL-10909001
...
72
Screw WPL-WP8533976
...
81
Menu Panel WPL-10432501
...
82
Plug, Button (Blk) WPL-12360703
...
91
Cover Light (Ss) WPL-10785608
...
92
Plug, Button (Wht) WPL-M0310305
...
101
Clip WPL-M0288213
...
102
Outer Door/lens Retainer Assy WPL-R0156920
...
111
Gasket WPL-A3263904
...
112
Inner Door & Glass Assy WPL-R0156921
...
121
Screw WPL-489392
...
122
Latch Kit WPL-R0000282
...
132
Inner Door/glass Assy WPL-D7784901

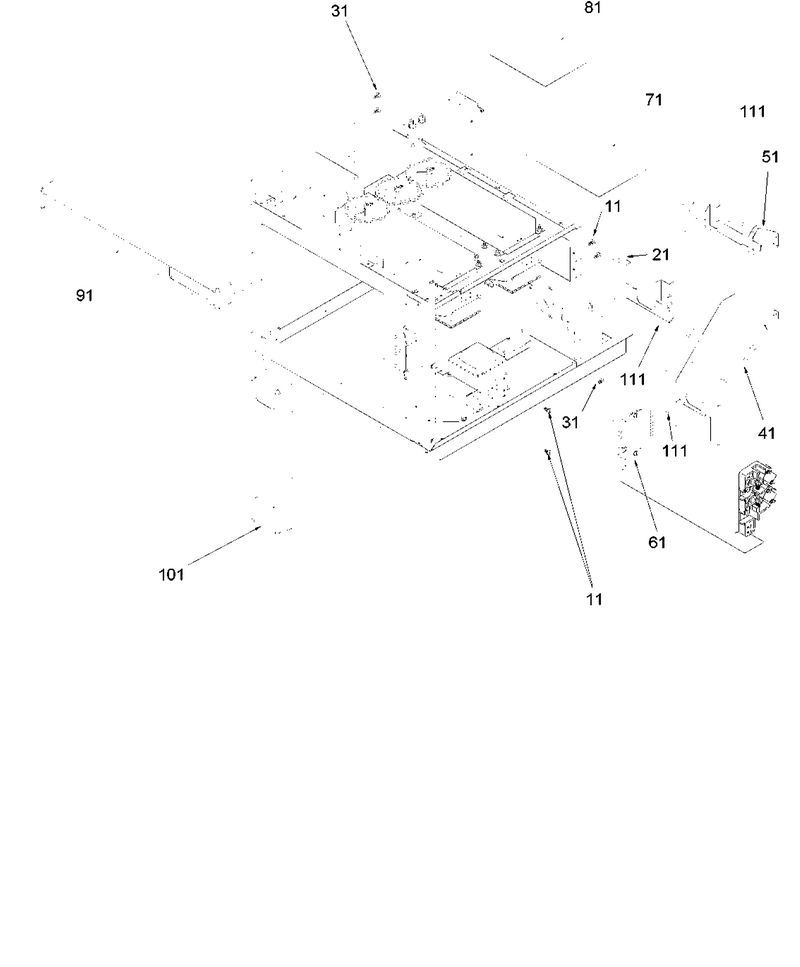

03 - Chassis Assembly Parts

...
...
11
Screw-Sm/hex WPL-12990523
...
21
Assy, Top Divider WPL-R0156937
...
31
Screw, Tf WPL-M0231704
...
41
Assy, Bot Divider WPL-R0156936
...
51
Assy, Rear Divider WPL-R0156935
...
61
Switch, Interlock Kit WPL-12002636
...
71
Shield-Spill WPL-12160601
...
81
Shield, Spill WPL-12160602
...
91
Assy, Touch Pnl- Top WPL-R0156971
...
101
Assy, Touch Pnl- Side WPL-R0156974
...
111
Gasket,per Ft WPL-A30303-30

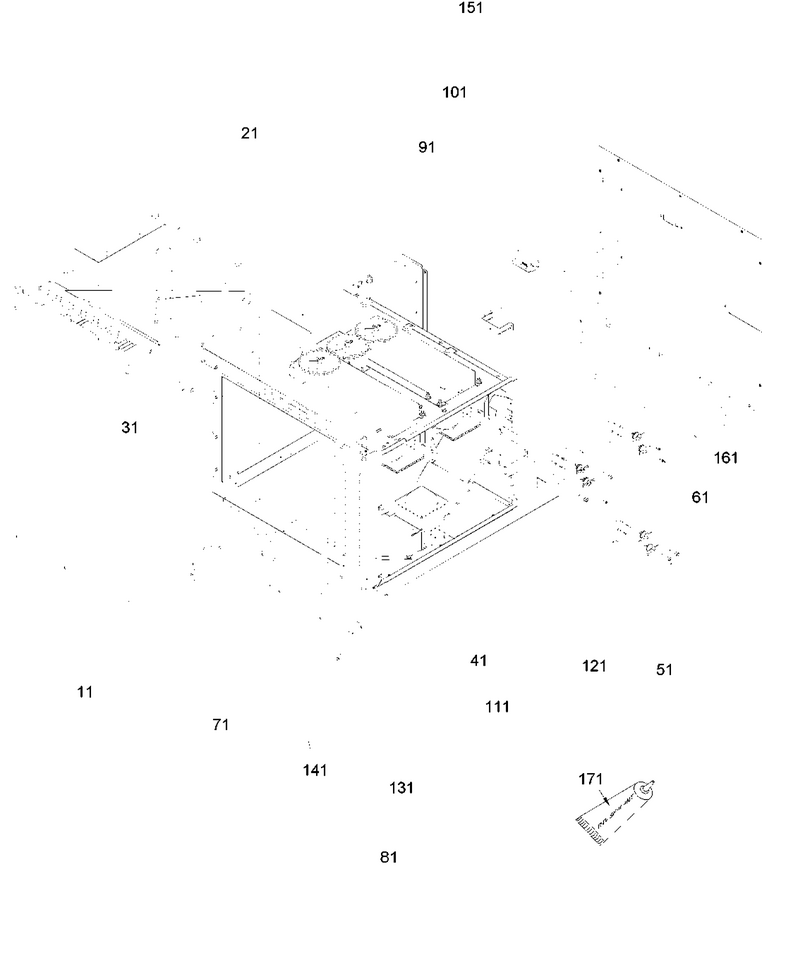

05 - Chassis Assembly Parts

...
...
11
Brkt-Motor Mtg WPL-10782202
...
21
Kit, Gear WPL-R0156917
...
31
Motor-Antenna WPL-R0150102
...
41
Rivet WPL-WP210720
...
51
Pin, Cotter WPL-M1200005
...
61
Plate, Partition WPL-10847601
...
71
Thermal Cutout WPL-B5795306
...
81
Bushing,terminal WPL-M0325401
...
91
Washer, Spur Gear WPL-10903002
...
101
Transformer-Hv WPL-59001626
...
111
Screw WPL-WP90767
...
121
Screw, Tf WPL-M0231704
...
131
Bracket,hinge Support WPL-12189003
...
141
Screw WPL-WP488234

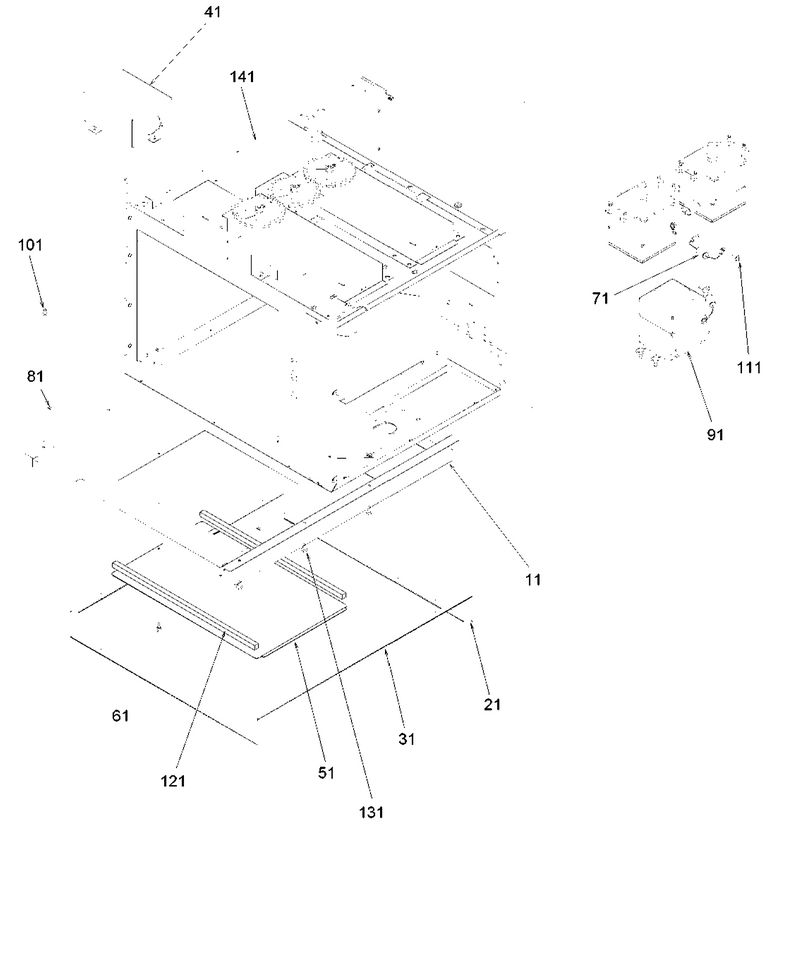

02 - Chassis Assembly Parts

...
...
11
Tray-Ceramic Floor W/sealer WPL-R0156942
...
21
Shield, Grease WPL-10766601
...
31
Cap, Protective-Threaded (Red) WPL-M0308801
...
41
Plate, Thermal Cutout WPL-B8380601
...
51
Screw T.c WPL-M0229916
...
61
Screw WPL-M0232012
...
71
Screw-Thumb WPL-13042901
...
81
Grille, Air Inlet WPL-10853102
...
91
Brkt-Junction Pcb WPL-10863402
...
101
Board, Junction P.c. WPL-10893601
...
111
Thermal Protector WPL-B5684106
...
121
Cutout, Thermal WPL-B5684118
...
131
Washer, Nylon WPL-M0274066
...
141
Support-Tray WPL-3010003001
...
151
Gasket (Inch) WPL-A3030301
...
161
Gasket,per Ft WPL-A30303-30
...
171
Adhesive WPL-W10841140
...
181
Harness, Emb/jpcb WPL-10944101
