Amana LWD773 (BOM: P1110501W W)

Model: LWD773 (BOM: P1110501W W)

Save Part Not Listed?
product name

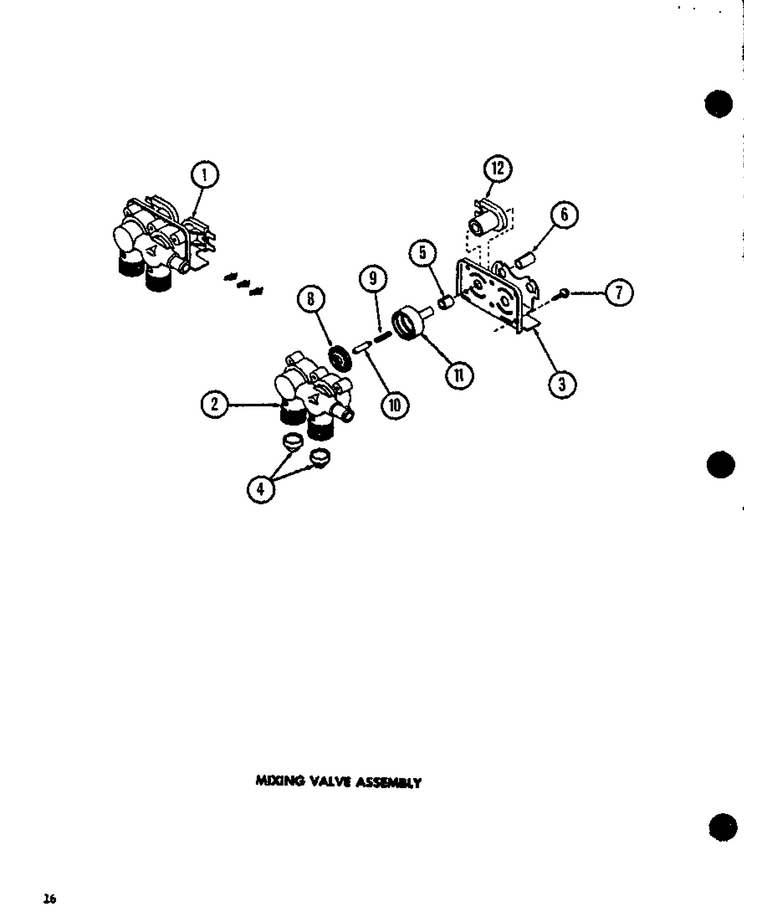

01 - Mixing Valve Assy

...
...
NI
Enclosure, Mixing Valve WPL-R-0603602
...
1
Mixing Valve Assy WPL-R0606006
...
2
Valve Body WPL-R0606003
...
3
Valve,mixing WPL-R0605515
...
4
Strainer- WPL-WP22002960
...
5
Sleeve Short WPL-R0603508
...
6
Sleeve Long WPL-R0603510
...
7
Screw WPL-R0600013
...
8
Diaphram WPL-R0606506
...
9
Spring WPL-R0605509
...
10
Armature WPL-R0605511
...
11
Armature Guide WPL-R0605513
...
12
Solenoid WPL-R0609004
