Amana LWD650 (BOM: P7804704W W)

Model: LWD650 (BOM: P7804704W W)

Save Part Not Listed?
product name

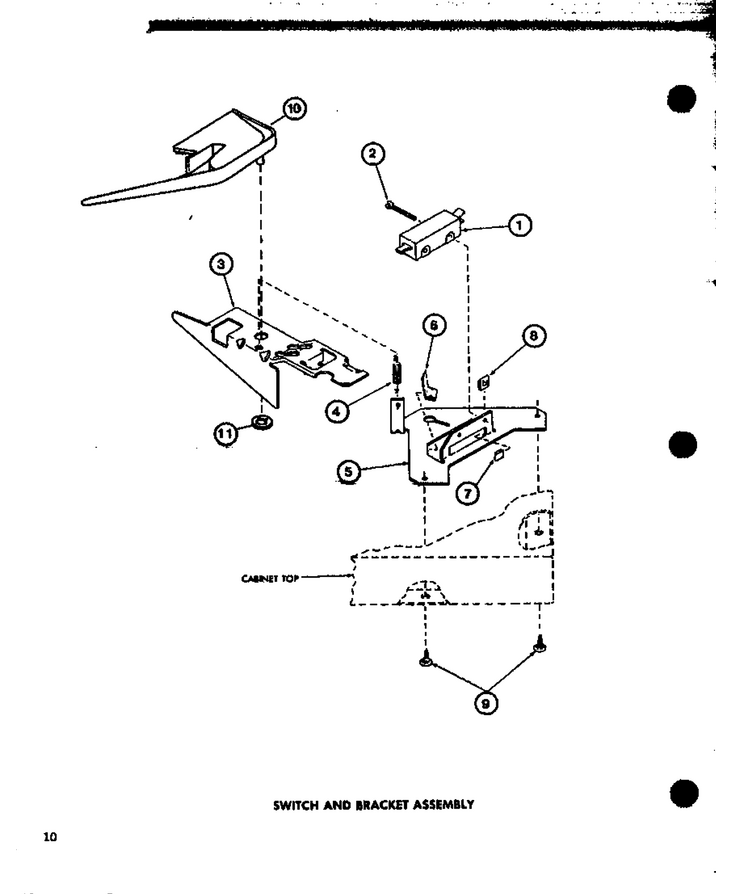

09 - Switch And Bracket Assy

...
...
1
Switch WPL-R0602507
...
2
Screw,6-32 X 1 Round H WPL-Q6516
...
3
Lever,out-Of-Bal Switc WPL-27602
...
4
Spring WPL-R0605506
...
5
Bracket WPL-R0605505
...
6
U-Clip WPL-R0601503
...
7
U-Clip WPL-R0601504
...
8
Nut WPL-R0601006
...
9
Screw WPL-WP489464
...
10
Switch Shield WPL-R0605671
...
11
Nut WPL-R0601032

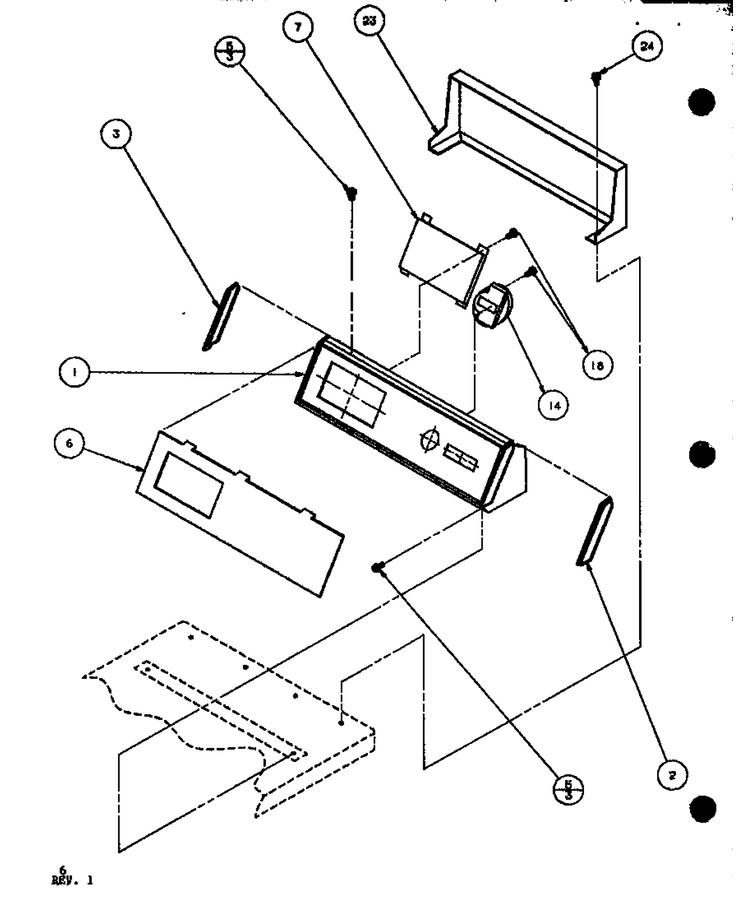

05 - Page 1

...
...
1
Control Hood WPL-R0605687
...
2
End Cap R WPL-R0605690
...
3
End Cap L WPL-R0605689
...
5
Screw WPL-R0600095
...
6
Graphics Panel WPL-R0603133
...
7
Electronic Control WPL-R0603134
...
14
Switch Pressure WPL-R0602531
...
18
Screw, No.8 X 3/8 Ind H WPL-31260
...
23
Panel, Rear WPL-R0603103
...
24
Screw WPL-WP90767

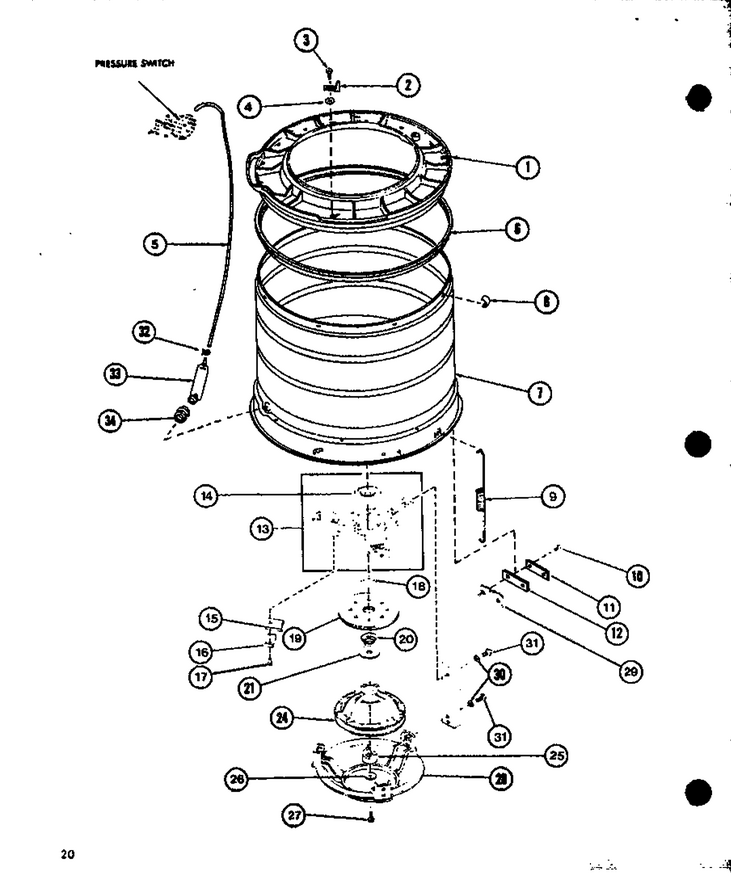

07 - Page 8

...
...
NI
Lubricant WPL-R0608008
...
1
Cover Outer Tub WPL-R0603571
...
2
Trigger WPL-R0605520
...
3
Screw WPL-R0600017
...
4
Lockwasher WPL-R0600517
...
5
Tubing,48 WPL-29214
...
6
Cover Gasket WPL-R0604506
...
7
Outer Tub WPL-R0603014
...
8
Clip,spring WPL-Y27017
...
9
Centering Spring WPL-R0605521
...
10
Screw WPL-W10856106
...
11
Plate,leg .063 WPL-27926
...
12
Leg Plate WPL-R0605523
...
13
Assy,bearing Housing-L WPL-35746
...
14
Bearing- M WPL-WP40004001
...
15
Pad-Brake WPL-R9900543
...
16
Brake Pad Shim WPL-R0605531
...
17
Screw,10-24 Shoulder WPL-26547
...
18
Spacer WPL-27176
...
19
Brake Assembly WPL-R9900474
...
20
Spring,conical WPL-33435
...
21
Washer WPL-R0600523
...
24
Kit-Pulley WPL-34232P
...
25
Helix WPL-27018
...
26
Washer WPL-WP40041501
...
27
Screw WPL-WP40063401
...
28
Pivot Dome WPL-R0605526
...
29
Leg,support WPL-27090
...
30
Lockwasher WPL-R0600519
...
31
Screw WPL-R0600025
...
32
Clamp WPL-WP596669
...
33
Assembly, Pressure Bulb WPL-40008501
...
34
Grommet WPL-40037801

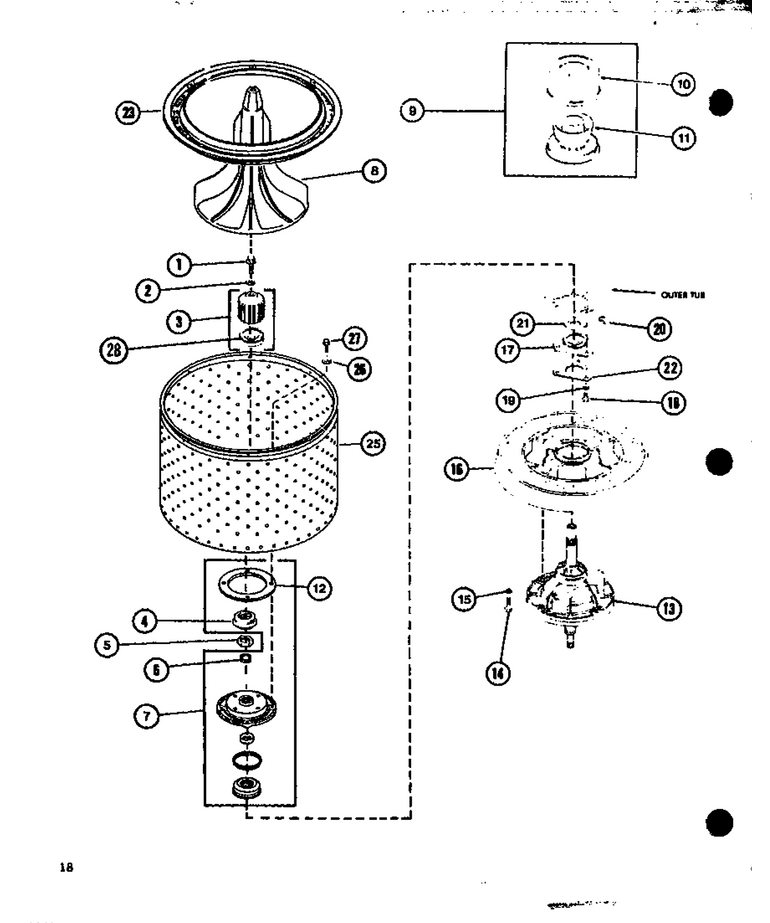

06 - Page 7

...
...
1
Screw WPL-R0600092
...
2
``o`` Ring Washer WPL-R0600554
...
3
Kit, Drive Bell And Seal WPL-R0603552
...
4
Low Post Seal Assy WPL-R0603553
...
5
Locknut WPL-R0601034
...
6
Insert WPL-WP40008301
...
7
Kit, Hub & Seal WPL-R0605675
...
8
Agitator WPL-R0603551
...
9
Sales Item Fd-2 WPL-R0603549
...
10
Sales Item Only (Dispenser) WPL-R0603515
...
11
Sales Item WPL-R0603550
...
12
Gasket WPL-R0604505
...
13
Transmission Assy WPL-R0607505
...
14
Screw WPL-R0600022
...
15
Lockwasher WPL-R0600520
...
16
Assy,balance Ring-Compl WPL-34731
...
17
Main Beari WPL-WP40004201P
...
18
Screw WPL-R0600021
...
19
Lockwasher WPL-R0600519
...
20
Nut WPL-R0601013
...
21
Flinger WPL-27187
...
22
Washer WPL-R0600518
...
23
Lint Filter WPL-33521
...
25
Wash Tub WPL-39252P
...
26
Gasket WPL-WP28094
...
27
Screw WPL-WP3400527
...
28
Kit, Drive Bell And Seal WPL-R0603509

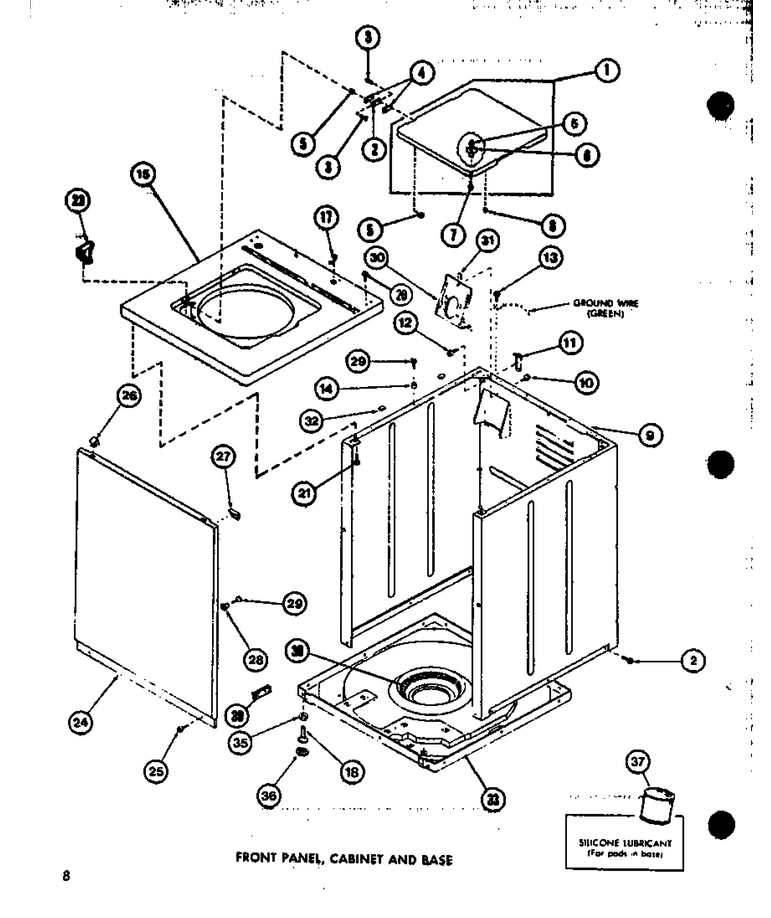

01 - Front Panel

...
...
1
Door-Loading WPL-R0603124
...
2
Door Hinge WPL-R0605502
...
3
Screw WPL-R0600007
...
4
Hinge Gasket WPL-R0604502
...
5
Nylon Nut WPL-R0601002
...
6
Actuator, Door Switch WPL-R0603504
...
7
Screw & Lockwasher WPL-R0600008
...
8
Bumper WPL-R0606501
...
9
Cabinet-Gold WPL-R0603102
...
10
Screw WPL-R0600009
...
11
Hinge,hold-Down Lug WPL-Y27103
...
12
Screw WPL-WP3390631
...
13
Screw WPL-WP489464
...
14
Locator, Panel WPL-505187
...
15
Top W/ Blch Disp WPL-R0603561
...
17
Grommet, Cord WPL-211881
...
18
Leg, Adjustable (W/nut) WPL-22003428
...
20
Screw WPL-R0600040
...
21
Screw WPL-31644
...
23
Dispenser,bleach WPL-34776
...
24
Front Panel H Gold WPL-R0603051
...
25
Screw WPL-WP27001200
...
26
Fastener- WPL-WP22001650
...
27
Protector WPL-R0603526
...
28
Locater Lug WPL-R0603525
...
29
Screw WPL-WPY014874
...
30
Bracket, Valve WPL-39407
...
31
Speed Nut WPL-R0601007
...
32
Pad, Bumper WPL-Y56128
...
33
Assy,base-Complete-G90 WPL-31653P
...
35
Nut- Lock WPL-WP210385
...
36
Rubber Pad WPL-R0606518
...
37
Grease WPL-WP26594P
...
38
Kit,snubber Pad WPL-434P3
...
39
Adhesive,3m-1300-5 Oz. WPL-22506P

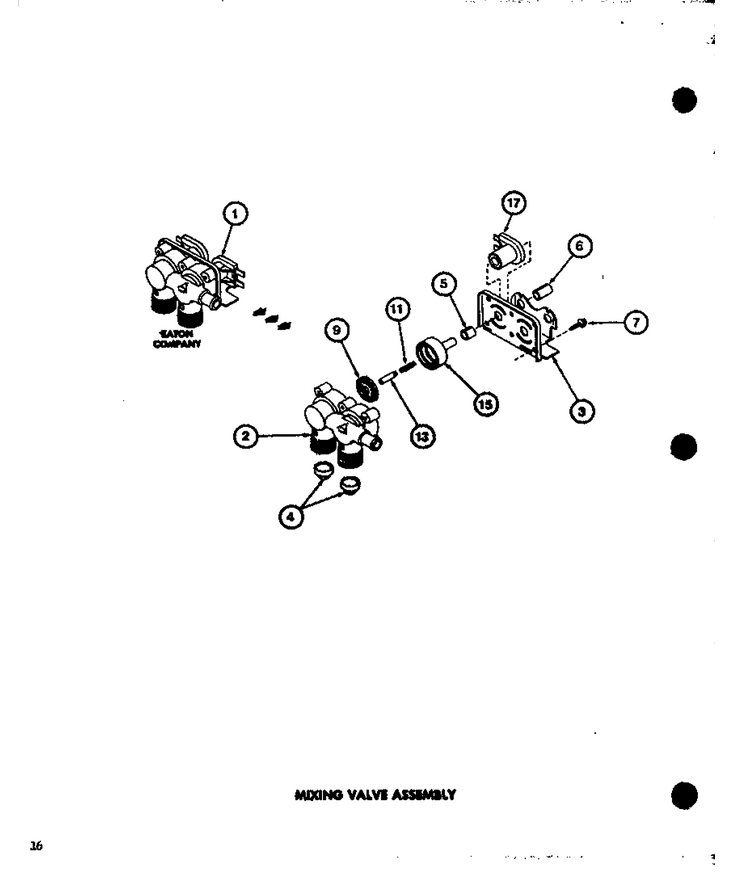

03 - Mixing Valve Assy

...
...
1
Mixing Valve WPL-R0606001
...
2
Valve Body WPL-R0606003
...
3
Valve,mixing WPL-R0605515
...
4
Strainer- WPL-WP22002960
...
5
Sleeve Short WPL-R0603508
...
6
Sleeve Long WPL-R0603510
...
7
Screw WPL-R0600013
...
9
Diaphram WPL-R0606506
...
11
Spring WPL-R0605509
...
13
Armature WPL-R0605510
...
15
Armature Guide WPL-R0605513
...
17
Valve,mixing WPL-R0609001

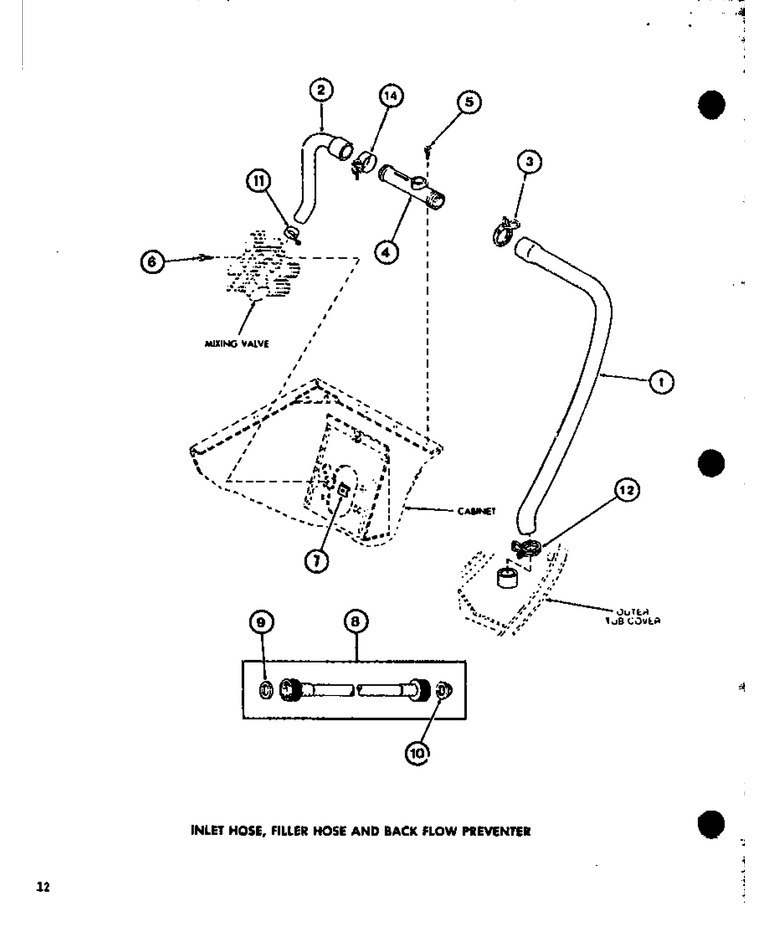

02 - Inlet Hose

...
...
1
Hose WPL-R0606548
...
2
Hose,mixing Valve WPL-27183
...
3
Clamp WPL-WP285655
...
4
Syphon Break WPL-R0605507
...
5
Screw WPL-WP90767
...
6
Screw WPL-R0600009
...
7
Speed Nut WPL-R0601007
...
8
Inlet Hose Assy. WPL-202860
...
9
Gasket- In WPL-WPY013783
...
10
Strainer- WPL-WP22002960
...
11
Clamp WPL-WP285655
...
12
Hose Clamp WPL-29210
...
14
Clamp WPL-WP285655

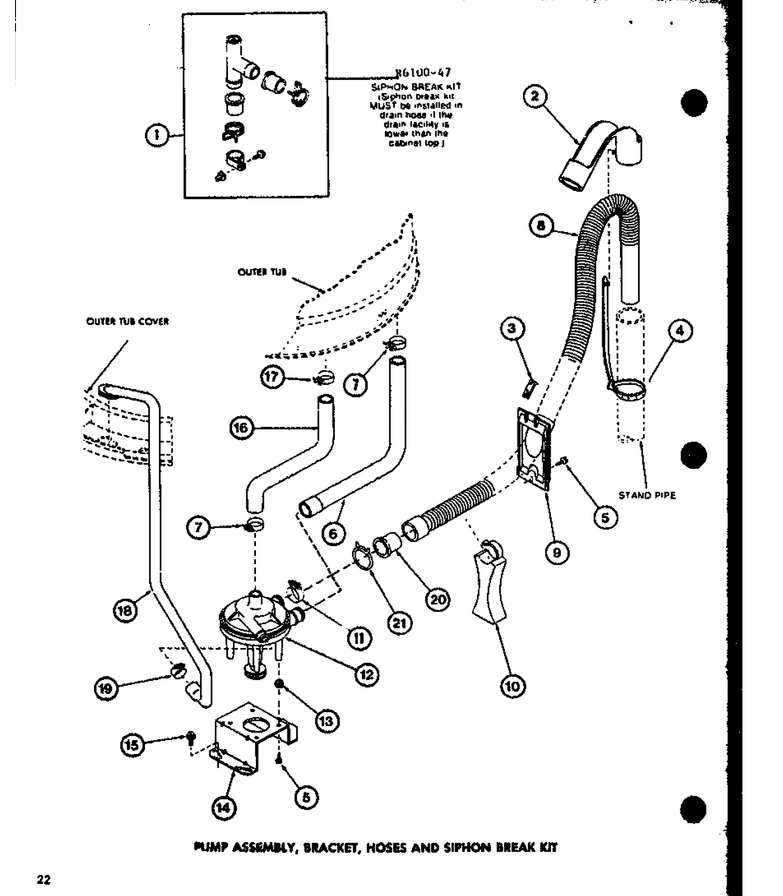

08 - Pump Assy

...
...
1
Break-Sphn WPL-76660
...
2
Drain Hose Sleeve WPL-R0603546
...
3
Clip, Hose Retainer WPL-R0601545
...
4
Tie Down Strap WPL-R0603548
...
5
Screw WPL-WP27001200
...
6
Hose,tub To Pump-Drain WPL-27160
...
7
Clamp WPL-WP285655
...
8
Hose- Drai WPL-39952
...
9
Hose Retainer WPL-R0603544
...
10
Hose Support WPL-R0603547
...
11
Clamp WPL-WP285655
...
12
Assy, Pump Na WPL-31968
...
13
Nut WPL-R0601014
...
14
Pump Mtg Bracket WPL-R0605524
...
15
Screw WPL-WP27001200
...
16
Hose WPL-R0606513
...
17
Clamp WPL-WP285655
...
18
Recirculating Hose WPL-R0606512
...
19
Clamp WPL-WP285655
...
20
Hose Adapter WPL-R0603545
...
21
Hose Clamp WPL-R0601544

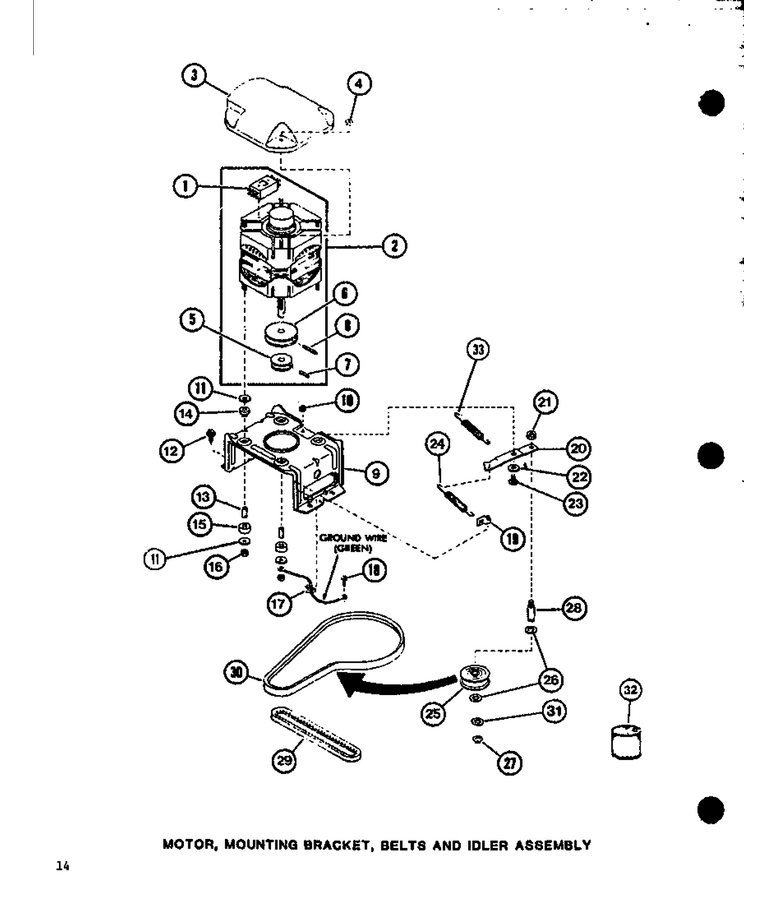

04 - Motor

...
...
1
24139 Switch WPL-R0602508
...
2
Assembly, Motor WPL-R0607002
...
3
Shield,motor WPL-27136
...
4
Locknut WPL-R0601008
...
5
Pulley,motor WPL-Y27104
...
6
Pulley, Motor WPL-R0609502
...
7
Roll Pin WPL-R0601508
...
8
Roll Pin WPL-R0601509
...
9
Motor Mtg Bracket WPL-R0605514
...
10
Nut WPL-WPW10139757
...
11
Washer WPL-R0600510
...
12
Screw WPL-WP27001200
...
13
Spacer WPL-R0603511
...
14
Rubber Mtg WPL-R0606509
...
15
Rubber Mtg WPL-R0606510
...
16
Nut,hex 10-32 Lock WPL-23604
...
17
Ground Clip WPL-R0601507
...
18
Screw WPL-R0600017
...
19
Clip-Sprin WPL-WP28849
...
20
Lever, Idler WPL-R0605684
...
21
Nut WPL-WP358160
...
22
Spacer WPL-R0600506
...
23
Screw, 1/4-20 WPL-40038901
...
24
Spring- Id WPL-WP37366
...
25
Pulley, Idler WPL-R0609508
...
26
Washer, Felt WPL-R0600552
...
27
Ring- Reta WPL-WP23748
...
28
Idler Shaft WPL-R0605538
...
29
Belt-Pump WPL-WP27155
...
30
Belt-Agita WPL-WP28808
...
31
Washer WPL-WP233520
...
32
Hi Temp Lube WPL-R0608011
...
33
Spring, Helper WPL-R0605683
