Amana LW9103 (BOM: P1110503W W)

Model: LW9103 (BOM: P1110503W W)

Save Part Not Listed?
product name

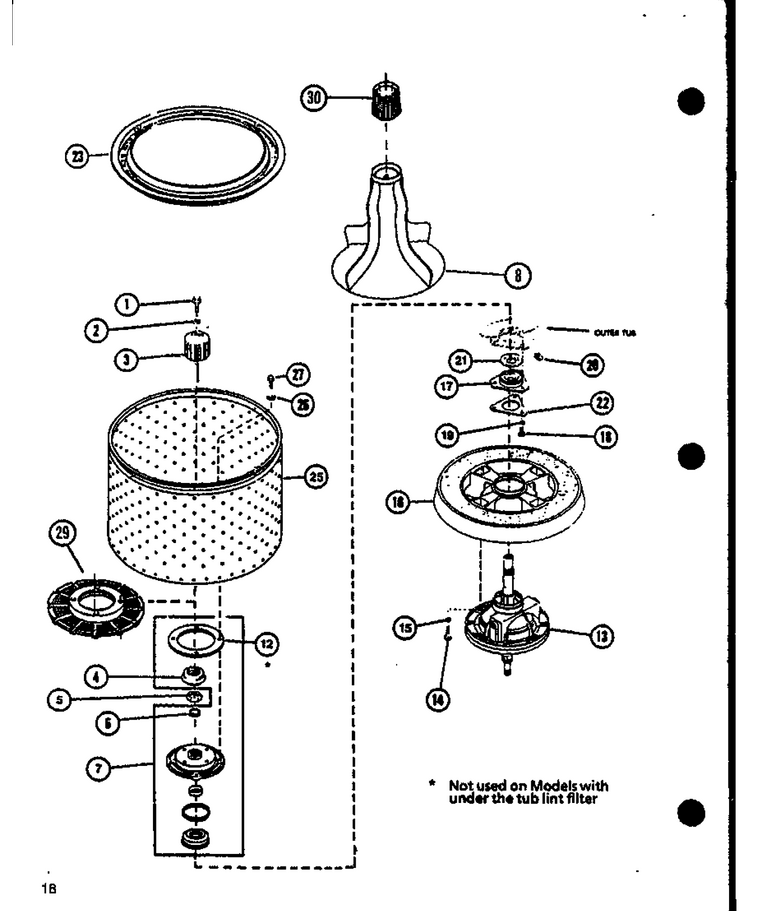

01 - Page 7

...
...
1
Shoulder Screw WPL-34288
...
2
O-Ring WPL-34289
...
3
Drive Bell WPL-34504
...
4
Hub And Transmission Tube Seal WPL-34184
...
5
Locknut WPL-Y29220
...
6
Insert WPL-WP40008301
...
7
Hub & Seal Kit WPL-495P3
...
8
Agitator WPL-33174
...
12
Gasket WPL-27125
...
13
Transmission Assembly WPL-33227
...
14
Cap Screw WPL-27200
...
15
Washer WPL-27016
...
16
Assy,balance Ring-Compl WPL-34731
...
17
Main Beari WPL-WP40004201P
...
18
Screw WPL-01355
...
19
Lockwasher,5/16 Ext Sh WPL-02834
...
20
Nut,retainer 5/16-18 WPL-27222
...
21
Flinger WPL-27187
...
22
Washer,bearing Housing WPL-27166
...
23
Guard, Clothes WPL-35035
...
25
Washtub, Stainless Steel WPL-332-45
...
26
Gasket WPL-WP28094
...
27
Screw WPL-WPW10116787
...
29
Filter Lin WPL-39371
...
30
Fabric Softener Dispenser WPL-34155
