Amana LW3903W (BOM: P1110506W W)

Model: LW3903W (BOM: P1110506W W)

Save Part Not Listed?
product name

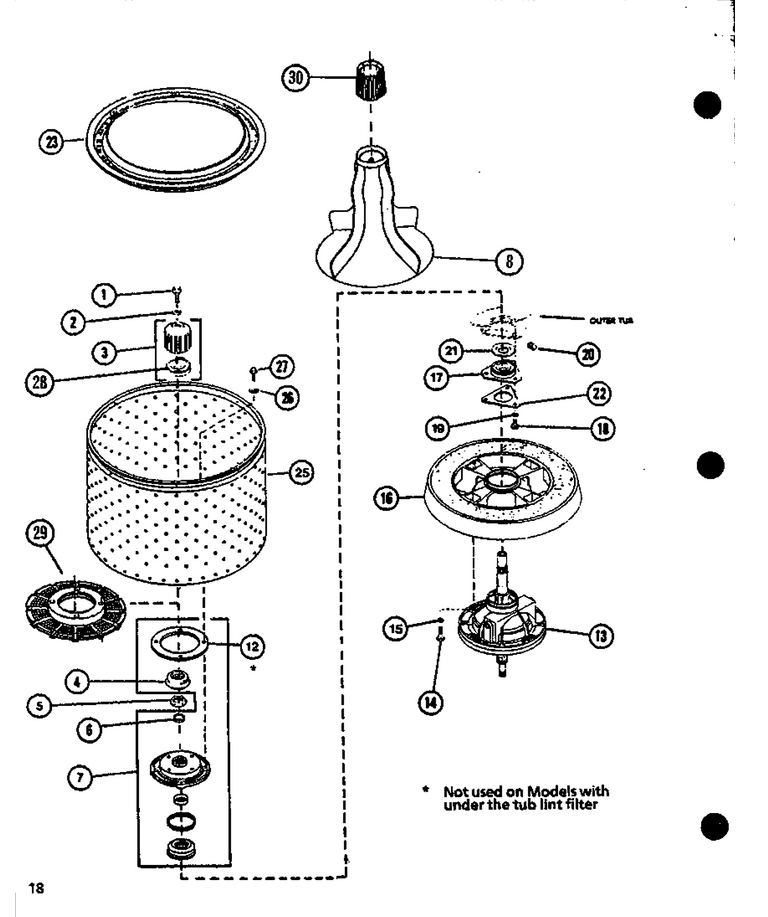

01 - Page 7

...
...
1
Screw WPL-R0600092
...
2
``o`` Ring Washer WPL-R0600554
...
3
Kit, Drive Bell And Seal WPL-R0603552
...
4
Low Post Seal Assy WPL-R0603553
...
5
Locknut WPL-R0601034
...
6
Insert WPL-WP40008301
...
7
Hub & Seal Assy WPL-R0605723
...
8
Agitator WPL-R0603624
...
12
Gasket WPL-R0604505
...
13
Transmission Assy WPL-R0607505
...
14
Screw WPL-R0600022
...
15
Lockwasher WPL-R0600520
...
16
Assy,balance Ring-Compl WPL-34731
...
17
Main Beari WPL-WP40004201P
...
18
Screw WPL-R0600021
...
19
Lockwasher WPL-R0600519
...
20
Nut WPL-R0601013
...
21
Flinger WPL-27187
...
22
Washer WPL-R0600518
...
23
Guard, Clothes WPL-35035
...
25
Wash Tub WPL-R0603211
...
26
Gasket WPL-WP28094
...
27
Screw WPL-WP3400527
...
28
Kit, Drive Bell And Seal WPL-R0603509
...
29
Filter Lin WPL-39371
...
30
Dispenser, Fabric Softner WPL-R0603625
