Amana LW3502W2 (BOM: PLW3502W2 A)

Model: LW3502W2 (BOM: PLW3502W2 A)

Save Part Not Listed?
product name

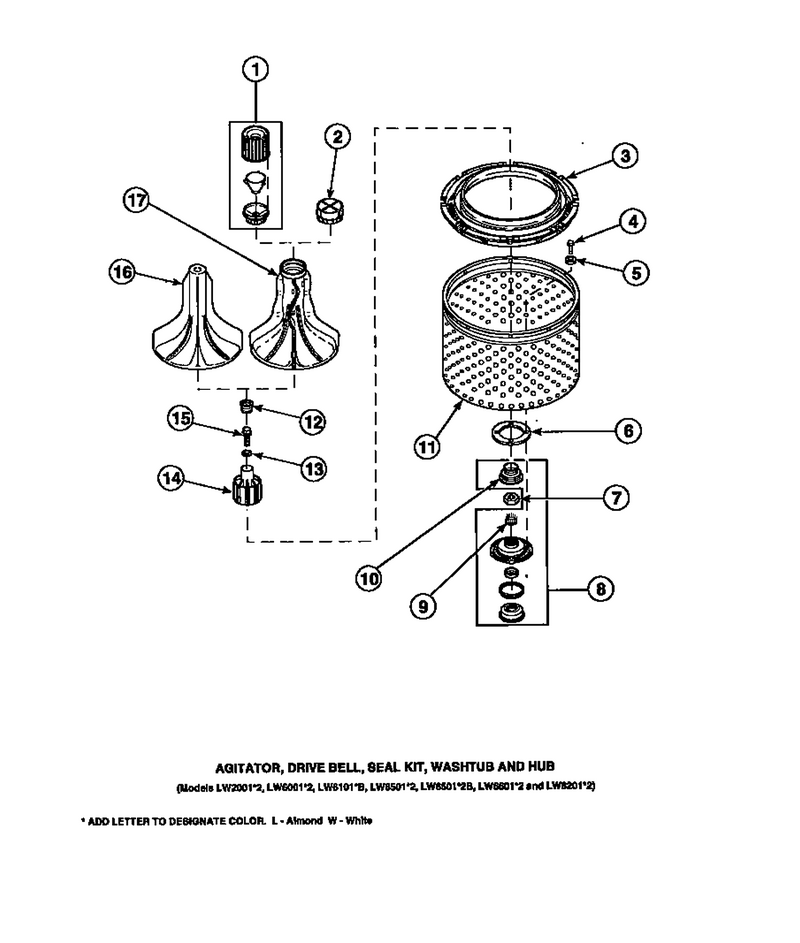

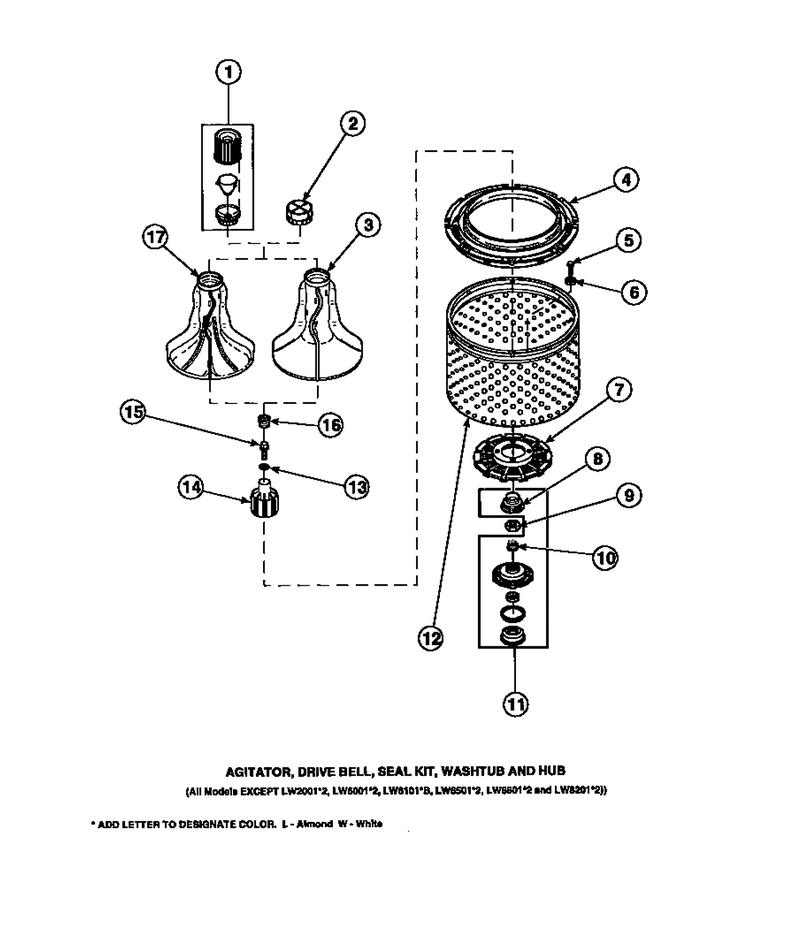

02 - Agitator/drive Bell/seal Kit/tub & Hub

...
...
1
Fabric Softener Dispenser WPL-36542
...
2
Cap, Agitator WPL-36515
...
3
Guard, Clothes WPL-35035
...
4
Screw WPL-WPW10116787
...
5
Gasket WPL-WP28094
...
7
Locknut WPL-Y29220
...
8
Hub & Seal Kit WPL-495P3
...
9
Insert WPL-WP40008301
...
10
Seal WPL-36425
...
12
Plug, Bell WPL-40008401
...
13
O-Ring WPL-36472
...
15
Shoulder Screw WPL-34288
...
16
Agitator,short-Coin WPL-33513
...
17
Agitator WPL-33174

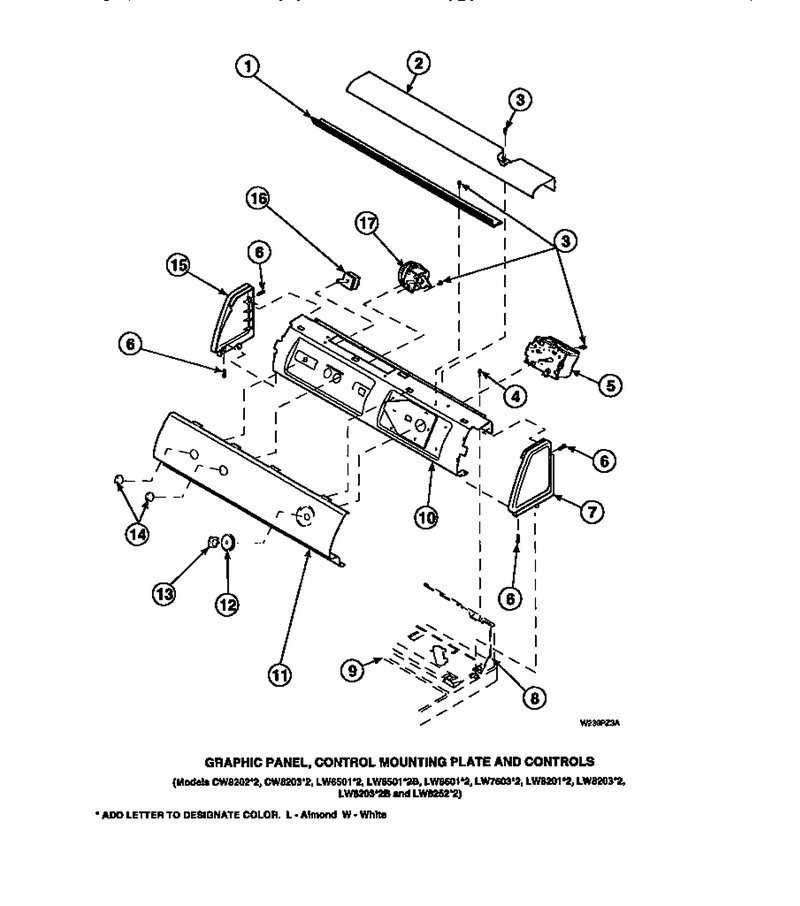

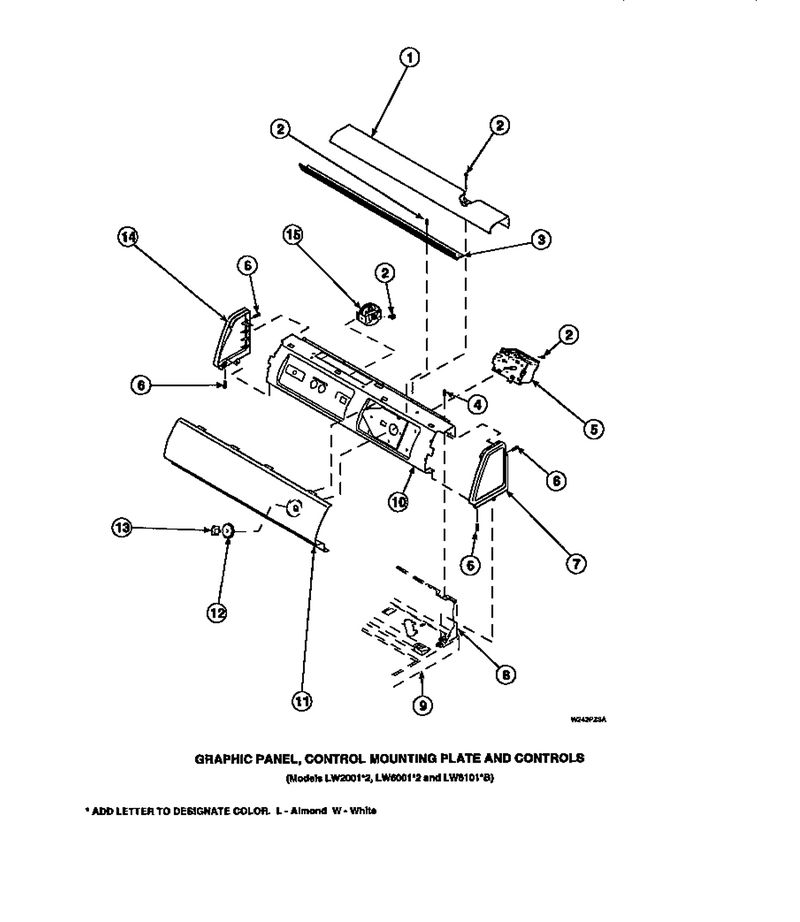

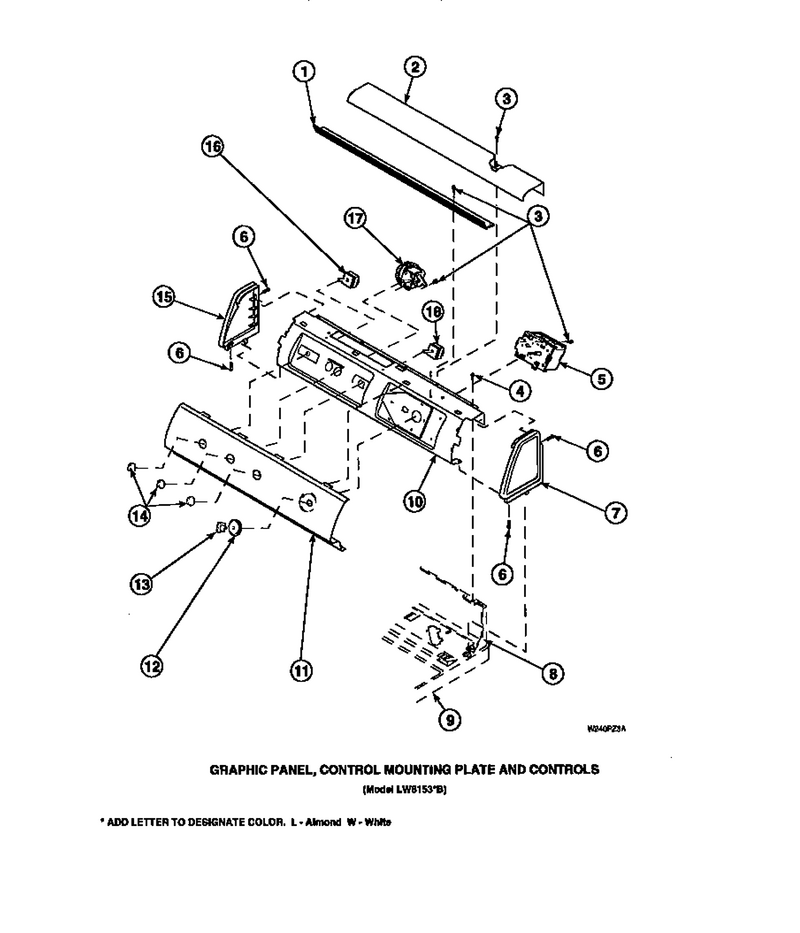

09 - Graphic Panel, Ctrl Mtg Plate And Ctrls

...
...
1
Diffuser,lamp-Clear WPL-Y34826
...
2
Cover, Top WPL-34823
...
3
Screw WPL-WP90767
...
4
Screw WPL-W11233072
...
5
Timer,3 Cycle WPL-31239
...
6
Screw WPL-WP90767
...
7
Panel, End R.h. (Blk) WPL-34815
...
8
Panel, Back Hood (Use 37782) WPL-34903
...
9
Top WPL-34902_P
...
10
Control Mounting Plate WPL-34821
...
11
Panel, Graphics WPL-36865
...
12
Terminal WPL-98812
...
13
Knob-Timer WPL-WP34844
...
14
Assy,knob-Rotary WPL-34847
...
15
Panel, End (Blk,l.h.) WPL-34816
...
16
Switch,temperature 3 P WPL-35115
...
17
Pressure Switch WPL-36045

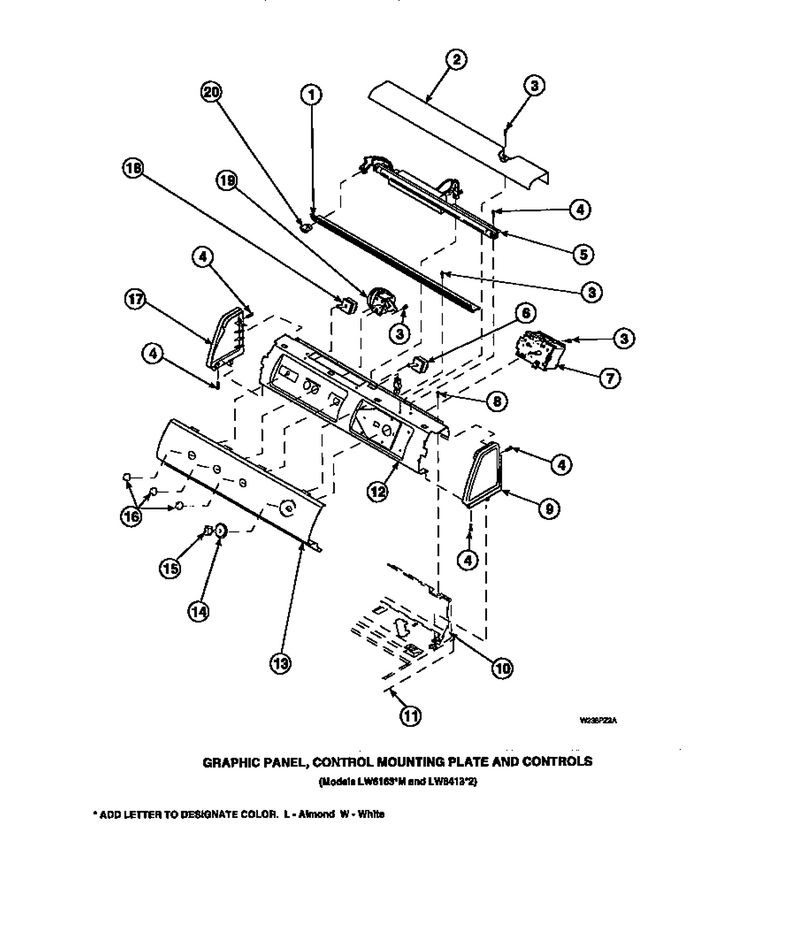

11 - Graphic Panel, Ctrl Mtg Plate And Ctrls

...
...
1
Diffuser,lamp-Clear WPL-Y34826
...
3
Screw WPL-WP90767
...
4
Screw WPL-W11233072
...
5
Timer, 4 Cycle WPL-36607
...
6
Screw WPL-WP90767
...
8
Panel, Back Hood (Use 37782) WPL-34903
...
9
Top WPL-34902_P
...
10
Control Mounting Plate WPL-34821
...
11
Panel, Graphics WPL-36611
...
17
Pressure Switch WPL-36045

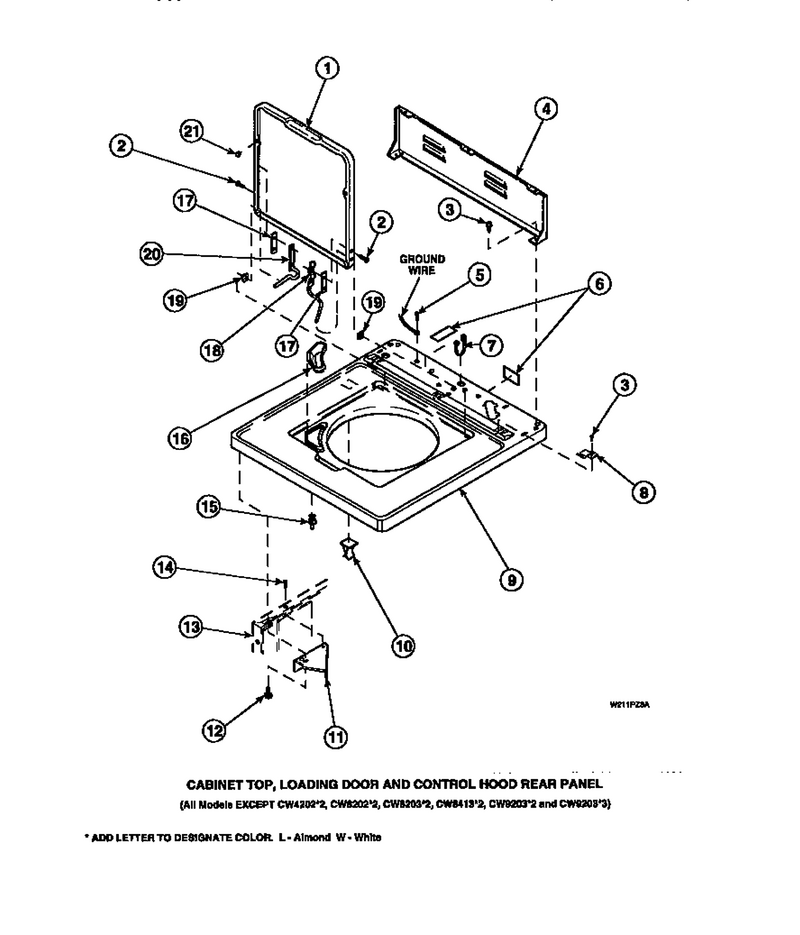

06 - Cab Top/loading Dr & Ctrl Hood Rear Pan

...
...
NI
Grease WPL-WP26594P
...
1
Lid WPL-33541_P
...
2
Screw WPL-WPW10119828
...
3
Screw WPL-WP90767
...
4
Panel, Back Hood (Use 37782) WPL-34903
...
5
Screw,10b-16 X 1/2 Hex WPL-52909
...
6
Sticker,disconnect Pow WPL-24903
...
7
Grommet, Cord WPL-211881
...
8
Clip, Hold Down WPL-40063901
...
9
Top WPL-34902_P
...
10
Clip WPL-36519
...
11
Bracket,director-Module WPL-36034
...
12
Screw WPL-WP27001200
...
13
Cabinet WPL-34475_P
...
14
Screw,8-18x3/8 Phil Flt Hd WPL-36035
...
15
Barrel,support WPL-56534
...
16
Dispenser,bleach WPL-34776
...
17
Gasket,hinge WPL-34338
...
18
Hinge, Lid R WPL-36437
...
19
Bushing WPL-33446
...
20
Hinge, Left WPL-36513
...
21
Bumper WPL-21685

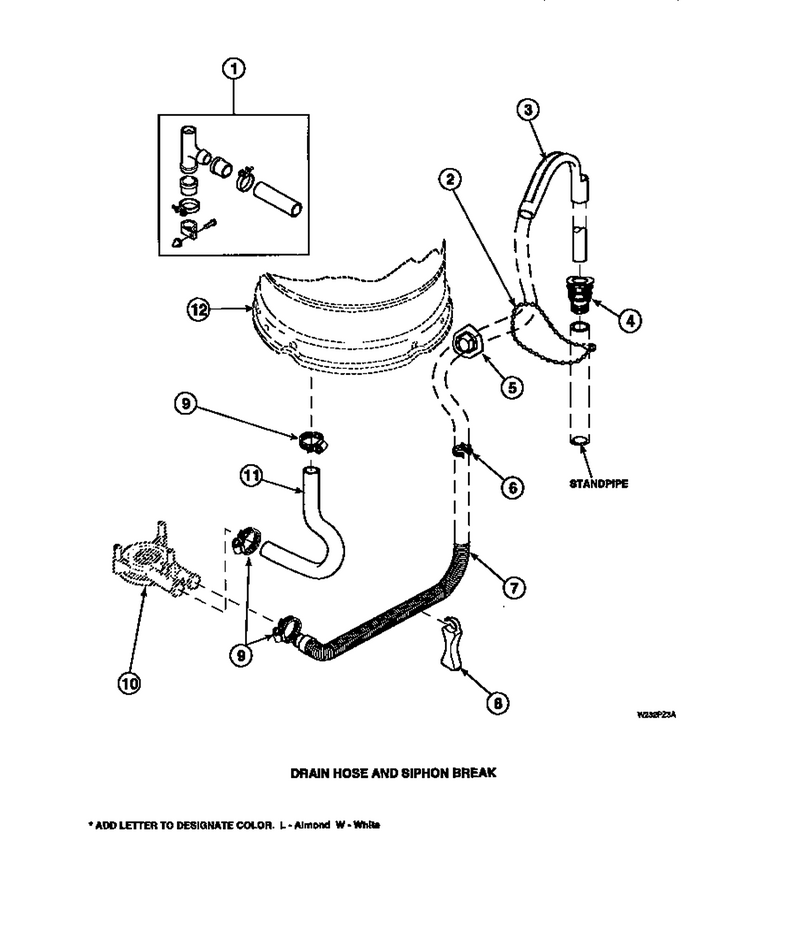

07 - Drain Hose And Siphon Break

...
...
1
Break-Sphn WPL-76660
...
2
Strap, Standpipe Bead WPL-33489
...
3
Sleeve, Drain Hose WPL-33615
...
4
Adapter, Standpipe WPL-40008101
...
5
Relief, Strain WPL-32219
...
6
Clip, Retainer-Hose WPL-36014
...
7
Hose- Drai WPL-WP40053901
...
8
Support,hose WPL-35487
...
9
Clamp WPL-WP285655
...
10
Pump Assembly WPL-36863P
...
11
Hose,tub To Pump-Ddp WPL-35753
...
12
Outer Tub WPL-34439P

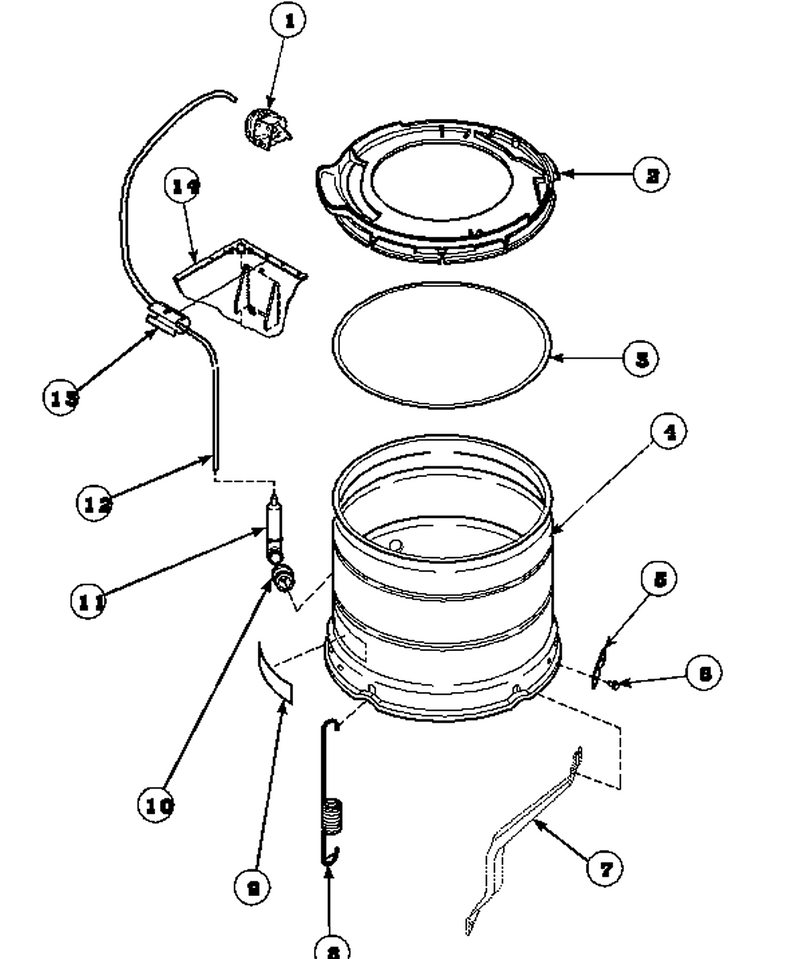

21 - Outer Tub, Cover And Pressure Hose

...
...
1
Pressure Switch WPL-36045
...
2
Assy, Tub Cover& Gasket WPL-36025P
...
3
Gasket,tub Cover Small WPL-32857
...
4
Assy, Outer Tub WPL-34438P
...
5
Plate,leg .063 WPL-27926
...
6
Screw WPL-W10856106
...
7
Leg,support WPL-34471
...
8
Spring,leg-Large Tub WPL-35948
...
9
Sticker WPL-500049
...
10
Grommet WPL-40037801
...
11
Assembly, Pressure Bulb WPL-40008501
...
12
Tubing WPL-39125
...
13
Clip, Hose WPL-36985
...
14
Cabinet WPL-34475_P

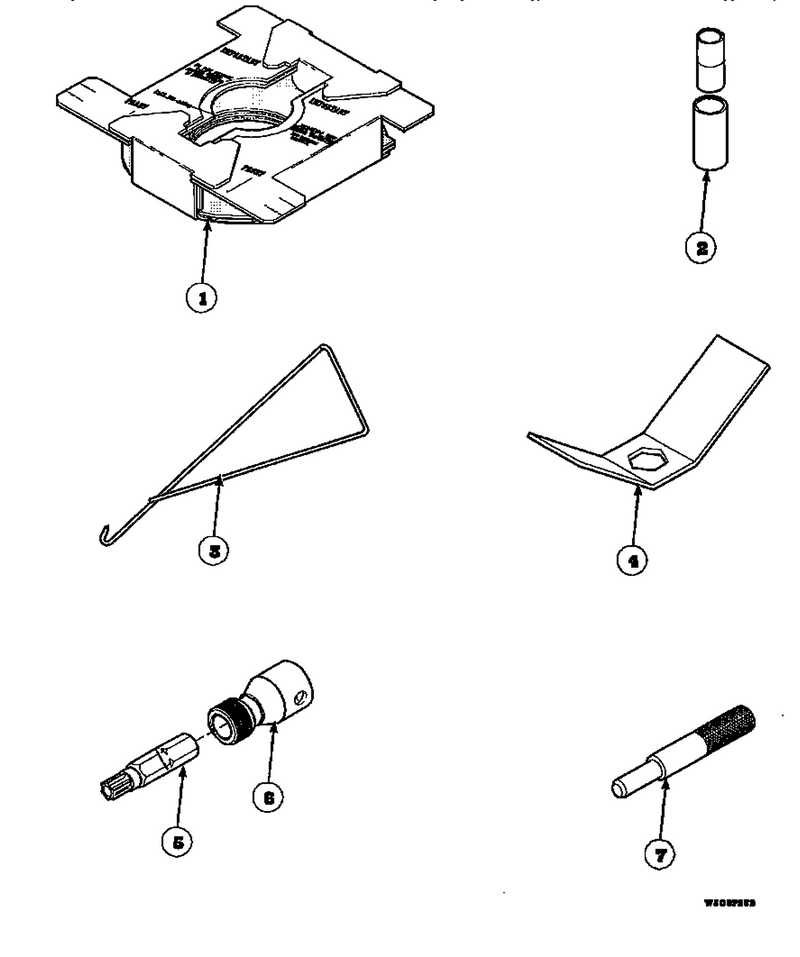

24 - Special Tools

...
...
NI
Kit, Tool WPL-555P3
...
1
Brace, Shipping WPL-36926
...
2
Installer,spring WPL-242P4
...
3
Hook, Spring WPL-289P4
...
4
Hex Wrench WPL-237P4
...
5
T25 Tamper Resistant Bit WPL-282P4
...
6
Torx Bit Holder WPL-24161
...
7
Tool, Transmission Pi WPL-305P4

...
...
1
Valve-Mixi WPL-WP34963
...
2
Strainer- WPL-WP22002960

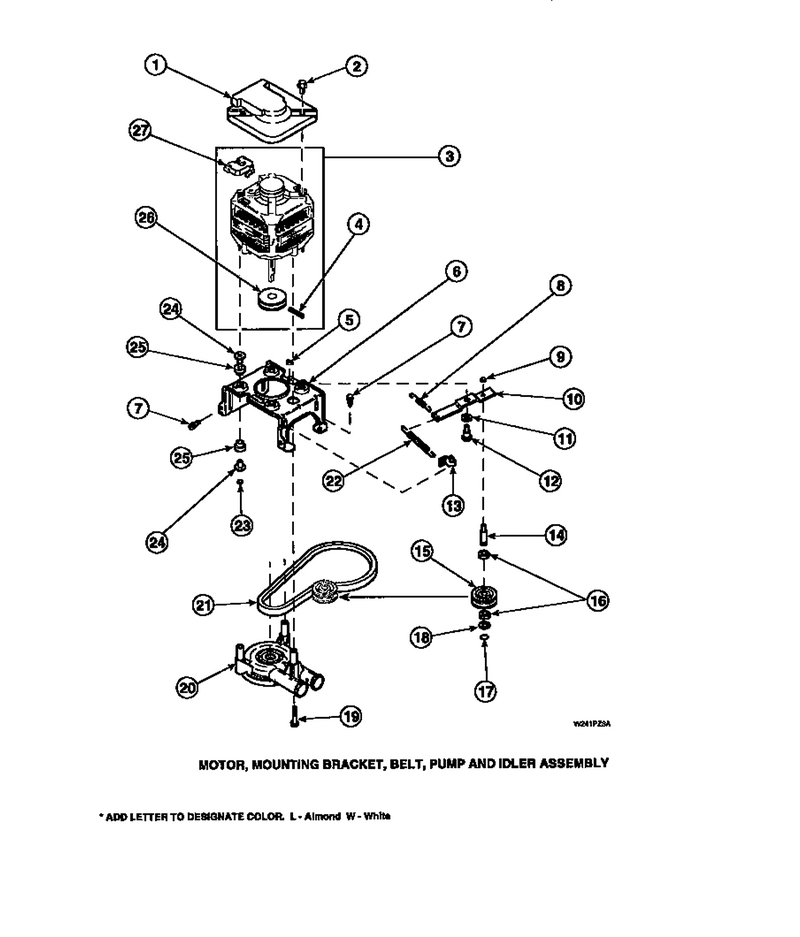

20 - Motor, Mtg Brkt, Belt, Pump & Idler Assy

...
...
1
Motor Shield WPL-34754
...
2
Screw WPL-WP4312464
...
3
Motor WPL-34571P
...
4
Pin,roll WPL-23750
...
5
Nut WPL-WPW10139757
...
6
Bracket,motor Mount WPL-34890
...
7
Screw WPL-WP27001200
...
8
Spring,idler Lever Hel WPL-30620
...
9
Clamp WPL-W10833902
...
10
Lever,idler WPL-40041002
...
11
Washer WPL-81392
...
12
Screw, 1/4-20 WPL-40038901
...
13
Clip-Sprin WPL-WP28849
...
14
Shaft,idler WPL-28802
...
15
Wheel,idler WPL-28800
...
16
Washer,felt WPL-Y29443
...
17
Ring- Reta WPL-WP23748
...
18
Washer WPL-WP233520
...
19
Screw WPL-WP40063701
...
20
Pump Assembly WPL-36863P
...
21
Belt-Agita WPL-WP28808
...
22
Spring, Idler Lever WPL-37606
...
23
Nut WPL-WP3400029
...
24
Post,mount-Motor WPL-34791
...
25
Mount,motor WPL-34788
...
26
Pulley,motor WPL-27171
...
27
Switch, Motor WPL-35632

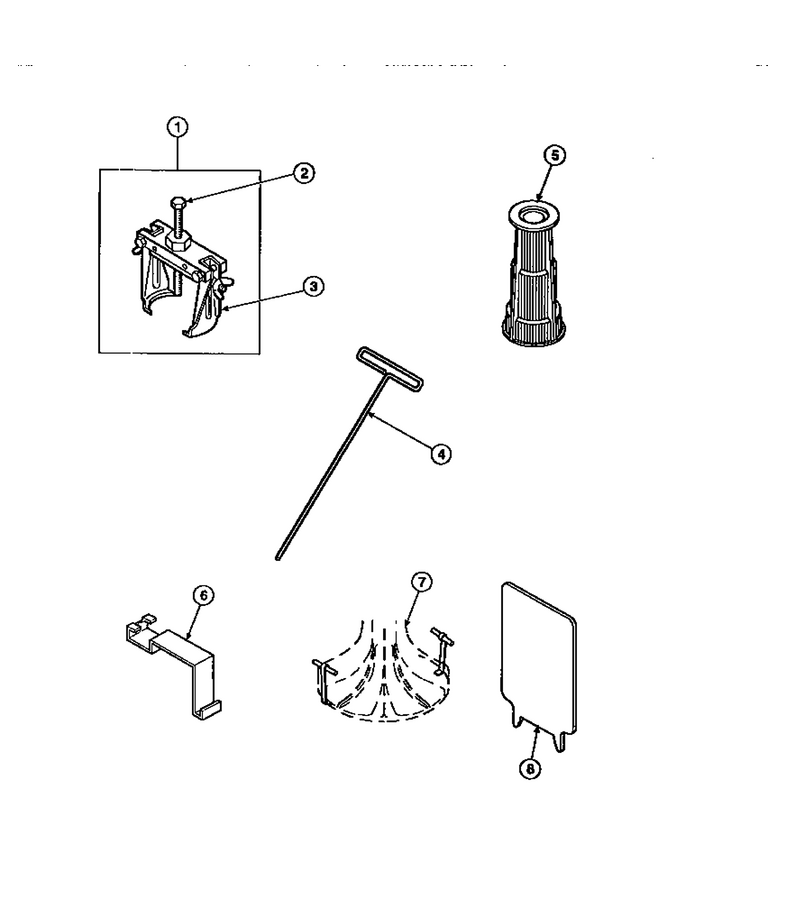

25 - Special Tools

...
...
NI
Kit, Tool WPL-555P3
...
1
Bell Tool WPL-294P4
...
2
Drive Bell Bolt WPL-294P4B
...
3
Jaw,drive Bell Tool WPL-294P4A
...
4
Wrench, T - Allen WPL-291P4
...
5
Seal Tool WPL-293P4
...
6
Tub Cover Gasket Tool WPL-273P4
...
7
Agitator Hooks WPL-254P4P
...
8
Tool,lid Switch Instal WPL-272P4

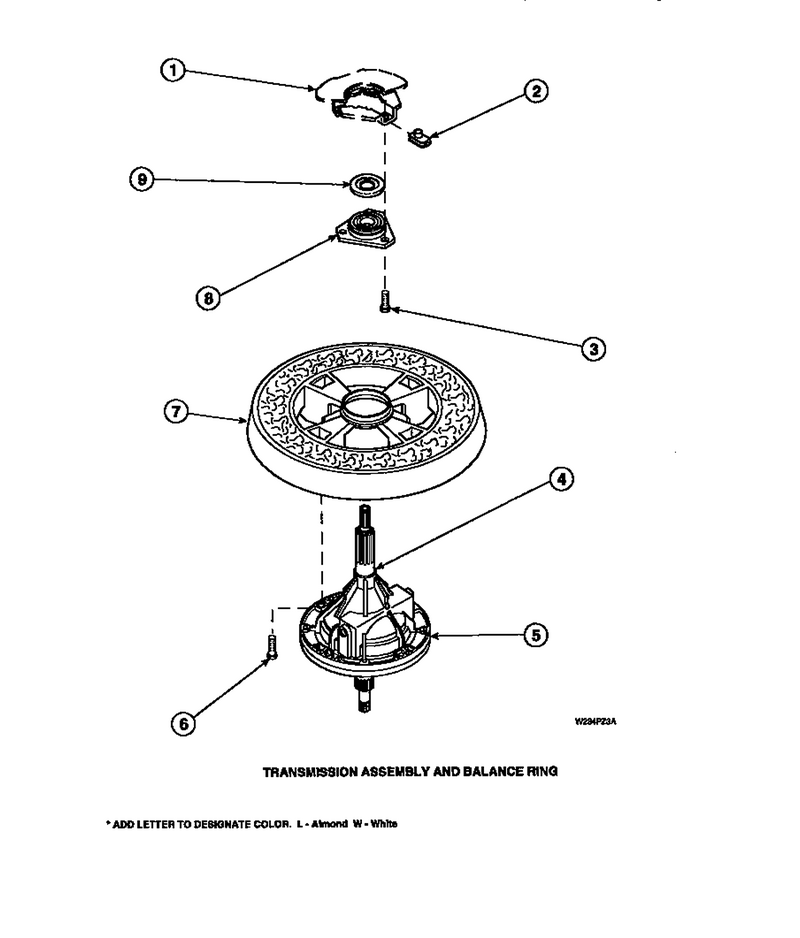

27 - Transmission Assy And Balance Ring

...
...
1
Assy, Outer Tub WPL-34438P
...
2
Nut,retainer 5/16-18 WPL-27222
...
3
Bolt, 5/16-18 X 3/4 WPL-3400500
...
4
Never-Seeze 1 Oz Tube WPL-27604P
...
5
Assy, Transmission WPL-34526P
...
6
Screw, Cap WPL-37047
...
7
Assy,balance Ring-Compl WPL-34731
...
8
Main Beari WPL-WP40004201P
...
9
Flinger WPL-27187

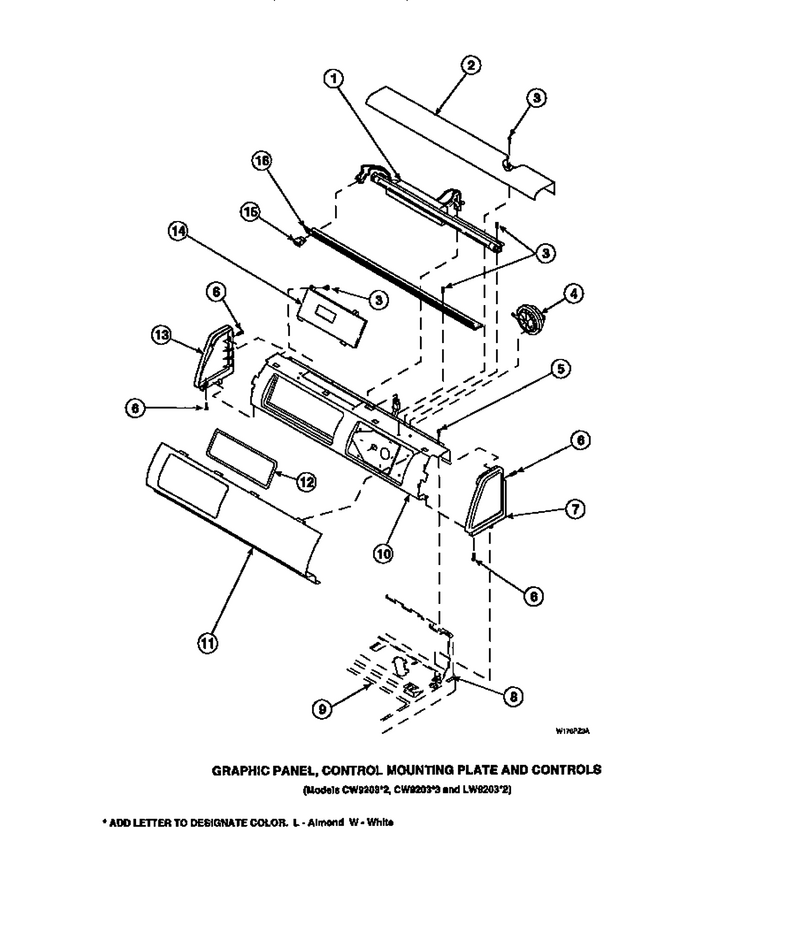

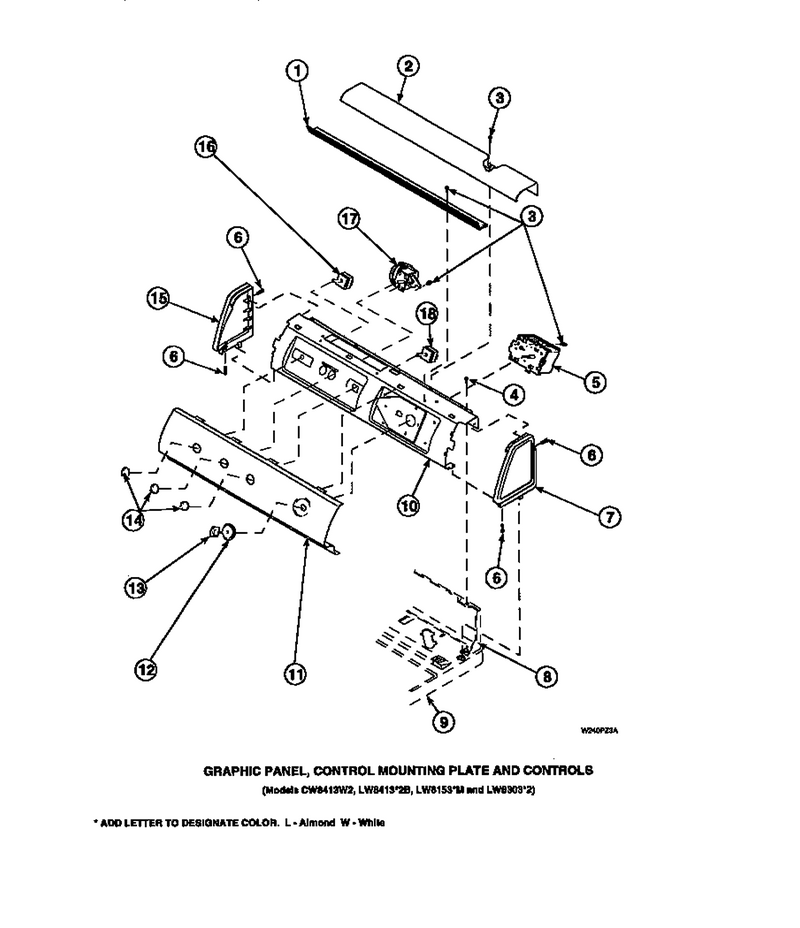

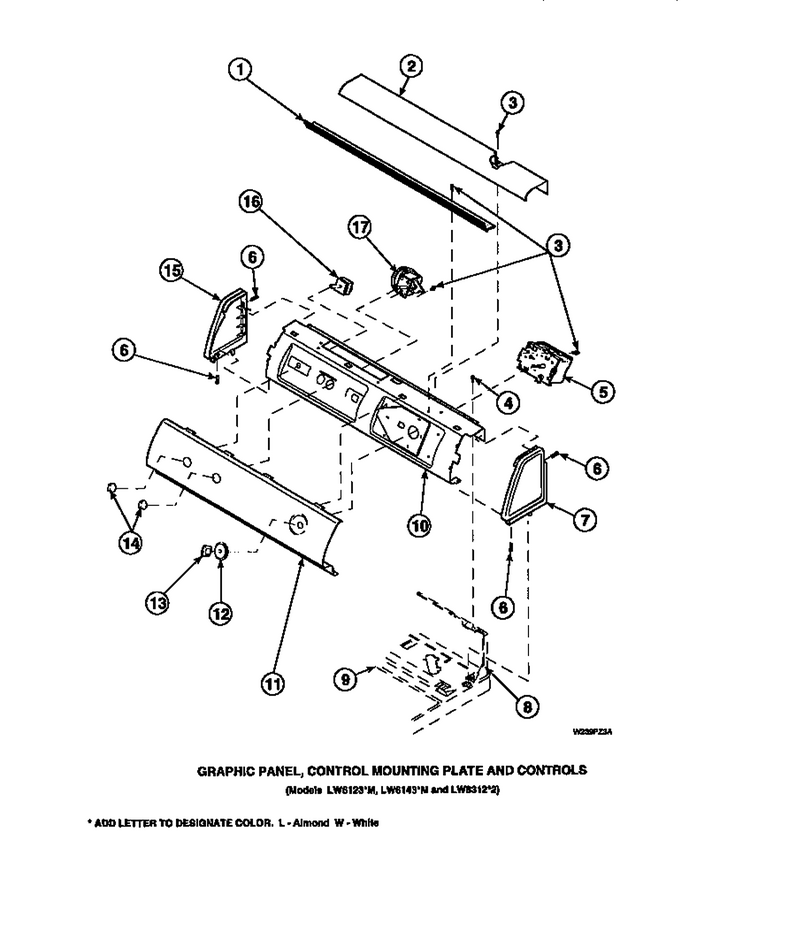

13 - Graphic Panel, Ctrl Mtg Plate And Ctrls

...
...
1
Cover, Top WPL-34823
...
2
Screw WPL-WP90767
...
3
Diffuser,lamp-Clear WPL-Y34826
...
4
Screw WPL-W11233072
...
6
Screw WPL-WP90767
...
7
Panel, End R.h. (Blk) WPL-34815
...
8
Panel, Back Hood (Use 37782) WPL-34903
...
9
Top WPL-34902_P
...
10
Control Mounting Plate WPL-34821
...
12
Assy,timer Skirt-Black WPL-33817
...
13
Knob,timer-Washer-Blac WPL-33897
...
14
Panel, End (Blk,l.h.) WPL-34816

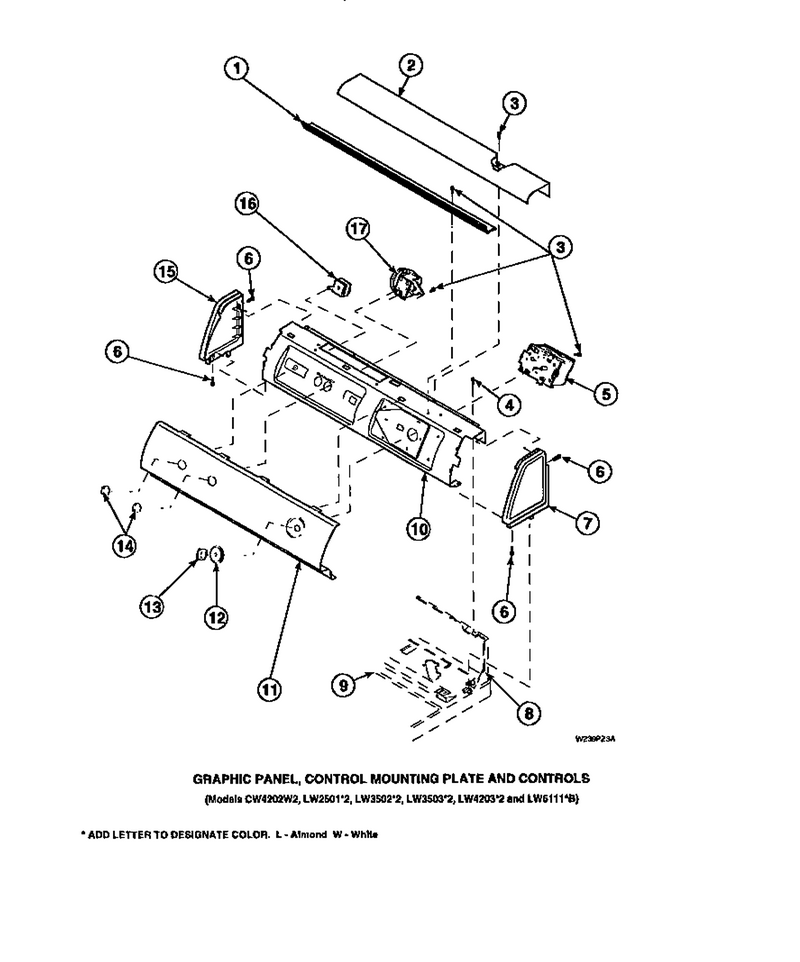

15 - Graphic Panel, Ctrl Mtg Plate And Ctrls

...
...
1
Diffuser,lamp-Clear WPL-Y34826
...
2
Cover, Top WPL-34823
...
3
Screw WPL-WP90767
...
4
Screw WPL-W11233072
...
6
Screw WPL-WP90767
...
7
Panel, End R.h. (Blk) WPL-34815
...
8
Panel, Back Hood (Use 37782) WPL-34903
...
9
Top WPL-34902_P
...
10
Control Mounting Plate WPL-34821
...
12
Terminal WPL-98812
...
13
Knob-Timer WPL-WP34844
...
14
Assy,knob-Rotary WPL-34847
...
15
Panel, End (Blk,l.h.) WPL-34816
...
17
Pressure Switch WPL-36045

03 - Agitator/drive Bell/seal Kit/tub & Hub

...
...
1
Fabric Softener Dispenser WPL-36542
...
2
Cap, Agitator WPL-36515
...
3
Agitator WPL-36507
...
4
Guard, Clothes WPL-35035
...
5
Screw WPL-WPW10116787
...
6
Gasket WPL-WP28094
...
7
Filter Lin WPL-39371
...
8
Seal WPL-36425
...
9
Locknut WPL-Y29220
...
10
Insert WPL-WP40008301
...
11
Hub & Seal Kit WPL-495P3
...
12
Kit- Wash WPL-R9900144
...
13
O-Ring WPL-36472
...
14
Drive Bell & Seal Kit WPL-36443P
...
15
Shoulder Screw WPL-34288
...
16
Plug, Bell WPL-40008401

10 - Graphic Panel, Ctrl Mtg Plate And Ctrls

...
...
1
Diffuser,lamp-Clear WPL-Y34826
...
3
Screw WPL-WP90767
...
4
Screw WPL-W11233072
...
5
Timer,3 Cycle WPL-31239
...
6
Screw WPL-WP90767
...
8
Panel, Back Hood (Use 37782) WPL-34903
...
9
Top WPL-34902_P
...
10
Control Mounting Plate WPL-34821
...
11
Panel, Graphics (White) WPL-37681W
...
16
Switch,temperature 3 P WPL-35115
...
17
Pressure Switch WPL-35010

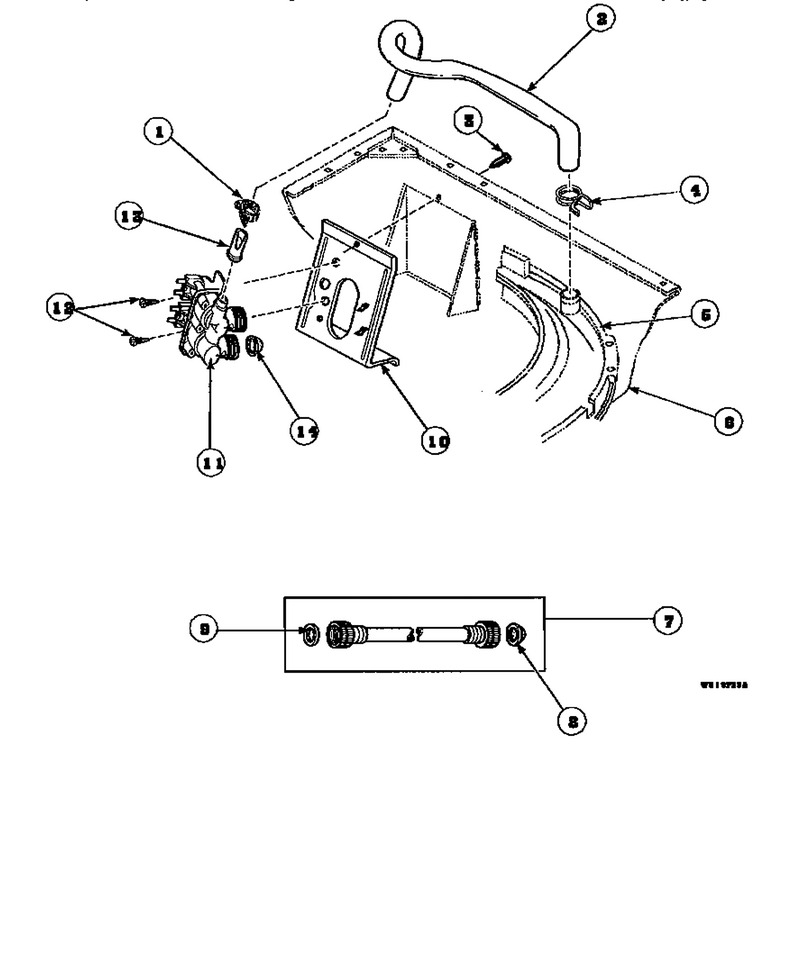

17 - Inlet/fill Hose & Mixing Vlv Mtg Brkt

...
...
1
Clamp WPL-WP596669
...
2
Hose,mix Valve To Tub WPL-35874
...
3
Screw WPL-WP27001200
...
4
Hose Clamp WPL-29210
...
5
Assy, Tub Cover& Gasket WPL-36025P
...
6
Cabinet WPL-34475_P
...
7
Hose-Fill WPL-350021
...
8
Strainer- WPL-WP22002960
...
9
Gasket- In WPL-WPY013783
...
10
Bracket, Valve WPL-39407
...
11
Valve-Mixi WPL-WP34963
...
12
Screw WPL-WP90767
...
13
Valve WPL-W10841299

14 - Graphic Panel, Ctrl Mtg Plate And Ctrls

...
...
1
Diffuser,lamp-Clear WPL-Y34826
...
3
Screw WPL-WP90767
...
4
Screw WPL-W11233072
...
5
Timer,3 Cycle WPL-31239
...
6
Screw WPL-WP90767
...
8
Panel, Back Hood (Use 37782) WPL-34903
...
9
Top WPL-34902_P
...
10
Control Mounting Plate WPL-34821
...
16
Switch,temperature 3 P WPL-35115
...
17
Pressure Switch WPL-36045

16 - Graphic Panel, Ctrl Mtg Plate And Ctrls

...
...
3
Screw WPL-WP90767
...
4
Screw WPL-WP90767
...
8
Screw WPL-W11233072
...
10
Panel, Back Hood (Use 37782) WPL-34903
...
11
Top WPL-34902_P
...
12
Control Mounting Plate WPL-34821
...
19
Pressure Switch WPL-36045

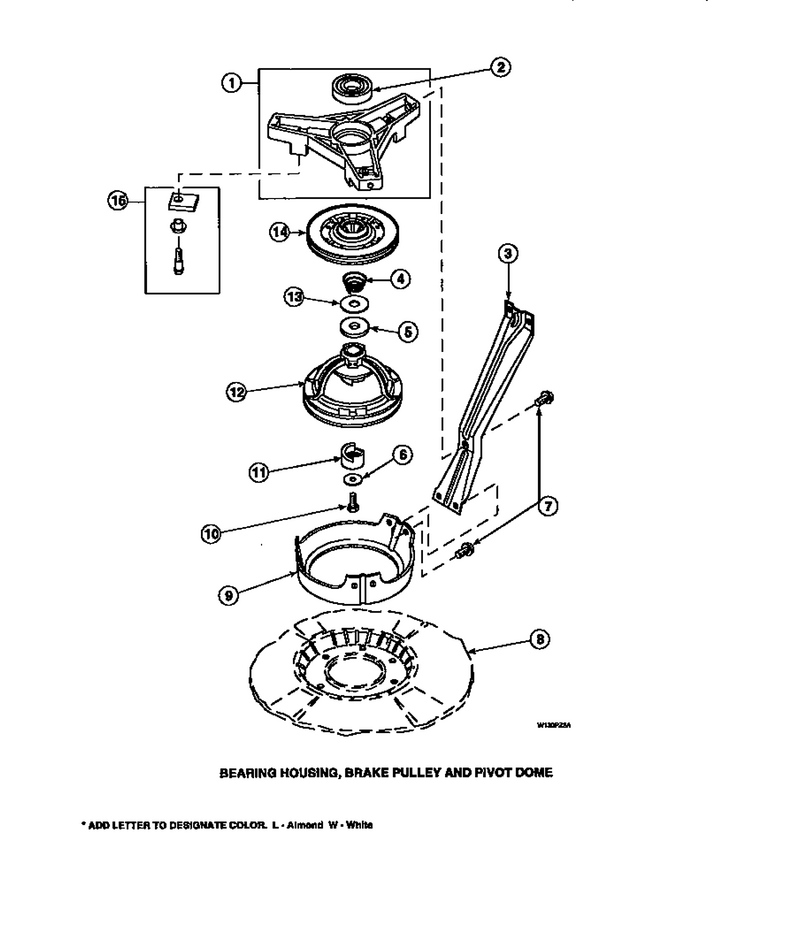

04 - Brg Hsg/brake Pulley & Pivot Dome

...
...
1
Assy,bearing Housing-L WPL-35746
...
2
Bearing- M WPL-WP40004001
...
3
Leg,support WPL-34471
...
4
Spring,conical WPL-33435
...
5
Washer WPL-27015
...
6
Washer WPL-WP40041501
...
7
Screw WPL-W10856106
...
8
Assy Nut/leg Base WPL-34434P
...
9
Dome,pivot WPL-34470
...
10
Screw WPL-WP40063401
...
11
Helix WPL-27018
...
12
Assy,pulley-Spin & Agitate WPL-34921
...
13
Washer WPL-35535
...
14
Brake Assembly WPL-R9900474
...
15
Pad-Brake WPL-R9900543

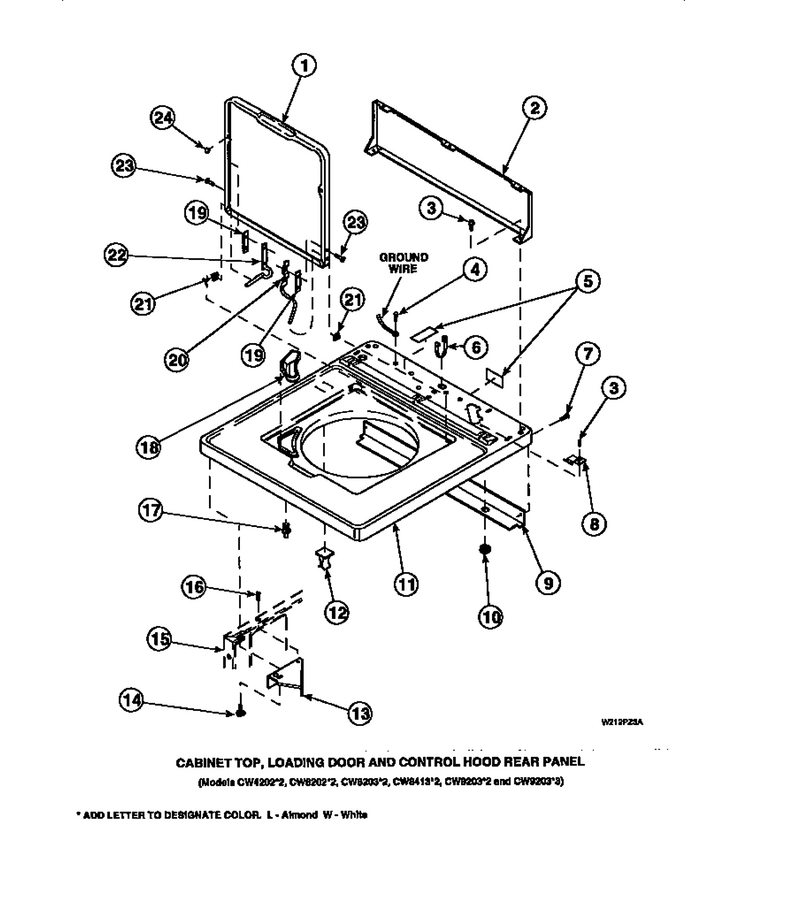

05 - Cab Top/loading Dr & Ctrl Hood Rear Pan

...
...
2
Panel, Back Hood (Use 37782) WPL-34903
...
3
Screw WPL-WP90767
...
4
Screw,10b-16 X 1/2 Hex WPL-52909
...
6
Grommet, Cord WPL-211881
...
7
Screw WPL-WP27001200
...
8
Clip, Hold Down WPL-40063901
...
11
Top WPL-34902_P
...
12
Clip WPL-36519
...
13
Bracket,director-Module WPL-36034
...
14
Screw WPL-WP27001200
...
15
Cabinet WPL-34475_P
...
16
Screw,8-18x3/8 Phil Flt Hd WPL-36035
...
17
Barrel,support WPL-56534
...
18
Dispenser,bleach WPL-34776
...
19
Gasket,hinge WPL-34338
...
20
Hinge, Lid R WPL-36437
...
21
Bushing WPL-33446
...
22
Hinge, Left WPL-36513
...
23
Screw WPL-WPW10119828
...
24
Bumper WPL-21685

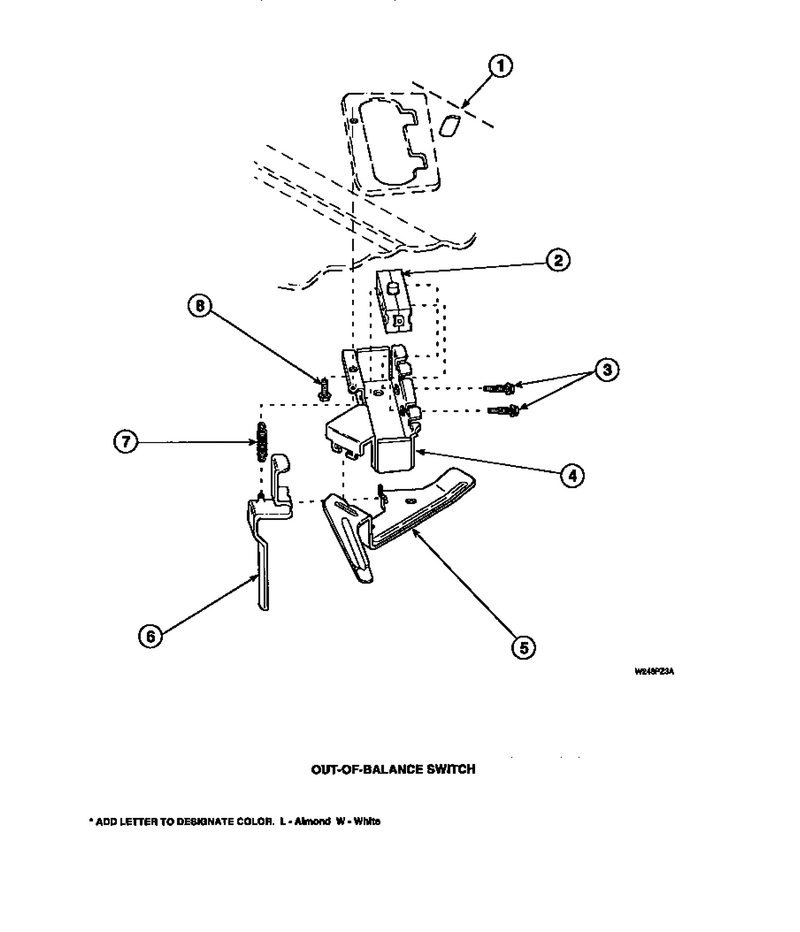

22 - Out-Of-Balance Switch

...
...
1
Top WPL-34902_P
...
2
Switch-Plg WPL-WP27001095
...
3
Screw WPL-36510
...
4
Kit, Switch Holder WPL-36497P
...
5
Arm,actuator WPL-33441
...
6
Lever,unbalanced Load WPL-33442
...
7
Spring WPL-33443
...
8
Screw WPL-WP90767

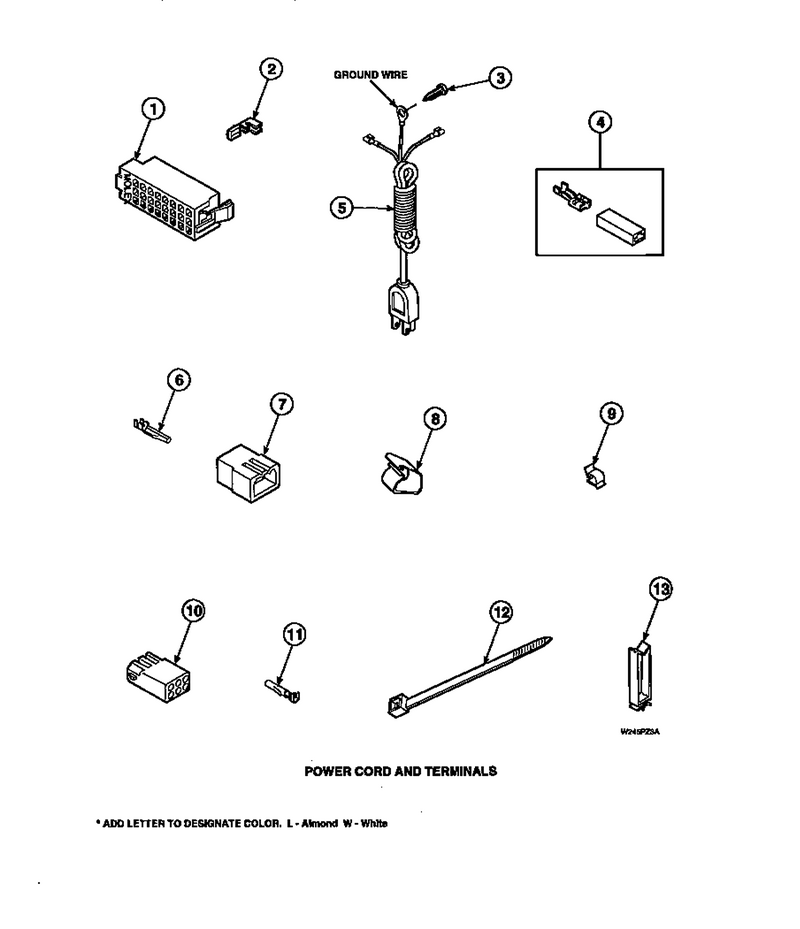

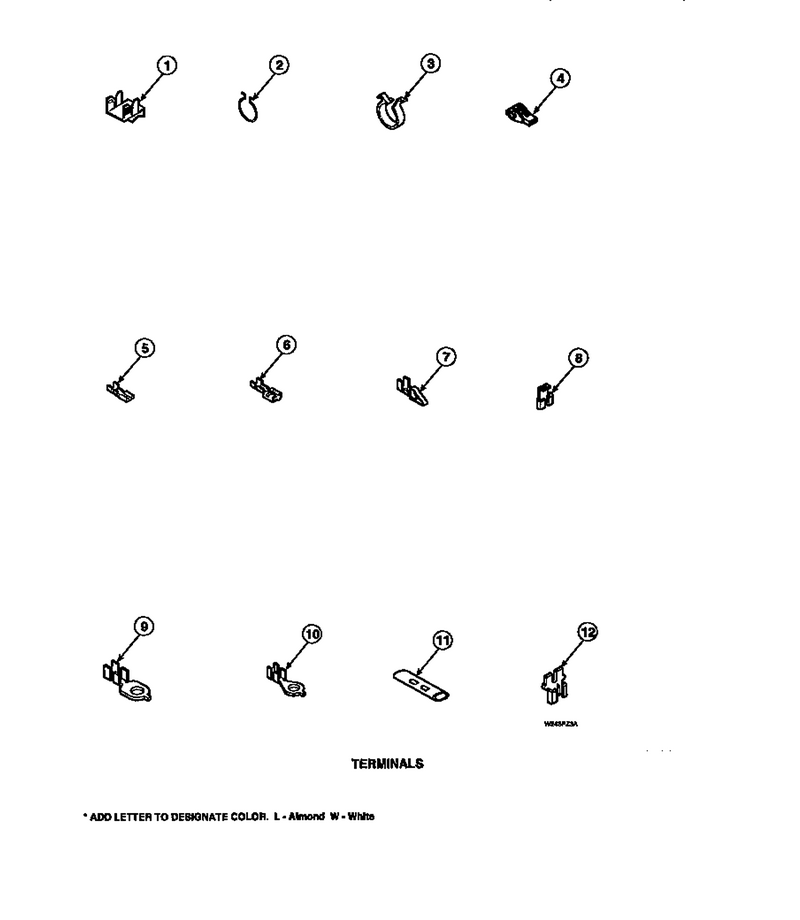

23 - Power Cord And Terminals

...
...
1
Housing,lh -24 Position WPL-34123
...
2
Terminal,female-Molex- WPL-Y00188
...
3
Screw,10b-16 X 1/2 Hex WPL-52909
...
4
Terminal,insulated WPL-00234
...
5
Power Cord And Plug WPL-40095301
...
6
Terminal,pin-Male WPL-Y00116
...
7
Plug,1 Circuit WPL-26302
...
8
Clip,harness Holder WPL-35521
...
9
Clip,cable WPL-21036
...
10
Receptacle,9 Circuit WPL-26163
...
11
Female Socket Terminal WPL-Y00117
...
12
Wire Tie WPL-36466
...
13
Clip, Harness WPL-36274

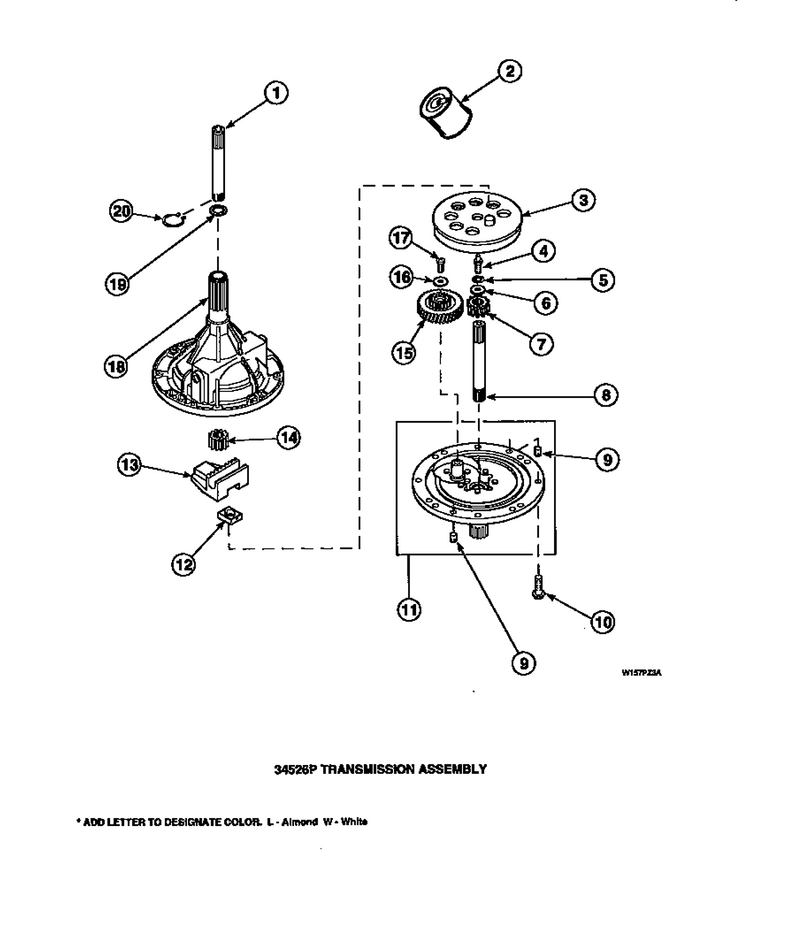

01 - 34526p Transmission Assy

...
...
NI
Sealant WPL-37577P
...
1
Shaft, Output WPL-Y36570
...
2
Oil,cw Transmission F- WPL-27243P
...
3
Assy,gear & Stud WPL-26577
...
4
Screw,1/4-20 Special WPL-27030
...
5
Lockwasher,1/4 Intshkp WPL-21456
...
6
Washer WPL-WP40041501
...
7
Pinion, Drive WPL-36562
...
8
Shaft,input WPL-34853
...
9
Pin,dowel WPL-27172
...
10
Screw,1/4-20x7/8 Serra WPL-32814
...
11
Assy, Cover (Trans Cover) WPL-38290
...
12
Slide WPL-26493
...
13
Rack WPL-Y31526
...
14
Pinion,agitator WPL-27003
...
15
Gear,reduction WPL-29161
...
16
Washer WPL-29260
...
17
Screw,1/4-20 X 3/8 WPL-29273
...
18
Assy,transmission Case WPL-33223
...
19
Washer,3628id X 1.00 X .056 WPL-35092
...
20
Ring,retaining WPL-27197

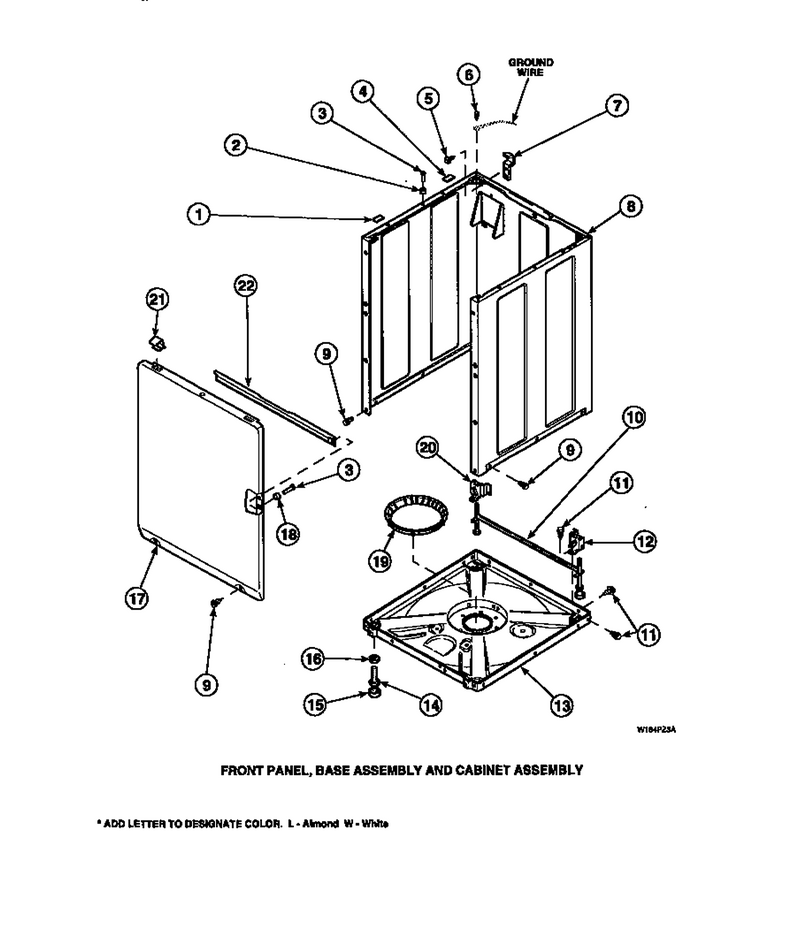

08 - Front Panel, Base Assy And Cabinet Assy

...
...
1
Pad, Bumper WPL-Y56128
...
2
Locator, Panel WPL-505187
...
3
Screw WPL-WPY014874
...
4
Pad, Bumper .25 WPL-36226
...
5
Screw, No.10b X 1/4 Tap In Hx WPL-34499
...
6
Screw WPL-WP90767
...
7
Hinge,hold-Down Lug WPL-Y27103
...
8
Cabinet WPL-34475_P
...
9
Screw WPL-WP27001200
...
10
Assy,leg & Stabilier WPL-34443
...
11
Screw,1/4-14 X 3/8 Hx Hd WPL-35148
...
12
Bracket,sll-Right WPL-36036
...
13
Assy Nut/leg Base WPL-34434P
...
14
Leg, Adjustable (W/nut) WPL-22003428
...
15
Rubber Foot WPL-34318
...
16
Nut- Lock WPL-WP210385
...
17
Not Good No. See Note Pnl, Front WPL-34656_P
...
18
Locator,panel WPL-28102
...
19
Snubber Pad & Isolator WPL-36108
...
20
Bracket,sll-Left WPL-36037
...
21
Clip,hold-Down Front Panel WPL-35865
...
22
Brace, Frt Pnl WPL-Y35097

12 - Graphic Panel, Ctrl Mtg Plate And Ctrls

...
...
3
Screw WPL-WP90767
...
5
Screw WPL-W11233072
...
6
Screw WPL-WP90767
...
8
Panel, Back Hood (Use 37782) WPL-34903
...
9
Top WPL-34902_P

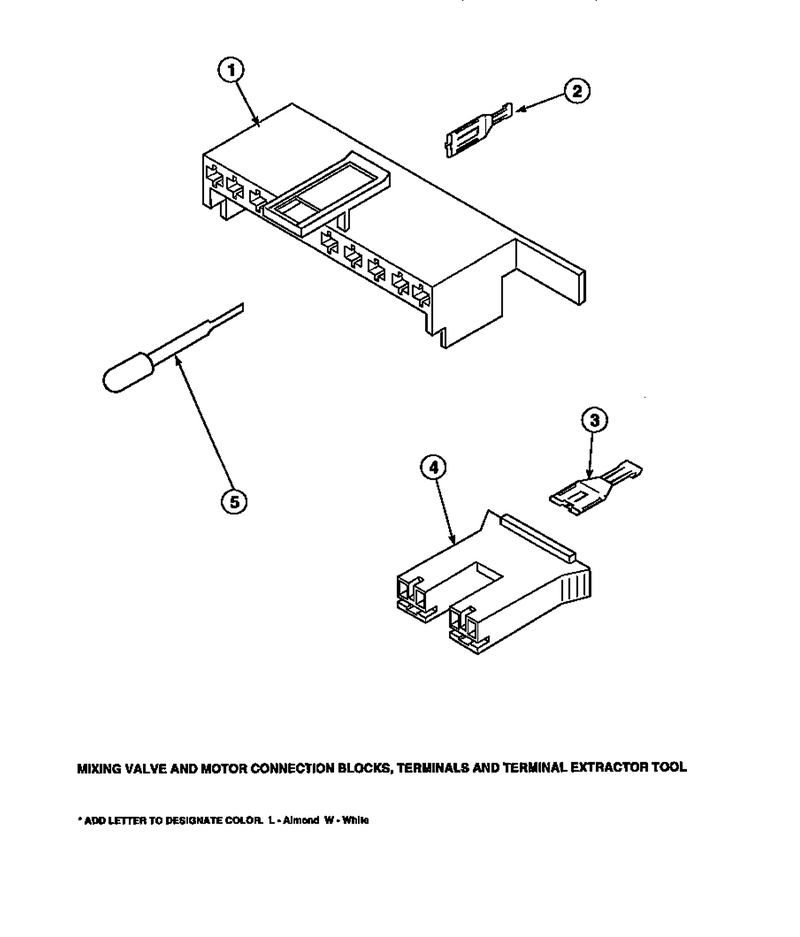

19 - Mixing Valve & Motor Conn Blocks, Term

...
...
NI
Assy,wiring Harness WPL-35347
...
1
10 Circuit Plug WPL-34677
...
2
Terminal,female-Molex- WPL-Y00188
...
3
Spade Terminal(12 Gauge) WPL-Y00121
...
4
Plug WPL-34676
...
5
Terminal Extractor Tool WPL-283P4

26 - Terminals

...
...
1
Ground Clip WPL-Y00161
...
3
Clip,wire WPL-61510
...
4
Insulator, Pod K WPL-M0325501
...
6
Spade Terminal(18 Gauge) WPL-Y00119
...
10
Terminal,ring-10 Stud WPL-00110
...
11
Connector WPL-WP75614
...
12
Double Connector WPL-29673
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
