Amana LGD512 (BOM: P7762224W W)

Model: LGD512 (BOM: P7762224W W)

Save Part Not Listed?
product name

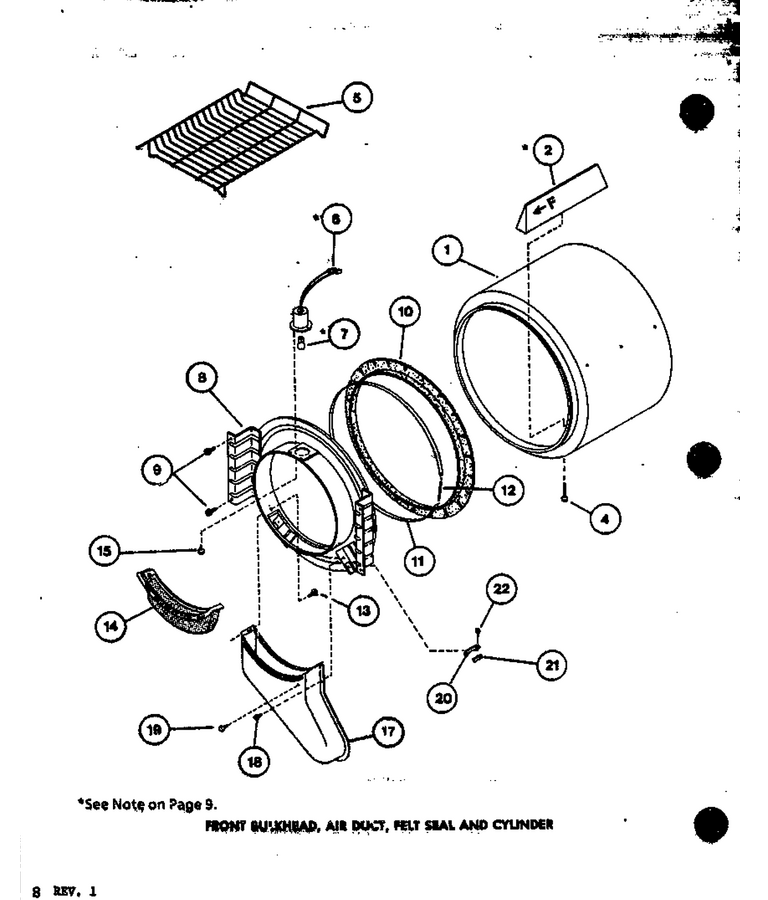

02 - Front Bulkhead

...
...
1
Cylinder WPL-R0603176
...
2
Baffle,cylinder-Short- WPL-Y61399
...
4
Screw WPL-R0600038
...
5
Rack, Drying WPL-R0603572
...
6
Receptacle, Bulb WPL-R0605086
...
7
Bulb-Light WPL-W10857122
...
8
Front Bulkhead L WPL-R0603154
...
9
Screw WPL-R0600017
...
10
Seal Asm WPL-WP56088
...
11
Strap, Seal WPL-56090P
...
12
Spring WPL-52310
...
13
Screw, Hex Head WPL-R0600052
...
14
Screen WPL-61376
...
15
Screw, No.8 X 3/8 Ind H WPL-31260
...
17
Air Duct WPL-R0603595
...
18
Screw WPL-WP489464
...
19
Bumper WPL-R0606523
...
20
Bracket WPL-WP57005
...
21
Pad,thin WPL-58049
...
22
Screw WPL-WP90767

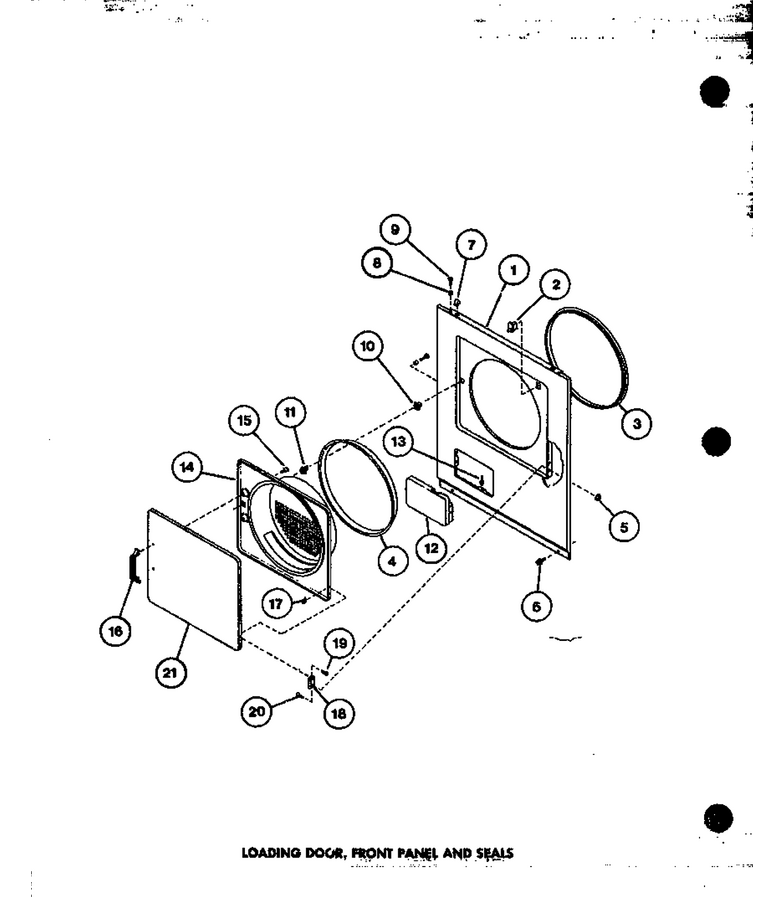

05 - Loading Door

...
...
1
Panel Front L WPL-R0603171
...
2
Switch-Dor WPL-W10169313
...
3
Seal,front Panel WPL-Y61380
...
4
Seal WPL-R0606522
...
5
Nut WPL-WP488130
...
6
Screw WPL-WP27001200
...
7
Fastener- WPL-WP22001650
...
8
Locator, Panel WPL-505187
...
9
Screw WPL-WPY014874
...
10
Door Latch Kit WPL-306436
...
11
Door Catch La-1003 WPL-LA-1003
...
12
Door, Access L WPL-R0603173
...
13
Barrel,support WPL-56534
...
14
Door Liner W WPL-R0603151
...
15
Screw WPL-WP489464
...
16
Pull,door WPL-54068P
...
17
Speed Nut WPL-R0601018
...
18
Hinge (Dryer) WPL-56045
...
19
Screw, 8b-16x5/8 Tap WPL-500226
...
20
Screw WPL-R0600007
...
21
Panel Outer Door L WPL-R0603175

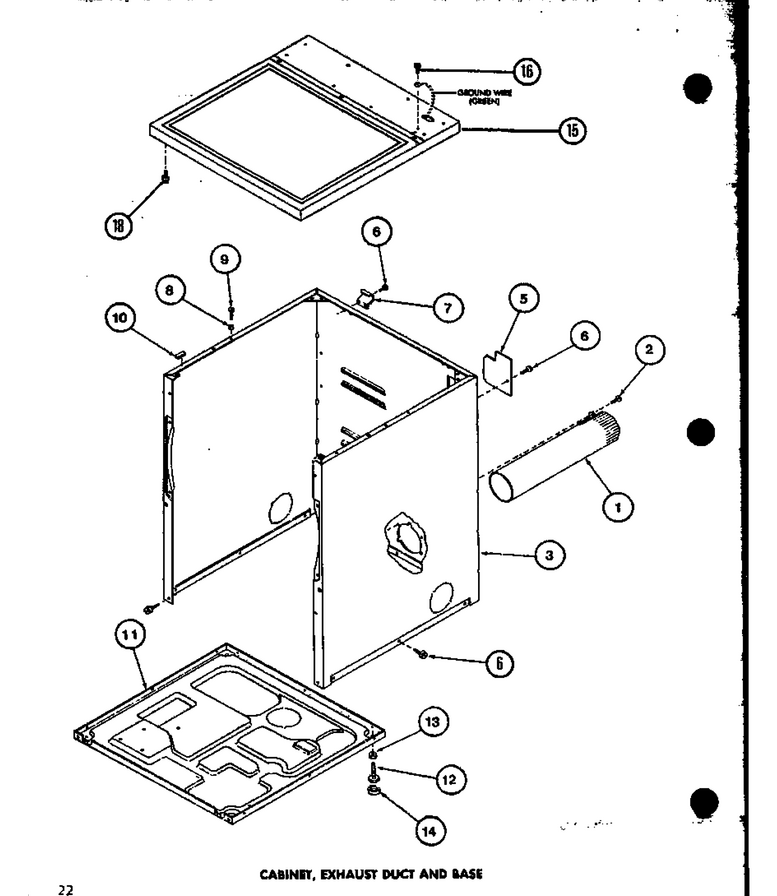

01 - Cabinet

...
...
1
Duct, Exhaust WPL-R0603041
...
2
Screw, Hex Head WPL-R0600052
...
3
Cabinet W WPL-R0603118
...
5
Access Plate WPL-R0603182
...
6
Screw WPL-R0600017
...
7
Hinge WPL-R0605711
...
8
Locator, Panel WPL-505187
...
9
Screw WPL-WPY014874
...
10
Pad, Bumper WPL-Y56128
...
11
Assy,base-Complete WPL-R0603183
...
12
Feet-Lvlng WPL-W10176519
...
13
Nut WPL-WP62739
...
14
Pad, Rubber WPL-R0606525
...
15
Top, Assy A WPL-R0603148
...
16
Screw WPL-R0600040
...
18
Screw WPL-R0600017

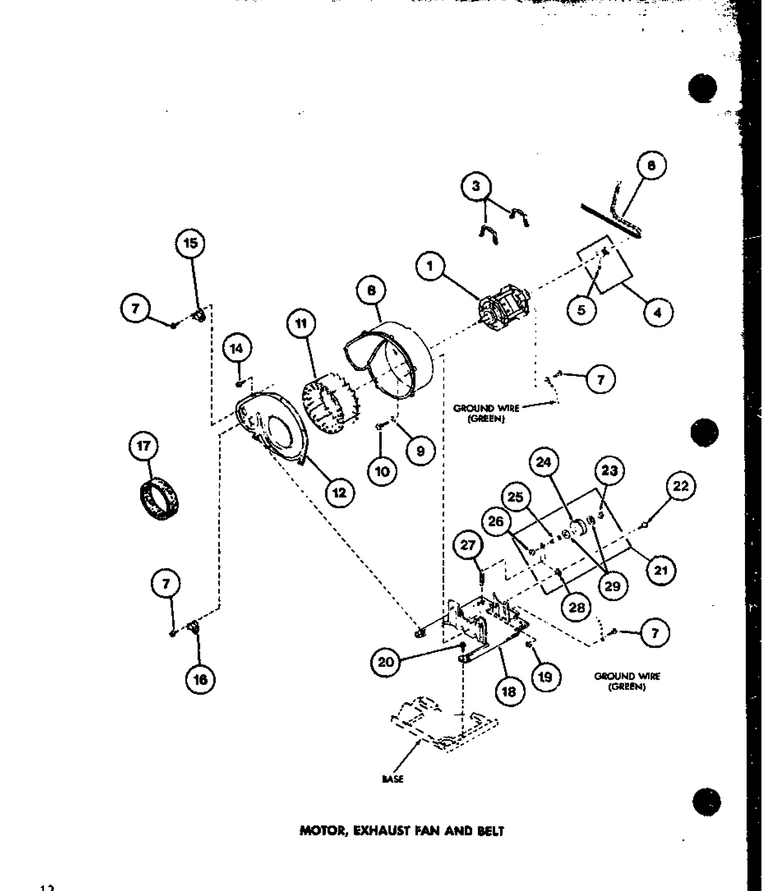

06 - Motor

...
...
1
Motor-Drve WPL-WP915P3
...
3
Clamp WPL-WP660658
...
4
Kit,pulley & Setscrew WPL-R0610059
...
5
Set Screw WPL-R0600042
...
6
Belt WPL-WP40111201
...
7
Screw WPL-WP489464
...
8
Blower Hsg WPL-R0603034
...
9
Washer WPL-M0270504
...
10
Screw WPL-WP27001200
...
11
Assembly, Blower Fan WPL-56000
...
12
Cover, Exhaust Fan WPL-R0603178
...
14
Screw WPL-WP90767
...
15
Heatr-Stat WPL-WP61623
...
16
Thermostat WPL-WPY61372
...
17
Seal WPL-56065
...
18
Mount, Motor WPL-503613
...
19
Nut WPL-WPW10139757
...
20
Screw WPL-R0600017
...
21
Lever-Idl WPL-WP56170P
...
22
Screw WPL-R0600043
...
23
Ring- Reta WPL-WP23748
...
24
Pulley-Idr WPL-WPY54414
...
25
Shaft WPL-WP56461
...
26
Nut WPL-WP358160
...
27
Spring- Id WPL-WP56076
...
28
Lever, Idler WPL-R0605561
...
29
Washer WPL-WP233520

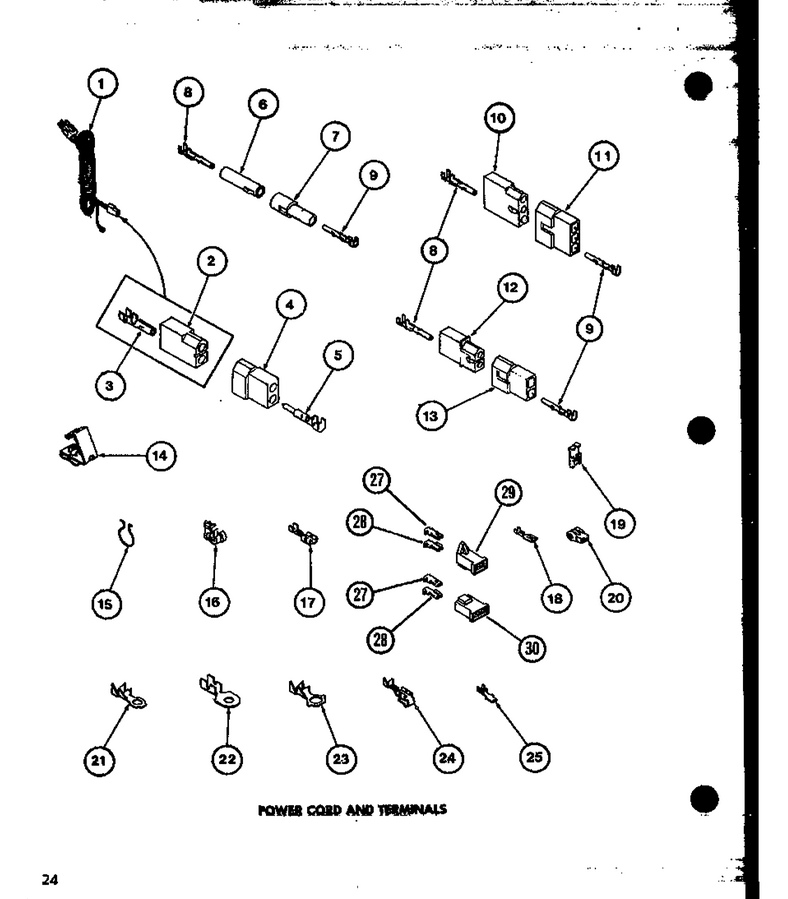

08 - Power Cord And Terminals

...
...
1
Cord- Powe WPL-WP27001142
...
2
Receptacle,2 Circuit WPL-56265
...
3
Terminal WPL-R0605030
...
4
Plug WPL-56266
...
5
Terminal,pin-1/8 Male WPL-Y00127
...
6
Receptacle,molex WPL-26301
...
7
Connector WPL-R0605036
...
8
Terminal WPL-R0605004
...
9
Terminal WPL-R0605003
...
10
Receptacle WPL-R0605033
...
11
Plug, 3 Circuit WPL-23040
...
12
Receptacle WPL-R0605038
...
13
Plug 2 Circuit WPL-56448
...
14
Clip, Ground WPL-B5733302
...
15
Clip WPL-R0601522
...
16
Grommet, Cord WPL-211881
...
17
Terminal WPL-M0320585
...
18
Terminal,spade-3/16 Fe WPL-R0605002
...
19
Terminal,flag-1/4 Fema WPL-Y00120
...
20
Insulator, Pod K WPL-M0325501
...
21
Terminal WPL-R0605026
...
22
Terminal,ring-10 Stud WPL-Y00111
...
23
Terminal WPL-R0605007
...
24
Terminal,spade-1/4 Fem WPL-Y00114
...
25
Terminal,tab 1/4 Male WPL-Y00138
...
27
Terminal,spade WPL-Y00189
...
28
Connector,receptacle WPL-Y00190
...
29
Connector,2 Circuit WPL-58799
...
30
Connector,3 Circuit WPL-58800

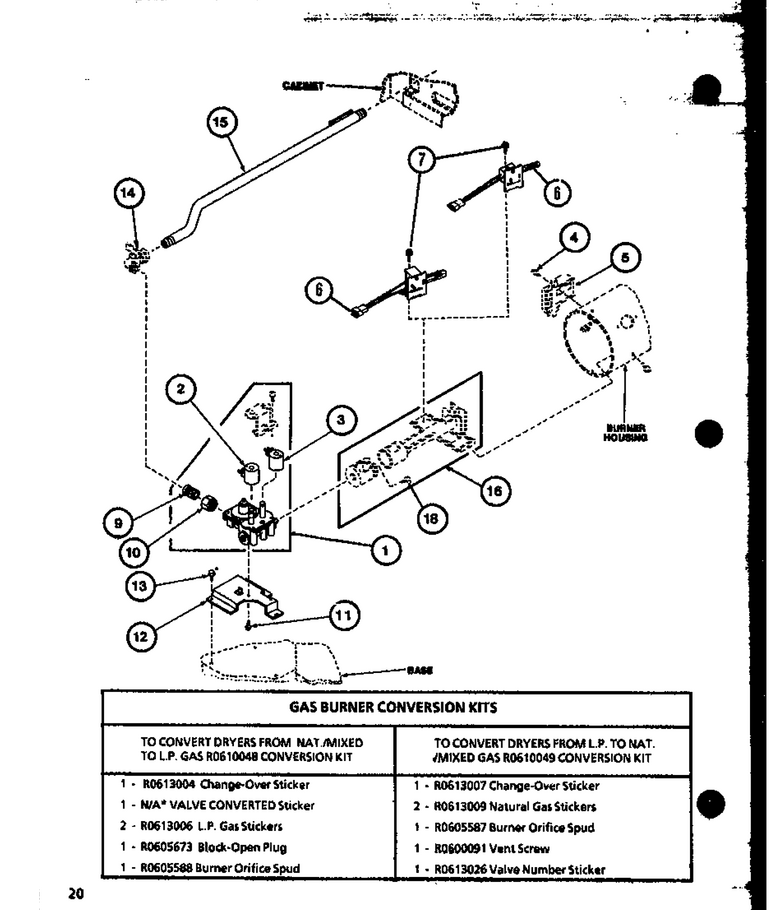

03 - Gas Burner Conversion Kits

...
...
1
Assembly, Gas Valve WPL-R0606002
...
2
Coil-Valve WPL-279834
...
3
Coil-Valve WPL-279834
...
4
Screw WPL-WP489464
...
5
Sensor WPL-WP338906
...
6
Ignitor WPL-WP37001308
...
7
Screw WPL-R0600047
...
9
Nipple WPL-R0606526
...
10
Locknut WPL-R0601034
...
11
Screw WPL-WP489128
...
12
Complete T WPL-WFR500821
...
13
Screw WPL-WP27001200
...
14
Valve-Elbo WPL-510205
...
15
Lead-In Pipe Assy WPL-R0610051
...
16
Assembly, Burner WPL-R0610023
...
18
Ignitor WPL-WP37001308

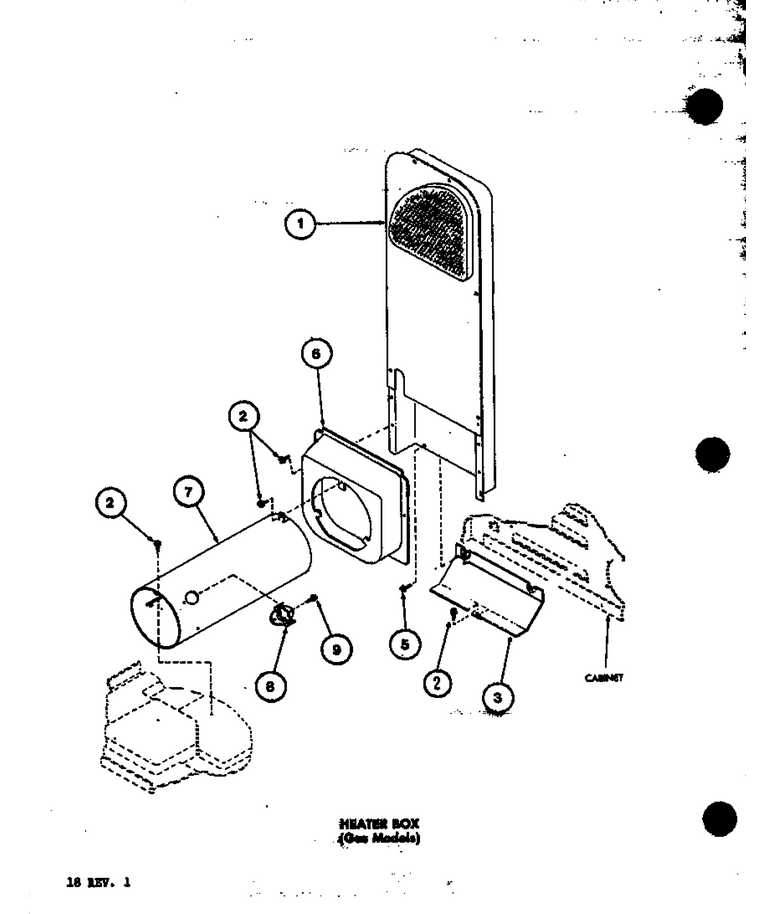

04 - Heater Box (gas Models)

...
...
1
Heater Box WPL-R0603179
...
2
Screw WPL-WP27001200
...
3
Heat Shield WPL-R0603180
...
5
Screw WPL-WP3390631
...
6
Shroud, Heat Duct WPL-500122
...
7
Housing, Burner WPL-R0603038
...
8
Limit Thermostat WPL-R0611004
...
9
Screw WPL-WP489464

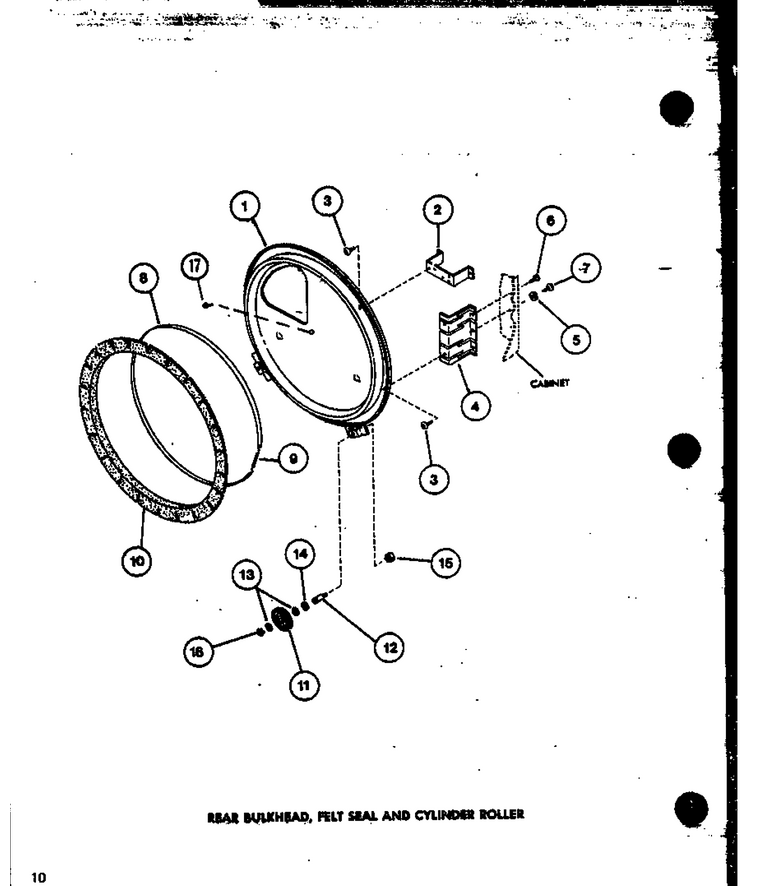

09 - Rear Bulkhead

...
...
1
Bulkhead, White WPL-61127P
...
2
Bracket, Terminal Block WPL-R0605709
...
3
Screw WPL-WP3351614
...
4
Bracket WPL-R0605557
...
5
Washer WPL-R0600527
...
6
Screw WPL-R0600041
...
7
Set Screw WPL-R0600042
...
8
Strap, Seal WPL-56090P
...
9
Spring WPL-52310
...
10
Seal Asm WPL-WP56088
...
11
Roller WPL-R0605559
...
12
Shaft WPL-WP56461
...
13
Timer WPL-R0604009
...
14
Washer, Thrust WPL-R0600559
...
15
Nut WPL-WP358160
...
16
Ring- Reta WPL-WP23748
...
17
Screw WPL-WP489464

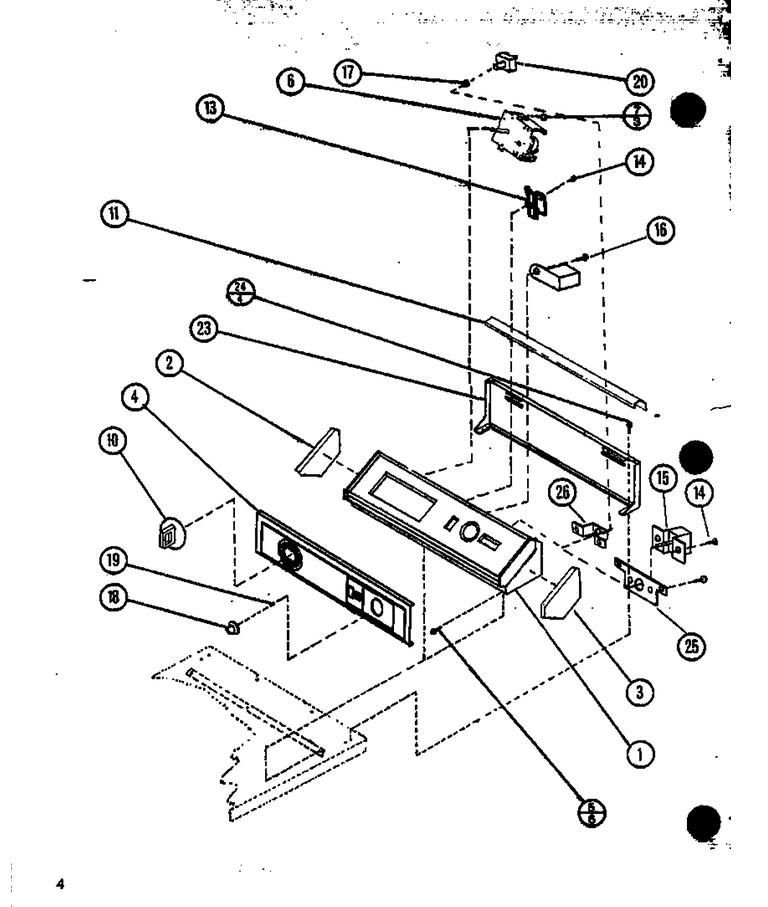

07 - Page 1

...
...
1
Control, Hood Assy WPL-R0603593
...
2
End Cap, L.h Chrome WPL-R0605715
...
3
End Cap WPL-R0605719
...
4
Panel, Graphics WPL-R0603592
...
5
Screw WPL-R0600095
...
6
Timer, 3 Cycle WPL-R0604013
...
7
Screw WPL-WP90767
...
10
Timer, Knob Assembly WPL-R0610066
...
11
Trim Strip Upper WPL-R0605714
...
14
Screw, No.8 X 3/8 Ind H WPL-31260
...
15
Control, Signal WPL-R0605062
...
17
Nut WPL-R0601035
...
18
Assy,knob-Rotary-Black WPL-32866
...
19
Clip WPL-R0601501
...
20
Switch,fabric Selector WPL-Y61511
...
23
Panel,back(Home Hood) WPL-40051401P
...
24
Screw WPL-WP90767
...
25
Bracket, Switch, Signal WPL-R0605702
...
26
Bracket, Switch, Fabric WPL-R0602538
