Amana LGD32AW/PLGD32AW GAS HOME LAUNDRY DRYER

Model: LGD32AW-PLGD32AW

Save Part Not Listed?
product name

Amana LGD32AW-PLGD32AW

...
...
3
Dryer Drum Seal, Rear (Replaces 37001132) WPL-WP37001132
...
5
Dryer Front Bulkhead WPL-WP503616WP
...
8
Terminal WPL-WP3936013
...
11
Laundry Appliance Screw, #12-14 X 1/2-In WPL-WP27001200
...
12A
Sts Wire Ter WPL-WP7405P034-60
...
12
Refrigerator Light Bulb WPL-W10857122
...
13
Dryer Drum Glide Bearing (Replaces 37001298) WPL-WP37001298
...
14A
Terminal Ring WPL-Y00111
...
14
Dryer Drum Front Glide Bearing Pad (Replaces 500121) WPL-WP500121
...
15
Dryer Drum Glide Bracket WPL-12002090
...
17
Dryer Lint Screen (Replaces 37001142) WPL-WP37001142

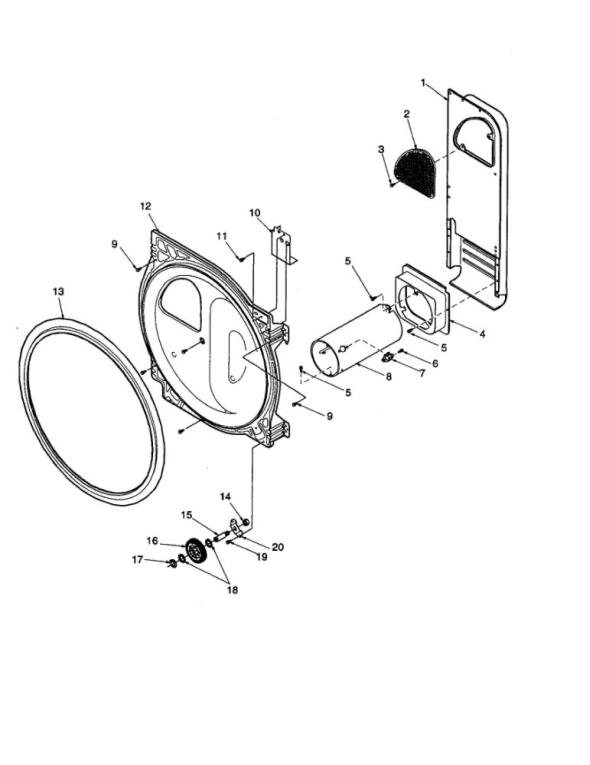

Amana LGD32AW-PLGD32AW

...
...
1
Washer Screw, #10-16 X 3/8-In (Replaces 3390631) WPL-WP3390631
...
3
Washer Screw, #10-16 X 3/8-In (Replaces 3390631) WPL-WP3390631
...
7
Laundry Appliance Screw, #12-14 X 1/2-In WPL-WP27001200
...
9
Laundry Appliance Screw, #12-14 X 1/2-In WPL-WP27001200
...
9
Washer Screw WPL-WPY014874
...
11
Dryer Top Panel Clip WPL-WP22001650
...
12
Dryer Door Switch (Replaces 33001508, 33001509, Wpy304575, Y304576, Y305753, Y305754, Y504570) WPL-W10169313
...
13
Dryer Drum Seal, Rear (Replaces 37001132) WPL-WP37001132
...
15
Dryer Idler Pulley Shaft WPL-WP56461
...
16
Dryer Drum Support Roller (Replaces 37001042) WPL-WP37001042
...
17
Laundry Appliance Retainer Ring WPL-WP23748
...
18
Laundry Appliance Washer WPL-WP233520
...
18
Dryer Door Catch WPL-LA-1003
...
20
Dryer Drum Support Roller WPL-WP40113601
...
20
Dryer Door Catch WPL-LA-1003

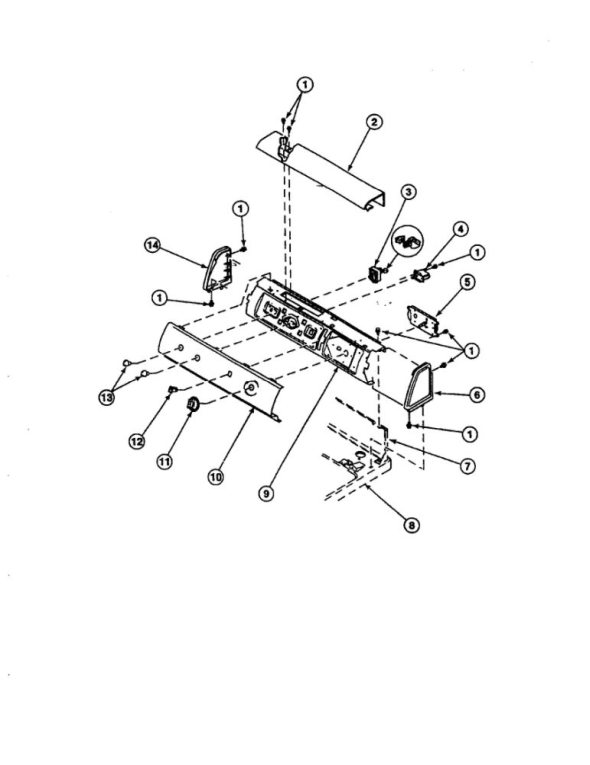

Amana LGD32AW-PLGD32AW

...
...
6
Plug WPL-56448
...
13A
Laundry Appliance Control Knob (White) WPL-WP36701W
...
14
Block WPL-58800
...
16
Terminal WPL-Y00256
...
17
Terminal,Fem WPL-Y00188

Amana LGD32AW-PLGD32AW

...
...
1
Dryer Drum Belt (Replaces 40111201) WPL-WP40111201
...
2
Dryer Motor Clamp WPL-WP660658
...
3
Washer Screw WPL-WPY014874
...
4
Dryer Drive Motor (Replaces 2200376) WPL-WP2200376
...
4
Hinge WPL-500003
...
5
Laundry Appliance Screw, #12-14 X 1/2-In WPL-WP27001200
...
8
Dryer Blower Wheel (Replaces 510139P, 56000P) WPL-56000
...
9
Laundry Appliance Screw, #12-14 X 1/2-In WPL-WP27001200
...
9
Washer Screw, #10-16 X 3/8-In (Replaces 3390631) WPL-WP3390631
...
10
Laundry Appliance Screw, #12-14 X 1/2-In WPL-WP27001200
...
14
Spring WPL-WP56076
...
16
Dryer Idler Pulley Arm WPL-WP37001144
...
17
Dryer Idler Pulley Shaft WPL-WP56461
...
18
Laundry Appliance Washer WPL-WP233520
...
19
Dryer Idler Pulley (Replaces Y54414) WPL-WPY54414
...
20
Laundry Appliance Retainer Ring WPL-WP23748
...
24
Dryer Operating Thermostat WPL-WP503979
...
25
Refrigerator Screw WPL-WP489464

Amana LGD32AW-PLGD32AW

...
...

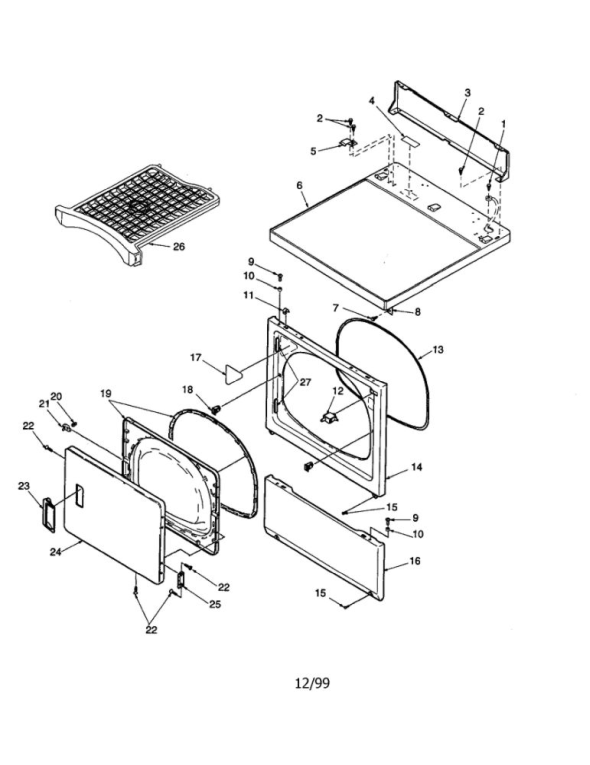

1
Washer Screw, #10-16 X 3/8-In (Replaces 3390631) WPL-WP3390631
...
3
Washer Screw, #10-16 X 3/8-In (Replaces 3390631) WPL-WP3390631
...
7
Laundry Appliance Screw, #12-14 X 1/2-In WPL-WP27001200
...
9
Washer Screw WPL-WPY014874
...
9
Laundry Appliance Screw, #12-14 X 1/2-In WPL-WP27001200
...
11
Dryer Top Panel Clip WPL-WP22001650
...
12
Dryer Door Switch (Replaces 33001508, 33001509, Wpy304575, Y304576, Y305753, Y305754, Y504570) WPL-W10169313
...
12
Dryer Front Bulkhead WPL-WP503616WP
...
13
Dryer Drum Seal, Rear (Replaces 37001132) WPL-WP37001132
...
15
Dryer Idler Pulley Shaft WPL-WP56461
...
16
Dryer Drum Support Roller (Replaces 37001042) WPL-WP37001042
...
17
Laundry Appliance Retainer Ring WPL-WP23748
...
18
Dryer Door Catch WPL-LA-1003
...
18
Laundry Appliance Washer WPL-WP233520
...
20
Dryer Door Catch WPL-LA-1003
...
20
Dryer Drum Support Roller WPL-WP40113601

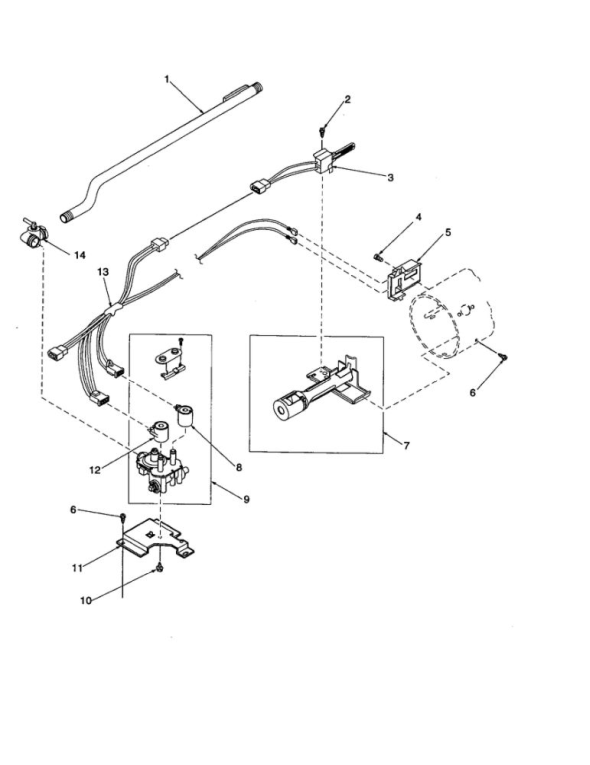

Amana LGD32AW-PLGD32AW

...
...
3
Dryer Burner Igniter (Replaces 37001308) WPL-WP37001308
...
4
Range Screw WPL-WP3177991
...
5
Dryer Radiant Sensor (Replaces 338906) WPL-WP338906
...
6
Washer Screw, #10-16 X 3/8-In (Replaces 3390631) WPL-WP3390631
...
8
Dryer Valve Coil Kit (Replaces 12001349, 279834Bulk, 306106, 694539, 694540) WPL-279834
...
10
Refrigerator Screw WPL-WP489128
...
12
Dryer Valve Coil Kit (Replaces 12001349, 279834Bulk, 306106, 694539, 694540) WPL-279834
...
13
Laundry Appliance Control Knob (White) WPL-WP36701W

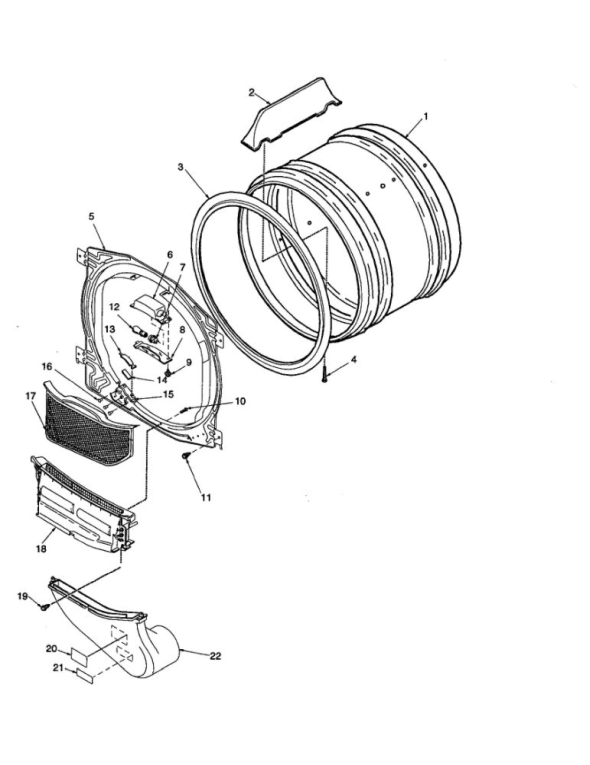

Amana LGD32AW-PLGD32AW

...
...
3
Dryer Drum Seal, Rear (Replaces 37001132) WPL-WP37001132
...
3
Dryer Burner Igniter (Replaces 37001308) WPL-WP37001308
...
4
Range Screw WPL-WP3177991
...
5A
Dryer Front Bulkhead WPL-WP503616WP
...
5
Dryer Radiant Sensor (Replaces 338906) WPL-WP338906
...
6
Washer Screw, #10-16 X 3/8-In (Replaces 3390631) WPL-WP3390631
...
8
Dryer Valve Coil Kit (Replaces 12001349, 279834Bulk, 306106, 694539, 694540) WPL-279834
...
10
Refrigerator Screw WPL-WP489128
...
11
Laundry Appliance Screw, #12-14 X 1/2-In WPL-WP27001200
...
12
Refrigerator Light Bulb WPL-W10857122
...
12
Dryer Valve Coil Kit (Replaces 12001349, 279834Bulk, 306106, 694539, 694540) WPL-279834
...
13
Dryer Drum Glide Bearing (Replaces 37001298) WPL-WP37001298
...
13A
Dryer Drum Glide Bearing (Replaces 37001298) WPL-WP37001298
...
14A
Dryer Drum Front Glide Bearing Pad (Replaces 500121) WPL-WP500121
...
15
Dryer Drum Glide Bracket WPL-12002090
...
17
Dryer Lint Screen (Replaces 37001142) WPL-WP37001142

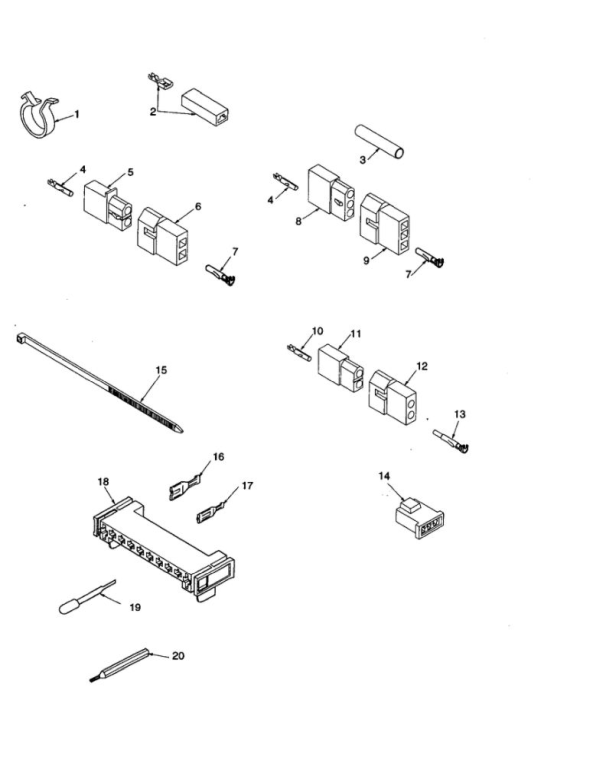

Amana LGD32AW-PLGD32AW

...
...
3
Washer Screw WPL-WPY014874
...
4
Hinge WPL-500003
...
5
Laundry Appliance Screw, #12-14 X 1/2-In WPL-WP27001200
...
8
Terminal WPL-WP3936013
...
9
Washer Screw, #10-16 X 3/8-In (Replaces 3390631) WPL-WP3390631
...
12
Terminal WPL-WP285432
...
12
Sts Wire Ter WPL-WP7405P034-60
...
14
Terminal Ring WPL-Y00111

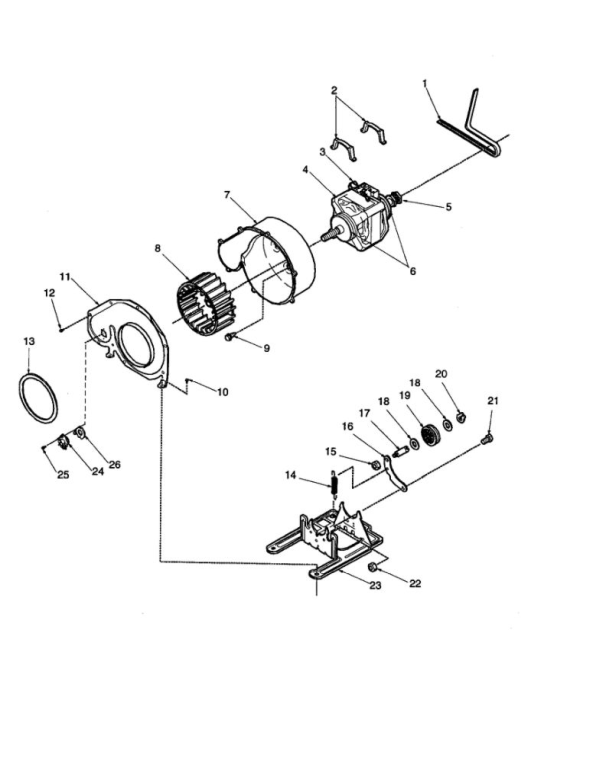

Amana LGD32AW-PLGD32AW

...
...
1
Dryer Drum Belt (Replaces 40111201) WPL-WP40111201
...
2
Dryer Motor Clamp WPL-WP660658
...
4
Dryer Drive Motor (Replaces 2200376) WPL-WP2200376
...
6
Plug WPL-56448
...
8
Dryer Blower Wheel (Replaces 510139P, 56000P) WPL-56000
...
9
Laundry Appliance Screw, #12-14 X 1/2-In WPL-WP27001200
...
10
Laundry Appliance Screw, #12-14 X 1/2-In WPL-WP27001200
...
14
Block WPL-58800
...
14
Spring WPL-WP56076
...
16A
Terminal WPL-Y00256
...
16
Dryer Idler Pulley Arm WPL-WP37001144
...
17
Terminal,Fem WPL-Y00188
...
17
Dryer Idler Pulley Shaft WPL-WP56461
...
18
Laundry Appliance Washer WPL-WP233520
...
19
Dryer Idler Pulley (Replaces Y54414) WPL-WPY54414
...
20
Laundry Appliance Retainer Ring WPL-WP23748
...
24
Dryer Operating Thermostat WPL-WP503979
...
25
Refrigerator Screw WPL-WP489464
...
99
Dryer Idler Assembly (Replaces 37001287) WPL-WP37001287

Amana LGD32AW-PLGD32AW

...
...
NI
Dryer Idler Assembly (Replaces 37001287) WPL-WP37001287
...
NI
Dryer Lp Conversion Kit (Replaces 649P3) WPL-LPK1
...
XX
Exhaust WPL-528P3
...
50
Owner'S Manual WPL-504477
