Amana LES19AW (BOM: PLES19AW)

Model: LES19AW (BOM: PLES19AW)

Save Part Not Listed?
product name

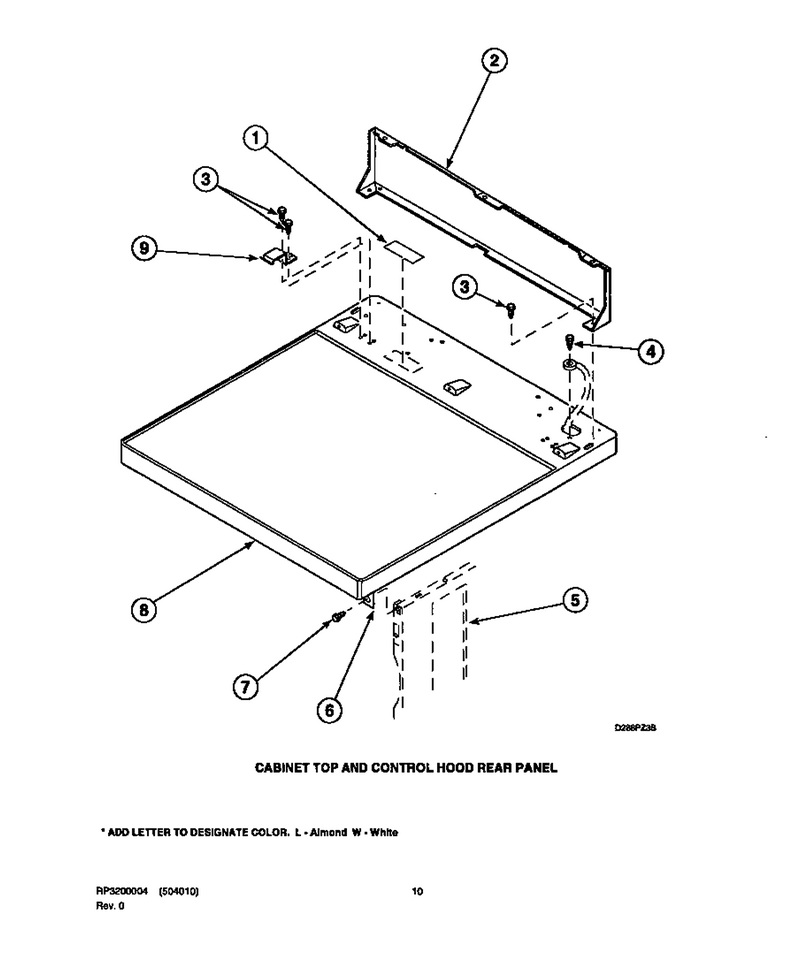

02 - Cabinet Top And Control Hood Rear Panel

...
...
1
Sticker,disconnect Pow WPL-24903
...
2
Panel,back(Home Hood) WPL-40051401P
...
3
Screw WPL-WP90767
...
4
Screw WPL-WP3390631
...
5
Cabinet WPL-500001P
...
6
Shock Susp WPL-WFR500084
...
7
Screw WPL-WP27001200
...
8
Top WPL-500085P
...
9
Clip, Hold Down WPL-Y503876

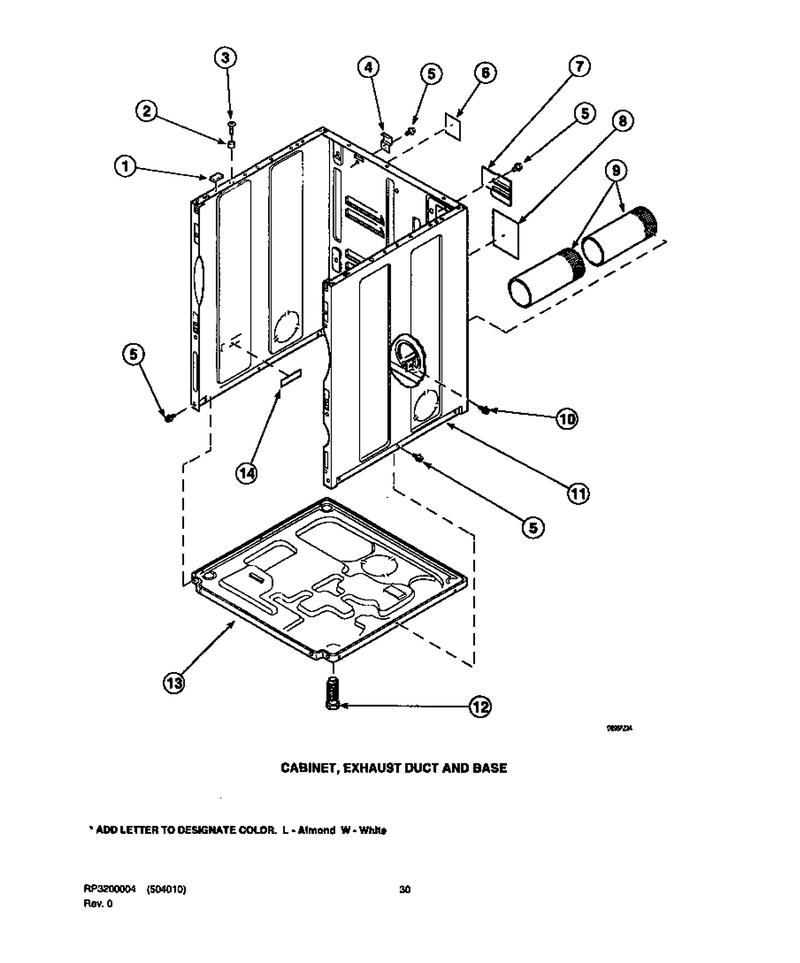

03 - Cabinet, Exhaust Duct And Base

...
...
NI
Kit,flex Vent-Display WPL-521P3
...
1
Pad, Bumper WPL-Y56128
...
2
Locator, Panel WPL-505187
...
3
Screw WPL-WPY014874
...
4
Hinge, Top WPL-500003
...
5
Screw WPL-WP27001200
...
7
Contactor WPL-WFR500114
...
8
Sticker WPL-501289
...
9
Exhaust Duct WPL-500064
...
10
Screw WPL-WP3390631
...
11
Cabinet WPL-500001P
...
12
Leg, Leveling (Plastic) WPL-Y500101
...
13
Base, Dryer WPL-500070
...
14
Transformer WPL-660987

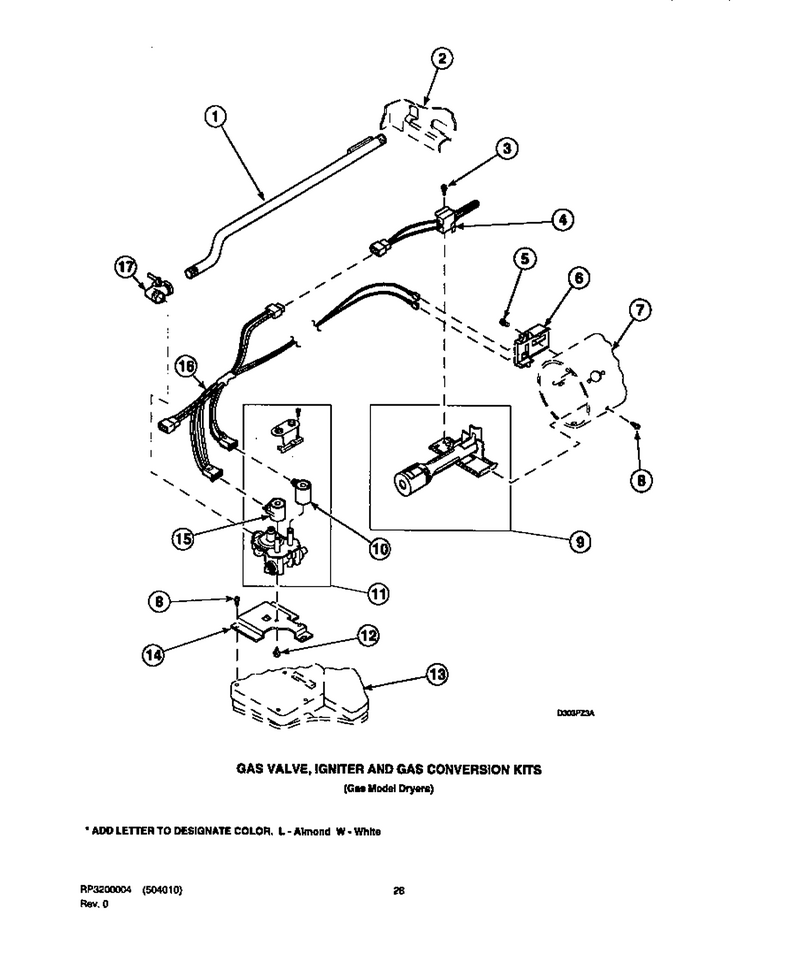

05 - Gas Valve, Igniter & Gas Conversion Kits

...
...
NI
Assy, Wire Harness WPL-503763

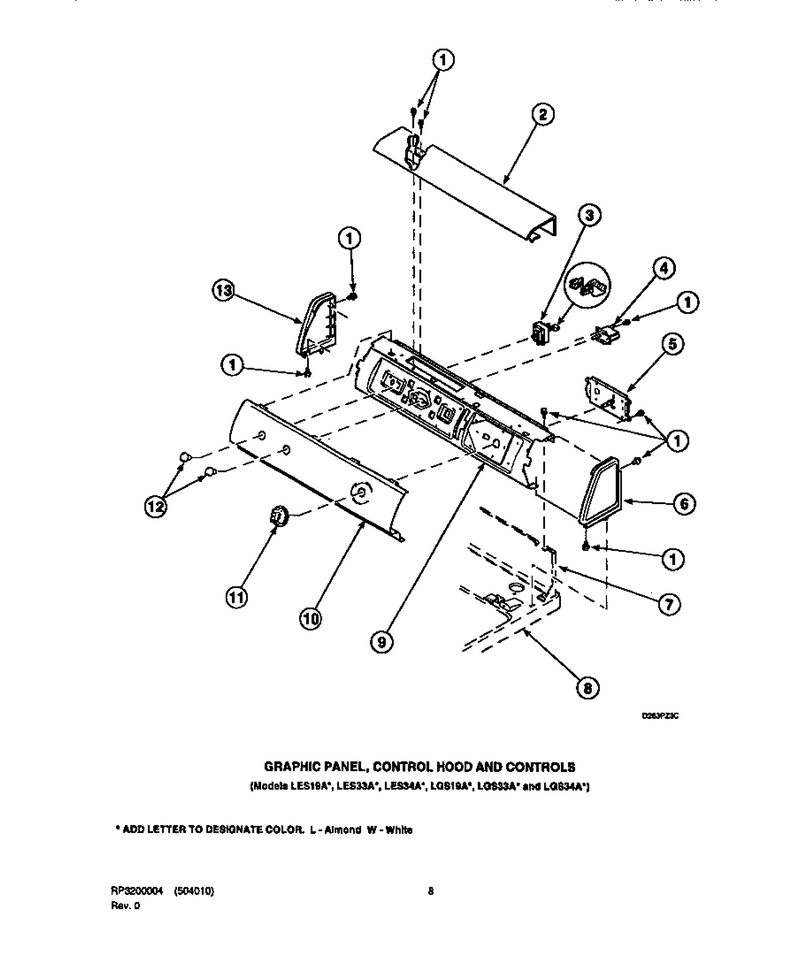

07 - Graphic Panel, Control Hood And Controls

...
...
1
Screw WPL-WP90767
...
2
Top Cover WPL-503674
...
3
Switch, Fabric Selector WPL-Y503997
...
4
Signal WPL-Y504191
...
5
Use 505473p WPL-503912
...
6
Endcap (Rt-Wht) WPL-40012701W
...
7
Panel,back(Home Hood) WPL-40051401P
...
8
Top WPL-500085P
...
9
Panel,support Control (Mech) WPL-503901
...
10
Graphic Panel WPL-504197
...
11
Knob- Time WPL-WP502220W
...
12
Knob Whit WPL-WP36701W
...
13
Endcap (Lt-Wht) WPL-40012702W

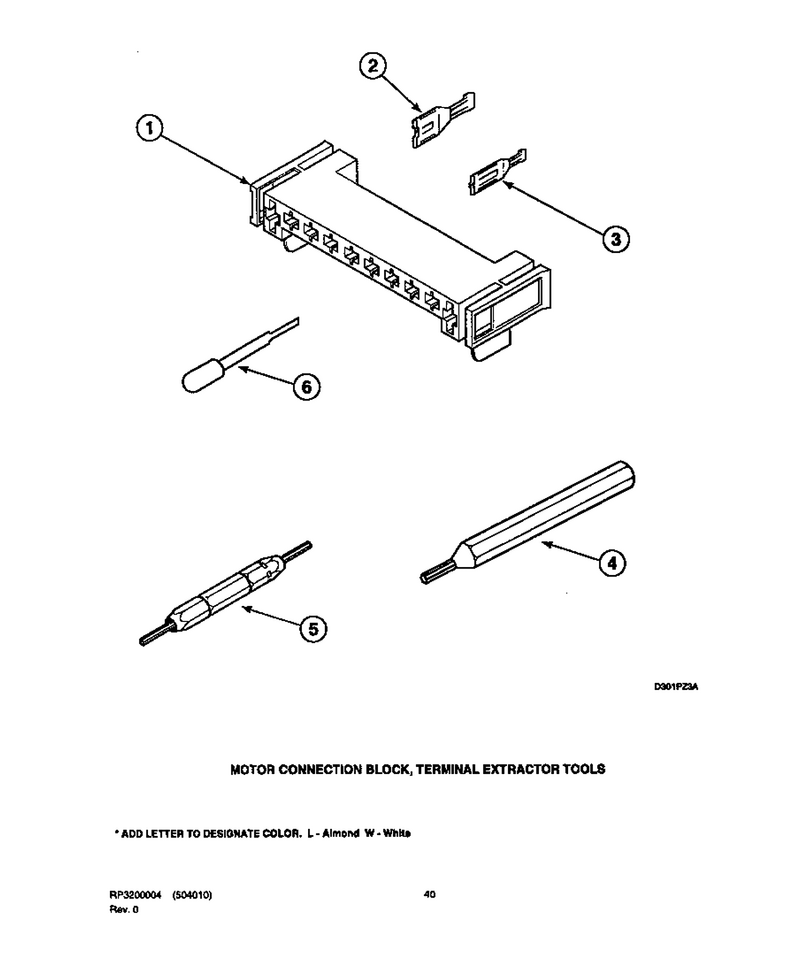

12 - Motor Conn Block/term Extractor Tools

...
...
1
Housing, 10 Position WPL-500338
...
2
Terminal,female 1/4 WPL-Y00256
...
3
Terminal,female-Molex- WPL-Y00188
...
4
Tool,extractor-Ht-2038 WPL-128P4
...
5
Tool,extractor Ht2066a WPL-190P4
...
6
Terminal Extractor Tool WPL-283P4

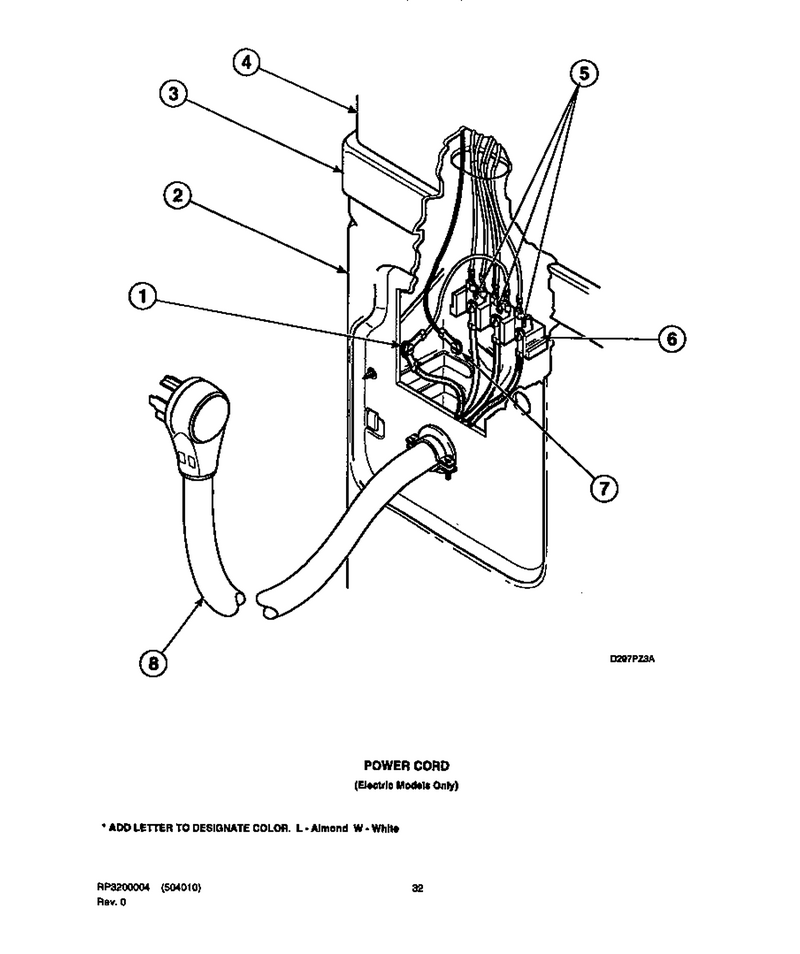

14 - Power Cord

...
...
1
Screw WPL-WP3351614
...
2
Cabinet WPL-500001P
...
3
Top WPL-500085P
...
4
Panel,back(Home Hood) WPL-40051401P
...
5
Screw WPL-WP3400094
...
6
Block- Ter WPL-WP61923
...
7
Screw WPL-WP3390631
...
8
Assy,lead-In Cord WPL-57637

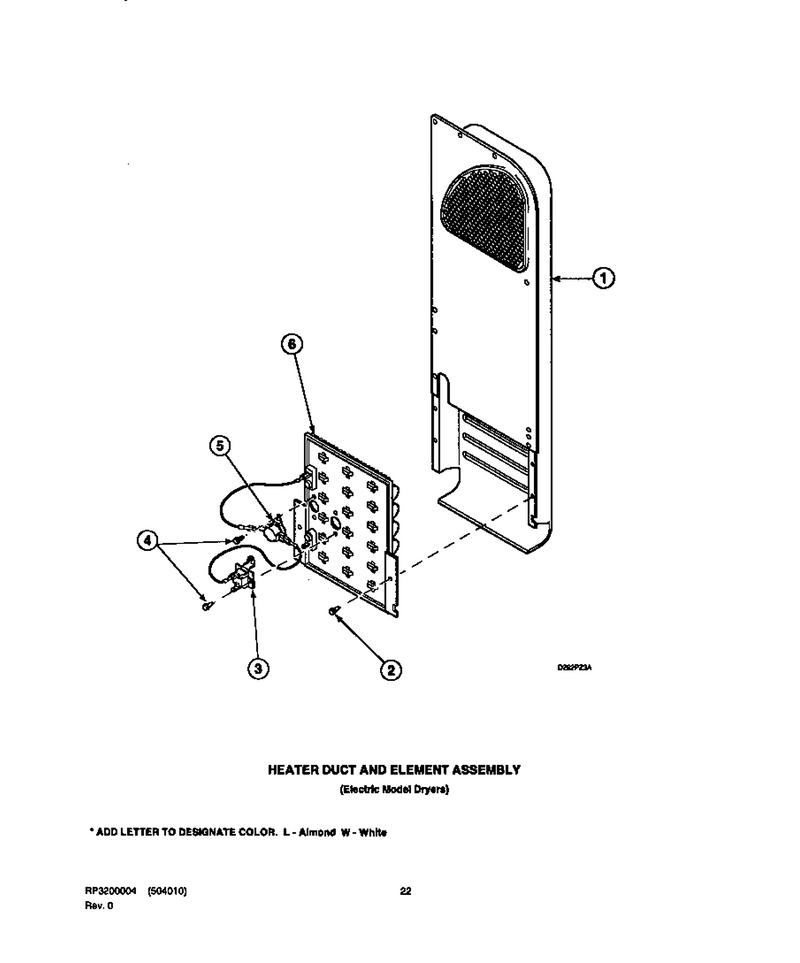

08 - Heater Duct And Element Assy

...
...
1
Assembly, Heater Duct WPL-503605
...
2
Screw WPL-WP3390631
...
3
Fuse-Thrml WPL-WP40113801
...
4
Screw WPL-WP3177991
...
5
Thermostat, Limit WPL-Y504237
...
6
Heater Ele WPL-WPY503978

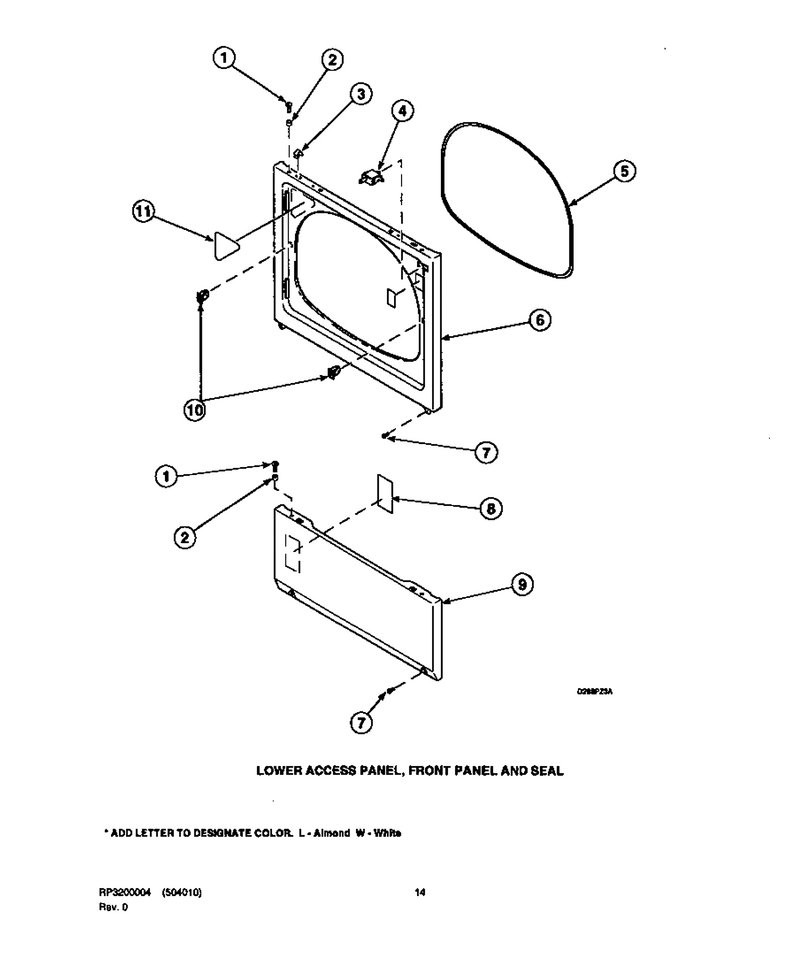

11 - Lower Access Panel, Front Panel And Seal

...
...
1
Screw WPL-WPY014874
...
2
Locator, Panel WPL-505187
...
3
Fastener- WPL-WP22001650
...
4
Switch-Dor WPL-W10169313
...
5
Seal WPL-W10856845
...
6
Front Panel WPL-503656
...
7
Screw WPL-WP27001200
...
9
Lower Access Panel WPL-503796
...
10
Door Catch La-1003 WPL-LA-1003
...
11
Sticker WPL-500281

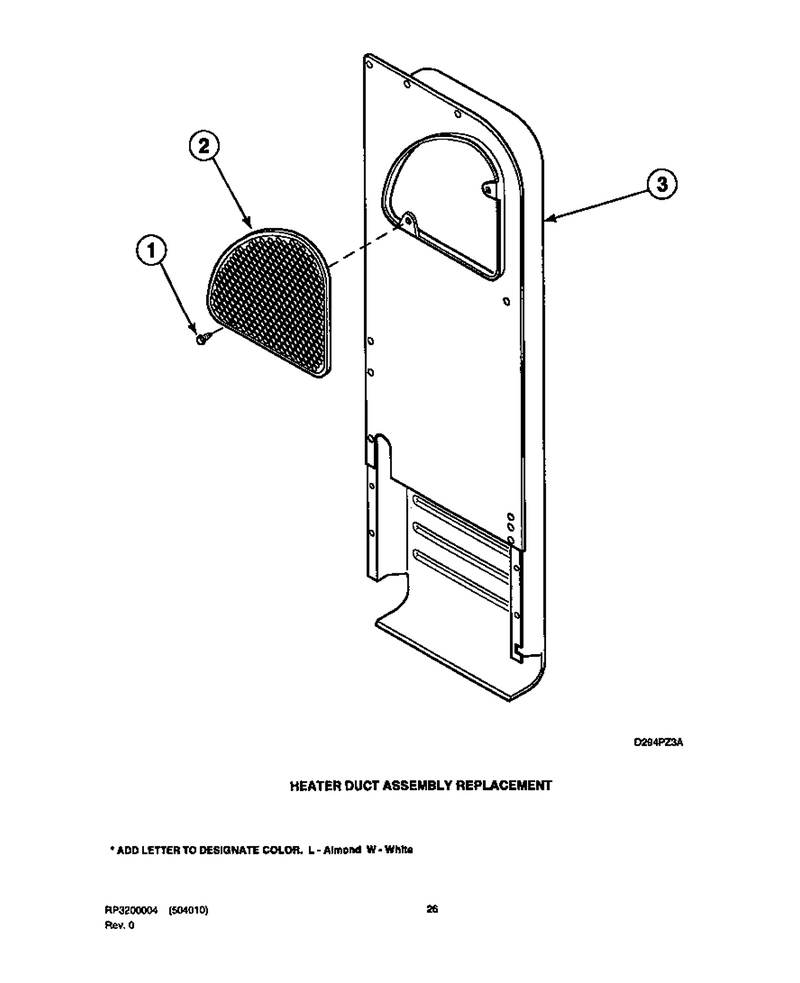

09 - Heater Duct Replacement

...
...
1
Screw WPL-WP3390631
...
2
Complete T WPL-WFR500820
...
3
Assembly, Heater Duct WPL-503605

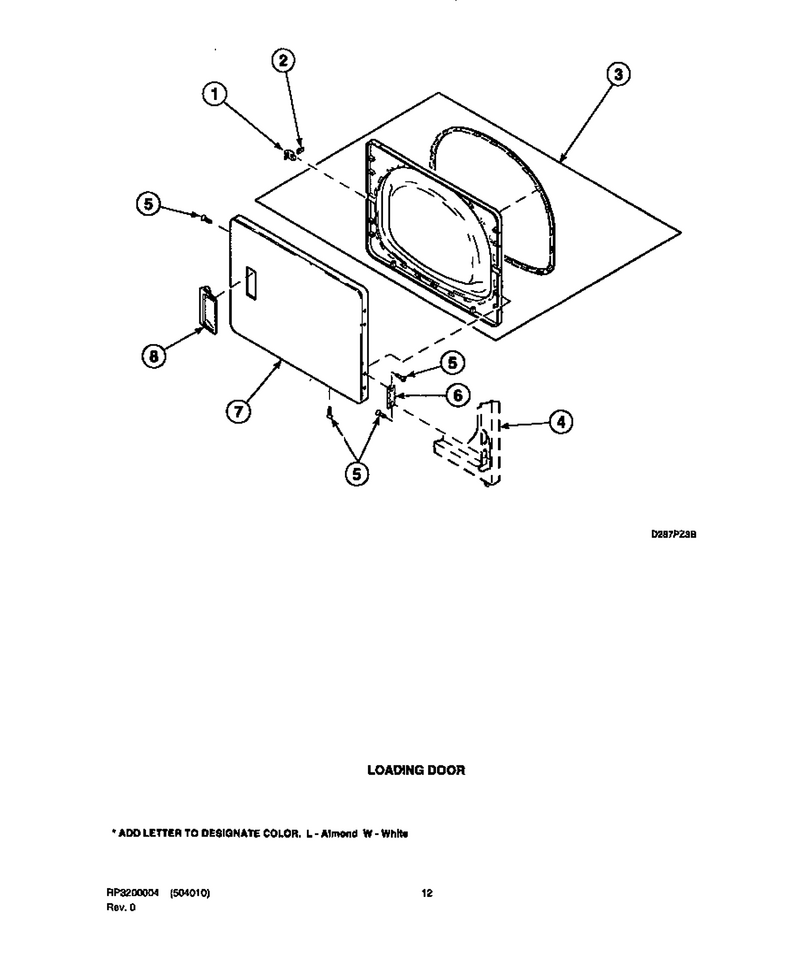

10 - Loading Door

...
...
1
Bracke, Door Strike WPL-500223
...
2
Strike WPL-WP500039
...
3
Seal & Liner, Assy(Inner Door) WPL-37001028
...
4
Front Panel WPL-503656
...
5
Screw, 8b-16x5/8 Tap WPL-500226
...
6
Hinge, Door & Top WPL-Y503676
...
7
Outer Door Panel WPL-503654
...
8
Door Pull WPL-503646

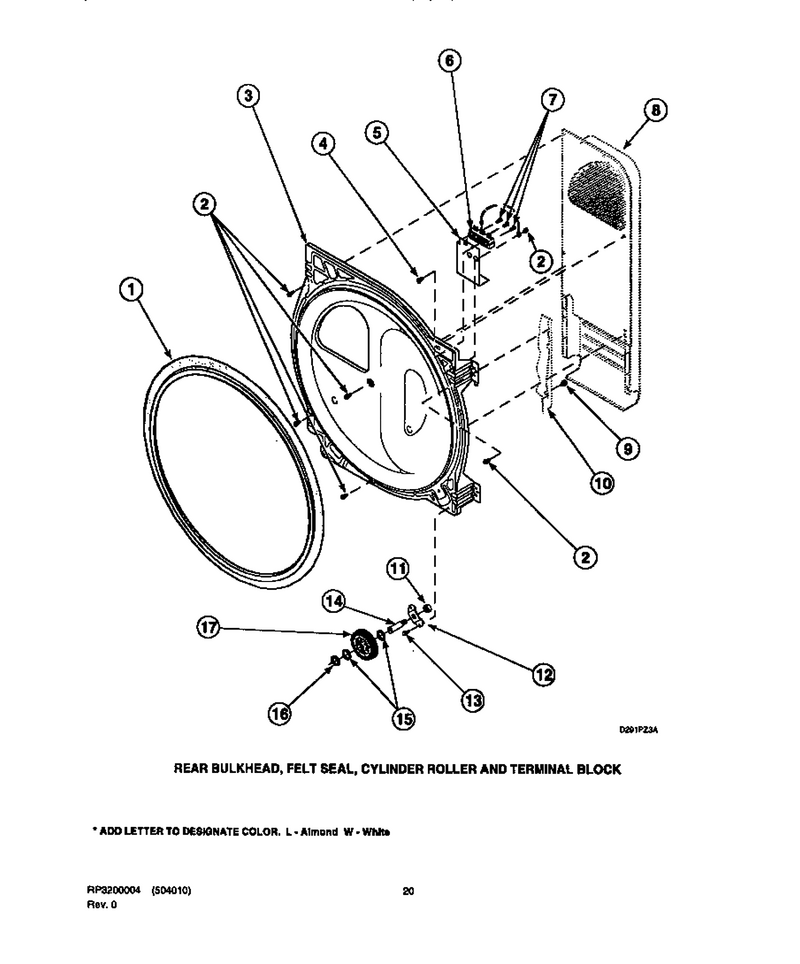

01 - Bulkhead/felt Seal/cyl Roller & Term Blk

...
...
NI
Adhesive,3m-1300-5 Oz. WPL-22506P
...
1
Seal- Cyli WPL-WP37001132
...
2
Screw WPL-WP27001200
...
3
Bulkhead, Rear WPL-502614WP
...
4
Screw, No.12 X 9/16 WPL-501285
...
5
Shield, Terminal Block WPL-Y504185
...
6
Block- Ter WPL-WP61923
...
7
Screw WPL-WP3390631
...
8
Assembly, Heater Duct WPL-503605
...
9
Screw WPL-WP3390631
...
10
Cabinet WPL-500001P
...
11
Nut, 3/8-16 Serrated WPL-56156
...
12
Brakt-Roll WPL-WP40113601
...
13
Screw WPL-WP3390631
...
14
Shaft WPL-WP56461
...
15
Washer WPL-WP233520
...
16
Ring- Reta WPL-WP23748
...
17
Support WPL-WP37001042

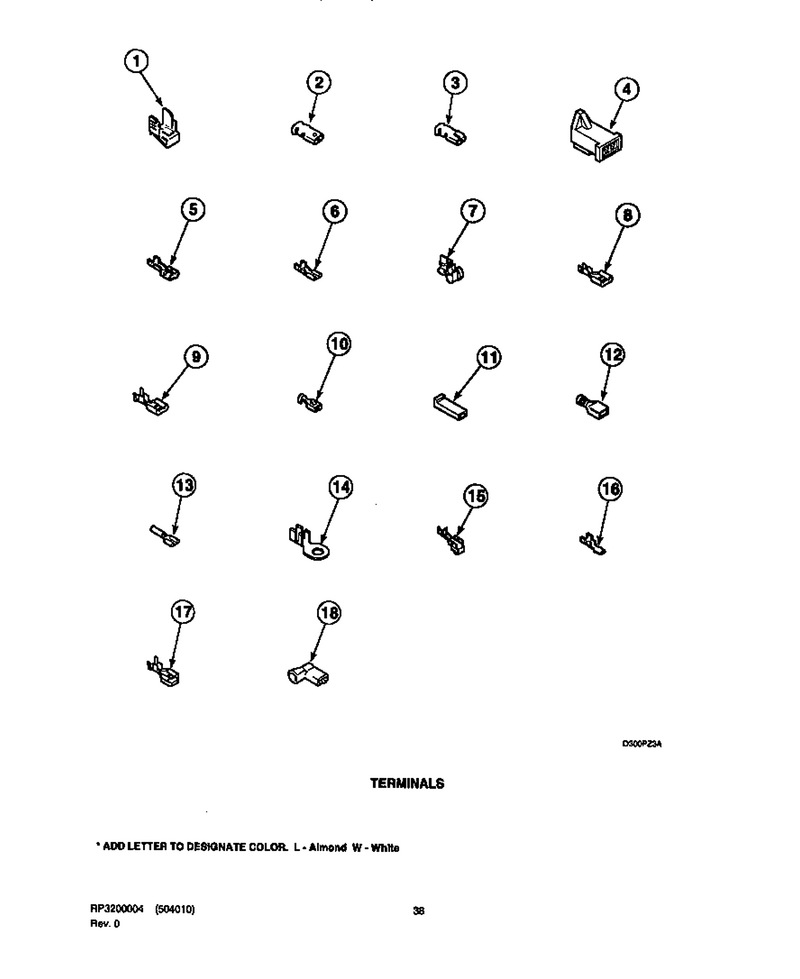

16 - Terminals

...
...
1
Ground Clip WPL-Y00161
...
2
Terminal,spade WPL-Y00189
...
3
Connector,receptacle WPL-Y00190
...
4
Connector,2 Circuit WPL-58799
...
5
Spade Terminal(18 Gauge) WPL-Y00119
...
6
Terminal,spade 3/16 WPL-00156
...
7
Grommet, Cord WPL-211881
...
8
Terminal WPL-WP3936013
...
9
Terminal WPL-00347
...
10
Terminal,spade-1/4 Fem WPL-Y00115
...
11
Connector WPL-90789
...
12
Connector WPL-WP7405P034-60
...
13
Terminal,1/4 Spade Pre WPL-Y00214
...
14
Terminal,ring-10 Stud WPL-Y00111
...
15
Terminal,spade-1/4 Fem WPL-Y00114
...
16
Terminal,tab 1/4 Male WPL-Y00138
...
17
Terminal WPL-00344
...
18
Terminal WPL-00345

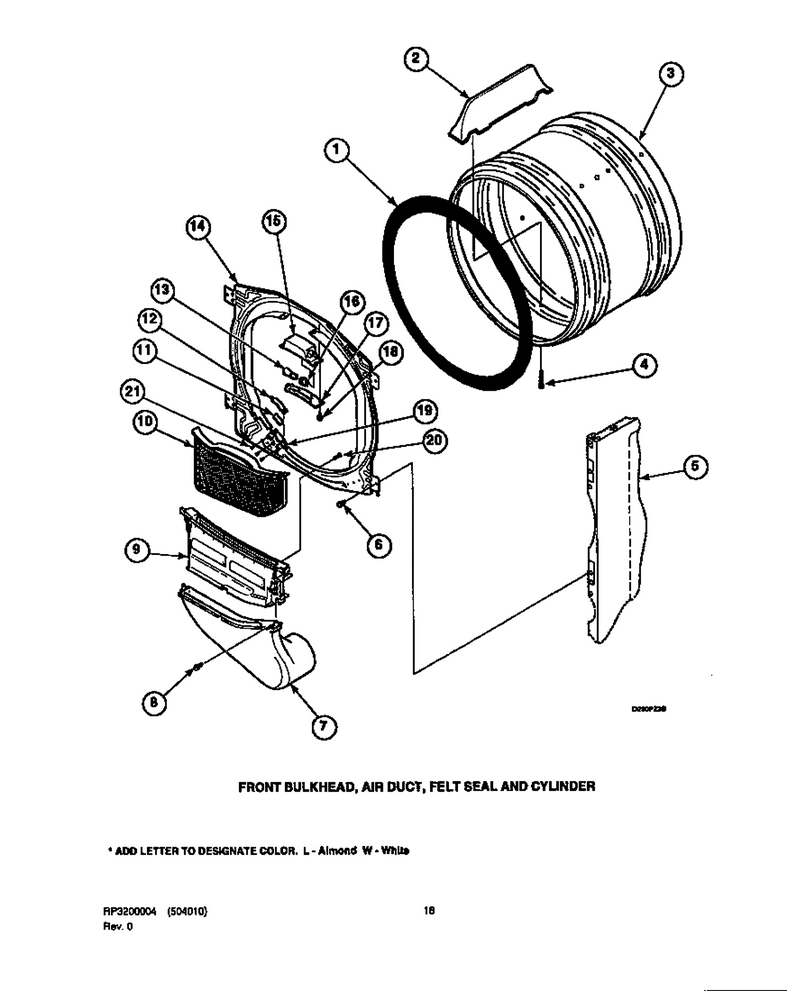

04 - Fr Blkhd, Air Duct, Felt Seal & Cylinder

...
...
NI
Adhesive,3m-1300-5 Oz. WPL-22506P
...
1
Seal- Cyli WPL-WP37001132
...
2
Baffle, Cylinder (Wht) WPL-503703
...
3
Cylinder Assembly (Painted) WPL-504467WP
...
4
Screw, 10bt-12 X 1 Tap WPL-Y62588
...
5
Cabinet WPL-500001P
...
6
Screw WPL-WP27001200
...
7
Duct, Air Lower WPL-Y503626
...
8
Screw, No.12 X 9/16 WPL-501285
...
9
Air Duct Assembly WPL-37001141
...
10
Filter- Li WPL-WP37001142
...
11
Pad- Felt WPL-WP500092
...
12
Support WPL-WP37001298
...
13
Bulb-Light WPL-W10857122
...
14
Assy,blkhd Front Co WPL-503756W
...
15
Light Assembly WPL-Y504452
...
16
Light Assembly WPL-Y504452
...
17
Lens- Ligh WPL-WP40094301
...
18
Screw WPL-W10815455
...
19
Bracket WPL-12002090
...
20
Screw, 8b-16x5/8 Tap WPL-500226
...
21
Rivet, Pop 3/16 Steel WPL-504540

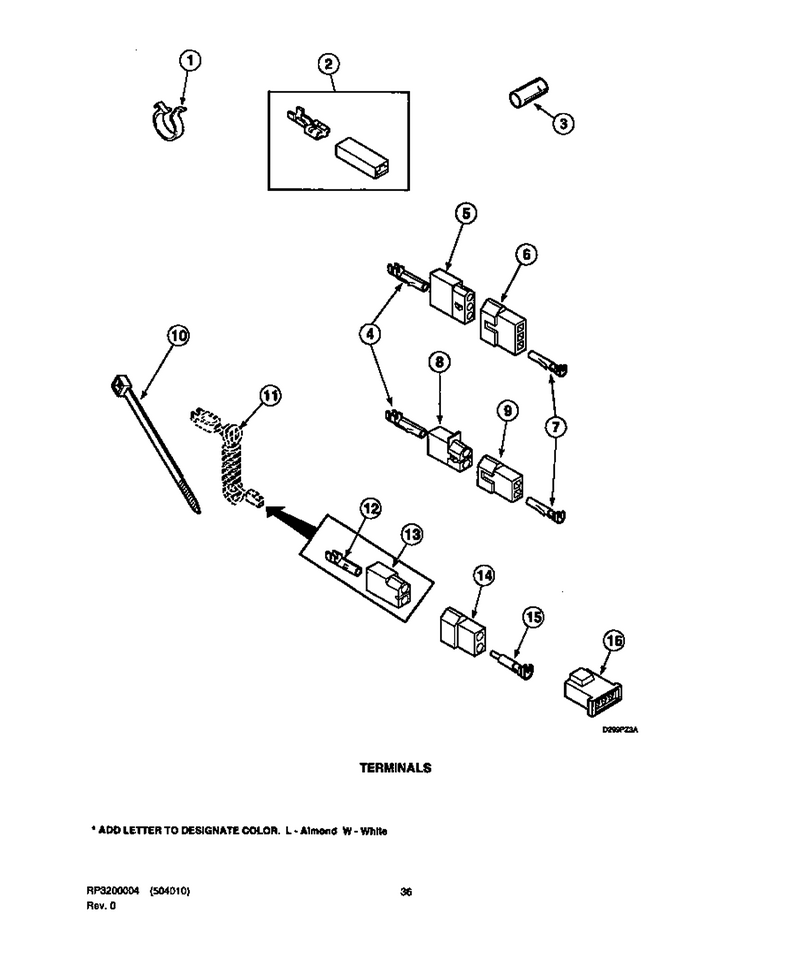

15 - Terminals

...
...
1
Clip, Wire WPL-504034
...
2
Terminal,spade-1/4 Fem WPL-Y00237
...
3
Insulator Sleeve WPL-503670
...
4
Female Socket Terminal WPL-Y00117
...
5
Receptacle, (Gas Valve) WPL-697780
...
6
Plug, 3 Circuit WPL-23040
...
7
Terminal,pin-Male WPL-Y00116
...
8
Receptacle,2 Circuit WPL-56451
...
9
Plug 2 Circuit WPL-56448
...
10
Wire Tie WPL-36456
...
12
Terminal,pin-1/8 Femal WPL-00130
...
13
Receptacle,2 Circuit WPL-56265
...
14
Plug WPL-56266
...
15
Terminal,pin-1/8 Male WPL-Y00127
...
16
Connector,3 Circuit WPL-58800

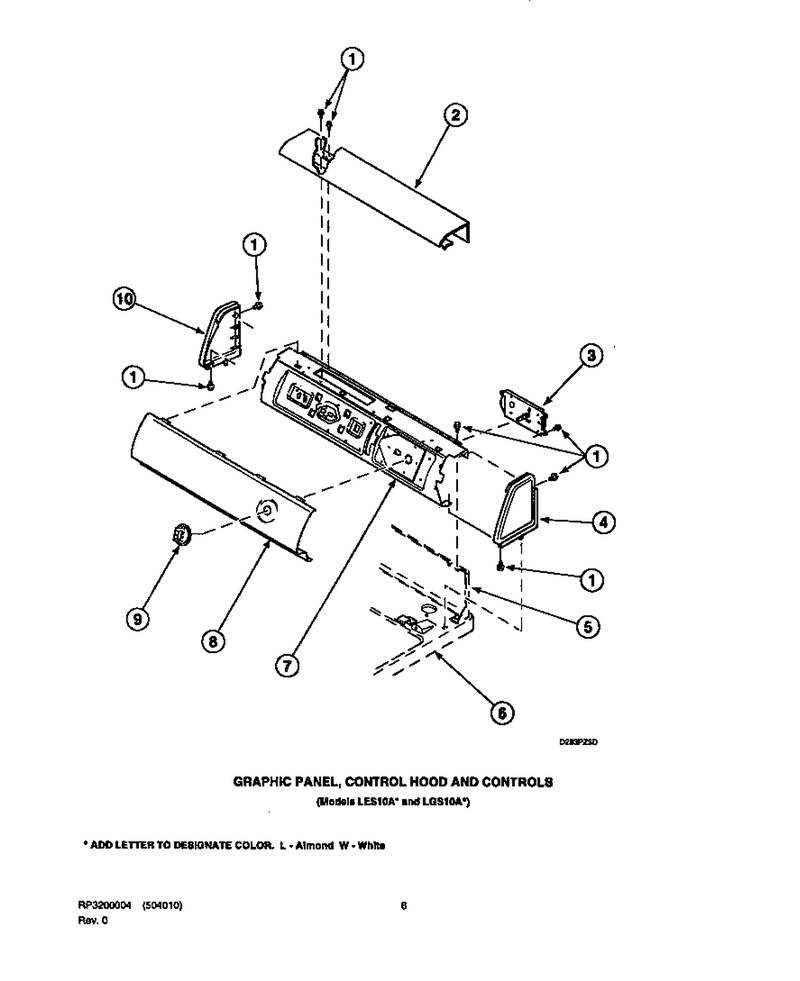

06 - Graphic Panel, Control Hood And Controls

...
...
10
Endcap (Lt-Wht) WPL-40012702W

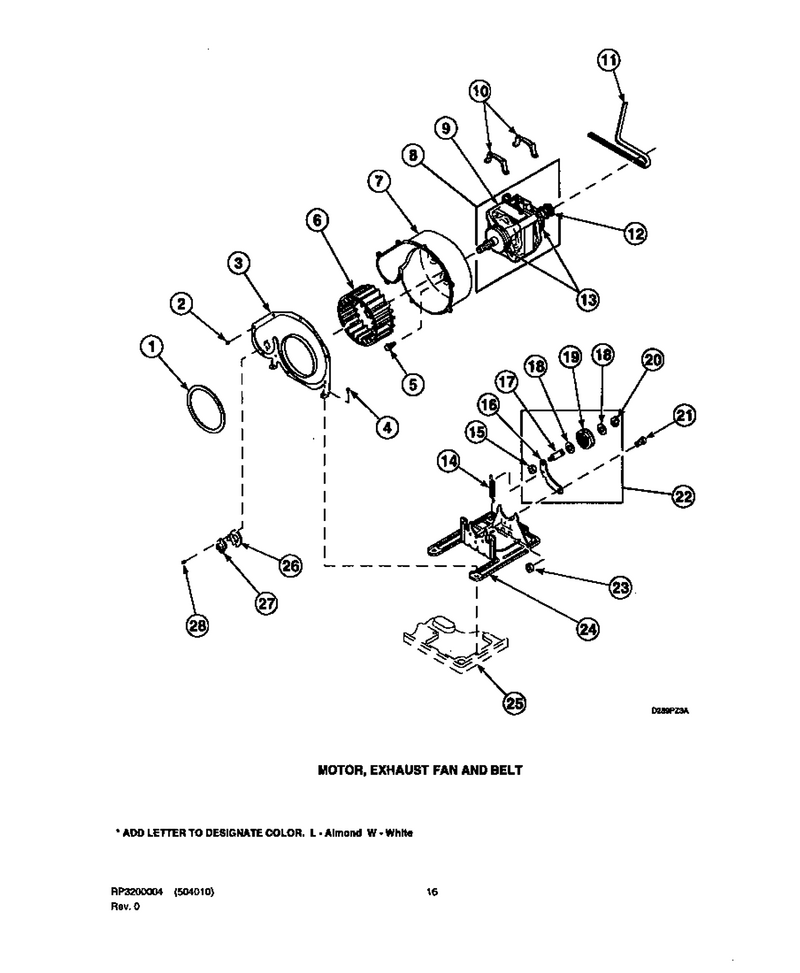

13 - Motor, Exhaust Fan And Belt

...
...
1
Seal, Blower Housing WPL-37001119
...
2
Screw, No.8 X 3/8 Ind H WPL-31260
...
3
Cover, Blower Housing WPL-500078
...
4
Screw WPL-WP27001200
...
5
Screw WPL-WP27001200
...
6
Assembly, Blower Fan WPL-56000
...
7
Housing, Blower WPL-56020
...
8
Motor-Drve WPL-WP2200376
...
9
Kit- Switc WPL-R0130735
...
10
Clamp WPL-WP660658
...
11
Belt WPL-WP40111201
...
12
Pulley,motor WPL-500011
...
13
Kit, Mtr Hub Ring WPL-590P3
...
14
Spring- Id WPL-WP56076
...
15
Nut, 3/8-16 Serrated WPL-56156
...
16
Asy- Idler WPL-WP37001144
...
17
Shaft WPL-WP56461
...
18
Washer WPL-WP233520
...
19
Pulley-Idr WPL-WPY54414
...
20
Ring- Reta WPL-WP23748
...
21
Complete R WPL-WFR500824
...
22
Bracket WPL-WP37001287
...
23
Nut WPL-WPW10139757
...
24
Mount, Motor WPL-503613
...
25
Base, Dryer WPL-500070
...
26
Heatr-Stat WPL-WP61623
...
27
Thermostat WPL-WPY504514
...
28
Screw WPL-WP489464
