product name

Amana LE9012 (BOM: P7804814W W)

Model: LE9012 (BOM: P7804814W W)

Save Part Not Listed?
product name

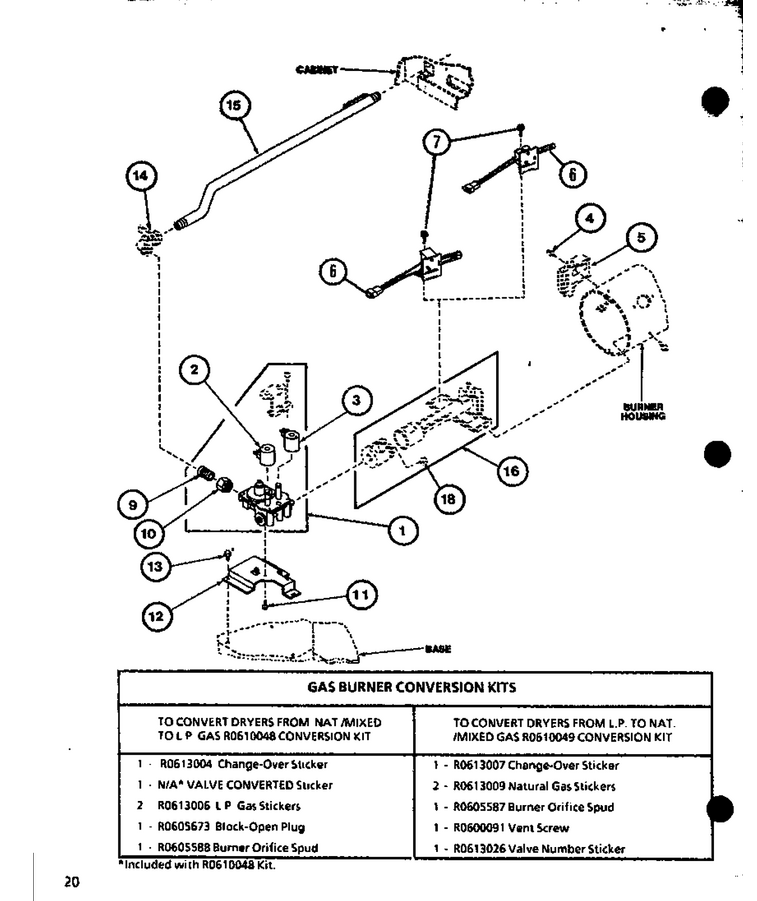

01 - Gas Burner Conversion Kits

...
...
1
Assembly, Gas Valve WPL-R0606002
...
2
Coil-Valve WPL-279834
...
3
Coil-Valve WPL-279834
...
4
Screw WPL-WP489464
...
5
Sensor WPL-WP338906
...
6
Ignitor WPL-WP37001308
...
7
Screw WPL-R0600047
...
9
Nipple WPL-R0606526
...
10
Locknut WPL-R0601034
...
11
Screw WPL-WP489128
...
12
Complete T WPL-WFR500821
...
13
Screw WPL-WP27001200
...
14
Valve-Elbo WPL-510205
...
15
Lead-In Pipe Assy WPL-R0610051
...
16
Assembly, Burner WPL-R0610023
...
18
Ignitor WPL-WP37001308

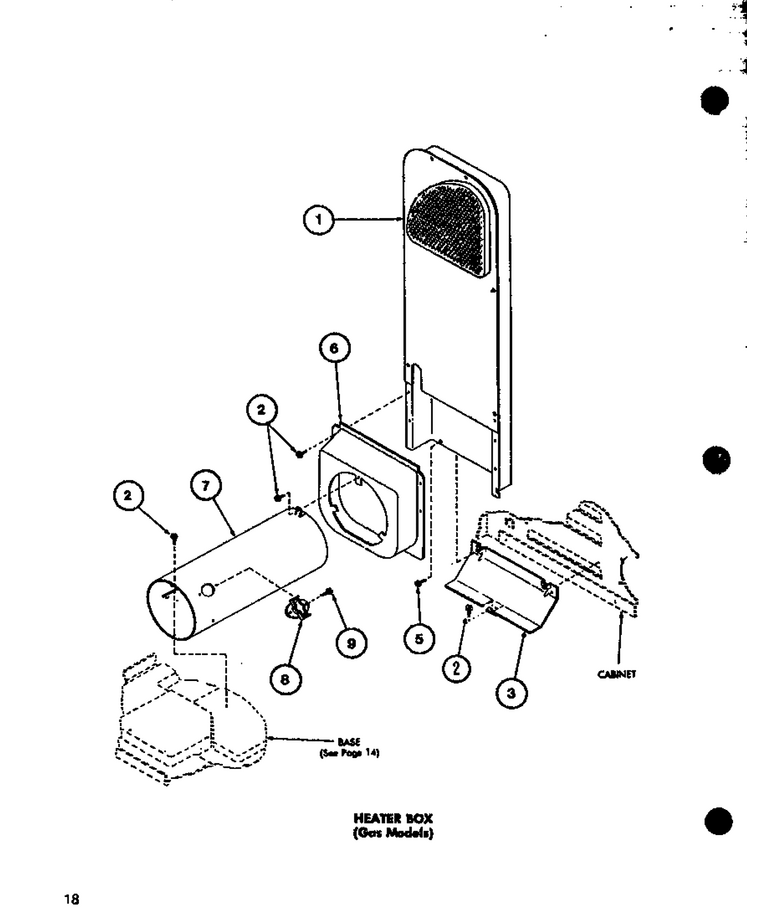

02 - Heater Box (gas Models)

...
...
1
Heater Box WPL-R0603179
...
2
Screw WPL-WP27001200
...
3
Heat Shield WPL-R0603180
...
5
Screw WPL-WP3390631
...
6
Shroud, Heat Duct WPL-500122
...
7
Housing, Burner WPL-R0603038
...
8
Limit Thermostat WPL-R0611004
...
9
Screw WPL-WP489464
