Amana LD510 (BOM: P1323508M)

Model: LD510 (BOM: P1323508M)

Save Part Not Listed?
product name

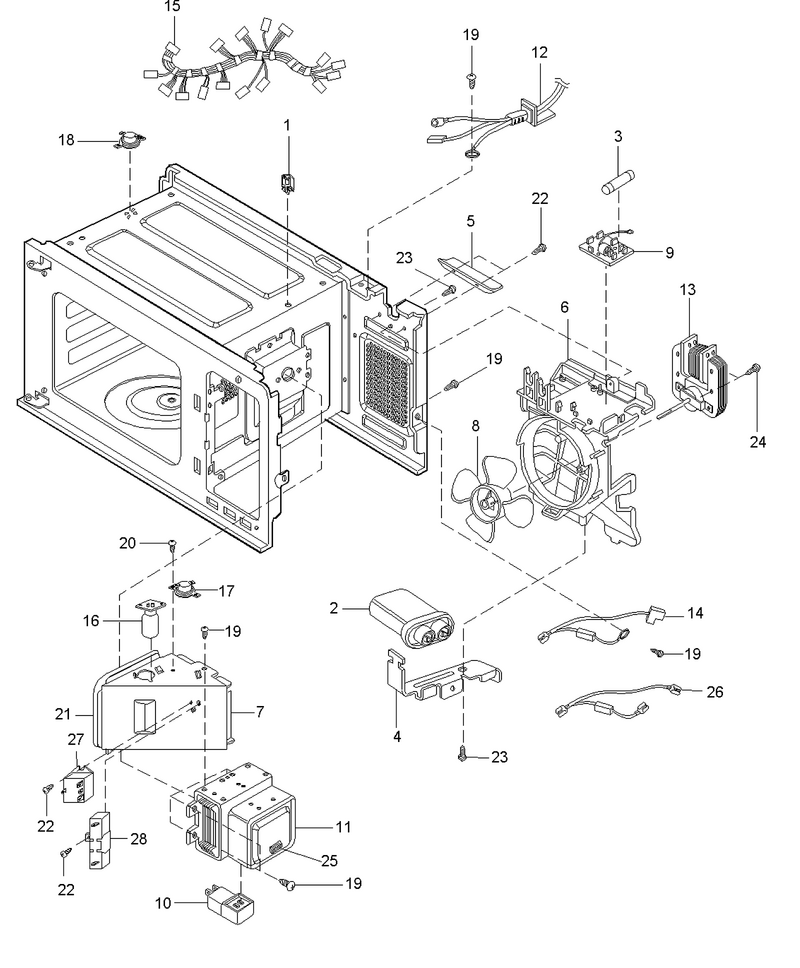

01 - Air Handling & Electrical

...
...
1
Holder- Wiring WPL-R9800440
...
2
Capacitor WPL-R9900521
...
3
Fuse WPL-R9900522
...
4
Bracket, H.v.c. WPL-4359161
...
5
Guide, Air (Rear) WPL-R9900076
...
6
Shroud-Fan WPL-R9900073
...
7
Duct, Air WPL-R9900523
...
8
Propeller WPL-8184292
...
9
Assy,fuse Block/filter WPL-R9900525
...
10
Filter, Choke WPL-4359624
...
11
Magnetron WPL-WP8205812
...
12
Cord, Power WPL-R9900526
...
13
Motor, Fan WPL-R9900528
...
14
Diode WPL-R9900530
...
15
Harness, Wire WPL-R9900531
...
16
Lamp, Oven Baseless WPL-R9900548
...
17
Thermostat WPL-8183593
...
18
Thermostat WPL-R9900532
...
19
Screw WPL-4344826
...
20
Screw, Pan Hd S/tap WPL-R0654030
...
21
Gasket (1=1ft.) WPL-10839713
...
22
Screw WPL-W11380570
...
23
Screw WPL-8169475
...
24
Screw, Tap Th WPL-R9800411
...
25
Gasket, Neoprene (1 Roll) WPL-10966605
...
26
Assy,circ Prot/wire WPL-R9900529

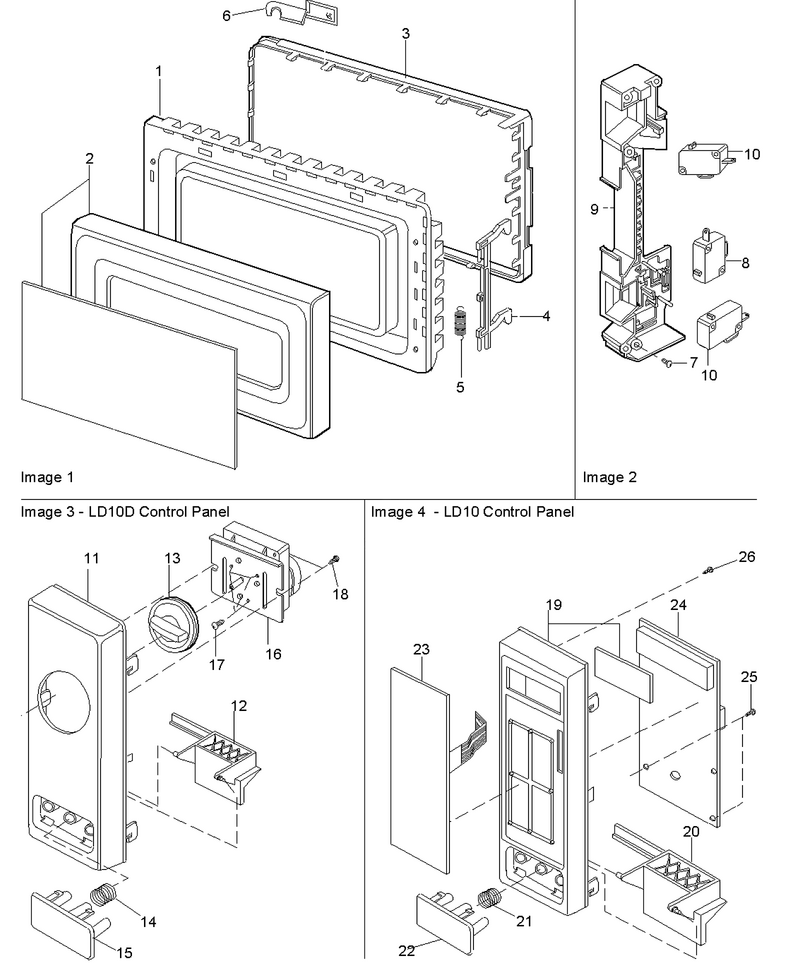

02 - Door, Interlock & Control Panel Parts

...
...
1
Assy,door Frame/choke/vapor B. WPL-R9900560
...
2
Assy,outer Door(Amana) WPL-R9900561
...
3
Choke Cover WPL-8171795
...
4
Latch WPL-R9800284
...
5
Spring WPL-R9800292
...
6
Cap, Top Hinge WPL-R9900077
...
7
Screw, Special D WPL-R9800691
...
8
Switch, Monitor WPL-R9900520
...
9
Brkt-Mount WPL-WP8185271
...
10
Switch- Pr WPL-WP56001036
...
19
Assy,control Panel WPL-R9900563
...
20
Lever, Release WPL-R9800357
...
21
Spring WPL-WP4158178
...
22
Button, Door Release WPL-R9900564
...
23
Key Pad WPL-R9900546
...
24
Controller WPL-R9900514
...
25
Screw Tapping,pan Head WPL-R0131048
...
26
Screw WPL-8169475

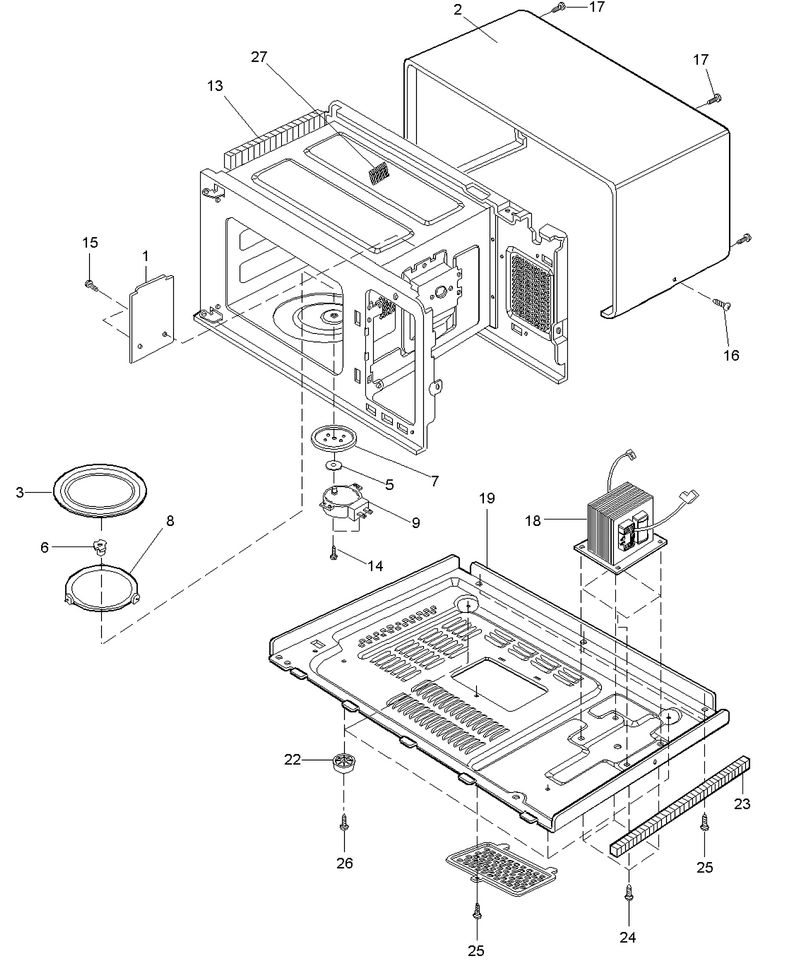

03 - Oven Cavity & Basepan

...
...
1
Canopy, Mica WPL-R9900052
...
2
Outer Case WPL-R9900516
...
3
Tray-Cook WPL-WP8172138
...
5
Seal, Water WPL-8171805
...
6
Shaft, Turn Table WPL-R9900067
...
7
Mount, Motor T.t. WPL-R9900072
...
8
Ring, Rotating WPL-R9900565
...
9
Motor, Turn Table WPL-R9900518
...
13
Gasket WPL-R9800394
...
14
Screw, Pan Hd WPL-R0654180
...
15
Screw, Truss Hd WPL-R9900539
...
16
Screw, Tap Th WPL-R9800309
...
17
Screw WPL-W11380570
...
18
Transformer,h.v. WPL-R9900524
...
19
Base Plate WPL-R9900533
...
22
Leg WPL-R9900534
...
23
Gasket-Base Plate (Right) WPL-R9900064
...
24
Screw WPL-4344826
...
26
Screw WPL-R9900559
...
27
Gasket-Base Plate (Right) WPL-R9900064
