Amana LD10D (BOM: P1329701M)

Model: LD10D (BOM: P1329701M)

Save Part Not Listed?
product name

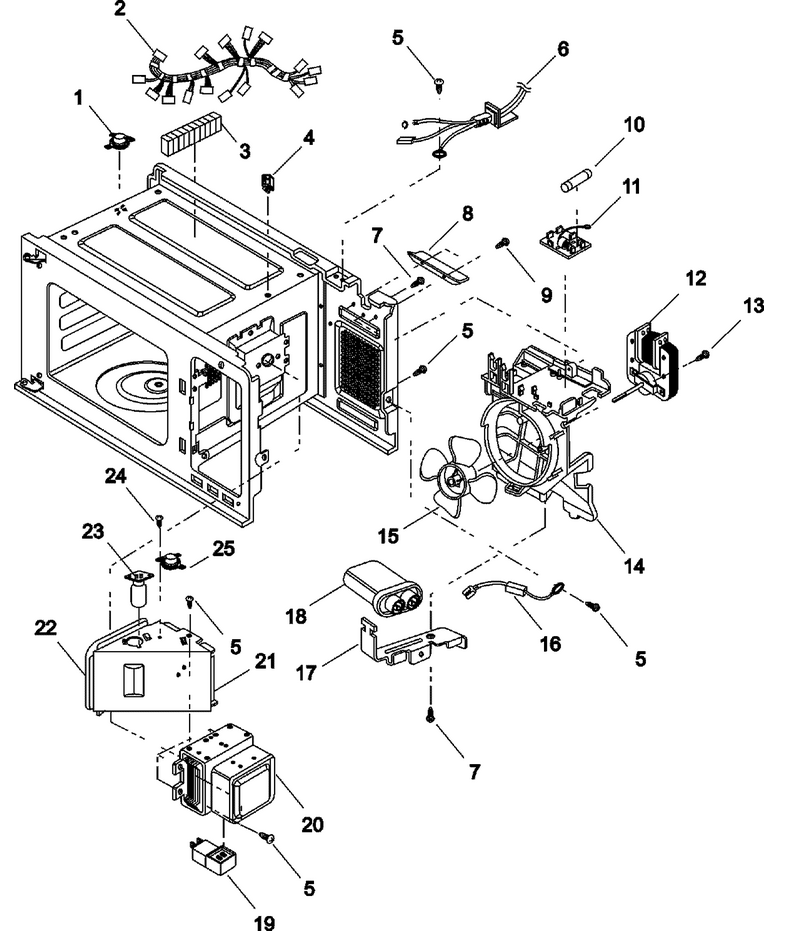

05 - Interior

...
...
1
Thermo, Cavity WPL-R9900096
...
2
Harness, Wire WPL-R9900093
...
3
Gasket (Cavity Top) WPL-R9900066
...
4
Holder- Wiring WPL-R9800440
...
5
Screw WPL-4344826
...
6
Assy, Power Cord WPL-R9900083
...
7
Screw WPL-8169475
...
8
Guide, Air (Rear) WPL-R9900076
...
9
Screw WPL-W11380570
...
10
Fuse 20 A WPL-WPM0805101
...
11
Assy, Fuse Block/noise Filter WPL-R9800472
...
12
Motor - Fan WPL-R9900051
...
13
Screw, Tap Th WPL-R9800411
...
14
Shroud, Fan Motor WPL-R9900073
...
15
Propeller WPL-8184292
...
16
Diode- Bla WPL-WPR9800486
...
17
Bracket, H.v.c. WPL-4359161
...
18
Capacitor- WPL-WP59001168
...
19
Filter, Choke WPL-4359624
...
20
Magnetron WPL-W10859575
...
21
Duct, Air WPL-R9900079
...
22
Gasket (1=1ft.) WPL-10839713
...
23
Lamp, Oven/baseless WPL-53001128
...
24
Screw, Pan Hd S/tap WPL-R0654030
...
25
Thermo, Magnetron WPL-R9900097

...
...
1
Manual, Owners WPL-R9900062
...
2
Svc Man, Rpl 16022123 WPL-16023053

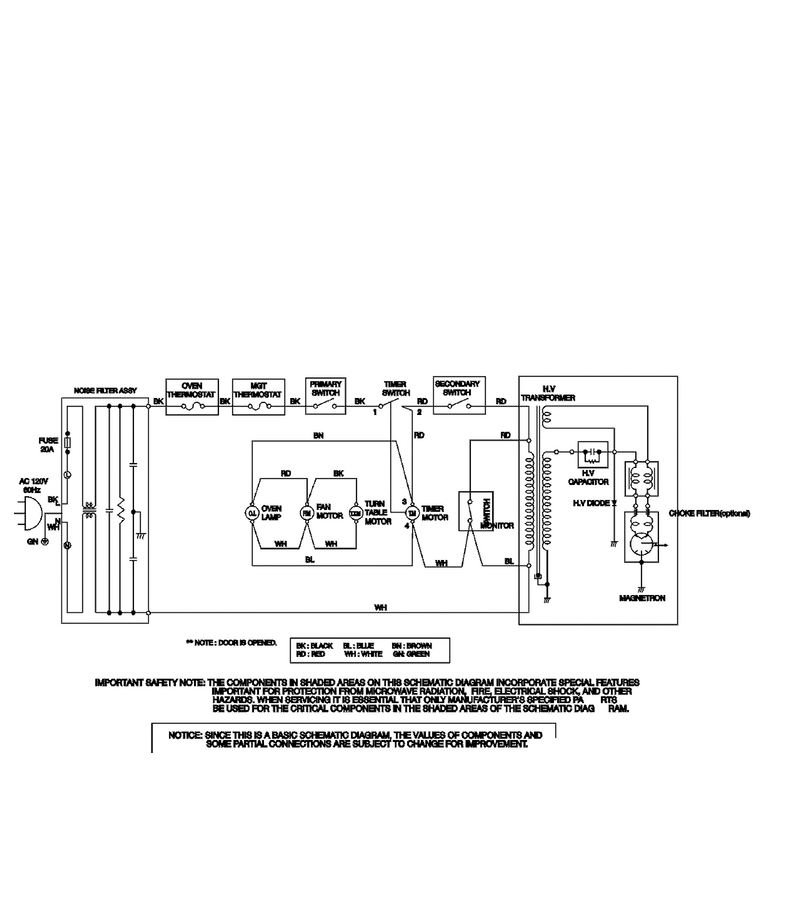

08 - Wiring Information

...
...
NI
Wiring Information WPL-15003590

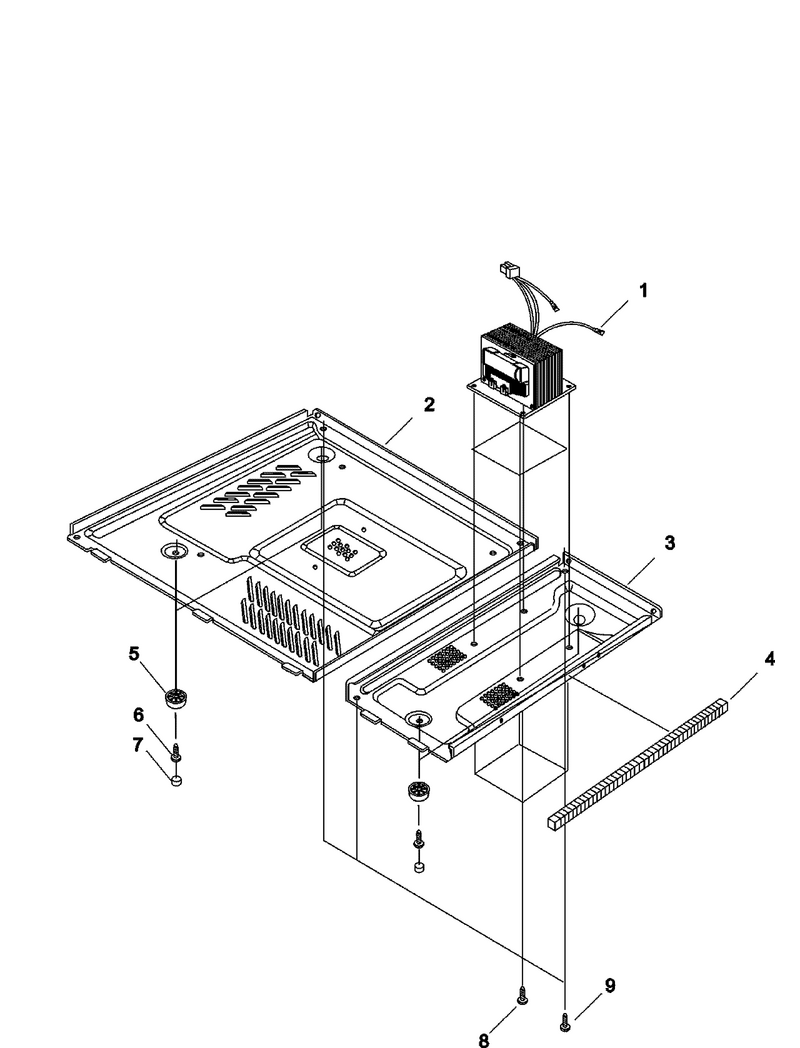

01 - Base

...
...
1
Transformer WPL-8172170
...
2
Base Plate (Left) WPL-R9800493
...
3
Plate, Base (Right) WPL-R9900055
...
4
Gasket (Per Foot) WPL-A3030303
...
5
Leg WPL-4358487
...
6
Screw WPL-8169475
...
7
Cover Leg WPL-R9900058
...
8
Screw WPL-4344826
...
9
Screw WPL-W11380570

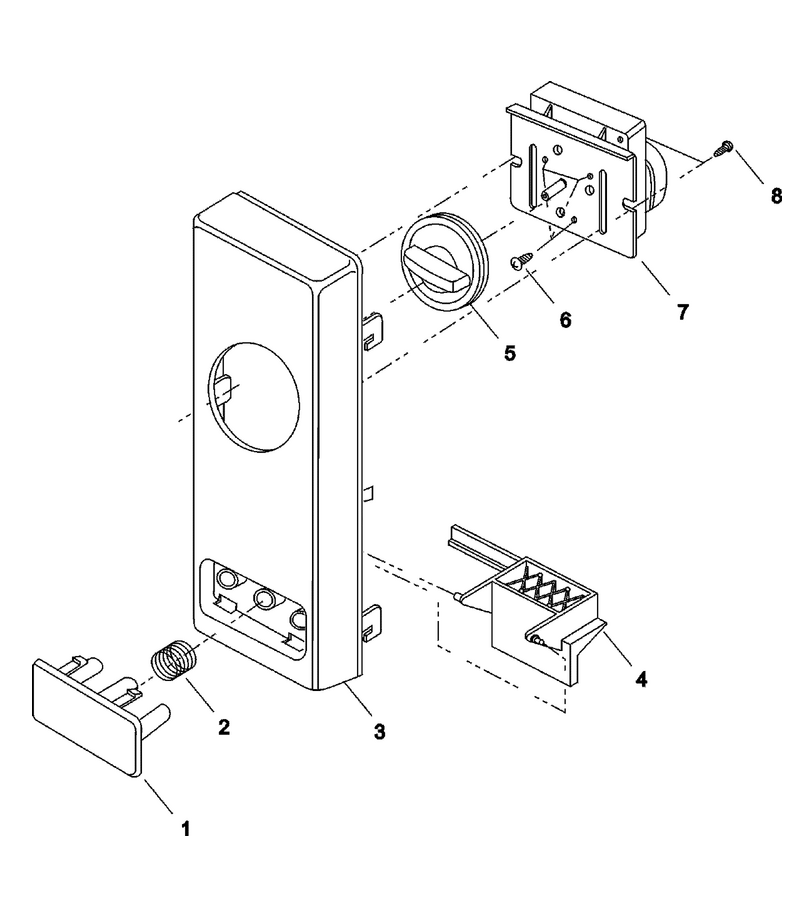

03 - Control Panel

...
...
1
Button WPL-R9900564
...
2
Spring WPL-WP4158178
...
3
Panel, Control (Ld10d) WPL-R9900060
...
4
Lever, Release WPL-R9800357
...
5
Knob, Ld10d WPL-R9900071
...
6
Screw, Pan Hd S/tap WPL-R0654030
...
7
Kit,timer WPL-R0000471
...
8
Screw WPL-8169475

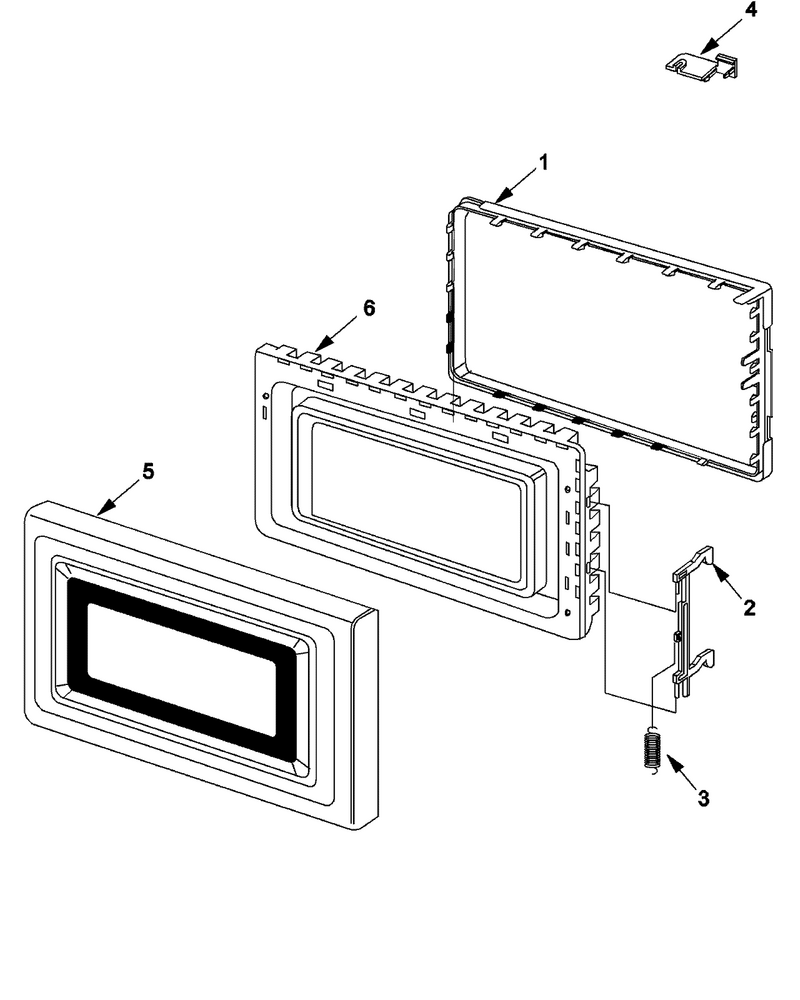

04 - Door

...
...
1
Choke Cover WPL-8171795
...
2
Latch WPL-R9800284
...
3
Spring WPL-R9800292
...
4
Cap, Top Hinge WPL-R9900077
...
5
Assy, O.d. Pnl Kit WPL-R9900085
...
6
Assy, Dr Frame/choke WPL-R9900100

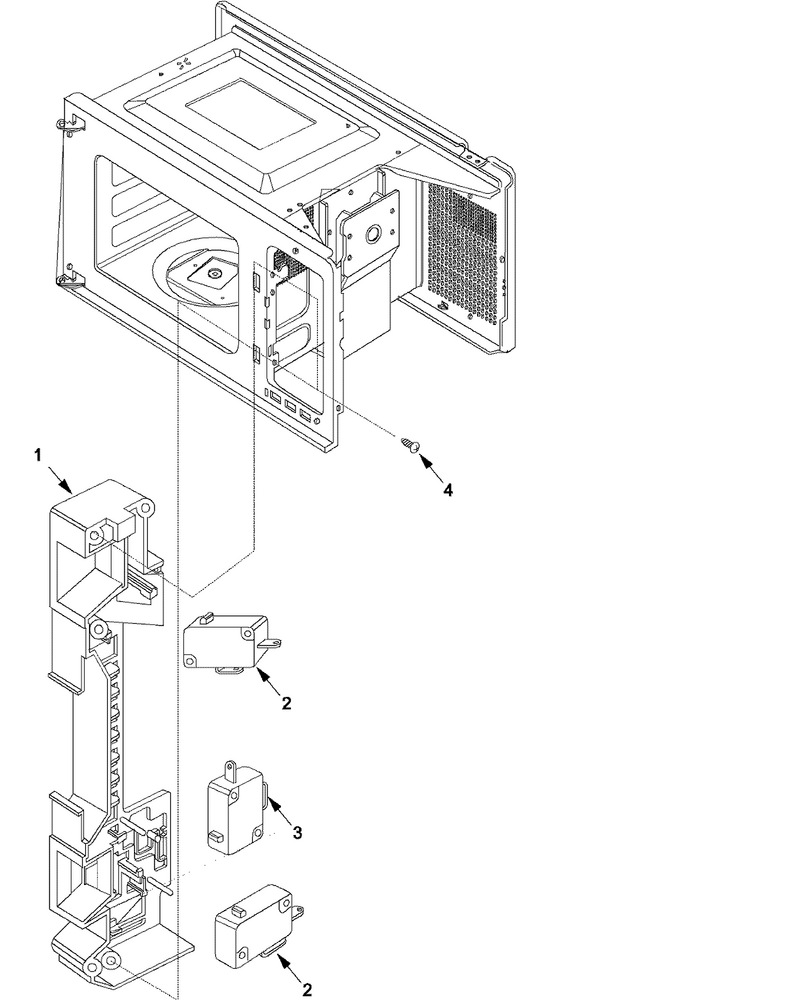

06 - Latch Board

...
...
1
Brkt-Mount WPL-WP8185271
...
2
Switch- Pr WPL-WP56001036
...
3
Switch, Monitor WPL-R9900520
...
4
Screw WPL-R0654111

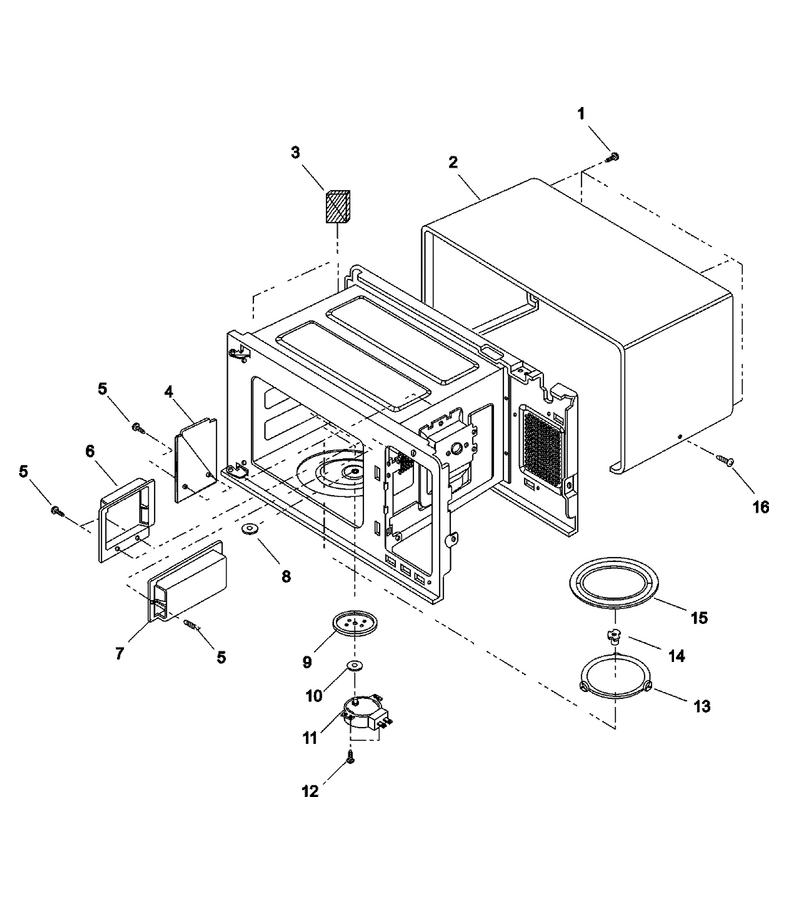

02 - Cavity

...
...
1
Screw WPL-W11380570
...
2
Outer Case WPL-R9900054
...
3
Gasket (1=1ft.) WPL-10839713
...
4
Canopy, Mica WPL-R9900052
...
5
Screw WPL-WP3196557
...
6
Guide, Air (Right) WPL-R9900075
...
7
Guide, Air (Left) WPL-R9900074
...
8
Seal, Water (Oven Cavity) WPL-R9900069
...
9
Mount, Motor T.t. WPL-R9900072
...
10
Seal, Water WPL-8171805
...
11
Motor, Turn Table WPL-R9900084
...
12
Screw, Pan Hd WPL-R0654180
...
13
Assy, Rotating Ring WPL-R9900080
...
14
Shaft, Turn Table WPL-R9900067
...
15
Tray-Cook WPL-WP8172138
...
16
Screw, Tap Th WPL-R9800309
