Amana LD10D (BOM P1329701M)

Model: LD10D (BOM P1329701M)

Save Part Not Listed?
product name

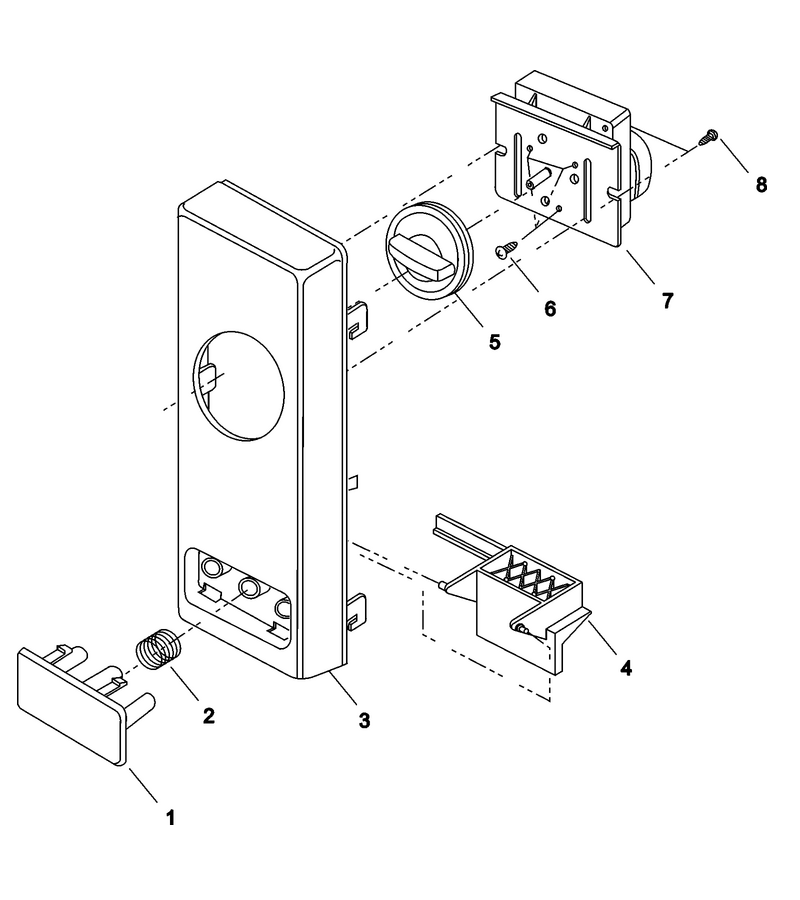

02 - Control Panel

...
...
001
Button WPL-R9900564
...
002
Spring WPL-WP4158178
...
003
Panel, Control (Ld10d) WPL-R9900060
...
004
Lever, Release WPL-R9800357
...
005
Knob, Ld10d WPL-R9900071
...
006
Screw, Pan Hd S/tap WPL-R0654030
...
007
Kit,timer WPL-R0000471
...
008
Screw WPL-8169475

...
...
001
Manual, Owners WPL-R9900062
...
002
Svc Man, Rpl 16022123 WPL-16023053

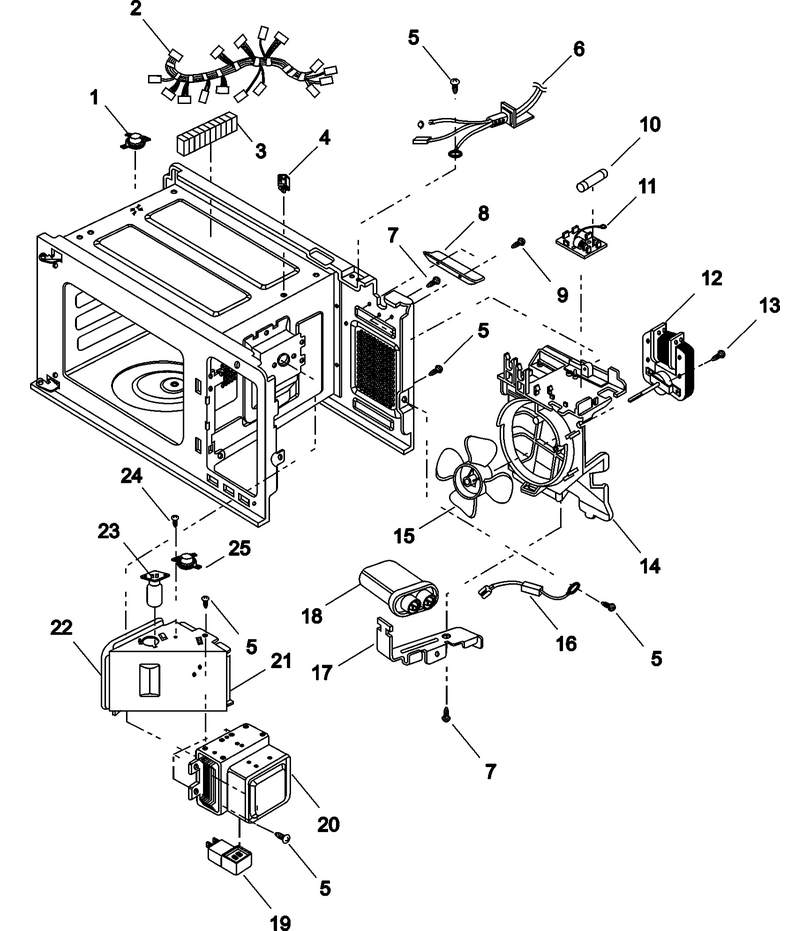

05 - Interior

...
...
001
Thermo, Cavity WPL-R9900096
...
002
Harness, Wire WPL-R9900093
...
003
Gasket (Cavity Top) WPL-R9900066
...
004
Holder- Wiring WPL-R9800440
...
005
Screw WPL-4344826
...
006
Assy, Power Cord WPL-NLA
...
007
Screw WPL-8169475
...
008
Guide, Air (Rear) WPL-NLA
...
009
Screw WPL-W11380570
...
010
Fuse 20 A WPL-WPM0805101
...
011
Assy, Fuse Block/noise Filter WPL-R9800472
...
012
Motor - Fan WPL-R9900051
...
013
Screw, Tap Th WPL-R9800411
...
014
Shroud, Fan Motor WPL-R9900073
...
015
Propeller WPL-8184292
...
016
Diode- Bla WPL-WPR9800486
...
017
Bracket, H.v.c. WPL-4359161
...
018
Capacitor- WPL-WP59001168
...
019
Filter, Choke WPL-4359624
...
020
Magnetron WPL-W10859575
...
021
Duct, Air WPL-R9900079
...
022
Gasket (1=1ft.) WPL-10839713
...
023
Lamp, Oven/baseless WPL-53001128
...
024
Screw, Pan Hd S/tap WPL-R0654030
...
025
Thermo, Magnetron WPL-R9900097

...
...
001
Brkt-Mount WPL-WP8185271
...
002
Switch- Pr WPL-WP56001036
...
003
Switch, Monitor WPL-R9900520
...
004
Screw WPL-R0654111

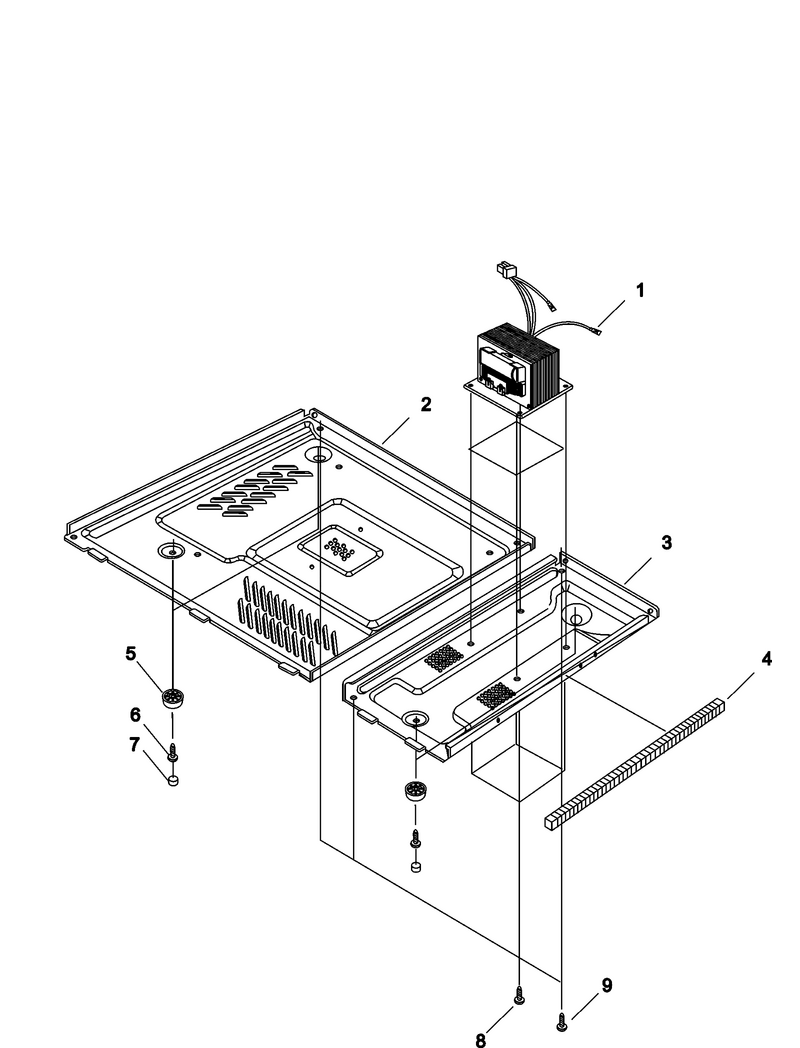

06 - Base

...
...
001
Transformer WPL-8172170
...
002
Base Plate (Left) WPL-R9800493
...
003
Plate, Base (Right) WPL-R9900055
...
004
Gasket (Per Foot) WPL-A3030303
...
005
Leg WPL-4358487
...
006
Screw WPL-8169475
...
007
Cover Leg WPL-R9900058
...
008
Screw WPL-4344826
...
009
Screw WPL-W11380570

...
...
001
Choke Cover WPL-8171795
...
002
Latch WPL-R9800284
...
003
Spring WPL-R9800292
...
004
Cap, Top Hinge WPL-R9900077
...
005
Assy, O.d. Pnl Kit WPL-R9900085
...
006
Assy, Dr Frame/choke WPL-R9900100

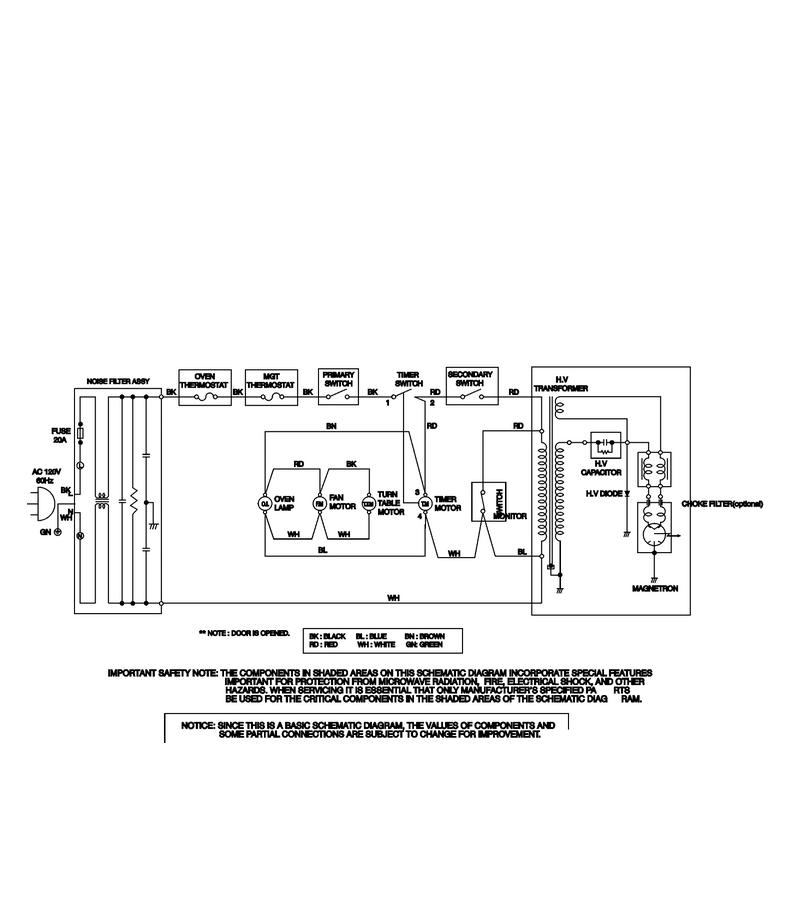

08 - Wiring Information

...
...
001
Wiring Information WPL-NLA

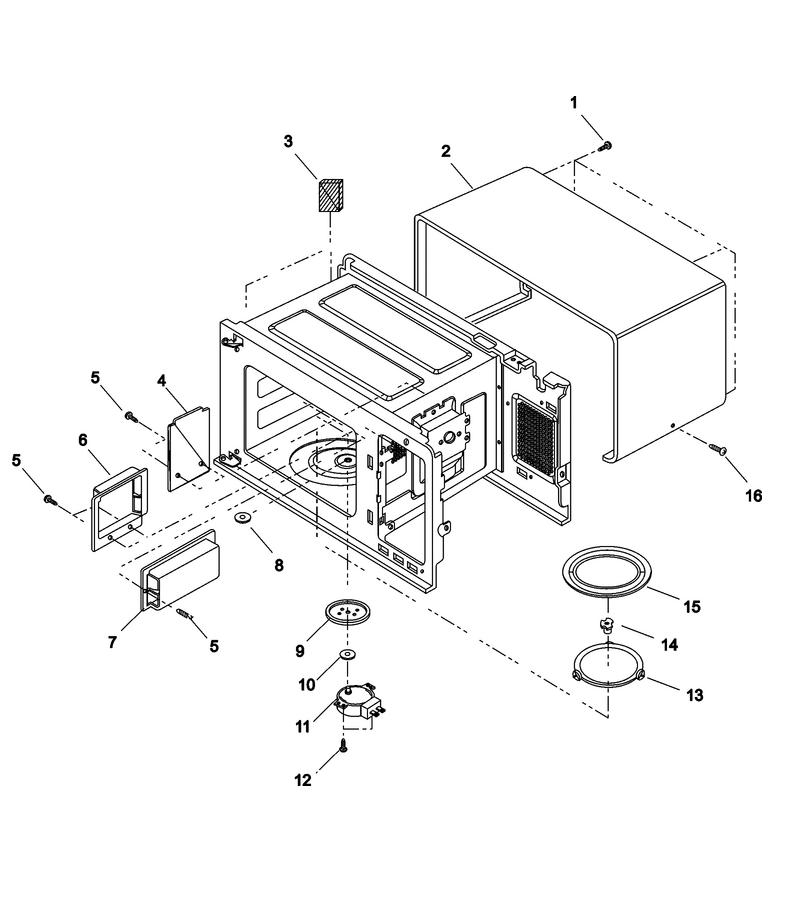

03 - Cavity

...
...
001
Screw WPL-W11380570
...
002
Outer Case WPL-R9900054
...
003
Gasket (1=1ft.) WPL-10839713
...
004
Canopy, Mica WPL-R9900052
...
005
Screw, Truss Hd WPL-NLA
...
006
Guide, Air (Right) WPL-R9900075
...
007
Guide, Air (Left) WPL-R9900074
...
008
Seal, Water (Oven Cavity) WPL-R9900069
...
009
Mount, Motor T.t. WPL-NLA
...
010
Seal, Water WPL-8171805
...
011
Motor, Turn Table WPL-R9900084
...
012
Screw, Pan Hd WPL-R0654180
...
013
Assy, Rotating Ring WPL-R9900080
...
014
Shaft, Turn Table WPL-R9900067
...
015
Tray-Cook WPL-WP8172138
...
016
Screw, Tap Th WPL-R9800309
