Amana LD10D (BOM: P1323501M)

Model: LD10D (BOM: P1323501M)

Save Part Not Listed?
product name

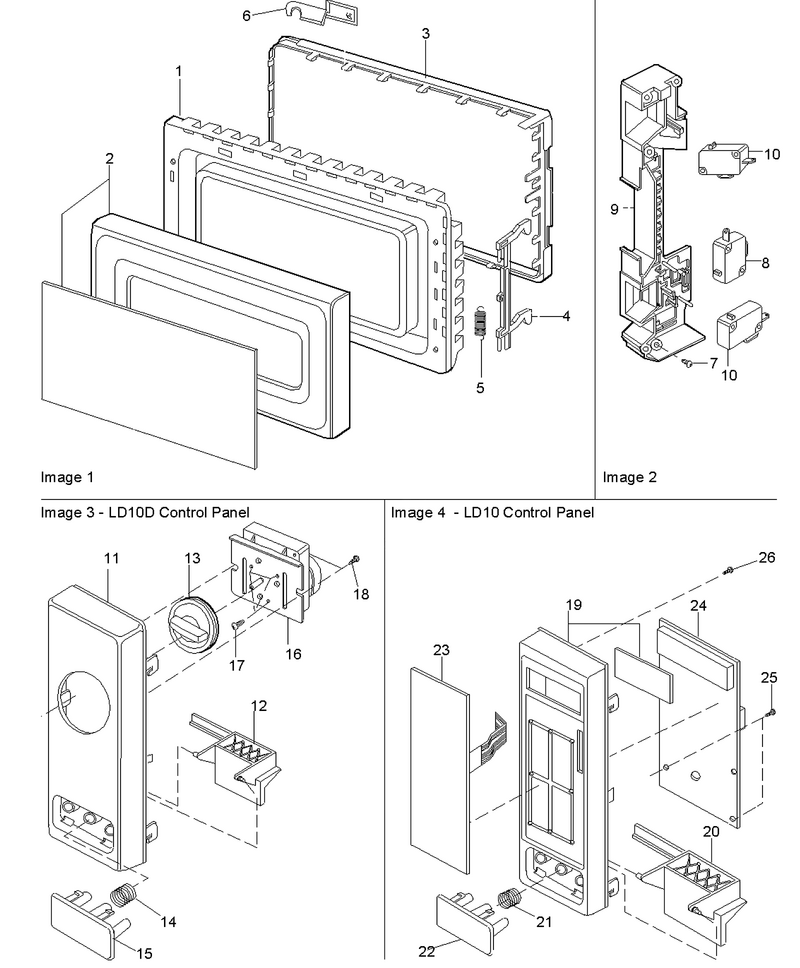

02 - Door, Interlock & Control Panel Parts

...
...
1
Assy, Dr Frame/choke WPL-R9900100
...
2
Assy, O.d. Pnl Kit WPL-R9900085
...
3
Choke Cover WPL-8171795
...
4
Latch WPL-R9800284
...
5
Spring WPL-R9800292
...
6
Cap, Top Hinge WPL-R9900077
...
7
Screw WPL-R0654111
...
8
Switch, Monitor WPL-R9900520
...
9
Brkt-Mount WPL-WP8185271
...
10
Switch- Pr WPL-WP56001036
...
11
Panel, Control (Ld10d) WPL-R9900060
...
12
Lever, Release WPL-R9800357
...
13
Knob, Ld10d WPL-R9900071
...
14
Spring WPL-WP4158178
...
15
Button WPL-R9900564
...
16
Kit,timer WPL-R0000471
...
17
Screw, Pan Hd S/tap WPL-R0654030
...
18
Screw WPL-8169475

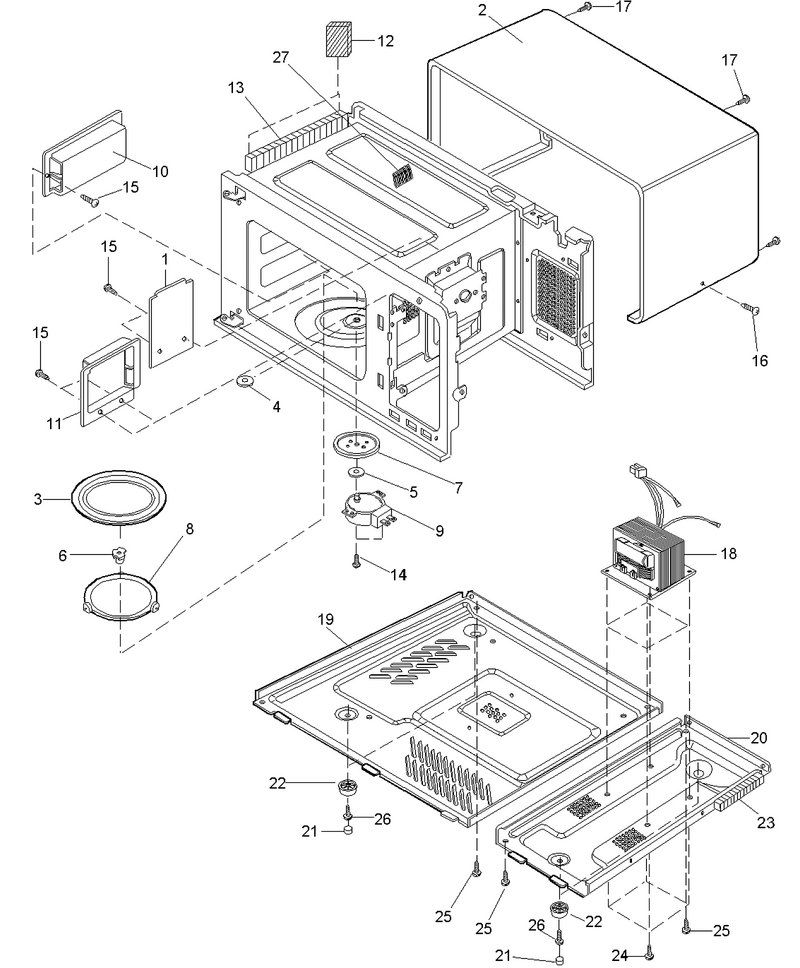

04 - Oven Cavity & Basepan

...
...
1
Canopy, Mica WPL-R9900052
...
2
Outer Case WPL-R9900054
...
3
Tray-Cook WPL-WP8172138
...
4
Seal, Water (Oven Cavity) WPL-R9900069
...
5
Seal, Water WPL-8171805
...
6
Shaft, Turn Table WPL-R9900067
...
7
Mount, Motor T.t. WPL-R9900072
...
8
Assy, Rotating Ring WPL-R9900080
...
9
Motor, Turn Table WPL-R9900084
...
10
Guide, Air (Left) WPL-R9900074
...
11
Guide, Air (Right) WPL-R9900075
...
12
Gasket WPL-10839710
...
13
Gasket (1=1ft.) WPL-10839709
...
14
Screw, Pan Hd WPL-R0654180
...
15
Screw WPL-WP3196557
...
16
Screw, Tap Th WPL-R9800309
...
17
Screw WPL-W11380570
...
18
Transformer WPL-8172170
...
19
Base Plate (Left) WPL-R9800493
...
20
Plate, Base (Right) WPL-R9900055
...
21
Cover Leg WPL-R9900058
...
22
Leg WPL-4358487
...
23
Gasket-Base Plate (Right) WPL-R9900064
...
24
Screw WPL-4344826
...
25
Screw WPL-W11380570
...
26
Screw WPL-8169475

...
...
0
Owners Manual (Ld10d) WPL-12474301

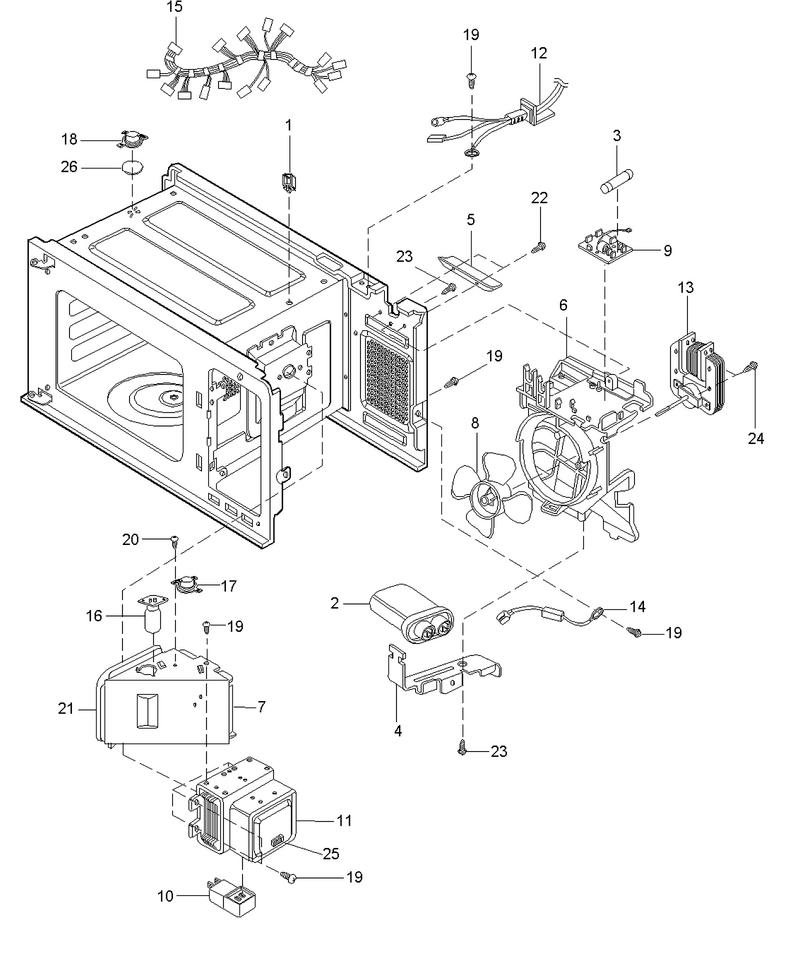

01 - Air Handling & Electrical

...
...
1
Holder- Wiring WPL-R9800440
...
2
Capacitor- WPL-WP59001168
...
3
Fuse 20 A WPL-WPM0805101
...
4
Bracket, H.v.c. WPL-4359161
...
5
Guide, Air (Rear) WPL-R9900076
...
6
Shroud, Fan Motor WPL-R9900073
...
7
Duct, Air WPL-R9900079
...
8
Propeller WPL-8184292
...
9
Assy, Fuse Block/noise Filter WPL-R9800472
...
10
Filter, Choke WPL-4359624
...
11
Magnetron WPL-W10859575
...
12
Assy, Power Cord WPL-R9900083
...
13
Motor - Fan WPL-R9900051
...
14
Diode- Bla WPL-WPR9800486
...
15
Harness, Wire WPL-R9900093
...
16
Lamp, Oven/baseless WPL-53001128
...
17
Thermo, Magnetron WPL-R9900097
...
18
Thermo, Cavity WPL-R9900096
...
19
Screw WPL-4344826
...
20
Screw, Pan Hd S/tap WPL-R0654030
...
21
Gasket (1=1ft.) WPL-10839713
...
22
Screw WPL-W11380570
...
23
Screw WPL-8169475
...
24
Screw, Tap Th WPL-R9800411
...
25
Gasket, Neoprene (1 Roll) WPL-10966605
...
26
Spacer WPL-R0000248
