Amana LC-14VP.000

Model: LC-14VP.000

Save Part Not Listed?
product name

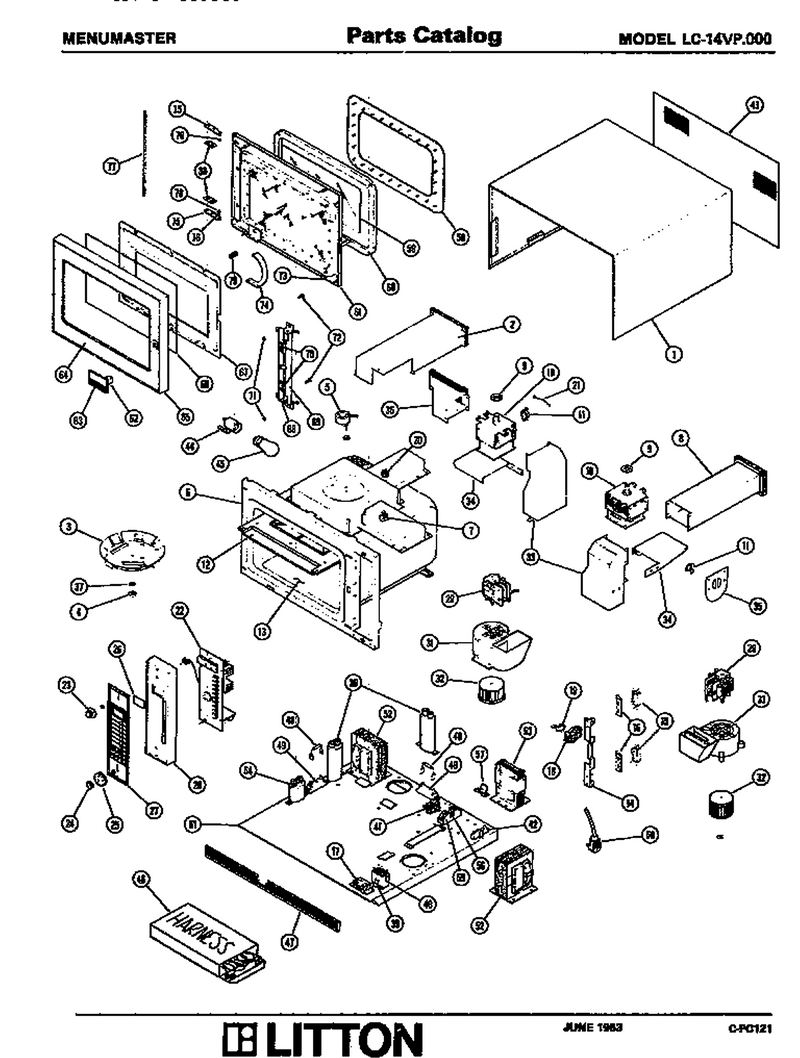

01 - Page 1

...
...
NI
Not Available WPL-M1D297
...
1
Not Available WPL-M80D105
...
2
Clip (10) WPL-M1D680
...
3
Stirrer Blade Kit WPL-M44D15
...
4
Nut, Push WPL-Y04100035
...
5
Gasket WPL-M2D252
...
6
Cavity Assy WPL-M77D117
...
7
Antenna Pin Side Kit WPL-M2D566
...
8
Poly Rivet, Duct Mtg. WPL-M2D588
...
9
Gasket-Rf WPL-M2D296
...
10
Kit, Magnetron WPL-M57D34
...
11
Protector-X WPL-M4D77
...
12
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
13
Shelf Kit WPL-M50D38
...
14
Bracket, Switch WPL-M8D208
...
15
Nut K WPL-M0282005
...
16
Strike WPL-M8D157
...
17
Switch, Timer Interlock WPL-M14D255
...
18
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
19
Switch, Monitor WPL-35370P01
...
20
Screw, Tf WPL-M0231704
...
21
Guard M2d389 WPL-33414P01
...
22
Fuse 1/4 Amp WPL-M4D76
...
23
Knob, Vari-Power WPL-M6D212
...
24
Knob Dial WPL-31818P01
...
25
Knob, Minutes WPL-M6D214
...
26
Lens/filter WPL-31820P01
...
27
Dec Panel WPL-M7D372
...
28
Screw, Casting Mtg. WPL-M1D766
...
29
Screw WPL-M1D764
...
30
Screw WPL-M1D764
...
31
Housing Blower, Kit WPL-M65D277
...
32
E-Ring .219 Shaft WPL-M1D853
...
33
No.8 T X 1/4`` Screw WPL-M1D486
...
34
Clip (10) WPL-M1D680
...
35
Shield WPL-40172P01
...
36
No.8 T X 1/4`` Screw WPL-M1D486
...
37
Wshr-Rubber WPL-32383P01
...
38
Gasket, Hinge Mtg. WPL-M25D65
...
39
Brkt WPL-M8D230
...
40
Relay WPL-36752P01
...
41
Holding Relay Kit WPL-M16D95
...
42
Speed Clip WPL-M8D123
...
43
Access Pnl Back WPL-M82D170
...
44
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
45
Light Bulb WPL-8009
...
46
Harness Package WPL-M27D313
...
47
Clip WPL-M2D499
...
48
Bleeder Resistor WPL-M3D42
...
49
Hv Rect 12kv 750max WPL-1330000301
...
50
Cord Asy Fs-14evp.000 M26d43 WPL-M26D43
...
51
Not Available WPL-M79D88
...
52
Ia Screw No.10-32 WPL-M1D370
...
53
Ia Screw No.10-32 WPL-M1D370
...
54
Capacitor 4.00mf Kit WPL-M10D93
...
55
No.6 Pan Hd Machine Screw WPL-M1D69
...
56
Fuse, M4d87 WPL-36108P01
...
57
Screw WPL-M1D764
...
58
Plate, Seal WPL-M54D10
...
59
Window, Inner WPL-M51D34
...
60
Choke Filler WPL-33775P01
...
61
Net Use 10897701 Dr Pnl K WPL-M70D66
...
62
Handle Kit WPL-M8D255
...
63
Handle Inlay WPL-M7D614
...
64
Dr Inlay Gold Kit WPL-M7D368
...
65
Casting, Outer Door WPL-M70D59
...
66
Outer Window WPL-M51D47
...
67
Nut WPL-M1D760
...
68
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
69
Latch Plated WPL-M8D200
...
70
Spring Latch Kit WPL-M2D198
...
71
Nut, Locking WPL-M1D859
...
72
Screw Adjust M1d744 (10) WPL-M1D744
...
73
Ball Stud (1) WPL-M1D594
...
74
Nut WPL-WP488130
...
75
Hinge M8d212 (2per) WPL-94115P01
...
76
Bearing Flng (10) WPL-M1D112
...
77
Rod Hinge M52d157 WPL-31618P01
...
78
Flat Washer WPL-M1D117
...
79
Cushion WPL-M2D452
