Amana LBP26AA5Y (BOM: P1141115N L)

Model: LBP26AA5Y (BOM: P1141115N L)

Save Part Not Listed?
product name

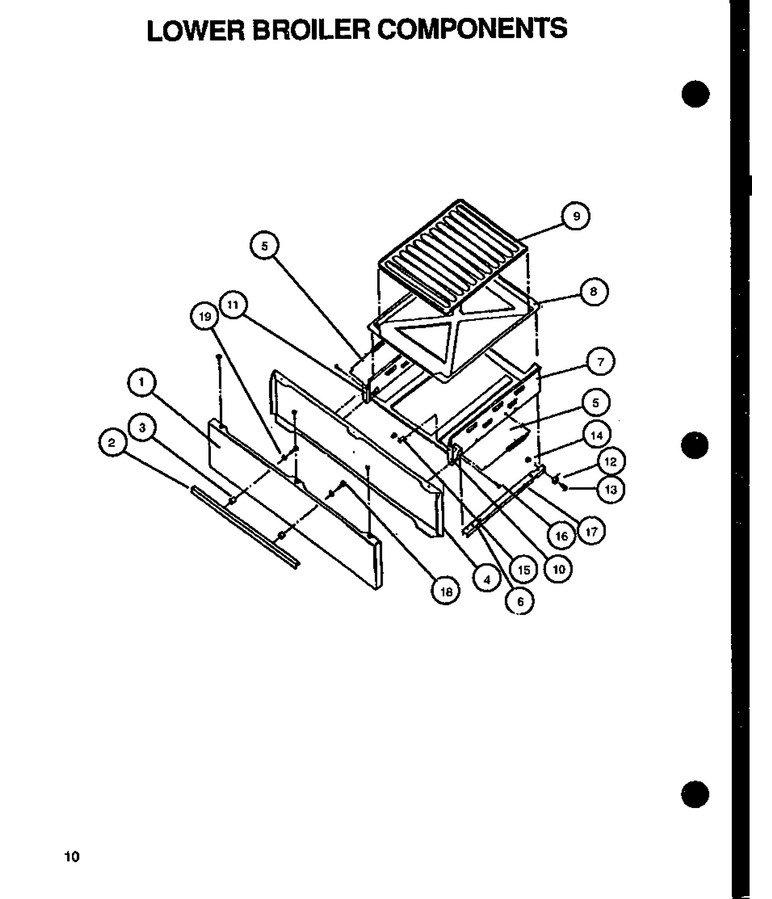

03 - Lower Broiler Components

...
...
1
Panel, Broiler Door (Alm) WPL-311882L
...
2
Oven Door Handle, 18`` WPL-Y0088812
...
3
Handle Spacer, Plastic (J) WPL-Y0310818
...
4
Liner, Broil Door,30`` WPL-312246E
...
5
Spring, Broiler Door WPL-Y07691101
...
6
Track, Broiler Drawer WPL-Y0311873
...
7
Drawer, Broiler WPL-86908CG
...
8
Pan, Broiler WPL-87722CG
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Hinge, Broiler Door Rh (J) WPL-0086907
...
11
Hinge, Broiler Door Lh (J) WPL-Y0086909
...
12
Roller Kit WPL-0310427
...
14
Nut WPL-M0282009
...
15
Plate, Broiler Hinge {j} WPL-Y0086774
...
16
Screw, Shoulder (J) WPL-Y0086773
...
17
Glide, Drawer (Wht) WPL-Y07674900
...
18
Screw, Door Handle WPL-Y0311884
...
19
Washer, Steel (1/4 X 9/16) WPL-Y0086729

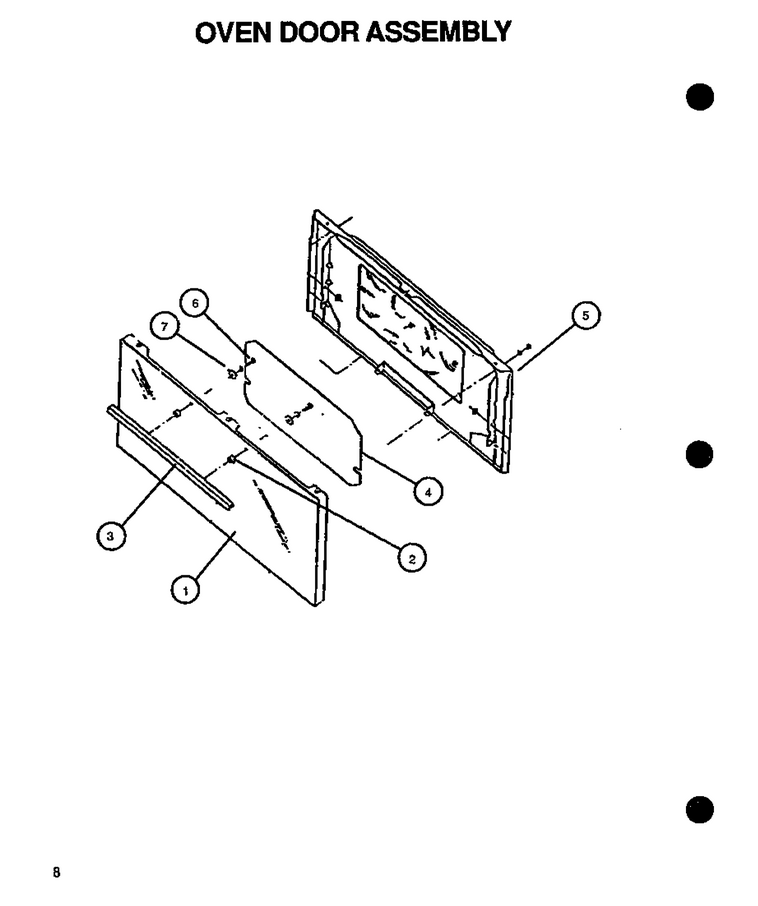

05 - Oven Door Assy

...
...
NI
Insulation, Wrapper WPL-31975801
...
1
Panel Oven Door 30`` Solid WPL-311083W
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Oven Door Handle, 18`` WPL-Y0088812
...
4
Ring, Insulation Hold Down WPL-0311754
...
5
Backer, Oven Door WPL-312046E
...
6
Screw, Door Handle WPL-Y0311884
...
7
Washer, Steel (1/4 X 9/16) WPL-Y0086729

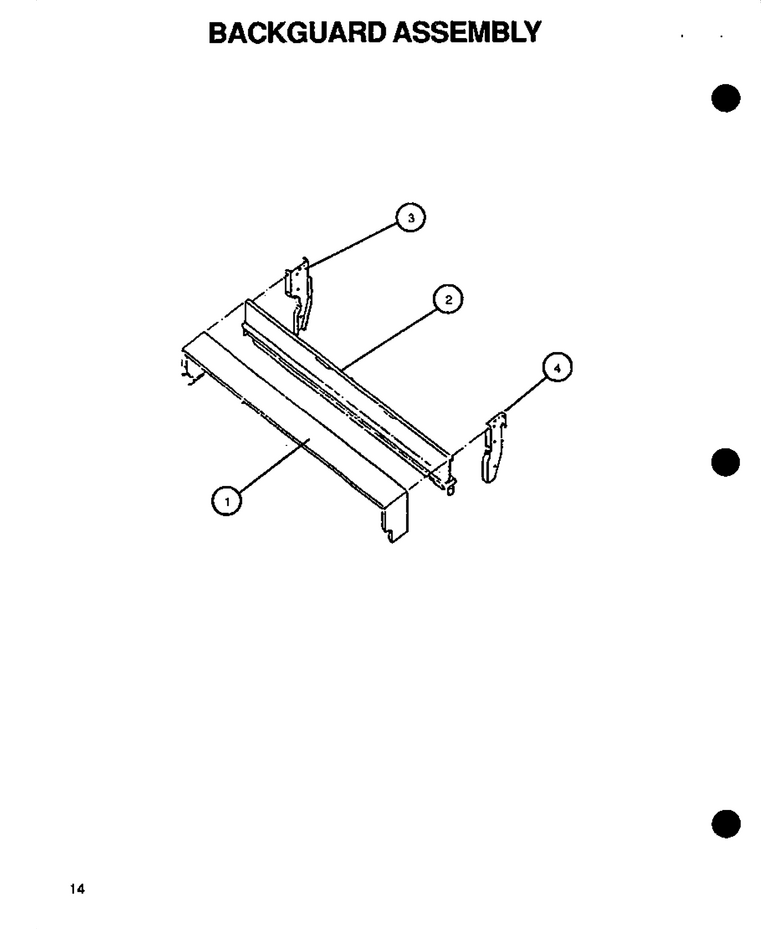

01 - Backguard Assy

...
...
1
Backguard Frame (J) WPL-0057319
...
2
Panel Backguard 30``black WPL-311542B
...
3
Support, Bkgd. (Low, Lh) {j} WPL-0310811
...
4
Support, Bkgd. (Low, Rh) {j} WPL-0310812

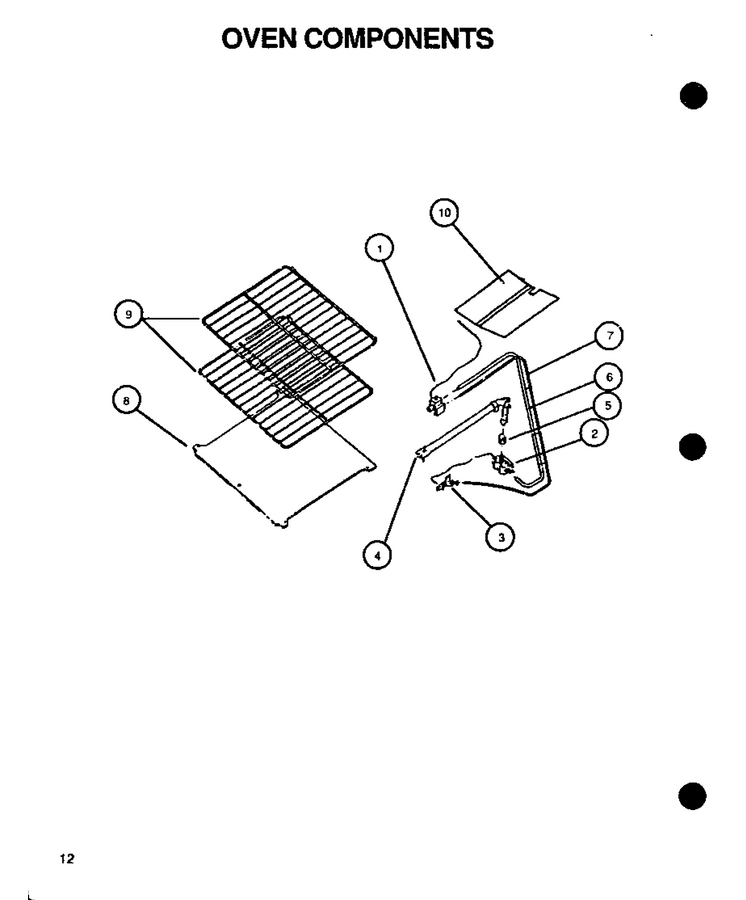

04 - Oven Components

...
...
1
Thermostat WPL-R0711030
...
2
Valve, Safety WPL-4157094
...
3
Pilot, Oven Burner (Standing) WPL-Y07697200
...
4
Oven Burner WPL-0311865
...
5
Air Shutter, Oven Burner WPL-0088799
...
6
Tubing WPL-0310297
...
7
Tubing WPL-Y0310298
...
8
Bottom, Oven (Enamel) WPL-311822E
...
9
Rack, Oven, 30`` WPL-Y07671200
...
10
Spreader, Flame W/o Notch WPL-0311821

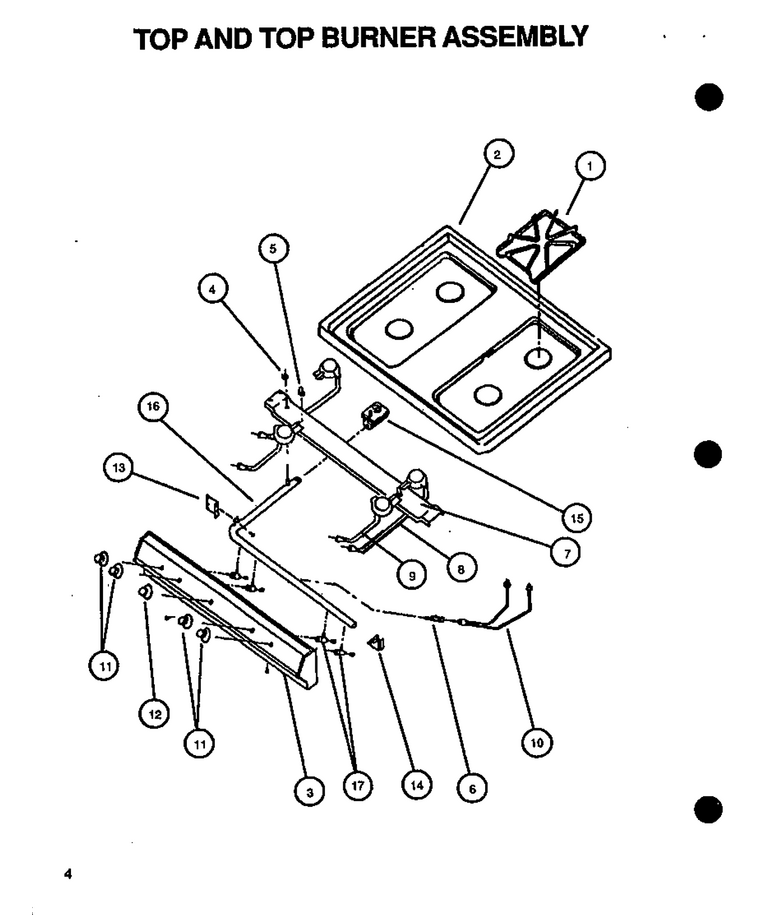

06 - Top And Top Burner Assy

...
...
1
Cooktop, Almond WPL-Y06461203L
...
2
Grate- Del WPL-Y07517400
...
3
Panel, Manifold (Gas 30) WPL-Y07622003A
...
4
Square Nut {j} WPL-0088650
...
5
Pilot Tip (J) WPL-0057313
...
7
Burner Support WPL-Y0312239
...
8
Burner - Top Rear (Glwd) WPL-Y0057358
...
9
Burner - Top Frt (Glwd) WPL-Y07698800
...
10
Tubing, Top Burner Pilot WPL-31827501
...
11
Knob, Top Burner WPL-Y0311080
...
12
Knob, T-Stat (Gasr WPL-Y0310525
...
13
Support, Manifold, L.h. {j} WPL-0086725
...
14
Support Bracket, Rh Manifold { WPL-0057340
...
15
Pressure Regulator WPL-77001246
...
16
Manifold Pipe WPL-0057336
...
17
Valve, Top Burner WPL-Y0057338

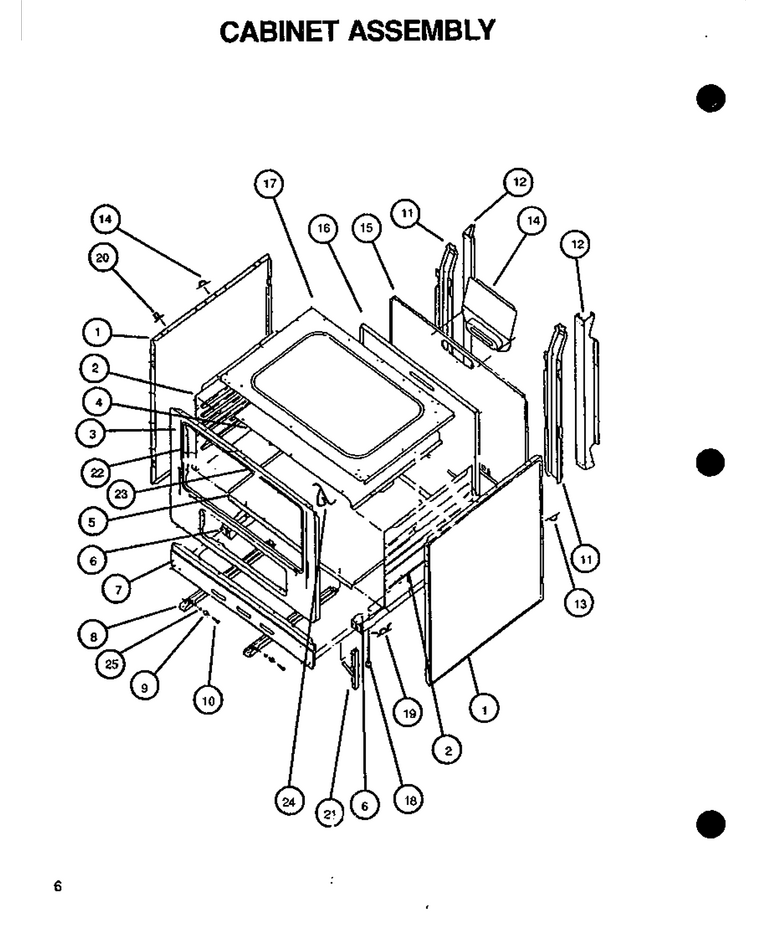

02 - Cabinet Assy

...
...
NI
Kit, Anti-Tip WPL-0312838
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
6
Rail, Base WPL-0088654
...
7
Toe Panel (J) WPL-0052744
...
8
Broiler Track, Lower, R.h.{j} WPL-0311077
...
11
Vertical Sup. (J) WPL-0052742
...
12
Support, Rear, Vertical {j} WPL-0056477
...
13
Bumper-Rubber 1/4`` WPL-Y02068200
...
14
Flue Box WPL-0310821
...
15
Pnl, Main Back Gas 30`` WPL-Y01392002
...
17
Box, Burner WPL-Y06469301E
...
18
Leg, Leveling WPL-Y0062362
...
19
Snap-In Tee Nut WPL-Y0088571
...
20
Stud, Locating - Nylon WPL-0311086
...
21
Hinge, Oven Door WPL-Y07489700
...
22
Seal, Oven-Sides WPL-Y0056090
...
23
Seal, Oven-Top & Bottom 30`` WPL-Y0056091
...
24
Clip, Capillary WPL-0310802
