Amana LA25700.A

Model: LA25700.A

Save Part Not Listed?
product name

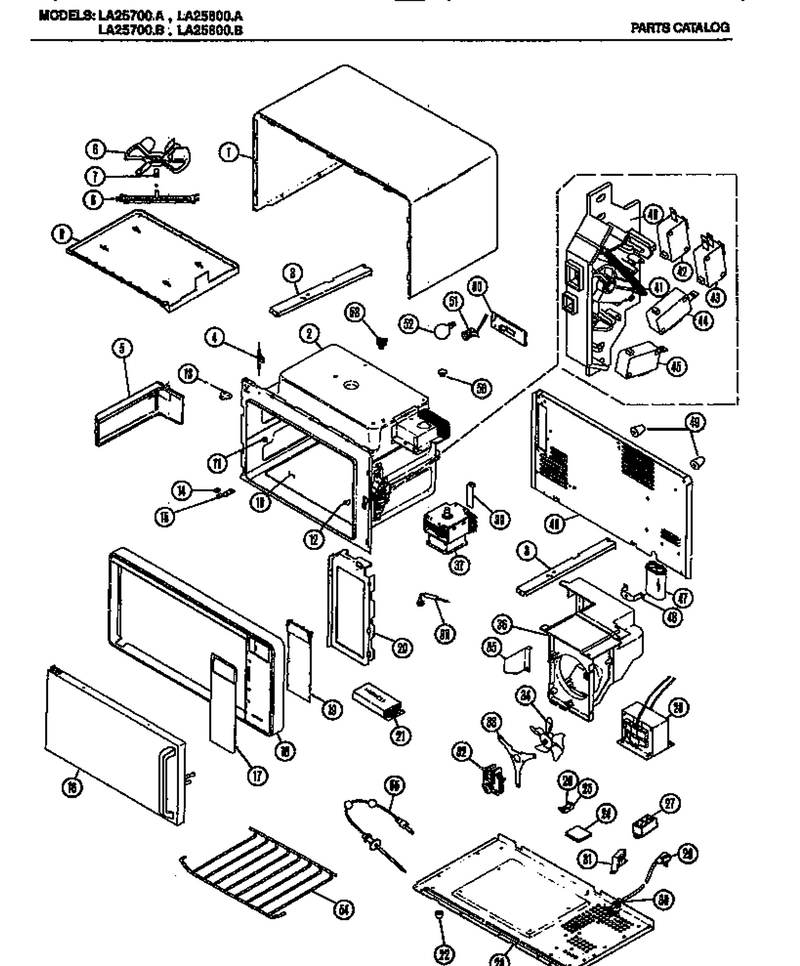

01 - Page 1

...
...
1
Outer Case WPL-M80D132
...
2
Cavity Assy WPL-M77D161
...
3
Screw WPL-WP90767
...
4
Sensor, Cavity Kit WPL-M4D102
...
5
Screw Plastc (25) WPL-M1D897
...
6
Stir Blade WPL-M35D59
...
7
Insert Stirrer Kit WPL-M2D571
...
8
Rivet-Plastcx WPL-42192P01
...
9
Poly Button WPL-M1D832
...
10
Adhesive WPL-W10841140
...
11
Support Rack WPL-B8371001
...
12
Rack Support C-Type Wht WPL-3010010002
...
13
Screw WPL-WP90767
...
14
Nylon Flat Washer WPL-40370P01
...
15
Lock Washer WPL-M0272803
...
16
Door Asy Kit WPL-M68D167
...
17
Mem Tch Pnl Kit WPL-M7D933
...
18
Screw (25) WPL-M1D970
...
19
Net-Assy,ckt Bd(rework) WPL-M32R72
...
20
Screw WPL-M0215116
...
21
Ground Lead Kit WPL-M5D351
...
22
Foot 4/pkg WPL-M2D534
...
23
Base WPL-M79D110
...
24
Triac WPL-M16D93
...
25
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
26
Fuse 20 A WPL-WPM0805101
...
27
Relay WPL-38806P01
...
28
Kit, Transformer WPL-M60D181
...
29
Power Cord WPL-1731300202
...
30
Strain Relief WPL-Y0057183
...
31
Lv Xfmr Otr Midline 120v WPL-1621200101
...
32
Nut K WPL-M0282005
...
33
Bracket Blower WPL-M20D219
...
34
Fan Blade WPL-M35D40
...
35
Baffle Cav Upper WPL-M65D337
...
36
Blower Duct WPL-M65D338
...
37
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
38
Sensor Magnetron Kit WPL-M4D101
...
39
Air Deflector WPL-M8D344
...
40
Intrlk Sw Hsng M20d331 WPL-4001010601
...
41
Spring Isa WPL-3050000201
...
42
Dr Sense Sw WPL-M14D297
...
43
Snap-Action Sw15a Spdt-No WPL-M14D294
...
44
Intl Sw Sec WPL-M14D295
...
45
Intl Sw Mon WPL-M14D296
...
46
Bracket WPL-10825501
...
47
Kit, Cap & Diode WPL-M10D118
...
48
Back Panel WPL-M82D226
...
49
Foot, Outer Case WPL-C8960601
...
50
Screw WPL-WP90767
...
51
Lamp Holder WPL-40082P01
...
52
Light Bulb WPL-8009
...
53
Probe Jack WPL-M14D292
...
54
Rack (white) Kit WPL-M67D44
...
55
Probe-Temp WPL-45584P01
...
56
Torx Driver, T-20 (m95d23) WPL-M95D23
