product name

Amana LA15610.A

Model: LA15610.A

Save Part Not Listed?
product name

01 - Page 1

...
...
1
Screw WPL-WP90767
...
2
Cavity Asy WPL-M77D157
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
Adhesive WPL-W10841140
...
5
Exhaust Duct Cavity WPL-M65D363
...
6
M9d107 Lamp WPL-2031415101
...
7
Lamp Socket WPL-M5D393
...
8
Access Door Asy Galv WPL-4180010303
...
9
Stirrer Shaft Ala15000 WPL-M2D784
...
10
Kit-Insert & Blade Stirrer WPL-R0130737
...
11
M2d782 Stirrer Insert WPL-3010011301
...
12
C-Washer Insert Ala15000 WPL-M1D959
...
13
Stirrer Coverx WPL-3010014501
...
14
Plate Nut WPL-45010P01
...
15
No.6 Flat Hd Machine Screw WPL-M1D60
...
16
Nylon Flat Washer WPL-40370P01
...
17
No.8-32 Pan Hd Mach Scr (25) WPL-M1D918
...
18
No.10 B X 3/4`` Screw WPL-5011010701
...
19
No.8 Ab X 3/8`` Screw WPL-M1D900
...
20
Door Frame Kit WPL-M70D179
...
21
Door Filler WPL-M55D28
...
22
Outer Window Kit WPL-M51D75
...
23
Door Screen Kit WPL-M70D177
...
24
Door Cvr Asy Ala15600/610 WPL-4200000403
...
25
Mem Tch Pnl 15610 M7d909 WPL-4001010401
...
26
Net-Assy,ckt Bd WPL-M32R68
...
27
Front Dec Fram WPL-M75D122
...
28
Screw WPL-WP98165
...
29
Spring Isa WPL-3050000201
...
30
Dr Sense Sw WPL-M14D297
...
31
Snap-Action Sw15a Spdt-No WPL-M14D294
...
32
Intl Sw Sec WPL-M14D295
...
33
Intl Sw Mon WPL-M14D296
...
34
Kit, Cap & Diode WPL-M10D140
...
35
Screw WPL-WP489464
...
36
Screw (25) WPL-M1D590
...
37
Screw (25) WPL-M1D590
...
38
Fuse 20 A WPL-WPM0805101
...
39
Ia Screw WPL-M1D329
...
40
Transmotor Kit WPL-M12D118
...
41
Blwr Bracket WPL-M20D332
...
42
Retainer WPL-M1D892
...
43
Screw (25) WPL-M1D963
...
44
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
45
Thermal Prot Kit WPL-M4D115
...
46
Screw (25) WPL-M1D963
...
47
Xfmr-Hv WPL-R9700031
...
48
Screw WPL-WP90767
...
49
Foot 4/pkg WPL-M2D534
...
50
No.8 Spring Lockwasher (25) WPL-M1D57
...
51
5149-M WPL-M2D789
...
52
Rivet, Pop WPL-A4539629
...
53
Screw WPL-WP90767
...
54
Cord Wrap WPL-M8D371
...
55
Harness WPL-M27D433
...
56
3/8 Int Tooth Lockwasher WPL-M1D598
...
57
Probe-Temp WPL-45584P01
...
58
Filter WPL-M10D126
...
59
Rack Ala15000 WPL-M67D47
...
60
Rack Support C-Type Wht WPL-3010010002
...
61
Bowl, Power Test Kit WPL-M95D5

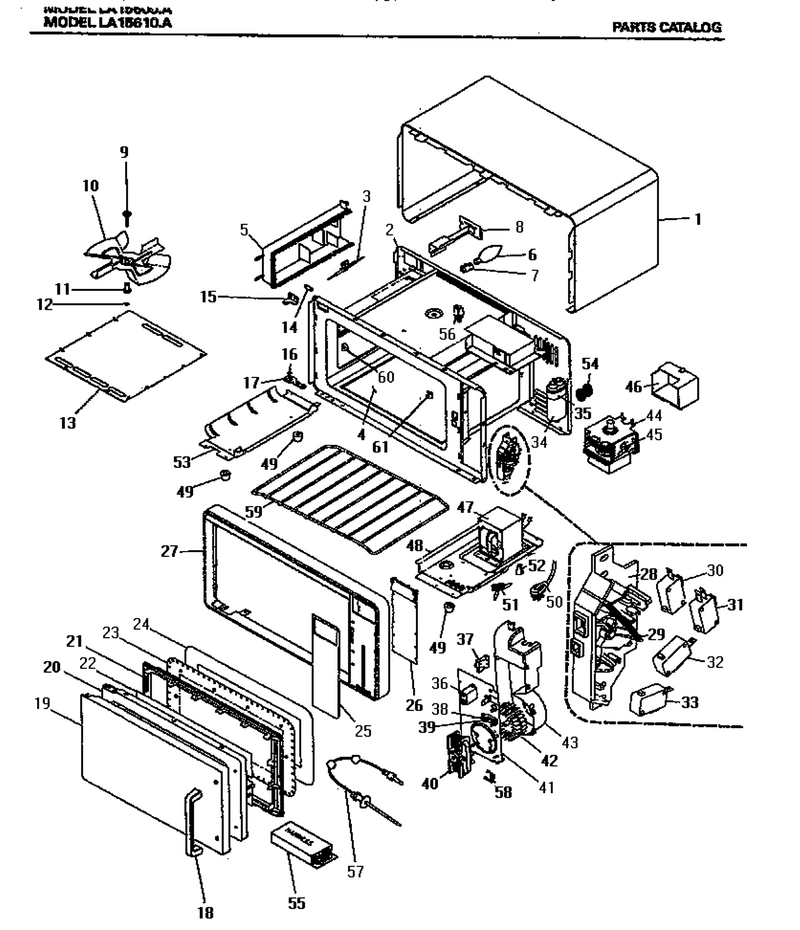

Schematic Image Zoomed
