Amana LA15500.A

Model: LA15500.A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

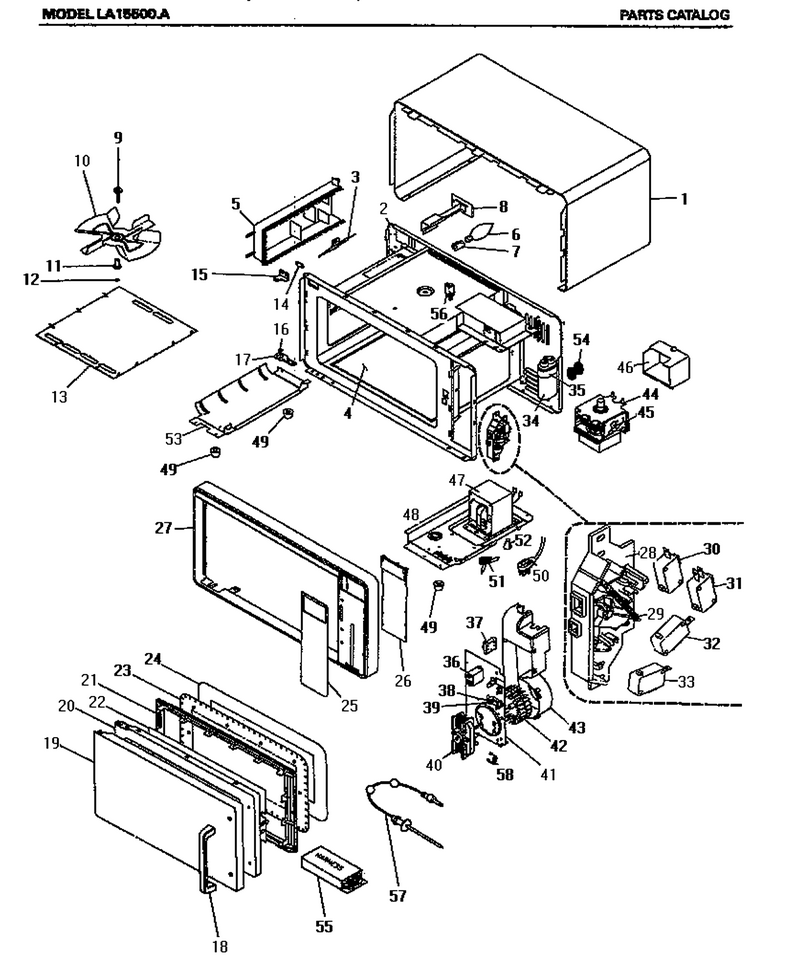

01 - Page 1

...
...
1
Wrap 15000 Wood WPL-M80D128
...
2
Cavity Asy WPL-M77D157
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
Adhesive WPL-W10841140
...
5
Exhaust Duct Cavity WPL-M65D363
...
6
M9d107 Lamp WPL-2031415101
...
7
Lamp Socket WPL-M5D393
...
8
Access Door Asy Galv WPL-4180010303
...
9
Stirrer Shaft Ala15000 WPL-M2D784
...
10
Kit-Insert & Blade Stirrer WPL-R0130737
...
11
M2d782 Stirrer Insert WPL-3010011301
...
12
C-Washer Insert Ala15000 WPL-M1D959
...
13
Stirrer Coverx WPL-3010014501
...
14
Plate Nut WPL-45010P01
...
15
No.6 Flat Hd Machine Screw WPL-M1D60
...
16
Nylon Flat Washer WPL-40370P01
...
17
No.8-32 Pan Hd Mach Scr (25) WPL-M1D918
...
18
Handle Kit WPL-M11D93
...
19
Outer Dr Cvr WPL-M70D181
...
20
Door Frame WPL-M70D182
...
21
Door Filler WPL-M55D30
...
22
Outer Window WPL-M51D78
...
23
Door Screen Kit WPL-M70D180
...
24
Door Cvr Asy Ala15400/500 WPL-M51D77
...
25
Mem Tch Pnl Kit WPL-M7D911
...
26
Net-Assy,ckt Bd WPL-M32R68
...
27
Screw WPL-WP489464
...
28
Screw WPL-WP98165
...
29
Spring Isa WPL-3050000201
...
31
Snap-Action Sw15a Spdt-No WPL-M14D294
...
32
Intl Sw Sec WPL-M14D295
...
33
Intl Sw Mon WPL-M14D296
...
34
Kit, Cap & Diode WPL-M10D140
...
35
Cap Brkt WPL-M8D370
...
36
Relay WPL-38806P01
...
37
Triac WPL-M16D93
...
38
Fuse 20 A WPL-WPM0805101
...
39
Ia Screw WPL-M1D329
...
40
Nut WPL-WP488130
...
41
Screw WPL-WP489464
...
42
Kit, Blower Wheel WPL-R0163293
...
43
Screw (25) WPL-M1D963
...
44
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
45
Thermal Prot Kit WPL-M4D115
...
46
Screw (25) WPL-M1D963
...
47
Xfmr-Hv WPL-R9700031
...
48
Bottom Panel Right WPL-M79D106
...
49
Foot 4/pkg WPL-M2D534
...
50
No.8 Spring Lockwasher (25) WPL-M1D57
...
51
5149-M WPL-M2D789
...
52
Rivet, Pop WPL-A4539629
...
53
Bottom Panel Left WPL-M79D107
...
54
Cord Wrap WPL-M8D371
...
55
Harness WPL-M27D433
...
56
Probe Jack WPL-M14D292
...
57
Probe-Temp WPL-45584P01
...
58
Filter WPL-M10D126
