Amana KG6539

Model: KG6539

Save Part Not Listed?
product name

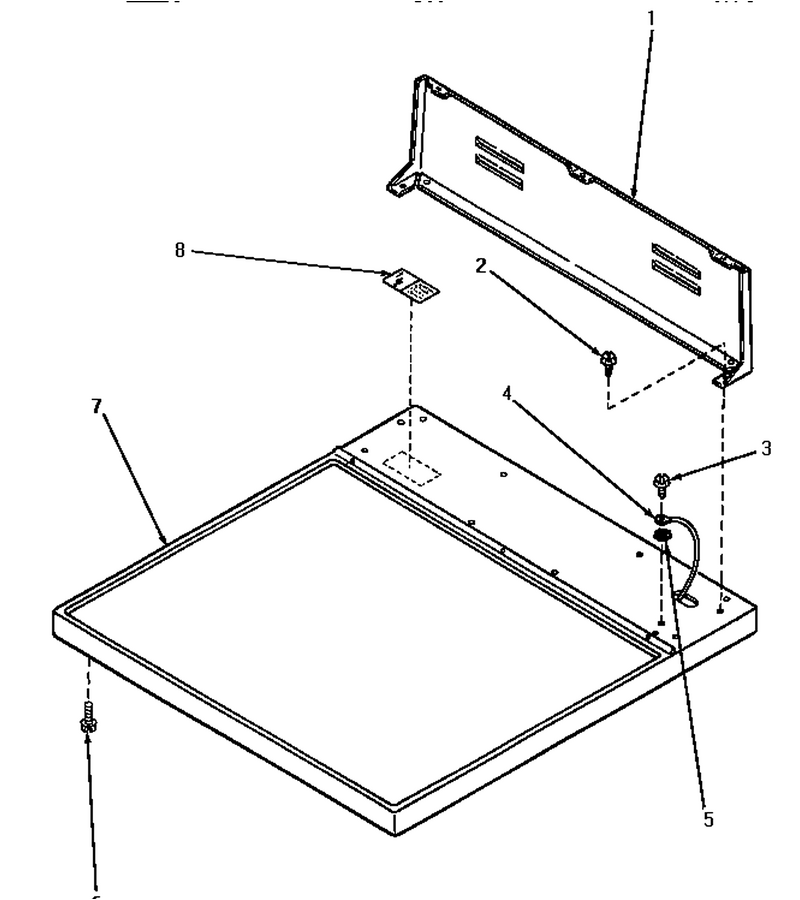

01 - Cabinet Top & Control Hood Rear Panel

...
...
1
Panel,back(Home Hood) WPL-40051401P
...
2
Screw WPL-WP90767
...
3
Screw WPL-WP3351614
...
4
See Note Ground Wire, Green WPL-Y00000000
...
5
Lockwasher,no.10 Ext Shk WPL-03815
...
6
Screw WPL-WP27001200
...
7
Cabinet Top, Almond WPL-60815L
...
8
Sticker WPL-28328

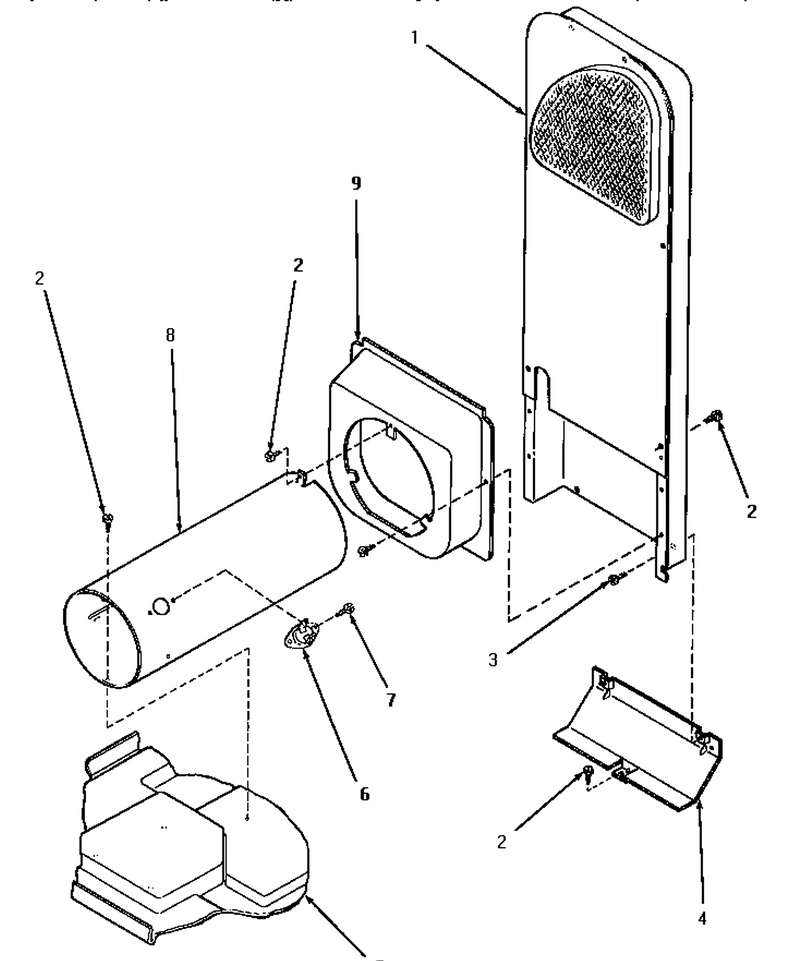

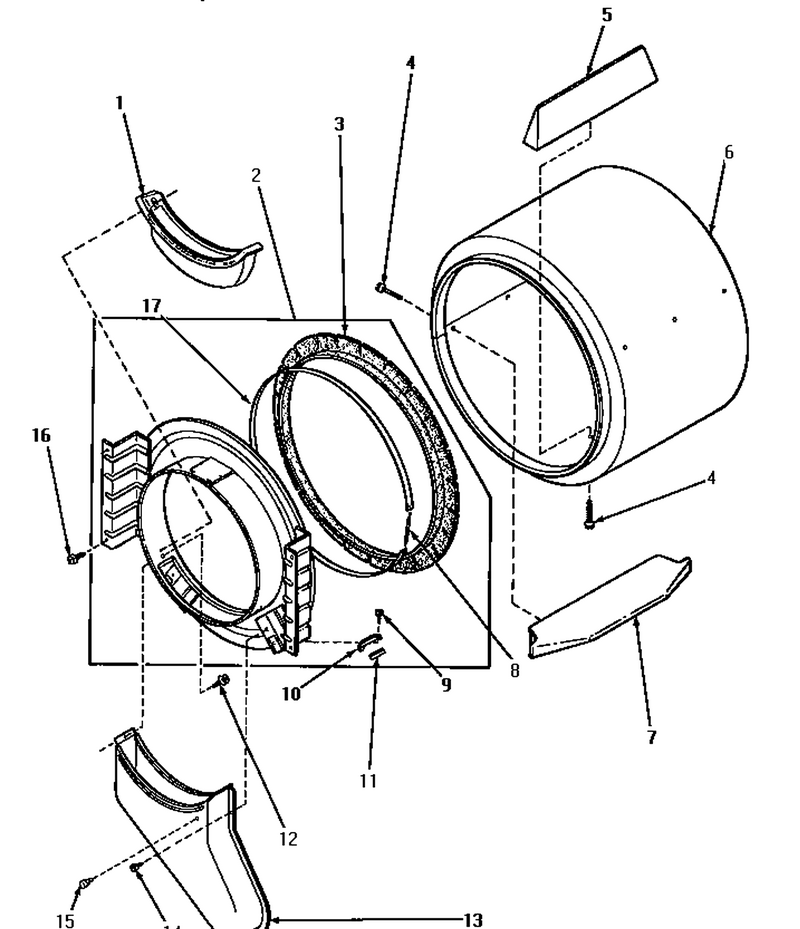

03 - Fr Blkhd, Air Duct, Felt Seal & Cylinder

...
...
1
Screen WPL-61376
...
2
Assy,bulkhead-Front WPL-61835W
...
3
Seal Asm WPL-WP56088
...
4
Screw,10bt X 1 Tapping WPL-56131
...
5
Baffle,cylinder-Short- WPL-Y61399
...
6
Assy,cylinder-White WPL-61073P
...
7
Baffle,cylinder-Extend WPL-Y61027
...
8
Spring WPL-52310
...
9
Screw WPL-WP90767
...
10
Bracket WPL-WP57005
...
11
Pad,thin WPL-58049
...
12
Screw WPL-WP489464
...
13
Assy,air Duct-Front WPL-60786
...
14
Screw,8-18 X 3/8 Tappi WPL-56392
...
15
Bumper WPL-56938
...
16
Screw WPL-WP27001200
...
17
Strap, Seal WPL-56090P

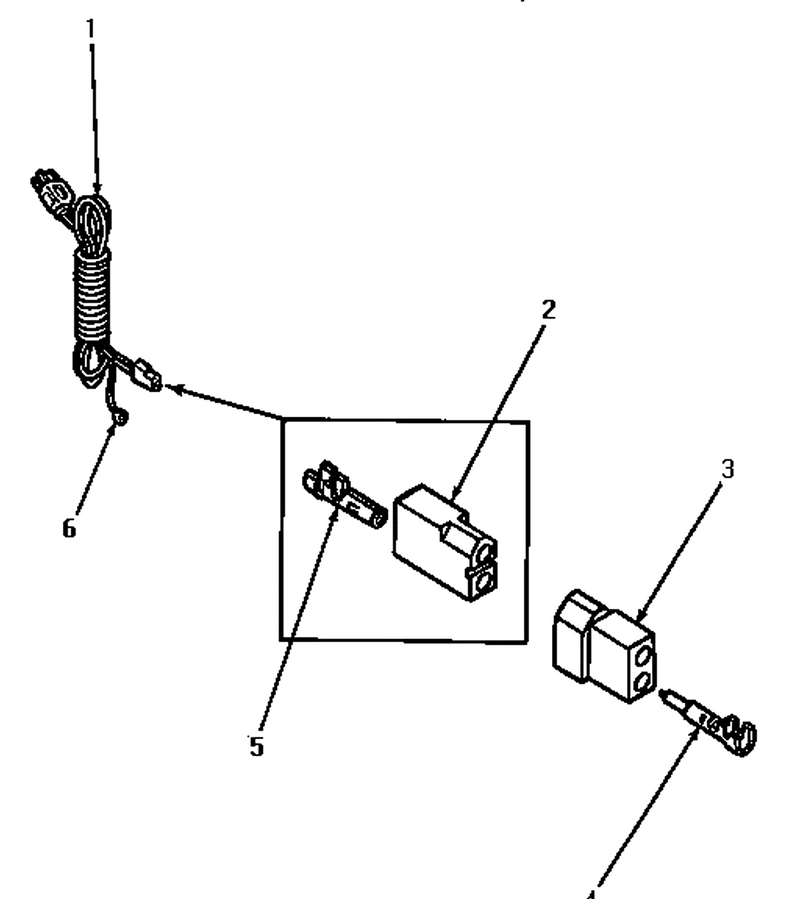

10 - Power Cord

...
...
1
Cord- Powe WPL-WP27001142
...
2
Receptacle,2 Circuit WPL-56265
...
3
Plug WPL-56266
...
4
Terminal,pin-1/8 Male WPL-Y00127
...
5
Terminal,pin-1/8 Femal WPL-00130
...
6
See Note Ground Wire, Green WPL-Y00000000

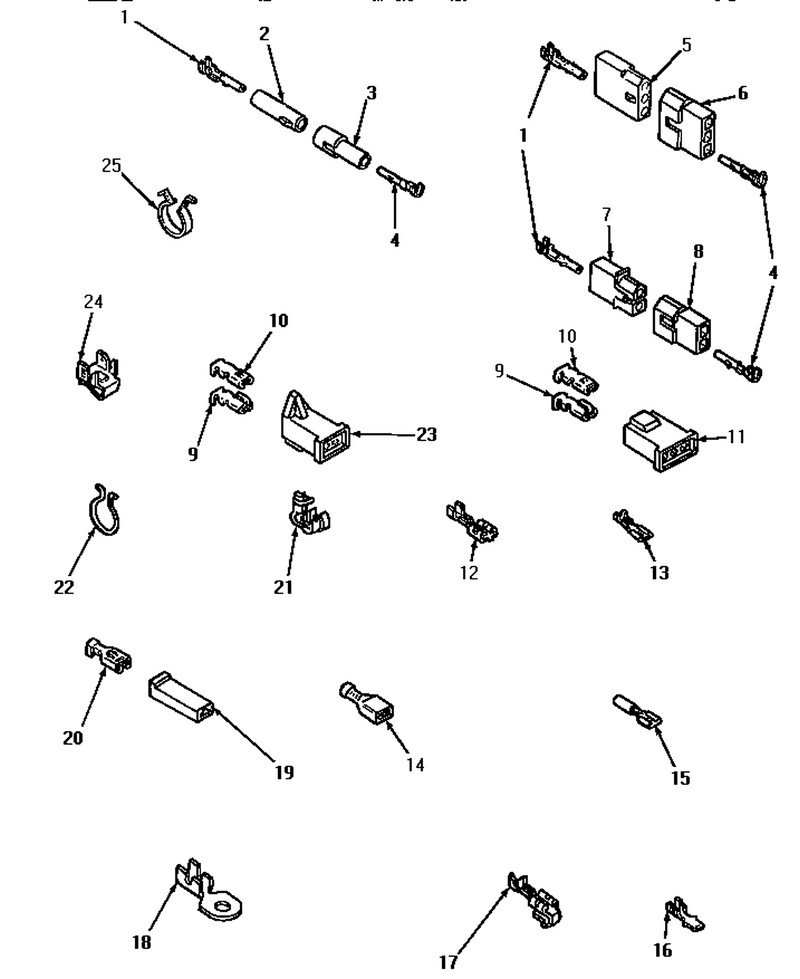

12 - Terminals

...
...
1
Female Socket Terminal WPL-Y00117
...
2
Receptacle,molex WPL-26301
...
3
Plug,1 Circuit WPL-26302
...
4
Terminal,pin-Male WPL-Y00116
...
5
Receptacle, (Gas Valve) WPL-697780
...
6
Plug, 3 Circuit WPL-23040
...
7
Receptacle,2 Circuit WPL-56451
...
8
Plug 2 Circuit WPL-56448
...
9
Connector,receptacle WPL-Y00190
...
10
Terminal,spade WPL-Y00189
...
11
Connector,3 Circuit WPL-58800
...
12
Spade Terminal(18 Gauge) WPL-Y00119
...
13
Terminal,3/16 Spade WPL-Y00209
...
14
Terminal WPL-WP285432
...
15
Terminal,1/4 Spade Pre WPL-Y00215
...
16
Terminal,tab 1/4 Male WPL-Y00138
...
17
Terminal,spade-1/4 Fem WPL-Y00114
...
18
Terminal,ring-10 Stud WPL-Y00111
...
19
Connector WPL-90789
...
20
Terminal,spade-1/4 Fem WPL-Y00115
...
21
Grommet, Cord WPL-211881
...
22
Clip,wire WPL-51291
...
23
Connector,2 Circuit WPL-58799
...
24
Ground Clip WPL-Y00161
...
25
Clip,wire WPL-61510

07 - Heater Box

...
...
1
Heater Box WPL-6116P
...
2
Screw WPL-WP27001200
...
3
Screw WPL-WP3390631
...
4
Cover Plate WPL-61203
...
5
See Note Base WPL-Y00000000
...
6
Limit Thermostat WPL-489P3
...
7
Screw, 6b-20x5/16 WPL-51782
...
8
Burner Housing WPL-61974
...
9
Shroud, Heat Duct WPL-500122

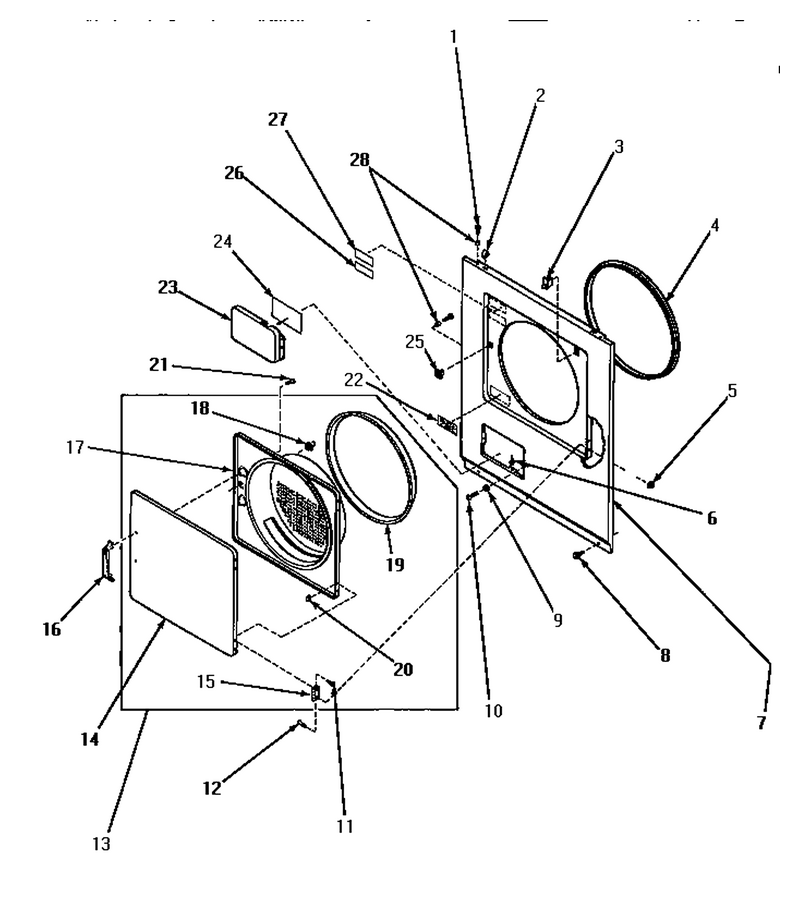

08 - Loading Door, Front Panels & Access Door

...
...
1
Screw WPL-WPY014874
...
2
Fastener- WPL-WP22001650
...
3
Switch-Dor WPL-W10169313
...
4
Seal,front Panel WPL-Y61380
...
5
Nut WPL-WP488130
...
6
Barrel,support WPL-56534
...
7
Front Panel, Harvest Gold WPL-60853H
...
8
Screw WPL-WP27001200
...
9
Washer,11/64idx1/16odx WPL-21147
...
10
Screw,8ab X 1 Truss Hd WPL-Y57444
...
11
Screw, 8b-16x5/8 Tap WPL-500226
...
12
Screw,8-32 X 13/32 Fl WPL-22649
...
13
Assy-Door WPL-62300H
...
14
Outer Door Panel, White WPL-60770W
...
15
Hinge (Dryer) WPL-56045
...
16
Pull,door WPL-54068P
...
17
Inner Door Panel, Almond WPL-60668L
...
18
Door Catch La-1003 WPL-LA-1003
...
19
Door Seal WPL-61379
...
20
Nut,speed-8a Tinn C15 WPL-23407
...
21
Screw WPL-WP489464
...
22
Sticker WPL-Y502804
...
23
Door,access WPL-60795L
...
24
Sticker WPL-61503
...
25
Door Catch La-1003 WPL-LA-1003
...
26
Sticker,caution WPL-55481
...
27
Sticker WPL-55480
...
28
Locator, Panel WPL-505187

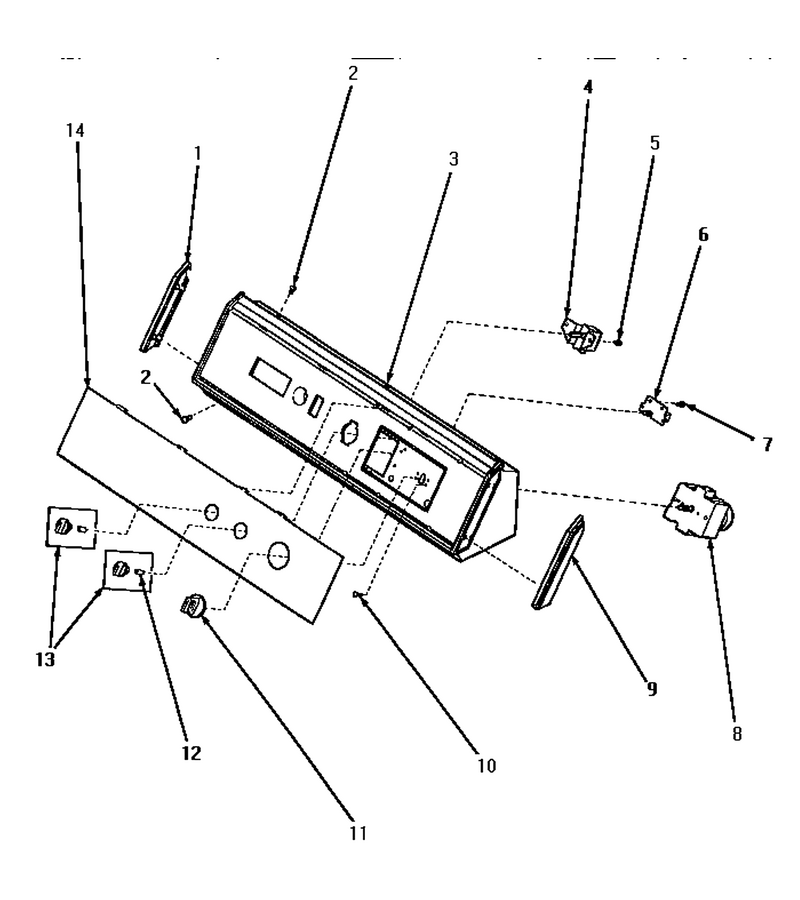

05 - Graphics Panel, Conrol Hood & Controls

...
...
1
Cap,end-L.h.-Chrome WPL-31249
...
2
Screw,no.8abx3/4 Pozidri WPL-31752
...
3
Assy,hood & Mounting P WPL-59955
...
4
Signal,rotary WPL-59447
...
5
Screw, No.8 X 3/8 Ind H WPL-31260
...
6
Switch,rotate-To-Start WPL-59450
...
7
Screw WPL-WP90767
...
8
Timer,5 Cycle WPL-61402
...
9
Cap,end-R.h.-Chrome WPL-31248
...
10
Screw WPL-WP90767
...
11
Assy,timer Knob & Skir WPL-59791
...
12
Retainer WPL-10519
...
13
Assy,knob-Rotary-Blk/o WPL-31286
...
14
See Note Graphics Panel -- (See Note) WPL-Y00000000

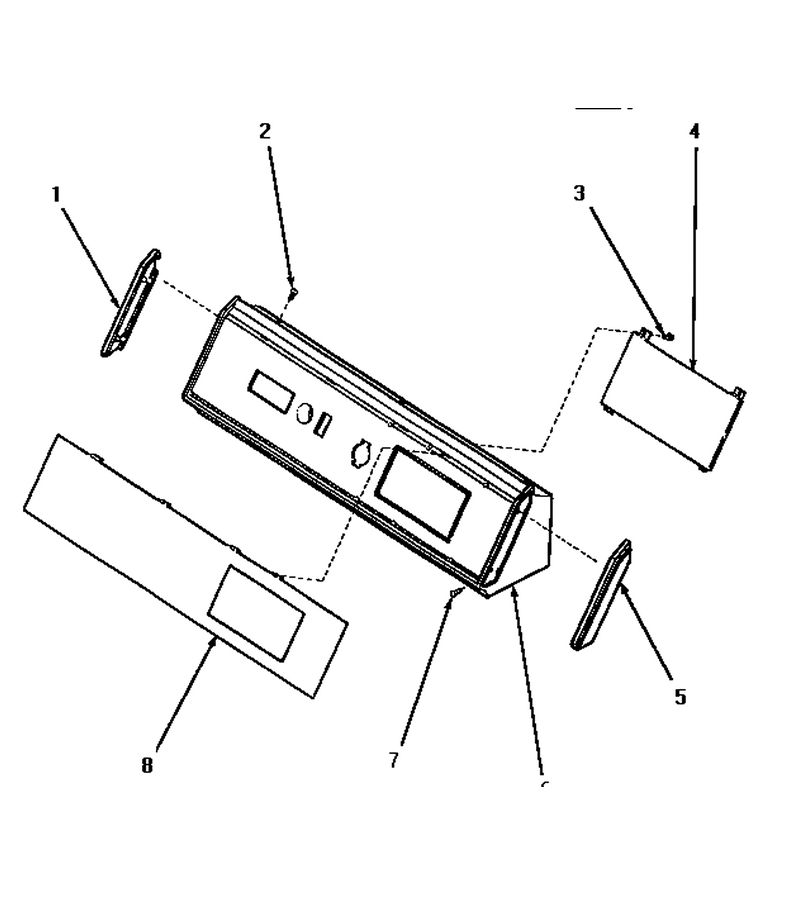

06 - Graphics Panel, Control Hood & Controls

...
...
Order Graphics Panel From The Source Where The Dryer Was Purchased. Include Thecomplete Model And Serial Numbers With Order. WPL-NOTE:
...
1
Cap,end-L.h.-Chrome WPL-31249
...
2
Screw,no.8abx3/4 Pozidri WPL-31752
...
3
Screw, No.8 X 3/8 Ind H WPL-31260
...
4
Electrical Control Kit WPL-59609
...
5
Cap,end-R.h.-Chrome WPL-31248
...
6
Hood,dryer-Black WPL-59606
...
7
Screw,no.8abx3/4 Pozidri WPL-31752
...
8
See Note Graphics Panel -- (See Note) WPL-Y00000000

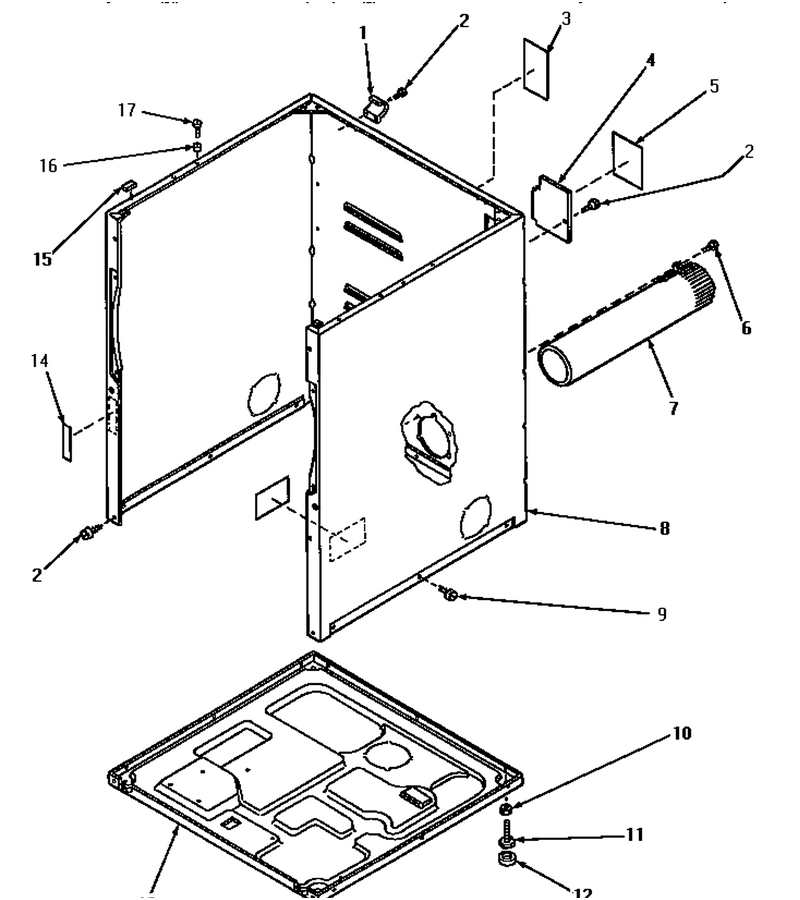

02 - Cabinet, Exhaust Duct & Base

...
...
1
Hinge, Top WPL-60826
...
2
Screw WPL-WP27001200
...
3
Sticker WPL-61503
...
4
Acess Cover WPL-60821
...
5
Sticker,safety-Disconn WPL-58871
...
6
Screw,8-18 X 3/8 Tappi WPL-56392
...
7
Assy, Exhaust Duct WPL-56118
...
8
Assy,dryer Cabinet WPL-60813H
...
9
Screw WPL-WP27001200
...
10
Nut WPL-WP62739
...
11
Feet-Lvlng WPL-W10176519
...
12
Foot- Rubb WPL-WPY314137
...
13
Assy,base-Complete WPL-60811
...
14
Sticker WPL-28328
...
15
Pad, Bumper WPL-Y56128
...
16
Locator, Panel WPL-505187
...
17
Screw WPL-WPY014874

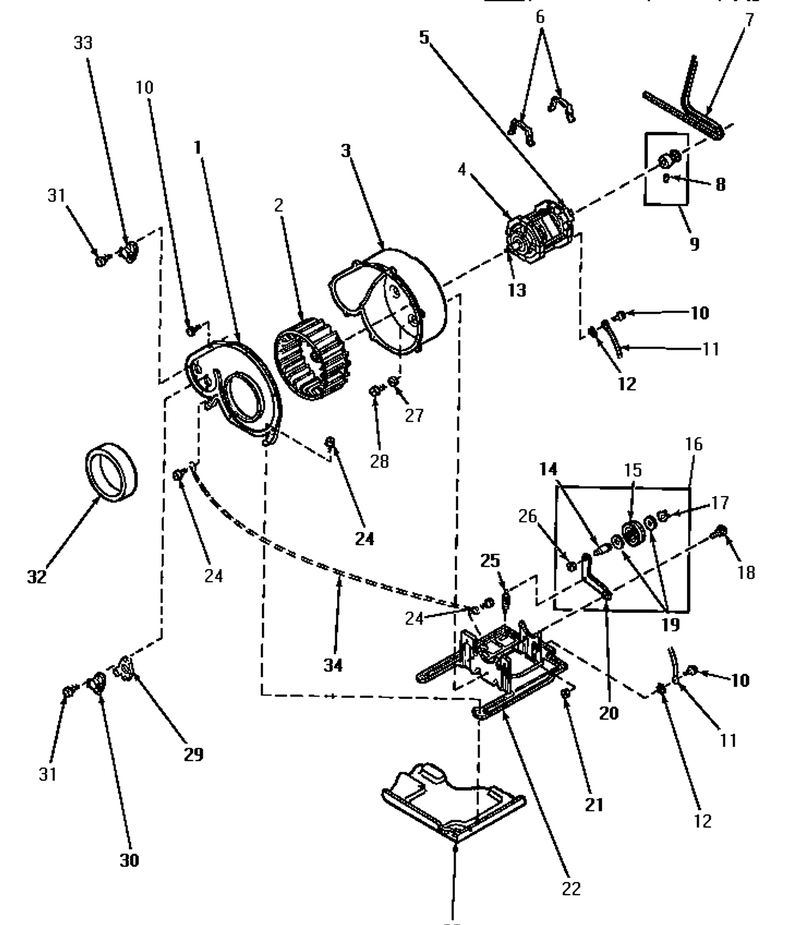

09 - Motor, Exhaust Fan & Belt

...
...
NI
Cover Plate WPL-61203
...
1
Cover,blower Housing Xreplace WPL-60818
...
2
Assembly, Blower Fan WPL-56000
...
3
Housing, Blower WPL-56020
...
4
Motor-Drve WPL-WP915P3
...
5
Switch WPL-53249
...
6
Clamp WPL-WP660658
...
7
Belt WPL-WP40111201
...
8
Setscrew WPL-52906
...
9
Motor Pulley Assembly WPL-59173
...
10
Screw WPL-WP90767
...
11
See Note Ground Wire, Green WPL-Y00000000
...
12
Lockwasher,no.10 Ext Shk WPL-03815
...
13
Never-Seeze 1 Oz Tube WPL-27604P
...
14
Shaft WPL-WP56461
...
15
Pulley-Idr WPL-WPY54414
...
16
Lever-Idl WPL-WP56170P
...
17
Ring- Reta WPL-WP23748
...
18
Screw,1/4-20 Hex Hd Sh WPL-56587
...
19
Washer WPL-WP233520
...
20
Lever,idler WPL-56057
...
21
Nut WPL-WPW10139757
...
22
Mount, Motor WPL-503613
...
23
See Note Base WPL-Y00000000
...
24
Screw WPL-WP3390631
...
25
Spring- Id WPL-WP56076
...
26
Nut, 3/8-16 Serrated WPL-56156
...
27
Washer WPL-M0270504
...
28
Screw WPL-WP27001200
...
29
Heatr-Stat WPL-WP61623
...
30
Thermostat WPL-WPY61372
...
31
Screw WPL-WP3177991
...
32
Seal WPL-56065
...
33
Thermostat WPL-56410
...
34
See Note Green Ground Wire -- (Through Serial No. S6181364xa) WPL-Y00000000

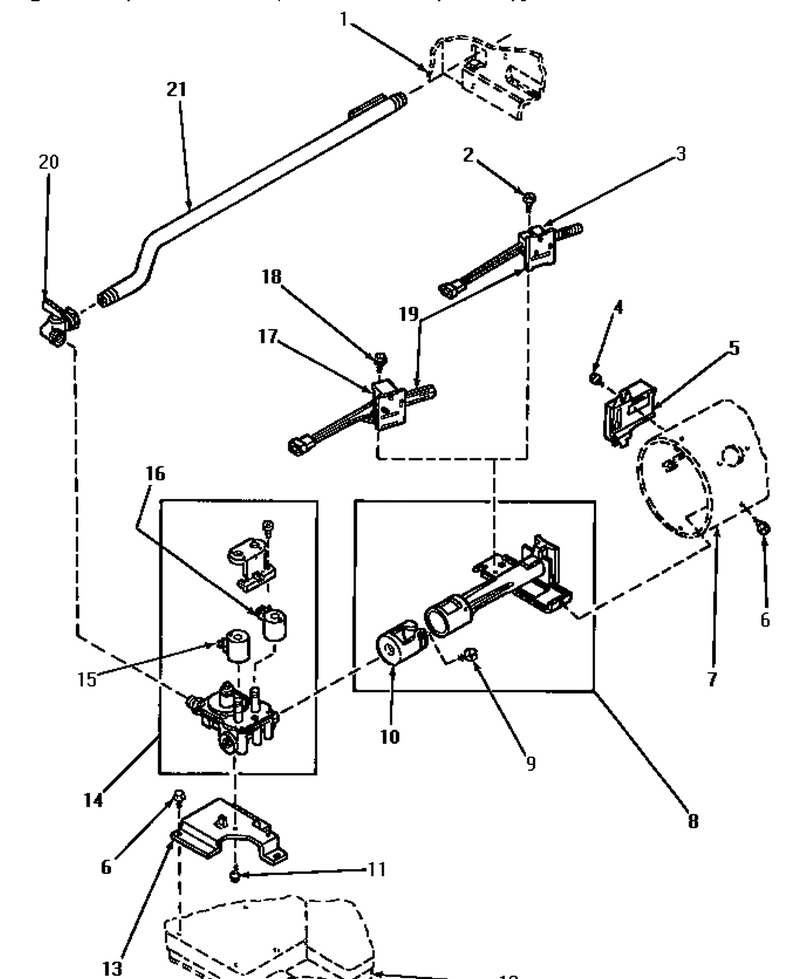

04 - Gas Valve, Igniter & Gas Conversion Kits

...
...
1
See Note Cabinet WPL-Y00000000
...
2
Screw,no.6-20x.44/.41 In WPL-56693
...
3
See Note Carborundum Igniter And Bracket WPL-Y00000000
...
4
Screw WPL-WP3177991
...
5
Sensor WPL-WP338906
...
6
Screw WPL-WP27001200
...
7
See Note Burner Housing WPL-Y00000000
...
8
Assembly, Burner WPL-Y56234
...
9
Screw,6-32 X 5/16 Rd H WPL-51356
...
10
Shutter,air WPL-53007
...
11
Screw WPL-WP489128
...
12
See Note Base WPL-Y00000000
...
13
Complete T WPL-WFR500821
...
14
Assy,valve-Gas-Single- WPL-58804
...
15
Coil-Valve WPL-279834
...
16
Coil-Valve WPL-279834
...
17
See Note Norton Igniter And Bracket WPL-Y00000000
...
18
Screw,no.6-20x.44/.41 In WPL-56693
...
19
Ignitor WPL-WP37001308
...
20
Valve,elbow Shut-Off WPL-Y56229
...
21
Assy,lead-In Pipe WPL-58911

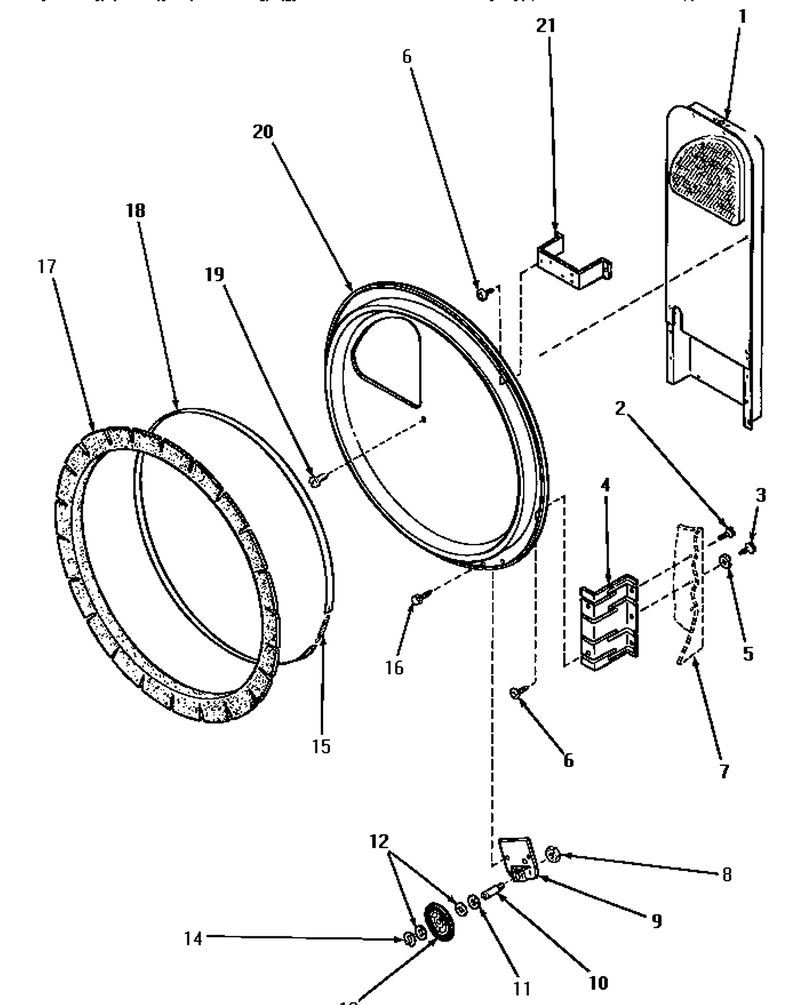

11 - Rear Blkhd, Felt Seal & Cylinder Roller

...
...
1
See Note Heater Box WPL-Y00000000
...
2
Screw WPL-WP27001200
...
3
Screw,10b-16 X 1/2 Hex WPL-52909
...
4
Bracket,bulkhead-Rear WPL-56055
...
5
Washer,13/64idx1/2odx. WPL-51474
...
6
M400664 WPL-56078
...
7
See Note Cabinet WPL-Y00000000
...
8
Nut, 3/8-16 Serrated WPL-56156
...
9
Bracket,cylinder Roller WPL-56042
...
10
Shaft WPL-WP56461
...
11
Washer,.578idx1.25odx1 WPL-23886
...
12
Washer WPL-WP233520
...
13
Cylinder Roller WPL-56457
...
14
Ring- Reta WPL-WP23748
...
15
Spring WPL-52310
...
16
Screw WPL-WP489464
...
17
Seal Asm WPL-WP56088
...
18
Strap, Seal WPL-56090P
...
19
Screw WPL-WP489464
...
20
Bulkhead, White WPL-61127P
...
21
Terminal Block Bracket WPL-60823
